Product Type	Tablet
Brand	Manta
Model	PowerTab MID15
Display Size	10.1 inches (approx.)
Dimensions	240 x 170 x 9 mm (approx.)
Weight	510 g (approx.)
Battery Capacity	5000 mAh (typical)
Operating System	Android (likely)
Processor	Quad-core 1.3 GHz (approx.)
RAM	2 GB (typical)
Storage	32 GB (typical)
Camera	Front and rear cameras (2 MP / 5 MP approx.)
Connectivity	Wi-Fi 802.11 b/g/n, Bluetooth 4.0
Ports	Micro USB, 3.5 mm headphone jack, microSD slot
Power Supply	DC 5V 2A via micro USB
Maintenance	Clean with a soft, dry cloth; avoid liquids
Safety	Do not expose to water, heat, or drop
Spare Parts	Contact Manta customer support
General Information	User manual available for free download in multiple languages

Frequently Asked Questions - PowerTab MID15 Manta

How do I charge the Manta PowerTab MID15?

Use the included micro USB cable and a 5V 2A charger. Plug into the device and a power outlet.

Can I expand the storage?

Yes, the tablet has a microSD card slot supporting up to 128 GB.

How do I factory reset the tablet?

Go to Settings > Backup & reset > Factory data reset. This will erase all data.

Does the tablet support Bluetooth?

Yes, it supports Bluetooth 4.0 for connecting headphones, speakers, etc.

What is the screen resolution?

The display has a resolution of 1280 x 800 pixels (typical).

How do I update the Android system?

Check for updates in Settings > About tablet > System updates. Follow on-screen instructions.

Can I use a keyboard with this tablet?

Yes, via Bluetooth or an OTG adapter for USB keyboards.

Why is the tablet not turning on?

Press and hold the power button for 10 seconds. If still off, charge for 30 minutes and try again.

How do I take a screenshot?

Press and hold the Power and Volume Down buttons simultaneously until the screen flashes.

Is the battery removable?

No, the battery is built-in and should be replaced by a professional.

USER MANUAL PowerTab MID15 Manta

Abstract black-and-white circular logo with interlocking curved shapes (no text or symbols)

MANTA

Tablet PowerTab HD

MID15

Instrukcja obsługi

User's Manual

Bedienungsanleitung

Használati útmutató

Návod k obsluze

Vartotojo instrukcija

INSTRUKCJA OBSŁUGI

Krok 2:

INSTRUKCJA OBSŁUGI

Black-and-white photo of maple leaves partially obscured by tree branches, no visible text or symbols

INSTRUKCJA OBSŁUGI

INSTRUKCJA OBSŁUGI

Dźwięk

INSTRUKCJA OBSŁUGI

Pamięć

INSTRUKCJA OBSŁUGI

INSTRUKCJA OBSŁUGI

This handbook contains important security measures and the correct use of the product information, in order to avoid accidents. PIs make sure to reading the manual carefully before use the device.

Please don't be in high temperature, moisture or very dust place – Please don't be in high temperature, Especially in summer don't put – the device in the car when Windows closed.

-Avoid fall or Violent collision of the device, don't make the TFT display screen were violent tremor. This could cause TFT display screen abnormal or damage.

Please choose the appropriate volume, Use headphones should not – be too big volume, If feel tinnitus, Lower the volume or stop using it please charge In the following condition,

A. The battery power ICONS shows have no power
B. The system automatically shut off, startup after power off soon
C. Operation buttons no response

• When the device in the format or ongoing upload and download file, please don't suddenly disconnect, This could cause application error.
  -For those who because of damage to the product, repair, or other causes of erased the memory, The company shall not be liable for any responsibility, please follow the user manual for the standardized operation to use the device.
• Don't disassemble the product, don't use alcohol. Thinner or benzene to scrubbing products
• Don't use the device one of the place of prohibit to use electronic equipment in regional (such as the plane)

USER'S MANUAL

- Please don't using the Tablet PC when you in driving or walking down the street, USB just only be used for data transmission

The company reserves the right to improve product, products specification and design have any change. The information is subject to changes without prior notice. (This tablet is no waterproof function)

Remark! All pictures in this manual is just for your reference. products specification and design have any change, The information is subject to changes without prior notice.

Appearance and button

USER'S MANUAL

Touch panel

7" Capacitive touch panel: In The Operation, to click dragging on the touch panel

POWER

Startup: Long Press and hold the power button, the system will enter the main interface

Shutdown: In the main menu interface, Press the power button about 5 second to shutdown, The system can hint "power off" option, Clike" ok". you can safely shut down.

Lock screen: Short press Power button to lock screen or unlock screen.

Remark!

1. When power is empty, system will shut down automatically.
2. Illegal turn off the device, restart will scan and restore the disk, it may take longer time to enter into system

Volume +, Volume-

The buttons on top Volume +, Volume-achieve changes in the volume.

Earphone jack

3.5 mm standard earphone jack

Video output interface – HDMI output interface

TF card – Slot for MicroSD card

Mini USB

Mini USB jack: you can use it to connect the computer for data transmission, charging and external connection USB flash drive

Reset

When the Tablet under the condition of the crash, use the small objects to short press RESET button, Tablet will force to shutdown.

Remark!

Unless unable to shutdown, otherwise don't use the reset, suggest you to shutdown by normal, if no will easy to damage the machine system.

First use

Battery management and charge

Before first use, please set the device's battery is fully charged

Just need to connect the adaptor or USB interface, then you can charge

The first two times charging please keep about 6 hours, after that you just need 4 hours to charge.

Remark:

This tablet using Built-in type polymer battery, Charge must be to choose standard adaptor (Input: AC110\~240V 50/60Hz Max: 180MA. Output: DC5.0\~5.5V/1.5A), this device without supply DC charging, USB interface can charge, Choose USB interface to charger

During the charging, the battery icon will scroll

When finished charging, battery icon will become green and stop rolling

In order to prolong the service life of the machine, suggest use out battery power before charge it

Remark:

1. If you long time don't to use this Tablet, in order to avoid power consumption caused damage, pls charge/ play the battery once a month.
2. After low battery shut down, connect DC adaptor, device will remind low battery, charging, need to wait some time until the battery is enough power to enter into main menu.
3. Device charging should be in standby status for reach normal charging time.

Because with device and screen consumption, it may cause longer charging time.

USER'S MANUAL

Connection with PC

USB connection

Using USB to connect the MID and PC, the default connection mode is a synchronous mode. You can see this USB icon and then drag the status bar to drop, appeared the following interface:

Step 1:

Step 2:

USER'S MANUAL

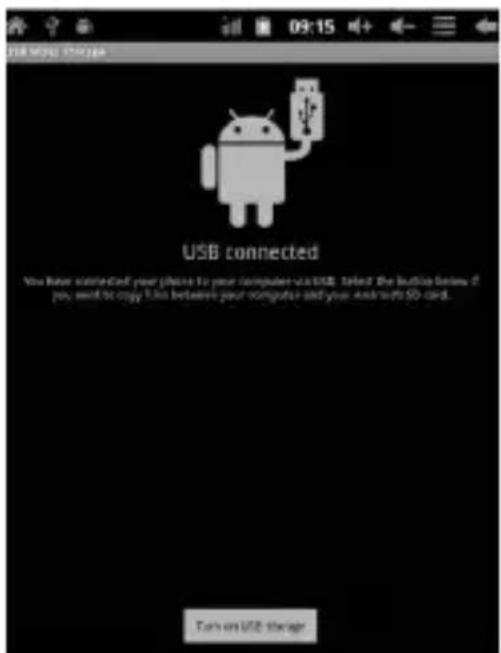

Step 3: According to the above photo, please choose USB connected. Then you can see the following interface:

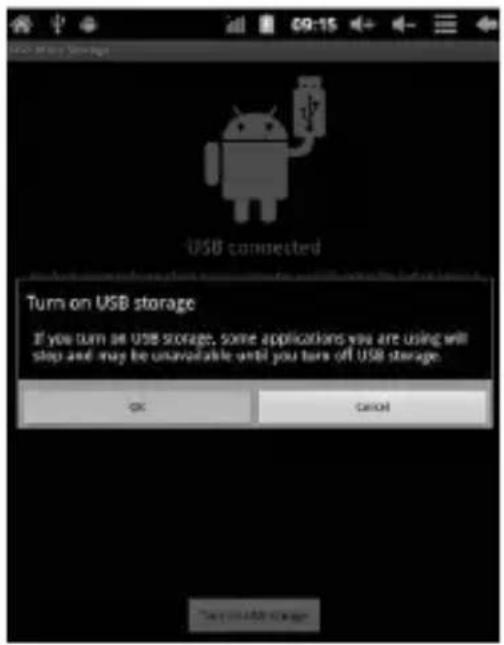

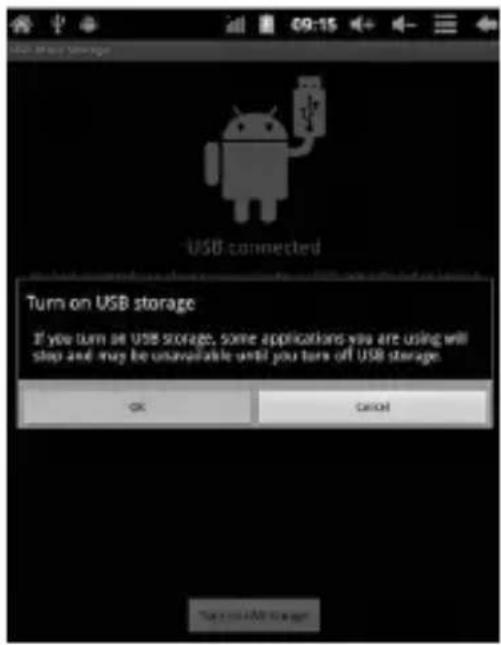

Step 4: Please press "turn on USB storage". Then you will find the following photos:

Please choose "OK". Then USB is connected. "USB is connected": means external memory (SD) loading is completed, and you can see the corresponding letter in the PC terminal.

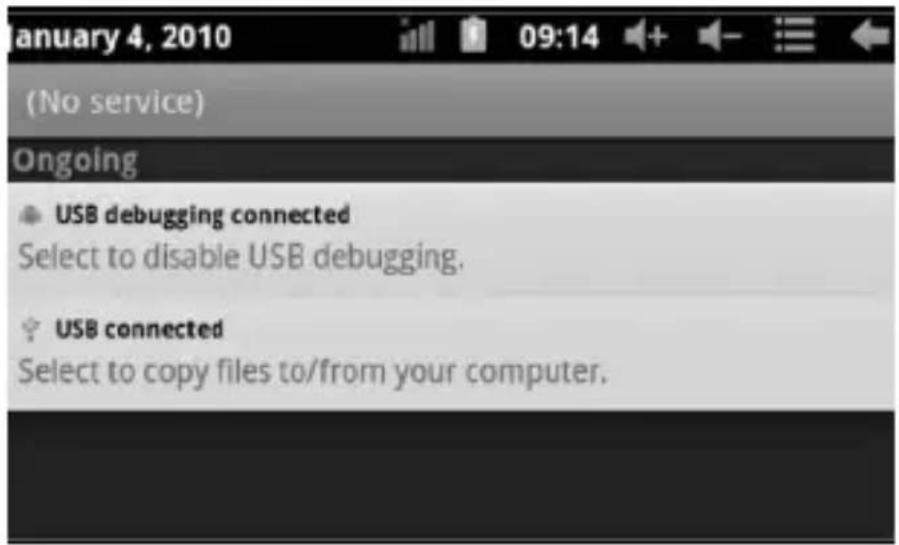

Use USB cable to connect device to PC, device will pop up the USB connection window, click Turn on USB storage to connect to PC

USER'S MANUAL

Equipment operation interface

Main interface describe

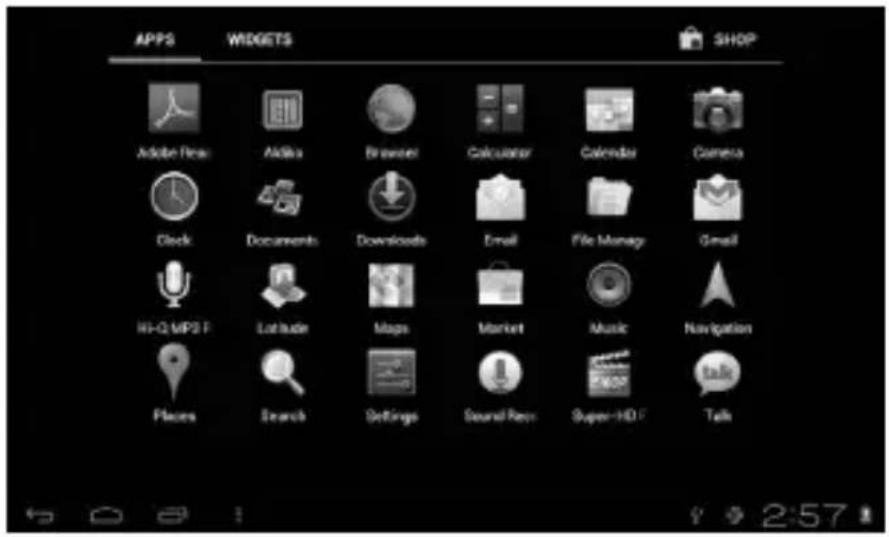

After startup will enter the main interface

Black-and-white photo of maple leaves partially obscured by tree branches, with no visible text or symbols.

In the main interface, you can:

USER'S MANUAL

Management main interface software ICONS: long press the icons 3 second, after the icons will bigger, then you can drag anywhere in the interface.

Delete icons: long press the icons 3 second, drag the icons to the Recycle Bin icon, once it become red, Loosen your hand, after that you can delete icon

Status bar describe

The status bar below of the screen

From left: BACK, HOME, recent applications. From Right: battery status, time, other icons.

Use touch panel

Device equipped with a 7 "touch screen. Following the main touch screen area is described, and describes some of the tips for how to use the touch screen.

No matter which interface you are on the screen, can go back to main screen through pressing the soft key on the bottom right corner of the main screen.

Attention!

In different applications, by tapping the back soft key on the bottom right corner on the touch screen, you can return to its interface on the upfloor

In different applications, by tapping the menu key on the upper right corner of touch screen, the screen will appear the operation setting interface as follows,

Remark:

In the main interface, you can touch the icon to open the APPs

USER'S MANUAL

In different browser(file, music, video, pictures), You shift and drag the scroll bar, so that the file list can up or down to roll.

Equipment basic set

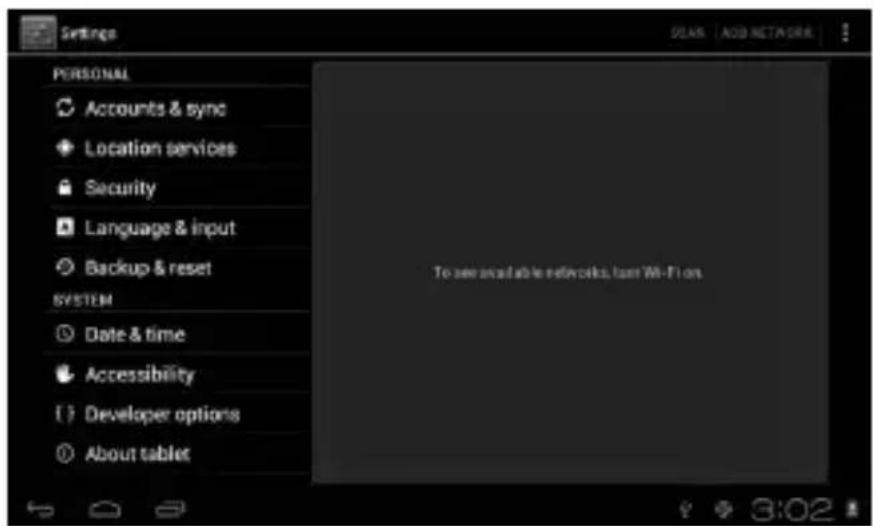

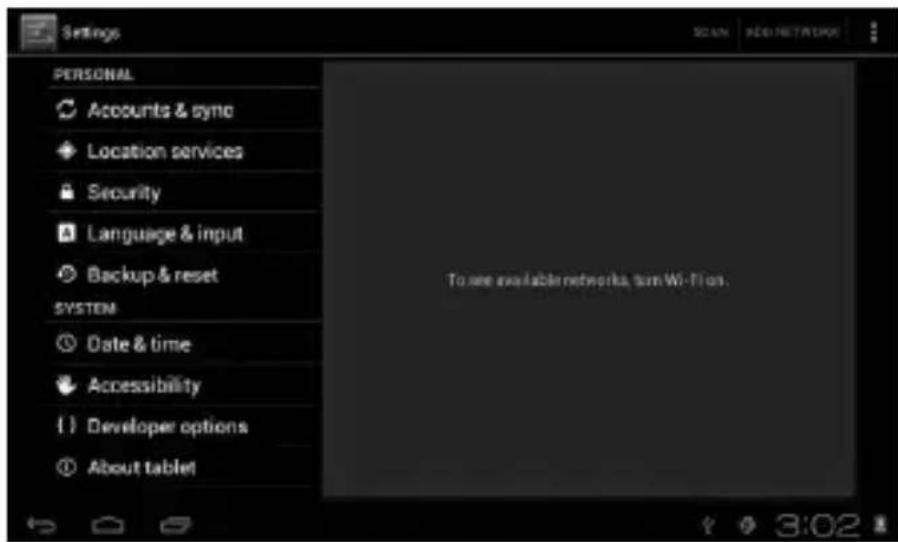

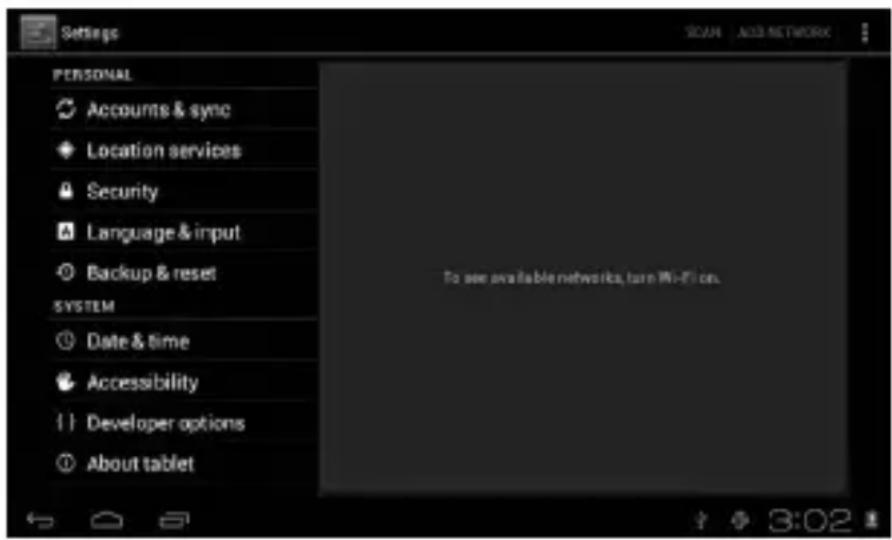

Setting: Click setting icons, enter setting interface

USER'S MANUAL

Application

Manage applications

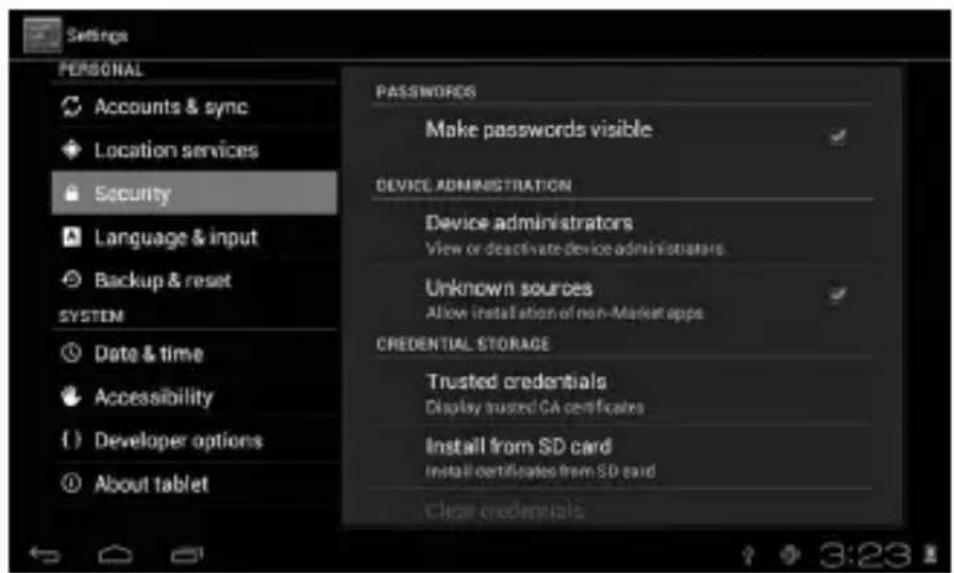

Unknown sources: Click "Unknown Sources", then click "OK"

Manage application: manager and uninstall Application

Remark:

when you Firmware Upgrade, pls close the USB connect

How to uninstall?

1. enter "selling">"Application">"Manage application" And then there will be installed the program list
2. Click you want to uninstall icons, will enter the following interface
3. Click Uninstall, then you can delete the application

USER'S MANUAL

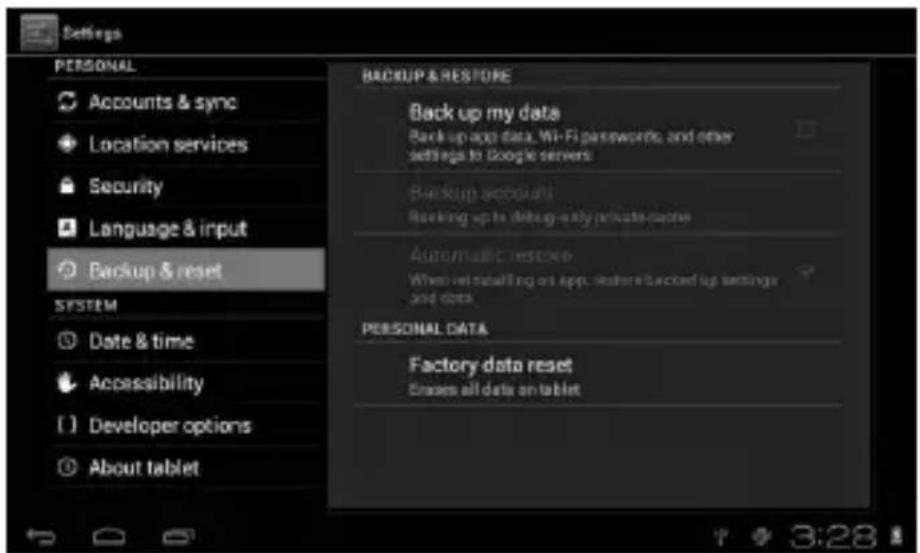

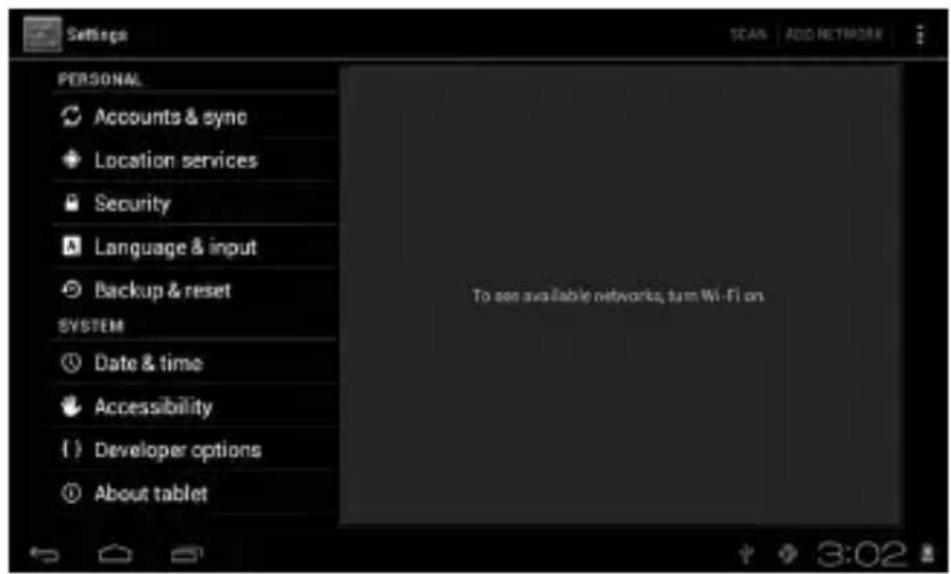

Backup & reset

Factory data reset

Storage

Remove TF card, view of the available storage space

USER'S MANUAL

Remark:

Please touch option" delete SD card", so that can safety to remove SD card

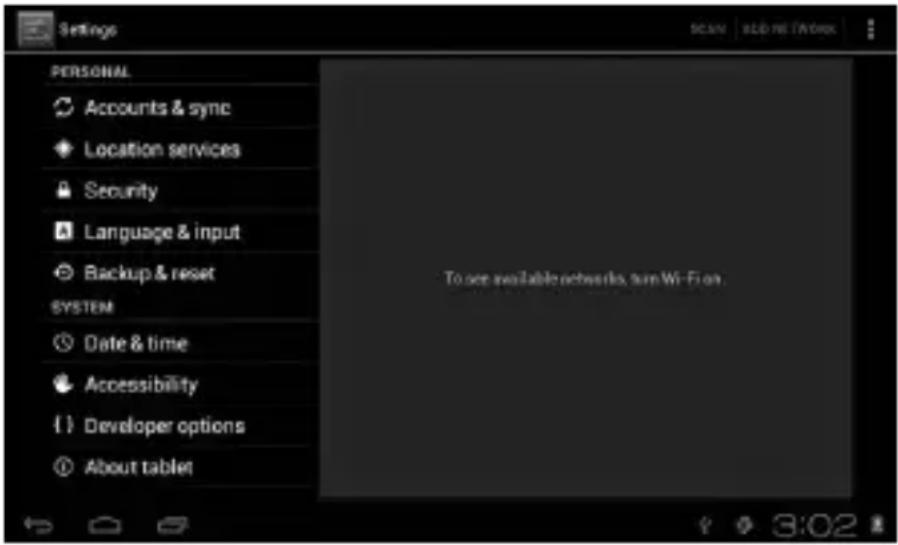

Language & input

Setting: (Language), text input and automatic error correction options;

Select Language: 54 kind of national languages are available

Remark: Android system can support 54 kind of language, now menu interface just support 14 language,

Android keyboard: Android keyboard setting

Sound on Key-press

Auto-capitalisation

Show suggestions: Display suggested words while typing

Auto-complete: Specebar and punctuation automatically insert highlighted word

USER'S MANUAL

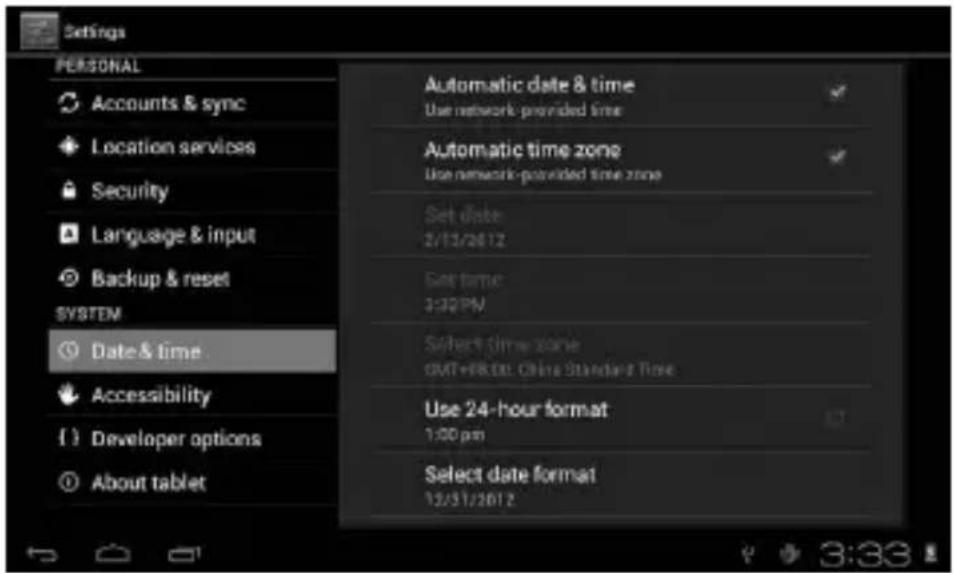

Date & time

Set date, set time, Select time zone and select date format

About tablet

USER'S MANUAL

Problem solution

Device can't to open

1) Check the battery power
2) Connect adaptor first, then check again
3) After charging then can't to open, pls contact with the supplier

After startup the screen or the opening picture has been appeared, the device appear shutdown

1) Power is not enough, please charge

Headset can't hear the voice

1) Pls check the volume whether set to 0
2) Check the music file whether damaged. Try playing other music, if the file have damaged may lead to serious noise or hop sounds.

Can copy file or paly music and so on

1) Pls check between computer and device is correct connection
2) Check the memory storage space is already full
3) Check the USB cable is good or not
4) USB connection is disconnected

Bedienungsanleitung

Hinweis

BEDIENUNGSANLEITUNG

Schritt 2:

BEDIENUNGSANLEITUNG

Black-and-white photo of maple leaves partially obscured by tree branches, no visible text or symbols

BEDIENUNGSANLEITUNG

BEDIENUNGSANLEITUNG

Lautlosmodus

BEDIENUNGSANLEITUNG

Speichern

BEDIENUNGSANLEITUNG

BEDIENUNGSANLEITUNG

Info zum Gerät

Fehlerbeseitigung

HASZNÁLATI ÚTMUTATÓ

2. lépés:

HASZNÁLATI ÚTMUTATÓ

Black-and-white photo of maple leaves partially obscured by tree branches, no visible text or symbols

HASZNÁLATI ÚTMUTATÓ

HASZNÁLATI ÚTMUTATÓ

Csendes üzemmód

HASZNÁLATI ÚTMUTATÓ

Adatmentés

HASZNÁLATI ÚTMUTATÓ

HASZNÁLATI ÚTMUTATÓ

Hibaelhárítás

NÁVOD K OBSLUZE

Krok 2:

NÁVOD K OBSLUZE

Black-and-white photo of maple leaves in a forest setting, no visible text or symbols

NÁVOD K OBSLUZE

NÁVOD K OBSLUZE

Tichý režim

NÁVOD K OBSLUZE

Ukládání

NÁVOD K OBSLUZE

NÁVOD K OBSLUZE

Řešení problémů

Tablet nelze zapnout

VARTOTOJO INSTRUKCIJA

2 žingsnis:

VARTOTOJO INSTRUKCIJA

Black-and-white photo of maple leaves in a forested area, no visible text or symbols

VARTOTOJO INSTRUKCIJA

Pagrindiniame ekrane galima:

VARTOTOJO INSTRUKCIJA

Tylaus darbo režimas

Nežinomi šaltiniai: spustelėkite „Unknown Sources“, tuomet „OK“.

VARTOTOJO INSTRUKCIJA

Irašymas

Dèmesio:

VARTOTOJO INSTRUKCIJA

VARTOTOJO INSTRUKCIJA

Problemu sprendimas

Black-and-white photo of maple leaves partially obscured by tree branches, no visible text or symbols

Примечание:

Решение проблем

NÁVOD NA OBSLUHU

Krok 2:

NÁVOD NA OBSLUHU

Black-and-white photo of maple leaves partially obscured by tree branches, no visible text or symbols

NÁVOD NA OBSLUHU

NÁVOD NA OBSLUHU

Tichý režim

NÁVOD NA OBSLUHU

Ukladanie

NÁVOD NA OBSLUHU

NÁVOD NA OBSLUHU

Riešenie problémov

Крок 2:

Black-and-white photo of maple leaves partially obscured by tree branches, no visible text or symbols

Тихий режим

Запис
