Product Type	Dehumidifier
Model	SDH12L13E
Brand	Sandstrøm
Power Supply	220-240V ~50Hz
Dehumidification Capacity	12 L/day (at 30°C, 80% RH)
Power Consumption	255W (at 35°C, 90% RH)
Air Flow	100 m³/hr
Water Tank Capacity	2 L
Dimensions (L x W x H)	347 x 247 x 486 mm
Control Panel	Power, Speed (L/H), Timer (1/2/4/8h), Humidity (80%/60%/40%/Continuous)
Functions	Auto-defrost, compressor protection, continuous drainage, drying clothes mode
Safety Features	Automatic shut-off when water tank full, overheat protection, anti-tip shutdown
Installation Requirements	Stable level surface, minimum 300mm clearance around unit, upright for 2 hours before use
Cleaning & Maintenance	Clean air filter every 2 weeks; wipe unit with damp sponge; do not use solvents

Frequently Asked Questions - SDH12L13E Sandstrøm

How do I empty the water tank when it's full?

When the WATER FULL indicator illuminates and the unit beeps 10 times, turn off the unit, remove the water tank, empty it, then refit the tank and restart.

What does the WATER FULL indicator mean?

It means the water tank is full. The unit will automatically stop operating. Empty the tank to resume normal operation.

How do I set the timer?

Press the TIMER button repeatedly to select 1, 2, 4, or 8 hours for auto shut-off.

Can I use continuous drainage?

Yes. Attach a 12mm water hose to the drain outlet, extend it to a floor drain, and ensure the hose is lower than the outlet for proper drainage.

Why is the dehumidifying function not working?

Check that the water tank is not full, clean the air filter, and ensure the air inlet and outlet are not blocked.

Why is the unit making excessive noise?

Place the unit on a stable, flat surface. Also clean the air filter to reduce noise from restricted airflow.

How often should I clean the air filter?

Clean the air filter every 2 weeks. In dusty environments, clean more frequently. Remove the filter by pressing the cover tabs, wash, dry thoroughly, and reinstall.

Can I use this dehumidifier in a bathroom?

No, the unit is designed for indoor domestic use only and should not be used in bathrooms or shower rooms to avoid electrical hazards.

How do I use the drying clothes mode?

Press the HUMIDITY button to select CONTINUE (highest setting). Place the unit near wet clothes, but not directly under them to prevent water dripping onto the unit.

What is auto-defrost and when does it activate?

Auto-defrost activates when ambient temperature is low (≤0°C or ≥40°C). The unit automatically enters defrost mode to melt frost buildup; the DEFROST indicator illuminates.

USER MANUAL SDH12L13E Sandstrøm

White and gray portable air purifier device with a lid, shown against a plain background (no text or symbols visible)

Contents

GB

Safety Warnings....5

Unpacking....19

Product Overview....20

Front View....20

Rear View....20

Control Panel 21

Before Use 22

Operation 22

Water Tank Full....22

Compressor Protection 23

Auto-Defrost 23

Suitable Environments....23

Drying Clothes 23

Continuous Drainage 24

Cleaning & Maintenance 25

Hints & Tips 26

Specifications....26

Sisältö

FI

Please follow all the safety precautions listed below for safety and to reduce the risk of injury or electrical shock.

• Read all the instructions before using the appliance and keep them for future reference.
• Please ensure that your electricity supply is 220-240V \~50/60Hz.
• Do not use the appliance in the bathroom or shower room.
• Do not place unit appliance near radiators or heating appliances, also do not operate the unit in direct sunlight.
• Do not use the unit near flammable materials or fire.
• Close supervision is required when the unit is used by or near children.
• Ensure that the unit is used on a stable and level surface. If the floor surface is uneven there is a risk that the appliance could tip over. Also, excessive vibration and noise may occur.
• If the appliance tips over, immediately disconnect from the power supply.
• Do not block or restrict the airflow around the appliance. Position the unit so that the air inlet and exhaust grilles are not blocked or restricted in anyway.
• Allow 300mm of clearance around the unit.
• Do not spray water on the unit as this may cause irreparable damage to the unit and the risk of electric shock.
• Do not unplug the unit from the mains socket with wet hands.
• Switch off the power before removing the plug from the mains socket.

• Empty the water when the water tank is full or the unit is not in use for a prolonged period.

• To disconnect the power, grip the plug and pull it out from the mains socket. NEVER pull the mains cable.

- Do not push any objects in the air inlet and exhaust grilles.

- This unit is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the unit by a person responsible for their safety.

• Children should be supervised to ensure that they do not play with the unit.

- If the mains cable is damaged, the unit must be replaced by themanufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

• Children should be supervised so they do not play with the main cable.

• This appliance is intended for domestic use only.

- If the mains cable is damaged, do not use the appliance. Ensure the appliance unlpugged from the mains socket. Contact your qualified service agent to replace the mains cable.

Remove all packaging from the unit. Retain the packaging. If you dispose of it please do so according to local regulations.

The following items are included:

Line drawing of a cylindrical electronic device with lid and side ports (no text or symbols)

Main Unit

Simple line drawing of a coiled or twisted rope-like structure (no text or symbols)

Water Hose
(Not included; sold separately)

Product Overview

GB

Front View

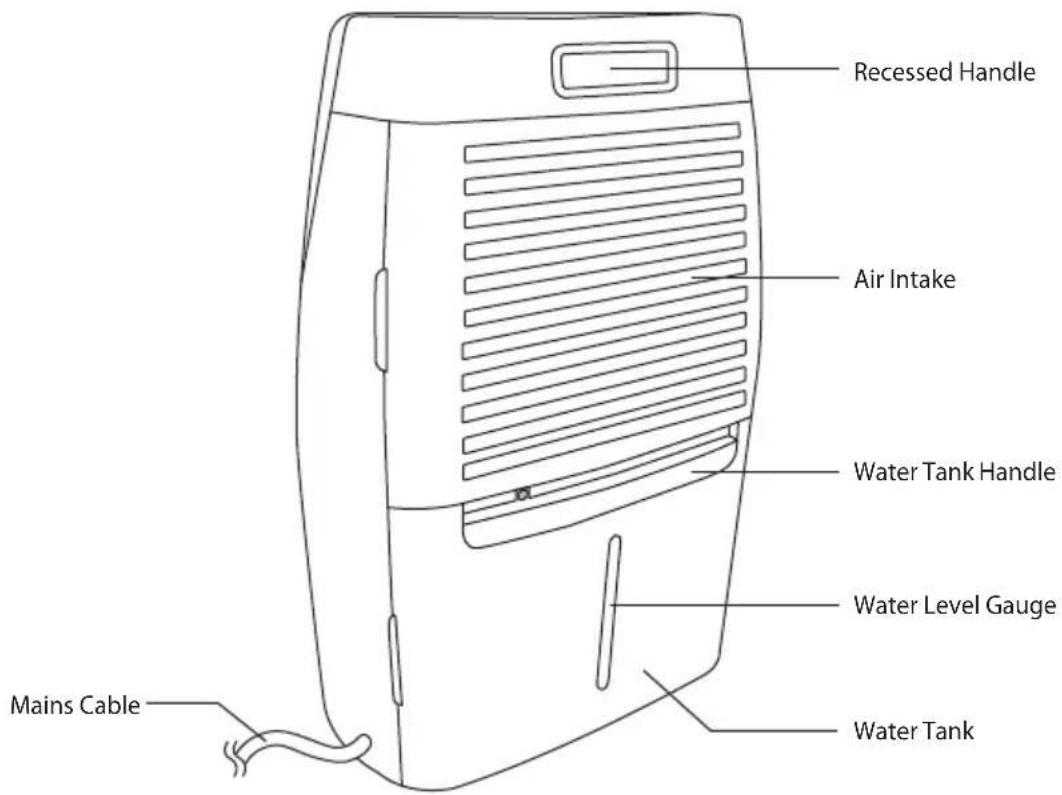

Rear View

Control Panel

1. POWER button

To turn the unit on and off.

WATER FULL indicator:

Illuminates when the water tank is full.

RUN indicator:

Illuminates when the compressor is shutdown.

DEFROST indicator:

Illuminates when ambient temperature is ≤0^ or ≥40^ .

2. SPEED button

L: Quiet dehumidification with low fan speed

H: Quiet dehumidification with high fan speed

3. TIMER button

Select the auto shut off function (select from 1/2/4/8 hours.)

4. HUMIDITY button

80%: Maintain room humidity at 80%.

60%: Maintain room humidity at 60%.

40%: Maintain room humidity at 40%.

CONTINUE: Continuous

dehumidification regardless of room humidity.

5. Air Outlet

Before Use

1. Place on a stable, flat floor. If the floor surface is not even:

• Vibration and noise will occur.
• Water may leak from the water tank.

1. Make sure the air inlet and air outlet are clear and free from blockages.

2. Allow at least 300mm clearance space around the unit.

Your unit must stand upright for at least 2 hours prior to use.

Operation

1. Connect the unit to the mains socket. The units alarm will sound 3 times.
2. Press the POWER button to turn the unit on. The indicators on the control panel will illuminate to show the currently selected functions.
3. Select the desired functions by repeatedly pressing the relevant button.
4. Press the POWER button to turn the unit off.

When the unit is turned off, the motor will keep running for 5-10 minutes. Do not unplug the unit unless the motor has stopped as this may damage the motor.

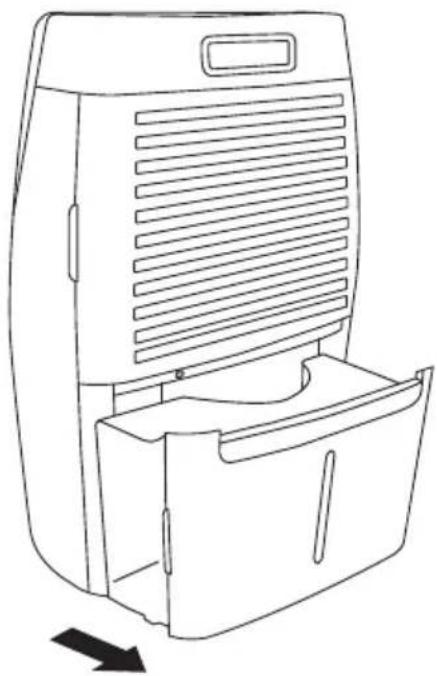

Water Tank Full

When the water tank is full, the unit will beep 10 times. The WATER FULL indicator will illuminate and the unit will automatically stop operating. Turn off the unit and remove the water tank. Empty the water and then refit the water tank. Turn the unit on again and continue operation.

Line drawing of a portable air purifier with ventilation slots and a door handle (no text or symbols)

Compressor Protection

When the compressor is shut down, the RUN indicator will light up. Wait for 3 minutes to re-start the unit.

Auto-Defrost

When using the appliance in low ambient conditions, frost will build-up inside the unit. The unit will automatically enter Defrost Mode. The DEFROST Indicator will illuminate.

Suitable Environments

* This unit is designed to operate in the following ambient domestic room conditions:
• Minimum: 5°C, 40%RH
• Maximum: 35°C, 90%RH
It is suitable for use in bedrooms, studies, cellars/basements, kitchens, storage rooms, and home computer rooms.
* This unit is intended for indoor domestic use only.

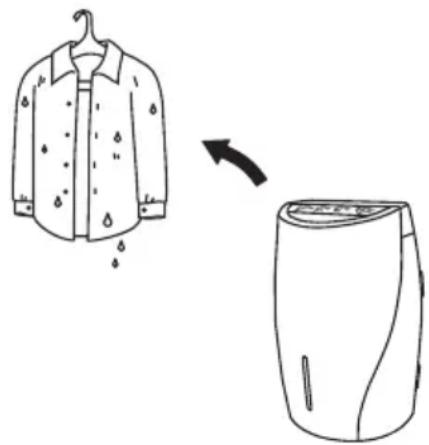

Drying Clothes

When the unit is used to dry clothes, press the HUMIDITY button to select CONTINUE (this is the higest dehumidification setting of the unit.) Put the unit next to the wet clothes and allow the dry air to blow towards the clothes.

Do not put the unit immediately under wet clothes. Water must not drip onto the unit. This may damage the unit or cause the risk of an electric shock.

Illustration of a jacket and a bag with raindrops, showing clothing items (no text or symbols)

Continuous Drainage

Water can be automatically emptied into a floor drain by attaching the unit with a water hose (12mm).

- Insert the water hose into the drain outlet as shown. Extend the hose to a suitable drainage facility.

- Connect the unit to the mains socket and continue operation.

When the hose is not being used, remove the hose from the drain outlet. The hose level must be lower than the drainage outlet, see diagrams shown below.

Line drawing of a portable air conditioner unit with ventilation slots and a black checkmark indicating inspection (no text or symbols)

Line drawing of a portable air conditioner unit with ventilation slots and a warning symbol (no text or labels)

Cleaning & Maintenance

Maintenance of your air filter

The air filter located inside the air inlet of the unit collects dust contained in the air. The build up of dust reduces the efficiency of the unit. To prevent the dust from clogging up the unit always use it with the air filter in place.

Always clean the air filter every 2 weeks. If the unit operates in a dusty atmosphere clean the air filter more often.

• To remove the filter, push the cover's 2 tabs toward each other and pull towards you. Then repeat this action to remove the filter.
• Before refitting the filter ensure it is thoroughly dry. Do not bend the filter and make sure it is fitted correctly. Replace the filter cover before operating the unit.

Line drawing of a computer tower with ventilation slots and ventilation grilles (no text or symbols)

Cleaning the unit

• Clean the unit by using a damp sponge, and dry it with a clean, soft cloth.
  • Never use alcohol or any product containing solvents.
  • Do not immerse the unit in water.

Hints & Tips

GB

Issue Solution
The WATER FULL indicator is illuminated	Empty the water tank.
Dehumidifying function does not work.	Clean the air filter. Make sure that the air inlet and the air outlet are not obstructed.
Excessive noise. Ensure the unit is on a stable flat surface.Clean the air filter.
No air coming out from the air outlet.	Clean the air filter.

Specifications

Model SDH12L13E
Power Supply 220-240V~50Hz
Dehumidification 12 L / D (30°C, 80% RH)
Power Consumption 255W (35°C, 90% RH)
Air Flow 100 CBM / hr
Capacity of Water Reservoir 2 L
Dimension (L x M x H) 347 x 247 x 486 mm

We continually strive to improve our products, specifications may change without prior notice.

Pakke opp

Line drawing of a cylindrical electronic device with lid and side ports (no text or symbols)

Hovedenhet

Simple line drawing of a coiled rope or rope-like structure (no text or symbols)

Vannslange
(Ikke inkludert. Selges separat)

* Alle bilder i denne bruksanvisningen er kun for illustrasjon – detaljene kan være annerledes på den enkelte enheten.

Produktoversikt

Sett forfra

NO

Sett bakfra

1. Strømknappen

Slår apparatet på og av.

FULL TANK-indikator:

Lyser när vanntanken er full.

KJ∅RER-lampe:

Line drawing of a portable air purifier with ventilation slots and a door, showing no text or symbols.

Kompressorbeskyttelse

Illustration showing a jacket hanging on a hanger and a bag with a lid, both without any text or symbols.

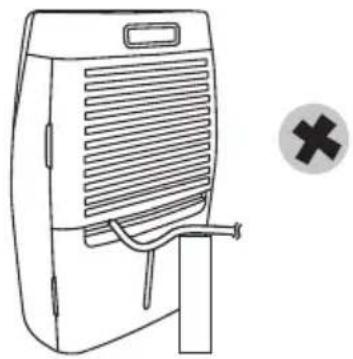

Kontinuerlig drenering

Vann kan automatisk tømmes i en sluk ved å feste enheten til en vannslange (12 mm).

Line drawing of a portable air conditioner unit with ventilation slots and a cord, no text or symbols present

Line drawing of a portable air conditioner unit with ventilation slots and a warning symbol (no text or labels)

Line drawing of a computer tower with ventilation slots and ventilation grilles (no text or symbols)

Rengjøre apparatet

Line drawing of a cylindrical electronic device with lid and ventilation slots (no text or symbols)

Huvudenhet

Simple line drawing of a coiled ribbon or rope shape (no text or symbols)

Line drawing of a portable air purifier with ventilation slots and a door, showing no text or symbols.

Kompressorskydd

Illustration showing a jacket hanging on a hanger and a closed garment with a lid, both without any text or symbols.

Line drawing of a portable air conditioner unit with ventilation slots and a black checkmark indicating inspection (no text or symbols)

Line drawing of a portable air conditioner unit with ventilation slots and a warning symbol (no text or labels)

Line drawing of a computer tower with ventilation slots and ventilation grilles (no text or symbols)

Rengöra enheten

Line drawing of a cylindrical electronic device with lid and ventilation slots (no text or symbols)

Päälaite

Simple line drawing of a coiled ribbon or rope shape (no text or symbols)

1. VIRTA-painike

When the unit is turned off, the motor will keep running for 5-10 minutes. Do not unplug the unit unless the motor has stopped as this may damage the motor.

Vesisäiliö täynnä

Line drawing of a portable air purifier with ventilation slots and a door handle (no text or symbols)

Illustration showing a jacket hanging from a hook and a bag with a lid, both without any text or symbols.

Jatkuva kuivaus

Line drawing of a portable air conditioner unit with ventilation slots and a black checkmark indicating cancellation (no text or symbols)

Line drawing of a portable air conditioner unit with ventilation slots and a warning symbol (no text or labels)

Line drawing of a computer tower case with ventilation slots and ventilation ducts (no text or symbols)

Line drawing of a cylindrical electronic device with lid and side ports (no text or symbols)

Simple line drawing of a coiled rope or rope-like structure (no text or symbols)

Line drawing of a portable air purifier with ventilation slots and a door, showing no text or symbols.

Kompressorbeskyttelse

Illustration showing a jacket hanging from a hook and a washing machine with a downward arrow indicating clothing shift (no text or symbols)

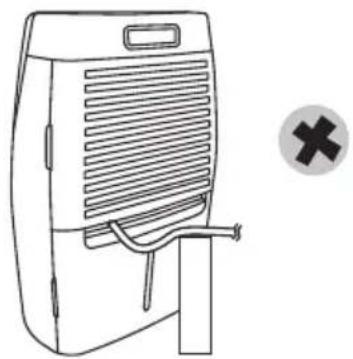

Konstant afløb

Line drawing of a computer tower with ventilation slots and ventilation ducts (no text or symbols)

DK

Line drawing of a cylindrical electronic device with lid and ventilation slots (no text or symbols)

Simple line drawing of a coiled ribbon or rope shape (no text or symbols)

Line drawing of a portable air purifier with ventilation slots and a door, showing no text or symbols.

Ochrana kompresoru

Illustration showing a jacket hanging from a hook and a clothesless bag with a curved arrow indicating rotation (no text or symbols)

Line drawing of a portable air conditioner unit with ventilation slots and a cable, no text or symbols present

Line drawing of a portable air conditioner unit with ventilation slots and a warning symbol (no text or labels)

Čištění a údržba

Line drawing of a computer tower case with ventilation slots and ventilation ducts (no text or symbols)

Čištění přístroje

Line drawing of a cylindrical electronic device with lid and ventilation slots (no text or symbols)

Hlavné zariadenie

Simple line drawing of a coiled rope or rope-like structure (no text or symbols)

Line drawing of a portable air purifier with ventilation slots and a door, showing no text or symbols.

Ochrana kompresora

Illustration showing a jacket with raindrops being placed on a hanger and a garment with a lid, both without any text or symbols.

Konstant afløb

Line drawing of a portable air conditioner unit with ventilation slots and a cable, no text or symbols present

Line drawing of a portable air conditioner unit with ventilation slots and a warning symbol (no text or labels)

Čistenie a údržba

Line drawing of a computer tower with ventilation slots and ventilation ducts (no text or symbols)

Čistenie zariadenia

This symbol on the product or in the instructions means that your electrical and electronic equipment should be disposed at the end of its life separately from your household waste. There are separate collection systems for recycling in the EU.

For more information, please contact the local authority or your retailer where you purchased the product.

NO

Maylands Avenue, Hemel Hempstead, Herts., HP2 7TG, UK
