PEB 6708 IX - Range hood Philco - Free user manual and instructions

Product Type	Built-in range hood
Brand	Philco
Model	PEB 6708 IX
Color	Stainless steel
Width	60 cm
Depth	50 cm
Height (min-max)	70-120 cm (adjustable)
Weight	Approx. 15 kg
Power Supply	220-240 V ~ 50 Hz
Motor Power	200 W
Extraction Rate (max)	650 m³/h
Noise Level (max)	63 dB(A)
Energy Class	B
Control Type	Electronic touch controls
Speed Levels	3 speeds + intensive
Lighting	2 x LED lamps (3 W each)
Filter Type	Aluminum grease filter, carbon filter (optional)
Installation	Ducted or recirculating
Exhaust Diameter	150 mm
Maintenance	Grease filter cleaning monthly; carbon filter replacement every 3-6 months
Safety	Auto shut-off timer, motor thermal protection
Spare Parts Available	Yes (filters, lamps, motor, remote control)

Frequently Asked Questions - PEB 6708 IX Philco

How do I install the Philco PEB 6708 IX range hood?

Installation must be done by a qualified technician. Ensure the hood is mounted at least 65 cm above electric cooktops and 75 cm above gas cooktops. Use the provided mounting bracket and secure to the wall. Connect the exhaust duct if using ducted mode, or install carbon filters for recirculation mode.

How often should I clean the grease filters?

The aluminum grease filters should be cleaned every month or more frequently if cooking heavily. Wash them by hand with warm soapy water or in the dishwasher at low temperature. Ensure they are completely dry before reinserting.

How do I change the carbon filter?

The carbon filter is used only in recirculation mode. It should be replaced every 3-6 months depending on usage. To replace, remove the grease filters, slide out the old carbon filter, and insert a new one (Philco part number CF-6708). Reinstall the grease filters.

What do I do if the hood is not extracting properly?

Check that the grease filters are not clogged. Ensure the exhaust duct is not obstructed. If recirculating, check the carbon filter. Also verify that the speed setting is high enough. Clean or replace filters as needed.

Can I use the hood without the exhaust duct?

Yes, if you install charcoal filters, the hood can operate in recirculation mode. The air is filtered and returned to the kitchen. Make sure the recirculation mode is selected and the optional carbon filters are in place.

How do I replace the LED bulbs?

The hood uses integrated LED modules that may require professional replacement. If a light fails, consult the manual or contact Philco service. Do not attempt to replace with non-standard bulbs.

What is the noise level of this range hood?

The noise level varies by speed: approximately 55 dB at low speed, 60 dB at medium, and 63 dB at high speed. The intensive boost may be slightly louder but is temporary.

How do I program the auto shut-off timer?

Press the timer button on the touch panel. Use the + and - buttons to set the desired shut-off time (1-15 minutes). The hood will automatically turn off after the set time.

Why is the hood not responding to touch controls?

First, check power supply. If the controls are unresponsive, turn off the circuit breaker for 10 seconds and turn it back on. If that doesn't work, the control board may be faulty; contact customer service.

Where can I find spare parts for the PEB 6708 IX?

Spare parts such as grease filters, carbon filters, LED modules, and remote control can be ordered from the Philco website or authorized dealers. Use the model number PEB 6708 IX to ensure compatibility.

USER MANUAL PEB 6708 IX Philco

Famous for Quality the World Over

PEB 6708IX

PEB 6408WH

Dear customer,

Thank you for buying a PHILCO brand product. So that your appliance serves you well, please read all the instructions in this user's manual.

CONTENTS

PART 1: IMPORTANT SAFETY INSTRUCTIONS....2

PART 2: DESCRIPTION OF THE APPLIANCE .... 4

PART 3: INSTALLATION .... 5

Unpacking....5

Dimensions of the appliance ....5

Placement 6

Exhaust connection....7

Carbon filter....8

Ventilation....9

PART 4: OPERATION .... 10

PEB 6708IX....10

PEB 6408WH....10

Operating tips....11

PART 5: MAINTENANCE AND CLEANING....12

Changing a light bulb....12

Cleaning....13

PART 6: BEFORE YOU CALL THE SERVICE CENTRE....14

PART 7: TECHNICAL SPECIFICATIONS.... 15

PART 1: IMPORTANT SAFETY INSTRUCTIONS

Recommendation:

Carefully read these instructions before installing and operating this range hood.

Write down the serial number found on the rating label of the range hood in the space below. It is essential that you store this user's manual in a safe place so that you can use it in the future. If you intend to sell the appliance, give it to another owner, or if you move, always make sure that the user's manual is attached to the appliance, so that the new owner can also learn about the operation of the appliance and the relevant warnings.

SERIAL NUMBER:

Important safety instructions

• This appliance is designed for household use only.
- Before connecting the power cord plug, make sure the voltage stated on the rating label of the appliance corresponds to the voltage in your wall socket. Connect the power cord plug to a power socket with a voltage of 220 – 240 V \~ 50 Hz.
- Only use a properly grounded power socket. The appliance may only be connected to a properly grounded power socket.
- All electrical connections must be performed by a qualified electrician.
- Installation performed by an unqualified person may cause incorrect operation, damage to the appliance, create a fire hazard or cause injury to persons.
- Neither the manufacturer nor the vendor take responsibility for damages cause by incorrect or unprofessional installation, connection or operation. Tampering with the appliance by an unqualified person will void the customer's right to a warranty repair.
- Do not expose the power cord to excessive pressure or loads, do not place heavy objects on it, it must not be tangled and it must not be stepped on. Do not locate the power cord in or on heat sources such as stoves, heating or other generators of heat. Otherwise this may damage the power cord or create a fire hazard.
- Only connect the power cord plug to a power socket after the entire installation is completed.
- The power plug serves as a disconnection device and for this reason the power socket must remain easily accessible for the event of a dangerous situation, unless it is connected into a terminal box.
- Do not touch the lights if the appliance has been running for some time. Lights heat up during operation and may cause burns.
- This appliance is designed for fume extraction during standard domestic use. Do not use the appliance for purposes other than those for which it was designed. Otherwise you expose yourself to the risk of a dangerous situation and voiding the warranty.
- Follow the instructions for installation and ventilation (with the exception of when a fire stove is used).
- Do not use the flambé cooking method under the range hood.
• Regularly replace the filters in the range hood. Otherwise this presents a fire hazard.
- Only use filters suitable for use with the range hood. The manufacturer or distributor will recommend the suitable fi lter type.
- Do not use the appliance without the aluminium filter inserted. Do not take out the filters while the appliance is on.
• Regularly clean the appliance to prevent a dangerous situation from occurring.
- Before cleaning, replacing filters, moving or any other maintenance, turn off the appliance and pull out the power plug from the power socket, or turn off the respective circuit breaker.
- If you are using another gas or natural gas appliance in the room at the same time, the fumes from this appliance must be spatially isolated.

• If a chimney is connected to the exhaust of the range hood, use pipes with a diameter of 150 or 120 mm. The pipe connection should be as short as possible.
• Keep packaging materials out of children's reach. They could suffer injury or suffocation.
• Children must be supervised to ensure that they do not play with the appliance. If the power cord is damaged stop using the appliance. Have the power cord replaced at an authorised service centre or by another qualified person. Under no circumstances should you replace the power cord yourself.

To ensure safety, use a fuse with a maximum rating of 6 A.

WARNING!

This appliance must not be used by persons (including children) with physical or mental impairments or by inexperienced persons, unless properly trained or schooled in the safe use of the appliance, or unless they have been properly supervised by a qualified person who will be responsible for their safety.

Attention when transporting or carrying

The packaging materials are from recyclable materials, so dispose of them in an environmentally conscientious manner according to regulations in force.

During transport adhere to the symbols of the cardboard box.

When carrying the appliance, hold it by the respective handles.

NOTE:

We recommend that you keep the original packaging at least for the duration of the warranty period for the event of repair or refund and transport to the authorised service centre. Adhere to the symbols on the cardboard box.

If you do not have the original cardboard box, adhere to the following instructions:

a) Do not place any items on the appliance that could damage the appliance during transport.
b) Protect the appliance against impacts, falls, etc.
c) Wrap the appliance, e.g. in bubble wrap which will protect the appliance from damage.

NOTE:

The carbon fi lter is not included.

NOTE:

If the building is equipped with a heat recovery system system, it is necessary to setup the appliance for internal air circulation (without an exhaust). In that case, it is necessary to purchase the carbon filter.

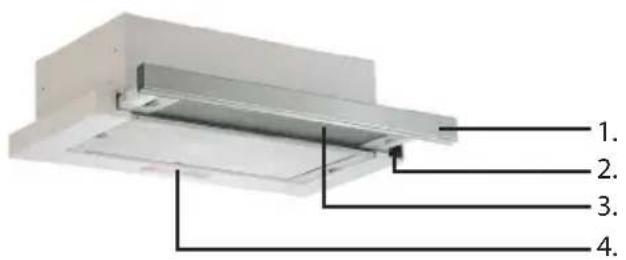

PART 2: DESCRIPTION OF THE APPLIANCE

1. Front panel
2. Control panel
3. Filter
4. Lighting

PEB 6708IX

PEB 6408WH

Remote control (Optional accessory)

a) Turn the appliance on / off
b) Increase the exhaust power
c) Decrease the exhaust power
d) Turn the lights on / off

PART 3: INSTALLATION

Unpacking

• After unpacking remove all packaging and advertising labels from the appliance.
- Check that the appliance has not been damaged and that the package includes all the items described in this user's manual.
• If the appliance was damaged during transport, contact authorised service centre.
- Do not use a damaged appliance under any circumstances.

Important

Ensure that children do not play with the packaging material.

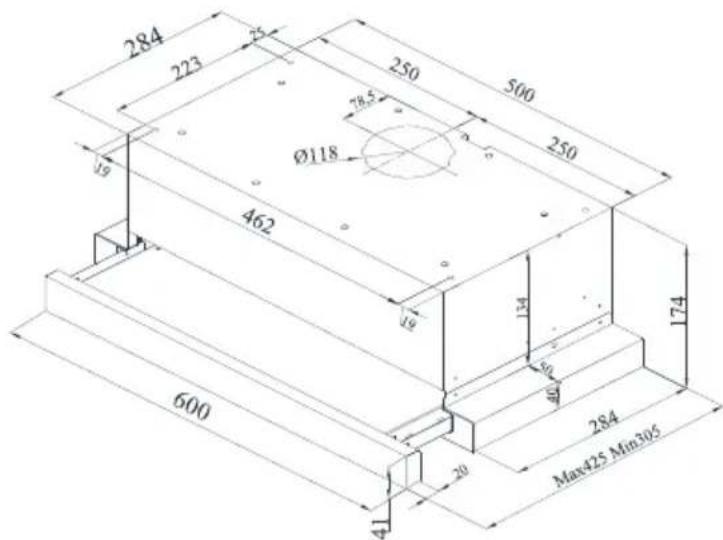

Dimensions of the appliance

PEB 6708IX

PEB 6408WH

Supplied accessories (depending on the model)

A non-return exhaust flap must be installed into the air outlet of the range hood (unless one is already factory installed).

Placement

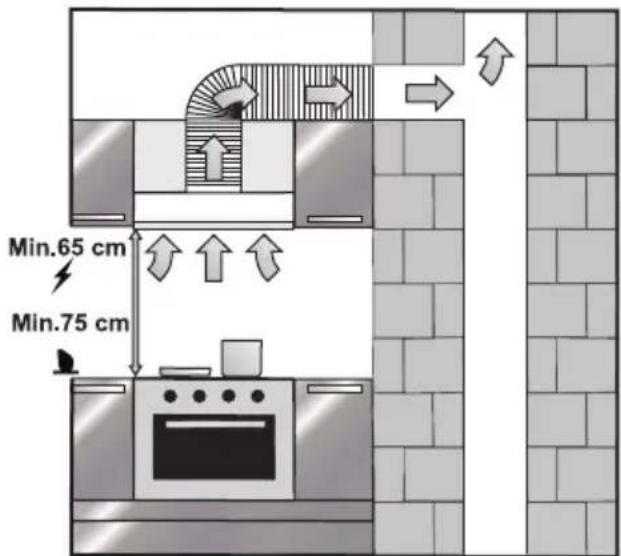

Install the range hood at a height of at least 65 cm above an electric cooktop or at a height of 75 cm above a gas cooktop.

IMPORTANT:

Before installing or using the appliance, please first read all instructions and check that the voltage and frequency values on the rating label correspond to the voltage and frequency in your electricity grid.

We recommend that the appliance be connected by a service technician or another qualified person in compliance with local codes and regulations.

Before starting the installation

• Check that the purchased appliance has the correct dimensions corresponding to the chosen installation location. Furthermore ensure that there is an electrical power socket available that will remain accessible even after the range hood is installed.
  • Before installing the range hood, check that all necessary masonry work is complete.
  • Have all electrical connections performed by a qualified person.
  • We recommend that you remove the aluminium filters before installing the range hood.
• Check that there are no packaging materials or other materials, e.g. user's manual, warranty card or bags with screws, inside the appliance. These need to be taken out and kept for possible use in the future.

• We recommend that you disconnect and move to the side freely standing or built in stoves so that you have easier access to the rear wall or ceiling. If this is not possible place protective material on to the work area, cooktop or stove. This will prevent damaging these surfaces.

• Select an even surface for the necessary assembly of the range hood. Cover the surface with a protective material and place all parts of the range hood and fastening elements on to it.

• It is necessary that a qualified technician inspects the suitability of the supplied fastening material and other components for the specific wall / ceiling type. The wall / ceiling must be sufficiently strong to hold the weight of the range hood.
• Do not attach this range hood to a wall or cabinet furniture by tiling, plastering and do not glue it on using silicone glue. The appliance is designed to only be installed on a wall / ceiling.
  • We recommend that always two people perform the installation of the appliance.

If your range hood is designed to be mounted to the ceiling, adhere to the following instructions.

1) The range hood must only be suspended on ceiling beams or on load bearing ceiling beam connections.
2) Do not suspend the range hood on false ceilings.
3) The ceiling must have a load bearing capacity of at least 40 kg.
4) The ceiling thickness must be at least 30 mm.

IMPORTANT:

THE RANGE HOOD MAY ONLY BE CONNECTED TO THE ELECTRICAL GRID AFTER THE ENTIRE INSTALLATION IS COMPLETE.

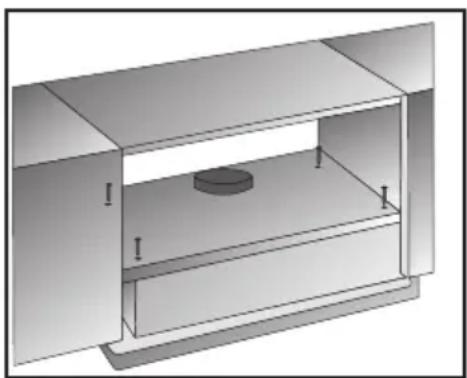

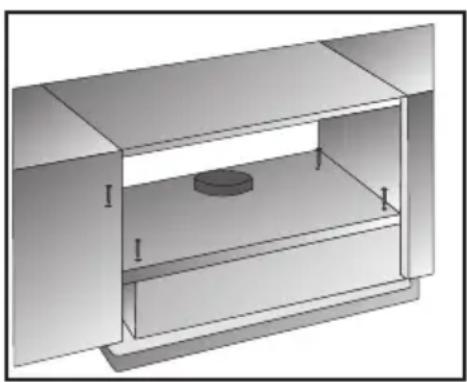

Drill 4 holes into the bottom wooden shelf according to the pattern on the top plate of the range hood.

Also cut out a hole for the exhaust with a diameter of 130 mm.

Use the provided screws (3.5 x 45) to mount the range hood into the cabinet. Check that the extensible part is not preventing the cabinet doors from opening / closing.

3D diagram of two rectangular chambers with a horizontal shelf and a dimension label '135' (no text or symbols beyond the label)

3D diagram of a mechanical housing or enclosure with internal components and mounting holes (no text or symbols)

Exhaust connection

NOTE:

This range hood may be used with or without an exhaust. Nonetheless it is recommended to install it with the exhaust option.

The carbon filter is not included.

WARNING!

The air outlet must not be connected to the chimney of a fire stove or another similar outlet used for heating.

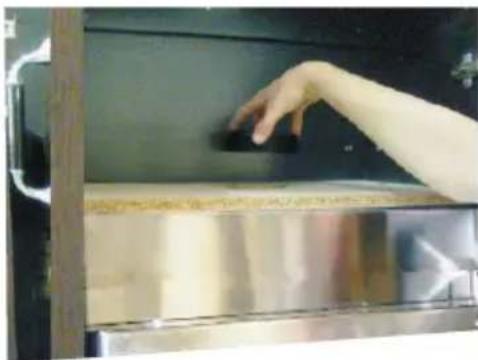

1. Place the exhaust fl ange on to the range hood.

Hand reaching toward a metallic tray with a small object on top (no visible text or symbols)

1. Attach one end of the aluminium flue pipe to the range hood flange and the other end to the air outlet. Check that both ends are firmly attached and secured in place.

Close-up of hands handling a metallic cylindrical component mounted on a black surface (no visible text or symbols)

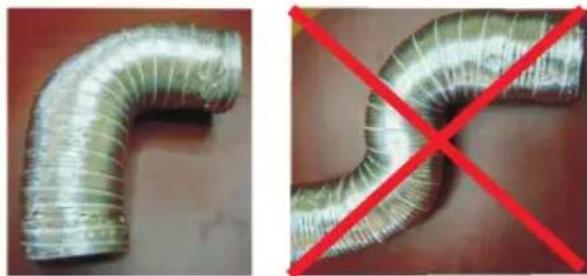

1. Bends and deviations in the aluminium flue pipe reduce the exhaust performance, so it is essential that the pipe is bent as little as possible.

Two views of a flexible, mesh-wrapped pipe with red prohibition signs (no text or symbols)

Right Wrong

Carbon fi Iter

If you are using the range hood without an air exhaust, it is necessary to use a carbon filter. The carbon filter is not included. Contact your vendor or an authorised service centre to purchase this filter.

• Before installing or replacing the carbon filter, check that the appliance is turned off and disconnected from the power socket or that the respective circuit breaker is turned off.
• It is necessary to replace the carbon filter regularly every 3 – 5 months depending on how much the appliance is used.
  • Never wash the carbon filter in water unless the manufacturer states otherwise.
• Fat filters must always be installed even when the carbon filter is not installed. Do not use the appliance without the fat filter inserted.

Replacing the carbon fi Iter

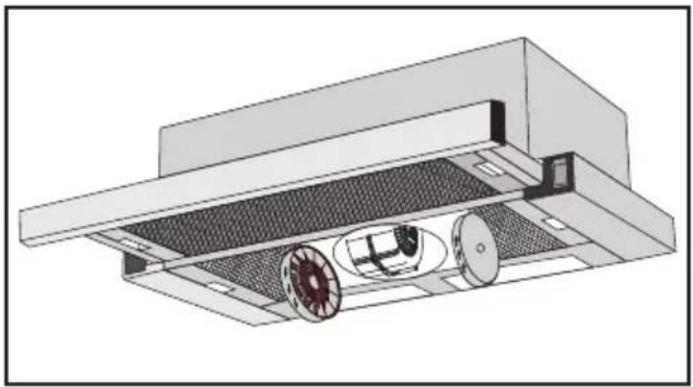

1. For the correct operation of the appliance it is necessary to install a carbon filter. The number and type depends on the model.
2. Place the carbon filter on the motor outlets and turn it in the clockwise direction.
3. To remove the carbon fi lter turn it in the anticlockwise direction.

PEB 6708IX

Technical illustration of a fan assembly with rotating components (no text or symbols)

PEB 6408WH

Technical illustration of a mechanical device with internal components and a central fan (no text or symbols)

Ventilation

To ensure proper ventilation, leave windows closed while the appliance is turned on.

WARNING!

Pay increased attention if you are using the appliance together with another appliance that uses air or fuel for its operation (e.g. heating fan, fan, etc.) or that uses gas, coal or wood, as its operation may negatively affect the performance of the range hood because it expels air out of the room. This warning does not apply if you installed the appliance without an exhaust out of the room.

PART 4: OPERATION

PEB 6708IX

Remove the protective foil from the control panel.

Exhaust power selection

This range hood is equipped with 5 levels of exhaust power. Select the power level based on the use of the stove and the amount steam that the pots emit.

To turn on the motor press the ✗/☐ button and to set the exhaust power level press the + or - button. Press the + button to increase the exhaust power and the - button to reduce the exhaust power.

Automatic timer (TIMER)

All models with a remote control are equipped with an automatic timer.

Press and hold the ✗/☐ button at the set exhaust power level for at least 2 seconds and the automatic timer function will be turned on for a period of 15 minutes. When the function is turned on, the respective symbol will appear on the display and the motor will turn off automatically after 15 minutes.

NOTE:

Use the range hood together with the stove. This will ensure the correct air exhaust. We recommend to leave the range hood running a few minutes longer than the stove to ensure that all odours are extracted.

Lighting

The range hood is equipped with lightning. Press the button with the light symbol to turn on the lights. Press the button again to turn the lights off.

PEB 6408WH

Remove the protective foil from the control panel.

Exhaust power selection

This range hood is equipped with 3 levels of exhaust power. Select the power level based on the use of the stove and the amount steam that the pots emit.

Press the respective button on the control panel.

I – lowest exhaust power

II – medium exhaust power

III – highest exhaust power

1. and

2. speed switch

Illumination

switch

Automatic timer (TIMER)

All models with electronic controls are equipped with an automatic timer.

Press and hold the respective button for the exhaust power level for at least 2 seconds and the automatic timer function will be turned on for a period of 15 minutes. When the function is turned on, the respective symbol will appear on the display and the motor will turn off automatically after 15 minutes.

NOTE:

Use the range hood together with the stove. This will ensure the correct air exhaust. We recommend to leave the range hood running a few minutes longer than the stove to ensure that all odours are extracted.

Lighting

The range hood is equipped with lightning. Press the button with the light symbol to turn on the lights. Press the button again to turn the lights off.

Operating tips

1. Regularly clean the aluminium filters and regularly replace the carbon and fat filters.
2. Use the medium exhaust power level. Only use the highest power level when necessary.
3. To ensure proper ventilation, leave windows closed while the appliance is turned on.

PART 5: MAINTENANCE AND CLEANING

WARNING!

Before cleaning, regular or other maintenance, installation or removal, check that the appliance is turned off and disconnected from the power socket or that the respective circuit breaker is turned off.

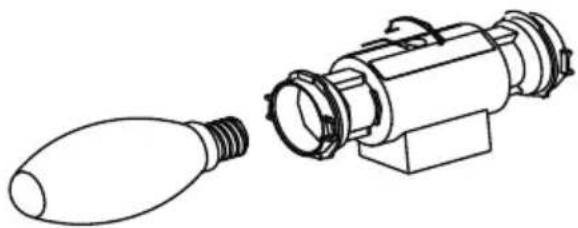

Changing a light bulb

PEB 6708IX

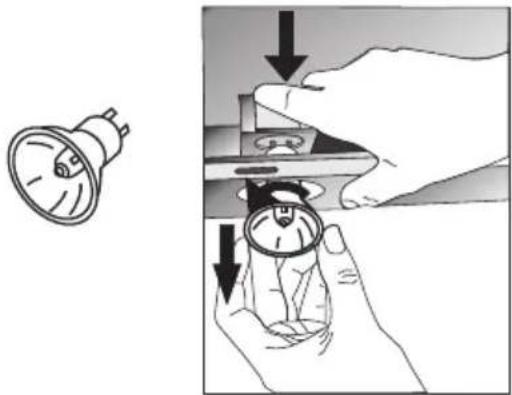

• To remove the halogen light bulb (50 W), press the light bulb holder downwards and gently turn it anticlockwise. Remove the light bulb.
  • Install a light bulb with the same parameters in reverse sequence.

Illustration showing a hand holding a small device with a magnified view of its internal components (no text or symbols present)

PEB 6408WH

• Turn off the appliance.
• Take out the aluminium fi Iter.
• If the light bulb broke during operation wait until it cools down.
- Unscrew the broken light bulb. Install a new one with the same parameters.

Technical line drawing of two mechanical components: a bulb and a cylindrical device (no text or symbols)

Cleaning

• Aluminium filters capture dust and fat from the extracted air.
- It is necessary to regularly wash these filters, ideally once a month, depending on the level of use. Wash the filters in water with dishwashing detergent, or you may place the filters in a dishwasher and wash them using a gentle program (max. 60°C).
• Take out the aluminium filters by pressing the clip.
• After cleaning allow the aluminium filters to dry thoroughly before reinstalling them.
- Wipe the outer surface of the range hood with a clean damp wiping cloth lightly dipped in water with a small amount of dishwashing detergent. Then wipe dry.
- Avoid electrical parts coming into contact with water or another liquid.
- For cleaning you can also use special agents for the maintenance and cleaning of INOX surfaces.

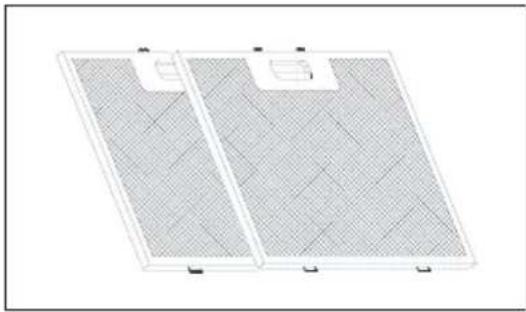

Cleaning the aluminium fi Iters

The aluminium filters need to be cleaned when "C" appears on the display (depending on the model).

Clean the fi Iters according to the above mentioned instructions and after reinstalling them press and hold down the fan button for 3 seconds until the "C" symbol (depending on the model) disappears from the display. The symbol "E" (depending on the model) will appear on the display, which means that the appliance is ready for operation.

If you wish to use the appliance without clearing the "C" symbol (depending on the model), press the fan button to start extraction for 1 second, then the "C" symbol (depending on the model) will appear again and the motor will continue running.

Technical line drawing of a solar panel installation showing internal structure and top-down view (no text or symbols)

NOTE:

The "C" symbol (depending on the model) appears on the display after approximately 60 hours of operation.

WARNING!

For cleaning do not use petrol, benzene, thinners or any other solvents, coarse cleaning agents, steel wool or any sponges with steel wool.

WARNING!

You may put the aluminium filters in a dishwasher. The colour of the aluminium filters may change after several washes. This is a normal event.

PART 6: BEFORE YOU CALL THE SERVICE CENTRE

If the appliance is not working as it should check the following recommendations for resolving the most common problems.

If the problem persists or it is not included in the table below, turn off the appliance and disconnect it from the power socket and contact an authorised service centre.

Problem	Solution
The range hood is not working. Check	check that the power plug is properly inserted in a properly grounded power socket with the parameters 220 – 240 V ~ 50 Hz.
	Check that the motor power switch is in the "On" position.
The lights are not working. Check	that the power plug is properly inserted in a properly grounded power socket with the parameters 220 – 240 V ~ 50 Hz.
	Check that the motor power switch is in the "On" position.
	Check whether the light bulb or fluorescent tube is not broken.
Exhaust power is weak. Check whether the aluminium fi lters are dirty.
The range hood does not extract the air directly out (for models without an exhaust).	Check whether the aluminium fi lters are dirty.
	Check whether the carbon fi lter is not too dirty.

ATTENTION:

Use the range hood together with the stove. This will ensure the correct air exhaust. We recommend to leave the range hood running a few minutes longer than the stove to ensure that all odours are extracted.

PART 7: TECHNICAL SPECIFICATIONS

		PEW PEI			PEC 6405 - PEC 9405	PEC 5507 - PEC 6507	PEB 6408	PEC 5406 - PEC 6406	PEB 6708
SPEED 1	Voltage (A) 0,5 0,6 0	5 0,5 1 0,6 0,6	0,5
	Power (W) 105 90 12	0 70 135 80 8	0 110
	Air flow (m^3/h) 180	230 200 190	250 190 155 2	10
	Pressure (mmH20)	30 155 170 1	50 160 160 18	0 155
	Noise level (dB)	36	35	39,7	43	40	45	44	34,5
SPEED 2	Voltage (A) 0,6 0,9 0	6 0,6 1,2 0,9 0	6 0,6
	Power (W) 125 120 1	30 90 170 110	95 125
	Air flow (m^3/h) 260	310 265 225	310 400 175 2	90
	Pressure (mmH20)	200 205 230 1	65 180 190 20	5 235
	Noise level (dB)	43	42	43,6	47,5	48	54	50	43
SPEED 3	Voltage (A) 0,7 1,5 0	7 0,8 1,6		0,9 0,7
	Power (W) 145 185 1	50 110 220		110 150
	Air flow (m^3/h)	335	500	360	400	500		400	375
	Pressure (mmH20)	265 245 290 1	80 200		225 285
	Noise level (dB)	48	52	49	51,5	55		53	49
SPEED 4	Voltage (A) 0,8		0,8					0,8
	Power (W) 170		175					175
	Air flow (m^3/h)	450		455					470
	Pressure (mmH20)	310		325					320
	Noise level (dB) 53		53,4					53,5
SPEED 5	Voltage (A)	1		1					1
	Power (W) 210		210					210
	Air flow (m^3/h)	750		750					750
	Pressure (mmH20)	350		365					380
	Noise level (dB) 61		60,2					61
Input voltage		220 - 240 V ~ 50 Hz	220 - 240 V ~ 50 Hz	220 - 240 V ~ 50 Hz	220 - 240 V ~ 50 Hz	220 - 240 V ~ 50 Hz	220 - 240 V ~ 50 Hz	220 - 240 V ~ 50 Hz	220 - 240V ~ 50 Hz
Air outlet diameter		150 mm	150 mm	150 mm	120 mm	120 mm	120 mm	120 mm	120 mm

NOTE: All the here mentioned data is subject to change.

INSTRUCTIONS AND INFORMATION REGARDING THE DISPOSAL OF USED PACKAGING MATERIALS

Dispose of packaging material at a public waste disposal site.

DISPOSAL OF USED ELECTRICAL AND ELECTRONIC APPLIANCES

The meaning of the symbol on the product, its accessory or packaging indicates that this product shall not be treated as household waste. Please, dispose of this product at your applicable collection point for the recycling of electrical & electronic equipment waste. Alternatively in some states of the European Union or other European states you may return your products to your local retailer when buying an equivalent new product. The correct disposal of this product will help save valuable natural resources and help in preventing the potential negative impact on the environment and human health, which could be caused as a result of improper liquidation of waste. Please ask your local authorities or the nearest waste collection centre for further details. The improper disposal of this type of waste may fall subject to national regulations for fi nes.

For business entities in the European Union

If you wish to dispose of an electrical or electronic device, request the necessary information from your seller or supplier.

Disposal in other countries outside the European Union

If you wish to dispose of this product, request the necessary information about the correct disposal method from local government departments or from your seller.

This product meets all the basic EU regulation requirements that relate to it.

Changes to the text, design and technical specifications may occur without prior notice and we reserve the right to make these changes.

ODSAVAČ PAR

NÁVOD K OBSLUZE

PHILCO

Famous for Quality the World Over

PEB 6708IX

PEB 6408WH

Vážený zákazníku

3D diagram of two rectangular compartments with a horizontal shelf and a dimension label '135' (no text or symbols beyond the label)

3D diagram of a mechanical housing or enclosure with internal components and mounting brackets (no text or symbols)

Připojení odsávání

POZNÁMKA:

Hand reaching toward a dark surface on a metallic shelf (no visible text or symbols)

Close-up of hands handling a metallic cylindrical component on a dark surface (no visible text or symbols)

Two types of flexible, mesh-wrapped pipes: one with a red X symbol crossed out, the other without it.

Správně Špatně

Uhlíkový fi ltr

Technical illustration of a fan assembly with rotating components (no text or symbols)

PEB 6408WH

Technical illustration of a mechanical device with rollers and a housing (no text or symbols)

Ventilace

Illustration showing a hand holding a small light bulb and a magnified view of the bulb's internal structure (no text or symbols present)

PEB 6408WH

Technical line drawing of a bulb and optical device (no text or symbols)

Čištění

Technical line drawing of a structural assembly with no visible text or symbols

Two rectangular panels with grid patterns and mounting brackets, no text or symbols visible

POZNÁMKA:

Famous for Quality the World Over

PEB 6708IX

PEB 6408WH

Vážený zákazník

3D diagram of two rectangular chambers with a horizontal shelf and a dimension label '135' (no text or symbols beyond the label)

3D diagram of a mechanical housing or enclosure with internal components and mounting holes (no text or symbols)

Pripojenie odsávania

POZNÁMKA:

Hand cleaning a metal tray with a black tool, no visible text or symbols

Close-up of hands handling a cylindrical metallic component inside a black industrial machine (no visible text or symbols)

Two-panel image showing a flexible, mesh-wrapped pipe with red X-shaped prohibition signs (no text or symbols)

Správne Zle

Uhlíkový fi Iter

Technical illustration of a fan assembly with rotating components (no text or symbols)

PEB 6408WH

Technical illustration of a mechanical device with rollers and housing (no text or symbols)

Ventilácia

Illustration showing a hand holding a small mechanical component with a magnified view of the device (no text or symbols present)

PEB 6408WH

Technical line drawing of a bulb and optical device (no text or symbols)

Čistenie

Architectural cross-section diagram of a structural frame with no visible text or symbols

Two rectangular panels with grid patterns, each featuring a small inset (no text or symbols visible)

POZNÁMKA:
