PEC 5507 IX - Range hood Philco - Free user manual and instructions

Product Type	Range Hood
Brand	Philco
Model	PEC 5507 IX
Installation Type	Built-in / Under Cabinet
Width	55 cm
Depth	50 cm
Height (min-max)	15 - 25 cm
Weight	12 kg
Power Supply	220-240 V, 50 Hz
Motor Power	150 W
Max Extraction Rate	550 m³/h
Number of Speeds	3 + Intensive
Noise Level (max)	65 dB(A)
Filter Type	Aluminum Grease Filter (washable)
Charcoal Filter	Optional (for recirculation mode)
Lighting	2 x 3W LED
Control Type	Mechanical Push Buttons
Ducted / Recirculation	Both possible
Duct Diameter	150 mm
Energy Efficiency Class	A+
Material	Stainless Steel
Safety Features	Auto Power Off, Thermal Protection
Warranty	2 Years
Maintenance	Clean grease filter every month, replace charcoal filter every 6 months
Spare Parts Availability	Filters, bulbs, controls available from service centers

Frequently Asked Questions - PEC 5507 IX Philco

How do I install the Philco PEC 5507 IX range hood?

Install the hood at least 65 cm above the cooking surface. Ensure proper ducting for exhaust mode or prepare for recirculation. Securely mount it to the cabinet or wall, and connect to a 220-240 V outlet. Refer to the installation manual for detailed steps.

How often should I clean the grease filter?

Clean the aluminum grease filter every month or when the filter saturation indicator (if available) lights up. Wash it by hand with warm soapy water or in the dishwasher, and let it dry completely before reinstalling.

Can I use the hood in recirculation mode?

Yes, you can use recirculation mode. You will need to purchase a charcoal filter (activated carbon filter) separately. Install it behind the grease filter to absorb odors before recirculating air back into the kitchen.

Why is my range hood noisy?

Noise can increase if the grease filter is clogged or the duct is blocked. Clean the filter and check the duct for obstructions. Also ensure the hood is securely mounted to avoid vibrations. Normal noise level is up to 65 dB at maximum speed.

How do I replace the LED lights?

The LED bulbs are typically integrated and may require a technician to replace. If they fail, contact Philco service center. Do not attempt to replace them yourself unless specified in the manual.

What is the warranty period for this hood?

The Philco PEC 5507 IX comes with a 2-year warranty covering manufacturing defects. Keep your purchase receipt for warranty claims. Extended warranty may be available in some regions.

Can I connect the hood to an external duct?

Yes, the hood is designed for ducting with a 150 mm diameter duct. Connect it to an external vent or wall outlet for efficient air extraction. Ensure the duct is as short and straight as possible to maintain performance.

How do I reset the filter saturation indicator?

After cleaning or replacing the filters, press and hold the filter cleaning button (if available) for 3 seconds until the indicator light turns off. Refer to the manual for exact procedure for your model.

What are the dimensions of the Philco PEC 5507 IX?

The hood has a width of 55 cm, depth 50 cm, and adjustable height between 15 and 25 cm. Ensure your cabinet opening matches these dimensions for flush installation.

Can I use the hood without the charcoal filter?

Yes, you can use the hood without a charcoal filter if you are using exhaust mode (ducting outside). The charcoal filter is only required for recirculation mode to remove odors.

USER MANUAL PEC 5507 IX Philco

Famous for Quality the World Over

PEC 5406W

PEC 6406W

PEC 5507IX

PEC 6507IX

Dear customer,

Thank you for buying a PHILCO brand product. So that your appliance serves you well, please read all the instructions in this user's manual.

CONTENTS

PART 1: IMPORTANT SAFETY INSTRUCTIONS....2

PART 2: DESCRIPTION OF THE APPLIANCE .... 4

PART 3: INSTALLATION .... 5

Unpacking....5

Dimensions of the appliance ....5

Supplied accessories....7

Placement 8

Installation 8

Carbon filter....11

Ventilation....12

PART 5: MAINTENANCE AND CLEANING....14

Changing a light bulb....14

Cleaning....14

PART 6: BEFORE YOU CALL THE SERVICE CENTRE....15

PART 7: TECHNICAL SPECIFICATIONS....16

PART 1: IMPORTANT SAFETY INSTRUCTIONS

Recommendation:

Carefully read these instructions before installing and operating this range hood.

Write down the serial number found on the rating label of the range hood in the space below. It is essential that you store this user's manual in a safe place so that you can use it in the future. If you intend to sell the appliance, give it to another owner, or if you move, always make sure that the user's manual is attached to the appliance, so that the new owner can also learn about the operation of the appliance and the relevant warnings.

SERIAL NUMBER:

Important safety instructions

• This appliance is designed for household use only.
- Before connecting the power cord plug, make sure the voltage stated on the rating label of the appliance corresponds to the voltage in your wall socket. Connect the power cord plug to a power socket with a voltage of 220 – 240 V \~ 50 Hz.
- Only use a properly grounded power socket. The appliance may only be connected to a properly grounded power socket.
- All electrical connections must be performed by a qualified electrician.
- Installation performed by an unqualified person may cause incorrect operation, damage to the appliance, create a fire hazard or cause injury to persons.
- Neither the manufacturer nor the vendor take responsibility for damages cause by incorrect or unprofessional installation, connection or operation. Tampering with the appliance by an unqualified person will void the customer's right to a warranty repair.
- Do not expose the power cord to excessive pressure or loads, do not place heavy objects on it, it must not be tangled and it must not be stepped on. Do not locate the power cord in or on heat sources such as stoves, heating or other generators of heat. Otherwise this may damage the power cord or create a fire hazard.
- Only connect the power cord plug to a power socket after the entire installation is completed.
- The power plug serves as a disconnection device and for this reason the power socket must remain easily accessible for the event of a dangerous situation, unless it is connected into a terminal box.
- Do not touch the lights if the appliance has been running for some time. Lights heat up during operation and may cause burns.
- This appliance is designed for fume extraction during standard domestic use. Do not use the appliance for purposes other than those for which it was designed. Otherwise you expose yourself to the risk of a dangerous situation and voiding the warranty.
- Follow the instructions for installation and ventilation (with the exception of when a fire stove is used).
- Do not use the flambé cooking method under the range hood.
• Regularly replace the filters in the range hood. Otherwise this presents a fire hazard.
- Only use filters suitable for use with the range hood. The manufacturer or distributor will recommend the suitable fi lter type.
- Do not use the appliance without the aluminium filter inserted. Do not take out the filters while the appliance is on.
• Regularly clean the appliance to prevent a dangerous situation from occurring.
- Before cleaning, replacing filters, moving or any other maintenance, turn off the appliance and pull out the power plug from the power socket, or turn off the respective circuit breaker.
- If you are using another gas or natural gas appliance in the room at the same time, the fumes from this appliance must be spatially isolated.

• If a chimney is connected to the exhaust of the range hood, use pipes with a diameter of 150 or 120 mm. The pipe connection should be as short as possible.
• Keep packaging materials out of children's reach. They could suffer injury or suffocation.
• Children must be supervised to ensure that they do not play with the appliance. If the power cord is damaged stop using the appliance. Have the power cord replaced at an authorised service centre or by another qualified person. Under no circumstances should you replace the power cord yourself.

To ensure safety, use a fuse with a maximum rating of 6 A.

WARNING!

This appliance must not be used by persons (including children) with physical or mental impairments or by inexperienced persons, unless properly trained or schooled in the safe use of the appliance, or unless they have been properly supervised by a qualified person who will be responsible for their safety.

Attention when transporting or carrying

The packaging materials are from recyclable materials, so dispose of them in an environmentally conscientious manner according to regulations in force.

During transport adhere to the symbols of the cardboard box.

When carrying the appliance, hold it by the respective handles.

NOTE:

We recommend that you keep the original packaging at least for the duration of the warranty period for the event of repair or refund and transport to the authorised service centre. Adhere to the symbols on the cardboard box.

If you do not have the original cardboard box, adhere to the following instructions:

a) Do not place any items on the appliance that could damage the appliance during transport.
b) Protect the appliance against impacts, falls, etc.
c) Wrap the appliance, e.g. in bubble wrap which will protect the appliance from damage.

NOTE:

The carbon filter is not included.

NOTE:

If the building is equipped with a heat recovery system system, it is necessary to setup the appliance for internal air circulation (without an exhaust). In that case, it is necessary to purchase the carbon filter.

PART 2: DESCRIPTION OF THE APPLIANCE

1. Control panel
2. Filter
3. Lighting

PART 3: INSTALLATION

Unpacking

• After unpacking remove all packaging and advertising labels from the appliance.
- Check that the appliance has not been damaged and that the package includes all the items described in this user's manual.
• If the appliance was damaged during transport, contact authorised service centre.
- Do not use a damaged appliance under any circumstances.

IMPORTANT:

Ensure that children do not play with the packaging material.

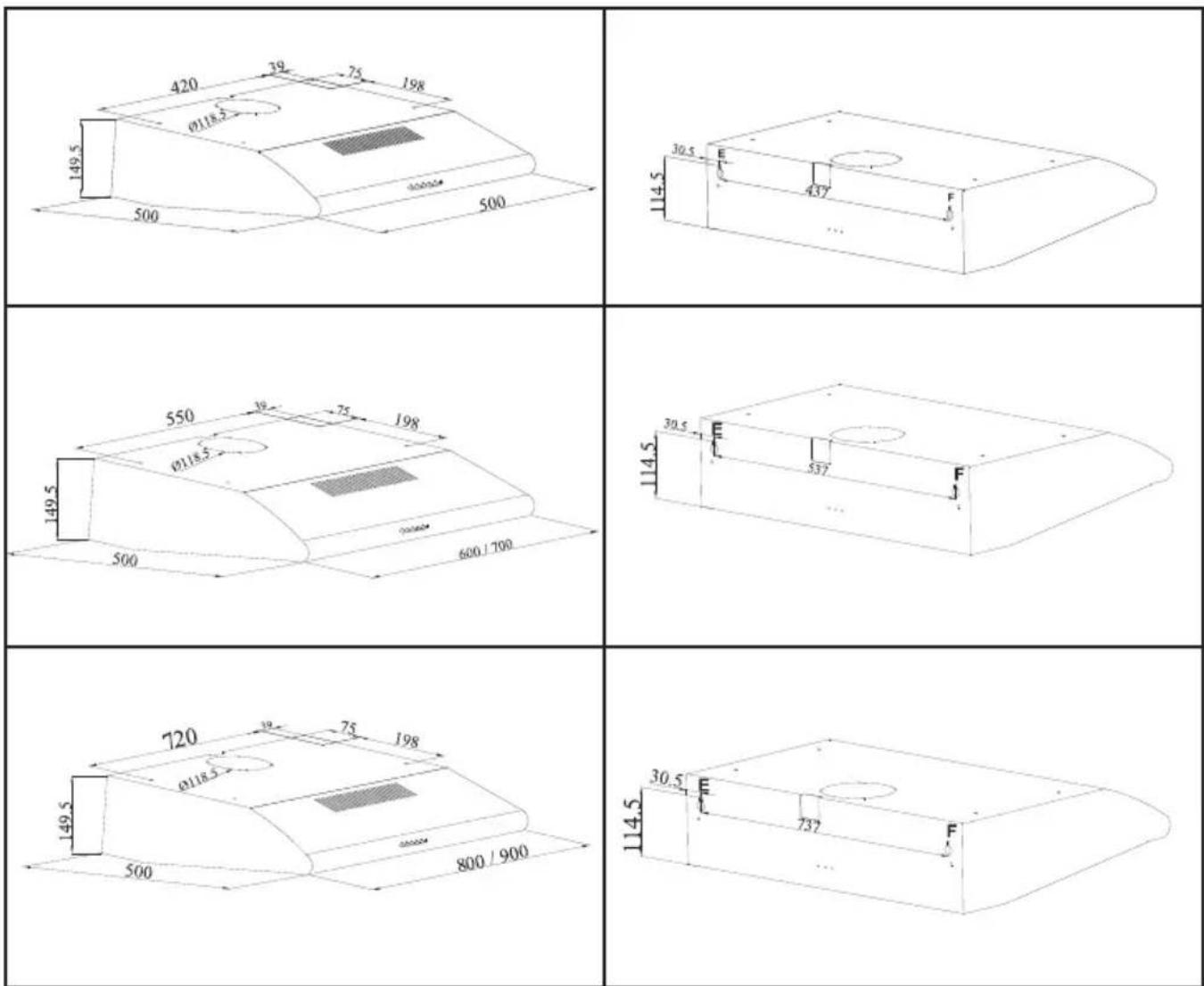

Dimensions of the appliance

IMPORTANT:

Before installing or using the appliance, please first read all instructions and check that the voltage and frequency values on the rating label correspond to the voltage and frequency in your electricity grid.

We recommend that the appliance be connected by a service technician or another qualified person in compliance with local codes and regulations.

Before starting the installation

• Check that the purchased appliance has the correct dimensions corresponding to the chosen installation location. Furthermore ensure that there is an electrical power socket available that will remain accessible even after the range hood is installed.
  • Before installing the range hood, check that all necessary masonry work is complete.
  • Have all electrical connections performed by a qualified person.
  • We recommend that you remove the aluminium filters before installing the range hood.
• Check that there are no packaging materials or other materials, e.g. user's manual, warranty card or bags with screws, inside the appliance. These need to be taken out and kept for possible use in the future.
• We recommend that you disconnect and move to the side freely standing or built in stoves so that you have easier access to the rear wall or ceiling. If this is not possible place protective material on to the work area, cooktop or stove. This will prevent damaging these surfaces.
• Select an even surface for the necessary assembly of the range hood. Cover the surface with a protective material and place all parts of the range hood and fastening elements on to it.
• It is necessary that a qualified technician inspects the suitability of the supplied fastening material and other components for the specific wall / ceiling type. The wall / ceiling must be sufficiently strong to hold the weight of the range hood.
• Do not attach this range hood to a wall or cabinet furniture by tiling, plastering and do not glue it on using silicone glue. The appliance is designed to only be installed on a wall / ceiling.
  • We recommend that always two people perform the installation of the appliance.

If your range hood is designed to be mounted to the ceiling, adhere to the following instructions.

1) The range hood must only be suspended on ceiling beams or on load bearing ceiling beam connections.
2) Do not suspend the range hood on false ceilings.
3) The ceiling must have a load bearing capacity of at least 40 kg.
4) The ceiling thickness must be at least 30 mm.

IMPORTANT:

THE RANGE HOOD MAY ONLY BE CONNECTED TO THE ELECTRICAL GRID AFTER THE ENTIRE INSTALLATION IS COMPLETE.

Supplied accessories (depending on the model)

Short fl ap

Use if the range hood will be used without an exhaust duct (it is necessary to purchase a carbon filter).

Close-up of a hand holding a small black plastic clip against a red surface (no text or symbols visible)

Long fl ap

Use if the range hood will be used with an exhaust duct. This accessory is not attached to the range hood.

Close-up of a hand holding a small green object against a red background (no text or symbols visible)

Exhaust plug

It serves to block the air outflow opening when the range hood is used without an exhaust duct. This accessory is not attached to the range hood.

Close-up of a hand holding a dark circular object with internal lines, against a blurred orange background (no text or symbols visible)

Non-return exhaust fl ap

A non-return exhaust flap must be installed into the air outlet duct of the range hood (unless one is already factory installed).

Close-up of a hand holding a black circular mechanical component (no visible text or symbols)

Placement

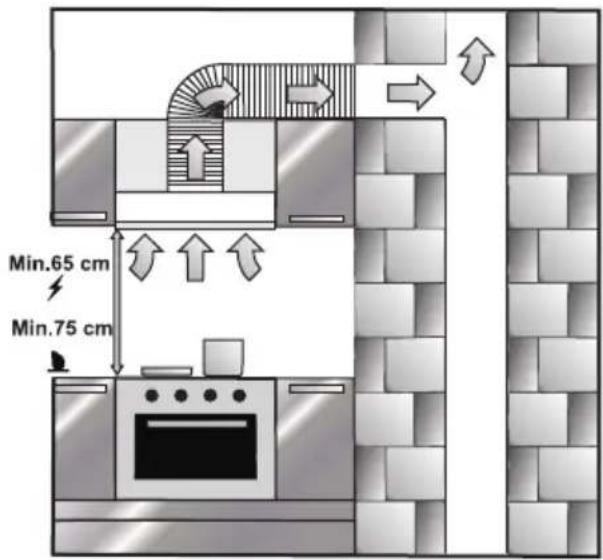

Install the range hood at a height of at least 65 cm above an electric cooktop or at a height of 75 cm above a gas cooktop.

Installation

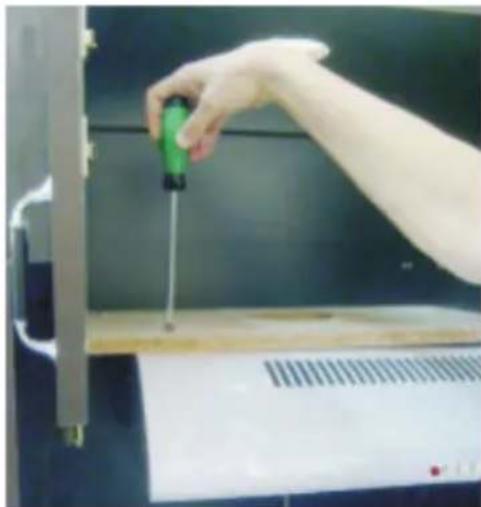

Suspended under a cabinet

1. Drill 4 holes under the cabinet to which you wish to mount the range hood according to the distances on the installation diagram.
2. Measure the dimension for the exhaust duct of the range hood. It should be larger than 120 mm.
3. Use the 4 supplied bolts (M4x30) to screw on the range hood. Check that the bolts are properly and firmly tightened.

Hand using a screwdriver to lift a wooden plank on a laptop keyboard (no visible text or symbols)

Wall-mounted

1. Drill 2 holes into a wall using a bit with a diameter of 6 mm at a distance of points E, F (see part "Dimensions of the Appliance").
2. Insert 2 dowels (included) into the drilled holes.

Hand holding a wooden hammer against a plain wall, with a small white object visible on the left (no text or symbols)

1. Insert the hooks into the dowels. Ensure that they are properly and firmly inserted into the dowels.

Close-up of a hand holding a small metal screw or screw, with no visible text or symbols.

1. Now hang the range hood on the hooks.

Exhaust connection

NOTE:

This range hood may be used with or without an exhaust duct. Nonetheless it is recommended to install it with the exhaust option.

The carbon filter is not included.

WARNING!

The air outlet must not be connected to the chimney of a fire stove or another similar outlet used for heating.

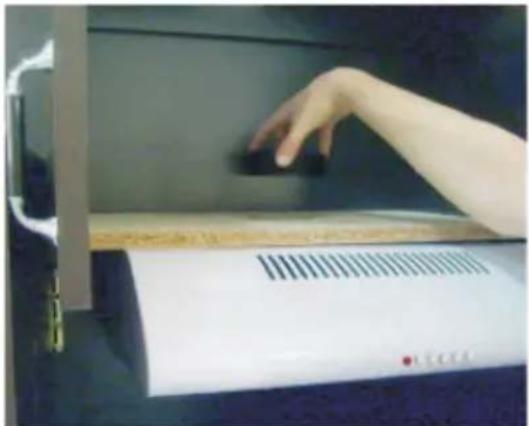

1. Place the exhaust fl ange on to the range hood.

Close-up of a hand pressing down on a white electronic device with ventilation grilles (no visible text or symbols)

1. Attach one end of the aluminium flue pipe to the range hood flange and the other end to the air outlet. Check that both ends are firmly attached and secured in place.

Person handling a large cylindrical object on a shelf, no visible text or symbols

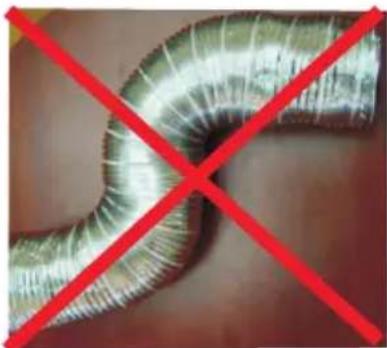

1. Bends and deviations in the aluminium flue pipe reduce the exhaust performance, so it is essential that the pipe is bent as little as possible.

Close-up of a metallic curved pipe with coiled insulation (no text or symbols visible)

Right

Close-up of a coiled, metallic pipe with red X-shaped prohibition symbol (no text or symbols on the pipe itself)

Wrong

Carbon fi Iter

If you are using the range hood without an air exhaust, it is necessary to use a carbon filter. The carbon filter is not included. Contact your vendor or an authorised service centre to purchase this fi Iter.

• Before installing or replacing the carbon filter, check that the appliance is turned off and disconnected from the power socket or that the respective circuit breaker is turned off.
• It is necessary to replace the carbon filter regularly every 3 – 5 months depending on how much the appliance is used.
  • Never wash the carbon filter in water unless the manufacturer states otherwise.
• Aluminium filters must always be installed even when the carbon filter is not installed. Do not use the appliance without the aluminium filter installed.

Close-up of a hand pressing down on a kitchen appliance with a red arrow indicating the process (no text or symbols visible)

Short flap: use when no exhaust is provided (with a carbon fi

Close-up of a hand holding a black plastic clip attached to a kitchen appliance (no visible text or symbols)

Long flap: used when exhaust is provided no exhaust provided Iter)

Hand pressing down on a white sheet with a red upward arrow pointing to the page (no text or symbols visible)

Exhaust plug: used when

(with

a

Replacing the carbon fi Iter

1. For the correct operation of the appliance it is necessary to install a carbon filter. The number and type depends on the model.
2. Place the carbon filter on the motor outlets and turn it in the clockwise direction.
3. To remove the carbon filter turn it in the anticlockwise direction.

PEC 5406WH / PEC 6406WH

Hand holding a black electronic device inside a white appliance (no visible text or symbols)

PEC 5507IX / PEC 6507IX

Hand placing a fan into a refrigerator with visible blades and wheels (no text or symbols)

Ventilation

To ensure proper ventilation, leave windows closed while the appliance is turned on.

WARNING!

Pay increased attention if you are using the appliance together with another appliance that uses air or fuel for its operation (e.g. heating fan, fan, etc.) or that uses gas, coal or wood, as its operation may negatively affect the performance of the range hood because it expels air out of the room. This warning does not apply if you installed the appliance without an exhaust out of the room.

PART 4: OPERATION

Remove the protective foil from the control panel.

Exhaust power selection

This range hood is equipped with 3 levels of exhaust power. Select the power level based on the use of the stove and the amount steam that the pots emit.

Press the respective button on the control panel.

I – lowest exhaust power

II – medium exhaust power

III – highest exhaust power

Automatic timer (TIMER)(depending on the model)

All models with electronic controls are equipped with an automatic timer.

Press and hold the respective button for the exhaust power level for at least 2 seconds and the automatic timer function will be turned on for a period of 15 minutes. When the function is turned on, the respective symbol will appear on the display and the motor will turn off automatically after 15 minutes.

NOTE:

Use the range hood together with the stove. This will ensure the correct air exhaust. We recommend to leave the range hood running a few minutes longer than the stove to ensure that all odours are extracted.

Lighting

The range hood is equipped with lighting. Press the button with the light symbol to turn on the lights. Press the button again to turn the lights off.

Types of control panels

Operating tips

1. Regularly clean the aluminium fi Iters and regularly replace the carbon fi Iters.
2. Use the medium exhaust power level. Only use the highest power level when necessary.
3. To ensure proper ventilation, leave windows closed while the appliance is turned on.

PART 5: MAINTENANCE AND CLEANING

WARNING!

Before cleaning, regular or other maintenance, installation or removal, check that the appliance is turned off and disconnected from the power socket or that the respective circuit breaker is turned off.

Changing a light bulb

• Turn off the appliance.
• Take out the aluminium filter.
- If the light bulb broke during operation wait until it cools down.
- Unscrew the broken light bulb. Install a new one with the same parameters.

Cleaning

• Aluminium filters capture dust and fat from the extracted air.
- It is necessary to regularly wash these filters, ideally once a month, depending on the level of use. Wash the filters in water with dishwashing detergent, or you may place the filters in a dishwasher and wash them using a gentle program (max. 60°C).
• Take out the aluminium filters by pressing the clip.
• After cleaning allow the aluminium filters to dry thoroughly before reinstalling them.
- Wipe the outer surface of the range hood with a clean damp wiping cloth lightly dipped in water with a small amount of dishwashing detergent. Then wipe dry.
- Avoid electrical parts coming into contact with water or another liquid.
- For cleaning you can also use special agents for the maintenance and cleaning of INOX surfaces (applies only for models with an INOX surface treatment).

Hand installing or adjusting a white air conditioner cover on a dark surface (no visible text or symbols)

WARNING!

For cleaning do not use petrol, benzene, thinners or any other solvents, coarse cleaning agents, steel wool or any sponges with steel wool.

WARNING!

You may put the aluminium filters in a dishwasher. The colour of the aluminium filters may change after several washes. This is a normal event.

PART 6: BEFORE YOU CALL THE SERVICE CENTRE

If the appliance is not working as it should check the following recommendations for resolving the most common problems.

If the problem persists or it is not included in the table below, turn off the appliance and disconnect it from the power socket and contact an authorised service centre.

Problem	Solution
The range hood is not working. Check that the power plug is properly inserted in a properly grounded power socket with the parameters 220 – 240 V ~ 50 Hz.
The lights are not working. Check that the power plug is properly inserted in a properly grounded power socket with the parameters 220 – 240 V ~ 50 Hz.
Exhaust power is weak. Check whether the aluminium fi lters are dirty.
The range hood does not extract the air directly out (for models without an exhaust).	Check whether the aluminium fi lters are dirty.
	Check whether the carbon fi lter is not too dirty.

ATTENTION:

Use the range hood together with the stove. This will ensure the correct air exhaust. We recommend to leave the range hood running a few minutes longer than the stove to ensure that all odours are extracted.

PART 7: TECHNICAL SPECIFICATIONS

		PEW PEI			PEC 6405 - PEC 9405	PEC 5507 - PEC 6507	PEB 6408	PEC 5406 - PEC 6406	PEB 6708
SPEED 1	Voltage (A) 0,5 0,6 0	5 0,5 1 0,6 0,6	0,5
	Power (W) 105 90 12	0 70 135 80 80	110
	Air flow (m^3/h) 180	230 200 190	250 190 155 210
	Pressure (mmH20)	30 155 170 1	50 160 160 180	155
	Noise level (dB)	36	35	39,7	43	40	45	44	34,5
SPEED 2	Voltage (A) 0,6 0,9 0	6 0,6 1,2 0,9 0,6	0,6
	Power (W) 125 120 1	30 90 170 110	95 125
	Air flow (m^3/h) 260	310 265 225	310 400 175 290
	Pressure (mmH20)	200 205 230 1	65 180 190 205	235
	Noise level (dB)	43	42	43,6	47,5	48	54	50	43
SPEED 3	Voltage (A) 0,7 1,5 0	7 0,8 1,6		0,9 0,7
	Power (W) 145 185 1	50 110 220		110 150
	Air flow (m^3/h)	335	500	360	400	500		400	375
	Pressure (mmH20)	265 245 290 1	80 200		225 285
	Noise level (dB)	48	52	49	51,5	55		53	49
SPEED 4	Voltage (A) 0,8		0,8					0,8
	Power (W) 170		175					175
	Air flow (m^3/h)	450		455					470
	Pressure (mmH20)	310		325				320
	Noise level (dB) 53		53,4					53,5
SPEED 5	Voltage (A)	1		1					1
	Power (W) 210		210					210
	Air flow (m^3/h)	750		750					750
	Pressure (mmH20)	350		365				380
	Noise level (dB) 61		60,2					61
Input voltage		220 - 240 V ~ 50 Hz	220 - 240 V ~ 50 Hz	220 - 240 V ~ 50 Hz	220 - 240 V ~ 50 Hz	220 - 240 V ~ 50 Hz	220 - 240 V ~ 50 Hz	220 - 240 V ~ 50 Hz	220 - 240V ~ 50 Hz
Air outlet diameter		150 mm	150 mm	150 mm	120 mm	120 mm	120 mm	120 mm	120 mm

NOTE: All the here mentioned data is subject to change.

INSTRUCTIONS AND INFORMATION REGARDING THE DISPOSAL OF USED PACKAGING MATERIALS

Dispose of packaging material at a public waste disposal site.

DISPOSAL OF USED ELECTRICAL AND ELECTRONIC APPLIANCES

The meaning of the symbol on the product, its accessory or packaging indicates that this product shall not be treated as household waste. Please, dispose of this product at your applicable collection point for the recycling of electrical & electronic equipment waste. Alternatively in some states of the European Union or other European states you may return your products to your local retailer when buying an equivalent new product. The correct disposal of this product will help save valuable natural resources and help in preventing the potential negative impact on the environment and human health, which could be caused as a result of improper liquidation of waste. Please ask your local authorities or the nearest waste collection centre for further details. The improper disposal of this type of waste may fall subject to national regulations for fi nes.

For business entities in the European Union

If you wish to dispose of an electrical or electronic device, request the necessary information from your seller or supplier.

Disposal in other countries outside the European Union

If you wish to dispose of this product, request the necessary information about the correct disposal method from local government departments or from your seller.

This product meets all the basic EU regulation requirements that relate to it.

Changes to the text, design and technical specifications may occur without prior notice and we reserve the right to make these changes.

ODSAVAČ PAR

NÁVOD K OBSLUZE

PHILCO

Famous for Quality the World Over

PEC 5406W

PEC 6406W

PEC 5507IX

PEC 6507IX

Vážený zákazníku

Close-up of a hand holding a small black plastic clip against a red surface (no text or symbols visible)

Dlouhá klapka

Close-up of a hand holding a small green object against an orange surface (no text or symbols visible)

Záslepka

Close-up of a hand holding a small blue circular object with internal lines, against a blurred red background (no text or symbols visible)

Zpětná klapka

Close-up of a hand holding a dark circular mechanical component, possibly a ring or sensor, on a wooden surface (no visible text or symbols)

Umístění

Hand using a screwdriver to lift a wooden surface, with a laptop and ventilation grille visible (no text or symbols)

Připevnění na zed'

Hand holding a wooden hammer with a black head, emitting a white substance from above (no text or symbols visible)

Close-up of a finger holding a metallic screw with a ring on the index finger (no text or symbols visible)

Close-up of a hand pressing down on a white electronic device with ventilation grilles (no visible text or symbols)

Close-up of a metallic L-shaped pipe with coiled insulation (no text or symbols visible)

Správně

Close-up of a coiled, metallic wire with red X marks (no text or symbols)

Špatně

Uhlíkový fi ltr

Close-up of a hand pressing down on a kitchen appliance with a red arrow pointing to the button (no text or symbols visible)

Close-up of a hand holding a black plastic clip attached to a kitchen appliance (no visible text or symbols)

Hand pressing down on a document with a red upward arrow (no visible text or symbols)

Hand holding a black plastic device inside a white appliance (no visible text or symbols)

PEC 5507IX / PEC 6507IX

Hand placing a black fan into a kitchen appliance with visible blades and wheels (no text or symbols)

Ventilace

Hand installing or adjusting a white air conditioner cover on a dark surface (no visible text or symbols)

VAROVÁNÍ!

Famous for Quality the World Over

PEC 5406W

PEC 6406W

PEC 5507IX

PEC 6507IX

Vážený zákazník

Close-up of a hand holding a small black plastic clip against a red surface (no text or symbols visible)

Dlhá klapka

Hand holding a small green object against a wooden surface (no text or symbols visible)

Záslepka

Close-up of a hand holding a dark blue circular object with internal grid lines (no text or symbols visible)

Spätná klapka

Close-up of a hand holding a black circular mechanical component (no visible text or symbols)

Umiestnenie

Hand using a screwdriver to lift a wooden plank on a laptop (no visible text or symbols)

Hand holding a wooden hammer against a plain wall (no text or symbols visible)

Close-up of a hand holding a small metallic tool, no visible text or symbols

1. Teraz zaveste odsávač pár na skoby.

Pripojenie odsávania

POZNÁMKA:

Close-up of a hand pressing down on a white electronic device with ventilation grilles (no visible text or symbols)

Person handling a large cylindrical object with metallic bands, placed on a shelf (no visible text or symbols)

Close-up of a metallic curved pipe with coiled insulation, no visible text or symbols

Správne

Close-up of a coiled, metallic pipe with red X-shaped prohibition symbol (no text or symbols on the pipe itself)

Nesprávn

Uhlíkový fi Iter

Close-up of a hand pressing down on a kitchen appliance with a red arrow indicating the process (no text or symbols visible)

Close-up of a hand holding a black plastic clip attached to a ceiling-mounted fan or vent (no visible text or symbols)

Hand pressing down on a white sheet with a red upward arrow (no text or symbols visible)

Hand holding a black plastic device inside a white appliance (no visible text or symbols)

PEC 5507IX / PEC 6507IX

Hand placing a fan into a refrigerator with visible blades and buttons (no text or symbols)

Ventilácia

Hand installing or adjusting a white air conditioner cover on a dark surface (no visible text or symbols)

VAROVANIE!

is a registered trademark used under license from Electrolux International Company, U.S.A.
