Product Type	Range Hood
Brand	Philco
Model	PEI 4701
Installation Type	Wall-mounted
Width	60 cm
Depth	50 cm
Weight	15 kg
Airflow (Max)	600 m³/h
Noise Level (Max)	55 dB
Number of Speeds	3
Lighting	LED strip
Filter Type	Aluminum grease filter
Ducting Diameter	150 mm
Recirculation Option	Yes (charcoal filter required)
Control Type	Electronic push buttons
Energy Class	A
Voltage	220-240 V
Power Consumption	200 W
Warranty	2 years

Frequently Asked Questions - PEI 4701 Philco

How do I install the Philco PEI 4701 range hood?

Installation should be carried out by a qualified technician. Ensure the hood is mounted at the recommended height above the cooking surface (typically 65-75 cm for electric hobs, 75-85 cm for gas). Secure the chimney to the wall using the provided brackets and connect the ducting to the outlet. For recirculation mode, install the charcoal filter. Refer to the manual for detailed steps.

How do I clean the grease filter?

The aluminum grease filter should be cleaned every month or more frequently with heavy use. Remove the filter by pulling the handle or pressing the release tab. Wash it by hand with warm water and mild detergent, or place it in the dishwasher at a low temperature. Ensure it is completely dry before reinstalling.

How do I replace the charcoal filter?

The charcoal filter is used in recirculation mode and should be replaced every 3-6 months depending on usage. To replace, remove the grease filter first, then locate the charcoal filter behind it. Unclip or unscrew the old filter and insert the new one. Reinstall the grease filter. Note that charcoal filters cannot be cleaned.

Why is my range hood not operating?

Check if the power cord is plugged in and the circuit breaker is on. Ensure the hood is not in standby mode. If the motor does not start, the thermal switch may have tripped – allow the motor to cool down. If the issue persists, contact customer service.

How do I adjust the fan speed?

The hood has three fan speeds. Press the speed button repeatedly to cycle through low, medium, and high. The corresponding indicator light will show the selected speed. Press the button again to turn off the fan.

How do I change the LED light?

The hood uses integrated LED lights that are not user-replaceable. If the light fails, contact a professional technician to replace the LED module. Avoid attempting to replace it yourself as it may damage the unit.

What is the noise level of the hood?

The noise level varies by speed: low speed around 45 dB, medium around 50 dB, and high up to 55 dB. These are normal levels for a range hood of this class.

Can I use the range hood without ducting?

Yes, the Philco PEI 4701 can be used in recirculation mode. You need to install a charcoal filter (sold separately) to absorb odors. The air is then recirculated back into the kitchen. Ensure the recirculation kit is properly fitted.

How do I clean the exterior of the hood?

Use a soft, damp cloth with a mild detergent or glass cleaner. Avoid abrasive cleaners or scouring pads that may scratch the stainless steel surface. Wipe in the direction of the grain. Dry with a clean cloth to avoid water marks.

Where can I find the user manual?

The user manual is available for free download on our website notice-facile.com. You can also find it on the official Philco support page. Search for model PEI 4701 to get the PDF.

USER MANUAL PEI 4701 Philco

Famous for Quality the World Over

Dear customer,

Thank you for buying a PHILCO brand product. So that your appliance serves you well, please read all the instructions in this user's manual.

CONTENTS

PART 1: IMPORTANT SAFETY INSTRUCTIONS....2

PART 2: DESCRIPTION OF THE APPLIANCE .... 4

PART 3: INSTALLATION .... 5

Unpacking....5

Dimensions of the appliance ....5

Placement....6

Assembly and installation....6

Carbon filter....10

Ventilation....11

PART 4: OPERATION....12

Operating tips....12

PART 5: MAINTENANCE AND CLEANING .... 13

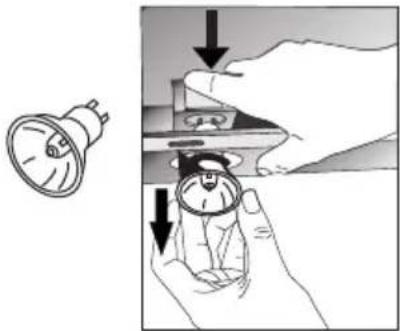

Changing a light bulb....13

Cleaning....14

PART 6: BEFORE YOU CALL THE SERVICE CENTRE....15

PART 7: TECHNICAL SPECIFICATIONS....16

PART 1: IMPORTANT SAFETY INSTRUCTIONS

Recommendation:

Carefully read these instructions before installing and operating this range hood.

Write down the serial number found on the rating label of the range hood in the space below. It is essential that you store this user's manual in a safe place so that you can use it in the future. If you intend to sell the appliance, give it to another owner, or if you move, always make sure that the user's manual is attached to the appliance, so that the new owner can also learn about the operation of the appliance and the relevant warnings.

SERIAL NUMBER:

Important safety instructions

• This appliance is designed for household use only.
- Before connecting the power cord plug, make sure the voltage stated on the rating label of the appliance corresponds to the voltage in your wall socket. Connect the power cord plug to a power socket with a voltage of 220 – 240 V \~ 50 Hz.
- Only use a properly grounded power socket. The appliance may only be connected to a properly grounded power socket.
- All electrical connections must be performed by a qualified electrician.
- Installation performed by an unqualified person may cause incorrect operation, damage to the appliance, create a fire hazard or cause injury to persons.
- Neither the manufacturer nor the vendor take responsibility for damages cause by incorrect or unprofessional installation, connection or operation. Tampering with the appliance by an unqualified person will void the customer's right to a warranty repair.
- Do not expose the power cord to excessive pressure or loads, do not place heavy objects on it, it must not be tangled and it must not be stepped on. Do not locate the power cord in or on heat sources such as stoves, heating or other generators of heat. Otherwise this may damage the power cord or create a fire hazard.
- Only connect the power cord plug to a power socket after the entire installation is completed.
- The power plug serves as a disconnection device and for this reason the power socket must remain easily accessible for the event of a dangerous situation, unless it is connected into a terminal box.
- Do not touch the lights if the appliance has been running for some time. Lights heat up during operation and may cause burns.
- This appliance is designed for fume extraction during standard domestic use. Do not use the appliance for purposes other than those for which it was designed. Otherwise you expose yourself to the risk of a dangerous situation and voiding the warranty.
- Follow the instructions for installation and ventilation (with the exception of when a fire stove is used).
- Do not use the flambé cooking method under the range hood.
• Regularly replace the filters in the range hood. Otherwise this presents a fire hazard.
- Only use filters suitable for use with the range hood. The manufacturer or distributor will recommend the suitable fi lter type.
- Do not use the appliance without the aluminium filter inserted. Do not take out the filters while the appliance is on.
• Regularly clean the appliance to prevent a dangerous situation from occurring.
- Before cleaning, replacing filters, moving or any other maintenance, turn off the appliance and pull out the power plug from the power socket, or turn off the respective circuit breaker.
- If you are using another gas or natural gas appliance in the room at the same time, the fumes from this appliance must be spatially isolated.

• If a chimney is connected to the exhaust of the range hood, use pipes with a diameter of 150 or 120 mm. The pipe connection should be as short as possible.
• Keep packaging materials out of children's reach. They could suffer injury or suffocation.
• Children must be supervised to ensure that they do not play with the appliance. If the power cord is damaged stop using the appliance. Have the power cord replaced at an authorised service centre or by another qualified person. Under no circumstances should you replace the power cord yourself.

To ensure safety, use a fuse with a maximum rating of 6 A.

WARNING!

This appliance must not be used by persons (including children) with physical or mental impairments or by inexperienced persons, unless properly trained or schooled in the safe use of the appliance, or unless they have been properly supervised by a qualified person who will be responsible for their safety.

Attention when transporting or carrying

The packaging materials are from recyclable materials, so dispose of them in an environmentally conscientious manner according to regulations in force.

During transport adhere to the symbols of the cardboard box.

When carrying the appliance, hold it by the respective handles.

NOTE:

We recommend that you keep the original packaging at least for the duration of the warranty period for the event of repair or refund and transport to the authorised service centre. Adhere to the symbols on the cardboard box.

If you do not have the original cardboard box, adhere to the following instructions:

a) Do not place any items on the appliance that could damage the appliance during transport.
b) Protect the appliance against impacts, falls, etc.
c) Wrap the appliance, e.g. in bubble wrap which will protect the appliance from damage.

NOTE:

The carbon fi Iter is not included.

NOTE:

If the building is equipped with a heat recovery system system, it is necessary to setup the appliance for internal air circulation (without an exhaust). In that case, it is necessary to purchase the carbon filter.

PART 2: DESCRIPTION OF THE APPLIANCE

1. Chimney
2. Body of the range hood
3. Control panel
4. Aluminium fi Iter
5. Lighting
6. Separating plate

Remote control (Optional accessory)

A. Turn the appliance on / off
B. Increase the exhaust power
C. Decrease the exhaust power
D. Turn the lights on / off

PART 3: INSTALLATION

Unpacking

• After unpacking remove all packaging and advertising labels from the appliance.
- Check that the appliance has not been damaged and that the package includes all the items described in this user's manual.
• If the appliance was damaged during transport, contact authorised service centre.
- Do not use a damaged appliance under any circumstances.

IMPORTANT:

Ensure that children do not play with the packaging material.

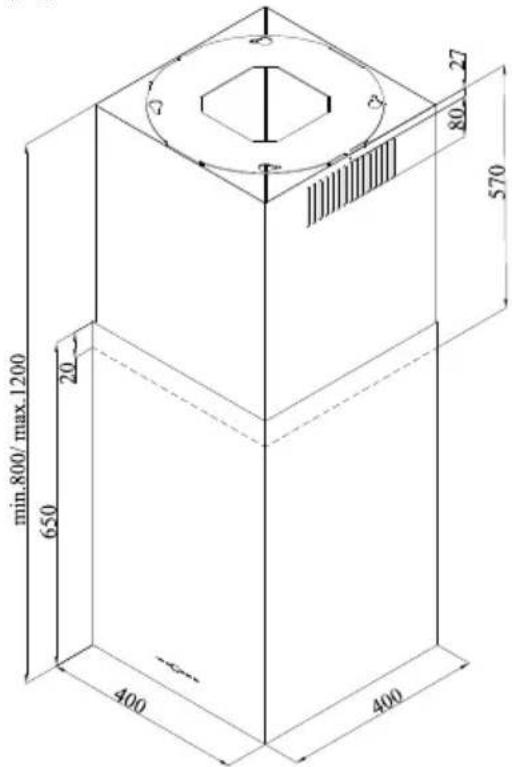

Dimensions of the appliance

Supplied accessories (depending on the model)

Black plastic object with circular top and side panel, placed on red background (no text or symbols visible)

A non-return exhaust flap must be installed into the air outlet of the range hood (unless one is already factory installed).

Placement

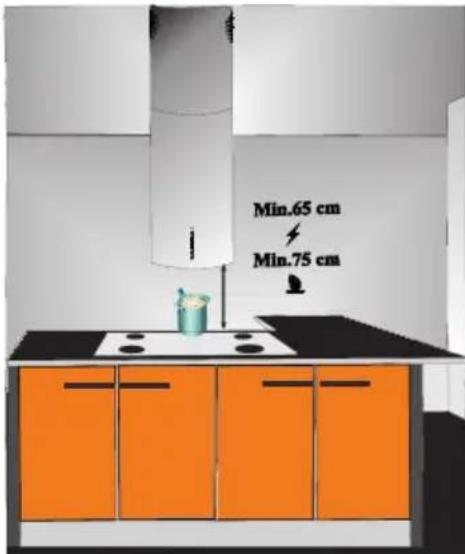

Install the range hood at a height of at least 65 cm above an electric cooktop or at a height of 75 cm above a gas cooktop.

Assembly and installation

Before assembling and installing the appliance carefully read these instructions and adhere to them.

NOTE:

Dowels, screws and the hanging plate are supplied together with the range hood.

IMPORTANT:

Before installing or using the appliance, please first read all instructions and check that the voltage and frequency values on the rating label correspond to the voltage and frequency in your electricity grid.

We recommend that the appliance be connected by a service technician or another qualified person in compliance with local codes and regulations.

Before starting the installation

• Check that the purchased appliance has the correct dimensions corresponding to the chosen installation location. Furthermore ensure that there is an electrical power socket available that will remain accessible even after the range hood is installed.
  • Before installing the range hood, check that all necessary masonry work is complete.
  • Have all electrical connections performed by a qualified person.
  • We recommend that you remove the aluminium filters before installing the range hood.
• Check that there are no packaging materials or other materials, e.g. user's manual, warranty card or bags with screws, inside the appliance. These need to be taken out and kept for possible use in the future.
• We recommend that you disconnect and move to the side freely standing or built in stoves so that you have easier access to the rear wall or ceiling. If this is not possible place protective material on to the work area, cooktop or stove. This will prevent damaging these surfaces.

• Select an even surface for the necessary assembly of the range hood. Cover the surface with a protective material and place all parts of the range hood and fastening elements on to it.

• It is necessary that a qualified technician inspects the suitability of the supplied fastening material and other components for the specific wall / ceiling type. The wall / ceiling must be sufficiently strong to hold the weight of the range hood.

• Do not attach this range hood to a wall or cabinet furniture by tiling, plastering and do not glue it on using silicone glue. The appliance is designed to only be installed on a wall / ceiling.
  • We recommend that always two people perform the installation of the appliance.

If your range hood is designed to be mounted to the ceiling, adhere to the following instructions.

1. The range hood must only be suspended on ceiling beams or on load bearing ceiling beam connections.
2. Do not suspend the range hood on false ceilings.
3. The ceiling must have a load bearing capacity of at least 40 kg.
4. The ceiling thickness must be at least 30 mm.

IMPORTANT: THE RANGE HOOD MAY ONLY BE CONNECTED TO THE ELECTRICAL GRID AFTER THE ENTIRE INSTALLATION IS COMPLETE.

NOTE: The pictures are only for your reference. These are subject to changes and could be used for more models.

1. Removing the separating plate

To remove the separating plate, pull it down holding the right and left top part.

Diagram of a door with a hand inserting a component into a sink, showing arrows and labels (no text or symbols present)

NOTE:

Check that the distance between the motor unit and a gas stove is at least 84 cm and at least 94 between the motor unit and an electric stove.

2. Take the motor unit out of the packaging.

3. Measuring distances

Take the screws out of the motor unit (see below) and assemble the location of the motor unit, which consists of two blocks by sliding in or out.

Then put the screws back.

Technical diagram of a mechanical assembly with an inset showing a component detail (no text or symbols present)

NOTE:

The part on the appliance marked "FRONT" indicates the position where the control panel will be located.

4. Installation of the hanging plate

Place the motor unit on the ceiling and mark the points for drilling holes for the screws. Into the designated locations A, B, C, D drill 10mm holes for screws. Depending on the surface of the ceiling use an appropriate drill bit size.

5. Inserting dowels

Insert dowels into the drilled holes A, B, C, D. Check that the dowels are properly inserted.

6. Inserting screws

Insert screws (5.5 x 45) into the dowels and leave a 5mm gap between the ceiling and the screw head.

7. Attaching the motor unit

Lift the motor unit and slide the screws through the holes in the top part. Check that all screws are in their respective holes. Turn the motor unit clockwise to secure the motor unit in place.

8. Tightening the screws

Now tighten the screws. Check that all the screws are properly screwed in and that the motor unit is firmly secured in place.

9. Installation of the aluminium exhaust tube

Attach one end of the aluminium tube to the range hood fl ange and the other end to the air outlet. Check that both ends are firmly attached and secured in place.

Bends and deviations in the aluminium flue pipe reduce the exhaust performance, so it is essential that the pipe is bent as little as possible.

Close-up of a metallic curved pipe with ribbed texture, no visible text or symbols

Right

Close-up of a coiled, metallic pipe with red prohibition symbol (no text or symbols on the pipe itself)

Wrong

10. Installation of the cover

Place the cover on the motor unit and exhaust and secure in place using the screws supplied.

3D diagram of a cylindrical container with internal structure and directional arrow (no text or symbols)

11. Installation of the body of the range hood

Attach the body of the range hood. Pull the hanging holes over on to the plastic screws and turn the body clockwise. Tighten the screws.

Diagram showing two cylindrical components with internal structures and directional arrows indicating movement or assembly (no text or symbols present)

1. Connect the light holder and switches.

2. Install the aluminium fi Iters

Technical diagram of a mechanical assembly with circular components and two inset views showing internal components (no text or labels)

Lighting connection Key connection

Carbon fi Iter

If you are using the range hood without an air exhaust, it is necessary to use a carbon filter. The carbon filter is not included. Contact your vendor or an authorised service centre to purchase this filter.

• Before installing or replacing the carbon filter, check that the appliance is turned off and disconnected from the power socket or that the respective circuit breaker is turned off.
• It is necessary to replace the carbon filter regularly every 3 – 5 months depending on how much the appliance is used.
  • Never wash the carbon filter in water unless the manufacturer states otherwise.
• Aluminium filters must always be installed even when the carbon filter is not installed. Do not use the appliance without the aluminium filter installed.

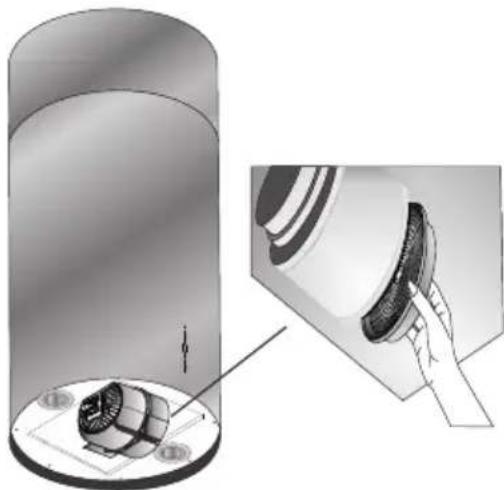

Replacing the carbon fi Iter

1. For the correct operation of the appliance it is necessary to install a carbon filter. The number and type depends on the model.
2. Place the carbon filter on the motor outlets and turn it in the clockwise direction.
3. To remove the carbon fi lter turn it in the anticlockwise direction.

Two black circular filter fans with radial blades, placed on an orange background (no text or symbols visible)

Illustration of a cylindrical device with a magnified view showing a hand holding a curved object (no text or symbols present)

Ventilation

To ensure proper ventilation, leave windows closed while the appliance is turned on.

WARNING!

Pay increased attention if you are using the appliance together with another appliance that uses air or fuel for its operation (e.g. heating fan, fan, etc.) or that uses gas, coal or wood, as its operation may negatively affect the performance of the range hood because it expels air out of the room. This warning does not apply if you installed the appliance without an exhaust out of the room.

PART 4: OPERATION

Remove the protective foil from the control panel.

Exhaust power selection

This range hood is equipped with 5 levels of exhaust power. Select the power level based on the use of the stove and the amount steam that the pots emit.

To turn on the motor press the ✗ button and to set the exhaust power level press the ⊕ button. Press the ⊕ button to increase the exhaust power and the ⊖ button to reduce the exhaust power.

Remote control sensor

Automatic timer (TIMER)

Press and hold the ⏻ button at the set exhaust power level for at least 2 seconds and the automatic timer function will be turned on for a period of 15 minutes. When the function is turned on, the respective symbol will appear on the display and the motor will turn off automatically after 15 minutes.

NOTE:

Use the range hood together with the stove. This will ensure the correct air exhaust. We recommend to leave the range hood running a few minutes longer than the stove to ensure that all odours are extracted.

Lighting

The range hood is equipped with lighting. Press the button with the light symbol to turn on the lights. Press the button again to turn the lights off.

NOTE:

If the range hood is equipped with the brightness dimming feature, follow the instructions below.

Changing the brightness of the lights (Dimming)

While the light is on, press and hold down the 🔒 button and the brightness will start to change. As soon as you reach the desired brightness level, release the pressed button. The set brightness will be stored in memory for future use.

If you press the ⏻ button twice in succession, the light will be lit at the maximum brightness level. The light will always start at the preset brightness level.

Operating tips

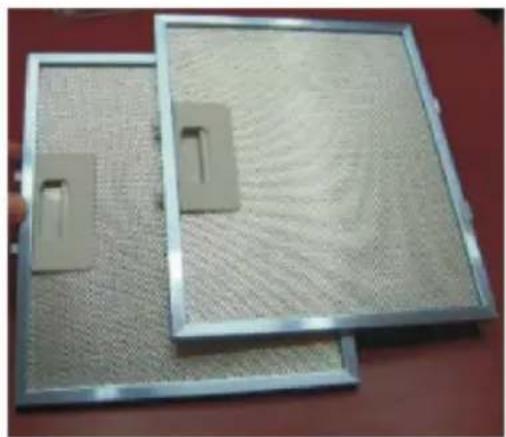

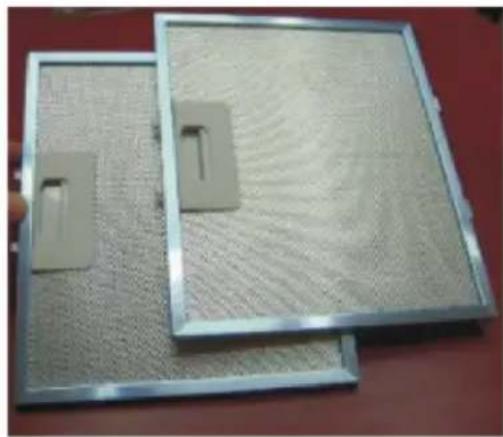

1. Regularly clean the aluminium fi Iters and regularly replace the carbon fi Iters.
2. Use the medium exhaust power level. Only use the highest power level when necessary.
3. To ensure proper ventilation, leave windows closed while the appliance is turned on.

PART 5: MAINTENANCE AND CLEANING

WARNING!

Before cleaning, regular or other maintenance, installation or removal, check that the appliance is turned off and disconnected from the power socket or that the respective circuit breaker is turned off.

Changing a light bulb

• Turn off the appliance.
• Take out the aluminium fi Iter.
• If the light bulb broke during operation wait until it cools down.

Models with a 50W halogen light bulb

• To remove the halogen light bulb (50 W), press the light bulb holder downwards and gently turn it anticlockwise. Remove the light bulb.
  • Install a light bulb with the same parameters in reverse sequence.

Illustration showing a hand holding a small device with a magnified view of its internal components (no text or symbols present)

Models with a 20 W light bulb

• To remove the halogen light bulb (20 W), first remove the glass cover using a thin screwdriver. Be careful not to scratch the appliance. Remove a faulty light bulb by pulling downwards and insert a new working light bulb.
  • Use a light bulb with the same parameters.

Illustration showing a hand holding a small electronic component next to a circular display and a close-up of a finger pointing at a target (no text or symbols present)

NOTE:

Do not hold the light bulb with your bare hands. Dirt or sweat from the hand may shorten their lifetime.

Cleaning

• Aluminium filters capture dust and fat from the extracted air.
- It is necessary to regularly wash these filters, ideally once a month, depending on the level of use. Wash the filters in water with dishwashing detergent, or you may place the filters in a dishwasher and wash them using a gentle program (max. 60°C).
• Take out the aluminium filters by pressing the clip.
• After cleaning allow the aluminium fi Iters to dry thoroughly before reinstalling them.
- Wipe the outer surface of the range hood with a clean damp wiping cloth lightly dipped in water with a small amount of dishwashing detergent. Then wipe dry.
- Avoid electrical parts coming into contact with water or another liquid.

Cleaning the aluminium fi Iters

The aluminium filters need to be cleaned when "C" appears on the display (depending on the model).

Clean the fi Iters according to the above mentioned instructions and after reinstalling them press and hold down the ✗ button for 3 seconds until the "C" symbol (depending on the model) disappears from the display. The symbol "E" (depending on the model) will appear on the display, which means that the appliance is ready for operation.

If you wish to use the appliance without clearing the "C" symbol (depending on the model), press the ✗ button to start extraction for 1 second, then the "C" symbol (depending on the model) will appear again and the motor will continue running.

Diagram of a door with hand placing a component into a sink, showing internal structure and arrows indicating motion (no text or symbols)

Two metallic filter panels with mesh texture and small square cutouts, placed on a red surface (no text or symbols visible)

NOTE:

The "C" symbol (depending on the model) appears on the display after approximately 60 hours of operation.

WARNING!

For cleaning do not use petrol, benzene, thinners or any other solvents, coarse cleaning agents, steel wool or any sponges with steel wool.

WARNING!

You may put the aluminium filters in a dishwasher. The colour of the aluminium filters may change after several washes. This is a normal event.

PART 6: BEFORE YOU CALL THE SERVICE CENTRE

If the appliance is not working as it should check the following recommendations for resolving the most common problems.

If the problem persists or it is not included in the table below, turn off the appliance and disconnect it from the power socket and contact an authorised service centre.

Problem	Solution
The range hood is not working. Check that the power plug is properly inserted in a properly grounded power socket with the parameters 220 – 240 V ~ 50 Hz.
The lights are not working. Check that the power plug is properly inserted in a properly grounded power socket with the parameters 220 – 240 V ~ 50 Hz.
Exhaust power is weak. Check whether the aluminium fi lters are dirty.
The range hood does not extract the air directly out (for models without an exhaust).	Check whether the aluminium fi lters are dirty.
	Check whether the carbon fi lter is not too dirty.

Attention:

Use the range hood together with the stove. This will ensure the correct air exhaust. We recommend to leave the range hood running a few minutes longer than the stove to ensure that all odours are extracted.

PART 7: TECHNICAL SPECIFICATIONS

		PEW PEI			PEC 6405 - PEC 9405	PEC 5507 - PEC 6507	PEB 6408	PEC 5406 - PEC 6406	PEB 6708
SPEED 1	Voltage (A) 0,5 0,6 0	5 0,5 1 0,6 0,6	0,5
	Power (W) 105 90 12	0 70 135 80 8	0 110
	Air flow (m^3/h) 180	230 200 190	250 190 155 2	10
	Pressure (mmH20)	30 155 170 1	50 160 160 18	0 155
	Noise level (dB)	36	35	39,7	43	40	45	44	34,5
SPEED 2	Voltage (A) 0,6 0,9 0	6 0,6 1,2 0,9 0	6 0,6
	Power (W) 125 120 1	30 90 170 110	95 125
	Air flow (m^3/h) 260	310 265 225	310 400 175 2	90
	Pressure (mmH20)	200 205 230 1	65 180 190 20	5 235
	Noise level (dB)	43	42	43,6	47,5	48	54	50	43
SPEED 3	Voltage (A) 0,7 1,5 0	7 0,8 1,6		0,9 0,7
	Power (W) 145 185 1	50 110 220		110 150
	Air flow (m^3/h)	335	500	360	400	500		400	375
	Pressure (mmH20)	265 245 290 1	80 200		225 285
	Noise level (dB)	48	52	49	51,5	55		53	49
SPEED 4	Voltage (A) 0,8		0,8					0,8
	Power (W) 170		175					175
	Air flow (m^3/h)	450		455					470
	Pressure (mmH20)	310		325					320
	Noise level (dB) 53		53,4					53,5
SPEED 5	Voltage (A)	1		1					1
	Power (W) 210		210					210
	Air flow (m^3/h)	750		750					750
	Pressure (mmH20)	350		365					380
	Noise level (dB) 61		60,2					61
Input voltage		220 - 240 V ~ 50 Hz	220 - 240 V ~ 50 Hz	220 - 240 V ~ 50 Hz	220 - 240 V ~ 50 Hz	220 - 240 V ~ 50 Hz	220 - 240 V ~ 50 Hz	220 - 240 V ~ 50 Hz	220 - 240V ~ 50 Hz
Air outlet diameter		150 mm	150 mm	150 mm	120 mm	120 mm	120 mm	120 mm	120 mm

NOTE: All the here mentioned data is subject to change.

INSTRUCTIONS AND INFORMATION REGARDING THE DISPOSAL OF USED PACKAGING MATERIALS

Dispose of packaging material at a public waste disposal site.

DISPOSAL OF USED ELECTRICAL AND ELECTRONIC APPLIANCES

The meaning of the symbol on the product, its accessory or packaging indicates that this product shall not be treated as household waste. Please, dispose of this product at your applicable collection point for the recycling of electrical & electronic equipment waste. Alternatively in some states of the European Union or other European states you may return your products to your local retailer when buying an equivalent new product. The correct disposal of this product will help save valuable natural resources and help in preventing the potential negative impact on the environment and human health, which could be caused as a result of improper liquidation of waste. Please ask your local authorities or the nearest waste collection centre for further details. The improper disposal of this type of waste may fall subject to national regulations for fi nes.

For business entities in the European Union

If you wish to dispose of an electrical or electronic device, request the necessary information from your seller or supplier.

Disposal in other countries outside the European Union

If you wish to dispose of this product, request the necessary information about the correct disposal method from local government departments or from your seller.

This product meets all the basic EU regulation requirements that relate to it.

Changes to the text, design and technical specifications may occur without prior notice and we reserve the right to make these changes.

ODSAVAČ PAR

NÁVOD K OBSLUZE

PHILCO

Famous for Quality the World Over

Vážený zákazníku

Black plastic container with a circular lid, placed on a red surface (no text or symbols visible)

Diagram of a cabinet interior with a hand inserting a component into the opening, showing internal components and arrows (no text or symbols)

POZNÁMKA:

Technical diagram of a mechanical assembly with an inset showing a component detail (no text or symbols present)

POZNÁMKA:

Close-up of a metallic L-shaped pipe fitting with ribbed texture (no text or symbols visible)

Správně

Close-up of a coiled, metallic pipe with red prohibition symbol (no text or symbols on the pipe itself)

Špatně

10. Instalace krytu

3D diagram of a cylindrical container with internal structure and an upward arrow, no text or symbols present

Diagram showing two cylindrical components with internal structures and directional arrows indicating movement or assembly (no text or symbols present)

Technical diagram of a mechanical assembly with circular components and two close-up views of internal components (no text or labels)

Two black circular filter fans with radial blades, placed on a red surface (no text or symbols visible)

Diagram showing a cylindrical device with a small component and its magnified view of the lid being held by a hand (no text or symbols present)

Ventilace

Illustration showing a hand holding a device with a magnified view of the screen (no text or symbols present)

Illustration showing a hand holding a circular object and a close-up of a finger pointing at a target (no text or symbols present)

POZNÁMKA:

Diagram of a door with a hand placing material into a sink, showing arrows indicating direction (no text or symbols)

Two metallic filter panels with textured surfaces and small square cutouts, placed on a red surface (no text or symbols visible)

POZNÁMKA:

Famous for Quality the World Over

Vážený zákazník

Black plastic object with a circular top, placed on a red background (no visible text or symbols)

Diagram of a cabinet interior with an open door and a hand inserting a component into the sink (no text or symbols)

POZNÁMKA:

Technical diagram of a mechanical assembly with an inset showing a component detail (no text or symbols present)

POZNÁMKA:

Close-up of a metallic L-shaped pipe fitting with ribbed texture (no text or symbols visible)

Správne

Close-up of a coiled, metallic pipe with red prohibition symbol (no text or symbols on the pipe itself)

Zle

3D diagram of a cylindrical container with internal structure and an upward arrow, no text or symbols present

Diagram showing two cylindrical components with internal structures and directional arrows indicating movement or assembly (no text or symbols present)

1. Pripojte držiak svetla a vypínača.
2. Inštalujte hliníkové fi ltre

Technical diagram of a mechanical assembly with circular components and two close-up views of internal components (no text or labels)

Two black plastic fan blades with radial filter patterns on a red background (no text or symbols visible)

Diagram showing a cylindrical device with internal components and an inset close-up of its lid (no text or symbols)

Ventilácia

Illustration showing a hand holding a small mechanical component with arrows indicating motion or assembly (no text or symbols present)

Modely s 20W žiarivkou

Illustration showing a hand holding a circular object and a close-up of a finger pointing at a target (no text or symbols present)

POZNÁMKA:

Diagram of a door opening with a hand inserting a component into a sink (no text or symbols)

Two metallic filter panels with textured surfaces and small square cutouts, placed on a red surface (no text or symbols visible)

POZNÁMKA:
