PEW 6711 - Range hood Philco - Free user manual and instructions

Brand	Philco
Model	PEW 6711
Product Type	Range Hood
Dimensions (Approx.)	600 mm width (typical for built-in)
Air Outlet Diameter	150 mm
Power Supply	220-240 V ~ 50 Hz
Motor Speeds	5 speeds (including turbo)
Maximum Airflow	750 m³/h (speed 5)
Noise Level	36-61 dB depending on speed
Lighting	Halogen or LED (depending on variant)
Control Type	Digital controls with LCD display (on some models)
Timer Function	Yes, auto shut-off and alarm timer
Filter Type	Aluminum mesh (washable) + Optional carbon filter
Installation Height	Min. 65 cm (electric) / 75 cm (gas) above cooktop
Installation Type	Wall-mounted, ducted or recirculating
Energy Efficiency	Class not specified, typical for this class
Safety Features	Auto shut-off, overheat protection, grounded plug
Warranty	Standard manufacturer warranty (refer to manual)
Maintenance	Clean aluminum filters monthly; replace carbon filter every 3-5 months
Additional Accessories	Remote control (optional)

Frequently Asked Questions - PEW 6711 Philco

What is the minimum installation height for the Philco PEW 6711 range hood?

The minimum height is 65 cm above an electric cooktop and 75 cm above a gas cooktop.

How often should I clean the aluminum filters?

Aluminum filters should be cleaned every month or when the 'C' symbol appears on the display, typically after 60 hours of operation.

How do I reset the filter cleaning reminder?

After cleaning and reinstalling the filters, press and hold the fan button for 3 seconds until the 'C' symbol disappears.

Can I use the range hood in recirculation mode?

Yes, but you need to purchase and install a carbon filter (not included) for recirculation.

How do I replace the carbon filter?

Turn off the hood and disconnect power. Place the carbon filter on the motor outlets and turn clockwise to lock. Replace every 3-5 months.

What type of light bulbs does the PEW 6711 use?

Depending on the variant, it uses halogen (50W, 35W, or 20W) or 1W LED bulbs. Refer to the manual for your specific model.

How do I set the timer on the range hood?

For models with digital controls, press and hold the power button for 2 seconds to start a 15-minute auto shut-off. For LCD models, use the TIMER buttons to set countdown or alarm.

Why is my range hood not working?

Check the power cord is plugged in, the circuit breaker is on, and the motor switch is in the 'On' position. Also ensure the aluminum filters are clean.

What is the maximum air extraction rate?

The maximum airflow is 750 m³/h at speed 5 (turbo). Normal operation at lower speeds is quieter.

Can I wash the aluminum filters in a dishwasher?

Yes, you can place them in a dishwasher on a gentle program (max 60°C). Some color change is normal.

USER MANUAL PEW 6711 Philco

Famous for Quality the World Over

PEW 6509B

PEW 9509B

PEW 6711

PEW 9711

Dear customer,

Thank you for buying a PHILCO brand product. So that your appliance serves you well, please read all the instructions in this user's manual.

CONTENTS

PART 1: IMPORTANT SAFETY INSTRUCTIONS....2

PART 2: DESCRIPTION OF THE APPLIANCE .... 4

PART 3: INSTALLATION .... 5

Unpacking....5

Dimensions of the appliance ....5

Placement....7

Installation....7

Carbon filter....12

Ventilation....13

PART 4: OPERATION .... 14

Models with digital controls – 3 speeds....14

Models with digital controls – 5 speeds....14

Models with an LCD display - 5 speeds....15

Operating tips....16

PART 5: MAINTENANCE AND CLEANING....17

Changing a light bulb....17

Cleaning....18

PART 6: BEFORE YOU CALL THE SERVICE CENTRE....20

PART 7: TECHNICAL SPECIFICATIONS....21

PART 1: IMPORTANT SAFETY INSTRUCTIONS

Recommendation:

Carefully read these instructions before installing and operating this range hood.

Write down the serial number found on the rating label of the range hood in the space below. It is essential that you store this user's manual in a safe place so that you can use it in the future. If you intend to sell the appliance, give it to another owner, or if you move, always make sure that the user's manual is attached to the appliance, so that the new owner can also learn about the operation of the appliance and the relevant warnings.

SERIAL NUMBER:

Important safety instructions

• This appliance is designed for household use only.
- Before connecting the power cord plug, make sure the voltage stated on the rating label of the appliance corresponds to the voltage in your wall socket. Connect the power cord plug to a power socket with a voltage of 220 – 240 V \~ 50 Hz.
- Only use a properly grounded power socket. The appliance may only be connected to a properly grounded power socket.
• All electrical connections must be performed by a qualified electrician.
- Installation performed by an unqualified person may cause incorrect operation, damage to the appliance, create a fire hazard or cause injury to persons.
- Neither the manufacturer nor the vendor take responsibility for damages caused by incorrect or unprofessional installation, connection or operation. Tampering with the appliance by an unqualified person will void the customer's right to a warranty repair.
- Do not expose the power cord to excessive pressure or loads, do not place heavy objects on it, it must not be tangled and it must not be stepped on. Do not locate the power cord in or on heat sources such as stoves, heating or other generators of heat. Otherwise this may damage the power cord or create a fire hazard.
- Only connect the power cord plug to a power socket after the entire installation is completed.
- The power plug serves as a disconnection device and for this reason the power socket must remain easily accessible for the event of a dangerous situation, unless it is connected into a terminal box.
- Do not touch the lights if the appliance has been running for some time. Lights heat up during operation and may cause burns.
- This appliance is designed for fume extraction during standard domestic use. Do not use the appliance for purposes other than those for which it was designed. Otherwise you expose yourself to the risk of a dangerous situation and voiding the warranty.
- Follow the instructions for installation and ventilation (with the exception of when a fire stove is used).
- Do not use the flambé cooking method under the range hood.
• Regularly replace the filters in the range hood. Otherwise this presents a fire hazard.
- Only use filters suitable for use with the range hood. The manufacturer or distributor will recommend the suitable fi lter type.
- Do not use the appliance without the aluminium filter inserted. Do not take out the filters while the appliance is on.
• Regularly clean the appliance to prevent a dangerous situation from occurring.
- Before cleaning, replacing filters, moving or any other maintenance, turn off the appliance and pull out the power plug from the power socket, or turn off the respective circuit breaker.
- If you are using another gas or natural gas appliance in the room at the same time, the fumes from this appliance must be spatially isolated.

• If a chimney is connected to the exhaust of the range hood, use pipes with a diameter of 150 or 120 mm. The pipe connection should be as short as possible.
• Keep packaging materials out of children's reach. They could suffer injury or suffocation.
• Children must be supervised to ensure that they do not play with the appliance. If the power cord is damaged stop using the appliance. Have the power cord replaced at an authorised service centre or by another qualified person. Under no circumstances should you replace the power cord yourself.

To ensure safety, use a fuse with a maximum rating of 6 A.

WARNING!

This appliance must not be used by persons (including children) with physical or mental impairments or by inexperienced persons, unless properly trained or schooled in the safe use of the appliance, or unless they have been properly supervised by a qualified person who will be responsible for their safety.

Attention when transporting or carrying

The packaging materials are from recyclable materials, so dispose of them in an environmentally conscientious manner according to regulations in force.

During transport adhere to the symbols of the cardboard box.

When carrying the appliance, hold it by the respective handles.

NOTE:

We recommend that you keep the original packaging at least for the duration of the warranty period for the event of repair or refund and transport to the authorised service centre. Adhere to the symbols on the cardboard box.

If you do not have the original cardboard box, adhere to the following instructions:

a) Do not place any items on the appliance that could damage the appliance during transport.
b) Protect the appliance against impacts, falls, etc.
c) Wrap the appliance, e.g. in bubble wrap which will protect the appliance from damage.

NOTE:

The carbon fi Iter is not included.

NOTE:

If the building is equipped with a heat recovery system system, it is necessary to setup the appliance for internal air circulation (without an exhaust). In that case, it is necessary to purchase the carbon filter.

PART 2: DESCRIPTION OF THE APPLIANCE

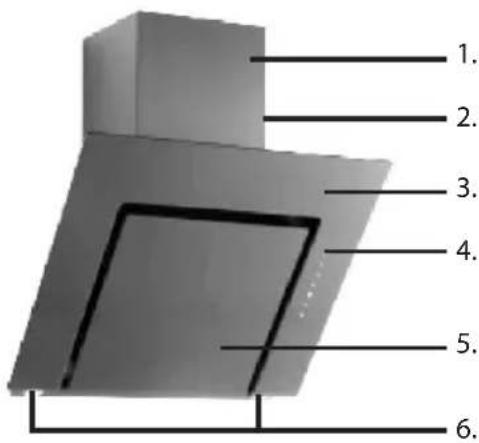

PEW 6509BGL / PEW 9509BGL

1. Inner chimney
2. Outer chimney
3. Tempered glass
4. Control panel
5. Filter
6. Lighting

PEW 6711 / PEW 9711

1. Inner chimney
2. Outer chimney
3. Filter
4. Control panel
5. Lighting

Remote control (Optional accessory)

a) Turn the appliance on / off
b) Increase the exhaust power
c) Decrease the exhaust power
d) Turn the lights on / off

• After unpacking remove all packaging and advertising labels from the appliance.
- Check that the appliance has not been damaged and that the package includes all the items described in this user's manual.
• If the appliance was damaged during transport, contact authorised service centre.
- Do not use a damaged appliance under any circumstances.

IMPORTANT:

Ensure that children do not play with the packaging material.

Dimensions of the appliance

PEW 6711 / PEW 9711

IMPORTANT:

Before installing or using the appliance, please first read all instructions and check that the voltage and frequency values on the rating label correspond to the voltage and frequency in your electricity grid.

We recommend that the appliance be connected by a service technician or another qualified person in compliance with local codes and regulations.

Before starting the installation

• Check that the purchased appliance has the correct dimensions corresponding to the chosen installation location. Furthermore ensure that there is an electrical power socket available that will remain accessible even after the range hood is installed.
  • Before installing the range hood, check that all necessary masonry work is complete.
  • Have all electrical connections performed by a qualified person.
  • We recommend that you remove the aluminium filters before installing the range hood.
• Check that there are no packaging materials or other materials, e.g. user's manual, warranty card or bags with screws, inside the appliance. These need to be taken out and kept for possible use in the future.
  • We recommend that you disconnect and move to the side freely standing or built in stoves so that you have easier access to the rear wall or ceiling. If this is not possible place protective material on to the work area, cooktop or stove. This will prevent damaging these surfaces.
• Select an even surface for the necessary assembly of the range hood. Cover the surface with a protective material and place all parts of the range hood and fastening elements on to it.
• It is necessary that a qualified technician inspects the suitability of the supplied fastening material and other components for the specific wall / ceiling type. The wall / ceiling must be sufficiently strong to hold the weight of the range hood.
• Do not attach this range hood to a wall or cabinet furniture by tiling, plastering and do not glue it on using silicone glue. The appliance is designed to only be installed on a wall / ceiling.
  • We recommend that always two people perform the installation of the appliance.

If your range hood is designed to be mounted to the ceiling, adhere to the following instructions.

1) The range hood must only be suspended on ceiling beams or on load bearing ceiling beam connections.
2) Do not suspend the range hood on false ceilings.
3) The ceiling must have a load bearing capacity of at least 40 kg.
4) The ceiling thickness must be at least 30 mm.

IMPORTANT:

THE RANGE HOOD MAY ONLY BE CONNECTED TO THE ELECTRICAL GRID AFTER THE ENTIRE INSTALLATION IS COMPLETE.

Supplied accessories (depending on the model)

Technical line drawing of a mechanical component with concentric circles and mounting base (no text or symbols)

A non-return exhaust flap must be installed into the air outlet of the range hood (unless one is already factory installed).

Placement

Install the range hood at a height of at least 65 cm above an electric cooktop or at a height of 75 cm above a gas cooktop.

Installation

1. Installation of hanging brackets

To hang the range hood it is necessary to first install 2 L-shaped hanging brackets, which are supplied together with the screws, on to the range hood according to the illustration below. Then secure the brackets using appropriate M5 x 35 screws into an M5 thread.

Technical line drawing of a screw and a mechanical component (no text or symbols)

M5 x 35 screws Hanging bracket

Technical line drawing of a mechanical assembly with mounting brackets and a central square component (no text or symbols)

2. Installation of the non-return exhaust fl ap

Install the non-return exhaust flap on to the top part of the range hood using 3.5 x 9.5 screws according to the illustration below.

3.5 x 9.5 screws

Technical line drawing of a mechanical assembly with an inset showing a component being inserted (no text or symbols present)

3. Drilling mounting holes

Place the installation template against the wall and drill holes in points A, B, C and D using a drill bit with a diameter of 10 mm. To install the chimney, drill holes using a drill bit with a diameter of 6 mm adhering to the dimensions for the minimum and maximum height.

WARNING!

When drilling the mounting holes used for hanging the range hood, ensure the holes have the correct diameter. If the holes are drilled incorrectly, then the correct assembly of the range hood will not be possible.

4. Inserting dowels

Into the drilled holes A, B, C and D with a diameter of 10 mm, insert dowels with a diameter of 10 mm. Into the two holes with a diameter of 6 mm, insert dowels with a diameter of 6 mm – see illustration below.

10mm plastic dowel 6mm plastic dowel

5. Attaching the chimney plate

Drill holes into the wall using a drill bit with a diameter of 6 mm. Attach the chimney plate by screwing 3.9 x 22 Ysb screws into the plastic dowels with a diameter of 6 mm.

Into the drilled holes A, B with a diameter of 10 mm, with the dowels inserted, screw in two 5.5 x 60 Ysb screws. The distance between the wall and the head of the screw must be 5 mm.

Two types of screws shown side by side, one with a circular head and the other with a square end (no text or symbols)

5.5 x 60 Ysb screw 3.9 x 22 Ysb screw

6. Hanging the range hood

Hang the range hood using the hanging brackets on to the screws in holes A and B – see illustration below.

7. Tightening the screws

After hanging the range hood, tighten the screws to secure the range hood in place. You can use the M5 x 35 Ysb screws to fully stabilise the range hood.

Note: You can use M5 screws to achieve full stability.

8. Tightening the hanging screws

In points C, D (see illustration below) tighten the 5.5 x 60 Ysb hanging screws to ensure that it is hung safely.

9. Installation of the aluminium duct tube

Attach the flexible aluminium duct tube on to the air exhaust in the top part of the range hood and insert the other end into the exhaust opening in the wall. Check that the connection is secure even at full power.

Technical line drawing of a mechanical assembly with labeled components (no text or symbols present)

10. Installation of the outer chimney

Insert the inner chimney into the outer chimney. Seat the chimneys on to the base with the motor and slide downwards. Check that the connection between the body and the base with the motor is secure.

11. Installation of the inner chimney

Pull the inner chimney out of the outer chimney and secure to the plate using 9.5 x 3.5 screws.

After completing the installation check that the range hood is correctly installed and works properly.

Carbon fi Iter

If you are using the range hood without an air exhaust, it is necessary to use a carbon filter. The carbon filter is not included. Contact your vendor or an authorised service centre to purchase this filter.

• Before installing or replacing the carbon filter, check that the appliance is turned off and disconnected from the power socket or that the respective circuit breaker is turned off.
• It is necessary to replace the carbon filter regularly every 3 – 5 months depending on how much the appliance is used.
  • Never wash the carbon filter in water unless the manufacturer states otherwise.
• Aluminium filters must always be installed even when the carbon filter is not installed. Do not use the appliance without the aluminium filter installed.

Replacing the carbon fi Iter

1. For the correct operation of the appliance it is necessary to install a carbon filter. The number and type depends on the model.
2. Place the carbon filter on the motor outlets and turn it in the clockwise direction.
3. To remove the carbon filter turn it in the anticlockwise direction.

Technical diagram of a mechanical assembly showing a frame with internal components and a motor with rotating fan (no text or labels)

or

Illustration of a hand pressing a button with directional arrows (no text or symbols)

Illustration of a hand inserting a device into a wall-mounted panel (no text or symbols visible)

Ventilation

To ensure proper ventilation, leave windows closed while the appliance is turned on.

WARNING!

Pay increased attention if you are using the appliance together with another appliance that uses air or fuel for its operation (e.g. heating fan, fan, etc.) or that uses gas, coal or wood, as its operation may negatively affect the performance of the range hood because it expels air out of the room. This warning does not apply if you installed the appliance without an exhaust out of the room.

PART 4: OPERATION

Remove the protective foil from the control panel.

Models with digital controls – 3 speeds

Exhaust power selection

This range hood is equipped with 3 levels of exhaust power. Select the power level based on the use of the stove and the amount steam that the pots emit.

Press the respective button on the control panel.

I – lowest exhaust power

II – medium exhaust power

III – highest exhaust power

Automatic timer (TIMER)

All models with a remote control are equipped with an automatic timer.

Press and hold the respective button for the exhaust power level for at least 2 seconds and the automatic timer function will be turned on for a period of 15 minutes. When the function is turned on, the respective symbol will appear on the display and the motor will turn off automatically after 15 minutes.

NOTE:

Use the range hood together with the stove. This will ensure the correct air exhaust. We recommend to leave the range hood running a few minutes longer than the stove to ensure that all odours are extracted.

Lighting

The range hood is equipped with lighting. Press the button with the light symbol to turn on the lights. Press the button again to turn the lights off.

Models with digital controls - 5 speeds

Exhaust power selection

This range hood is equipped with 5 levels of exhaust power. Select the power level based on the use of the stove and the amount steam that the pots emit.

To turn on the motor press the ✗ button and to set the exhaust power level press the + or - button. Press the + button to increase the exhaust power and the - button to reduce the exhaust power.

Automatic timer (TIMER)

All models with a remote control are equipped with an automatic timer.

Press and hold the ⏻ button at the set exhaust power level for at least 2 seconds and the automatic timer function will be turned on for a period of 15 minutes. When the function is turned on, the respective symbol will appear on the display and the motor will turn off automatically after 15 minutes.

NOTE:

Use the range hood together with the stove. This will ensure the correct air exhaust. We recommend to leave the range hood running a few minutes longer than the stove to ensure that all odours are extracted.

Lighting

The range hood is equipped with lighting. Press the button with the light symbol to turn on the lights. Press the button again to turn the lights off.

Models with an LCD display - 5 speeds

This range hood is equipped with 5 levels of exhaust power. Select the power level based on the use of the stove and the amount steam that the pots emit.

On / Off button ✗ – Press the button once to turn on the range hood. The initial exhaust power level is 2. Press again to turn the range hood off.

Setting the exhaust power level – To set the exhaust power level press the + or – button. Press the + button to increase the exhaust power and the – button to reduce the exhaust power. If you press and hold down the +/- button for at least 2 seconds, the exhaust power levels will increase / decrease in half-second intervals.

If you set the exhaust power level to maximum (5), the appliance will work at the maximum exhaust power level for 15 minutes and then continue at the exhaust power level of 2. The maximum exhaust power level is called "turbo speed".

Timer

TIMER - Ⓞ button: Set the operating time of the appliance with a countdown feature during operation. Each time it is pressed the power level will decrease by 1 level. If you press and hold down this button for at least 2 seconds, the power level will decline faster.

TIMER - ⚙ button: Set the operating time of the appliance with a count-up feature during operation. Each time it is pressed the power level will increase by 1 level. If you press and hold down this button for at least 2 seconds, the power level will increase faster.

Timer functions:

1. Turn off the range hood – If you set the timer while the range hood is running, the range hood will stop running, lights will turn off and a warning sound will be emitted for 5 seconds after the timer duration comes to an end.
2. Alarm – If you set the timer while the range hood is not running, then an alarm will be set. As soon as the set time of the timer comes to an end, a sound will be emitted for 15 seconds. The range hood will not stop and the lights will stay on, if the alarm timer turns off.
   If a timer is not set, the clock is displayed.

Clock

The clock on the display shows the current time. If the clock is set, the colon between the hours and minutes will flash once a second.

Setting the time

1. Press the and buttons at the same time.
2. The hours and minutes will start to flash for 5 seconds.
3. In this time press the ^- or ^+ button to set the hours or minutes.
   If a power outage occurs, it will be necessary to set the time again.

Additional functions

Additional functions may be set only when the motor and the lights are off .

1. Setting the backlight brightness – Press and hold the button – after about 5 seconds the blue colour intensity in percent will appear (e.g. b00). Press the button – once and the colour of the display colour will change to red (e.g. r100), press the button – once more and the display colour to green (e.g. g10).
   After selecting the colour, use the G^-/G buttons to set the brightness of the respective display colour (e.g. 0 - 100). To confirm the setting press and hold button - for approx. 5 seconds. A sound will be made. If you do not wish to save the setting, press the button or the button for the light.

2. Backlight – The display backlight is always on. Press and hold the + button for approx. 5 seconds. A sound will be made. Now you can turn off the backlight. If you wish to again turn on the display backlight, press and hold down the + button for approx. 5 seconds.

Blue (%) Red (%) Green	en (%) Colour
100 100 100 Turquoise
0	100 100 Light green
0	0	100 Green
100 0	0	Blue
50	100 0	Violet
0	100 0	Red
0	0	0	Colourless display
0	100 10	Orange

Operating tips

1. Regularly clean the aluminium filters and regularly replace the carbon filters.
2. Use the medium exhaust power level. Only use the highest power level when necessary.
3. To ensure proper ventilation, leave windows closed while the appliance is turned on.

PART 5: MAINTENANCE AND CLEANING

WARNING!

Before cleaning, regular or other maintenance, installation or removal, check that the appliance is turned off and disconnected from the power socket or that the respective circuit breaker is turned off.

Changing a light bulb

• Turn off the appliance.
• Take out the aluminium fi Iter.
• If the light bulb broke during operation wait until it cools down.

Models with a 50W and 35W halogen light bulb

• To remove the halogen light bulb, press the light bulb holder downwards and gently turn it anticlockwise. Remove the light bulb.
  • Install a light bulb with the same parameters in reverse sequence.

Illustration showing a hand holding a small device with a magnified view of its internal components (no text or symbols present)

Models with a 20 W light bulb

• To remove the halogen light bulb (20 W), first remove the glass cover using a thin screwdriver. Be careful not to scratch the appliance. Remove a faulty light bulb by pulling downwards and insert a new working light bulb.
  • Use a light bulb with the same parameters.

Illustration showing a hand holding a droplet near a circular target, with another hand pointing at a target (no text or symbols present)

NOTE:

Do not hold the light bulb with your bare hands. Dirt or sweat from the hand may shorten their lifetime.

Models with a 1W LED light bulb

Depending on the model, select a procedure.

a) Light bulb without a cover

1. Open the separating cover/glass.
2. Take out the aluminium filters.
3. Disconnect the wires from the LED light bulb.
4. Push on the light bulb to remove it.
5. Remove the tape between the light bulb and the range hood.
6. Remove the protective tape from the new light bulb and proceed in reverse order to install it.

b) Light bulb with a cover

1. Open the separating cover/glass
2. Take out the aluminium filters.
3. Screw out the light bulb cover screws.
4. Then screw out the plastic screws of the light bulb.
5. Disconnect the wires from the light bulb and remove it.
6. Install a new light bulb proceeding in reverse order.

Cleaning

• Aluminium filters capture dust and fat from the extracted air.
- It is necessary to regularly wash these filters, ideally once a month, depending on the level of use. Wash the filters in water with dishwashing detergent, or you may place the filters in a dishwasher and wash them using a gentle program (max. 60°C).
• Take out the aluminium filters by pressing the clip.
• After cleaning allow the aluminium fi liters to dry thoroughly before reinstalling them.
- Wipe the outer surface of the range hood with a clean damp wiping cloth lightly dipped in water with a small amount of dishwashing detergent. Then wipe dry.
- Avoid electrical parts coming into contact with water or another liquid.
- For cleaning you can also use special agents for the maintenance and cleaning of INOX surfaces (applies only for models with an INOX surface treatment).

Cleaning the aluminium fi Iters

Models with digital controls – 3 speeds

Aluminium filters need to be cleaned when "C" (depending on the model) appears on the display, e.g. every 2 – 3 weeks (depending on the level of use).

Clean the f1 Iters according to the above mentioned instructions and after reinstalling them press and hold down the I fan button for 3 seconds until the "C" symbol (depending on the model) disappears from the display. The symbol "E" (depending on the model) will appear on the display, which means that the appliance is ready for operation.

If you wish to use the appliance without clearing the "C" symbol (depending on the model), press the I button to start extraction for 1 second, then the "C" symbol (depending on the model) will appear again and the motor will continue running.

Models with digital controls – 5 speeds

The aluminium fi Iters need to be cleaned when "C" appears on the display (depending on the model). Clean the fi Iters according to the above mentioned instructions and after reinstalling them press and hold down the fan button for 3 seconds until the "C" symbol (depending on the model) disappears from the display. The symbol "E" (depending on the model) will appear on the display, which means that the appliance is ready for operation.

If you wish to use the appliance without clearing the "C" symbol (depending on the model), press the fan button to start extraction for 1 second, then the "C" symbol (depending on the model) will appear again and the motor will continue running.

NOTE:

The "C" symbol (depending on the model) appears on the display after approximately 60 hours of operation.

Models with an LCD display - 5 speeds

The aluminium filters need to be cleaned when 📄 appears on the display.

Clean the filters according to the above mentioned instructions and after reinstalling them press and hold down the fan button for 3 seconds until the symbol (depending on the model) disappears from the display.

NOTE:

The symbol (depending on the model) appears on the display after approximately 60 hours of operation.

Two identical rectangular panels with grid patterns and mounting brackets, no text or symbols visible.

WARNING!

For cleaning do not use petrol, benzene, thinners or any other solvents, coarse cleaning agents, steel wool or any sponges with steel wool.

WARNING!

You may put the aluminium filters in a dishwasher. The colour of the aluminium filters may change after several washes. This is a normal event.

PART 6: BEFORE YOU CALL THE SERVICE CEN

If the appliance is not working as it should check the following recommendations for resolving the most common problems.

If the problem persists or it is not included in the table below, turn of the appliance and disconnect it from the power socket and contact an authorised service centre.

Problem	Solution
The range hood is not working. Check	Check that the power plug is properly inserted in a properly grounded power socket with the parameters 220 – 240 V ~ 50 Hz.
	Check that the motor power switch is in the "On" position.
The lights are not working. Check that	that the power plug is properly inserted in a properly grounded power socket with the parameters 220 – 240 V ~ 50 Hz.
	Check that the motor power switch is in the "On" position.
	Check whether the light bulb or ☐ fluorescent tube is broken.
Exhaust power is weak. Check whether the aluminium ☐ lters are dirty.
The range hood does not extract the air directly out (for models without an exhaust).	Check whether the aluminium ☐ lters are dirty.
	Check whether the carbon ☐ lter is not too dirty.

Attention:

Use the range hood together with the stove. This will ensure the correct air exhaust. We recommend to leave the range hood running a few minutes longer than the stove to ensure that all odours are extracted.

PART 7: TECHNICAL SPECIFICATIONS

		PEW PEI			PEC 6405 - PEC 9405	PEC 5507 - PEC 6507	PEB 6408	PEC 5406 - PEC 6406	PEB 6708
SPEED 1	Voltage (A) 0,5 0,6 0	5 0,5 1 0,6 0,6	0,5
	Power (W) 105 90 12	0 70 135 80 8	0 110
	Air flow (m^3/h) 180	230 200 190	250 190 155 2	10
	Pressure (mmH20)	30 155 170 1	50 160 160 18	0 155
	Noise level (dB)	36	35	39,7	43	40	45	44	34,5
SPEED 2	Voltage (A) 0,6 0,9 0	6 0,6 1,2 0,9 0	6 0,6
	Power (W) 125 120 1	30 90 170 110	95 125
	Air flow (m^3/h) 260	310 265 225	310 400 175 2	90
	Pressure (mmH20)	200 205 230 1	65 180 190 20	5 235
	Noise level (dB)	43	42	43,6	47,5	48	54	50	43
SPEED 3	Voltage (A) 0,7 1,5 0	7 0,8 1,6		0,9 0,7
	Power (W) 145 185 1	50 110 220		110 150
	Air flow (m^3/h)	335	500	360	400	500		400	375
	Pressure (mmH20)	265 245 290 1	80 200		225 285
	Noise level (dB)	48	52	49	51,5	55		53	49
SPEED 4	Voltage (A) 0,8		0,8					0,8
	Power (W) 170		175					175
	Air flow (m^3/h)	450		455					470
	Pressure (mmH20)	310		325					320
	Noise level (dB) 53		53,4					53,5
SPEED 5	Voltage (A)	1		1					1
	Power (W) 210		210					210
	Air flow (m^3/h)	750		750					750
	Pressure (mmH20)	350		365					380
	Noise level (dB) 61		60,2					61
Input voltage		220 - 240 V ~ 50 Hz	220 - 240 V ~ 50 Hz	220 - 240 V ~ 50 Hz	220 - 240 V ~ 50 Hz	220 - 240 V ~ 50 Hz	220 - 240 V ~ 50 Hz	220 - 240 V ~ 50 Hz	220 - 240V ~ 50 Hz
Air outlet diameter		150 mm	150 mm	150 mm	120 mm	120 mm	120 mm	120 mm	120 mm

NOTE: All the here mentioned data is subject to change.

INSTRUCTIONS AND INFORMATION REGARDING THE DISPOSAL OF USED PACKAGING MATERIALS

Dispose of packaging material at a public waste disposal site.

DISPOSAL OF USED ELECTRICAL AND ELECTRONIC APPLIANCES

The meaning of the symbol on the product, its accessory or packaging indicates that this product shall not be treated as household waste. Please, dispose of this product at your applicable collection point for the recycling of electrical & electronic equipment waste. Alternatively in some states of the European Union or other European states you may return your products to your local retailer when buying an equivalent new product. The correct disposal of this product will help save valuable natural resources and help in preventing the potential negative impact on the environment and human health, which could be caused as a result of improper liquidation of waste. Please ask your local authorities or the nearest waste collection centre for further details. The improper disposal of this type of waste may fall subject to national regulations for fi nes.

For business entities in the European Union

If you wish to dispose of an electrical or electronic device, request the necessary information from your seller or supplier.

Disposal in other countries outside the European Union

If you wish to dispose of this product, request the necessary information about the correct disposal method from local government departments or from your seller.

This product meets all the basic EU regulation requirements that relate to it.

Changes to the text, design and technical specifications may occur without prior notice and we reserve the right to make these changes.

ODSAVAČ PAR

NÁVOD K OBSLUZE

PHILCO

Famous for Quality the World Over

PEW 6509B

PEW 9509B

PEW 6711

PEW 9711

Vážený zákazníku

Technical line drawing of a mechanical component with concentric circles and mounting brackets (no text or symbols)

Technical line drawing of a screw and a mechanical component (no text or symbols)

Technical line drawing of a mechanical assembly with mounting brackets and a central square component (no text or symbols)

Technical line drawing of a mechanical assembly with an inset showing a component being inserted (no text or symbols present)

Two screws with threaded fasteners, one upright and one tilted (no text or symbols)

Šroub 5,5 x 60 Ysb Šroub 3,9 x 22 Ysb

7. Dotažení šroubů

Technical line drawing of a mechanical assembly with labeled components (no text or symbols present)

Technical diagram showing a mechanical assembly with a fan-like component and a motor-like housing (no text or symbols present)

nebo

Illustration of a hand pressing a button with directional arrows (no text or symbols)

Illustration of a hand inserting a device into a rectangular frame (no text or symbols visible)

Ventilace

Illustration showing a hand holding a small device with a magnified view of its internal components (no text or symbols present)

Illustration showing a hand holding a dropper over a circular object, and a close-up of a finger pressing a button (no text or symbols)

POZNÁMKA:

Two identical rectangular panels with grid patterns and side connectors, no text or symbols visible.

VAROVÁNÍ!

Famous for Quality the World Over

PEW 6509B

PEW 9509B

PEW 6711

PEW 9711

Vážený zákazník

Technical line drawing of a mechanical component with concentric circles and mounting base (no text or symbols)

Technical line drawing of a screw and a mechanical component (no text or symbols)

Technical line drawing of a mechanical assembly with mounting brackets and a central square component (no text or symbols)

Technical line drawing of a mechanical assembly with an inset showing a component being inserted (no text or symbols present)

Two types of screws shown side by side, one with a circular head and the other with a square end (no text or symbols)

Skrutka 5,5 × 60 Ysb Skrutka 3,9 × 22 Ysb

Technical line drawing of a mechanical assembly with labeled components (no text or symbols present)

Technical diagram of a mechanical assembly showing a triangular frame with internal components and a motor with rotating blades (no text or labels)

alebo

Illustration of a hand pressing a button with directional arrows (no text or symbols)

Illustration of a hand inserting a device into a rectangular panel (no text or symbols visible)

Ventilácia

Illustration showing a hand holding a small object with a magnified view of the interior (no text or symbols present)

Modely s 20 W žiarivkou

Illustration showing a hand holding a dropper over a circular object, and a finger pressing a button on a target (no text or symbols)

POZNÁMKA:

Two identical rectangular panels with grid patterns, each featuring a small rectangular cutout (no text or symbols)

VAROVANIE!

Na čistenie nepoužívajte benzín, benzén, riedidlo ani iné rozpúšťadlá; hrubé čistiace prostriedky; drôtenky ani hubky s drôtenkami.

VAROVANIE!
