Product Type	Car Stereo
Brand	Hyundai
Model	CR 1005
Dimensions (H x W x D)	58 mm x 188 mm x 182 mm
Weight	0.5 kg
Power Supply	12 V DC (negative ground)
Maximum Power Output	4 x 20 W
FM Tuner Frequency Range	87.5 - 108 MHz
AM Tuner Frequency Range	522 - 1620 kHz
Playback Formats	CD, CD-R, CD-RW, MP3
Auxiliary Input	3.5 mm front panel
Preset Equalizer	Rock, Pop, Classic, Flat
Display Type	LCD with white backlight
Remote Control	Included (wired)
Detachable Faceplate	Yes
Steering Wheel Control Compatible	Yes (adapter required)
Cleaning	Use a soft, dry cloth. Avoid solvents.
Safety	Disconnect battery before installation. Use only specified fuses.
Spare Parts	Contact authorized dealer for replacement fuses, mounting brackets, and faceplate.
General Information	Designed for standard DIN slot installation.

Frequently Asked Questions - CR 1005 HYUNDAI

How do I reset the Hyundai CR 1005?

Press the RESET button on the front panel with a pointed object (e.g., a pen tip). This restores factory settings.

What is the correct fuse rating for the CR 1005?

The unit uses a 10 A blade fuse located on the rear of the chassis. Always replace with the same rating.

Can I play MP3 CDs on this stereo?

Yes, the CR 1005 supports playback of MP3 files recorded on CD-R or CD-RW discs.

How do I connect an external device?

Use the AUX input (3.5 mm jack) on the front panel. Select AUX mode to play audio from your device.

Why is there no sound from the speakers?

Check that the unit is not muted (press MUTE), volume is turned up, and speaker wires are properly connected. Also verify the fuse.

How do I detach the faceplate?

Press the RELEASE button on the left side of the faceplate and slide it to the left to remove. Store it safely.

Can I use the stereo with steering wheel controls?

Yes, if your vehicle supports it. You need an adapter (sold separately) to connect the steering wheel interface.

What should I do if the display is dim?

Adjust the brightness setting in the menu. If still dim, check the dimmer wire connection to the vehicle's illumination circuit.

How do I set the clock?

Press and hold the MENU button until the clock flashes. Use the SEEK arrows to adjust hour and minute, then press MENU again to confirm.

Is it safe to clean the lens with a liquid?

No. Use only a dry, soft cloth for the lens. For the faceplate, a slightly damp cloth may be used, but avoid moisture entering the unit.

USER MANUAL CR 1005 HYUNDAI

ODEJMUTÍ ČELNÍHO PANELU

KONEKTOR A KONEKTOR B

1. ZADNÍ PRAVÝ REPRODUKTOR (+)
2. ZADNÍ PRAVÝ REPRODUKTOR (-)
3. PŘEDNÍ PRAVÝ REPRODUKTOR (+)
4. PAMĚT +12V 4. PŘEDNÍ PRAVÝ REPRODUKTOR (-)
5. VÝSTUP AUTO-ANTÉNY 5. PŘEDNÍ LEVÝ REPRODUKTOR (+)
6. PŘEDNÍ LEVÝ REPRODUKTOR (-)
7. +12V (KE KLÍČI ZAPALOVÁNÍ) 7. ZADNÍ LEVÝ REPRODUKTOR (+)
8. UZEMNĚNÍ 8. ZADNÍ LEVÝ REPRODUKTOR (-)

1. EASY M, LIGHT M 2. SPORT, EDUCATE, DRAMA

1. CLASSICS, OTHER M 3. CULTURE, SCIENCE, VARIED

CT = clock time (hodiny) FREQ = frequency (frekvence)

9. TLAČÍTKO MD (Režim)

ZLOŽENIE ČELNÉHO PANELU

Poznámky:

1. EASY M, LIGHT M 2. SPORT, EDUCATE, DRAMA

1. CLASSICS, OTHER M 3. CULTURE, SCIENCE, VARIED

CT = clock time (hodiny)

FREQ = frequency (frekvencia)

9. TLAČÍTKO MD (Režim)

WYPOSAŻENIE INSTALACYJNE

ZDEJMOWANIE PANELU CZOŁOWEGO

Uwagi:

4. STACJE WSTĘPNIE ZAPAMIĘTANE (1, 2, 3, 4, 5 a 6)

(A) TRYB RADIA

Dear customer, thank you for purchase of our product. To achieve the utmost in enjoyment and performance, please read this manual carefully before attempting to operate the unit in order to become familiar with its features, and assure you years of faithful, trouble free performance and listening pleasure.

FEATURES

The unit features a detachable front control panel, FM stereo, CD player the following features:

The best stations memory automatically memorizes the best (Strongest) station in the order their strength (AS)

Electronic Volume, Bass, Treble, Fader and Balance control

Precision electronic tuning with phase-lock loop (P.L.L.)

Circuitry

Programmable 18 preset memory tuning (6 each for FM1/FM2/FM3)

Loudness control Manual/Auto (Seek)/up and down tuning control

Band selector for FM1/FM2/FM3

Display control (Frequency, Station Name, Program Type, Clock)

Clock Function in RDS

CD Repeat Function

CD files on CD/CD-R/CD-RW player function

Preamplified Line-out for external amplifier

Detachable front panel protects against theft

Lighting system

RDS Function:

PI (Program Identification)

PS (Program Service Name)

AF (List of Alternative Frequencies)

TA (Traffic Announcement)

PTY (Program Type)

TP (Traffic Program)

WARNING

The exclamation point within the triangle is a warning sign alerting the user of important instructions accompanying the product.

The lightening flash with arrowhead symbol within the triangle is a warning sign alerting the user of voltage inside the unit.

The reduce the risk of electric shock, do not remove the cover. No user serviceable parts inside the unit. Refer all servicing to qualified personnel.

Invisible laser radiation when the unit is opened or inter-locks defeated.

Avoid exposure to laser beam. User of controls, adjustments or procedures other than those specified herein may result in hazardous radiation exposure.

This unit must not be exposed to moisture or rain.

This unit should be positioned so that it is properly ventilated.

Do not expose this unit to direct sunlight or heat radiating sources.

Features 46

Warnings 46

Drawings 48

Location 48

Installation 49

Precautions 49

Mounting example 49

Detaching and attaching

the front panel 49

ISO connector 50

Maintenance 50

Operating instruction

1. Power on/off 50

2. Select 50

3. Volume knob 50

a) TA seek/TA alarm 51

b) Mask Dpi 51

c) Retune L/S 51

d) Semi Dsp Control 51

e) Loudness Con trol 52

f) Esp Mode 52

g) Beep Mode 52

h) Seek Mode 52

i) Stereo/Mono 52

j) Local/Dx 53

1. Reset station 53

2. AF/REG function 53

3. TA function 53

4. PTY function 54

5. Display 54

6. Mode button 54

7. Band /loud button 54

8. 1. Auto or manual tuning 54

9. A/PS button 55

10. MUTE button 55

11. LCD display 55

12. Panel release button 55

13. CD slot 56

14. CD eject button 56

15. Pause button 56

16. Intro button 56

17. Repeat button 56

18. Random button 56

19. Button SCAN 56

20. Reset 56

Specifications 57

LOCATIONS OF CONTROLS

1. POWER ON/OFF
2. FUNCTION SELECT BUTTON:
3. VOL UP/VOL DOWN FRO BASS/TREBLE/BALANCE/FADER (+,-)
4. PRESET STATIONS (1,2,3,4,5,6)
5. AF FUNCTION (ALTERNATIVE FREQUENCIES)
6. TA FUNCTION (TRAFFIC ANNOUNCEMENT)
7. PTY FUNCTION (PROGRAM TYPE)
8. DISPLAY BUTTON (DISP)
9. MODE BUTTON (MD)
10. BAND BUTTON (BND)
    11.12. AUTOMATIC OR MANUAL TUNING (FREQ UP ▶ : OR FREQ DOWN ◀ / CD TRACK/SEARCBUTTON
11. AUTO SEEK SEARCH TUNING (A/PS)
12. MUTE BUTTON (MUT)
13. LCD DISPLAY
14. PANEL RELEASE BUTTON ( )
15. CD SLOT
16. CD EJECT BUTTON (▲)
17. PAUSE BUTTON
18. INTRO BUTTON (PREVIEW ALL TRACKS)(INT)
19. REPEAT BUTTON (RPT)
20. RANDOM BUTTON (RDM)
21. BUTTON SCAN
22. RESET BUTTON

Take out the transport screws next to the red stickers before installation.

INSTALLATION

PRECAUTIONS

Choose the mounting location carefully so that the unit will not interfere with the normal driving functions of the driver. Avoid installing the unit where it would be subject to high temperatures, such as from direct sunlight or hot air from the heater, or where it would be subject to dust, dirt or excessive vibration. Use only the supplied mounting hardware for a safe and secure installation. Be sure to remove the front panel before installing the unit.

Mounting angle adjustment

Adjust the mounting angle to less than 30.

MOUNTING EXAMPLE

Installation in the dashboard

release key in the safe place as you may need it in future to remove the unit from the car.

Detaching and attaching the front panel

The front panel of this unit can be detached in order to prevent the unit from being stolen.

DETACHING THE FRONT PANEL

Before detaching the front panel, be sure to press the PWR button to turn off the unit first. Then press the button and detach the panel by pulling it towards you as illustrated. Note: Be sure not to drop the panel when detaching it from the unit.

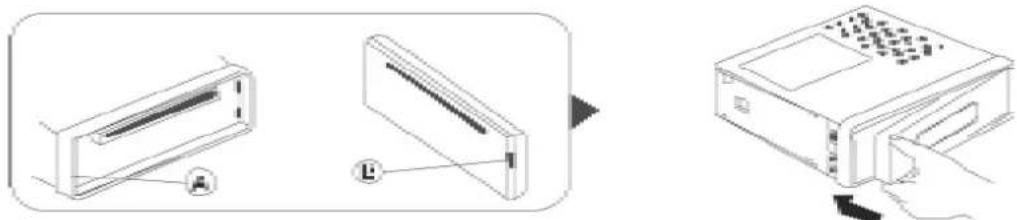

ATTACHING THE FRONT PANEL

Make sure the front panel is the right way up when attaching it to the unit as it cannot be attached upside down. Bring side B of panel to side A of main unit. Inset the panel in and push until it clicks. Panel is attached.

Notes:

Do not press the front panel hard against the unit when attaching it. It can be easily attached by pressing it lightly against the unit. When you carry the front panel with you, put it in the supplied front panel case. Do not press hard or give excessive pressure to the display window of the front panel when attaching it to the unit.

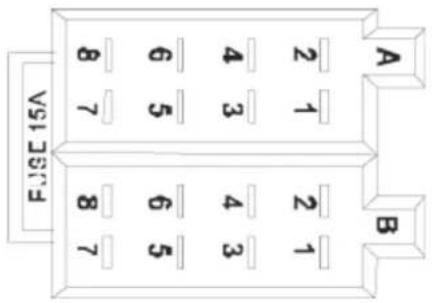

ISO CONNECTOR

RCA Jack Line Out (Rear)-Gray

: Red (right)

: White (left)

CONNECTOR A CONNECTOR B

1. 1. REAR RIGHT SPEAKER(+)
2. 1. REAR RIGHT SPEAKER(-)
3. 1. FRONT RIGHT SPEAKER(+)
4. MEMORY +12V 4. FRONT RIGHT SPEAKER(-)
5. AUTO ANTENNA OUTPUT 5. FRONT LEFT SPEAKER(+)
6. 1. FRONT LEFT SPEAKER(-)
      7.+12V (TO IGNITION KEY) 7. REAR LEFT SPEAKER(+)
7. GROUND 8. REAR LEFT SPEAKER(-)

The connector A no.7 must be connected by car ignition key in order to avoid that car battery becomes weak when the car will be not used for long period.

Maintenance

FUSE REPLACEMENT

If the fuse blows, check the power connection and replace the fuse. If the fuse blows again after the replacement, there may be an internal malfunction. In this case, consult your nearest repairing center.

Warning

Use the specified amperage fuse for each lead. Use of a higher amperage fuse may cause serious damage.

OPERATING INSTRUCTIONS

1. POWER ON/OFF

By pressing this key(1), the unit is switched on and off.

This unit is turned on by pressing any key.

2. SELECT(SEL)

3. VOLUME KNOB

Rotate Volume up/down knob to control the VOLUME to select other functions, press the SEL(2) button shortly until the desired functions is shown on the display. Figure 1 shows how control functions are selected using the SEL button.

Fig. 1 Selection of sound control functions
1. VOLUME 2. SELECT 3. BASS 4. TREBLE 5. BALANCE 6. FADER

To increase or decrease the volume by rotating the volume knob. These buttons can be used to adjust the BASS, TREBLE, BALANCE and FADER.

(A) TA SEEK/TA ALARM (2)

When press the SEL button (2) for more than 2 seconds, it is activated as selecting mode of these function.

TA SEEK Mode or TA ALARM mode is selected by rotating the volume knob.

TA SEEK mode:

When newly turned station does not receive TA information for 5sec, the radio retunes to next station which has not the same station(PI) as the last station, but has the TA information. In TA seek mode, the current station can be changed to the completely different station because the unit searches TA station when the field strength of the current station is very weak, or the current station has no TA signal.

TA ALARM mode:

Any automatic retune mode is not activated, just can be heard Beep sound.

(B) MASK DPI (2)

When press the SEL button for more than 2 seconds, it is activated as selecting mode of these function.

MASK DPI: masked only the AF which has different PI.

MASK ALL: masked the AF which has different PI and NO RDS signal with field strength

(C) RETUNE L/S (2)

When press the SEL button for more than 2 seconds, it is activated as selecting mode of these function.

(D) SEMI DSP CONTROL (2)

When press the SEL button for more than 2 seconds, it is activated as selecting mode of these function.

DSP can be selected by VOL UP and DOWN key.

POP M—ROCK M—CLASS—FLAT M—DSP OFF

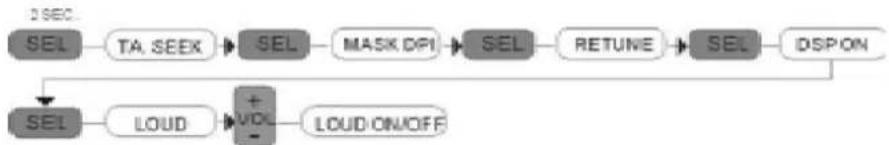

(E) LOUDNESS CONTROLS (2)

When press the SEL button for more than 2 seconds, it is activated as selecting mode of these function. LOUD ON/OFF mode is selected by VOL UP and DOWN key. The bass and treble response will be boosted.

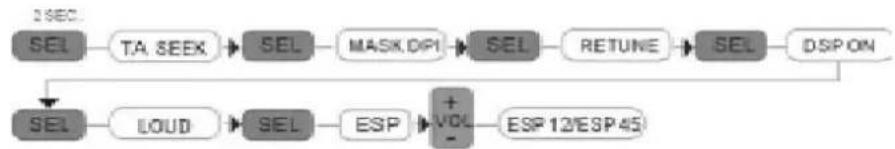

(F) ESP MODE (2)

When press the SEL button for more than 2 seconds, it is activated as selecting mode of these function.

(G) BEEP MODE (2)

When press the SEL button for more than 2 seconds, it is activated as selecting mode of these function.

(H) SEEK MODE (2)

When press the SEL button for more than 2 seconds, it is activated as selecting mode of these function.

SEEK 1: When SEEK 1 mode is activated, AUTO SEEK SCAN is stopped when station is detected even user still push SEEK button.

SEEK 2: Auto Seek Scan is not stopped even station is detected if user push SEEK button. When release this SEEK button, then stop when station is detected.

(I) STEREO/MONO (2)

When press the SEL button for more than 2 seconds, it is activated as selecting mode of these function.

When FM stations are weak and are disturbed, listening can be improved by selecting MONO.

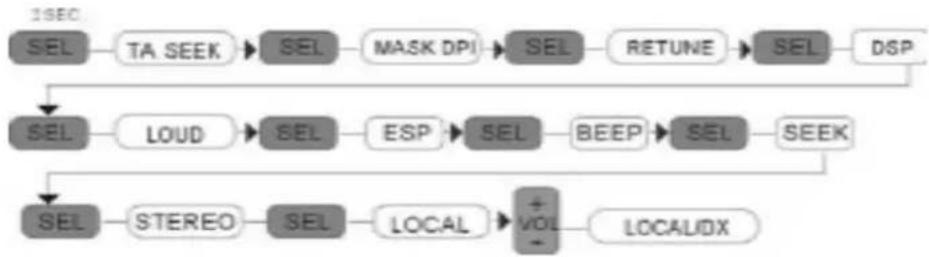

(J) LOCAL/DX (2)

When press the SEL button for more than 2 seconds, it is activated as selecting mode of these function .

Local position in areas with strong signals to let radio stop at only strong stations during manual tuning (LOC appears). Press to distant position in areas with weak signals to listen to all stations.

4. PRESET STATIONS (1,2,3,4,5,6)

(A) RADIO MODE:

When press short, these keys select a preset station directly. When press longer than 1 sec., current station is stored in preset memory bank. When PTY mode is selected, the PTY switch is shared as follows:

PTY music group—PTY speech group—PTY OFF

MUSIC

1. POP M, ROCK M
2. EASY M, LIGHT M
3. CLASSICS, OTHER M
4. JAZZ, COUNTRY
5. NATION M, OLDIES
6. FOLK M

SPEECH

1. NEWS, AFFAIRS, INFO
2. SPORT, EDUCATE, DRAMA
3. CULTURE, SCIENCE, VARIED
4. WEATHER, FINANCE, CHILDREN
5. SOCIAL, RELIGION, PHONE IN
6. TRAVEL, LEISURE, DOCUMENT

(B) CD PLAYER MODE:

1. PAUSE 2. INTRO 3. REPEAT 4. RANDOM 5. 10 6. 10

5. AF/REG function (ALTERNATIVE FREQUENCIES)

When press short, AF/REG switching mode is selected. When AF/REG switching mode is selected, the radio checks the signal strength of the AF all the time. When press long, it is activated as regional mode ON/OFF.

- Regional mode ON:

AF switching or PI SEEK is implemented to the station which have all PI codes same as current station. REG segment is turned on in LCD display.

- Regional mode OFF

The regional code in the format of PI code is ignored when AF switching or PI SEEK is implemented.

6. TA function (TRAFFIC ANNOUNCEMENT)

When press short, it is activated as TA mode on or off.

When TA mode is on and traffic announcement is transmitted.

- When the unit is in CD mode, it will switch to radio mode temporarily.

• If the volume level was under the threshold point, it will be raised to the threshold point.
• When TA station is received, TA segment is turned on in LCD display.

7. PTY function (PROGRAM TYPE)

PTY MUSIC—PTY SPEECH—PTY OFF

While selecting PTY type, its selection is implemented by preset buttons as described in preset key. When PTY ils selected, the radio starts to search corresponding PTY information, and stops if the corresponding PTY information is detected.

8. DISPLAY (DSP)

Selects radio frequency, clock display and PTY NONE. To set the clock:

(1). With clock display selected, hold down the „DSP“ button until clock display starts flashing.
(2). Rotate the volume knob to change minutes and hours.
(3). Press „DISP“ button to start the clock.

When this key is pressed it is operated as the conversion of each display mode as follow.

(1) Incase of receiving RDS station

TUNER MODE

PS—PTY—FREQ—CT

CD/MP3 PLAYER MODE

CDP—PS—PTY—FREQ—CT

(2) In case of receiving NON RDS station

RADIO MODE

CLOCK—FREQ —NO PTY

CD/MP3 PLAYER MODE

CDP—FREQ—CT—NO PTY

Each display time is several seconds, and come back to 1't position after several seconds.

CT=clock time

FREQ=frequency

9. MODE BUTTON (MD)

By pressing this key, user can select RADIO mode or CD PLAYER mode.

10. BAND /LOUD BUTTON(BND)

Each band is toggled cyclically by pressing this key FM1-FM2-FM3.

When press longer than 1sec, they are operated as LOUD ON or LOUD OFF.

11.12. AUTOMATIC OR MANUAL TUNING (FREQ UP >> OR FREQ DOWN <<)

(A) RADIO MODE

When press short, these keys are operated as MANUAL tuning mode.

When press longer than 1 sec., they are operated as SEEK tuning mode.

(B) CD PLAYER MODE

When press short, they are operated as TRACKUP/ DOWN mode.

When press longer than 1 secretary, they are operated as CUE or REVIEW mode.

11. 12. SKIP TRACK/SEARCH BUTTON

FORWARD AND REVERSE TRACK SEARCH (or changing songs)

Press the SKIP button ( TUN ◀◀ : or TUN ▶▶ ) during play to go to the desired track(song).

TUN ▶ ...REVERSE

TUN ▶ : ...FORWARD

Press and hold the SKIP button (TUN : or TUN ) during play to scan the disc at high speed. When the desired music section of the disc is found, release the button. Normal play will resume. When CD play is finished, CD mode automatically changes to FIRST TRACK.

HOW TO SELECT CD FILES

1. File number search.

Using VOL+/- buttons select the desired numbers.

Push SEL to confirm and start playing.

2. File name search

Using VOL+/- buttons select the desired file name

Push SEL again to confirm and start playing

BAND	Mp3NAVIGATIONMODE SELECT
1	PLAY PAUSE
2	INT
3	RPT
4	RDM
5
6
SEL	MENU

13. AUTO SEEK SEARCH TUNING (A/PS)

By pressing shortly, the radio searches for each preset station. When field strength level is bigger than the threshold level of stop level, the radio is holding at that preset number for 5 sec. With releasing mute, and then searches again. By pressing longer than 1sec, and then 6 strongest stations are preset to the corresponding preset number. When AS operation is finished, the radio executes the preset scan.

14. MUTE Button

Press this button to mute the sound at once.

Press again to return to previous volume level.

15. LCD DISPLAY

The liquid Crystal Display will display the current state of the unit.

16. PANEL RELEASE BUTTON

Press this button and the left-hand part of the panel will be released.

17. CD SLOT

18. CD EJECT BUTTON

Press the EJECT button (18) to remove the CD.

19. PAUSE BUTTON

During PLAY mode, press PAUSE button (19) to PAUSE.

Press it again to resume play.

20. INTRO BUTTON (Preview all Tracks)

When this button (20) is pressed, INT indication is displayed and the first several seconds of each track of the disc are played.

Press again to stop intro and listen to track.

21. REPEAT BUTTON (RPT)

When this button is pressed, RPT indication is displayed and play of the selected track will be continually repeated until the Track Repeat mode is cancelled by pressing RPT button (21) again.

22. RANDOM BUTTON (RDM)

When this button is pressed, RDM indication is displayed and each track of the disc are played in random instead of normal progression.

To cancel RANDOM mode, press RDM button (22) again.

23. BUTTON SCAN

This button is operated as RADIO SCAN. The operation is similar as normal search but the difference is holding 5 seconds on every station detected in RADIO SCAN mode.

24. RESET

Reset button (24) is placed on the housing. The reset button is to be activated for the following:

• Initial installation of the unit when all wiring is completed.
• All the function button do not operate.
• Error symbol on the display.

SPECIFICATIONS

FM SECTION

Frequency range	87.5-108.0MHz
Channel step	50KHz
Intermediate frequency	10.7MHz
Sensitivity	2	μat 30 dB S/N
Stereo separation	>30dB
Signal to noise radio	>60dB

CD PLAYER SECTION

Signal to Noise Ratio	>60dB
Channel Separation	>50dB(1KHz)
Frequency Response	20Hz-20KHz

LINE-OUT

Output	350mV max.
Impedance	10K	Ω

GENERAL

Power Supply Voltage	DC 13.2 Volts Negative Ground
Max Current Consumption	15A
Max Output power	40W x 4 CH

Note: Specifications and the design are subject to possible modifications without notice.

WARNING: Do not use this product near water, in wet areas to avoid fire or injury of electric current. Always turn off the product when you don't use it or before a revision. There aren't any parts in this appliance which are reparable by consumer. Always appeal to a qualified authorized service. The product is under a dangerous tention.

Disposal of used electrical & electronic equipment

The meaning of the symbol on the product, its accesory or packaging indicates that this product shall not be treated as household waste. Please, dispose of this equipment at your applicable collection point for the recycling of electrical & electronic equipments waste. In the European Union and Other European countries which there are separate collection systems for used electrical and electronic product. By ensuring the correct disposal of this product, you will help prevent potentially hazardous to the environment and to human health, which could otherwise be caused by unsuitable waste handling of this product. The recycling of materials will help conserve natural resources. Please do not therefore dispose of your old electrical and electronic equipment with your household waste. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

HP Tronic Ústí nad Labem s.r.o. is registered by Asekol s.r.o. under number AK-051447.

HP Tronic Ústí nad Labem s.r.o. is registered by Sewa under number EZ 0000213.
