Product Type	Car Radio with CD/MP3/USB/SD/MMC
Brand	Hyundai
Model	CRM 1253 SU
Power Supply	DC 12 V, Negative Ground
Max Current Consumption	15 A
Max Output Power	4 x 40 W
FM Frequency Range	87.5 - 108 MHz
FM Sensitivity	2 µV at 30 dB S/N
CD Playback	CD, CD-R, CD-RW, MP3
Media Sources	CD, USB, SD/MMC Card
RDS Functions	PI, PS, AF, TA, PTY, TP
Preset Stations	18 (6 each for FM1/FM2/FM3)
Detachable Front Panel	Yes, anti-theft
Audio Controls	Volume, Bass, Treble, Balance, Fader, Loudness
DSP Modes	Flat, Pop, Classic, Rock
Line-Out	2.0 V max, 10 kΩ impedance
CD Signal-to-Noise Ratio	>60 dB
CD Channel Separation	>50 dB at 1 kHz
Frequency Response (CD)	20 Hz - 20 kHz
Dimensions (Approx.)	Standard DIN size (1-DIN)
Weight	Approx. 0.5 kg

Frequently Asked Questions - CRM 1253 SU HYUNDAI

How do I detach the front panel?

Press the PWR button to turn off the unit. Then press the panel release button and pull the panel towards you. Use the supplied case for storage.

How do I set the clock?

Press the DISP button until the clock display flashes. Rotate the volume knob to adjust hours/minutes. Press DISP again to start the clock.

How do I store preset stations?

Tune to the desired station, then press and hold one of the preset buttons (1-6) for more than 1 second. The station is stored in the current band (FM1/FM2/FM3).

How do I use the TA (Traffic Announcement) function?

Press the TA button to enable. When a traffic announcement is broadcast, the unit will switch to radio mode and raise the volume if needed.

How do I search for MP3 files?

You can search by track number (press AS/PS once), file name (press twice), or character (press three times). Use the SEL button and volume knob to navigate.

What should I do if the fuse blows?

Check the power connection and replace the fuse with the specified amperage. If it blows again, consult a qualified service center.

How do I reset the unit?

Press the reset button located on the housing. This is necessary after initial installation or if the unit malfunctions.

Can I play music from a USB drive?

Yes, insert a USB drive into the USB connector on the front panel. The unit supports MP3 files.

How do I adjust the sound settings?

Press the SEL button repeatedly to cycle through Bass, Treble, Balance, Fader. Rotate the volume knob to adjust each setting.

What is the RDS function?

RDS (Radio Data System) provides services like PS (station name), AF (alternative frequencies), TA (traffic announcements), and PTY (program type). Press the corresponding buttons to use them.

USER MANUAL CRM 1253 SU HYUNDAI

Umístění

UMÍSTĚNÍ OVLÁDACÍCH PRVKŮ

1. TLAČÍTKO ZAPNUTÍ A VYPNUTÍ (PWR)
2. TLAČÍTKO VOLBY FUNKCÍ
3. ZVÝŠENÍ / SNÍŽENÍ HLASITOSTI
4. PŘEDNASTAVENÉ STANICE (1, 2, 3, 4, 5 a 6)
5. FUNKCE „AF“ (ALTERNATIVNÍ FREKVENCE)
6. FUNKCE „TA“ (DOPRAVNÍ HLÁŠENÍ)
7. FUNKCE „PTY“ (TYP PROGRAMU)
8. TLAČÍTKO DISPLEJE (DISP)
9. TLAČÍTKO REŽIMU (MODE)
10. TLAČÍTKO PÁSMA (BND)
    11., 12. TLAČÍTKO AUTOMATICKÉHO NEBO MANUÁLNÍHO LADĚNÍ (ZVYŠOVÁNÍ ▶ NEBO SNIŽOVÁNÍ ◀ FREKVENCE A PŘESKAKOVÁNÍ / PROHLEDÁVÁNÍ STOP NA CD)
11. TLAČÍTKO AUTOMATICKÉHO VYHLEDÁNÍ A NALADĚNÍ STANIC (A/PS)
12. LCD DISPLEJ
13. TLAČÍTKO PRO UVOLNĚNÍ ČELNÍHO PANELU ( )
14. OTVOR PRO CD
15. TLAČÍTKO VYSUNUTÍ CD ( ♠)
16. TLAČÍTKO PAUZY
17. TLAČÍTKO PŘEHRÁNÍ ZAČÁTKŮ VŠECH STOP (INT)
18. TLAČÍTKO OPAKOVÁNÍ (RPT)
19. TLAČÍTKO NÁHODNÉHO PŘEHRÁVÁNÍ (RDM)
    22., 23. TLAČÍTKO PŘESKOČENÍ STOP +10 nebo -10
20. RESETOVACÍ TLAČÍTKO
21. TLAČÍTKO SKENOVÁNÍ (SCN)
22. OTVOR PRO MULTIMEDIÁLNÍ KARTU SD/MMC
23. KONEKTOR USB

Instalace

OPATŘENÍ PŘI INSTALACI

Two technical diagrams showing a rectangular component with labeled parts (A and B) and an arrow indicating direction (no text or symbols present)

Poznámky:

KONEKTOR A

4. PAMĚŤ +12V
5. VÝSTUP AUTO-ANTÉNY
7. +12V (KE KLÍČI ZAPALOVÁNÍ)
8. UZEMNĚNÍ

1. SPORT, EDUCATE, DRAMA

1. SOCIAL, RELIGION, PHONE IN

CT = clock time (hodiny) FREQ = frequency (frekvence)

9. TLAČÍTKO MODE (Režim)

Umiestenie

UMIESTENIE OVLÁDACÍCH PRVKOV

1. TLAČIDLO ZAPNUTIA A VYPNUTIA (PWR)
2. TLAČIDLO VOLBY FUNKCIÍ
3. ZVÝŠENIE / ZNÍŽENIE HLASITOSTI
4. PREDNASTAVENÉ STANICE (1, 2, 3, 4, 5 a 6)
5. FUNKCIA „AF“ (ALTERNATÍVNE FREKVENCIE)
6. FUNKCIA „TA“ (DOPRAVNÉ HLÁSENIA)
7. FUNKCIA „PTY“ (TYP PROGRAMU)
8. TLAČIDLO DISPLEJA (DISP)
9. TLAČIDLO REŽIMU (MODE)
10. TLAČIDLO PÁSMA (BND)
11. 1. TLAČIDLO AUTOMATICKÉHO ALEBO MANUÁLNEHO LADENIA (ZVYŠOVANIE) ALEBO ZNIŽOVANIE FREKVENCIA A PRESKAKOVANIE / PREHL'ADÁVANIE STP NA CD)
12. TLAČIDLO AUTOMATICKÉHO VYHL'ADANIA A NALADENIA STANÍC (A/PS)
13. LCD DISPLEJ
14. TLAČIDLO PRE UVOL'NENIE ČELNÉHO PANELU ( )
15. OTVOR PRE CD
16. TLAČIDLO VYSUNUTIA CD ( )
17. TLAČIDLO PAUZY
18. TLAČIDLO PREHRANIA ZAČIATKOV VŠETKÝCH STÓP (INT)
19. TLAČIDLO OPAKOVANIA (RPT)
20. TLAČIDLO NÁHODNÉHO PREHRÁVANIA (RDM)
    22., 23. TLAČIDLO PRESKOČENIA STÔP +10 alebo -10
21. RESETOVACIE TLAČIDLO
22. TLAČIDLO SKENOVANIE (SCN)
23. OTVOR PRE MULTIMEDIÁLNU KARTU SD/MMC
24. KONEKTOR USB

Inštalácia

Two technical diagrams showing a rectangular component with labeled parts (A and B) and an arrow indicating direction (no text or symbols present)

Poznámky:

KONEKTOR A

4. PAMÄT +12V
5. VÝSTUP AUTO-ANTÉNY
7. +12V (KU KL'ÚČU ZAPAL'OVANIA)
8. UZEMNENIE

KONEKTOR A

4. PAMIĘĆ +12V
5. WYJŚCIE AUTO-ANTENY
7. +12V (DO KLUCZA ZAPŁONU)
8. UZIEMIENIE

1. SPORT, EDUCATE, DRAMA

1. SOCIAL, RELIGION, PHONE IN

BLUETOOTH Car Stereo Compact Disc MP3/CD-RW/CD-R/CD Media Player with PLL FM Stereo Radio, Radio Data System with PTY Detachable Front Panel System

FEATURES

• MP3/CD-RW/CD-R/CD Playback
- The best stations memory automatically memorizes the best (strongest) station in the order their strength (AS)
- MP3 files playback from CD, USB, MMC & SD card direct access
• Electronic Volume, Bass, Treble, Fader and Balance control
- Precision electronic tuning with phase-lock loop (P.L.L.) Circuitry
- Programmable 18 preset memory tuning (6 each for FM1/FM2/FM3)
- Encoder Volume Control
- Loudness control Manual/Auto (Seek)/up and down tuning control
• Band selector for FM1/FM2/FM3
- Display control (Frequency, Station Name, Program Type, Clock)
- Clock Function in RDS
- CD Repeat Function
- CD and MP3 files on CD/CD-R/CD-RW player function
- Preamplified Line-out for external amplifier
- Detachable front panel protects against theft
- RDS Function:
PI (Program Identification)
PS (Program Service Name)
AF (List of Alternative Frequencies)
TA (Traffic Announcement)
PTY (Program Type)
TP (Traffic Program)

Content

Function 56 LCD display 70

Warnings 58 Panel release button 70

Drawings 59 CD slot 70

Location 60 CD eject button 70 Pause button 70

Installation Intro button 70

Precautions 61

Mounting example 61

Select MP3 Files 72

Repeat button 71

Random button 71

Reset 72

Detaching and attaching

The front pane 62

ISO connector 63

Maintenance 63

Power on/off 64

Select

Volume Knob

TA seek/TA alarm 64

PI Mute/PI Sound 65

Retune L/S 65

MASK DPI 65

Beep Mode 65

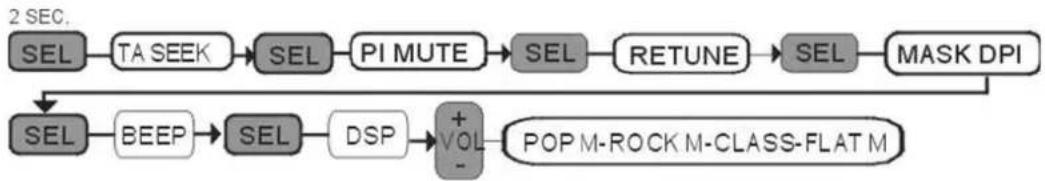

DSP Off/Flat/Pop M/Class/Rock. 65

Loud Off/On 66

Vol Last/Adj 66

ESP 10/40 66

Seek 1/2 66

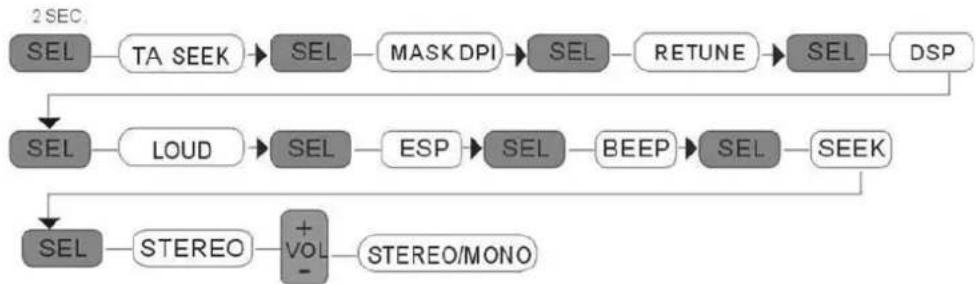

Stereo /Mono 67

Preset Stations 67

RDS Function

AF/REG function 68

TA function 68

PTY function 68

Display 68

Mode button 69

Band 69

Automatic or manual tuning 69

A/PS 70

Warnings

The exclamation point within the triangle is a warning sign alerting the user of important instructions accompanying the product.

The lightening flash with arrowhead symbol within the triangle is a warning sign alerting the user of voltage inside the unit.

The reduce the risk of electric shock, do not remove the cover. No user serviceable parts inside the unit. Refer all servicing to qualified personnel.

Invisible laser radiation when the unit is opened or interlocks defeated.

Avoid exposure to laser beam. User of controls, adjustments or procedures other than those specified herein may result in hazardous radiation exposure.

This unit must not be exposed to moisture or rain.

This unit should be positioned so that it is properly ventilated.

Do not expose this unit to direct sunlight or heat radiating sources.

Nákresy

Location

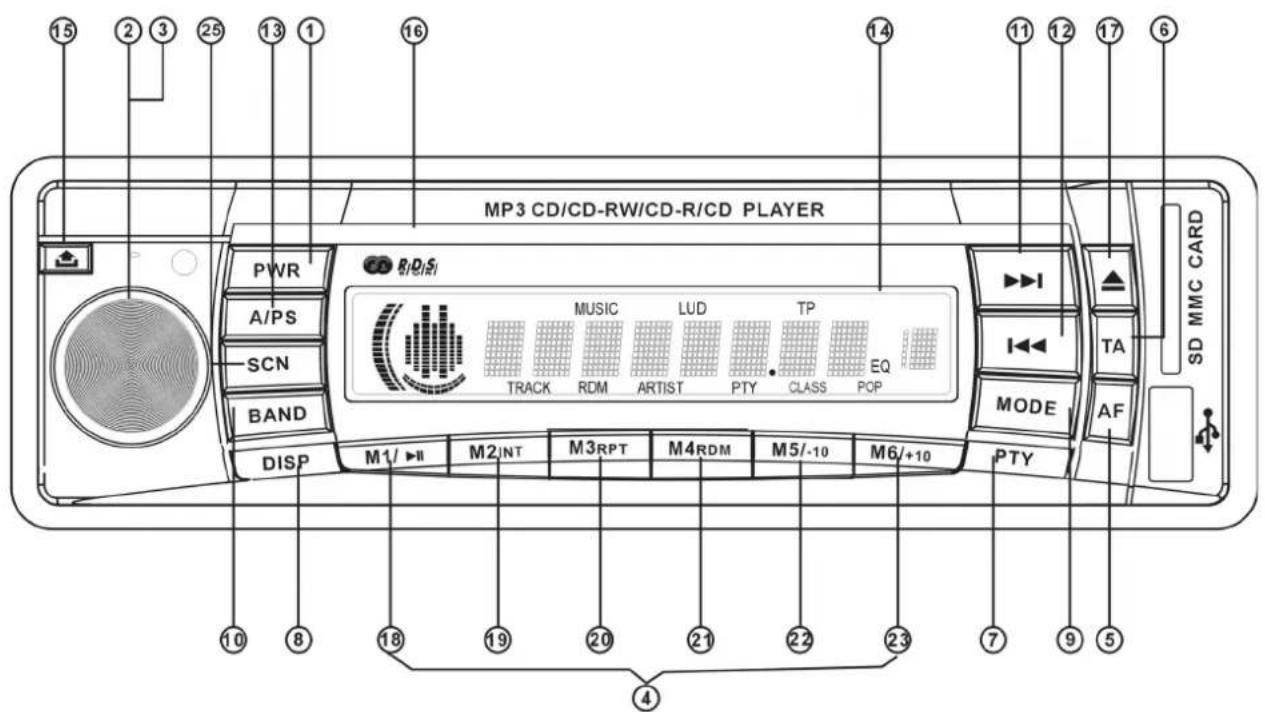

LOCATIONS OF CONTROLS

LOCATIONS OF CONTROLS

1. POWER ON/OFF
2. FUNCTION SELECT BUTTON
3. VOL UP/VOL DOWN
4. PRESET STATIONS (1, 2, 3, 4, 5, 6)
5. AF FUNCTION (ALTERNATIVE FREQUENCIES)
6. TA FUNCTION (TRAFFIC ANNOUNCEMENT)
7. PTY FUNCTION (PROGRAM TYPE)
8. DISPLAY BUTTON (CLK)
9. MODE BUTTON (MODE)
10. BAND BUTTON (BND)

11.12. AUTOMATIC OR MANUAL TUNING (FREQ UP ◀ OR FREQ DOWN ▶ / CD TRACK/SEARCH BUTTON

1. AUTO SEEK SEARCH TUNING (AS/PS)

2. LCD DISPLAY

3. PANEL RELEASE BUTTON ( )

4. CD SLOT

5. CD EJECTS BUTTON (▲)

6. PAUSE BUTTON

7. INTRO BUTTON (PREVIEW ALL TRACKS)(INT)

8. REPEAT BUTTON (RPT)

9. RANDOM BUTTON (RDM)

22.23. -/+10 TRACK SEARCH DOWN/UP

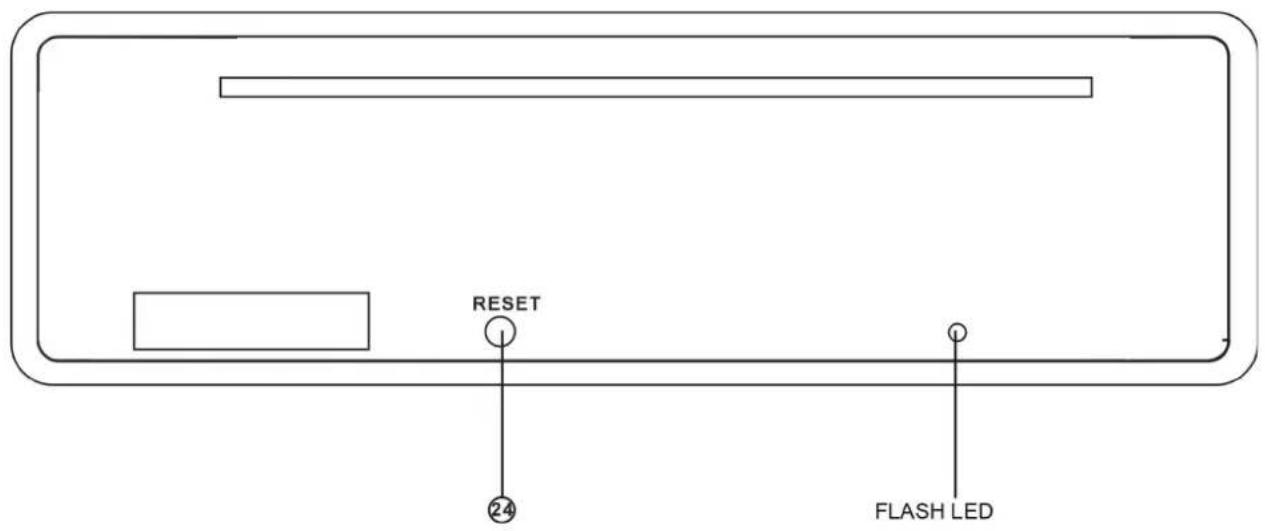

1. RESET BUTTON

2. SCAN FUNCTION

3. SD/MMC CARD JACK

4. USB JACK

Installation

PRECAUTIONS

Choose the mounting location carefully so that the unit will not interfere with the normal driving functions of the driver. Avoid installing the unit where it would be subject to high temperatures, such as from direct sunlight or hot air from the heater, or where it would be subject to dust, dirt or excessive vibration.

Use only the supplied mounting hardware for a safe and secure installation.

Be sure to remove the front panel before installing the unit.

Mounting angle adjustment

Adjust the mounting angle to less than 30.

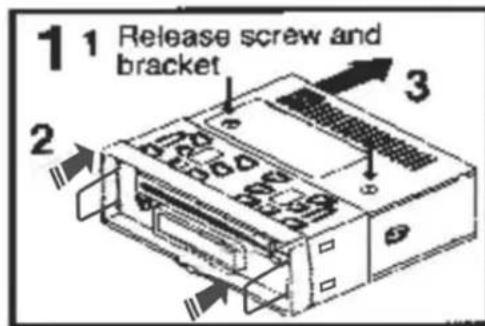

MOUNTING EXAMPLE

Installation in the dashboard

Diagram of a computer device with an open rear panel and a close-up view showing internal components (no text or symbols)

Keep the release key in the safe place as you may need it in future to remove the unit from the car.

Installation

Detaching and attaching the front panel

The front panel of this unit can be detached in order to prevent the unit from being stolen.

DETACHING THE FRONT PANEL

Before detaching the front panel, be sure to press the PWR button to turn off the unit first. Then press the button and detach the panel by pulling it towards you as illustrated.

Note: Be sure not to drop the panel when detaching it from the unit.

ATTACHING THE FRONT PANEL

Make sure the front panel is the right way up when attaching it to the unit as it cannot be attached upside down. Bring side B of panel to side A of main unit. Inset the panel in and push until it clicks. Panel is attached.

Two technical diagrams showing a rectangular component with labeled parts (A and B) and an angled view of the side (no text or symbols present)

Notes:

Do not press the front panel hard against the unit when attaching it. It can be easily attached by pressing it lightly against the unit.

When you carry the front panel with you, put it in the supplied front panel case.

Do not press hard or give excessive pressure to the display window of the front panel when attaching it to the unit.

Installation

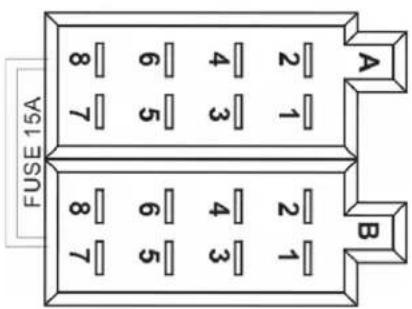

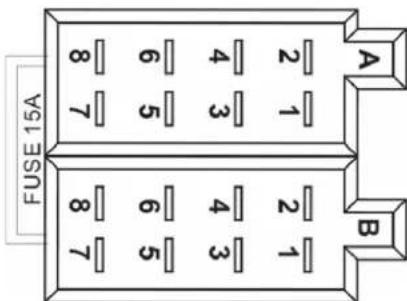

ISO CONNECTOR

RCA Jack Line out (Front - Rear)

: Red (right) RR=REAR RIGHT FR=FRONT RIGHT

: White (left) RL=REAR LEFT FL=FRONT LEFT

CONNECTOR A

4. MEMORY +12V
5. AUTO ANTENNA OUTPUT
7. +12V (TO IGNITION KEY)
8. GROUND

The connector A no.7 must be connected by car ignition key in order to avoid that car battery becomes weak when the car will be not used for long period.

CONNECTOR B

1. REAR RIGHT SPEAKER (+)
2. REAR RIGHT SPEAKER (-)
3. FRONT RIGHT SPEAKER (+)
4. FRONT RIGHT SPEAKER (-)
5. FRONT LEFT SPEAKER (+)
6. FRONT LEFT SPEAKER (-)
7. REAR LEFT SPEAKER (+)
8. REAR LEFT SPEAKER (-)

Maintenance

FUSE REPLACEMENT

If the fuse blows, check the power connection and replace the fuse. If the fuse blows again after the replacement, there may be an internal malfunction. In this case, consult your nearest repairing center.

Warning

Use the specified amperage fuse for each lead. Use of a higher amperage fuse may cause serious damage.

Operation

OPERATING INSTRUCTIONS

1. POWER ON/OFF

By pressing this key (1), the unit is switched on and off. This unit is turned on by pressing any key.

2. SELECT (SEL)

3. VOLUME KNOB

Rotate Volume up/down knob to control the VOLUME to select other functions, press the SEL (2) button shortly until the desired functions is shown on the display. Figure 1 shows how control functions are selected using the SEL button.

Fig. 1 Selection of sound control functions

1. VOLUME 2. SELECT3. BASS 4. TREBLE 5. BALANCE 6.FADER

To increase or decrease the volume by rotating the volume knob. These buttons can be used to adjust the BASS, TREBLE, BALANCE and FADER.

(1) TA SEEK/TA ALARM (2)

When press the SEL button (2) for more than 2 seconds it is activated as selecting mode of these function.

TA SEEK Mode or TA ALARM mode is selected by rotating the volume knob.

TA SEEK mode:

When newly turned station does not receive TA information for 5sec, the radio retunes to next station which has not the same station (PI) as the last station, but has the TA information. In TA seek mode, the current station can be changed to the completely different station because the unit searches TA station when the field strength of the current station is very weak, or the current station has no TA signal.

-TA ALARM mode:

Operation

Any automatic retune mode is not activated, just can be heard Beep sound.

(2) PI MUTE / PI SOUND (2)

When press the SEL button for more than 2 seconds, it is activated as selecting mode of these function.

(3) RETUNE L/S

When press the SEL button for more than 2 seconds, it is activated as selecting mode of these function.


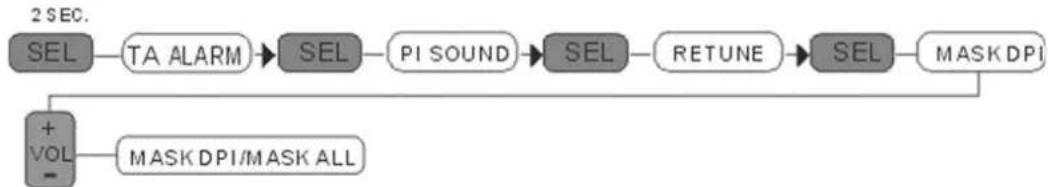

(4) MASK DPI (2)

When press the SEL button for more than 2 seconds, it is activated as selecting mode of these function.

MASK DPI: masked only the AF which has different PI. MASK ALL: masked the AF which has different PI and NO RDS signal with field strength.

(5) BEEP MODE (2)

When press the SEL button for more than 2 seconds, it is activated as selecting mode of these function .

(6) DSP MODE (2)

When press the SEL button for more than 2 seconds, it is activated as selecting mode of these function.

Operation

(7) LOUDNESS CONTROLS (2)

When press the SEL button for more than 2 seconds, it is activated as selecting mode of these function.

LOUD ON/OFF mode is selected by VOL UP and DOWN key. The bass and treble response will be boosted.

(8) ESP MODE (2)

When press the SEL button for more than 2 seconds, it is activated as selecting mode of these function.

(9) SEEK MODE (2)

When press the SEL button for more than 2 seconds, it is activated as selecting mode of these function.

SEEK 1: When SEEK 1 mode is activated, AUTO SEEK SCAN is stopped when station is detected even user still push SEEK button.
SEEK 2: Auto Seek Scan is not stopped even station is detected if user push SEEK button. When release this SEEK button, then stop when station is detected.

Operation

(10)STEREO/MONO (2)

When press the SEL button for more than 2 seconds, it is activated as selecting mode of these function.

When FM stations are weak and are disturbed, listening can be improved by selecting MONO.

(11) VOL LAST/ADJ(2)

VOLUME LEVEL is determined when POWER ON.

LAST VOLUME:Final VOLUME LEVEL generates power before POWER OFF.

ADJUST VOLUME:VOLUME LEVEL selected by the user is produced.

4. PRESET STATIONS (1, 2, 3, 4, 5, 6)

(A) RADIO MODE:

When press short, these keys select a preset station directly. When press longer than 1 sec., current station is stored in preset memory bank. When PTY mode is selected, the PTY switch is shared as follows:

PTY music group---PTY speech group---OFF

MUSIC

1. POP M, ROCK M
2. EASY M, LIGHT M
3. CLASSICS, OTHER M
4. JAZZ, COUNTRY
5. NATION M, OLDIES
6. FOLK M

SPEECH

1. NEWS, AFFAIRS, INFO
2. SPORT, EDUCATE, DRAMA
3. CULTURE, SCIENCE, VARIED
4. WEATHER, FINANCE, CHILDREN
5. SOCIAL, RELIGION, PHONE IN
6. TRAVEL, LEISURE, DOCUMENT

USING THE RDS FUNCTION

What is RDS?

The RDS (Radio Data System) is a digital information system developed by the EBU (European Broadcast Union). Piggy-backed on normal FM broadcasts, RDS offers a variety of information services and automatic retuning functions for RDS-compatible car stereos. In 1988, RDS became available in the United Kingdom, France, West Germany, Ireland and Sweden. Test trans-missions are being conducted in many other European countries. It is expected that RDS will be available in most western European countries in the near future.

5. AF/REG function (ALTERNATIVE FREQUENCIES)

When press short, AF/REG switching mode is selected.

When AF/REG switching mode is selected, the radio checks the signal strength of the AF all the time. When press long, it is activated as regional mode ON/OFF.

-Regional mode ON:

AF switching or PI SEEK is implemented to the station which have all PI codes same as current station. REG segment is turned on in LCD display.

-Regional mode OFF

The regional code in the format of PI code is ignored when AF switching or PI SEEK is implemented.

6. TA function (TRAFFIC ANNOUNCEMENT)

When press short, it is activated as TA mode on or off.

When TA mode is on and traffic announcement is transmitted.

-When the unit is in CD/MP3 mode, it will switch to radio mode temporarily.

-If the volume level was under the threshold point, it will be raised to the threshold point.

-When TA station is received, A segment is turned on in LCD display.

7. PTY function (PROGRAM TYPE)

PTY MUSIC---PTY SPEECH---PTY OFF

While selecting PTY type, its selection is implemented by preset buttons as described in preset key. When PTY is selected, the radio starts to search corresponding PTY information, and stops if the corresponding PTY information is detected.

8. DISPLAY (DISP)

Selects radio frequency, clock display and PTY NONE.

To set the clock:

(1). with clock display selected, hold down the "DISP" button until clock display starts flashing.

Operation

(2). Rotate the volume knob to change minutes and hours.
(3). Press "DISP" button to start the clock.

When this key is pressed it is operated as the conversion of each display mode as follow.

1) Incase of receiving RDS station

TUNER MODE

PS---PTY---FREQ---CT

CD/MP3 PLAYER MODE

CDP---PS---PTY---FREQ---CT

2) In case of receiving NON RDS station

RADIO MODE

CLOCK---FREQ ---NO PTY

CD/MP3 PLAYER MODE

CDP---FREQ---CT---NO PTY

Each display time is several seconds, and come back to 1'st position after several seconds.

CT=clock time

FREQ=frequency

9. MODE BUTTON (MODE)

By pressing this key, user can select RADIO mode or CD/MP3/SD/MMC/USB PLAYER mode.

10. BAND BUTTON (BND)

Each band is toggled cyclically by pressing this key FM1-FM2-FM3. When press

11.12. AUTOMATIC OR MANUAL TUNING (FREQ UP ➤ OR FREQ DOWN ◀)

(A) RADIO MODE

When press short, these keys are operated as MANUAL tuning mode.

When press longer than 1 sec., they are operated as SEEK tuning mode.

(B) CD/MP3/SD/MMC/USB PLAYER MODE

When press short, they are operated as TRACK UP/DOWN mode.

When press longer than 1 secretary, they are operated as CUE or REVIEW mode.

Operation

13. AUTO SEEK SEARCH TUNING (AS/PS)

By pressing shortly, the radio searches for each preset Station.

When field strength level is bigger than the threshold level of stop level, the radio is holding at that preset number for 5 secretaries.

With releasing mute, and then searches again. By pressing longer than 1sec and then 6 strongest stations are preset to the corresponding preset number.

When AS operation is finished, the radio executes the preset scan.

14. LCD DISPLAY

The liquid Crystal Display will display the current state of the unit.

15. PANEL RELEASE BUTTON

Press this button and the left-hand part of the panel will be released.

CD CONTROL LOCATION OF PARTS

11. 12. SKIP TRACK/SEARCH BUTTON

FORWARD AND REVERSE TRACK SEARCH

(or changing songs)

Press the SKIP button( TUN ▶ or TUN ◀ ) during play to go to the desired track(song).

TUN ◀ ...REVERSE TUN ▶ ...FORWARD

Press and hold the SKIP button (TUN ▶ or TUN ◀) during play to scan the disc at high speed. When the desired music section of the disc is found, release the button. Normal play will resume. When CD/MP3 play is finished, CD/MP3 mode automatically changes to FIRST TRACK.

16. CD SLOT

17. CD EJECT BUTTON

Press the EJECT button ( ) to remove the CD.

18. PAUSE BUTTON

During PLAY mode, press PAUSE button (▶ II) to PAUSE.

Press it again to resume play.

19. INTRO BUTTON (Preview all Tracks)

When this button (▶ II) is pressed, INT indication is displayed and the first several seconds of each track of the disc are played.

Press again to stop intro and listen to track.

Operation

20. REPEAT BUTTON (RPT)

When this button is pressed, RPT indication is displayed and play of the selected track will be continually repeated until the Track Repeat mode is cancelled by pressing RPT button again.

21. RANDOM BUTTON (RDM)

When this button is pressed, RDM indication is displayed and each track of the disc are played in random instead of normal progression. To cancel RANDOM mode, press RDM button again.

22, 23. 10 TRACK DOWN/UP SELECT:

(In case of MP3/SD/MMC/USB files)

5: 10 TRACK DOWN 6: 10 TRACK UP

HOW TO SELECT MP3 FILES

1. Searching Track:

Press "AS/PS", then searching track is activated.

Press "SEL", then the first digit is blinking.

With "VOL VOL "knob, select first digit you want. Press "SEL", then the first digit is fixed and second digit is blinking.

With "VOL " knob, select 2' nd and 3' rd respectively. Then automatically the song you selected will start.

2. Searching File Name:

Press "AS/PS" twice, then file search is activated.

Press "SEL", then the first directory is displayed.

With "VOL VOL" knob, you can select the directory you want. Press "SEL" again, then the directory is fixed and the first file name

With "VOL " knob, you can select the file you want is displayed. Press "SEL", Then The Song you selected will start.

3. Searching Character:

Press "AS/PS" 3 times, then character search mode is activated.

Press enter "SEL" button, then "A" character is displayed.

With "VOL VOL" knob, you can select the letter you want. Press enter "SEL" key longer than 2 secretary. Then song which has same character you selected is displayed.

With "VOL VOL" knob, you can select the song you want. Press enter "SEL" key, then the song you selected will start.

Operation

24. RESET

Reset button (24) is placed on the housing. The reset button is to be activated for the fol-

lowing:

Initial installation of the unit when all wiring is completed.

All the function button do not operate.

Error symbol on the display.

25. SCN function

The key is operated as RADIO SCAN. The operation is similar as normal search but different thing is holding 5 seconds on every station detected in RADIO SCAN mode.

Specification

FM SECTION

Frequency range 87,5 - 108 MHz

Channel step 50 kHz

Intermediate frequency 10,7 MHz

Sensitivity 2μVat 30 dB S/N

Stereo separation >30 dB

Signal to noise radio >60 dB

CD/MP3 PLAYER SECTION

Signal to Noise Ratio > 60 db

Channel Separation > 50 db (1 kHz)

Frequency Response 20 Hz - 20 kHz

LINE-OUT

Output 2,0 V max.

Impedance 10 kΩ

GENERAL

Power Supply Voltage DC 12 Volts Negative Ground

Max Current Consumption 15 A

Max Output power 40W x 4 k.

NOTES:

We reserve the right to make technical changes without notice in the interest of improvement.

WARNING: Do not use this product near water, in wet areas to avoid fire or injury of electric current. Always turn off the product when you don't use it or before a revision. There aren't any parts in this appliance which are reparable by consumer. Always appeal to a qualified authorized service. The product is under a dangerous tension.

Disposal of used electrical & electronic equipment

The meaning of the symbol on the product, its accesory or packaging indicates that this product shall not be treated as household waste. Please, dispose of this equipment at your applicable collection point for the recycling of electrical & electronic equipments waste. In the European Union and Other European countries which there are separate collection systems for used electrical and electronic product. By ensuring the correct disposal of this product, you will help prevent potentially hazardous to the environment and to human health, which could otherwise be caused by unsuitable waste handling of this product. The recycling of materials will help conserve natural resources. Please do not therefore dispose of your old electrical and electronic equipment with your household waste. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

HP Tronic Ústí nad Labem s.r.o. is registered by Asekol s.r.o. under number AK-051447.

HP Tronic Ústí nad Labem s.r.o. is registered by Sewa under number EZ 0000213.

Poznámky/ Notatky/Notes:

Poznámky/ Notatky/Notes:

HYUNDAI

CORPORATION

Seoul, Korea
