Product Type	Car Stereo
Brand	Hyundai
Model	CRM 2120
Dimensions (W x H x D)	180 x 50 x 160 mm (1-DIN standard)
Weight	0.5 kg
Power Supply	12V DC (negative ground)
Maximum Power Output	4 x 50 Watts
RMS Power Output	4 x 22 Watts
Radio Tuner Bands	FM / AM
Supported Media	CD, CD-R, CD-RW, USB, AUX
Display	LCD with orange/white backlight
Remote Control	Included (wired or infrared)
Bluetooth	No
Preamp Outputs	1 pair (front/rear or subwoofer)
Installation Size	1-DIN
Detachable Faceplate	Yes
Clock	12/24 hour display
Equalizer	Preset EQ (Rock, Pop, Classic, etc.)
Fuse Rating	10A
Operating Temperature	-10°C to +60°C

Frequently Asked Questions - CRM 2120 HYUNDAI

How do I reset the Hyundai CRM 2120?

Press and hold the reset button (located behind the faceplate or near the power button) for 3 seconds using a pointed object like a pen.

How can I set the clock on this stereo?

Turn on the unit, press and hold the 'DISP' button until the hour flashes, then rotate the volume knob to adjust. Press 'DISP' again to set minutes, and rotate to adjust. Press 'DISP' to confirm.

Why is there no sound from the speakers?

Check if the unit is muted, volume is turned up, and speaker wires are properly connected. Also verify the fuse is intact (10A).

Can I connect my phone via Bluetooth?

No, the Hyundai CRM 2120 does not have Bluetooth. Use the AUX input or play music from a USB drive.

How do I remove the faceplate?

Press the 'REL' (release) button on the front panel, then pull the faceplate away from the unit. Store it in the provided case.

What type of USB drives are supported?

USB drives formatted as FAT32 with capacity up to 32 GB. Supported file formats: MP3, WMA, WAV.

How do I tune in radio stations?

Press 'BAND' to select FM1, FM2, or AM. Use 'SEEK' to auto-search or rotate the tuning knob manually. To save a station, hold one of the preset buttons (1-6).

Why does the CD skip or not play?

Ensure the CD is clean and free of scratches. Avoid using CD-RW discs. If problem persists, clean the laser lens with a cleaning disc.

What is the pinout for the ISO connector?

Pin 4: 12V constant, Pin 5: Antenna remote, Pin 7: 12V ignition, Pin 8: Ground. Speaker wires: white (LF+), white/black (LF-), gray (RF+), gray/black (RF-), green (LR+), green/black (LR-), violet (RR+), violet/black (RR-).

Where can I find the user manual?

Download the PDF manual for free from notice-facile.com by searching for Hyundai CRM 2120.

USER MANUAL CRM 2120 HYUNDAI

Illustration of three electronic components: a hand holding a disc, a circular disc with internal ring, and a CD or DVD (no text or symbols present)

OBSAH

Circular diagram with four cross-shaped elements and a central arrowhead (no text or symbols)

Přehrávání disku:

Simple line drawing of a circular object with a handle and curved arrow indicating rotation (no text or symbols)

DISP

SHRNUTÍ MP3

Shrnutí MP3

RDS (RADIO DATA SYSTEM)

Simple line drawing of a circular object with a triangular top and a curved side, no text or symbols present.

Diagram of two connected electrical connectors with wires, no text or symbols present

Diagram of a cable connector with multiple wires, no text or symbols present

Důležité:

Pure technical line drawing of a mechanical component without any text, numbers, or symbols

Line drawing of a hand inserting a device into a rectangular device (no text or symbols)

Diagram of a device with arrows indicating direction, no text or symbols present

ŘEŠENÍ PROBLÉMŮ

Symbol of a trash bin with no text or numbers present

Illustration of three electronic components: a hand holding a disc, a CD with a ring, and a CD with a stop symbol (no text or labels)

PRED UVEDENÍM DO PREVÁDZKY

Simple line drawing of a circular mechanical or electrical component with four symmetrical slots and a handle (no text or symbols)

Prehrávanie disku:

Simple line drawing of a circular object with a handle and curved top, no text or symbols present.

DISP

ZHRNUTIE MP3

Zhrnutie MP3

RDS (RADIO DATA SYSTEM)

Simple line drawing of a circular object with a triangular top and a curved side, no text or symbols present.

POP -> ROCK -> KLASICKÁ HUDBA -> NEUTRÁLNY -> DSP VYPNUTÉ

Režim EPS

Diagram of two connected electrical connectors with visible wiring and arrows indicating connection (no text or symbols)

Diagram of a cable connector with multiple wires, no text or symbols present

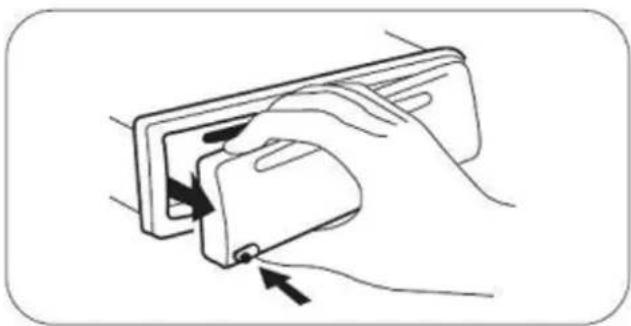

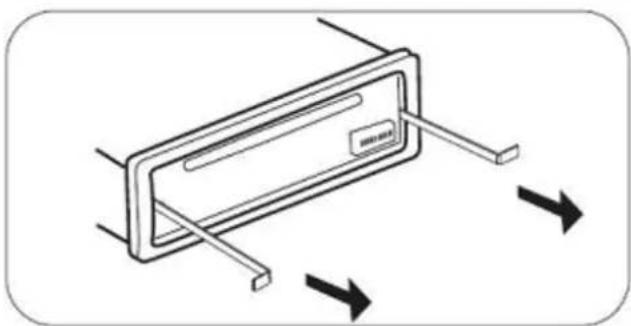

Dôležité:

Pure technical diagram of a mechanical component inside a housing, without any text or symbols

Illustration of a hand holding a smartphone with a curved arrow indicating rotation (no text or symbols)

Line drawing of a hand inserting a card into a device (no text or symbols)

Diagram of a device with directional arrows indicating movement or force (no text or symbols)

RIEŠENIE PROBLÉMOV

Symbol of a trash bin with crossed lines and a horizontal bar below (no text or numbers present)

Illustration of a CD, disc, and open book (no text or symbols)

SPIS TREŚCI

Simple line drawing of a circular mechanical component with four symmetrical arms and a handle (no text or symbols)

Odtwarzanie płyty:

PODSUMOWANIE MP3

Podsumowanie MP3

RDS (RADIO DATA SYSTEM)

Simple line drawing of a circular object with a triangular top and a curved side, no text or symbols present.

Diagram of two connected electrical connectors with visible wiring and arrows indicating connection (no text or symbols)

Diagram of a cable connector with multiple wires, no text or symbols present

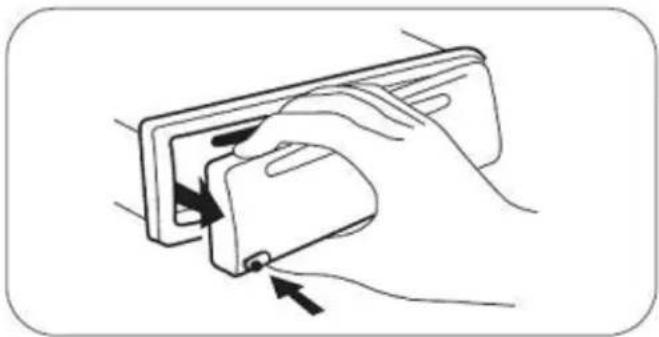

Ważne:

Technical line drawing of a mechanical component with no visible text or symbols

Illustration of a hand holding a device with a curved arrow indicating rotation (no text or symbols)

Line drawing of a hand inserting a device into a rectangular slot (no text or symbols)

Diagram of a device with arrows indicating direction, no text or symbols present

ROZWIĄZYWANIE PROBLEMÓW

Symbol of a trash bin with no text or numbers present

• Use only in a 12-volt DC negative-ground electrical system.
• Disconnect the vehicle's negative battery terminal while mounting and connecting the unit.
• When replacing the fuse, be sure to use one with an identical amperage rating. Using a fuse with a higher amperage rating may cause serious damage to the unit.

- DO NOT attempt to disassemble the unit. Laser beams from the optical pickup are dangerous to the eyes.

- Make sure that pins or other foreign objects do not get inside the unit. They may cause malfunctions, or create safety hazards such as electrical shock or laser beam exposure.

- If you have parked the car for a long time in hot or cold weather, wait until the temperature in the car becomes normal before operating the unit.

- Keep the volume at a level at which you can hear outside warning sounds (horns sirens, etc.).

CD NOTES

• Playing a defective or dusty CD can cause dropouts in sound.
• Hold CDs as illustrated.
• Do not touch the unlabeled side.
• Do not attach any seal, label or data protection sheet to either side of a disc.
• Do not expose a CD to direct sunlight or excessive heat.
• Wipe a dirty CD from the center outward with a cleaning cloth.
• Never use solvents such as benzine or alcohol.
  • This unit cannot play 3-inch (8cm) CDs.
• Never insert a 3-inch CD contained in the adapter or an irregularly shaped CD. The unit may not be able to eject it, resulting in a malfunction.

Illustration of CD, DVD, and other electronic components (no text or symbols)

Before Operation

• Do not raise the volume level too much, as this will block outside sounds, making driving dangerous.
• Stop the car before performing any complicated operation.

CAUTION

DO NOT open covers and do not repair yourself. Consult the dealer or an experienced technician for help..

Contents

Safety information 56

Panel Controls 57

Button Tips 58

MP3 Overview 59

MP3 Playback 60.-61

RDS 61.-63

Menu function 64.-65

Electrical Connections 66. - 67

Innstal ation Guide 68

Anti- Theft System 69

Troubleshooting 70.-71

Specifications 71.-72

* In addition to ordinary CDs, this unit can play a CD-R, CD-RW a MP3.

PANEL CONTROLS

Disc playback / 1 - 6 Radio preset

1. -Power on

2. -Mute

3. -Panel relase

4. -Radio Disc play (when disc insert)

5. -Display switch 6 - 11

Display playback

1. Play/Pause Top play (press more than 2 sec.)

2. Intro play

3. Track repeat play

4. Track random play

5. MP3 track -10 down

6. MP3 track+10 up -Radio preset Press to tune in a preset station. Hold for more than 2 seconds to store station.

7. -AMS: Radio auto preset/Radio Preset scan -Search: MP3 track/file/character search

8. -Band switch: FM1 -> FM2 -> FM3 -> AM1 -> AM2

9. -Alternative frequency

10. Traffic announcement

11. Program type

12. Eject

13. -Radio tune -Track skip/seek

14. Rotate the knob to adjust volime level.

-Push to select VOL/BAS/TRE/BAL/FAD, rotate the knob adjust level.

-Push more than 2 seconds to menu mode.

BUTTON TIPS

Radio:

Press ◀ or ▶ briefly to tune in the station that you have known its frequency. Hold more than 2 seconds, tuning will automatically activate and stop when signals of the next station are received.

Simple line drawing of a circular mechanical component with four symmetrical arms and a handle (no text or symbols)

Disc Playback

Press ◀ or ▶ briefly either side of the button to go to the next or previous track. Hold more than 2 seconds to fast forward or reverse back the track.

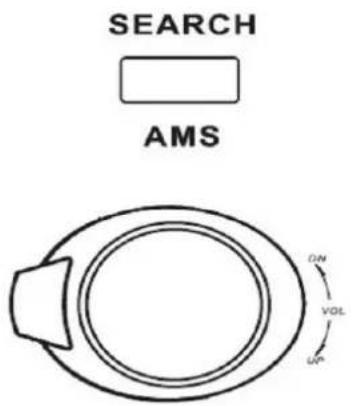

AMS: Auto Memory Store

Press AMS briefly to scan the preset station 1

-6 for 5 seconds each. Hold more than 2 seconds, the 6 strongest available stations will be automatically saved in memory of preset button 1 - 6.

SEARCH

AMS

Display and Set the Clock

1. Press DISP button, time displays.
2. Press again more than 2 seconds, time blinks, rotate the knob clockwise to set hour, rotate the knob anticlockwise to set minute.
3. Press DISP again to confirm.

MP3 OVERVIEW

Note on MP3

• MP3 is short for MPEG Audio Layer 3 and refers to an audio compression technology standard.
• This product allows playback of MP3 files on CD-ROM, CD-R or CD-RW discs.
• The unit can read MP3 files written in the format compliant with ISO 9660. However it does not support the MP3 data written by the method of packet write.
• The unit can not read an MP3 file that has a file extension other than „.mp3“.
• If you play a non-MP3 file that has the „.mp3 „ extension, you may hear some noise.
• In this manual, we refer to what are called „MP3 file“ and „folder“ in PC terminology as „track“ and „album“, respectively.
  • Maximum number of directory level is 8, including the root directory.
  • Maximum number of files and folders per disc is 1000.
• The unit may not play tracks in the order of Track numbers.
• The unit plays only the audio tracks if a disc contains both audio tracks and MP3 files.
• When playing a disc of 8kbps or VBR*, the elapsed playing time in the display window will not be correct and also the intro play may not function properly.
  *VBR: Variable Bit Rate.

Note on creating your own CD-Rs or CD-RWs containing MP3 files

• To enjoy high quality sound, we recommend converting to MP3 files with a sampling frequency of 44.1 kHz and a fixed bit rate of 128 kbps.
• Do not store more than 1000 M P3 files per disc.
• For ISO 9660 - compliant format, the maximum allowable depth of nested folders is 8, including the root directory (folder).
• When CD-R disc is used, playback is possible only for discs which have been finalized.
• Make sure that when MP3 CD-R or CD-RW is burned that it is formatted as a data disc and NOT as an audio disc.
• You should not write non-MP3 files or unneeded folders along with MP3 files on the disc otherwise it takes a long time until the unit starts to play MP3 files.
• With some CD-R or CD-RW media, data may not be properly written depending on their manufacturing quality. In this case, data may not be reproduced correctly. High quality CD-R or CD-RW disc is recommended.
• Up to 16 characters are displayed for the name of an album or a track. ID3 TAG version 1.x is required.
• Note that the unit may not play tracks in the order that you wrote them to the disc.

MP3 PLAYBACK

When playing MP3 disc, the folder/file name and ID3 TAG (Song Title, Album and Artist) can scroll entirely across the LCD.

Elapsed playing time & Track number → Folder name & number → File name & number → Song title → Album title → Artist name

ONLY YOU

MP3 Track Search

Press AMS button twice to select „FILE SCH“ mode.

Press SEL button and LCD display will show „001“.

If your desired track number is less than 100,

rotate the knob to select the first digit and press SEL button once again and rotate the knob to set the tens digit of the track number.

Press SEL button again more than 2 seconds to play the track.

If your desired track number is more than 100,

rotate the knob to select the first digit and press SEL button to confirm, rotate the knob to select the tens digit and press SEL button to confirm rotate the knob to select the hundreds digit and press SEL button to confirm, press SEL button again to

play the track.

beyond the maximum file number, the last song will played.

MP3 File Search

Press AMS button twice to select „FILE SCH“ mode. Press SEL button to enter. Rotate the knob to select folder. If you just want to play songs of this folder, press SEL button more than 2 seconds to play the first track of the folder. If you want to play desired track of the folder, press SEL button and rotate the knob to select the track you want. Press SEL button again to play the track.

FILE SCH

MP3 PLAYBACK

MP3 Character playback

Press AMS button three times to select "CHAR SCH" mode. Press SEL button and "A" displayed.

If you press SEL button more than 2 seconds, the track which name has "A" will be displayed. Rotate the knob to select the 1st character of the desired track name and press SEL button to confirm. Then "A" flashes at the next place, select 2nd and other character of the desired track name as steps above.

Press SEL more than 2 seconds to play the track of the select name.

For example: To search character „ECHO“.

RDS (RADIO DATA SYSTEM)

RDS Service availability varies with areas. Please understand if RDS service is not available in you area, the following service is not available, either. The following functions are available when receiving RDS stations.

RDS Basics

AF (Alternative Frequency List) When reception is poor, an RDS station broadcasting the same program is tuned in automatically.

PS Display (Program Service name) The name of station is displayed instead of frequency.

AF Mode : Press AF button less than 1 second to switch AF mode on and off.

AF indication on LCD will flash until RDS information is received.

REG Mode : Press AF button more than 1 second to switch REG mode on and off.

The frequency is changed only for programs within the region.

The frequency is changed also for programs outside the region.

During FM mode when AF is on, radio seek, scan and AMS functions can only receive and save RDS program.

BBC P4

REG ON

REG OFF

CT Service (Clock Time)

When receiving.and RDS station, the CT (Clock Time) service automatically adjusts the time. NO CT is displayed in areas where CT service is not available.

NO CT

RDS (CONTINUED)

Traffic Announcements

Some RDS FM stations periodically provide traffic information.

TP ( Traffic Program Identification ) Broadcasting of traffic information

TA ( Traffic Announcements Identification ) Radio announcements on traffic conditions.

TRAF INF

TA Mode: Press TA button to turn on / off TA.

When TA mode is on and TA indicator on LCD is displayed.

When traffic announcement is transmitted, regardless of the mode, reception will begin at volume level 20 if volume level is below 20.

After the traffic announcement is over, it will return to previous mode and volume level.

When TA is turned on, SEEK, SCAN, AMS function can be received or saved when traffic program identification (TP) code is received.

EON (Enhanced Other Networks)

When EON data is received, the EON indicator lights and the TA and AF functions are expanded as follows.

TA: TA: Traffic information from the current and other network stations can be received.

AF: The frequency list of preset RDS stations is updated by EON data. EON enables the radio to make fuller use of RDS information.

It constantly updates the AF list of preset stations, including that currently tuned in to. If you preset a station for from home, you will later be able to receive the same station at an alternative frequency, or any other station serving the same program, EON also keeps track of locally available TP stations for quick receptions.

RDS (CONTINUED)

PTY Reception (Program Type)

RDS FM stations provide a program type identification signal. Example: news, rock, info, sport, etc.

NEWS

PTY Mode: press PTY button to turn PTY on, previous PTY type is displayed and searched if no button is pressed for 2 seconds. If there is no correspond program type, NO PTY is displayed.

PTY Type Preset

Press PTY once to enter MUSIC type or press PTY twice to enter SPEECH type. Then use buttons 1-6 to select the desired program type.

PRESET NO. MUSIC TYPE SPEECH TYPE
1	POP M	NEWS
		AFFAIRS
	ROCK M INFO
2	M.O.R. M	SPORT
		EDUCATE
	LIGHT M DRAMA
3	CLASSICS M	CULTURE
		SCIENCE
	OTHER M VARIED
4	JAZZ M	WEATHER
		FINANCE
	COUNTRY M CHILDREN
5	NATIONAL M	SOCIAL
		RELIGION
	OLDIES M PHONE IN
6	FOLK M TRAVEL
	FOLK HOBBIES
		DOCUMENT

MENU FUNCTION

Press the knob more than 2 seconds to enter menu mode, then each press changes the mode as follows:

TA mode -> MASK mode -> TA VOL -> RETUNE mode -> DSP mode -> ESP mode -> MULT ON/OFF -> LOUD ON/OF -> BEEP ON/OF -> SEEK 1/2 mode (only in tuner mode) -> STE-REO/MONO mode -> LOCAL/DX mode -> VOL mode -> A-VOL

Simple line drawing of a circular object with a triangular top and a curved side, no text or symbols present.

TA mode

Rotate the knob to choose TA ALARM or TA SEEK mode, When TAis turned on and no traffic program identification codehas been received during the specified time, no TA/TP is displayed and according to the MENU SELECT, alarm is set off, or TA SEEK is activated. TA ALARM mode : NO TA/TP is displayed and alarm is set off.TA SEEK mode: TA SEEK is activated.

MASK Mode

Rotate the knob to choose MASK DPI or MASK ALL mode.

MASK DPI mode : Only the AF which has different program identification is masked.

MASK ALL mode : The AF which has different program identification and NO RDS signal with high field strength is masked.

TA VOL

Rotate the knob to choose TA volume.

RETUNE mode

Rotate the knob to choose RETUNE-S or RETUNE-L.RETUNE-S or RETUNE-L is time length selection of TA SEEK retune interval.

RETUNE-S: Short, TA SEEK retune interval is 45 seconds.

RETUNE-L: Long, TA SEEK retune interval is 180 seconds. Remark: RETUNE mode functions for TA during TA SEEK mode only.

DSP mode

Rotate the knob to choose DSP sound effect:

POP -> ROCK -> CLASSIC -> FLAT -> DSP OFF

EPS mode

EPS 12 s: Selected as CD-ESP time 12 seconds, MP3-ESP time > 100 seconds.

EPS 45 s: Selected as CD-ESP time 45 seconds, MP3-ESP time > 100 seconds.

MENU FUNCTION

MULT ON/OFF mode

MULT OFF: Mixed CD, one session CD.

MULT ON: Mixed, extra, multi session CD.

LOUD ON/OFF

Rotate the knob to choose loudness on or off.

BEEP ON/OFF

Rotate the knob to choose button beep sound on or off.

SEEK 1 / 2 mode

Rotate the knob to choose radio seek mode 1 or 2.

SEEK 1: Searching station will stop when the next station is received.

SEEK 2: Searching station will stop when ▶ or ◀ button is released and next station is received.

STEREO/MONO mode

Rotate the knob to choose FM stereo or mono.

LOCAL/DX

Rotate the knob to choose tuner sensitivity local or distant.

VOL LAST/ADJUST mode

Press knob to choose V-LAST, the turn-on volume level is the volume level of latest power off. Rotate knob to choose V-ADJ, the turn-on volume level is the setting volume.

A-VOL

Rotate the knob to set the turn-on volume level at V-ADJ mode.

ELECTRICAL CONNECTIONS

Wiring Diagram

For same VW/Audi or Opel (Vauxhall)

car models, you may need to modify wiring of the supplied power cord as illustrated, or else the memory of the unit may be lost after you power off. Contact your authorized dealer before installing this unit.

Original wiring

Modified wiring

ELECTRICAL CONNECTIONS

Using the ISO Connector

1. If your car is equipped with the ISO connector, then connect the ISO connectors as illustrated.
2. For connections without the ISO connectors, check the wiring in the vehicle carefully before connecting, incorrect connection may cause serious damage to this unit. Cut the connector, connect the colored leads of the power cord to the car battery, as shown in the colour code table below for speaker and power cable connections.

Diagram of two connected electrical connectors with wires, showing directional arrows (no text or symbols)

Diagram of a cable connector with multiple wires inserted into a terminal block (no text or symbols)

LOCATION	FUNCTION
	Connector A Connector B
1 Rear	Right (+) - Purple
2 Rear	Right (-) - Purple / Black Stripe
3 Front	Right (+) - Gray
4 ACC+	/ red Front Right (-) - Gray	/ Black Stripe
5 Auto	Antenna / blue Front Left(+)	- White
6 Front	Left(-) - White / Black Stripe
7 Battery	12V(+) / yellow Rear Left	(+) - Green
8 Ground	/ black Rear Left (-) - Green	/ Black Stripe

INSTALLATION GUIDE

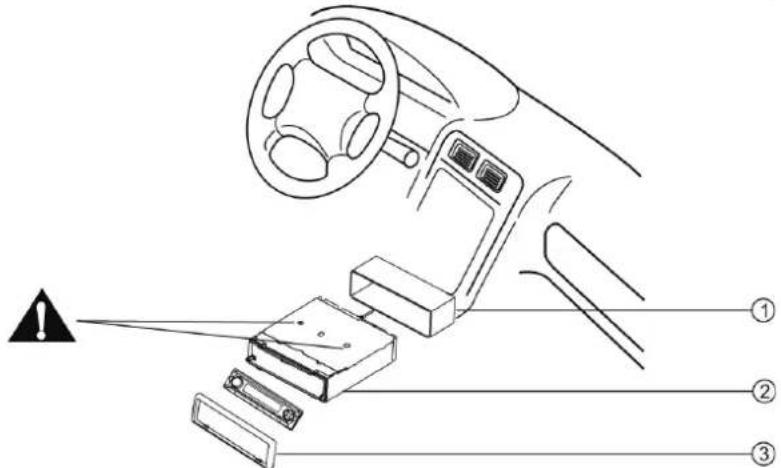

Installation Procedures

First complete the electrical connections, and then check for correctness.

Reset

When the installation and connections are completed, be sure to press the RESET with a ball-point pen, etc. Note: Press the RESET button will erase the clock and stored stations.

Installation opening

This unit can be installed in any dashboard having an opening as shown below. The dashboard should be 4.75mm - 5.56mm thick in order to be able to support the unit.

Important:

Remove these two screws before installation. Otherwise, the until will not work.

1. Inset mounting collar into the dashboard, and bend the mounting tabs out with a screwdriver.

Make sure that lock lover ✗is flush with the mounting collar (not projecting outward).

lock lever(※)

Pure technical line drawing of a mechanical component without any text, numbers, or symbols

2. Secure the rear of the unit.

After fixing mounting bolt and power connector, fix the rear of the unit to the car body by rubber cushion.

3. Insert trim plate.

ANTI-THEFT SYSTEM

This unit is equipped with a detachable panel Removing this panel makes the radio totally inoperable.

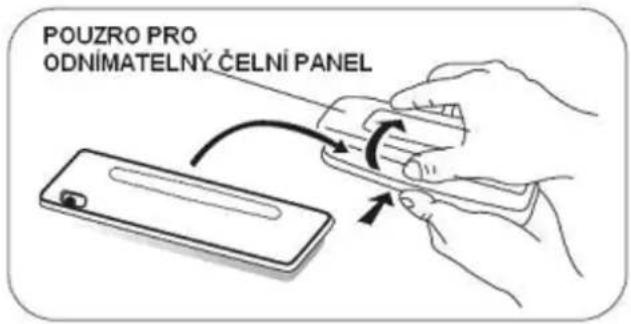

Place the Detachable Panel into Case

1. Switch off the power of the unit.
2. Remove the detachable panel.
3. Gently press the button of the case and open the cover. Place the panel into the case and take it with you when you leave the car.

Instal Detachable panel

1. Fix right side of face plate in the right part of panel slot of the unit.
2. Press down the left side of the face plate until if clicks into the panel slot of the unit.

Remove the unit

1. Remove the panel and the trim plate.
2. Insert booth L-keys into hole on the front of the set until they lock.
3. Pull out the unit.

Line drawing of a hand inserting a device into a rectangular device (no text or symbols)

Diagram of a device with directional arrows indicating movement or force (no text or symbols)

TROUBLESHOOTING

If you suspect something wrong, immediately switch power off. Do not use the unit in abnormal condition, for example without sound, or with smoke or foul smell, can cause fire or electric shock. Immediately stop using it and call the store where you purchased Never try to repair the unit yourself because it is dangerous to do so.

General

No power or no sound.

Car's engine switch is not on. Turn your car's key to ACC or ON.

Cable is not correctly connected. Check connection.Fuse is burnt. Replace fuse.

Check volume or mute on/off. If the above solutions cannot help. Press the RESET button.

Disc

Disc is inside but no sound.

Disc is upside down.

Place disc in the correct direction, and the label side up.

Disc is dirty or damaged. Clean disc or change another disc.

Disc sound skips, tone quality is low.

Disc is dirty or damaged. Clean CD or change another CD.

Sound skips due to vibration.

Mounting angle is over 30^ .

Adjust mounting angle to less than 30^ .

Unstable mounting.

Mount the unit securely with the mounting parts.

Radio

Much noise in broadcast.

Station is too far, or signals are too weak.

Select other stations of higher signal level.

Preset station lost.

Battery cable is not correctly connected.

Connect the battery cable to the terminal that is always live.

Error Display Messages

Disc is not CD or contains no MP3 files.

NO FILE

Disc upside down.

ERR-01

Recovery error, check the disk.

MP3 error, check the disk.

Disc mechanism error:

Press ▲button to eject disc

In case that the disc cannot be ejected by pressing ▲button, press the RESET switch and press the ▲. button again. If still not ejecting, consult your dealer.

SPECIFICATIONS

General

Power supply	12V DC (11 – 16 V)
	Test voltage 14,4V, negative ground
Maximum power output	45 W x 4 channels
Continuous power output	22 W x 4 channels (4 Ω 10% T. H. D.)
Suitable speaker impedance	4 –8 ohm
Pre-Amp output voltage	2,0 V (CD play mode: 1 kHz, 0 dB, 10 kΩ load)
Output impedance (video)	75 ohm
Fuse	15A
Dimensions (W x H x D):	178 x 50 x 155 mm
Weight (NETTO)	1,74 Kg

FM Stereo Ratio

Frequency range	87,5 –108,0 MHz (Europe)
	87,5 –107,9 MHz (America)
Usable sensitivity	8 dBμ
Quieting sensitivity (S/N=50dB)	12 dBμ
Frequency response	30 Hz – 15 kHz
Stereo separation	30 dB (1 kHz)
Image response ratio	50 dB
IF response ratio:	70 dB
Signal/noise ratio:	55 dB

Note: Specifications and the design are subject to change without notice due to improvements in technology.

AM Radio

Frequency range:Usable sensitivity (S/N=20dB):

522 – 1620 kHz (Europe)530 – 1710 kHz (America) 30 dBμ

Disc player

System:Frequency response:Signal/noise ratio:Total harmonic distortion:Wow and flutter:Chanel separation:

Disc digital audio system20 Hz – 20 kHz>80 dBLess than 0,20% (1 kHz)Below measurable limits>60 dB

Components

Mounting collar	1
Machine screws M5x6 mm	4
Mounting bolt (50 mm)	1
Wire connector	1
Removable face plate case	1
Trim plate	1
L-key	2
Operating Instructions	1
Rubber cushion	1

WARNING:

Do not use this product near water, in wet areas to avoid fire or injury of electric current. Always turn off the product when you don't use it or before a revision. There aren't any parts in this appliance which are reparable by consumer. Always appeal to a qualified authorized service. The product is under a dangerous tention.

Disposal of used electrical & electronic equipment

Symbol of a trash bin with crossed lines indicating no waste, and a solid black rectangle below (no text or labels)

The meaning of the symbol on the product, its accesory or packaging indicates that this product shall not be treated as household waste. Please, dispose of this equipment at your applicable collection point for the recycling of electrical & electronic equipments waste. In the European Union and Other European countries which there are separate collection systems for used electrical and electronic product. By ensuring the correct disposal of this product, you will help prevent potentially hazardous to the environment and to human health, which could otherwise be caused by unsuitable waste handling

of this product. The recycling of materials will help conserve natural resources. Please do not therefore dispose of your old electrical and electronic equipment with your household waste. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.
