CRMB 1333 SU - Car radio HYUNDAI - Free user manual and instructions

Product Type	Car Stereo
Brand	Hyundai
Model	CRMB 1333 SU
Dimensions (W x H x D)	178 x 50 x 160 mm (Standard DIN)
Weight	Approx. 1.2 kg
Power Supply	12 V DC (negative ground)
Maximum Power Output	4 x 50 W (peak)
RMS Power Output	4 x 20 W
Radio Tuner Bands	FM, AM
Audio Playback	CD, USB, AUX
USB Input	Yes (front panel)
AUX Input	Yes (3.5 mm jack)
Bluetooth	No
Equalizer	Preset EQ modes (Rock, Pop, Classic, etc.)
Display	LCD with white backlight
Remote Control	Included (wired or wireless)
Steering Wheel Control Compatible	Yes (requires adapter)
Preamp Outputs	2 x RCA (front/rear)
Fuse	10 A (blade type)
Operating Temperature	0°C to 50°C
Maintenance	Clean with dry cloth; avoid liquids
Safety	Use only specified fuse; disconnect battery before installation
Spare Parts	Available from authorized service centers
Repairability	Serviceable by qualified technician

Frequently Asked Questions - CRMB 1333 SU HYUNDAI

How do I install the Hyundai CRMB 1333 SU car stereo?

First, disconnect the vehicle's battery negative terminal. Remove the old stereo and wiring harness. Connect the ISO connectors of the new stereo to the vehicle's harness. Slide the stereo into the DIN slot and secure with the mounting sleeve. Reconnect the battery and test.

What is the correct fuse rating for this unit?

The unit uses a 10 A blade type fuse. Always replace with the same rating to avoid damage.

Why is my stereo not turning on?

Check the fuse first. Also ensure the ignition wire (red) is connected to a 12 V source that is active when the key is in the ACC/ON position. Verify ground connection (black wire) is solid.

Can I connect my smartphone via Bluetooth?

No, this model does not have Bluetooth. Use the AUX input (3.5 mm jack) or USB connection to play music from your phone.

How do I reset the unit to factory settings?

Press and hold the RST button (located behind the faceplate or on the front panel) with a pointed object for about 5 seconds. Alternatively, disconnect the battery for 10 minutes.

What audio formats can I play from USB?

The USB port supports MP3 and WMA files. Ensure the USB drive is formatted as FAT32.

How do I set the clock?

Press and hold the DISP button until the hour flashes. Rotate the volume knob to adjust, press again to set minutes, then press DISP to save.

Can I use steering wheel controls?

Yes, if your vehicle has steering wheel audio controls, you can use an adapter (sold separately) to connect them to the stereo's wired remote input.

What is the maximum USB drive capacity supported?

The stereo supports USB drives up to 32 GB formatted in FAT32.

How do I clean the front panel?

Use a soft, dry cloth to gently wipe the panel. Do not use any liquids or abrasive cleaners.

USER MANUAL CRMB 1333 SU HYUNDAI

USER MANUAL

Location

CONTROL LOCATIONS

1. POWER ON/OFF BUTTON (PWR)
2. FUNCTION SELECT BUTTON
3. VOLUME UP/DOWN
4. PRESET STATIONS (1, 2, 3, 4, 5, and 6)
5. AF FUNCTION (ALTERNATIVE FREQUENCIES)
6. TA FUNCTION (TRAFFIC ANNOUNCEMENTS)
7. PTY FUNCTION (PROGRAM TYPE)
8. DISPLAY BUTTON (DISP)
9. MODE BUTTON
10. BAND BUTTON (BND) 11th, 12th BUTTON FOR AUTOMATIC OR MANUAL TUNING (FREQUENCY UP ▶ OR DOWN ◀ AND SKIPPING/SCANNING TRACKS ON CD)
11. AUTOMATIC STATION SEARCH AND TUNING BUTTON (A/PS)
12. LCD DISPLAY
13. FRONT PANEL RELEASE BUTTON ( )
14. CD SLOT
15. CD EJECT BUTTON ( ♠)
16. PAUSE BUTTON
17. INTRO PLAY BUTTON FOR ALL TRACKS (INT)
18. REPEAT BUTTON (RPT)
19. RANDOM PLAY BUTTON (RDM) 22., 23. TRACK SKIP BUTTON +10 OR -10
20. RESET BUTTON
21. BLUETOOTH FUNCTION
22. SD/MMC MULTIMEDIA CARD SLOT
23. USB CONNECTOR

LOCATION

LOCATION OF CONTROLS ON THE REMOTE CONTROL

1. POWER ON/OFF BUTTON (PWR)
2. MUTE BUTTON (MUTE)
3. PRESET STATIONS (1, 2, 3, 4, 5 and 6)
4. PLAY/PAUSE BUTTON
5. PLAY ALL TRACKS FROM THE BEGINNING BUTTON (INT)
6. REPEAT PLAY BUTTON
7. RANDOM PLAY BUTTON (RDM)
8. SKIP TRACK –10 BUTTON
9. SKIP TRACK +10 BUTTON
10. VOLUME UP
11. SELECT BUTTON
12. VOLUME DOWN
13. "TA" FUNCTION (TRAFFIC ANNOUNCEMENT)
14. "AF" FUNCTION (ALTERNATIVE FREQUENCIES)
15. DISPLAY BUTTON (DISP)
16. AUTOMATIC STATION SEARCH AND TUNING BUTTON
17. TUNING DOWN BUTTON
18. TUNING UP BUTTON
19. BAND BUTTON (BND)
20. FUNCTION BUTTON
21. CD EJECT BUTTON
22. AUTO MEMORY BUTTON
23. PTY FUNCTION (PROGRAM TYPE)

Installation

INSTALLATION PRECAUTIONS

Notes:

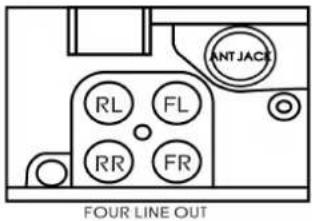

FOUR LINE OUT

CONNECTOR A

4. MEMORY +12V
5. AUTO ANTENNA OUTPUT
7. +12V (TO IGNITION KEY)
8. GROUND

1. SPORT, EDUCATE, DRAMA

1. SOCIAL, RELIGION, PHONE IN

CT = clock time (hours) FREQ = frequency

9. MODE BUTTON

Location

LOCATION OF CONTROLS

1. POWER ON/OFF BUTTON (PWR)
2. FUNCTION SELECTION BUTTON
3. VOLUME UP/DOWN
4. PRESET STATIONS (1, 2, 3, 4, 5 and 6)
5. AF FUNCTION (ALTERNATIVE FREQUENCIES)
6. TA FUNCTION (TRAFFIC ANNOUNCEMENTS)
7. PTY FUNCTION (PROGRAM TYPE)
8. DISPLAY BUTTON (DISP)
9. MODE BUTTON
10. BAND BUTTON (BND)
11. AUTOMATIC OR MANUAL TUNING BUTTON (INCREASE) OR DECREASE FREQUENCY AND SKIP / SEARCH CD TRACKS
12. AUTOMATIC STATION SEARCH AND TUNING BUTTON (A/PS)
13. LCD DISPLAY
14. FRONT PANEL RELEASE BUTTON ( )
15. CD SLOT
16. CD EJECT BUTTON ( )
17. PAUSE BUTTON
18. PLAY INTRO OF ALL TRACKS BUTTON (INT)
19. REPEAT BUTTON (RPT)
20. RANDOM PLAY BUTTON (RDM) 22., 23. TRACK SKIP BUTTONS +10 OR -10
21. RESET BUTTON
22. BLUETOOTH FUNCTION
23. SD/MMC MULTIMEDIA CARD SLOT
24. USB CONNECTOR

Location

LOCATION OF CONTROLS

1. POWER BUTTON (PWR)
2. MUTE BUTTON
3. PRESET STATIONS (1, 2, 3, 4, 5 AND 6)
4. PLAY/PAUSE BUTTON
5. BUTTON TO PLAY THE BEGINNING OF ALL TRACKS
6. REPEAT BUTTON (RPT)
7. RANDOM PLAY BUTTON (RDM)
8. TRACK SKIP -10 BUTTON
9. TRACK SKIP +10 BUTTON
10. VOLUME UP
11. SELECT BUTTON
12. VOLUME DOWN
13. TA FUNCTION (TRAFFIC ANNOUNCEMENTS)
14. AF FUNCTION (ALTERNATIVE FREQUENCIES)
15. DISPLAY BUTTON (DISP)
16. AUTOMATIC SEARCH AND TUNING BUTTON
17. TUNING BUTTON DOWN
18. TUNING BUTTON UP
19. BAND BUTTON (BND)
20. FUNCTION SELECT BUTTON
21. CD EJECT BUTTON
22. AUTO MEMORY BUTTON
23. PTY FUNCTION (PROGRAM TYPE)

Installation

Notes:

CONNECTOR A

4. MEMORY +12V
5. AUTO ANTENNA OUTPUT
7. +12V (TO IGNITION KEY)
8. GROUND

Dear customer, thank you for purchasing our product. Please read the operating instructions carefully before putting the appliance into operation and keep the instructions including the warranty, the receipt and, if possible, the box with the internal packing.

BLUETOOTH Car Stereo Compact Disc MP3/CD-RW/CD-R/CD Media Player with PLL FM Stereo Radio, Radio Data System with PTY Detachable Front Panel System

FEATURES

• BLUETOOTH Handsfree System
• Caller ID Function
• CD and MP3 files on CD/CD-R/CD-RW player function
• The best stations memory automatically memorizes the best (strongest) station in the order their strength (AS)
• MP3 files playback from CD, USB, MMC & SD card direct access • Electronic Volume, Bass, Treble, Fader and Balance control
• Precision electronic tuning with phase-lock loop (P.L.L.) Circuitry • Band selector for FM1/FM2/FM3
• Programmable 18 preset memory tuning (6 each for FM1/FM2/FM3)
• Encoder Volume Control
• Loudness control Manual/Auto (Seek)/up and down tuning control
• Display control (Frequency, Station Name, Program Type, Clock)
• Clock Function in RDS
• CD Repeat Function
• Preamplified Line-out for external amplifier
• Detachable front panel protects against theft
• RDS Function:

PI (Program Identification) PS (Program Service Name) AF (List of Alternative Frequencies) TA (Traffic Announcement) PTY (Program Type) TP (Traffic Program)

Contents

FEATURES 42

WARNINGS....44

LOCATIONS OF CONTROLS 45

PRECAUTIONS....47

Mounting angle adjustment....47

Mounting example....47

DETACHING AND ATTACHING THE FRONT PANEL 48

Detaching the front panel 48

Attaching the front panel 48

ISO CONNECTOR....49

1. POWER ON/OFF 50
2. SELECT (SEL) 50
3. VOLUME KNOB 50

4.PRESET STATIONS (1, 2, 3, 4, 5, 6)....53

USING THE RDS FUNCTION....54

5.AF/REG FUNCTION (ALTERNATIVE FREQUENCIES) 54

6.TA FUNCTION (TRAFFIC ANNOUNCEMENT)....54

7.PTY FUNCTION (PROGRAM TYPE)....54

8.DISPLAY (DISP)....54

9. MODE BUTTON (MODE)....55

1. BAND BUTTON (BND)......55

11.12. AUTOMATIC OR MANUAL TUNING (FREQ UP ▶ OR FREQ DOWN ◀) .....55

1. AUTO SEEK SEARCH TUNING (AS/PS) 55
2. LCD DISPLAY ....55
3. PANEL RELEASE BUTTON....56
4. SKIP TRACK/SEARCH BUTTON....56
5. CD SLOT 56
6. CD EJECT BUTTON 56
7. PAUSE BUTTON....56
8. INTRO BUTTON (PREVIEW ALL TRACKS)......56
9. REPEAT BUTTON (RPT) 56
10. RANDOM BUTTON (RDM) 56

22, 23. 10 TRACK DOWN/UP SELECT: 56

How to select MP3 files ....57

1. Searching Track....57
2. Searching File Name....57
3. Searching Character....57
4. RESET....58
5. BLUETOOTH FUNCTION....58

Pairing....59

Answer a call 59

Ending a call 59

Last number redial....60

Voice dialing....60

Volume control 60

SPECIFICATION 60

Warnings

The exclamation point within the triangle is a warning sign alerting the user of important instructions accompanying the product.

The lightening flash with arrowhead symbol within the triangle is a warning sign alerting the user of voltage inside the unit.

To reduce the risk of electric shock, do not remove the cover. No user serviceable parts inside the unit. Refer all servicing to qualified personnel.

Invisible laser radiation when the unit is opened or interlocks defeated.

Avoid exposure to laser beam. Use of controls, adjustments or procedures other than those specified herein may result in hazardous radiation exposure.

This unit must not be exposed to moisture or rain.

This unit should be positioned so that it is properly ventilated.

Do not expose this unit to direct sunlight or heat radiating sources.

Installation of car radio is an intervention to the car's electrical system, therefore, we recommend to leave the radio installation to the qualified service.

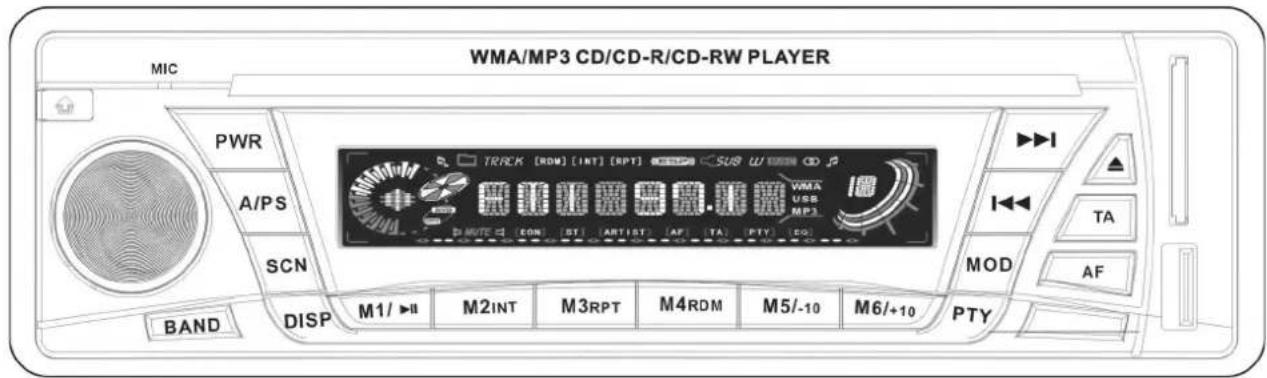

Location LOCATIONS OF CONTROLS

Location

LOCATIONS OF CONTROLS

1. POWER ON/OFF
2. FUNCTION SELECT BUTTON
3. VOL UP/VOL DOWN
4. PRESET STATIONS (1, 2, 3, 4, 5, 6)
5. AF FUNCTION (ALTERNATIVE FREQUENCIES)
6. TA FUNCTION (TRAFFIC ANNOUNCEMENT)
7. PTY FUNCTION (PROGRAM TYPE)
8. DISPLAY BUTTON (CLK)
9. MODE BUTTON (MODE)
10. BAND BUTTON (BND) 11.12. AUTOMATIC OR MANUAL TUNING (FREQ UP ◀ OR FREQ DOWN ▶ / CD TRACK/SEARCH BUTTON
11. AUTO SEEK SEARCH TUNING (AS/PS)
12. LCD DISPLAY
13. PANEL RELEASE BUTTON ( )
14. CD SLOT
15. CD EJECTS BUTTON (▲)
16. PAUSE BUTTON
17. INTRO BUTTON (PREVIEW ALL TRACKS)(INT)
18. REPEAT BUTTON (RPT)
19. RANDOM BUTTON (RDM) 22.23. -/+10 TRACK SEARCH DOWN/UP
20. RESET BUTTON
21. BLUETOOTH FUNCTION
22. SD/MMC CARD JACK
23. USB JACK

Location

REMOTE CONTROL FUNCTIONS

1. POWER ON / OFF
2. MUTE
3. BUTTON 1-6: STATION PRESETS
4. CD PLAY / PAUSE
5. CD INTRO
6. CD REPEAT
7. CD RANDOM
8. 10 TRACK DOWN SELECT
9. 10 TRACK UP SELECT
10. VOLUME +
11. SEL
12. VOLUME -
13. TRAFFIC ANNOUNCEMENT
14. ALTERNATIVE FREQUENCIES
15. DISPLAY
16. RADIO SCAN
17. TUNE DOWN
18. TUNE UP
19. BAND
20. FUNCTION
21. EJECT
22. AUTO MEMORY
23. PROGRAM TYPE

Installation

PRECAUTIONS

Choose the mounting location carefully so that the unit will not interfere with the normal driving functions of the driver. Avoid installing the unit where it would be subject to high temperatures, such as from direct sunlight or hot air from the heater, or where it would be subject to dust, dirt or excessive vibration.

Use only the supplied mounting hardware for a safe and secure installation.

Be sure to remove the front panel before installing the unit.

MOUNTING ANGLE ADJUSTMENT

Adjust the mounting angle to less than 30 degrees.

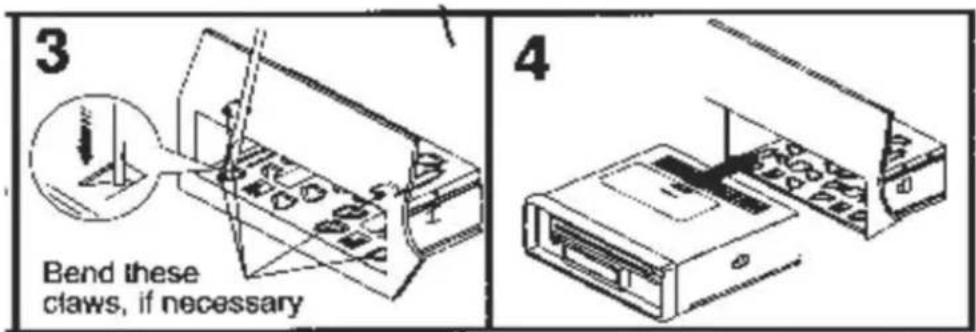

MOUNTING EXAMPLE

Installation in the dashboard

Keep the release key in a safe place as you may need it in the future to remove the unit from the car.

Installation

DETACHING AND ATTACHING THE FRONT PANEL

The front panel of this unit can be detached in order to prevent the unit from being stolen.

DETACHING THE FRONT PANEL

Before detaching the front panel, be sure to press the PWR button to turn off the unit first. Then press the button and detach the panel by pulling it towards you as illustrated.

Note: Be sure not to drop the panel when detaching it from the unit.

ATTACHING THE FRONT PANEL

Make sure the front panel is the right way up when attaching it to the unit as it cannot be attached upside down. Bring side B of panel to side A of main unit. Insert the panel in and push until it clicks. Panel is attached.

Notes:

Do not press the front panel hard against the unit when attaching it. It can be easily attached by pressing it lightly against the unit.

When you carry the front panel with you, put it in the supplied front panel case.

Do not press hard or give excessive pressure to the display window of the front panel when attaching it to the unit.

Installation

ISO CONNECTOR

RCA Jack Line out (Front - Rear)

: Red (right) RR=REAR RIGHT FR=FRONT RIGHT

: White (left) RL=REAR LEFT FL=FRONT LEFT

CONNECTOR A

4. MEMORY +12V
5. AUTO ANTENNA OUTPUT
7. +12V (TO IGNITION KEY)
8. GROUND

Connector A no.7 must be connected via the car ignition key to prevent the car battery from weakening when the car is not used for a long period.

CONNECTOR B

1. REAR RIGHT SPEAKER (+)
2. REAR RIGHT SPEAKER (-)
3. FRONT RIGHT SPEAKER (+)
4. FRONT RIGHT SPEAKER (-)
5. FRONT LEFT SPEAKER (+)
6. FRONT LEFT SPEAKER (-)
7. REAR LEFT SPEAKER (+)
8. REAR LEFT SPEAKER (-)

Maintenance

FUSE REPLACEMENT

If the fuse blows, check the power connection and replace the fuse. If the fuse blows again after replacement, there may be an internal malfunction. In this case, consult your nearest repair center.

Warning

Use the specified amperage fuse for each lead. Use of a higher amperage fuse may cause serious damage.

Operation

OPERATING INSTRUCTIONS

1. POWER ON/OFF

By pressing this key (1), the unit is switched on and off.

This unit is turned on by pressing any key.

2. SELECT (SEL)

3. VOLUME KNOB

Rotate the volume up/down knob to control the VOLUME. To select other functions, press the SEL (2) button shortly until the desired function is shown on the display.

Figure 1 shows how control functions are selected using the SEL button.

Fig. 1 Selection of sound control functions: 1. VOLUME 2. SELECT 3. BASS 4. TREBLE 5. BALANCE 6. FADER

To increase or decrease the volume, rotate the volume knob. These buttons can be used to adjust the BASS, TREBLE, BALANCE, and FADER.

(1) TA SEEK/TA ALARM (2)

When the SEL button (2) is pressed for more than 2 seconds, it activates the selecting mode for these functions.

TA SEEK Mode or TA ALARM mode is selected by rotating the volume knob.

TA SEEK mode:

When a newly tuned station does not receive TA information for 5 seconds, the radio retunes to the next station that has a different PI (Program Identification) from the last station but has TA information. In TA seek mode, the current station can be changed to a completely different station because the unit searches for a TA station when the field strength of the current station is very weak, or the current station has no TA signal.

TA ALARM mode:

No automatic retune mode is activated; only a beep sound can be heard.

Operation

(2) PI MUTE / PI SOUND (2)

When the SEL button is pressed for more than 2 seconds, it activates the selection mode for these functions.

(3) RETUNE L/S

When the SEL button is pressed for more than 2 seconds, it activates the selection mode for these functions.

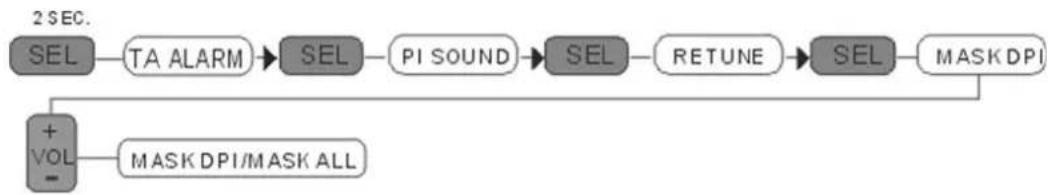

(4) MASK DPI (2)

When the SEL button is pressed for more than 2 seconds, it activates the selection mode for these functions.

MASK DPI: masks only the AF (Alternative Frequencies) that have a different PI. MASK ALL: masks the AF that have a different PI and also those with no RDS signal and weak field strength.

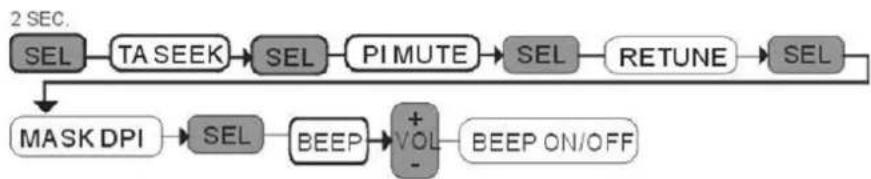

(5) BEEP MODE (2)

When the SEL button is pressed for more than 2 seconds, it activates the selection mode for these functions.

(6) DSP MODE (2)

When the SEL button is pressed for more than 2 seconds, it activates the selection mode for these functions.

Operation

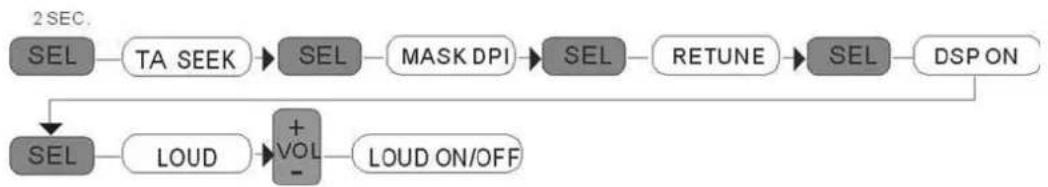

(7) LOUDNESS CONTROLS (2)

When the SEL button is pressed for more than 2 seconds, it activates the selection mode for these functions.

LOUD ON/OFF mode is selected using the VOL UP and DOWN keys.

The bass and treble response will be boosted.

(8) ESP MODE (2)

When the SEL button is pressed for more than 2 seconds, it activates the selection mode for these functions.

(9) SEEK MODE (2)

When the SEL button is pressed for more than 2 seconds, it activates the selection mode for these functions.

SEEK 1: When SEEK 1 mode is activated, AUTO SEEK SCAN stops when a station is detected, even if the user is still pressing the SEEK button.

SEEK 2: Auto Seek Scan does not stop when a station is detected if the user is pressing the SEEK button. When the SEEK button is released, it stops when a station is detected.

Operation

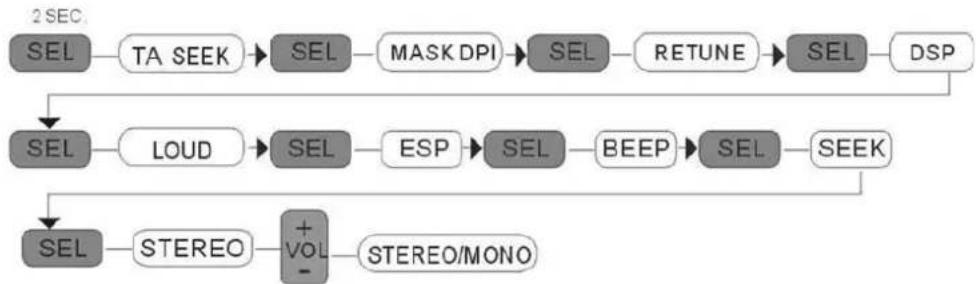

(10) STEREO/MONO (2)

When the SEL button is pressed for more than 2 seconds, it activates the selection mode for these functions.

When FM stations are weak and disturbed, listening can be improved by selecting MONO.

(11) VOL LAST/ADJ(2)

VOLUME LEVEL is determined when POWER ON.

LAST VOLUME: Final VOLUME LEVEL generates power before POWER OFF.

ADJUST VOLUME: VOLUME LEVEL selected by the user is produced.

4. PRESET STATIONS (1, 2, 3, 4, 5, 6)

(A) RADIO MODE:

When pressed briefly, these keys select a preset station directly. When pressed longer than 1 sec., the current station is stored in the preset memory bank. When PTY mode is selected, the PTY switch is shared as follows:

PTY music group---PTY speech group---OFF

MUSIC

1. POP M, ROCK M
2. EASY M, LIGHT M
3. CLASSICS, OTHER M
4. JAZZ, COUNTRY
5. NATION M, OLDIES
6. FOLK M

SPEECH

1. NEWS, AFFAIRS, INFO
2. SPORT, EDUCATE, DRAMA
3. CULTURE, SCIENCE, VARIED
4. WEATHER, FINANCE, CHILDREN
5. SOCIAL, RELIGION, PHONE IN
6. TRAVEL, LEISURE, DOCUMENT

USING THE RDS FUNCTION

What is RDS?

The RDS (Radio Data System) is a digital information system developed by the EBU (European Broadcast Union). Piggy-backed on normal FM broadcasts, RDS offers a variety of information services and automatic retuning functions for RDS-compatible car stereos. In 1988, RDS became available in the United Kingdom, France, West Germany, Ireland and Sweden. Test transmissions are being conducted in many other European countries. It is expected that RDS will be available in most western European countries in the near future.

5. AF/REG function (ALTERNATIVE FREQUENCIES)

When press short, AF/REG switching mode is selected.

When AF/REG switching mode is selected, the radio checks the signal strength of the AF all the time. When press long, it is activated as regional mode ON/OFF.

-Regional mode ON:

AF switching or PI SEEK is implemented to the station which have all PI codes same as current station. REG segment is turned on in LCD display.

-Regional mode OFF

The regional code in the format of PI code is ignored when AF switching or PI SEEK is implemented.

6. TA function (TRAFFIC ANNOUNCEMENT)

When press short, it is activated as TA mode on or off.

When TA mode is on and traffic announcement is transmitted.

-When the unit is in CD/MP3 mode, it will switch to radio mode temporarily.

-If the volume level was under the threshold point, it will be raised to the threshold point.

-When TA station is received, A segment is turned on in LCD display.

7. PTY function (PROGRAM TYPE)

PTY MUSIC---PTY SPEECH---PTY OFF

While selecting PTY type, its selection is implemented by preset buttons as described in preset key. When PTY is selected, the radio starts to search corresponding PTY information, and stops if the corresponding PTY information is detected.

8. DISPLAY (DISP)

Selects radio frequency, clock display and PTY NONE.

To set the clock:

(1). with clock display selected, hold down the "DISP" button until clock display starts flashing.

(2). Rotate the volume knob to change minutes and hours.

(3). Press "DISP" button to start the clock.

When this key is pressed, it operates as the conversion of each display mode as follows.

Operation

1) In case of receiving RDS station

TUNER MODE

PS---PTY---FREQ---CT

CD/MP3 PLAYER MODE

CDP---PS---PTY---FREQ---CT

2) In case of receiving NON RDS station

RADIO MODE

CLOCK---FREQ ---NO PTY

CD/MP3 PLAYER MODE

CDP---FREQ---CT---NO PTY

Each display time is several seconds, and comes back to the first position after several seconds.

CT=clock time

FREQ=frequency

9. MODE BUTTON (MODE)

By pressing this key, the user can select RADIO mode or CD/MP3/SD/MMC/USB PLAYER mode.

10. BAND BUTTON (BND)

Each band is toggled cyclically by pressing this key: FM1-FM2-FM3. When pressed

11.12. AUTOMATIC OR MANUAL TUNING (FREQ UP >> OR FREQ DOWN <<) (A) RADIO MODE

When pressed briefly, these keys operate in MANUAL tuning mode.

When pressed longer than 1 second, they operate in SEEK tuning mode.

When pressed briefly, they operate in TRACK UP/DOWN mode.

When pressed longer than 1 second, they operate in CUE or REVIEW mode.

13. AUTO SEEK SEARCH TUNING (AS/PS)

By pressing briefly, the radio searches for each preset station.

When the field strength level is higher than the threshold level of stop level, the radio holds at that preset number for 5 seconds.

With releasing mute, and then searches again. By pressing longer than 1 second, the 6 strongest stations are preset to the corresponding preset numbers.

When AS operation is finished, the radio executes the preset scan.

14. LCD DISPLAY

The liquid Crystal Display will display the current state of the unit.

Operation

15. PANEL RELEASE BUTTON

Press this button and the left-hand part of the panel will be released.

CD CONTROL LOCATION OF PARTS

11. 12. SKIP TRACK/SEARCH BUTTON

FORWARD AND REVERSE TRACK SEARCH

(or changing songs)

Press the SKIP button( TUN ▶ or TUN ◀ ) during play to go to the desired track(song).

TUN ◀ ...REVERSE TUN ▶ ...FORWARD

Press and hold the SKIP button (TUN ▶ or TUN ◀) during play to scan the disc at high speed. When the desired music section of the disc is found, release the button. Normal play will resume. When CD/MP3 play is finished, CD/MP3 mode automatically changes to FIRST TRACK.

16. CD SLOT

17. CD EJECT BUTTON

Press the EJECT button ( ) to remove the CD.

18. PAUSE BUTTON

During PLAY mode, press PAUSE button (▶ II) to PAUSE.

Press it again to resume play.

19. INTRO BUTTON (Preview all Tracks)

When this button (▶ II) is pressed, INT indication is displayed and the first several seconds of each track of the disc are played.

Press again to stop intro and listen to track.

20. REPEAT BUTTON (RPT)

When this button is pressed, RPT indication is displayed and play of the selected track will be continually repeated until the Track Repeat mode is cancelled by pressing RPT button again.

21. RANDOM BUTTON (RDM)

When this button is pressed, RDM indication is displayed and each track of the disc are played in random instead of normal progression. To cancel RANDOM mode, press RDM button again.

22, 23. 10 TRACK DOWN/UP SELECT:

(In case of MP3 files)

5: 10 TRACK DOWN 6: 10 TRACK UP

Operation

HOW TO SELECT MP3 FILES

1. Searching Track:

Press "AS/PS", then searching track is activated. Press "SEL", then the first digit is blinking.

With "VOL VOL" knob, select first digit you want. Press "SEL", then the first digit is fixed and second digit is blinking.

With "VOL VOL" knob, select 2nd and 3rd respectively. Then automatically the song you selected will start.

2. Searching File Name:

Press "AS/PS" twice, then file search is activated. Press "SEL", then the first directory is displayed.

With "VOL VOL" knob, you can select the directory you want. Press "SEL" again, then the directory is fixed and the first file name

With "VOL" knob you can select the file you want is displayed. Press "SEL", Then The Song you selected will start.

3. Searching Character:

Press "AS/PS" 3 times, then character search mode is activated. Press enter "SEL" button, then "A" character is displayed.

With "VOL VOL" knob, you can select the letter you want. Press enter "SEL" key longer than 2 seconds. Then song which has same character you selected is displayed.

With "VOL VOL" knob, you can select the song you want. Press enter "SEL" key, then the song you selected will start.

Operation

24. RESET

Reset button (24) is placed on the housing. The reset button is to be activated for the following:

following:

Initial installation of the unit when all wiring is completed.

All the function buttons do not operate.

Error symbol on the display.

25. Bluetooth function

1: Bluetooth Multi-Function key

• Pairing
• Pick up call
• Ending call
• Redial
• Voice dialing

2. Microphone

3. Volume control

INTRODUCTION

The Bluetooth car CD/MP3 player not only provides audio functions but also hands-free communication using cell phones. This user guide can help you establish a connection with your mobile phone. You need to have a phone with embedded Bluetooth capability. The phone can be tucked away in your pocket or in a bag while you handle incoming and outgoing calls, and adjust the volume up or down using the buttons on the car CD player. This device utilizes Bluetooth wireless technology version V1.2 that supports Bluetooth Headset and/or Hands-free profile.

Operation

PAIRING

The Bluetooth device can store pairing information for 6 phones. Please make sure the paired phones are not connecting to the device when pairing a new mobile phone.

Make sure that you have paired the device with your Bluetooth phone before you start to use it.

Step 1. Check your mobile phone's user guide, then find out the location of the Bluetooth menu in your phone, and turn Bluetooth on.

Step 2. Perform “Bluetooth device discovery” on your mobile phone. It takes a few seconds to search for and find other Bluetooth devices around you.

Step 3. Phone display will show "AUDIOBT" (or other words) as found and ask for your confirmation that you want to pair it. Please confirm it, then enter Passkey "1234" (default) when your phone prompts you. The phone will start pairing with the CD player, then the phone will advise that pairing has been successful.

to normal status.

NOTE:

Most mobile phones show a Bluetooth linkage symbol on the display screen. Once the car radio and phone have successfully been paired, you are ready to make and receive calls.

ANSWER A CALL

When player is on (Play music or radio)

When a call is coming, the music will stop. Player display will show "Phone Number (Caller ID)." Meanwhile, the "do lu do lu, do lu do lu" up-going melody will be played.

Auto answer: If the mobile phone is set to auto answer under hands-free or headset mode, the call will automatically be answered after a few rings or depends upon your mobile phone setting.

Manual answer: Answer the call by simply pushing the button once. It will make a "do" sound, then start the conversation.

When player is off (car is power on)

When a call is coming, it will automatically turn on the player. The display will show "Phone No", meanwhile the "do lu do lu, do lu do lu" up-going melody will be played.

Auto answer: If the mobile phone is set to auto answer under hands-free or headset mode, the call will be answered automatically after a few rings or depending on your mobile phone setting.

Manual answer: Answer the call by simply pushing the button once. It will make a "do" sound, then start the conversation.

ENDING A CALL

Simply push the button once to end a call. After a few seconds, it will return to the status before the call. (For example, if the player is off before the phone call, then after the phone call it will turn off automatically.)

Operation

LAST NUMBER REDIAL

While the car CD player is in standby condition (not in conversation), press the button twice quickly, and your phone will redial the last number.

VOICE DIALING

Voice dialing function on your phone must be turned on and voice tag must be set. When the car CD player is in standby condition (not in conversation), simply push and hold (1 sec) the button once, then the CD

player display will show "Dialing". Then push and hold (1 sec) again, it will make a "do" sound, then will prompt

you to speak the voice tag that was previously stored in the phone's voice dial phone book.

VOLUME CONTROL

Volume control: You can adjust the speaker volume higher or lower by turning the "Volume control wheel".

Notice:

The Bluetooth device has built-in DSP echo cancellation technology to minimize echo and background noise, but please still do not turn the volume too high, as it might interfere with the microphone and cause some echo.

Specification

FM SECTION

Frequency range: 87.5 - 108 MHz

Channel step: 50 kHz

Intermediate frequency: 10.7 MHz

Sensitivity: 2 μV at 30 dB S/N

Stereo separation: >30 dB

Signal to noise ratio: >60 dB

CD/MP3 PLAYER SECTION

Signal to Noise Ratio: > 60 dB

Channel Separation: > 50 dB (1 kHz)

Frequency Response: 20 Hz - 20 kHz

LINE-OUT

Output 2.0 V max.

Impedance 10 kΩ

GENERAL

Power Supply Voltage DC 12 Volts Negative Ground

Max Current Consumption 15 A

Max Output power 40W x 4 k.

NOTES:

We reserve the right to make technical changes without notice in the interest of improvement.

WARNING: Do not use this product near water, in wet areas to avoid fire or injury of electric current. Always turn off the product when you don't use it or before a revision. There aren't any parts in this appliance which are reparable by consumer. Always appeal to a qualified authorized service. The product is under a dangerous tention.

Disposal of used electrical & electronic equipment

The meaning of the symbol on the product, its accessory or packaging indicates that this product shall not be treated as household waste. Please, dispose of this equipment at your applicable collection point for the recycling of electrical & electronic equipments waste. In the European Union and Other European countries which there are separate collection systems for used electrical and electronic product. By ensuring the correct disposal of this product, you will help prevent potentially hazardous to the environment and to human health, which could otherwise be caused by unsuitable waste handling of this product. The recycling of materials will help conserve natural resources. Please do not therefore dispose of your old electrical and electronic equipment with your household waste. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

HP Tronic Ústí nad Labem s.r.o. is registered by Asekol s.r.o. under number AK-051447.

HP Tronic Ústí nad Labem s.r.o. is registered by Sewa under number EZ 0000213.

Poznámky/Notes:

Notes:

Notes:

HYUNDAI

CORPORATION

Seoul, Korea
