Product Type	Freestanding Washing Machine
Model	PLD 1261-5 TL
Brand	Philco
Dimensions (H x W x D)	85 cm x 59.5 cm x 56 cm
Weight	70 kg
Power Supply	230 V ~ 50 Hz
Current	10 A
Energy Class	A+++
Washing Capacity	7 kg
Spin Speed	1200 rpm
Noise Level (Wash/Spin)	54 dB / 74 dB
Annual Energy Consumption	175 kWh
Annual Water Consumption	10500 L
Number of Programs	15
Special Features	Delay Start, Quick Wash, Eco Wash, Child Lock
Display Type	LED Digital Display
Door Type	Front Loading with Glass Window
Drum Material	Stainless Steel
Water Connection	Cold Water Only
Maintenance	Clean Filter Monthly; Descaling Every 3 Months
Spare Parts Availability	Authorized Service Centers; Some Parts Online
Safety Features	Overflow Protection, Unbalanced Load Detection, Child Lock

Frequently Asked Questions - PLD 1261-5 TL Philco

How do I install the Philco PLD 1261-5 TL washing machine?

Remove all packaging and transit bolts. Connect the inlet hose to a cold water tap with a 3/4 inch thread. Place the drain hose into a standpipe or sink. Level the machine by adjusting the feet. Plug into a grounded outlet. For detailed steps, refer to the installation manual.

What is the maximum load capacity of this model?

The maximum load capacity is 7 kg for cotton fabrics. For other fabrics, refer to the program chart in the user manual.

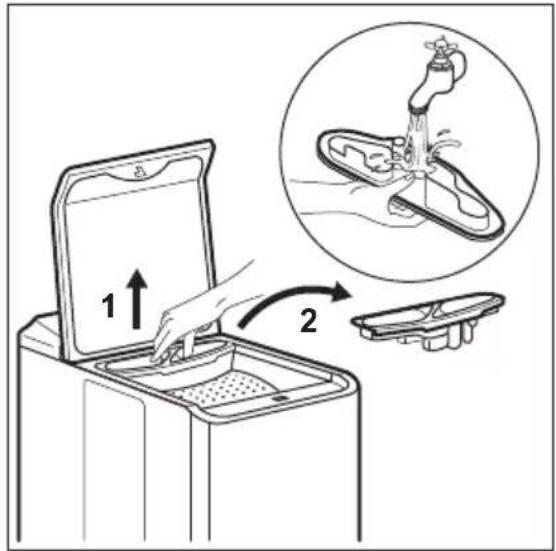

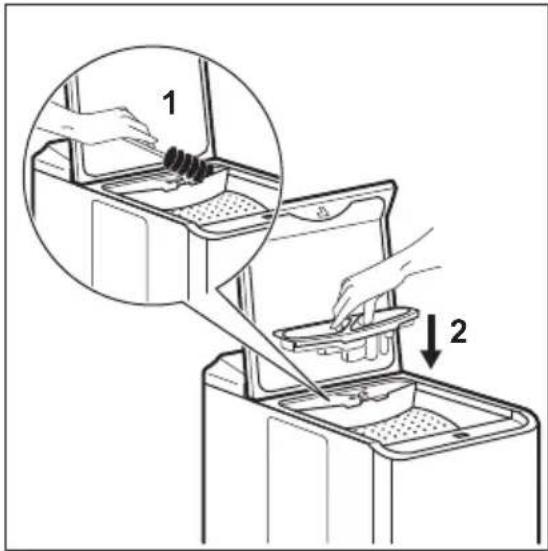

How do I clean the detergent drawer?

Press the release button inside the drawer and pull it out. Rinse under warm water to remove residues. Use a small brush to clean the compartment. Dry and reinsert. It is recommended to clean every 2 months.

What should I do if the machine displays an error code?

Common error codes: E01 indicates door lock issue; E02 indicates water supply failure; E03 indicates drainage problem. Refer to the troubleshooting section in the manual. If persistent, contact customer service.

Can I use liquid detergent with a delay start?

Yes, but avoid using liquid detergent with delay start if you have a prewash compartment, as it may dry out. Use the liquid detergent cup provided if available, or use powder detergent for delay start.

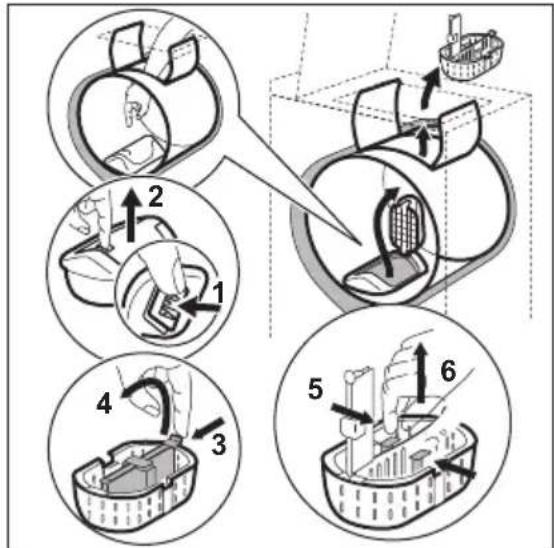

How often should I clean the drain filter?

Clean the drain filter every 3 months or when you see a clog indication. Open the lower cover, unscrew the filter, remove debris, and rinse. Avoid forceful removal to prevent damage.

What is the energy efficiency class of the PLD 1261-5 TL?

The energy efficiency class is A+++, meaning it is highly efficient and saves energy.

How do I activate the child lock?

Press and hold the Child Lock button (usually indicated by a padlock icon) for 3 seconds until the symbol appears on the display. To deactivate, repeat the process. This prevents accidental changes during operation.

What is the spin speed range?

The maximum spin speed is 1200 rpm. You can adjust it according to your fabric type, from as low as 400 rpm up to 1200 rpm, depending on the program.

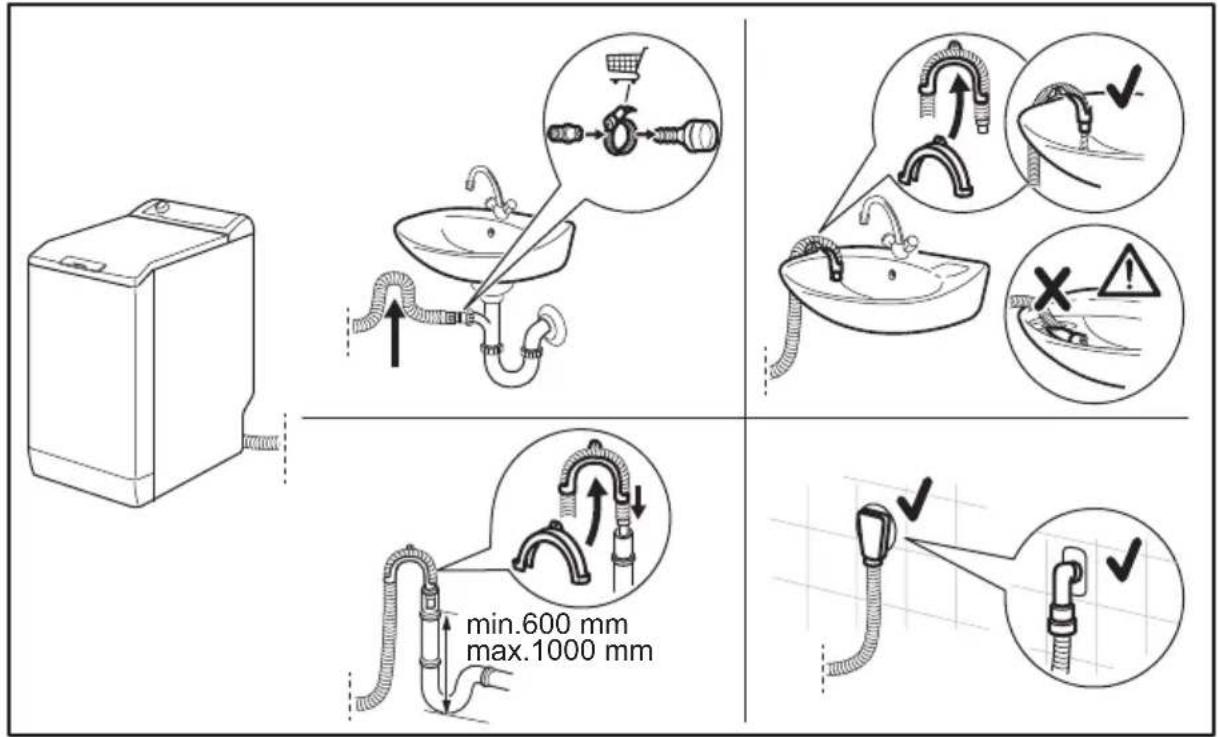

Why is the machine not draining water?

Check if the drain hose is kinked or blocked. Clean the drain filter. Ensure the standpipe is not clogged. If the issue persists, there may be a pump malfunction. Contact service for assistance.

USER MANUAL PLD 1261-5 TL Philco

Line drawing of a baby bathtub with floral decoration (no text or symbols)

1.

Illustration of a hand turning a mechanical component with a magnified inset showing rotational motion (no text or symbols)

3.4.

Diagram of a computer case with a magnified inset showing a close-up of the internal components (no text or symbols present)

1.

1.

Odtok

PRODUKTOVÝ LIST

Safety instructions 23

Product description 25

Control panel 25

Programme Chart 26

Consumption values 27

Options 28

Before first use 29

Daily use 29

Hints and tips 32

Care and cleaning 33

Technical Data 35

Troubleshooting 36

Installation 38

Product Fiche 39

Subject to change without notice.

⚠ SAFETY INFORMATION

This machine is only for domestic use and is designed to wash, rinse and spin machine-washable textiles. You must observe the following instructions. We refuse to accept any liability and the guarantee if you do not observe these recommendations since this could result in damage to equipment or physical injury.

Children and vulnerable people safety

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
  Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
• Keep all packaging away from children.
• Keep all detergents away from children.
• Keep children and pets away from the appliance door when it is open.

General Safety

- This appliance is intended to be used in household and similar applications such as:

– farm houses; staff kitchen areas in shops, offices and other working environments;
– by clients in hotels, motels, bed & breakfast and other residential type environments.
- Do not change the specification of this appliance.
- Obey the maximum load volume of 6 kg (refer to the “Programme chart” chapter).
- The operating water pressure (minimum and maximum) must be between 0,5 bar (0,05 MPa) and 8 bar (0,8 MPa).
- The ventilation openings in the base (if applicable) must not be obstructed by a carpet.
- The appliance is to be connected to the water mains using the new supplied hose-sets. Old hose sets must not be reused.
- If the supply cord is damaged, it must be replaced by the manufacturer, its Authorised Service Centre or similarly qualified persons in order to avoid a hazard.
- Before maintenance, deactivate the appliance and disconnect the mains plug from the mains socket.
- Do not use water spray and steam to clean the appliance.
- Clean the appliance with a moist soft cloth. Only use neutral detergents. Do not use abrasive products, abrasive cleaning pads, solvents or metal objects.

SAFETY INSTRUCTIONS

Installation

• Remove all the packaging and the transit bolts.
• Keep the transit bolts. When you move the appliance again you must block the drum.
• Always be careful when you move the appliance because it is heavy. Always wear safety gloves.
• Do not install or use a damaged appliance.
• Obey the installation instruction supplied with the appliance.

• Do not install or use the appliance where the temperature is less than 0 °C or where it is exposed to the weather.

• Make sure that the floor where you install the appliance is flat, stable, heat resistant and clean.

• Make sure that there is air circulation between the appliance and the floor.
• Adjust the feet to have the necessary space between the appliance and the carpet.
• Do not install the appliance where the appliance lid can not be fully opened.

Electrical connection

• The appliance must be earthed.
  • Always use a correctly installed shockproof socket.

• Make sure that the electrical information on the rating plate agrees with the power supply. If not, contact an electrician.

• Do not use multi-plug adapters and extension cables.
• Make sure not to cause damage to the mains plug and to the mains cable. Should the mains cable need to be replaced, this must be carried out by our Authorised Service Centre.
• Connect the mains plug to the mains socket only at the end of the installation. Make sure that there is access to the mains plug after the installation.
• Do not touch the mains cable or the mains plug with wet hands.
• Do not pull the mains cable to disconnect the appliance. Always pull the mains plug.
• Only for UK and Ireland: The appliance has a 13 amp mains plug. If it is necessary to change the fuse in the mains plug, use a 13 amp ASTA (BS 1362) fuse.
• This appliance complies with the E.E.C. Directives.

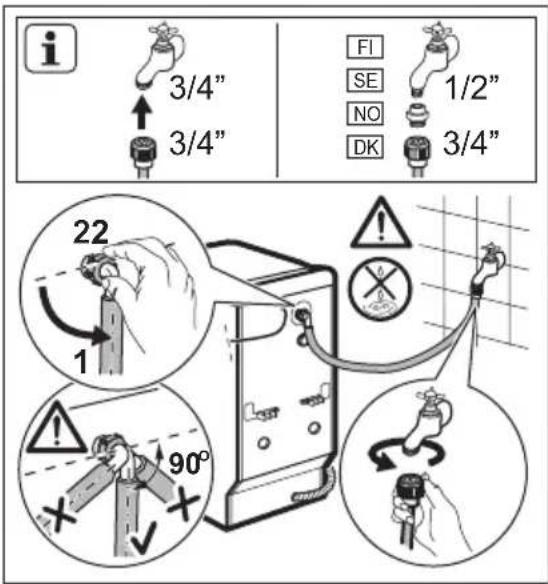

Water connection

• Make sure not to cause damage to the water hoses.
• Before you connect the appliance to new pipes or pipes not used for a long time, let the water flow until it is clean.
• The first time you use the appliance, make sure that there is no leakage.

Use

WARNING! Risk of injury, electrical shock, fire, burns or damage to the appliance.

• Obey the safety instructions on the detergent packaging.
• Do not put flammable products or items that are wet with flammable products in, near or on the appliance.
• Make sure that you remove all metal objects from the laundry.
• Do not put a container to collect possible water leakage under the appliance. Contact the Authorised Service Centre to ensure which accessories can be used.
• Do not use with an external remote-control system or any other device that switches on automatically.

Service

• To repair the appliance contact an Authorised Service Centre.
• Use original spare parts only.

Disposal

WARNING! Risk of injury or suffocation.

• Disconnect the appliance from the mains supply.
• Cut off the mains cable and discard it.
• Remove the door catch to prevent children and pets to get closed in the appliance.

PRODUCT DESCRIPTION

Appliance overview

1 Control panel
2 Lid
3 Lid handle
4 Feet for the appliance level
5 Rating plate

CONTROL PANEL

Control panel description

1 Programme knob
2 Display
3 Delay Start button
4 Lid locked indicator
5 Start/Pause button ▷II
6 Extra Rinse button

7 Night Cycle button Ⓤ
8 Easy Iron button
9 Options button:

- Prewash

- Super Quick

- Quick

Spin reduction button

Display

This area shows:

• 125 - Programme duration

PROGRAMME CHART

Programme Temperature range	Maximum load, Maxi-mum spin speed	Programme description (Type of load and soil level)
Bavlna90°C - 30°C	6 kg1200 rpm	White cotton and coloured cotton. Normal soil and light soil.
Bavlna Eco1)60°C 40°C	6 kg1200 rpm	White cotton and colour-fast cotton. Normal soil. The energy consumption decreases and the time of the washing programme is extended.
Syntetika60°C - 30°C	2,5 kg900 rpm	Synthetic items or mixed fabric items. Normal soil.
Jemné40°C - 30°C	2,5 kg700 rpm	Delicate fabrics as acrylics, viscose, polyester items. Normal soil.
Mix20°C	3 kg900 rpm	Special programme for cotton, synthetic and mixed fabrics with light soil. Set this programme to decrease the energy consumption. Make sure that the detergent is for low temperature in order to have good washing results.
Odstředění/Sušení	6 kg1200 rpm	To spin the laundry and to drain the water in the drum. All fabrics.
MácháníCold	6 kg1200 rpm	To rinse and spin the laundry. All fabrics.

1) Standard programmes for the Energy Label consumption values. According to regulation 1061/2010, these programmes are respectively the «Standard 60°C cotton programme» and the «Standard 40°C cotton programme». They are the most efficient programmes in terms of combined energy and water consumption for washing normally soiled cotton laundry. The water temperature of the washing phase may differ from the temperature declared for the selected programme.

Programme options compatibility

The data of this table are approximate. Different causes can change the data: the quantity and type of laundry, the water and ambient temperature.

Programmes	Load (kg)	Energy consumption (kWh)	Water consumption (litre)	Approximate programme duration (minutes)	Remaining moisture (%)1)
Bavlna 60 °C	6	1,50	65	200	53
Bavlna 40 °C	6	0,85	62	190	53
Syntetika 40 °C	2,5	0,50	46	105	35
Jemné 40 °C	2,5	0,55	46	90	35
Wool/Handwash 30 °C 2)	1	0,36	50	65	30
Programmes Load	(kg)	Energy consumption (kWh)	Water consumption (litre)	Approximate programme duration (minutes)	Remaining moisture (%)1)
Standard cotton programmes
Standard 60 °C cotton	6 1,03 48 200 53
Standard 60 °C cotton	3 0,78 41 150 53
Standard 40 °C cotton	3 0,60 42 138 53

1) At the end of spin phase.
2) Not available for some models.

Off Mode (W) Left On Mode (W)

0,10 0,98

The information given in the chart above are in compliance with the EU Commission regulation 1015/2010 implementing directive 2009/125/EC.

OPTIONS

Spin

With this option you can change the default spin speed.

The indicator of the set speed comes on.

Additional spin options:

No Spin

Set this option to deactivate all spin phases. Only the drain phase is available. The related indicator comes on.

Set this option for very delicate fabrics. The rinses phase uses more water for some washing programmes.

Rinse Hold

Set this option to prevent the laundry creases. The related indicator comes on.

There is a water in the drum when the programme is completed. The lid stays locked. You must drain the water to unlock the lid.

To drain the water refer to ‘At the end of the programme’.

Prewash

With this option you can add a prewash phase to a washing programme.

Use this option for heavy soil.

When you set this option the programme duration increases.

The related indicator comes on.

Extra Quick

With this option you can decrease the programme duration.

Use this option for items with light soil or items to refresh.

The related indicator comes on.

Quick

With this option you can decrease the programme duration.

Use this option for items with daily soil.

The related indicator comes on.

Easy Iron

The appliance carefully washes and spins the laundry to prevent the creases.

The appliance decreases the spin speed, uses more water and adapts the programme duration to the type of laundry.

The related indicator comes on.

Night Cycle

• Set this option to remove all spin phases and to perform a silent washing.
• The rinse phase uses more water for some washing programmes.
• The related indicator comes on.
• The washing programme stops with the water in the drum. The drum turns regularly to prevent the laundry creases.

BEFORE FIRST USE

1. Put a small quantity of detergent in the compartment for washing phase.
2. Set and start a programme for cotton at the highest temperature without laundry.

DAILY USE

WARNING! Refer to Safety chapters.

Loading the laundry

1. Open the appliance lid.
2. Push the button A.
   The drum opens automatically.
3. Put the laundry in the drum, one item at a time.
4. Shake the items before you put them in the appliance.

- The lid stays locked. You must drain the water to unlock the lid.

To drain the water refer to ‘At the end of the programme’.

Extra Rinse

With this option you can add some rinses to a washing programme.

Use this option for persons allergic to detergents and in areas where the water is soft.

The related indicator comes on.

Delay Start

With this option you can delay the start of a programme from 30 minutes to 20 hours.

The related indicator comes on and the display shows the delay time.

This removes all possible dirt from the drum and the tub.

Make sure not to put too much laundry in the drum.

1. Close the drum and the lid.

CAUTION! Before you close the lid of your appliance, make sure that you close the drum correctly.

Using detergent and additives

Measure out the detergent and the fabric conditioner.

Line drawing of a baby bathtub with floral decoration (no text or symbols)

Detergent compartments

	Detergent compartment for washing phase.
	Compartment for liquid additives (fabric conditioner, starch). CAUTION! Do not exceed the MAX level.
When you set a prewash option, put the detergent for prewash phase directly into the drum.

Setting a programme

1. Turn the programme knob to switch the appliance on and set the programme:

- The indicator of the button DII flashes. - The display shows the programme duration.

1. If necessary, change the spin speed or add available options. When you activate an option, the indicator of the set option comes on.

If you set something incorrect, the display shows the message Err.

Starting a programme without the delay start

Press the button ▷II

• The indicator of the button ▷II stops to flash and stays on.
• The programme starts, the lid locks, the indicator is on.
• The programme time decreases with steps of one minute.

The drain pump can operate for a short time at the beginning of the washing cycle.

Starting a programme with the delay start option

1. Press the button Delay Start again and again until the display shows the delay you want to set.
2. Press the button

- The lid is locked and the indicator is on.

• The appliance starts the countdown.

- When the countdown is completed, the programme starts automatically.

You can cancel or change the set of the Delay Start option before you press the button ▷II. After pressing the button ▷II you can only cancel the Delay Start option.

To cancel the Delay Start option:

a. Press the button to set the appliance to pause. The indicator of button flashes.

b. Press the button Delay Start until the display shows 0'. Press the button ▷□ again to start the programme immediately.

Changing the options

You can change only some option before they operate.

1. Press the button The indicator flashes.
2. Change the options.
3. Press the button. The programme continues.

Opening the lid

While a programme operates or the delay start operates, the appliance lid is locked.

CAUTION! If the temperature and level of the water in the drum are too high, you cannot open the lid.

Open the lid during the first 10 minutes of the cycle and when the delay start operates:

1. Press the button to pause the appliance.
2. Wait a couple of minutes and then you can open a lid.
3. Close the lid and press button again. The programme (or the delay start) continues.

Open the lid when the programme operates:

1. Turn the programme knob to position Vyp to deactivate the appliance.
2. Wait for some minutes and then open the appliance lid.
3. Close the lid and set the programme again.

Cancelling a running programme

1. Turn the programme knob to position Vyp to cancel the programme and to deactivate the appliance.
2. Turn the programme knob again to activate the appliance. Now, you can set a new washing programme.

Before starting the new programme the appliance could drain the water. In this case, make sure that the detergent is still in the detergent compartment, if not fill the detergent again.

At the end of the programme

• The appliance stops automatically. The acoustic signal operates (if it is activated).
• The indicator of the button goes off and in the display comes on.
• After a couple of minutes the door lock indicator goes off.
• You can open the lid.
• Remove the laundry from the appliance. Make sure that the drum is empty. Close the water tap.
• Turn the programme knob to position Vyp to deactivate the appliance. Unplug the appliance.
• Keep the lid ajar, to prevent the mildew and odours.

The washing programme is completed, but there is water in the drum:

• The drum turns regularly to prevent the creases in the laundry.
• The indicator of button DII flashes. The lid stays locked.
• You must drain the water to open the lid.

To drain the water:

1. Set a "Drain" or a "Spin" programme. If necessary, decrease the spin speed.
2. Press the button. The appliance drains the water and spins.
3. When the programme is completed, after a couple of minutes, you can open the lid.
4. Turn the programme knob to position Vyp to deactivate the appliance.

Stand by

Some minutes after the end of the washing programme, if you do not deactivate the

HINTS AND TIPS

The laundry load

• Divide the laundry in: white, coloured, synthetics, delicates and wool.
• Obey the washing instructions that are on the laundry care labels.
• Do not wash together white and coloured items.
• Some coloured items can discolour with the first wash. We recommend that you wash them separately for the first times.
• Button up pillowcases, close zippers, hooks and poppers. Tie up belts.
  • Empty the pockets and unfold the items.
• Turn inside out multilayered fabrics, wool and items with painted illustrations.
• Remove hard stains.
• Wash with a special detergent heavy soil stains.
• Be careful with the curtains. Remove the hooks or put the curtains in a washing bag or pillowcase.
• Do not wash in the appliance laundry without hems or with cuts. Use a washing bag to wash small and/or delicate items (e.g. underwired bras, belts, tights, etc.).
• A very small load can cause balance problems with the spin phase. If this occurs, adjust manually the items in the tub and start the spin phase again.

appliance, the energy saving status activates. The energy saving status decreases the energy consumption when the appliance is on the standby:

• The brightness of the display reduces.
• The indicator of button Start flashes slowly.

Press one of the buttons to deactivate the energy saving status.

Stubborn stains

For some stains, water and detergent is not sufficient.

We recommend that you remove these stains before you put the items in the appliance.

Special stain removers are available. Use the special stain remover that is applicable to the type of stain and fabric.

Detergents and additives

- Only use detergents and additives specially made for washing machines:

– powder detergents for all types of fabric,
- powder detergents for delicate fabrics (40 °C max) and woollens,
– liquid detergents, preferably for low temperature wash programmes (60 °C max) for all types of fabric, or special for woollens only.

- Do not mix different types of detergents.

• To help the environment, do not use more than the correct quantity of detergent.
• Obey the instructions that you find on the on packaging of these products.
• Use the correct products for the type and colour of the fabric, the programme temperature and the level of soil.

- If your appliance has not the detergent dispenser with the flap device, add the liquid detergents with a dosing ball (supplied by the detergent's manufacturer).

Ecological hints

• Set a programme without the prewash phase to wash laundry with normal soil.
• Always start a washing programme with the maximum load of laundry.
• If necessary, use a stain remover when you set a programme with a low temperature.
• To use the correct quantity of the detergent, check the water hardness of your domestic system

CARE AND CLEANING

WARNING! Refer to Safety chapters.

External cleaning

Clean the appliance only with soap and warm water. Fully dry all the surfaces.

CAUTION! Do not use alcohol, solvents or chemical products.

Descaling

If the water hardness in your area is high or moderate, we recommend that you use a water descaling product for washing machines.

Regularly examine the drum to prevent limescale and rust particles.

To remove rust particles use only special products for washing machine. Do this separately from the laundry wash.

Always obey the instructions that you find on the packaging of the product.

Water hardness

If the water hardness in your area is high or moderate, we recommend that you use a water softener for washing machines. In areas where the water hardness is soft it is not necessary to use a water softener.

To know the water hardness in your area, contact your local water authority.

Use the correct quantity of the water softener. Obey the instructions that you find on the packaging of the product.

Maintenance wash

With the low temperature programmes it is possible that some detergent stays in the drum. Make regularly a maintenance wash. To do this:

- Remove the laundry from the drum.

- Set the cotton programme with the highest temperature with a small quantity of detergent.

Lid seal

Regularly examine the seal. Clean it when needed, using ammonia cream cleanser agent without scratching the seal surface,

Always obey the instructions that you find on the packaging of the product.

Cleaning the detergent dispenser

1.

1.

Cleaning the inlet hose and the valve filter

1.

1.

Illustration of a hand turning a mechanical component with a magnified inset showing rotational motion (no text or symbols)

3.4.

Diagram showing a device with cable routing and a magnified inset of its cable being inserted (no text or symbols present)

Cleaning the drain filter

1.

Frost precautions

If the appliance is installed in an area where the temperature can be less than 0\ °C , remove the remaining water from the inlet hose and the drain pump.

Do this procedure also when you want to do the emergency drain.

1. Close the water tap and disconnect the water inlet hose.
2. Disconnect the drain hose from a sink or spigot.
3. Put the ends of the drain and inlet hose in a container. Let the water flow out of the hoses.

TECHNICAL DATA

2.

1. Set the Drain programme and let it operate until the end of the cycle.
2. Turn the programme knob to Stop to disconnect the appliance from the power supply.
3. Disconnect the appliance.

WARNING!

Make sure that the temperature is more than 0 °C before you use the appliance again. The manufacturer is not responsible for damages caused by low temperatures.

Dimension Width/ Height/ Depth/ Total depth	400 mm/ 890 mm/ 600 mm/ 600 mm
Electrical connection Voltage	230 V
	2300 W
	10 A
	50 Hz
Level of protection against ingress of solid particles and moisture ensured by the protective cover, except where the low voltage equipment has no protection against moisture	IPX4
Water supply pressure Minimum Maximum	0,5 bar (0,05 MPa)8 bar (0,8 MPa)
Water supply 1)	Cold water
Maximum Load Cotton 6 kg
Energy Efficiency Class A+
Spin Speed Maximum 1200 rpm

1) Connect the water inlet hose to a water tap with a 3/4" thread.

TROUBLESHOOTING

WARNING! Refer to Safety chapters.

Introduction

The start of the appliance does not occur or it stops during operation.

First try to find a solution to the problem (refer to the table). If not, contact the Authorised Service Centre.

With some problems, the acoustic signals operate and the display shows an alarm code:

- The appliance does not fill with water properly.

• The appliance does not drain the water.
• The appliance lid or drum doors are open or not closed correctly. Please check both!
• EHO - The mains supply is unstable. Wait until the mains supply is stable.
• EAD - The appliance drum doors are open or not closed correctly. Please close drum doors!

WARNING! Deactivate the appliance before you do the checks.

Possible failures

Problem Possible solution
The programme does not start.	Make sure that the mains plug is connected to the mains socket.Make sure that the appliance lid is closed.Make sure that there is not a damaged fuse in the fuse box.Make sure that the Start/Pause has been pressed.If the delay start is set, cancel the setting or wait for the end of countdown.Deactivate the Child Lock function if it is on (if available).
Problem Possible solution
The appliance does not fill with water properly.	Make sure that the water tap is open.Make sure that the pressure of the water supply is not too low.For this information, contact your local water authority.Make sure that the water tap is not clogged.Make sure that the filter of the inlet hose and the filter of the valve are not clogged. Refer to "Care and cleaning".Make sure that the inlet hose has no kinks or bends.Make sure that the connection of the water inlet hose is correct.Make sure that the drain hose is in the correct position. The hose may be too low.
The appliance does not drain the water.	Make sure that the sink spigot is not clogged.Make sure that the drain hose has no kinks or bends.Make sure that the drain filter is not clogged. Clean the filter, if necessary. Refer to 'Care and cleaning'.Make sure that the connection of the drain hose is correct.Set the drain programme if you set a programme without drain phase.Set the drain programme if you set an option which ends with water in the tub.
The spin phase does not operate or the washing cycle lasts longer than usually.	Set the spin programme.Make sure that the drain filter is not clogged. Clean the filter, if necessary. Refer to 'Care and cleaning'.Adjust manually the items in the tub and start the spin phase again. This problem may be caused by balance problems.
There is water on the floor.	Make sure that the couplings of the water hoses are tight and there is not water leakages.Make sure that the drain hose have no damages.Make sure you use the correct detergent and the correct quantity of it.
You cannot open the appliance lid.	Make sure that the washing programme is finished.Set the drain or the spin programme if there is water in the drum.
The appliance makes an unusual noise.	Make sure the levelling of the appliance is correct. Refer to 'Installation'.Make sure that the packaging and/or the transit bolts are removed. Refer to 'Installation'.Add more laundry in the drum. The load may be too small.
The washing results are not satisfactory.	Increase the detergent quantity or use a different detergent.Use special products to remove the stubborn stains before you wash the laundry.Make sure that you set the correct temperature.Decrease the laundry load.
You cannot set an option.	Make sure that you press only the wanted button(s).

After the check, activate the appliance. The programme continues from the point of interruption.

If the problem occurs again, contact the Authorised Service Centre.

INSTALLATION

If the display shows other alarm codes. Deactivate and activate the appliance. If the problem continues, contact the Service.

WARNING! Refer to Safety chapters.

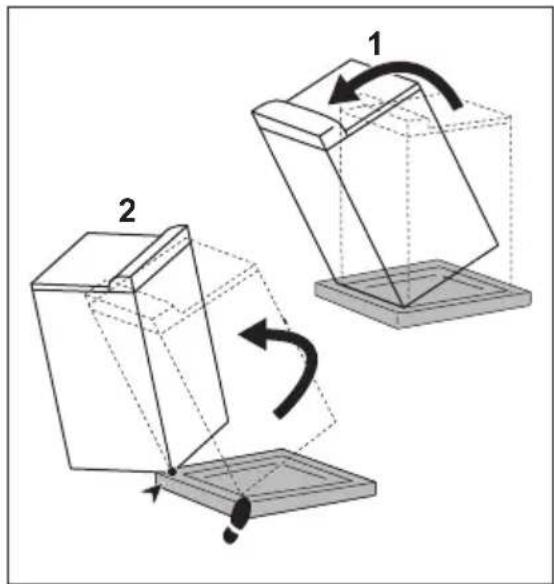

Unpacking

1.

3.

2.

Positioning Water supply

Drainage

PRODUCT FICHE

Trade Mark	Philco
Model	PLD 1261-5TL
Rated capacity (cotton)	6	kg
Energy efficiency class	A+
Weighted annual energy consumption1)	192	kWh/year
Energy consumption of the standard 60 °C cotton programme (full load)	1,03 kWh
Energy consumption of the standard 60 °C cotton programme (partial load)	0,78 kWh
Energy consumption of the standard 40 °C cotton programme (partial load)	0,60 kWh
Power consumption - off mode	0,10 W
Power consumption- left-on mode	0,98 W
Weighted annual water consumption1)	9790	litres/year
Spin-drying efficiency class	B
Maximum spin speed (standard 60 °C cotton programme)	1200 rpm/min
Remaining moisture content (standard 60 °C cotton programme full load)	53	%
The «Standard 60°C cotton programme» and the «Standard 40°C cotton programme» are the standard washing programmes to which information in the label and the fiche relates. These programmes are suitable to clean normally soiled cotton laundry and they are the most efficient in terms of combined energy and water consumption.
Programme time of the standard 60 °C cotton programme (full load)	200 min
Programme time of the standard 60 °C cotton programme (partial load)	150 min
Programme time of the standard 40 °C cotton programme (partial load)	138 min
Duration of the left-on mode	5 min
Airborne acoustical noise emissions during the washing phase	58 dB
Airborne acoustical noise during the spinning phase	78 dB

1) Energy and water consumption based on 220 standard washing cycles for cotton programmes at 60 °C and 40 °C at full and partial load, and the consumption of the low-power mode. Actual energy and water consumption will depend on how the appliance is used.

ENVIRONMENT CONCERNS

Recycle the materials with the symbol. Put the packaging in applicable containers to recycle it. Help protect the environment and human health and to recycle waste of electrical and electronic appliances. Do not

dispose appliances marked with the symbol ✗ with the household waste. Return the product to your local recycling facility or contact your municipal office.
