Product Type	Washing machine
Brand	Indesit
Model	BWA 71052 W EU
Capacity	7 kg
Spin Speed	1000 rpm
Energy Class	A+++
Water Consumption per Cycle	49 L
Annual Energy Consumption	174 kWh
Noise Level (Wash/Spin)	62 dB / 78 dB
Dimensions (H x W x D)	85 cm x 59.5 cm x 54 cm
Weight	67 kg
Power Supply	220-240 V, 50 Hz, 10 A
Number of Programs	16
Key Programs	Cotton, Synthetics, Delicates, Wool, Quick Wash, Eco
Additional Functions	Delay start, Rinse Hold, Extra Rinse, Temperature selection
Safety Features	Child lock, Overflow protection, Unbalanced load detection
Maintenance	Clean filter regularly, Descaling, Drum clean program
Spare Parts Availability	Original Indesit parts available through service centers

Frequently Asked Questions - BWA 71052 W EU INDESIT

How do I clean the filter of my Indesit BWA 71052 W EU washing machine?

To clean the filter, locate the filter cover at the bottom front, open it, unscrew the filter, remove any debris, and rinse it under water. Reinsert and tighten securely. Run a rinse cycle to ensure no leaks. Refer to the manual for detailed steps.

What does error code F01 mean on my Indesit washing machine?

Error code F01 indicates a communication error between the control board and the motor. Try resetting the machine by unplugging for 1 minute. If persistent, contact a service technician.

Why is my Indesit BWA 71052 not spinning?

Check if the load is unbalanced, the drain filter is clogged, or the spin speed is set too low. Also ensure the drain hose is not kinked. If the problem continues, the motor or control board may need inspection.

How do I use the delay start feature?

Select your desired program, then press the delay start button repeatedly to set the delay time (e.g., 3, 6, 9 hours). Press start; the machine will begin after the set delay.

What detergent should I use for my Indesit washing machine?

Use high-efficiency (HE) detergent for front-loading washers. For best results, follow the manufacturer's dosage instructions and avoid overfilling the dispenser.

How do I descale my Indesit BWA 71052 W EU?

Run a drum clean program with a descaling agent or a mixture of vinegar and baking soda. Alternatively, use a commercial descaler. Repeat every 2-3 months depending on water hardness.

Why is my washing machine leaking water?

Check the door seal for tears, tighten hose connections, clean the filter, and ensure the drain hose is correctly inserted. If leaking persists, inspect the detergent drawer for blockages.

How do I unlock the child lock?

Press and hold the child lock button for 3-5 seconds until the lock symbol disappears. Refer to the manual for exact button combination.

What is the maximum load for a quick wash cycle?

For a quick wash (30 minutes), the maximum load is typically 2-3 kg. Overloading may reduce cleaning efficiency and increase cycle time.

How do I install the washing machine properly?

Ensure the machine is on a level, sturdy surface. Remove all transport bolts, connect hoses to water supply and drain, plug into a grounded outlet, and level the feet using a spirit level.

USER MANUAL BWA 71052 W EU INDESIT

Unpacking and levelling

Connecting the electricity and water supplies

The first wash cycle

Technical data

Care and maintenance, 4

Cutting off the water or electricity supply

Cleaning the washing machine

Cleaning the detergent dispenser drawer

Caring for the door and drum of your appliance

Cleaning the pump

Checking the water inlet hose

Precautions and tips, 5

General safety

Load balancing system

Disposal

Description of the washing machine and starting a wash cycle, 6-7

Control panel

Indicator lights

Starting a wash cycle

Wash cycles, 8

Push & Wash

Table of wash cycles

Personalisation, 9

Setting the temperature

Setting the spin speed

Functions

Detergents and laundry, 10

Detergent dispenser drawer

Preparing the laundry

Garments requiring special care

Troubleshooting, 11

Service, 12

indesit

! This instruction manual should be kept in a safe place for future reference. If the washing machine is sold, transferred or moved, make sure that the instruction manual remains with the machine so that the new owner is able to familiarise himself/herself with its operation and features.
! Read these instructions carefully: they contain vital information relating to the safe installation and operation of the appliance.

Unpacking and levelling

Unpacking

1. Remove the washing machine from its packaging.
2. Make sure that the washing machine has not been damaged during the transportation process. If it has been damaged, contact the retailer and do not proceed any further with the installation process.

Pure technical diagram of a mechanical or electrical component with no visible text, numbers, or symbols.

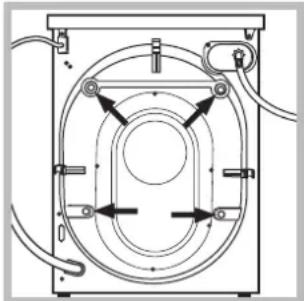

1. Remove the 4 protective screws (used during transportation) and the rubber washer with the corresponding spacer, located on the rear part of the appliance (see figure).

2. Close off the holes using the plastic plugs provided.

3. Keep all the parts in a safe place: you will need them again if the washing machine needs to be moved to another location.
   ! Packaging materials should not be used as toys for children.

Levelling

1. Install the washing machine on a flat sturdy floor, without resting it up against walls, furniture cabinets or anything else.

Line drawing of a door corner with a spiral button and directional arrow (no text or symbols)

1. If the floor is not perfectly level, compensate for any unevenness by tightening or loosening the adjustable front feet (see figure); the angle of inclination, measured in relation to the worktop, must not exceed 2^irc .

Levelling the machine correctly will provide it with stability, help to avoid vibrations and excessive noise and prevent it from shifting while it is operating. If it is placed on carpet or a rug, adjust the feet in such a way as to allow a sufficient ventilation space underneath the washing machine.

Connecting the electricity and water supplies

Connecting the water inlet hose

Technical line drawings of two mechanical components: a hexagonal bolt and a flanged pin (no text or symbols)

1. Connect the inlet hose by screwing it to a cold water tap using a 3/4 gas threaded connection (see figure). Before performing the connection, allow the water to run freely until it is perfectly clear.

Diagram of a mechanical valve or connector with a rotating knob (no text or symbols)

1. Connect the inlet hose to the washing machine by screwing it onto the corresponding water inlet of the appliance, which is situated on the top right-hand side of the rear part of the appliance (see figure).

2. Make sure that the hose is not folded over or bent.

! The water pressure at the tap must fall within the range of values indicated in the Technical data table (see next page).
! If the inlet hose is not long enough, contact a specialised shop or an authorised technician.
! Never use second-hand hoses.
! Use the ones supplied with the machine.

Connecting the drain hose

Connect the drain hose, without bending it, to a drain duct or a wall drain situated between 65 and 100 cm from the floor;

Diagram of a pipe connection to a bulb with a handle, no text or symbols present

alternatively, placed it over the edge of a basin, sink or tub, fastening the duct supplied to the tap (see figure). The free end of the hose should not be underwater.

! We advise against the use of hose extensions; if it is absolutely necessary, the extension must have the same diameter as the original hose and must not exceed 150 cm in length.

Electrical connections

Before plugging the appliance into the electricity socket, make sure that:

• the socket is earthed and complies with all applicable laws;
• the socket is able to withstand the maximum power load of the appliance as indicated in the Technical data table (see opposite);
• the power supply voltage falls within the values indicated in the Technical data table (see opposite);
• the socket is compatible with the plug of the washing machine. If this is not the case, replace the socket or the plug.

! The washing machine must not be installed outdoors, even in covered areas. It is extremely dangerous to leave the appliance exposed to rain, storms and other weather conditions.

! When the washing machine has been installed, the electricity socket must remain within easy reach.

! Do not use extension cords or multiple sockets.
! The cable should not be bent or compressed.
! The power supply cable must only be replaced by authorised technicians.

Warning! The company shall not be held responsible in the event that these standards are not observed.

The first wash cycle

Once the appliance has been installed, and before you use it for the first time, run a wash cycle with detergent and no laundry, using the wash cycle "Auto Clean" (see "Cleaning the washing machine").

Technical data
Model	BWA 71052
Dimensions	width 59.5 cmheight 85 cmdepth 54 cm
Capacity	from 1 to 7 kg
Electrical connections	please refer to the technical data plate fixed to the machine
Water connections	maximum pressure1 MPa (10 bar)minimum pressure0.05 MPa (0.5 bar)drum capacity 52 litres
Spin speed	up to 1000 rotations per minute
Test wash cycles in accordance with regulations1061/2010 and 1015/2010.	Programme 9:Eco Cotton 60°.Programme 9:Eco Cotton 40°.
	This appliance conforms to the following EC Directives:- 2004/108/EC (Electromagnetic Compatibility)- 2006/95/EC (Low Voltage)- 2012/19/EU (WEEE)

Cutting off the water and electricity supplies

• Turn off the water tap after every wash cycle. This will limit wear on the hydraulic system inside the washing machine and help to prevent leaks.
• Unplug the washing machine when cleaning it and during all maintenance work.

Cleaning the washing machine

• The outer parts and rubber components of the appliance can be cleaned using a soft cloth soaked in lukewarm soapy water. Do not use solvents or abrasives.
• The washing machine has a “Auto Clean” programme for its internal parts that must be run with no load in the drum.

For maximum performance you may want to use either the detergent (i.e. a quantity 10% the quantity specified for lightly-soiled garments) or special additives to clean the washing machine. We recommend running a cleaning programme every 40 wash cycles. To start the programme press buttons A and B simultaneously for 5 seconds (see figure). The programme will start automatically and will last approximately 70 minutes. To stop the cycle press the START/PAUSE button.

Cleaning the detergent dispenser drawer

To remove the drawer, press lever (1) and pull the drawer outwards (2) (see figure).

Wash it under running water; this procedure should be repeated frequently.

Caring for the door and drum of your appliance

- Always leave the porthole door ajar in order to prevent unpleasant odours from forming.

Cleaning the pump

The washing machine is fitted with a self-cleaning pump which does not require any maintenance. Sometimes, small items (such as coins or buttons) may fall into the protective pre-chamber at the base of the pump.

! Make sure the wash cycle has finished and unplug the appliance.

To access the pre-chamber:

1. Take off the cover panel on the front of the machine by first pressing it in the centre and then pushing downwards on both sides until you can remove it (see figures).

Pure technical line drawing of a mechanical component with no text or symbols

1. Unscrew the lid by rotating it anticlockwise (see figure): a little water may trickle out. This is perfectly normal.

2. Clean the inside thoroughly.

3. Screw the lid back on.
4. Reposition the panel, making sure the hooks are securely in place before you push it onto the appliance.

Checking the water inlet hose

Check the inlet hose at least once a year. If there are any cracks, it should be replaced immediately: during the wash cycles, water pressure is very strong and a cracked hose could easily split open.

! Never use second-hand hoses.

! This washing machine was designed and constructed in accordance with international safety regulations. The following information is provided for safety reasons and must therefore be read carefully.

General safety

- This appliance was designed for domestic use only.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

• The washing machine must only be used by adults, in accordance with the instructions provided in this manual.
• Do not touch the machine when barefoot or with wet or damp hands or feet.
• Do not pull on the power supply cable when unplugging the appliance from the electricity socket. Hold the plug and pull.
• Do not open the detergent dispenser drawer while the machine is in operation.
• Do not touch the drained water as it may reach extremely high temperatures.
• Never force the porthole door. This could damage the safety lock mechanism designed to prevent accidental opening.
• If the appliance breaks down, do not under any circumstances access the internal mechanisms in an attempt to repair it yourself.
• Always keep children well away from the appliance while it is operating.
• The door can become quite hot during the wash cycle.
• If the appliance has to be moved, work in a group of two or three people and handle it with the utmost care. Never try to do this alone, because the appliance is very heavy.
• Before loading laundry into the washing machine, make sure the drum is empty.

Load balancing system

Before every spin cycle, to avoid excessive vibrations and to distribute the load in a uniform manner, the drum rotates continuously at a speed which is slightly greater than the washing rotation speed. If, after several attempts, the load is not balanced correctly, the machine spins at a reduced spin speed. If the load is excessively unbalanced, the washing machine performs the distribution process instead of spinning. To encourage improved load distribution and balance, we recommend small and large garments are mixed in the load.

Disposal

• Disposing of the packaging materials: observe local regulations so that the packaging may be re-used.
• The European Directive 2012/19/EU - WEEE on Waste Electrical and Electronic Equipment, requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimise the recovery and recycling of the materials they contain and reduce the impact on human health and the environment. The crossed out “wheeled bin” symbol on the product reminds you of your obligation, that when you dispose of the appliance it must be separately collected.

Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.

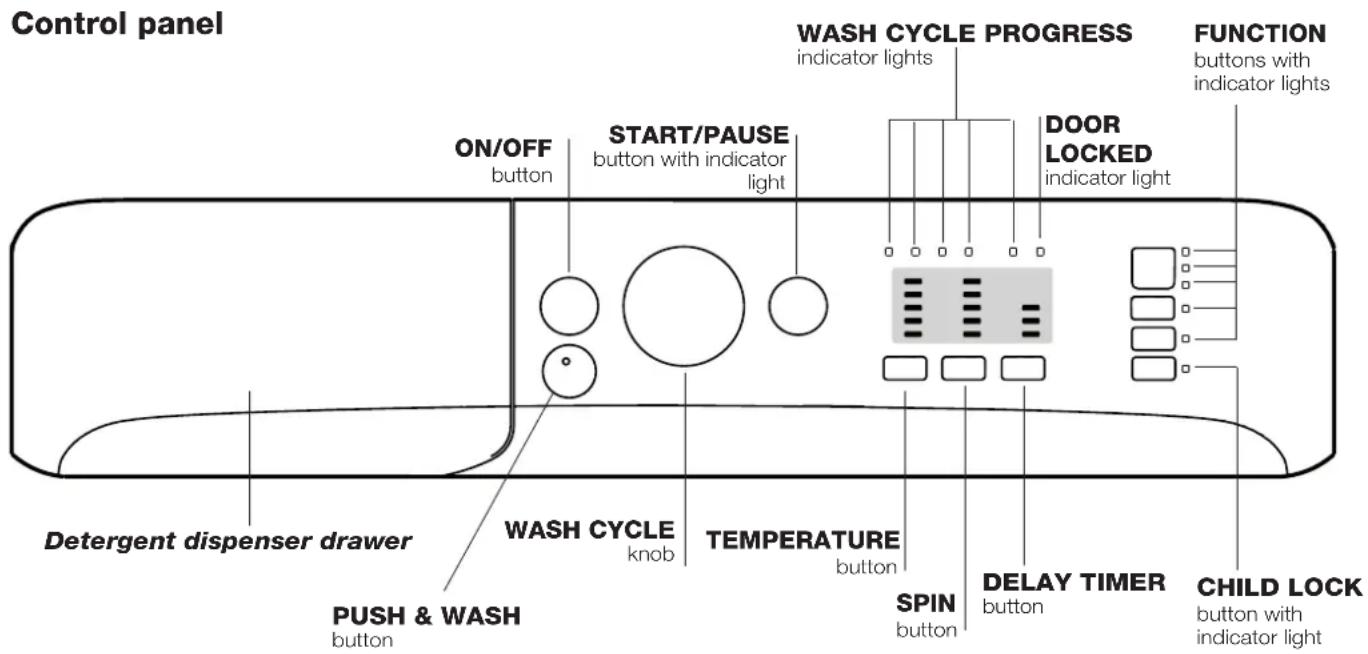

Description of the washing machine and starting a wash cycle

Detergent dispenser drawer: used to dispense detergents and washing additives (see "Detergents and laundry").

ON/OFF button: switches the washing machine on and off.

PUSH & WASH button: (see "Wash cycles").

WASH CYCLE knob: programmes the wash cycles. During the wash cycle, the knob does not move.

FUNCTION buttons with indicator light: used to select the available functions. The indicator light corresponding to the selected function will remain lit.

CHILD LOCK button with indicator light: to activate the control panel lock, press and hold the button for approximately 2 seconds. When the symbol is illuminated, the control panel is locked (apart from the ON/OFF button). This means it is possible to prevent wash cycles from being modified accidentally, especially where there are children in the home. To deactivate the control panel lock, press and hold the button for approximately 2 seconds.

TEMPERATURE button: sets the temperature or the cold wash cycle (see "Personalisation").

SPIN button: sets the spin speed or exclude the spin cycle completely (see "Personalisation").

DELAY TIMER button: delays the start of the wash cycle by up to 9 hours.

Press the button repeatedly until the indicator light corresponding to the desired delay time turns on.

When the button is pressed for the fourth time, the option will be deactivated.

N.B.: once the START/PAUSE button has been pressed, the delay time can only be modified by decreasing it until the set programme is launched.

! This option is available on all programmes.

WASH CYCLE PROGRESS indicator lights: used to monitor the progress of the wash cycle.

The illuminated indicator light shows which phase is in progress.

DOOR LOCKED indicator light: indicates whether the door may be opened or not (see next page).

START/PAUSE button with indicator light: starts or temporarily interrupts the wash cycles.

N.B. To pause the wash cycle in progress, press this button; the corresponding indicator light will flash orange, while the indicator light for the current wash cycle phase will remain lit in a fixed manner. If the DOOR LOCKED indicator light is switched off, the door may be opened (wait approximately 3 minutes).

To start the wash cycle from the point at which it was interrupted, press this button again.

Standby mode

This washing machine, in compliance with new energy saving regulations, is fitted with an automatic standby system which is enabled after about 30 minutes if no activity is detected.

Press the ON-OFF button briefly and wait for the machine to start up again.

Indicator lights

The indicator lights provide important information.

This is what they can tell you:

Delayed start

If the DELAY TIMER function has been activated (see "Personalisation"), after the wash cycle has been started the indicator light corresponding to the selected delay period will begin to flash:

As time passes, the remaining delay will be displayed and the corresponding indicator light will flash:

The set programme will start once the selected time delay has expired.

Starting a wash cycle

Rapid programming

1. LOAD THE LAUNDRY. Open the porthole door. Load the laundry, making sure you do not exceed the maximum load value indicated in the table of programmes and wash cycles on the following page.
2. ADD THE DETERGENT. Pull out the detergent dispenser drawer and pour the detergent into the relevant compartments as described in "Detergents and laundry".
3. CLOSE THE DOOR.
4. Press the "PUSH & WASH" button to start the wash programme.

Traditional programming

1. Turn the washing machine on by pressing the ON/OFF button. All the indicator lights will turn on for a few seconds, then only the indicator lights relative to the selected programme settings will remain lit and the START/PAUSE indicator light will flash.

Wash cycle phase indicator lights

Once the desired wash cycle has been selected and has begun, the indicator lights switch on one by one to indicate which phase of the cycle is currently in progress.

GB

Function buttons and corresponding indicator lights

When a function is selected, the corresponding indicator light will illuminate.

If the selected function is not compatible with the programmed wash cycle, the corresponding indicator light will flash and the function will not be activated.

If the selected option is not compatible with another previously selected option, the indicator light will flash accompanied by a buzzer (3 beeps), and only the latter option will be activated; the indicator light corresponding to the activated option will turn on

Door locked indicator light

When the indicator light is on, the porthole door is locked to prevent it from being opened; make sure the indicator light is off before opening the door (wait approximately 3 minutes).

To open the door during a running wash cycle, press the START/PAUSE button; the door may be opened once the DOOR LOCKED indicator light turns off.

1. Load the laundry and close the door.
2. Set the WASH CYCLE knob to the desired programme.
3. Set the washing temperature (see "Personalisation").
4. Set the spin speed (see "Personalisation").
5. Measure out the detergent and washing additives (see "Detergents and laundry").
6. Select the desired functions.
7. Start the wash cycle by pressing the START/PAUSE button and the corresponding indicator light will remain lit in a fixed manner in green. To cancel the set wash cycle, pause the machine by pressing the START/PAUSE button and select a new cycle.
8. At the end of the wash cycle the indicator light will switch on. The door can be opened once the DOOR LOCK indicator light turns off (wait approximately 3 minutes). Take out your laundry and leave the appliance door ajar to make sure the drum dries completely. Switch the washing machine off by pressing the ON/OFF button.

Push & Wash

This function allows for starting a wash cycle even when the machine is switched off without having to press the ON/OFF button in advance, or after switching on the machine, without having activated any button and/or selector (otherwise, the Push & Wash function will be deactivated). To start the Push & Wash cycle press and hold the relative button for 2 seconds. The lit indicator light indicates that the cycle has started. This wash cycle is ideal for cotton or synthetic fabrics, as it washes at a temperature of 30^irc and a maximum spin speed of 1000 rpm. Maximum load 3.5 kg. (Cycle duration 45').

How does it work?

1. Load the laundry (cotton and/or synthetic garments) and close the door.
2. Pour the detergent and additives.
3. Start the programme by pressing and holding the Push & Wash button for 2 seconds. The relative indicator light turns green and the door will lock (the DOOR LOCKED symbol turns on).

N.B.: starting the wash cycle through the Push & Wash button activates an automatic non-customisable cycle recommended for cotton and synthetic fabrics. This programme does not allow for setting any additional options. To open the door while an automatic cycle is under way, press the START/PAUSE button; if the DOOR LOCKED symbol is switched off the door may be opened. Press the START/PAUSE button again to restart the wash cycle from the point at which it was interrupted.

1. Once the programme is finished, the ④Indicator light turns on.

Table of wash cycles

Wash cycles	Description of the wash cycle	Max. temp. (°C)	Max. speed (rpm)	Detergents		Max. load (kg)	Residual dampness %	Energy consumption kWh	Total water It	Cycle duration
				Wash	Fabric softener
Everyday 30° ECO
1	Daily cotton	30° 1000		●	●	3.5	- - 100'
2	Daily synthetics	30° 1000		●	●	3.5	- - 90'
3	Coloureds	30° 1000		●	●	3.5	- - 95'
4	Delicates	30° 0		●	●	1	- - 80'
5	Rapid 30min: to refresh lightly soiled garments quickly (not suitable for wool, silk and clothes which require washing by hand).	30° 800		●	●	3.5	70 0.16	33	30'
Traditionals
6	Cotton (3): lightly soiled whites and delicate colours.	40° (Max.60°)	1000	●	●	7	62 0.97		75	220'
7	Synthetics (4): lightly soiled resistant colours.	40° (Max.60°)	1000	●	●	3.5	46 0.68	55	120'
8	Mixed	40° 1000		●	●	7	- - 100'
9	Eco cotton 60°C (1): heavily soiled whites and resistant colours.	60° 1000		●	●	7	62 1.07	52.5	180'
9	Eco cotton 40°C (2): lightly soiled whites and delicate colours.	40° 1000		●	●	7	62 0.97		75	220'
10	White cotton: heavily soiled whites and resistant colours.	60° (Max.90°)	1000	●	●	7	- - 130'
Specials
11	Sport	30° 600		●	●	3.5	- - 55'
12	Duvet: for down-stuffed garments.	30° 1000		●	●	2	- - 110'
13	Wool: for wool, cashmere, etc.	40° 800		●	●	1.5	- - 70'
14	Anti odour	40° 1000		●	●	3	- - 100'
	Rinse + Spin	- 1000		-	●	7	- - 50'
	Spin + Drain	- 1000		-	-	7	- - 10'
	Drain only *	-		-	-	7	- -	3'

* If you select programme 📋 and exclude the spin cycle, the machine will drain only.

The length of cycle shown on the display or in this booklet is an estimation only and is calculated assuming standard working conditions. The actual duration can vary according to factors such as water temperature and pressure, the amount of detergent used, the amount and type of load inserted, load balancing and any wash options selected.

1) Test wash cycle in compliance with regulation 1061/2010: set wash cycle 9 with a temperature of 60^ircC . This cycle is designed for cotton loads with a normal soil level and is the most efficient in terms of both electricity and water consumption; it should be used for garments which can be washed at 60^ircC . The actual washing temperature may differ from the indicated value.
2) Test wash cycle in compliance with regulation 1061/2010: set wash cycle 9 with a temperature of 40°C.
This cycle is designed for cotton loads with a normal soil level and is the most efficient in terms of both electricity and water consumption; it should be used for garments which can be washed at 40^irc C. The actual washing temperature may differ from the indicated value.

For all Test Institutes:

3) Long wash cycle for cottons: set wash cycle 6 with a temperature of 40°C.
4) Synthetic program along: set wash cycle 7 with a temperature of 40^irc C.

Setting the temperature

Press the TEMPERATURE button to set the wash temperature (see Table of wash cycles).

The temperature may be lowered, or even set to a cold wash (20°). The washing machine will automatically prevent you from selecting a temperature which is higher than the maximum value set for each wash cycle.

! Exception: if the 6 programme is selected, the temperature can be increased up to a value of 60^irc C.
! Exception: if the 7 programme is selected, the temperature can be increased up to a value of 60^irc C.
! Exception: if the 10 programme is selected, the temperature can be increased up to a value of 90°C.

Setting the spin speed

Press the SPIN SPEED button to set the spin speed for the selected wash cycle.

The maximum spin speeds available for each wash cycle are as follows:

Wash cycles Maximum spin speed

Cottons 1000 rpm

Synthetics 1000 rpm

Wool 800 rpm

The spin speed may be lowered, or the spin cycle can be excluded altogether by selecting the symbol Ⓞ

The washing machine will automatically prevent you from selecting a spin speed which is higher than the maximum speed set for each wash cycle.

Functions

The various wash functions available with this washing machine will help to achieve the desired results, every time.

To activate the functions:

1. Press the button corresponding to the desired function;
2. the function is enabled when the corresponding indicator light is illuminated.

Note:

- If the selected function is not compatible with the programmed wash cycle, the corresponding indicator light will flash and the function will not be activated.

- If the selected option is not compatible with another previously selected option, the indicator light will flash accompanied by a buzzer (3 beeps), and only the latter option will be activated; the indicator light corresponding to the activated option will turn on.

Stain removal

This option allows for selecting the type of dirt so as to optimally adjust the cycle for removing the stains. The following types of dirt can be selected:

• Food, for stains caused by foodstuffs and beverages, for example.
• Work, for grease and ink stains, for example.
• √Outdoor, for mud and grass stains, for example.
  ! The wash cycle duration varies according to the type of selected dirt.

Extra Rinse

By selecting this option, the efficiency of the rinse is increased and optimal detergent removal is guaranteed. It is particularly useful for sensitive skin.

Easy iron

By selecting this function, the wash and spin cycles will be modified in order to reduce the formation of creases. At the end of the cycle the washing machine will perform slow rotations of the drum, while the EASY IRON and START/PAUSE indicator lights will flash and the ☑ led will remain lit in a fixed manner. To end the cycle, press the START/PAUSE button or the EASY IRON button.

Detergent dispenser drawer

Successful washing results also depend on the correct dose of detergent: adding too much detergent will not necessarily result in a more efficient wash, and may in fact cause build up on the inside of your appliance and contribute to environmental pollution.

! Do not use hand washing detergents because these create too much foam.
! Use powder detergent for white cotton garments, for pre-washing, and for washing at temperatures over 60°C.
! Follow the instructions given on the detergent packaging.

Open the detergent dispenser drawer and pour in the detergent or washing additive, as follows.

Compartment 1: Do not pour detergent into the middle compartment 1.

Compartment 2: Washing detergent (powder or liquid) If liquid detergent is used, it is recommended that the removable plastic partition A (supplied) be used for proper dosage. If powder detergent is used, place the partition into slot B.

Compartment 3: Additives (fabric softeners, etc.)

The fabric softener must not exceed the "max" level indicated on the central pin.

Preparing the laundry

• Divide the laundry according to:
- the type of fabric/the symbol on the label - the colours: separate coloured garments from whites.
• Empty all garment pockets and check the buttons.
- Do not exceed the values listed in the "Table cycles", which refer to the weight of the laundry when dry.

How much does your laundry weigh?

1 sheet 400-500 g
1 pillow case 150-200 g
1 tablecloth 400-500 g
1 bathrobe 900-1.200 g
1 towel 150-250 g

Garments requiring special care

Daily cotton: a 30°C cycle for cotton garments. It allows for reducing consumption of energy for heating the water, while guaranteeing excellent results. Suitable for lightly soiled garments.

Daily synthetics: a 30°C cycle for synthetic garments. It allows for reducing consumption of energy for heating the water, while guaranteeing excellent results. Suitable for lightly soiled garments.

Coloureds: a 30^irc C cycle that helps to preserve the colours; suitable for coloured cotton and synthetic garments. It allows for reducing consumption of energy for heating the water, while guaranteeing excellent results. Suitable for lightly soiled garments.

Delicates: use programme 4 to wash very delicate garments. It is advisable to turn the garments inside out before washing them. For best results, use liquid detergent on delicate garments. For washing Silk items and Curtains, select the relevant cycle and activate the option; the machine will end the cycle with the laundry soaked and the indicator light will flash. To drain the water so that the laundry can be removed, press the START/PAUSE button ro the option

Mixed: a 40°C cycle for washing cotton and synthetic garments together. Suitable for lightly soiled underwear.

Sport (programme 11) is designed for washing lightly soiled sports clothing (tracksuits, shorts, etc.); for best results, we recommend not exceeding the maximum load indicated in the "Programme table". We recommend using liquid detergent, and adding the amount suitable for a half-load.

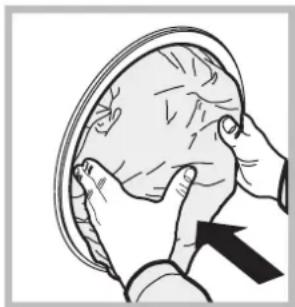

Duvet: to wash single duvets (the weight of which should not exceed 2 kg), cushions or clothes padded with goose down such as puffa jackets, use the special wash programme number 12. We recommend that duvets are placed in the drum with their edges folded inwards (see figure) and that no more than 3/4 of the total volume of the drum is used. To achieve the best results, we recommend that a liquid detergent is used and placed inside the detergent dispenser drawer.

Illustration of a hand holding a circular object with a black arrow pointing to it, no text or symbols present.

Illustration of hands performing a medical procedure on a patient's head (no text or symbols present)

of wash

Wool - Woolmark Apparel Care - Blue:

the wool wash cycle of this machine has been approved by The Woolmark Company for the washing of wool garments labelled as “hand wash” provided that the products are washed according to the instructions on the garment label and those issued by the manufacturer of this washing

machine. (M1126)

In UK, Eire, Hong Kong and India the Woolmark trade mark is a Certification trade mark.

Anti odour: use programme 14 (Synthetics) for washing garments with bad odours (e.g. smoke, sweat, fried food). The programme is designed to remove bad odours while preserving the fabric fibres.

Your washing machine could fail to work. Before contacting the Technical Assistance Centre (see "Assistance"), make sure that the problem cannot be solved easily using the following list.

Problem:

The washing machine does not switch on.

The wash cycle does not start.

The washing machine does not take in water (the indicator light for the first wash cycle stage flashes rapidly).

The washing machine continuously takes in and drains water.

The washing machine does not drain or spin.

The washing machine vibrates a lot during the spin cycle.

The washing machine leaks.

Possible causes / Solutions:

• The appliance is not plugged into the socket fully, or is not making contact.
  • There is no power in the house.
• The washing machine door is not closed properly.
• The ON/OFF button has not been pressed.
• The START/PAUSE button has not been pressed.
• The water tap has not been opened.
• A delayed start has been set.

- The water inlet hose is not connected to the tap.

- The hose is bent.

- The water tap has not been opened.

- There is no water supply in the house.

• The pressure is too low.

- The START/PAUSE button has not been pressed.

- The drain hose is not fitted at a height between 65 and 100cm from the floor (see "Installation").

- The free end of the hose is under water (see "Installation").

- The wall drainage system is not fitted with a breather pipe.

If the problem persists even after these checks, turn off the water tap, switch the appliance off and contact the Assistance Service. If the dwelling is on one of the upper floors of a building, there may be problems relating to water drainage, causing the washing machine to fill with water and drain continuously. Special anti-draining valves are available in shops and help to avoid this inconvenience.

• The wash cycle does not include draining: some wash cycles require the drain phase to be started manually.
• The option function is enabled: to complete the wash cycle, press the START/PAUSE button ("Personalisation").
• The drain hose is bent (see "Installation").
• The drainage duct is clogged.

- The drum was not unlocked correctly during installation (see "Installation").

- The washing machine is not level (see "Installation").

- The washing machine is trapped between cabinets and walls (see "Installation").

- The water inlet hose is not screwed on properly (see "Installation").

- The detergent dispenser drawer is blocked (for cleaning instructions, see "Care and maintenance").

- The drain hose is not fixed properly (see "Installation").

The "Functions" indicator lights and the Switch off the machine and unplug it, wait for approximately 1 minute and "start/pause" indicator light flash, while then switch it back on again.

one of the “phase in progress” indicator of the problem persists, contact the Technical Assistance Service.

lights and the "door locked" indicator

light will remain lit in a fixed manner.

There is too much foam.

Push & Wash does not activate.

• The detergent is not suitable for machine washing (it should display the text "for washing machines" or "hand and machine wash", or the like).
• Too much detergent was used.
• After switching on the machine a control other than Push & Wash was activated. Switch the machine off and press the Push & Wash button.

Before calling for Assistance:

• Check whether you can solve the problem alone (see "Troubleshooting");
• Restart the programme to check whether the problem has been solved;
• If this is not the case, contact an authorised Technical Assistance Centre using the telephone number provided on the guarantee certificate.

! Always request the assistance of authorised technicians.

Have the following information to hand:

• the type of problem;
• the appliance model (Mod.);
• the serial number (S/N).

This information can be found on the data plate applied to the rear of the washing machine, and can also be found on the front of the appliance by opening the door.

COMMISSION DELEGATED REGULATION (EU) No 1061/2010
Brand	INDESIT
Model	BWA 71052 W EU
Rated capacity in kg of cotton	7
Energy efficiency class on a scale from A+++ (low consumption) to G (high consumption)	A++
Energy consumption per year in kWh 1)	192
Energy consumption of the standard 60 °C cotton programme at full load in kWh 2)	1.075
Energy consumption of the standard 60 °C cotton programme at partial load in kWh 2)	0.669
Energy consumption of the standard 40 °C cotton programme at partial load in kWh 2)	0.636
Power consumption of the off-mode in W	0.5
Power consumption of the left-on mode in W	8
Water consumption per year in litres 3)	10630
Spin-drying efficacy class on a scale from G (minimum efficacy) to A (maximum efficacy)	C
Maximum spin speed attained 4)	1000
Remaining moisture content 5)	53.0%
Programme time of the "standard 60 °C cotton" at full load in minutes	180
Programme time of the "standard 60 °C cotton" at partial load in minutes	150
Programme time of the "standard 40°C cotton" at partial load in minutes	145
Duration of the left-on mode in minutes	30
Noise in dB(A) re 1 pW washing 6)	59
Noise in dB(A) re 1 pW spinning 6)	77
Built-in model

1) The "standard 60°C cotton" at full and partial load and the "standard 40°C cotton" at partial load are the standard washing programmes to which the information in the label and the fiche relates. Standard 60°C cotton and standard 40°C cotton are suitable to clean normally soiled cotton laundry and are the most efficient programmes in terms of combined energy and water consumption. Partial load is half the rated load.
2) Based on 220 standard washing cycles for cotton programmes at 60°C and 40°C at full and partial load, and the consumption of the low-power modes. Actual energy consumption will depend on how the appliance is used.
3) Based on 220 standard washing cycles for cotton programmes at 60°C and 40°C at full and partial load. Actual water consumption will depend on how the appliance is used.
4) For the standard 60 °C at full and partial load or the 40°C at partial whichever is lower.
5) Attained for 60 °C cotton at full and partial load or the 40°C at partial whichever is higher.
6) Based on washing and spinning phases for the standard 60°C cotton programme at full load.

Съдържание

BG

BG

Български

Монтиране, 14-15

Technical diagram of a mechanical or electrical component with concentric circular and oval shapes, no visible text or symbols.

Line drawing of a car door corner with a circular button and directional arrow (no text or symbols)

Technical line drawing of two mechanical components: a cap and a flanged base (no text or symbols)

Line drawing of a mechanical component with a valve and handle, no text or symbols present

Diagram of a pipe connection with a hanging object, no text or symbols present

Pure technical line drawing of a mechanical component with no text or symbols

Illustration of a hand performing a medical procedure on a patient's ear with an arrow indicating the process (no text or symbols present)

Illustration of hands performing a medical or anatomical procedure on a human head (no text or symbols present)

Pure technical diagram of a mechanical or electrical component with no text, numbers, or symbols

Line drawing of a car door corner with a circular button and directional arrow (no text or symbols)

Technical line drawing of a mechanical component with two views: top shows a flanged knob and ring, bottom shows a flanged pin (no text or symbols)

Technical line drawing of a mechanical component with a valve and adjustment knob (no text or symbols)

Diagram of a pipe connection with a bulb above it, no text or symbols present

Pure technical line drawing of a mechanical component with no text or symbols

Illustration of a hand holding a petal with a black arrow pointing to the petal's center (no text or symbols present)

Illustration of hands performing a medical or surgical procedure on a patient's head (no text or symbols present)

Byna - Woolmark Apparel Care - Blue:

Pure technical diagram of a mechanical or electrical component with no visible text, numbers, or symbols.

Line drawing of a door corner with a circular button and an arrow indicating rotation (no text or symbols)

Technical line drawing of two mechanical components: a hexagonal bolt and a flanged pin (no text or symbols)

zezroczysta.

Diagram of a mechanical valve or pump assembly with directional arrow (no text or symbols)

Diagram of a pipe connection with a bottle and connector (no text or symbols)

Pure technical line drawing of a mechanical component with no text or symbols

Illustration of a hand holding a circular object with a black arrow pointing to it, no text or symbols present.

Illustration of hands performing a medical or therapeutic procedure on a patient's head (no text or symbols present)

Wełna - Woolmark Apparel Care - Blue:

Technical diagram of a mechanical or electrical component with concentric circular and radial features, no visible text or symbols.

Line drawing of a car door corner with a scroll wheel and directional arrow (no text or symbols)

Technical line drawings of two mechanical components: a hexagonal bolt and a circular head (no text or symbols)

Line drawing of a mechanical device with a valve and handle (no text or symbols)

Diagram of a pipe connection with a bulb and tubing, no text or symbols present

Pure technical line drawing of a mechanical component with no text or symbols

Illustration of a hand using a tool to cut a piece of paper or tape, with a black arrow pointing to the process (no text or symbols present)

Illustration of hands performing a medical or surgical procedure on a circular object, with an arrow indicating direction (no text or symbols present)

Lana - Woolmark Apparel Care - Blue:
