ETV-6560 - Oven Concept - Free user manual and instructions

Product Type	Electric Oven
Brand	Concept
Model	ETV-6560
Dimensions (H x W x D)	59.5 x 59.5 x 54.8 cm
Weight	35 kg
Capacity	70 L
Power Supply	230 V ~ 50 Hz
Total Power Consumption	3.5 kW
Energy Efficiency Class	A
Control Type	Knobs and Electronic Timer
Oven Functions	Conventional, Fan-assisted, Grill, Fan Grill, Defrost, Bottom Heat
Thermostat Range	50°C – 250°C
Interior Light	Yes
Timer	Yes, with auto shut-off
Child Lock	Yes
Cleaning	Easy-clean enamel interior
Safety Features	Auto shut-off, overheat protection
Installation Type	Built-in
Color	Stainless Steel / Black
Warranty	2 years
Accessories Included	2 wire racks, 1 baking tray, 1 grill rack

Frequently Asked Questions - ETV-6560 Concept

How do I set the timer on my Concept ETV-6560 oven?

Turn the timer knob to the desired time (up to 120 minutes). The oven will automatically shut off when the time elapses. Use the timer function for cooking with precise timing.

What is the best way to clean the oven interior?

After the oven cools, wipe the interior with a damp cloth and mild detergent. Avoid abrasive cleaners. The easy-clean enamel helps prevent stubborn stains. For heavy soils, use a non-abrasive oven cleaner.

What do the different oven function symbols mean?

Common symbols: top and bottom heating (conventional), fan with circle (fan-assisted), zigzag lines (grill), fan with zigzag (fan grill), snowflake (defrost). Refer to the manual for your specific model's symbol guide.

How do I install the oven properly?

Installation should be done by a qualified professional. Ensure the oven is placed in a built-in cabinet with proper ventilation. Connect to a 230V power supply with a dedicated circuit. Follow the installation instructions in the manual.

Is the oven energy efficient?

The Concept ETV-6560 has an energy efficiency class A, which means it operates efficiently. Use the fan-assisted mode to reduce cooking time and save energy.

Do I need to preheat the oven?

Preheating is recommended for most baking and roasting recipes. The oven indicator light will turn off when the set temperature is reached. Use the preheat function for best results.

What safety features does the oven have?

The oven includes a child lock to prevent accidental operation, an auto shut-off timer, and overheat protection. Always supervise children near the appliance.

The oven does not heat up. What should I check?

Ensure the oven is plugged in and the circuit breaker is on. Check that the timer is set and the function selector is not at '0'. If the problem persists, contact Concept customer service.

How do I use the grill function?

Select the grill function (symbol with zigzag lines). Preheat for 5 minutes. Place food on the grill rack and position it at the top level. Monitor cooking to avoid burning. Use the grill function for browning and searing.

Can I use the oven for defrosting?

Yes, select the defrost function (snowflake symbol). The oven circulates cool air to thaw frozen food evenly. Set the timer and temperature (usually 30-50°C) as needed.

USER MANUAL ETV-6560 Concept

Illustration of a modern stainless steel oven with digital display and control knobs, labeled 'ETV 6560' at bottom (no other text or symbols)

CZ SK

PLEN

PODĚKOVÁNÍ

Příslušenství

Two views of a plastic tray: one with horizontal lines and labeled A, the other with black outline and labeled B (no text or symbols on the tray itself)

POPIS OVLÁDACÍHO PANELU

K1. Volič teploty

Line drawing of a modern kitchen cabinet with oven and door (no text or symbols)

Line drawing of a modern kitchen appliance with oven, cabinet, and oven (no text or symbols)

Obr. 7b

Pure diagram of a 3D rectangular box with internal structure and directional arrows, no text or symbols present.

SERVIS

Výměna žárovky

Diagram of a mechanical component with a rotating arrow indicating rotation (no text or symbols)

OCHRANA ŽIVOTNÍHO PROSTŘEDÍ

Príslušenstvo

Two views of a plastic tray: one with horizontal lines and the other with black edges (no text or symbols)

POPIS OVLÁDACIEHO PANELU

K1. Volič teploty

Line drawings of two kitchen appliances: one with an oven and one with a oven (no text or symbols)

Obr. 7b

Pripojenie do elektrickej siete

Pure diagram of a 3D rectangular box with internal arrows indicating flow or movement, no text or symbols present.

SERVIS

Výmena žiarovky

Simple line drawing of a mechanical component with a circular arrow indicating rotation (no text or symbols)

OCHRANA ŽIVOTNÉHO PROSTREDIA

Two views of a plastic tray or cover structure, labeled A and B, with no visible text or symbols on the surfaces.

OPIS PANELU STEROWANIA

Line drawing of a modern kitchen cabinet with oven, door, and cabinet (no text or symbols)

Line drawing of a modern kitchen appliance with oven, stove, and cabinet (no text or symbols)

Rys. 7b

Pure diagram of a 3D rectangular box with internal arrows indicating direction, no text or symbols present

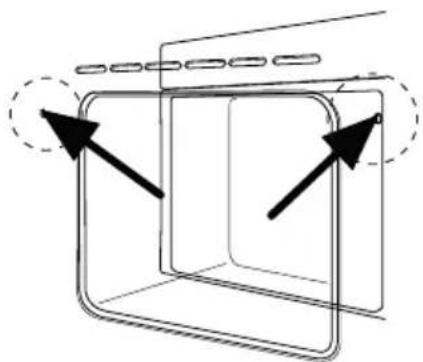

Demontaż

Diagram of a mechanical component with a rotating arrow indicating rotation (no text or symbols)

OCHRONA ŚRODOWISKA

Thank you for purchasing a Concept product. We hope you will be satisfied with our product throughout its service life.

Please study the entire Operating Manual carefully before you start using the product. Keep the manual in a safe place for future reference. Make sure other people using the product are familiar with these instructions.

TABLE OF CONTENTS

Technical Parameters 34

Important Notices 35

Product Description 36

Description of the Control Panel 37

Operating Instructions 37

Basic Functions of the Unit 37

Individual Functions of Baking 37

Informative Values of Temperature,

Position Heights and Times of Baking 39

Baking Tips 39

Advanced Functions of Baking 41

Cleaning and Maintenance 42

Installation of the Unit 42

Servicing 44

Environmental protection 44

TECHNICAL PARAMETERS
Voltage	230 V ~ 50 Hz
Max. input	3350 W
Input of the upper heater	1300 W
Input of the lower heater	1300 W
Input of the rear circular heater 2000 W
Input of the grill heater	3200 W
Temperature setting range	0 – 250 °C

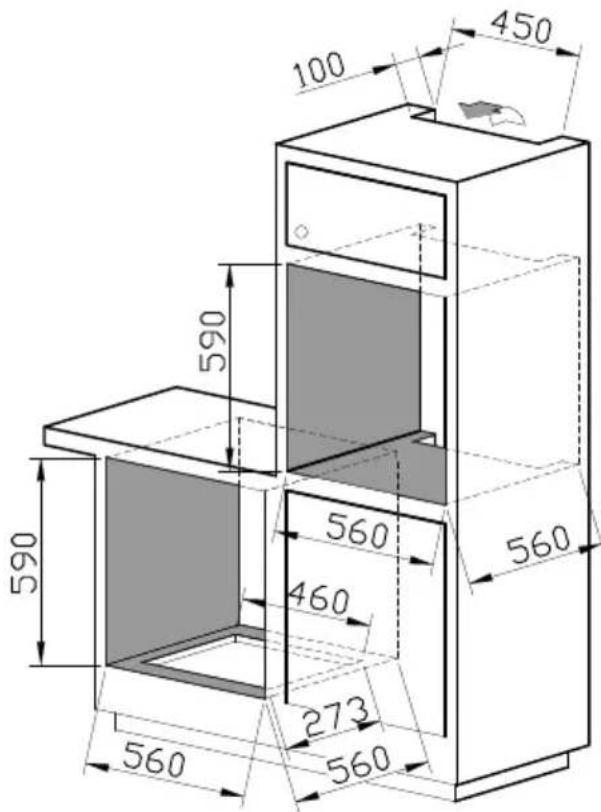

Installation dimensions (w x d x h):	560 x 560 x 590 mm
External dimensions (w x d x h):	595 x 585 x 590 mm
Internal dimensions (w x d x h):	450 x 345 x 420 mm
Internal volume	66 l
Weight	45 kg
Noise level	< 63 dB(A)

IMPORTANT NOTICES

Upon delivery

• Check the package and unit immediately after delivery for any damage that may have occurred during shipping.
• WARNING! Some edges of the unit that are hidden after the installation may be sharp! Proceed with caution to prevent an injury!
• If the unit is damaged, do not operate it. Contact the supplier as soon as possible.
• Remove all the covering and marketing materials from the unit before the first use.
• Dispose of the packaging material properly.

During installation

• Follow the instructions for the appliance connection and installation.
• Do not lift the unit holding it by the handle of the door.
• The unit has to be disconnected from the power socket during installation.
• Make sure the mains voltage and current protection correspond to the values on the rating plate. Use grounded wall outlets only.
  • After installation of the unit its plug or circuit breaker shall be freely accessible.

During normal operation

• Use the unit only as described in this operating manual.
• Use the unit in the household and for baking food only.
• Do not use the unit if you are barefoot.
• Do not put oversized food or metal objects inside the oven. These could cause a fi re.
• Do not sit or stand on the open door of the unit.
• The appliance is not intended for use by people with reduced physical, sensory or mental capabilities or lack of knowledge, unless under the supervision of an acquainted person responsible for their safety.
• WARNING! A large volume of steam may be released or grease may splash out when you open the door. Be careful. There is a risk of scalding!

- Do not touch hot surfaces or heaters during use or shortly after use of the unit.

- Do not store anything inside the unit.

- Do not touch the unit with wet or damp hands.

- Turn off the unit and disconnect the plug from the mains outlet in case of any failure.

- Never pull the cord to disconnect the plug from the socket; hold the plug instead.

- Check the appliance and power cord for damage regularly. Never switch on a damaged appliance.

- Do not use the unit if the door or packing is damaged. Have the unit repaired in an authorised service centre.

- Do not immerse the power cord, plug, or appliance in water or any other liquid.

- Make sure that all controls are in the OFF position when the appliance is not in use.

- When the unit is in operation, do not leave the doors of the cupboards above it open, otherwise these could be damaged by the released steam and heat e.g. in case of opening the oven door.

- Do not use accessories which have surface treatment damaged, are worn or have other defects.

If there are children in the household

• Do not allow children or unskilled people to handle the unit. Use the unit out of the reach of these individuals.
• Persons with limited movement capacities, reduced sensory perception, insufficient mental capacity or those who are unaware of the proper handling should use the product only under the supervision of a responsible, aware person.
  • Take extra care when using the unit near children.
• Don't let anyone use the unit as a toy.
• Only use accessories recommended by the manufacturer.

WARNING!

Open the unit only for a short time to put in or take out food, so as to prevent injury caused e.g. by tripping. Children could lock themselves in the unit (risk of suffocation), or be exposed to other dangers.

Possible defects

• Only a qualified technician may repair the unit. The unit shall be disconnected from the mains during repairs and other interventions. Switch off the circuit breaker, or disconnect the plug of the supply cable.
• When disconnecting the unit from the wall outlet, never pull the power cord. Grasp the plug and disconnect it by pulling.

Failure to follow the manufacturer's instructions may lead to refusal of warranty repair.

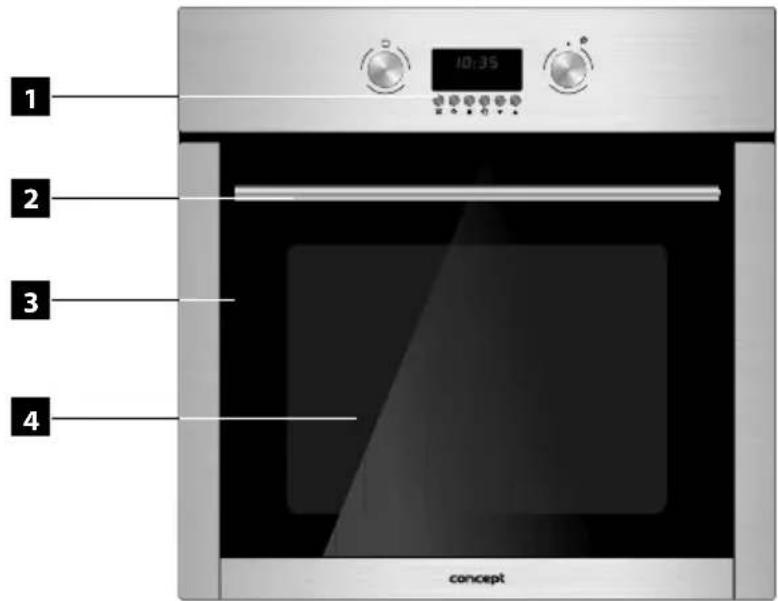

PRODUCT DESCRIPTION

1. Control panel
2. Door handle
3. Door
4. Triple-glass window of the door

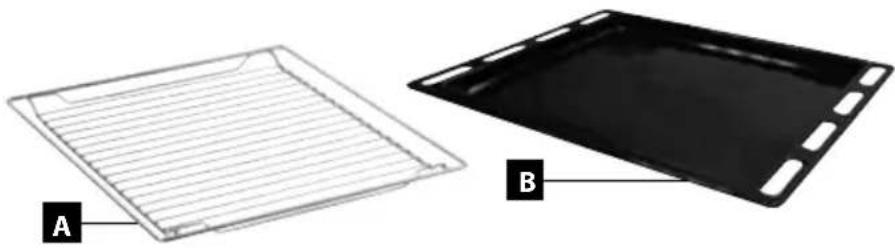

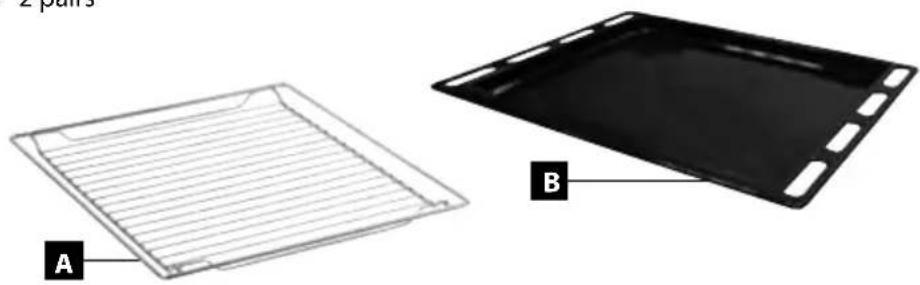

Accessories

A Big oven grill 1 piece
B Baking pan 1 piece
C Deep baking pan 1 piece
D Telescopic rails 2 pairs

Two views of a plastic tray: one with horizontal lines and the other with black edges (no text or symbols)

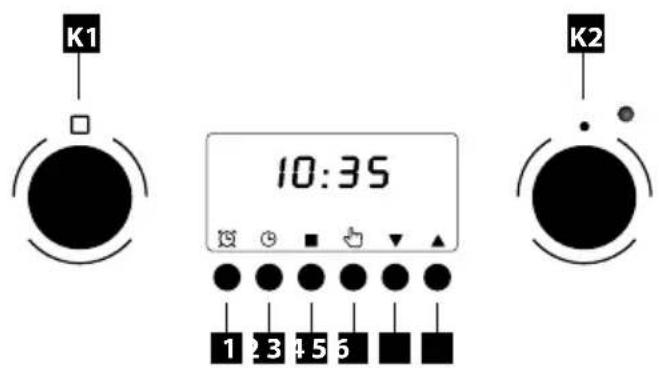

K1. Temperature knob

K2. Function knob

1-6. buttons

OPERATING INSTRUCTIONS

Before the first use

Prior to using a new unit, wipe the surface and the inside with a wet cloth for hygienic reasons. Wash all the removable parts in warm water with a detergent, or in a dishwasher.

Then, heat the unit without food at maximum temperature for 20 minutes (see the Operating Instructions below). It's possible that the unit will emit a slight smell and smoke, which should disappear after a while. Air the room well during this process.

After connecting in the mains

1. After connecting the appliance to the mains the display show symbols 12:00.
2. Press the button (4) to activate mode setting time of day. Symbol „:“ start flash.
3. Use (5) and (6) buttons to set the current time.
4. The settings are saved itself after 5 seconds of inactivity. Symbol „:“ stops flashing.

Note: Pressing button (5) You can change the intensity of sound (3 levels). Pressing the button (6) You can change the intensity of the display light (3 levels).

Basic Functions of the Unit

1. Put the tray with food in the selected height of oven.
2. Turn (K1) to set the desired temperature.
3. Turn (K2) to set the desired function.
4. When you have finished cooking, set the knobs (K1) and (K2) at the „0“ position.

Note: In basic baking must be light symbol at the display,"(Fig. 1)

Fig. 1

Individual Functions of Baking

Symbol Function description
	Grilling together with the fan function. Because of the air circulation, the temperature in the oven is higher in its upper part (above the grill or pan).The temperature can be set within the range of 50 – 200 °C.Note: This function is suitable for grilling or roasting big pieces of meat at a higher temperature. Leave the oven door closed. Pre-heating the oven is not necessary.
	Heating of the oven by the upper and lower heater.The temperature can be set within the range of 50 – 250 °C.Put in the food only after pre-heating the oven to the set temperature. During baking open the door as rarely as possible.
	Grilling together with the fan function. Because of the air circulation, the temperature in the oven is higher in its upper part (above the grill or pan).The temperature can be set within the range of 50 – 200 °C.Note: This function is suitable for grilling or roasting big pieces of meat at a higher temperature. Leave the oven door closed. Pre-heating the oven is not necessary.
	Heating of the oven by the circular heater and the fan function. The air circulation makes an even temperature in the entire space of the oven.The temperature can be set within the range of 50 – 240 °C.Note: This function is also suitable for baking food on two pans simultaneously (suitable for baking higher and thicker baked goods, such as cakes, or larger amounts of food).Pre-heating the oven is not necessary.
	The air heated by the lower heater is distributed by the fan around the food. This mode can also be used for preserving food at a temperature of 50 – 250 °C. Pre-heating the oven is not necessary.
	This mode of oven function setting serves for particularly careful defrosting of food. Air at room temperature is forced into the internal space of the oven.Note: This function is suitable for defrosting food or raw products before final preparation.
	Heating of the oven by the lower heater only. Preset temperature 60°C.Note: Thus function is suitable for the completion of baking foods which require a higher temperature from below (pizza).

Informative Values of Temperature, Position Heights and Times of Baking

Food Weight (g)		Position height	Baking function	Recommended temperature (°C)	Baking time (min.)		Dishes used
					1. str. 2.	str.
Cakes	-		3		160		20-30
	-		3		160		20-30
	-		1+		160		20-30
Apple pie	-		2		190		50-70
	-		1+		190		50-70
Swiss roll	-3		-18 - Pan
Sausages	400 g	4		240	5-10	3-6	Grill
Beef	1000 g	2		210	10-20	5-15	Grill*
Pork	1000 g	2		190	19-30	11-21	Grill*
Chicken	1300 g	2		180	35-45	15-25	Grill
Hamburgers	1000 g	4		240	10-20	5-10	Grill*
Pork pieces	1000 g	4		240	15-25	10-20	Grill*
Beef pieces	1000 g	4		240	10-20	5-15	Grill*

* - put a pan with a little water in position height 1 under the grill to collect the drippings.

Baking Tips

• The exact values of temperature for each kind of food and each way of baking have to be tried out.
• During baking open the oven door as rarely as possible. Otherwise the temperature mode of baking would be disturbed, the time of baking would extend and the food could be burnt.
• Marinated meat and meat without bones roast faster than unprepared meat. To check thorough roasting of meat, press it e.g. with a fork. If it does not release juice, it is well done.
• Meat which is larded or covered with bacon must not be roasted at too high a temperature, so that the grease does not sputter.
• When roasting big pieces of meat fluids evaporate, which then condense on the oven door. This is natural and it does not imply any danger to the use of the unit. After the end of baking, wipe the oven door and the neighbouring space in the oven dry.

• The pastry will swell only after 2/3 of the stated baking time. The time of baking depends on the type of filling (fruits, marmalade).
  • Whipped dough should not contain too much water, which extends the time of baking.

• Do not put utensils directly on the bottom of the oven, otherwise they would prevent the spreading of heat and thus could cause damage to the enamel because of overheating.

• When baking in more pans, the simultaneously inserted foods do not have to be ready at the same time.
• Baking pans are not designed for long-term storage of food (more than 48 hours). For longer storage move the food to a suitable utensil.
• When baking without the fan we recommend pre-heating the oven for approximately 10 – 15 minutes. Do not open the oven door unnecessarily during baking.
• Before grilling pre-heat the grill for approx. 5 minutes (until the grill heater is red). The grill with food should be placed as close as possible to the heater. To collect the drippings, put a pan with a little water under the grill. Grilling will enable browning and a crispy surface on the roasted meat.

WARNING!

When using the grill, the accessible parts of the oven may become too hot. Prevent children from accessing the hot parts of the oven.

- When baking with the fan it is not necessary to pre-heat the oven, except for baking food with very short baking times, or in the case of baking food with a high water content (e.g. fruit cakes) to prevent condensation of water vapours. Various food with similar times of baking can be prepared in two pans simultaneously, even if the time of baking differs. The scent and taste of the foods do not influence each other. Putting in and taking out of the food does not involve great heat losses. The temperature is quickly compensated by the fan. The baking temperatures are lower than those used in the standard baking mode (by 20 – 30°C for pastry and by 30 – 40°C for meat); the time of baking is longer (by approx. 5 – 10 minutes). When baking small pastries in two pans, we recommend swapping the height of both pans after 2/3 of the baking time or taking the pan that is ready sooner out earlier.

- When defrosting, lay the frozen food in the packing on a dish, put it on the grill in the centre of the oven and switch on the oven in the mode. The oven door must be closed.

- When grilling with the fan it is not necessary to pre-heat the oven. Grill with the oven door closed. When grilling this way set the thermostat as needed within the range from 50 to 200^ . The distance between the food and the grill heater must correspond to the required results:

- smaller distance for a brown surface and underdone inside,

- bigger distance for thorough roasting of the food.

To collect the drippings, put a pan with a little water under the food.

ADVANCED FUNCTIONS OF BAKING

The advanced functions extend the baking possibilities and thus provide a more comfortable use of the unit. Time functions are set in the central part of the control panel.

Timer function

1. Press the button (1) to get to the setup of timer (alarm).
2. The display shows the symbol (Fig. 2)
3. Use (5) and (6) buttons to set the desired countdown.
4. The set time will save after 5 seconds of inactivity.
5. The ovens starts beep after the time expires. The beep can interrupt by pressing any button.

obr. 2

Countdown function

1. Put the tray with food in the selected height of oven.
2. Press button (2) to get to the set cooking time.
3. The display shows the symbol (Fig. 3)
4. Use (5) and (6) buttons to set the cooking time. The setting will save after 5 seconds of inactivity.
5. Set knobs (K1) and (K2) the desired temperature and cooking function.
6. after the completion of the baking Oven will off after the countdown and oven starts to beep.

The beeping can stop by pressing any buttons.

1. Turn the knobs (K1) and (K2) to "0" position.

obr. 3

End of baking function

1. Put the tray with food in the selected height.
2. Press button (3) to get to set the end of cooking.
3. The display shows the symbol. (Fig. 4)
4. Use (5) and (6) buttons to set the end of cooking time. The setting will save after 5 seconds of inactivity.
5. Use (K1) and (K2) knobs to set the desired function and cooking temperature.
6. When the time expire the oven turn off and start to beep. Press any button to stop beeping.
7. Set knobs (K1) and (K2) to the position. "0"

Note: The day time must be set for end of baking function.

obr. 4

Setting of the delayed start and end of baking

1. Put the tray with food in the selected height.

2. Press button (2) to get to set cooking time.

3 The display shows the symbol (Fig. 3)

1. Use (5) and (6) buttons to set the time which oven will bake. The settings will save automatically after 5 seconds of inactivity.

5 Press (3) button you get to set the end of cooking.

6 The display shows the symbol. (Fig. 4)

1. Use (5) and (6) buttons to set the end of cooking time. The settings will save automatically after 5 seconds of inactivity.

8 Use (K1) and (K2) knobs to set the desired function and cooking temperature.

1. When the time expire the oven turn off and start to beep. Press any button to stop beeping

2. Set (K1) and (K2) knobs to the position. "0"

Note: The day time must be set for Setting of the delayed start and end of baking.

Cooling fan

The fan is located on the upper side of the oven and provides circulation of cool air in the furniture and through the baking oven door. The fan switches on automatically, once the temperature of the outer housing of the oven exceeds 60^ C. After the oven is switched on and the thermostat is set to 200^ C, the fan switches on after approximately 10 minutes. The fan switches off automatically, once the temperature of the outer housing of the oven drops below 60^ C. After an oven run at a temperature of 200^ C is switched off, the cooling fan switches off after approximately 10 minutes.

CLEANING AND MAINTENANCE

For the sake of good appearance and reliability, keep the unit clean.

The modern design of the unit facilitates the maintenance to the minimum.

The parts of the unit which come into contact with food have to be cleaned regularly.

• Before any maintenance and cleaning disconnect the power cord from the mains or switch off the circuit breaker of the mains outlet of the unit.
• Set all controls in the OFF position.
• Wait until the inside of the unit is not hot anymore but remains lukewarm - cleaning is easier than when it is cold.
• Clean the outer surface of the unit with a damp cloth, soft brush or fine sponge and then wipe it dry.
• The bottom and ceiling of the oven can be wiped with a damp cloth, soft brush or sponge. In cases of heavy soiling, use hot water with non-aggressive detergent.
• For cleaning the glass of the oven door do not use coarse abrasive cleaners or sharp metal scrapers, since they can scratch the surface or the glass can be broken.
• Never leave aggressive or acidic substances (lemon juice, vinegar) on the enamelled, varnished or stainless parts.
• Do not use autoclave for cleaning the unit!
• The baking pans may be washed in a dishwasher.

UNIT INSTALLATION

• Only the customer is responsible for installation in situ. Defects caused by incorrect installation are not covered by the warranty.
• Do not lift the unit by holding it by the handle of the door!
• WARNING! Some edges of the unit that are hidden after the installation can be sharp! Proceed with caution to prevent an injury!
• The manufacturer bears no responsibility for damage caused to people, animals or objects as a result of incorrect installation.
• To ensure the correct function of the unit, place it in suitable furniture.
• The unit should be installed in standardised kitchen furniture designed for built-in appliances or in properly adapted furniture of dimensions according to Fig. 7a, 7b.
• The kitchen furniture must be made of sufficiently heat-resistant material. The materials and adhesives used must be resistant to heating of the unit according to standard ČSN EN 60335-2-6. Materials and adhesives that do not meet the stated standard may deform or loosen.

Connecting to the mains

• Make sure the mains voltage and current protection correspond to the values on the rating plate. We recommend using a separate outlet circuit with a 16A circuit breaker.
• Use grounded wall outlets only.
• Do not use adapter plugs, connectors or extension cables. They could create a risk of fire due to overheating.
• The supply cable plug or circuit breaker have to be freely accessible even after the installation of the unit.
• Only a qualified expert can perform connection changes.

Line drawing of a modern kitchen cabinet with oven, door, and cabinet (no text or symbols)

Line drawing of a modern kitchen appliance with oven, cabinets, and stove (no text or symbols)

Fig. 7b

• The electrical safety of the unit can only be guaranteed if the protective terminal of the unit is connected to the protective conductor of the mains.
• The manufacturer bears no responsibility for damage caused to people or objects as a result of a missing or bad protective connection.
• The power cord must be located so that it does not come into contact with hot parts of the unit and so that it is not deformed or excessively bent.

Follow the installation instructions:

1. Remove all the covering and marketing materials from the unit before the first use.
2. For the required built-in box dimensions see Fig. 7a. 7b. For the sake of efficient air circulation the unit has to be located according to the dimensions on the pictures and the design of the cabinet must enable air flow into its bottom part.
3. Put the unit on the edge of the cabinet and run the power cord through the rear wall of the cabinet so that its plug is accessible after installation.
4. Push the unit carefully to the selected place in the cabinet. Be careful not to squeeze the power cord.
5. Attach the unit to the cabinet by screwing 2 screws in the holes in the side walls of the unit. The holes can be seen after opening the door.
6. Plug the supply cable into the wall outlet.

Removal

To uninstall the unit, it is important to proceed correctly:

1. First, unplug the power cord from the mains (pull out the plug or switch off the circuit breaker).
2. Remove the attachment screws.
3. Slide out the unit and at the same time pull out the power cord carefully.

Fig. 7a

Pure diagram of a 3D rectangular box with internal arrows indicating direction, no text or symbols present

REPAIR & MAINTENANCE

Bulb replacement

The bulb of the internal space lighting is special, with high thermal resistance (25 W, 300°C).

For the replacement proceed as follows:

• Pull out the power cord from the mains outlet or switch off the circuit breaker of the unit's mains outlet.
- Unscrew the covering glass and replace the bulb with a new one of the same type.
- Screw the covering glass back in place.

WARNING!

The customer may only perform the bulb replacement. Any extensive maintenance or repair that requires access

to the inner parts of the product must be performed by an expert service centre.

Diagram of a mechanical component with a rotating arrow indicating rotation (no text or symbols)

ENVIRONMENTAL PROTECTION

• Packaging materials and obsolete appliances should be recycled.
  • The transport box may be disposed of as sorted waste.
  • Polyethylene bags shall be handed over for recycling.

Appliance recycling at the end of its service life:

A symbol on the product or its packaging indicates that this product should not go into household waste. It must be taken to the collection point of an electric and electronic equipment recycling facility. By making sure this product is disposed of properly, you will help prevent the negative effects on the environment and human health that would otherwise result from inappropriate disposal of this product. You can learn more about recycling this product from your local authorities, a household waste disposal service or in the shop where you bought this product.

concept

CZ

Záruční podmínky

SK

Záručné podmienky

PL

Karta gwarancyjna

EN

Warranty Certificate

CZ

ZÁRUČNÍ PODMÍNKY

Model:
Production number:
Date of purchase:	Seal and signature of vendor:
Product installed and functions introduced by:
Date:	Seal and signature of authorized person:
The reconstruction of the appliance to a different kind of gas was performed by:
Type of gas:
Date:	Seal and signature of authorized person:

The vendor is obliged to inform the consumer of the features and parameters of the product and fill in the Warranty Certificate fully and legibly on the day of purchase.

The Certificate is not valid without all the prescribed data correctly filled in!

The manufacturer (or importer) is responsible for the features of the product under the applicable technical standards and conditions for the warranty period.

The warranty period is 24 months from the date of purchase, unless stated otherwise by the manufacturer (or importer).

Under the warranty the consumer is entitled to the free, timely and duly executed remedy of faults (see below), or to receive a replacement of the defective part of the product, provided it is not disproportionate with regards to the nature of the fault. The right to replacement of the product or termination of the purchase contract can be exercised only if all the legal preconditions have been met, on the condition that the product was not excessively worn or damaged.

The validity of the guarantee is subject to:

• Observance of the instructions mentioned in the Operating Manual;
• A document proving payment including all the prerequisites, or a valid Warranty Certificate;

Any claims with regards to product liability shall be exercised by the consumer with the vendor where the product was purchased.

The right to repair can be exercised at the location where you purchased the product or at an authorized service centre; a list of the centres is included in the product package or you may find it on the website www.my-concept.com.

Notice for consumers

The consumer is obliged to keep the Warranty Certificate and cash voucher to demonstrate payment for the product. When exercising a claim on a product, it has to be cleaned and packed in order to prevent any damage during transport to an authorized centre. The manufacturer (or importer) reserves the right not to accept a product which is not cleaned duly. Additional cleaning of the product will be charged.

The manufacturer (or importer) reserves the right not to pay the cost of false claims and to require that the claiming party cover all the necessary costs related to the examination of the qualification and solution of the claim.

The right to free repair of the product, or refund, shall not be exercised in the following cases:

• The conditions of the installation, operation and handling of the product, mentioned in the Operating Manual, were not observed;
• The fault occurred due to mechanical, thermal or chemical damage, short circuit or overvoltage;
• The fault is due to the unauthorized intervention of a third party;
• The fault is due to force majeure;
• The fault is due to insufficient or undue maintenance in conflict with the Operating Manual, including faults caused by limescale and other sediments;
• Wear and tear of the product, or its part, caused by regular use;
• Change of the colour of heating surfaces, or scratched surfaces due to regular use;
• Changes of appearance and function due to sunshine, thermal radiation, or limescale and other sediments;
• Expired service life of some parts of the product, e.g. accumulators, bulbs etc.

The nature of the fault can be determined only by the manufacturer, importer, authorized centre, or authorized expert, not by the vendor or consumer.

The consumer shall have no claim to faulty spare parts replaced within a warranty repair.

In the case of termination of the purchase contract, the consumer is obliged to return the complete product, including the accessories and documents supplied.

There is no warranty related to promotional items supplied with the product, the price of which was not charged to the consumer.

The consumer has all the minimum rights under the applicable laws.

Note: Claims regarding products damaged during transport shall be governed by the complaint procedure of the freight forwarder.

CONCEPT GUARANTEE 2+1 - Extended warranty

CONCEPT GUARANTEE offers you one more year of free servicing in addition to the 2 years of statutory warranty on faults due to defects of material, or caused by incorrect use. The free servicing includes the cost of transport and price of spare parts. These costs will be paid for you by manufacturer (or importer). Free servicing does not include replacement, or termination of the purchase contract.

Note: This type of warranty is not binding for importers in foreign countries.

Manufacturer:

Jindřich Valenta - ELKO Valenta, Vysokomýtská 1800, 565 01 Choceň, Czech Republic,

tel: [phone], fax: [phone], email: [e-mail], www.my-concept.com

Importer:

Jindřich Valenta - ELKO Valenta Czech Republic, Vysokomýtská 1800,

565 01 Choceň, Tel. [phone], Fax: [phone], www.my-concept.com

concept

CZ SEZNAM SERVISNÍCH MÍST

SK ZOZNAM SERVISNÝCH STREDISIEK

PL WYKAZ PUNKTÓW SERVISOVYCH

concept

Česká republika

Název Ulice PSČ Město Telefon Fax E-mail
ELKO VALENTA-SERVIS	Vysokomytská 1800	565 01	CHOCEŇ	465 471 433	465 473 304	[e-mail]

Slovenská republika

Názov Ulica PSČ Mesto Telefón Fax E-mail
ABC-SERVIS Jozef Abel	Štefánikova 50	949 03	Nitra	037/6526063	037/7413098	[e-mail]
D-J SERVIS	Šebastovska 17	080 06	Prešov	051/7767666	051/7767666	[e-mail]
ELEKTRA - D.Valach	Kožušnícka 34	911 05	Trenčín	032/6523806		[e-mail]
HOSPOL elektro spol.s r.o	Rustaveliho 7	831 06	Bratislava	02/44889832	02/44873078	[e-mail]
M-SERVIS Mareš Jaroslav	Komenského 38	010 01	Žilina	041/5640627	041/5640627	[e-mail]
T.V.A. servis s.r.o.	Južná trieda 48/D	040 01	Košice	055/6338501	055/6233537	[e-mail]
VILLA MARKET s.r.o.	Odborárov 49	052 01	Spišská Nová Ves	053/4421857	053/4426030	[e-mail]
X-TECH ,s.r.o.	Gorkého 2	036 01	Martin	043/4288211	043/4308993	[e-mail]
ZMJ elektroservis	Hatalova 341	029 01	Námestovo	0905/247408	043/5522056	[e-mail]
ELSPO	Spojová 19	974 01	Banská Bystrica	048/4135535	048/4135521	[e-mail]

Distribútor: ELKO Valenta - Slovakia, s.r.o., Hurbanova 1563/23, 911 01 Trenčín, Slovenská republika tel.: [phone], fax: [phone], email: [e-mail], www.my-concept.sk

Polska

SERWIS CENTRALNY
