Brand	ComNet
Model	NWKSP1
Product Type	Solar Panel
Power Output	20W
Voltage (Vmp)	12V
Current (Imp)	1.67A
Cell Type	Monocrystalline
Dimensions (L x W x H)	30 x 20 x 1 cm
Weight	1.5 kg
Connector Type	MC4
Application	Charging batteries, small devices
Operating Temperature	-20°C to 60°C
Frame Material	Aluminum alloy
Glass Type	Low iron tempered glass
Warranty	2 years
Compliance	CE, RoHS

Frequently Asked Questions - NWKSP1 ComNet

How do I install the NWKSP1 solar panel?

Place the panel in direct sunlight, angled towards the sun. Use the built-in stand or mount securely. Connect to your battery or device using the MC4 cables. Ensure the voltage is compatible.

Can I use this panel to charge my car battery?

Yes, the NWKSP1 is suitable for charging 12V car batteries. Use a charge controller to prevent overcharging.

What is the maximum power output of the NWKSP1?

The panel provides up to 20W under ideal sunlight conditions. Real-world output may vary based on angle and weather.

How do I clean the solar panel?

Use a soft damp cloth with mild soap. Avoid abrasive cleaners. Clean gently to remove dust and dirt for optimal performance.

Is the panel waterproof?

The NWKSP1 is weather-resistant but not submersible. It can withstand rain and snow when properly installed. Keep connectors dry.

What size cable does the panel use?

The panel comes with 3m of 2.5mm² cable and MC4 connectors. Extension cables are available if needed.

Can I connect multiple panels together?

Yes, you can connect NWKSP1 panels in series or parallel to increase voltage or current. Use appropriate connectors and fuses.

Does the panel include a charge controller?

No, the NWKSP1 is sold as a bare panel. You need an external charge controller for battery charging.

How long will the panel last?

Monocrystalline panels like the NWKSP1 can last 25+ years with proper care. Performance degrades slowly over time.

What is the operating temperature range?

The panel works from -20°C to 60°C. High temperatures may reduce efficiency slightly.

USER MANUAL NWKSP1 ComNet

Solar-powered sensor or monitoring device with grid array and mounted base (no visible text or symbols)

INSTALLATION AND OPERATION MANUAL

netwave®

NWKSP1

COMNET SOLAR POWERED SYSTEM

Thank you for purchasing NetWave ^® from ComNet. This manual will cover how to install hardware on your enclosure, Configure batteries, cabling and mounting of the enclosure.

The NetWave® NWKSP1 Solar off the grid power system is designed for applications where a remote camera or wireless repeater is needed but power is not available or the cost to run power is too expensive. NetWave Solar is a complete system for providing remote power to edge communications equipment. The kit includes a high quality photovoltaic solar panel, valve-regulated lead-acid battery, outdoor enclosure, solar charge controller, PoE midspan injector and mounting hardware. The steel outdoor enclosure has a gasket hinged lid with two tamper proof locks operated by a special key for high security. The enclosure and solar panel can be mounted on a two to four inch pole or wall mounted with the included mounting hardware. The included 30A solar charge controller supports an LCD screen for local diagnostics and system health monitoring, Intelligent PWM charging mode and battery protection from overcharge and over discharge while the battery provides outstanding deep cycle and cold weather performance.

About This Guide

This guide is intended for different users such as engineers, integrators, developers, and technicians.

It assumes that users have knowledge of the following:

»Installation of electronic equipment

»Electrical regulations and guidelines

Related Documentation

The following documentation is also available:

»Solar Charge Controller User Manual

» Solar Panel mounting instructions (included with the mounting hardware)

Website

For information on ComNet's entire product line, please visit the ComNet website at http://www.comnet.net

Support

For any questions or technical assistance, please contact your sales person ([e-mail]) or the customer service support center ([e-mail])

Safety

» Only ComNet service personnel can service the equipment. Please contact ComNet Technical Support.
» The equipment should be installed in locations with controlled access, or other means of security, and controlled by persons of authority.

»Do not install equipment on wet or windy days.

»Make sure you have assistance mounting the hardware.

» Complete as much of the setup as you can on the ground in a safe environment.

Contents

About This Guide 2
Related Documentation 2
Website 2
Support 2
Safety 2
Overview 4
Legal Information 4
Introduction 5
Pole Mounting Bracket Assembly 6
Preparing the Enclosure 8
Pole Mount 10
Solar Panel Electrical Wiring 11
Battery Installation 12
Agency Compliance 15
GPL (General Public License) Statement 17

Overview

Legal Information

No part of this document may be reproduced or transmitted in any form or by any means, electronic and mechanical, for any purpose, without the express written permission of ComNet.

Copyright

Copyright © 2014 ComNet. All rights reserved.

Disclaimer

ComNet reserves the right to make changes in specifications at any time without notice. The information furnished by ComNet in this material is believed to be accurate and reliable. However, ComNet assumes no responsibility for its use.

Introduction

The NetWave® NWKSP1 Solar off the grid power system is designed for applications where a remote camera or wireless repeater is needed but power is not available or the cost to run power is too expensive. NetWave Solar is a complete system for providing remote power to edge communications equipment. The kit includes a high quality photovoltaic solar panel, valve-regulated lead-acid battery, outdoor enclosure, solar charge controller, PoE midspan injector and mounting hardware. The steel outdoor enclosure has a gasket hinged lid with two tamper proof locks operated by a special key for high security. The enclosure and solar panel can be mounted on a two to four inch pole or wall mounted with the included mounting hardware. The included 30A solar charge controller supports an LCD screen for local diagnostics and system health monitoring, Intelligent PWM charging mode and battery protection from overcharge and over discharge while the battery provides outstanding deep cycle and cold weather performance.

This manual contains detailed operational and configuration information.

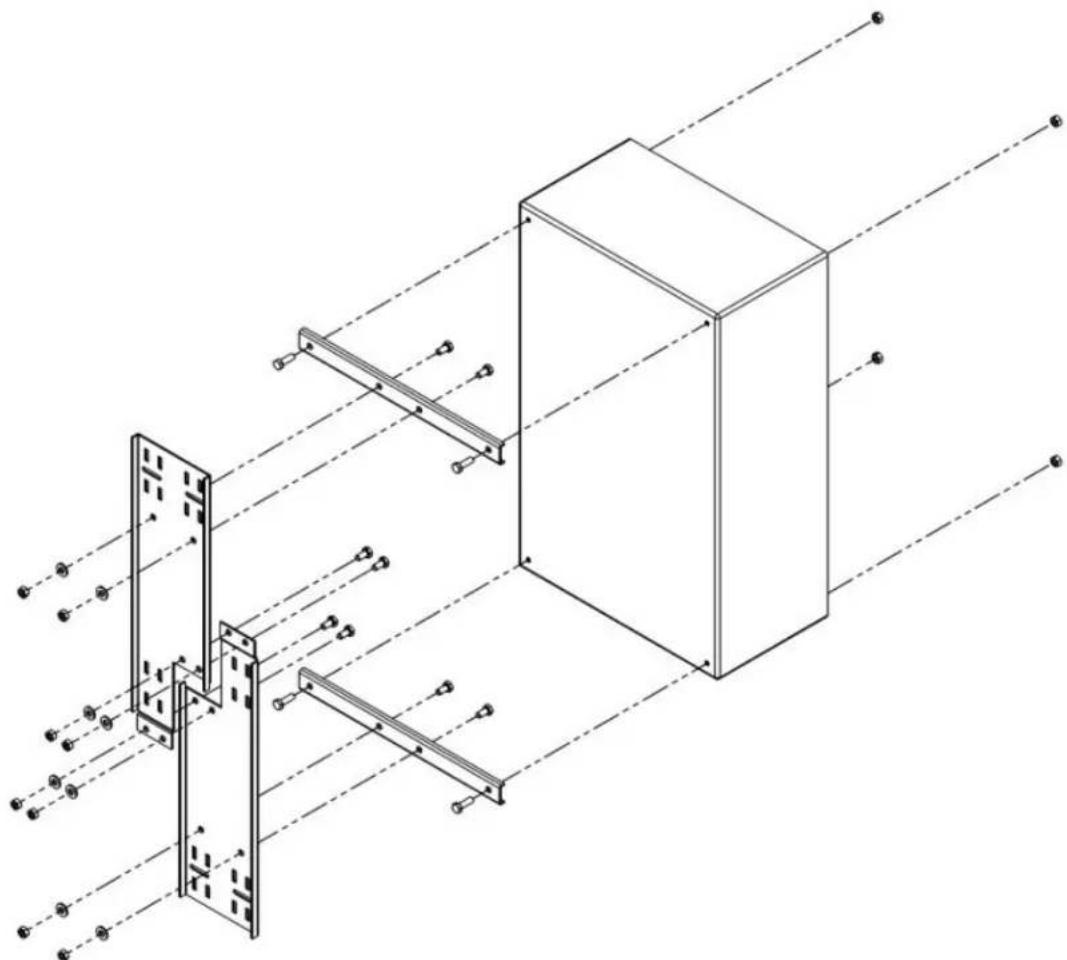

Pole Mounting Bracket Assembly

If mounting the enclosure to a wall, you can skip this step and mount the enclosure directly to a wall using the 4 holes in the back of the enclosure.

Technical line drawing of a structural assembly with beams and supports, no text or symbols present

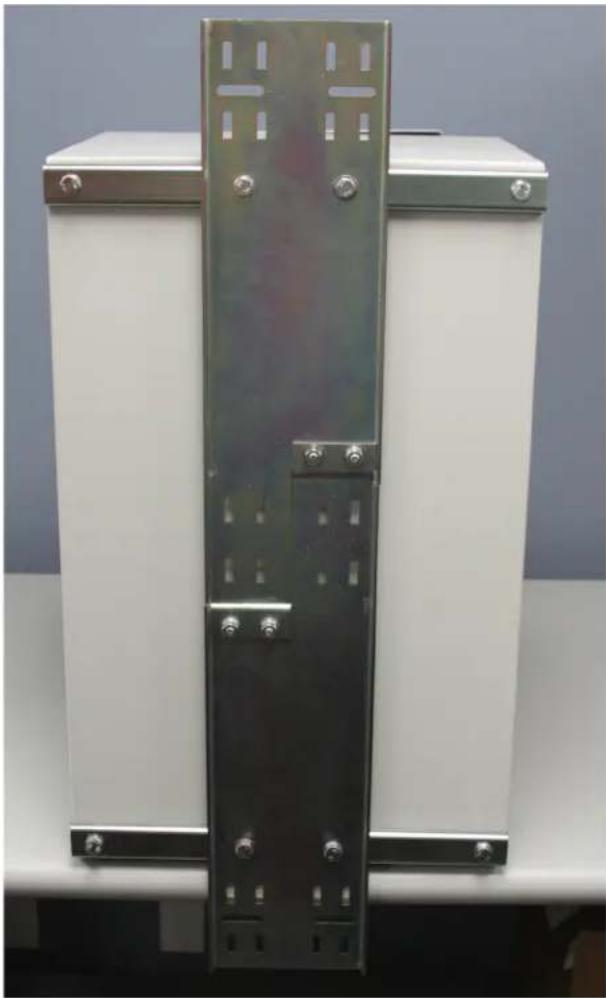

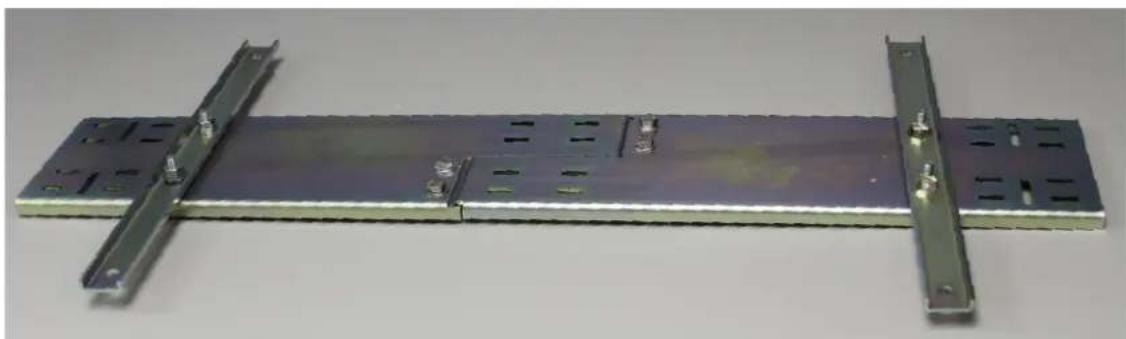

Mounting Hardware

Metallic electronic component with two metal brackets and mounting holes, no visible text or symbols

Exterior view of a metallic industrial cabinet with mounting flanges and bolts (no text or symbols visible)

Preparing the Enclosure

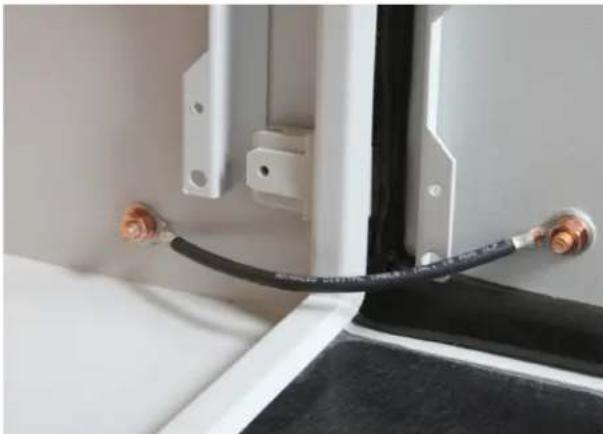

Attach grounding wire to the door and enclosure.

Remove plastic covers on copper studs. Add grounding cable to the two studs and use the copper washers and nuts to secure.

Close-up of a white industrial panel with two metallic connectors and a black cable, no visible text or symbols.

Grounding Cable Installed

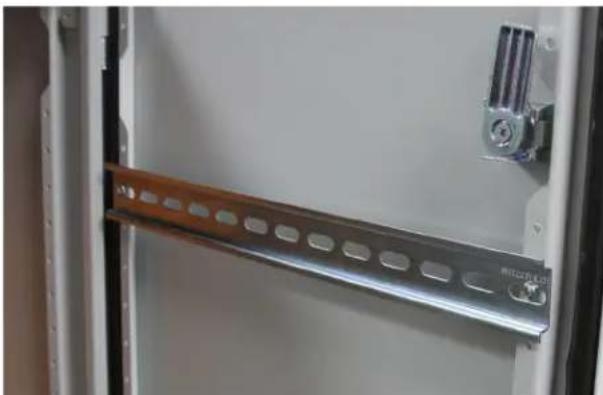

Mount the DIN Rail. The DIN Rail can be mounted to the door, backplate or sides of the enclosure.

Close-up of a metallic electrical panel with a wooden strip and mounting bracket (no visible text or symbols)

DIN Rail installed on door

Attached the DIN Rail Adapters to the Controller and Power Injector then clip to the DIN Rail.

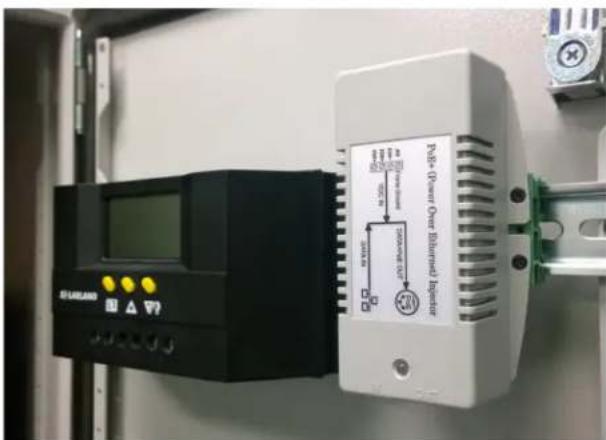

Controller and Power Injector Mounted on DIN Rail

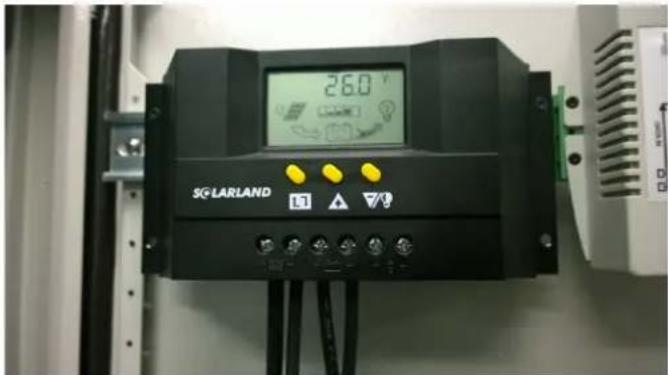

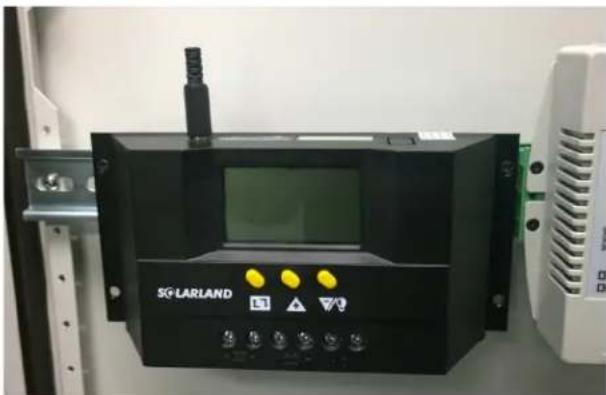

Plug the external thermal sensor into the interface of the thermal-sensor on the left of the controller.

Black industrial control panel with display and indicator lights, no visible text or symbols on the device itself.

Thermal Sensor Plugged into Controller

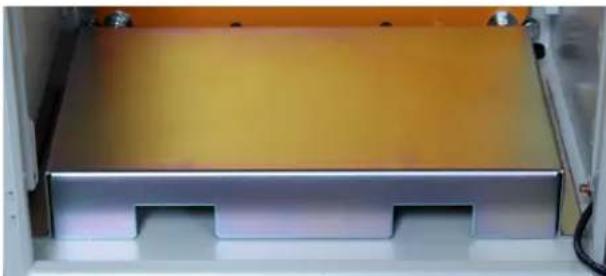

Insert battery platform in the enclosure. The cutouts in the platform are for routing cable under the batteries.

Interior view of a white industrial machine with a yellow insulation panel and two recessed slots (no visible text or symbols)

Battery Platform on Floor of Enclosure

Pole Mount

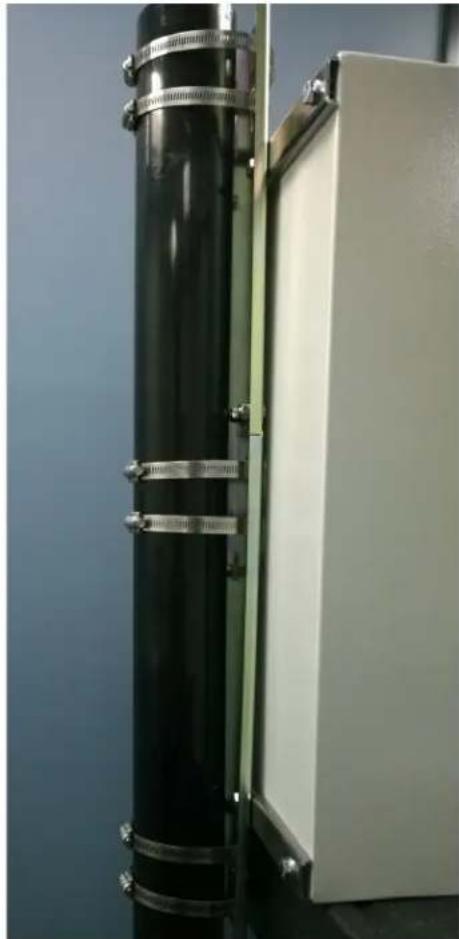

If mounting to a pole, use the 6 included Stainless Hose clamps to secure the enclosure to a pole. For your safety, we highly recommend mounting the enclosure before installing the batteries.

Exterior view of a black cylindrical device mounted on an open white panel, with metal clamps attached (no visible text or symbols)

Enclosure Mounted to Pole with Clamps

Add the cable glands and drain plug to the bottom of the enclosure after mounting.

Front panel of an electronic device showing four black connectors (no visible text or symbols)

Battery Platform on Floor of Enclosure

Solar Panel Electrical Wiring

Assemble The Solar Panels and run cable thru the cable glands on the bottom of the enclosure. Do not connect PV cables to the controller yet, it is recommended to connect the battery first.

Enclosure Mounted to Pole with Clamps

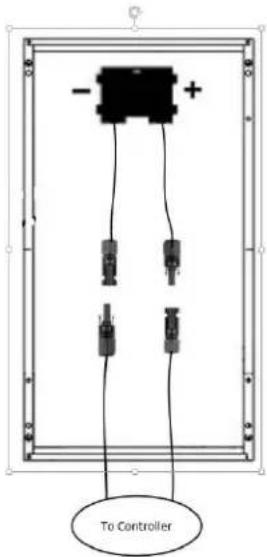

Connect the 15' PV cable with MC4 female connector to the positive male connector on the solar panel and feed the open end of the cable thru the enclosure.

Connect the 15' PV cable with MC4 male connector to the negative female connector on the solar panel and feed the open end of the cable thru the enclosure.

Note: The cables may ship as one 30' cable. If this is the case, you will need to cut the cable in half creating two 15' cables.

Please reapply the Twist Nut to the open end of the cables to prevent a short.

Coiled black cable with connectors and connector, no visible text or symbols

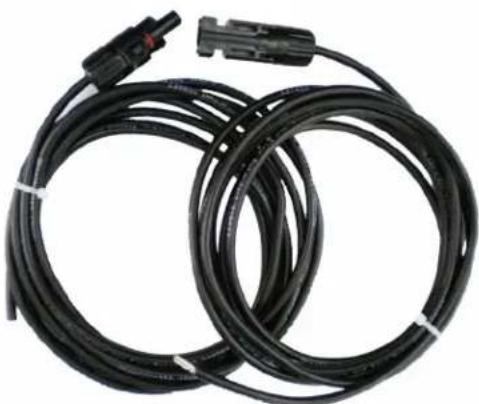

15' MC4 Male and MC4 Female Cables

Battery Installation

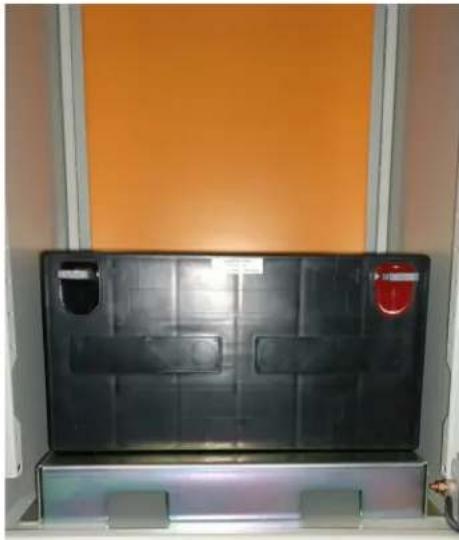

Insert battery into the enclosure. The battery can be installed vertically or horizontally.

We recommend installing on its side for ease of access.

Black rectangular panel with two small buttons and a red seal, mounted on a white shelf against an orange wall (no text or symbols visible)

Enclosure Mounted to Pole with Clamps

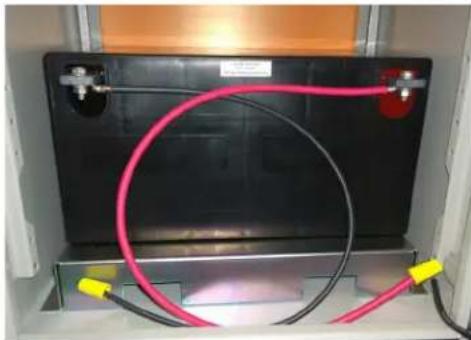

Connect the 24" 10AWG cables to the positive and negative battery posts.

Close-up of a black battery with two red and black wires wrapped around it, mounted in a white enclosure (no visible text or symbols)

PV Cable Connecting Battery Terminals

NOTE: Please apply rubber insulator to the terminals to prevent contact with the door in case of earthquake or vibration.

Close-up of a black battery with a red switch and circular components (no visible text or symbols)

Rubber Insulator

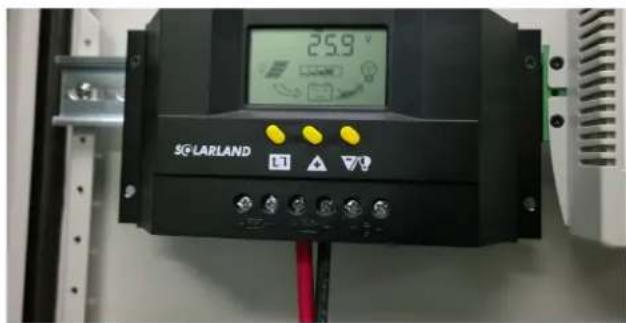

Connect the Positive and Negative cables from the battery to the Controller battery terminals.

Battery Cables Connected to Controller Battery Terminals

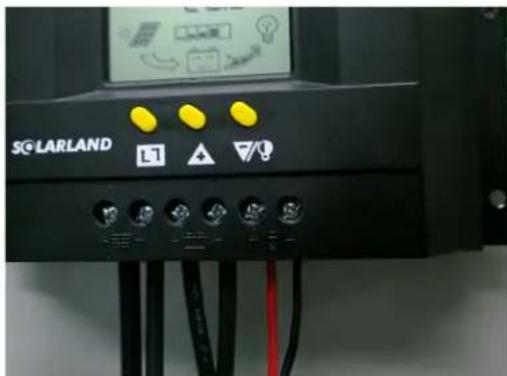

Once batteries are connected to the controller, connect the PV cables from the solar panels to the Solar Load terminals on the controller.

Solar Panel Cables Connected to Solar Load Terminals on Controller

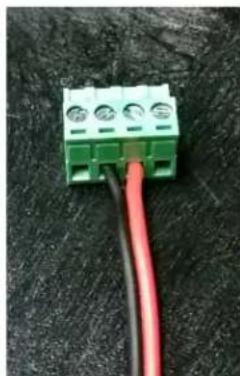

Connect the 12" Bonded Red and Black cable to the green terminal adaptor then connect the other end of the cable to the load terminals on the controller.

Close-up of a green terminal block with three black leads and red wires, placed on a dark textured surface (no text or symbols visible)

Red and Black Cable Connected Green Terminal Connector, left, and to Load Terminals on Controller, right.

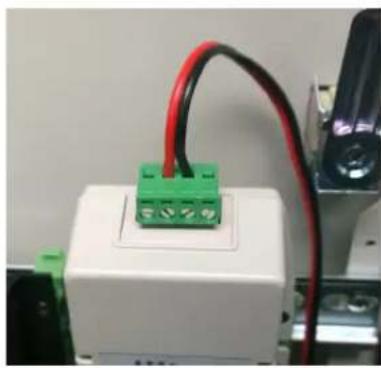

Insert green terminal into the Power Injector.

Close-up of a white electronic device with green terminal blocks and red wires, no visible text or symbols

Green Terminal Connector attached to Power Injector

See Solar Charge Controller User Manual for instructions on how to use the controller. Solar Panel mounting instructions will be included with the mounting hardware.

Agency Compliance

FCC

Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

• This device may not cause harmful interference, and
• This device must accept any interference received, including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a Industrial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operations of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

Industry Canada

This Class A digital apparatus complies with Canadian ICES-003. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (EIRP) is not more than that permitted for successful communication. This device complies with Industry Canada license-exempt RSS standard(s).

Operation is subject to the following two conditions:

• This device may not cause interference, and
• This device must accept any interference, including interference that may cause undesired operation of the device.

The antennas used for this transmitter must be installed to provide a separation distance of at least 2.52m from all persons and must not be located or operating in conjunction with any other antenna or transmitter.

CE marking on this product represents the product is in compliance with all directives that are applicable to it.

This equipment may be operated in the following countries:

Great Britain and Northern Ireland, Austria, Belgium, Denmark, Finland, France, Germany, Ireland, Italy, Netherlands, Norway, Portugal, Romania, Switzerland, Sweden

Installer Compliance Responsibility

Devices must be professionally installed and it is the professional installer's responsibility to make sure the device is operated within local country regulatory requirements.

RoHS/WEEE Compliance Statement

European Directive 2002/96/EC requires that the equipment bearing this symbol on the product and/or its packaging must not be disposed of with unsorted municipal waste. The symbol indicates that this product should be disposed of separately from regular household waste streams. It is your responsibility to dispose of this and other electric and electronic equipment via designated collection facilities appointed by the government or local authorities. Correct disposal and recycling will help prevent potential negative consequences to the environment and human health. For more detailed information about the disposal of your old equipment, please contact your local authorities, waste disposal service, or the shop where you purchased the product.

GPL (General Public License) Statement

You may have received from ComNet products that contained - in part - free software (software licensed in a way that ensures your freedom to run, copy, distribute, study, change and improve the software). Such products include NetWave series of products.

As part of these products, ComNet may have distributed to you hardware and/or software that contained a version of free software programs developed by the Free Software Foundation, a separate not-for-profit organization without any affiliation to ComNet.

See http://www.gnu.org/philosophy/free-sw.html for more details. If ComNet distributed any portions of these free software programs to you, you were granted a license to that software under the terms of either the GNU General Public License or GNU Lesser General Public License "License", copies of which are available from http://www.gnu.org/licenses/licenses.html. The Licenses allow you to freely copy, modify and redistribute that software without any other statement or documentation from us.

ComNet will provide to anyone who contacts us at the contact provided below, for a charge of no more than our cost of physically performing source code distribution, a complete machine-readable copy of the complete corresponding source code for the free software programs used in the version of the programs that we distribute to you. The cost will be free if the delivery medium of the machine-readable copy is through the Internet.

Contact information:

Email: [e-mail]

Tel: [phone]

Address: 3 Corporate Drive, Danbury, CT 06810 USA

We will reply within 7 working days once the request has been made through email or telephone.
