Product Type	KVM Network Switch
Brand	ATEN
Model	Altusen KA8270
Dimensions (W x D x H)	437 x 163 x 44 mm (estimated for 1U rackmount)
Weight	2.5 kg (estimated)
Power Supply	100-240 VAC, 50/60 Hz, 0.5 A
Power Consumption	25 W max
Operating Temperature	0°C to 50°C
Operating Humidity	0% to 80% RH (non-condensing)
Certifications	FCC, CE
Main Functions	KVM switching (keyboard, video, mouse), multi-server support, rackmount, hot-plugging
Maintenance and Cleaning	Disconnect the device before cleaning. Use a damp lint-free cloth. Do not use liquid or aerosol cleaners.
Safety	Grounding required. Do not open the enclosure. Avoid exposure to water and moisture. Use a surge protector or UPS.
Spare Parts and Repairability	Contact ATEN or an authorized dealer for repairs. The device contains no user-serviceable parts.
General Information	105-page user manual available in French. Warranty according to seller's terms.

Frequently Asked Questions - Altusen KA8270 ATEN

How to install the Altusen KA8270 switch in a rack?

Before installation, make sure the rack stabilizers are attached and the rack is stable. Mount the unit from bottom to top, heaviest element first. Use the provided rails by sliding the unit into the rack. Be careful not to overload the power circuit (total load less than 80% of circuit capacity).

What safety precautions should I follow?

Read all safety instructions. Use indoors only. Do not place the unit on an unstable surface. Avoid heat sources and water. Ensure ventilation is not obstructed. Disconnect before cleaning. Use a proper grounded plug. Do not exceed 15 amps on the wall outlet.

How to clean the Altusen KA8270?

First disconnect the unit from the wall outlet. Use a damp (not wet) cloth to wipe the enclosure. Do not use liquid or aerosol cleaners. Do not spill any liquid on the device.

What to do if the device does not work properly?

Check cable connections and power. Make sure ventilation is not blocked. If the problem persists, disconnect the unit and contact a qualified technician. Do not attempt to repair yourself.

Can I hot-plug cables?

Yes, the device supports hot-plugging. However, for power supplies, install the power supply first before connecting the power cable. Disconnect the cable before removing the power supply.

What is the recommended power supply?

The device operates on 100-240 VAC, 50/60 Hz. Use a grounded wall outlet. For protection against surges, use a surge protector or an uninterruptible power supply (UPS).

How to prevent overheating of the unit?

Do not block the ventilation slots. Do not place the unit on a soft surface or in an enclosed cabinet without ventilation. Ensure adequate air circulation in the rack. Ambient temperature should not exceed 50°C.

What to do in case of liquid spill?

Immediately disconnect the unit from the wall outlet. Do not use it and contact a qualified technician. Exposure to liquid can cause risk of electric shock.

Where can I get the full manual?

The manual is available for free as PDF on notice-facile.com. You can download it in French or request a translation into another language via the form on the website.

What types of cables to use with this switch?

Use Category 5e/6 cables for network connections. Keep cables away from sources of electromagnetic interference (power cables, transformers). Do not tie them to electrical conduits.

USER MANUAL Altusen KA8270 ATEN

FEDERAL COMMUNICATIONS COMMISSION INTERFERENCE STATEMENT: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

The device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment.

Warning: Operation of this equipment in a residential environment could cause radio interference.

KCC Statement

This product is RoHS compliant.

User Information

Online Registration

Be sure to register your product at our online support center:

International http://eservice.aten.com

Telephone Support

For telephone support, call this number:

International 886-2-86	92-6959
China 86-400-810-0-8	10
Japan 81-3-5615-5811
Korea 82-2-467-6789
North America 1-888-	999-ATEN ext 4988
	1-949-428-1111

User Notice

All information, documentation, and specifications contained in this manual are subject to change without prior notification by the manufacturer. The manufacturer makes no representations or warranties, either expressed or implied, with respect to the contents hereof and specifically disclaims any warranties as to merchantability or fitness for any particular purpose. Any of the manufacturer's software described in this manual is sold or licensed as is. Should the programs prove defective following their purchase, the buyer (and not the manufacturer, its distributor, or its dealer), assumes the entire cost of all necessary servicing, repair and any incidental or consequential damages resulting from any defect in the software.

The manufacturer of this system is not responsible for any radio and/or TV interference caused by unauthorized modifications to this device. It is the responsibility of the user to correct such interference.

The manufacturer is not responsible for any damage incurred in the operation of this system if the correct operational voltage setting was not selected prior to operation. PLEASE VERIFY THAT THE VOLTAGE SETTING IS CORRECT BEFORE USE.

Package Contents

1 KVM over IP Console Station (KA8270 or KA8278 or KA8280 or KA8288)

1 Power Adapter

1 Power Cord

1 Mounting Kit

1 Foot Pad Set (4 pcs.)

1 User Instructions*

* Features may have been added to the KVM over IP console station since the user instructions were created. Please visit our website to download the most up-to-date version of the user manual.

Check to make sure that all of the components are present and in good order. If anything is missing, or was damaged in shipping, contact your dealer. Read this manual thoroughly and follow the installation and operation procedures carefully to prevent any damage to the KVM over IP console station or to any other devices on the installation.

Copyright © 2018 ATEN® International Co., Ltd.

Altusen and the ATEN logo are registered trademarks of ATEN International Co., Ltd. All rights reserved. All other brand names and trademarks are the registered property of their respective owners.

Contents

EMC Information .... ii

User Information ....iii

Online Registration .....iii

Telephone Support .....iii

User Notice ....iii

Package Contents. iv

Contents v

About This Manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . viii

Conventions ix

Product Information.... ix

Chapter 1. Introduction

Overview 1

Features 2

Requirements 2

Console 2

Components 3

Front View ....3

Rear View 4

Chapter 2. Hardware Setup

Overview 5

Before You Begin 5

Mounting 6

Rack Mounting 6

Wall Mounting 7

Single Stage Installation 8

Hot Plugging 9

Powering Off and Restarting. 10

Chapter 3. Operation

Overview 11

Logging In 11

Dashboard....13

Page Components....13

Dashboard Operation 15

Monitor Unit Option 16

Primary / Secondary Display 16

GUI 17

Disconnect 17

Reconnect 17

Tab / Panel Array Display and Management .....18

Tab Options....18

Tab Display 19

Panel Array Options 19

Panel Array Display....20

Tab / Panel Array Management 21

Adding a Tab....22

Adding another Tab. 23

Editing a Tab. 24

Deleting a Tab....24

Chapter 4.Device Management

Overview....25

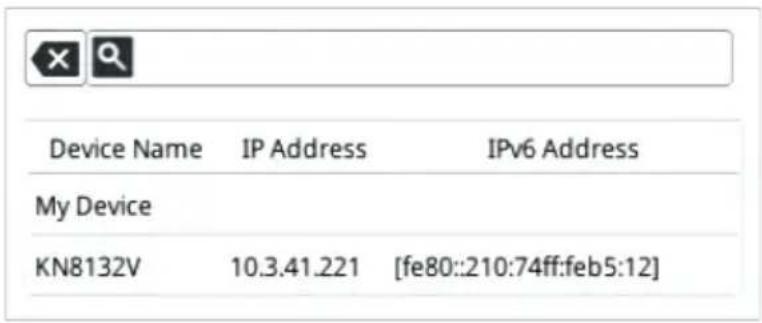

Device List....26

Search 26

Remove Device 26

Adding Device 27

Changing Device Access Right. 28

Chapter 5. System Configuration

Overview....29

User Management 30

Users and Groups 30

Add User 31

Copy User 33

Modify User 34

Delete User 34

Managing (Assigning) Users and Groups 35

Using User Configuration Page. 35

Using Group Configuration Page 36

Device Assignment 38

Using Device Configuration Page 38

Device Management. 41

Device Information 41

Network 41

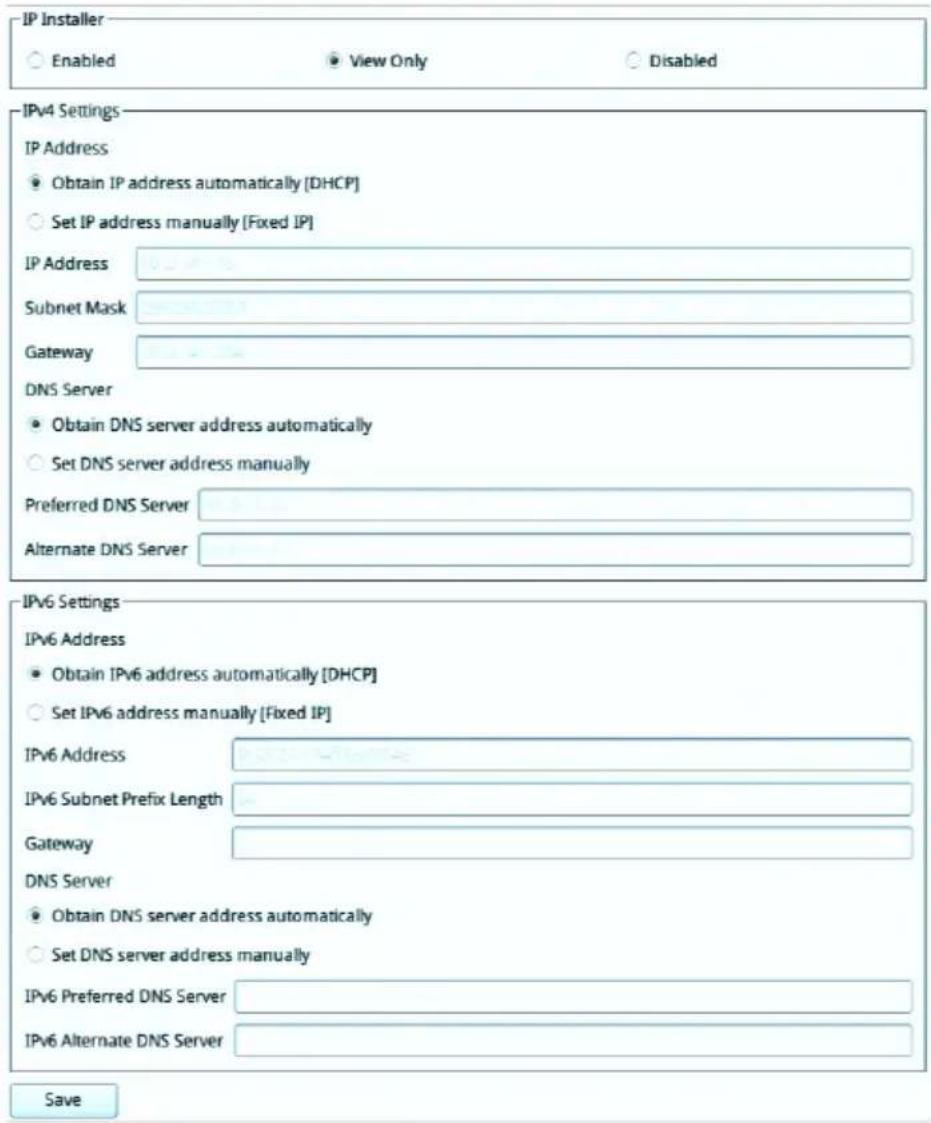

IP Installer 42

IPv4 Settings 43

IPv6 Settings 44

Finishing Up 44

ANMS 44

RADIUS Settings....45

AD / LDAP Settings 46

Finishing Up 47

Security 48

Login Failures 48

Account Policy....49

Working Mode 50

Finishing Up 50

Maintenance 51

Upgrade Main Firmware 51

Firmware Upgrade Recovery 53

System Operation....60

Reset Default Values. 60

Reset on exit:....60

Quick User Configuration 62

Chapter 6. Toolbar Interface

Overview 63

Exit Remote Location 64

Video Settings 65

Macros. 67

Hotkeys .67

User Macros 69

Import / Export Macros 72

Delete Macros 73

Search Macros....73

System Macros 73

Further Configuration 74

Virtual Media 75

Message Board 77

Mouse Sync Mode....79

Appendix

Safety Instructions....81

General 81

Rack Mounting 83

Technical Support 89

International....89

North America 89

Specifications 90

Troubleshooting 91

General Operation....91

Mouse Problems 92

Virtual Media 93

Panel Array Mode 93

Supported KVM Switches 94

Limited Warranty 95

About This Manual

This User Manual is provided to help you get the most from your KVM over IP Console Station. It covers all aspects of installation, configuration and operation. An overview of the information found in the manual is provided below.

Chapter 1, Introduction, introduces you to the KVM over IP Console Station. Its purpose, features and benefits are presented, and its front and back panel components are described.

Chapter 2, Hardware Setup, provides step-by-step instructions for setting up your installation, and explains some basic operation procedures.

Chapter 3, Operation, explains the fundamental concepts involved in operating the product, and provides a complete description of how to operate the product.

Chapter 4, Device Management, explains how to add or remove KVM over IP switches to or from the product.

Chapter 5, System Configuration, explains the system settings, which include the General, ANMS, AD/LDAP, RADIUS, F/W Upgrade, Backup/Restore, and explains the quick user interface.

Chapter 6, Toolbar Interface, explains how to use the toolbar interface when entering a connected port.

An Appendix, at the end of the manual provides technical and troubleshooting information.

Conventions

This manual uses the following conventions:

Monospaced Indicates text that you should key in.

[ ] Indicates keys you should press. For example, [Enter] means to press the Enter key. If keys need to be chorded, they appear together in the same bracket with a plus sign between them: [Ctrl+Alt].

1. Numbered lists represent procedures with sequential steps.

◆ Bullet lists provide information, but do not involve sequential steps.

→ Indicates selecting the option (on a menu or dialog box, for example), that comes next. For example, Start → Run means to open the Start menu, and then select Run.

Indicates critical information.

Product Information

For information about all ATEN products and how they can help you connect without limits, visit ATEN on the Web or contact an ATEN Authorized Reseller. Visit ATEN on the Web for a list of locations and telephone numbers:

International http://www.aten.com

North America http://www.aten-usa.com

This Page Intentionally Left Blank

Chapter 1

Introduction

Overview

The KVM over IP Console Station (KA8270/KA8278/KA8280/KA8288) is a standalone console that replaces PC or NB, enabling users to remotely access, monitor and control all servers connected to multiple ATEN's KVM over IP switches* with impenetrable security against virus threats. It also supports various data encryption methods, ensuring impervious data protection. The KVM over IP Console Station can be deployed anywhere instant access is needed and stringent security required, ideal for applications such as studios, offices, data centers, broadcast stations, control rooms, or network operations centers (NOC).

All the KA8270, KA8278, KA8280, and KA8288 support USB mouse/keyboard and two USB ports for Virtual Media function, and respectively support 1 VGA video output, 1 VGA plus 1 HDMI video outputs, 1 HDMI video output, and 2 HDMI video outputs at resolutions up to 1920 x 1200 @ 60 Hz. With KA8278 and KA8288, users can multitask across two displays with a single keyboard and mouse.

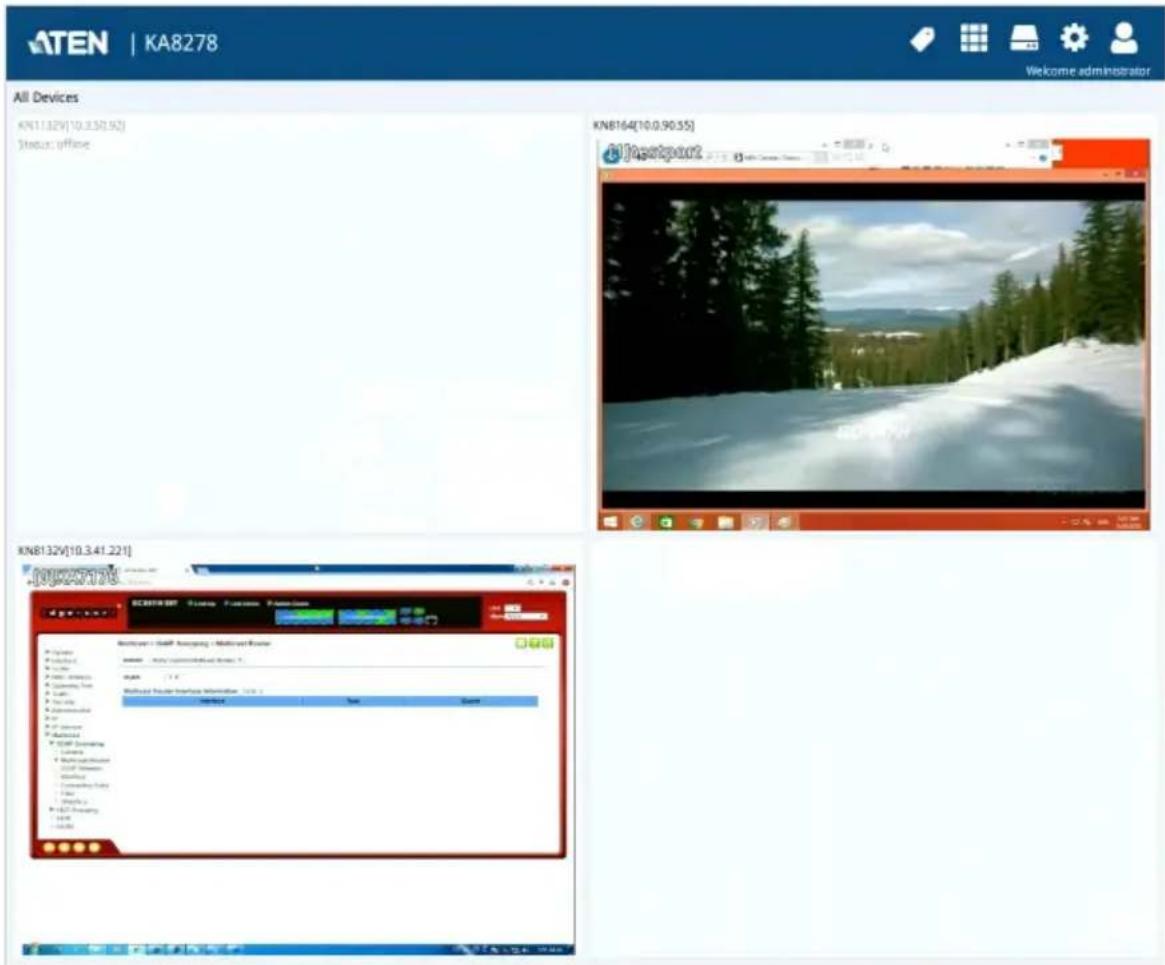

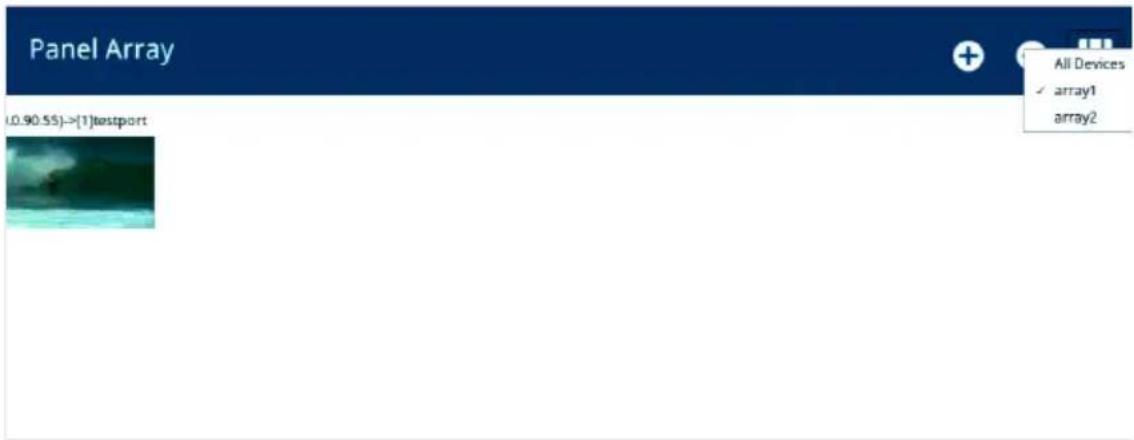

In addition, the KVM over IP Console Station provides Panel Array Mode ^™ function, enabling administrators to monitor the video output of up to 64 servers simultaneously. The feature makes it possible for previewing the content of all the ports at the same time, which is especially suitable for environments such as manufacturing and surveillance that often require monitoring of a much higher number of ports.

The KVM over IP Console Station can be set on a desk, mounted on a wall or at the rear of a rack with its space-saving 0U rack mount design. It is flexible and easy to install, and provides a GUI with multi-language interface for device management, user profile customization, as well as hassle-free configuration for large deployments.

switches require firmware version v1.6.151 or above to support the KVM over IP Console Station.

Features

• A standalone console that replaces PC or NB, enabling users to remotely access and control ATEN's KVM over IP switches
• Impenetrable security against virus threats and impervious data protection
• Single sign-on to consolidate the management of multiple ATEN's KVM over IP switches
• Advanced FPGA graphics processor – with a Full HD resolution of 1920 x 1200
  ◆ Supports 1 VGA video output (KA8270) or 1 HDMI video output (KA8280)
• Supports 1 VGA plus 1 HDMI video outputs (KA8278) or 2 HDMI video outputs (KA8288) – enables users to multitask across two displays with a single keyboard and mouse
• Panel Array Mode™ – allows administrators to monitor the video output of up to 64 servers on one screen simultaneously
  ◆ Supports Virtual Media
• Wall Mountable – standard rack mount kit included
  ♦ Space-saving 0U rack mount design with rear mounting
• GUI with multi-language interface – provides easy access and management, user profile customization, and flexible configuration for large deployments

Requirements

Console

• A VGA monitor (KA8270); an HDMI monitor(KA8280 or KA8288); a VGA or HDMI monitor (KA8278)
  A USB mouse
  A USB keyboard
  ◆ Microphone and Speakers

Components

Front View

No. Component
1	R e s e t S w
2 USB Ports (Peripherals)
3 USB Ports (Keyboard and Mouse)
4 Audio Ports
5 Cascade Port
6 Power Push Button (Press to enter the standby mode; press again to wake the unit)
7 Power LED (Power on: Blue; Standby: Orange)

Rear View

KA8270 Rear View

KA8278 Rear View

KA8280 Rear View

KA8288 Rear View

No. Component
1 Grounding Terminal
2 Power Jack
3 LAN Port
4	C	O	M	P	o	r
5 VGA Port (KA8270 and KA8278 only)
6 HDMI Port(s) (KA8278, KA8280 and KA8288 only)

Chapter 2

Hardware Setup

Overview

This chapter outlines different ways of mounting your KVM over IP Console Station as well as a quick hardware connection summary in the form of single stage installation.

Before You Begin

1. Important safety information regarding the placement and grounding of this device is provided on page 81 and onwards. Please review it before proceeding.

2. Make sure that power to all the devices you will be connecting up have been turned off. You must unplug the power cords of any computers that have the Keyboard Power On function.

Mounting

The KVM over IP Console Station can be rack mounted or wall mounted. The following sections take you through the procedures for each method.

Rack Mounting

The KVM over IP Console Station is designed to be mounted at the rear of a rack, where it occupies 0U to save space.

1. Remove two bottom screws of the unit and use those to screw the mounting bracket to the bottom of the unit as shown in the diagram below:

1. Screw the mounting bracket to any convenient location on the rack.

Isometric line drawing of a server rack with a central device and two vertical panels (no text or symbols)

Note: Rack screws are not provided to mount the unit. We recommend that you use M5 x 12 Phillips type I cross screws.

Wall Mounting

1. Remove two bottom screws of the unit and use those to screw the mounting bracket to the bottom of the unit as shown in the diagram below:

1. Use the mounting bracket's center screw hole to mount the unit on a wall.

Single Stage Installation

For a single stage installation, refer to the installation diagram and procedures shown below (KA8278 is used as an example):

Note: The numbers shown in the diagram are the installation steps corresponding directly to the steps below.

1. Plug the connectors of your USB mouse, USB keyboard, microphone, and speakers into their respective ports on the front panel of the KVM over IP Console Station. Each port is color coded and marked with an icon.
2. Plug the monitor into the VGA or the HDMI port on the rear panel of the KVM over IP Console Station.

Note:

1. KA8270 supports 1 VGA video output, KA8278 supports 1 VGA and 1 HDMI video outputs, KA8280 supports 1 HDMI video output, and KA8288 supports 2 HDMI video outputs.
2. For models that support two video outputs (KA8278 and KA8288), the video interface at the inner side (e.g., the VGA video interface of KA8278) is the Primary Display, the video interface at the outer side is the Secondary Display.

3. Login page will appear on Primary Display and make sure you use the Primary Display to log in.

4. Plug an Ethernet cable from the LAN into the KVM over IP Console Station's LAN port.

5. (Optional) Plug USB drives into the dedicated USB ports located on the front panel.

6. (Optional) To cascade one more unit, plug one end of a Cat 5e cable into the Cascade port on the front panel, and then plug the other end of the cable to the LAN port of another KVM over IP Console Station. The added unit will gain the first unit's Internet connection.

Configuration / control of each unit is separate.

Note: Do not connect the Cascade Port to a network switch or it will cause a switching loop.

1. (Optional) Use a grounding wire to connect the Grounding Terminal on the rear panel of the KVM over IP Console Station to a suitable grounded object.

2. Plug the power adapter into an AC source with the power cord; then plug the other end into the KVM over IP Console Station's Power Jack.

Hot Plugging

KVM over IP console stations support hot plugging – components can be removed and added back into the installation by unplugging and replugging cables from the ports without the need to shut the unit down.

Powering Off and Restarting

If it becomes necessary to power off the console station, please use the shut down function (see Shutdown on page 62), disconnect the power adapter and wait 30 seconds before reconnecting it back.

Chapter 3

Operation

Overview

The KVM over IP console station can be used as a central control station to monitor several KVM switches.

Available interfaces are described in the sections that follow.

Logging In

The KVM over IP Console Station can be used as a central control station to monitor several KVM switches. A valid Username and Password are required to login.

If you supply invalid login information, the authentication routine will return an Invalid Username or Password, or Login Failed message. If you see this type of message, log in again with a correct username and password.

Note: If the number of invalid login attempts exceeds a specified amount, a timeout period is invoked. You must wait until the timeout period expires before you can attempt to log in again. See Login Failures on page 48 for further details.

The login screen is shown below:

The KVM over IP console station supports two modes:

a) KVM over IP console station mode: Logging into the console station (My Device).
b) KVM device mode: Logging into a KVM device directly.

Follow the steps below to log in:

1. If you wish to log into a KVM device directly, specify the device's IP Address and its Port.

For the KVM over IP console station login, select "My Device" from the drop down menu for the Address field and go to the next step.

Note:

1. As an alternative, you can drag your mouse over the magnifying glass symbol to find the addresses of the devices on the same local area network; or

2. Click the drop-down menu for a device list. The device list shows the device login history. "My Device" is always shown at the top of the list. The history can be cleared using a terminal command, please see Terminal on page 59.

3. Enter a Username and Password (by default Username and Password are administrator and password, respectively) and click "Login" to log in.

Note: For security purposes, you should change the Username and Password. (See Users and Groups on page 30)

1. (Optional) At the bottom right-hand corner, a language option is available (English is shown as it is the default language). Click it to select a preferred language for the interface.

After you successfully login, the dashboard of the console station will appear. Please refer to Dashboard on page 13 for the operations.

Dashboard

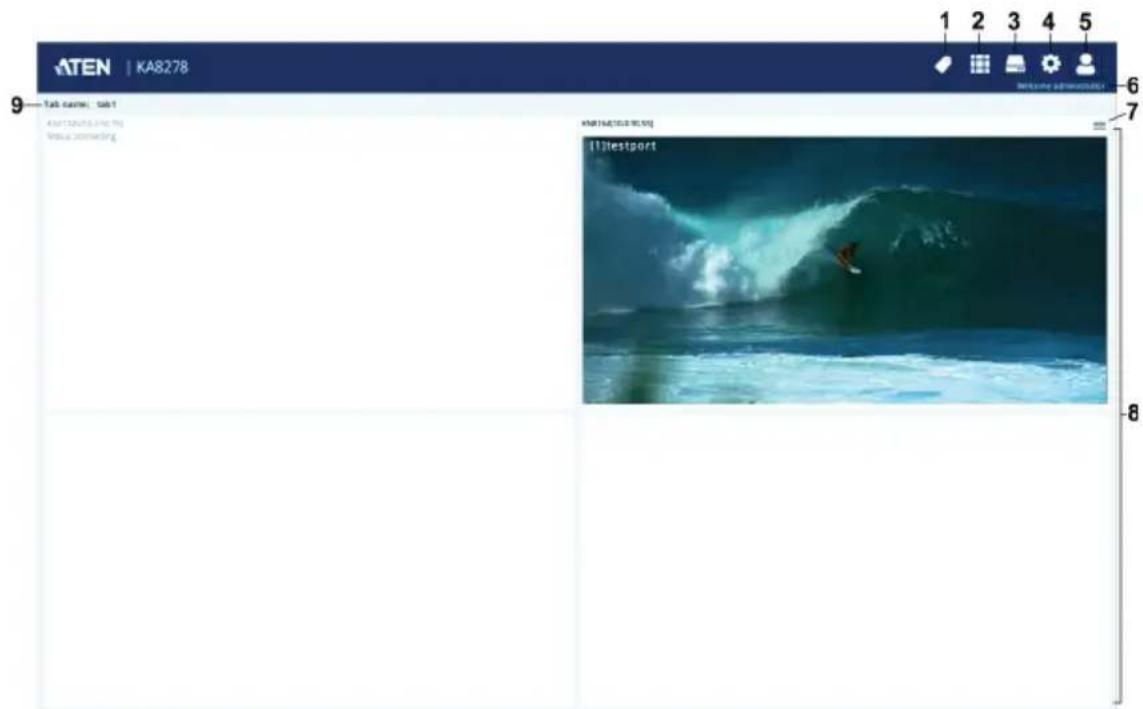

Once you have successfully logged in, the KVM over IP console station's user interface dashboard appears:

Note: The screen depicts an Administrator's page. Depends on the user's type and permissions, not all of these elements will appear.

Page Components

The page components of the dashboard are described in the table below:

No.	Item Description
1	Tab Management	Tab management allows users to separate KVM over IP switches currently being monitored into different tab groups or select which tab is to be displayed.
2	Panel Array Management	Panel array management allows users to simultaneously display the ports connected to the KVM over IP switches. The ports can also be grouped into different groups and only simultaneously display the ports in the chosen group.
3	D e v Management	Device management allows users with administrative authority to add devices to or remove devices from the console station.
4	S y s tConfiguration	Systemconfiguration allows users with administrative authority to manage users or groups, display device information, configure network, advanced network management (ANMS) or security settings, or manage firmware upgrade, system backup / restore, push / pull configurations to or from other devices, access terminal, or reset system to factory default settings.
5	User Settings User	ser settings allow users to change password,configure preferences, logout, restart the system, shut down the system, or display quick information about the console station.
6	Username This displays the username.
7	IndividualMonitorOption	Individual monitor option allows users to select which port is to be displayed on an assigned display, open the GUI or disconnect from the KVM over IP switch.If the switch is disconnected, you can also clickReconnectto reconnect the switch to the console station.For example, if you have a primary and secondary display (KA8278 or KA8288), you can choose to display one of the ports on the primary display while another port on the secondary display. SeePrimary / Secondary Display on page 16.
8	AvailableKVM over IPSwitchMonitor	Available KVM over IP switch monitor displays the available KVM over IP switch at a glance. Each monitor will consecutively rotate through the device's connected ports.
9	Tab name This dis	displays the tab name.Clicking the tab name will bring out an option “Reconnect All Devices”. Click the option for the reconnect operation.

Dashboard Operation

The dashboard of the console station usually displays the connected devices in an array of monitor units. Each of the unit corresponds to a connected device. The unit will rotate consecutively between all the connected ports.

Double-clicking a monitor will bring you to the port's page.

For individual monitor options of a particular device, move your mouse over its corresponding monitor unit. A menu icon will be shown on the top right-hand corner of each unit.

= Menu icon

Monitor Unit Option

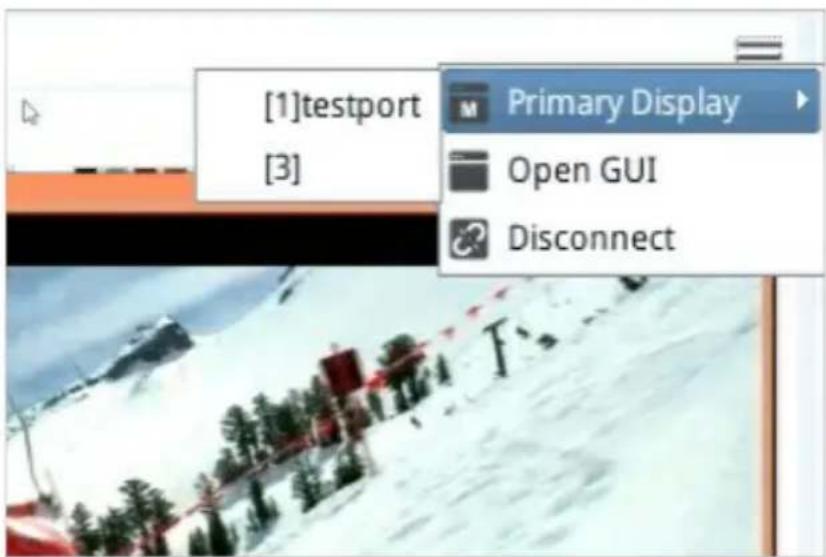

Clicking the Menu icon to display available options:

Primary / Secondary Display

Depends on your console station model (whether you have one or two display ports), the menu may show a Primary Display option or both a Primary Display option and a Secondary Display option. To display a port on a primary or secondary display:

1. Mouse over the display (primary or secondary):

1. Click to select the port. The selected display should now show the port's screen. Your keyboard and mouse can now also control the server connected to the port.

For the control of the server, the KVM over IP console station's

interface provides a toolbar to help you with the remote control operations. Please refer to Toolbar Interface on page 63.

GUI

If you wish to use the KVM over IP switch's GUI, click to select "Open GUI". Please refer to the KVM switch's user manual for the GUI's operation.

Disconnect

Click "Disconnect" to disconnect from this KVM switch device.

Reconnect

Click "Reconnect" to reconnect to an offline KVM switch device.

Tab / Panel Array Display and Management

Tab management allows users to separate KVM over IP switches currently being monitored into different groups or select which tab group is to be displayed on the dashboard.

Panel array management allows users to separate available ports into different groups or select which panel array group is to be displayed on the panel array page.

Tab Options

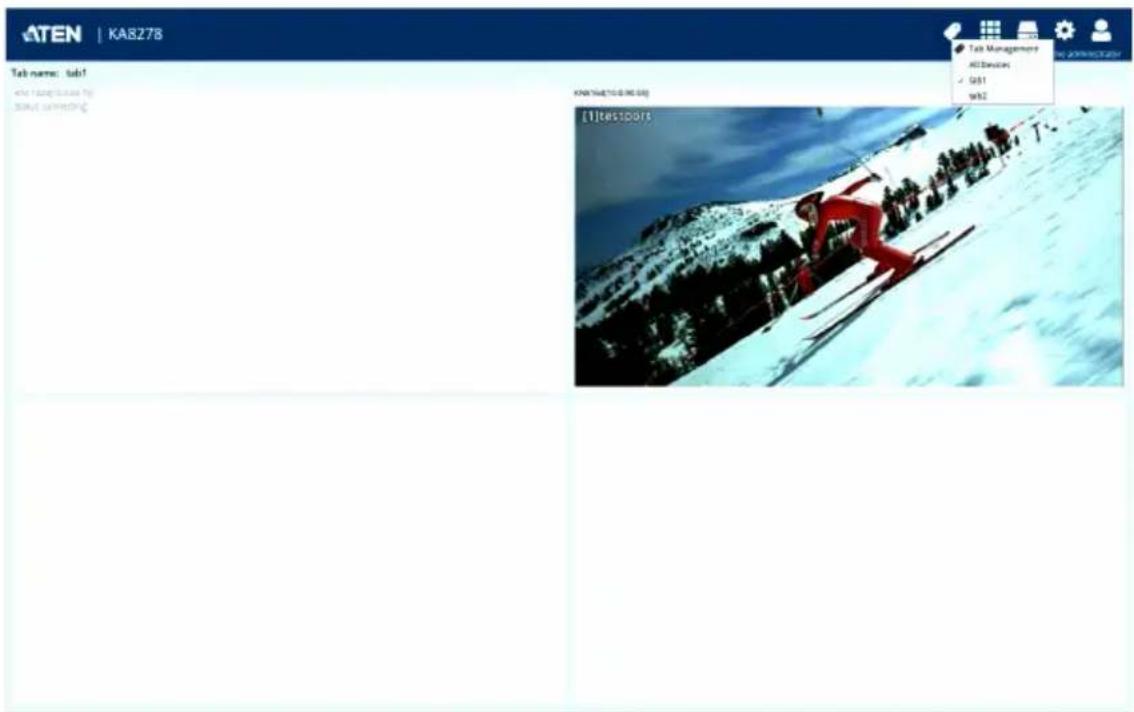

Click the Tab icon to display the tab options.

Option Description
Tab Management	Click this option to allow you to add, delete or modify tabs (groups).
All Devices Click this option to display all the connected KVM over IP switches on the dashboard.
Created tabs Select a created tab to display the KVM over IP switches in the tab on the dashboard.

Tab Display

An example showing the KVM over IP switches in a tab displayed on the dashboard (tab1 is the selected tab):

Panel Array Options

Click the Panel Array icon to display the panel array options:

Option Description
Panel Array Management	This option allows you to add, delete or modify panel array (groups).
All Devices All the	ports connected KVM over IP switches are displayed on the panel array page.
Created panel arrays	Select a created panel array. All the ports connected to the KVM over IP switches in the panel array are displayed on the panel array page.

Note: Audio is not supported.

Panel Array Display

An example showing the ports of connected KVM over IP switches in a panel array displayed (array1 selected):

Press the + icon to display more device ports (up to 64 ports) on a smaller scale. Press the - icon to display less device ports on a larger scale.

The diagram below displays a view on a smaller scale.

The panel array icon is also shown on the top right-hand corner of the panel array page. Clicking it will allow you to select which array you would like to display, or display all device ports:

Click the back arrow to go back to the dashboard.

Tab / Panel Array Management

Click the Tab or Panel Array icon to show their corresponding options.

Due to their similarity, tab management is used as the example below.

Click "Tab Management" (or "Panel Array Management") for the following page:

This page allows you to add / edit / delete tabs.

Adding a Tab

1. To add a tab, click the + icon. A new window (Tab Device Configuration) will be displayed:

1. Enter a name for the new tab.
2. Click on the devices you wish to be in this tab group and click the >> button.
3. Click the "OK" button when done. The tab will be shown:

Adding another Tab

If you wish to add another tab, click the + icon again and go through the steps outlined in Adding a Tab.

Editing a Tab

If you wish to edit a tab, click the pen icon beside the Tab Name.

The Tab Device Configuration window will be displayed as in Adding a Tab.

Edit its name, shift the devices around using the >> or << icons and click "OK" when done.

Deleting a Tab

If you wish to delete a tab, click the X icon beside the Tab Name.

Chapter 4

Device Management

Overview

Device management allows users with administrative authority to add devices to or remove devices from the console station. The KVM over IP console station can manage up to 256 KVM over IP switches and able to display snapshots of up to 16 devices.

Click on the Device Management icon to enter its main page.

Device List

The feature on the left of the Device Management page is the device list.

Search

The rectangular field at the top is the search function. Enter the IP address of the device you wish to search for to find that device.

Remove Device

If you wish to remove a device from the list, mouse over the device. A X icon will be displayed as shown below:

Click the X icon to remove the device. The system will ask for confirmation as shown below:

Click "Yes" to go ahead, or "No" to cancel action.

Adding Device

The feature in the middle of the Device Management page allows the user to add devices to the system.

Mouse over the search button (magnifying glass). A list of KVM control unit device(s) on the same local area network (LAN) will be shown as exemplified below:

Select the desired device or simply enter an IP Address of a known device; enter a Username and Password, and click "Save" to add the device to the system.

Note:

1. The entered username and password will determine the access rights of the KVM over IP Console Station.

2. If you wish to gain full access right of the KVM switch device, please use the username and password of a user with full access right.

3. If you select the desired device by clicking the "Device Name" or "IP Address" sections, the displayed name will show the IPv4 Address. Instead, IPv6 Address will be displayed when clicking the "IPv6 Address" section..

4. If a KVM over IP Switch is also added to CC2000 and has "Disable Other Authentication" configured in CC2000, the KVM over IP Console Station will not be able to access / control that switch.

Click "Reset" if you wish to re-enter the information.

The system will attempt to connect to the device. If successful, the device will be listed in the device list.

Changing Connection Information

If you wish to change the access right of a device connected to the KVM over IP Console Station, you will need to change to a user with the desired access right. Follow the steps below:

1. Select the device from the device list.
2. Edit the settings in the Device Information section:

1. Click "Save" to update the information.
2. Log out of the KVM over IP Console Station and log in again to see the updated settings / display / access right.

Chapter 5

System Configuration

Overview

System configuration allows users with administrative authority to manage users or groups, display device information, configure network, advanced network management (ANMS) or security settings, or manage firmware upgrade, system backup / restore, push / pull configurations to or from other devices, access terminal, or reset system to factory default settings.

Click on the System Configuration icon to enter its main page.

The page is consisted of a left-hand side menu and a right-hand side information / configuration body.

By default, device information is displayed upon entering system configuration page as shown above.

If an item in the side menu has a + or - symbol, a submenu is available when expanded. Expand the submenu by clicking the + symbol.

Collapse the submenu by clicking the - symbol.

User Management

This section allows you to manage users and groups.

Users and Groups

Groups allow administrators to easily and efficiently manage users and devices. Since device access rights apply to anyone who is a member of the group, administrators need only set them once for the group, instead of having to set them for each user individually. Multiple groups can be defined to allow some users access to specific devices, while restricting other users from accessing them.

The KVM over IP console station supports two privilege categories determined by "User Types". User types are selected during user creation. The description is shown in the table below:

User Types Role
Administrator	Access and manage devices. Manage Users and Groups.Configure the overall installation. Configure personal working environment.
User	Access authorized devices. Configure personal working environment.

Click "Users" or "Groups" under "User Management" in the left-hand side menu to bring out their respective configuration page.

User Page

Group Page

Add User

Since the management of users and groups are very similar, User is the example used for the operations below.

To add a user:

1. Click "Add User" on the top right-hand corner of the page.

The following will be displayed:

1. Enter the required information in the appropriate fields. A description of the required user fields are given in the table below:

Field Description
Username	1 to 32 characters are allowed depending on the Account Policy settings. See Account Policy on page 49.
Password	0 to 32 characters are allowed depending on the Account Policy settings. See Account Policy on page 49.
Confirm Password	To make sure there is no mistake in the password, please enter it again. The two entries must match.
Description	Additional information about the user that you may wish to include.
Role There are two categories: Administrator and User. There is no limitation on the number of accounts that can be created in each category.The Administrator is responsible for the overall installation configuration and maintenance; user management; and device assignments.Each user assigned to administrator role will have the privilege of adding KVM over IP switches by default.Please refer to Using User Configuration Page on page 35.
Status	Status allows you to control the user's account and access to the installation, as follows:Disable Account lets you suspend a user's account without actually deleting it, so that it can be easily reinstated in the future.To require a user to change his password at the next logon, select User must change password at next logon. This can be used by the administrator to give the user a temporary password to log in for the first time, and then let the user set the password of his choice for future logins.To make a password permanent, so that the user cannot change it to something else, select User cannot change password.

If you choose Groups in the left-hand side menu, click Add Group for the page below:

A description of the required fields are given in the table below:

Field Description
Group Name	Up to 32 characters are allowed.
Description	Additional information about the user that you may wish to include.A maximum of 45 characters is allowed.

1. You can assign the new user to a group by selecting the Groups tab – the Groups page is discussed on page 36. You can also assign the user's port access rights by selecting the Devices tab – the Devices page is discussed on page 39.

Note: Optionally, you can skip this step now to add more users and create groups, and come back to it later.

1. When your selections have been made click Save.
2. When the Operation Succeeded message appears, click OK.

Click Back on the top right-hand corner of the configuration body or click Users in the left-hand side menu to return to the User Management page.

The newly added user will appear in the configuration body.

- The information / configuration body shows the username, the description that was given when the account was created, whether the account is currently active or has been disabled and give you the option to modify or delete the user.

Copy User

To save time creating a user with similar settings / information, you may use the Copy User function. A “Copy User” button is shown on the top right-hand corner of the configuration body.

Select the user you wish to copy and click the "Copy User" button; follow the information in Add User to complete the configuration.

Modify User

If you wish to modify the user's information, click the pen icon under the "Modify" column of the information / configuration body.

For configurable fields, please refer to Add User above.

Delete User

If you wish to delete a user, click the X icon under the "Delete" column of the information / configuration body.

The system will ask for confirmation as shown below:

Click "Yes" to go ahead, or "No" to cancel action.

Managing (Assigning) Users and Groups

There are two ways to assign users to groups: from the Users configuration page; and from the Group configuration page.

Note: Before you can assign users to groups, you must first create them. See Add User on page 31 for details.

Using User Configuration Page

Follow the steps below to go to the User's configuration page:

1. Click "Users" under "User Management" in the left-hand side menu to bring out the configuration page.
2. Click the pen icon under the "Modify" column.
3. In the configuration page, select the Groups tab as shown:

Assign a User to a Group

1. In the Available column, select the group that you want the user to be in.

2. Click the >> icon button to put the group's name into the Selected column to add the user to group.

3. Repeat the above for any other groups that you want the user to be in.

4. Click Save when you are done.

Remove Users from a Group

1. In the Selected column, select the group that you want the user to be removed from.
2. Click the << icon button to remove the group's name from the Selected column to remove the user from the group.
3. Repeat the above for any other groups that you want the user to be removed from.
4. Click Save when you are done.

Using Group Configuration Page

Follow the steps below to go to the Group's configuration page:

1. Click "Groups" under "User Management" in the left-hand side menu to bring out the configuration page.
2. Click the pen icon under the "Modify" column.
3. In the configuration page, select the Members tab as shown:

Assign Users to a Group

1. In the Available column, select the members (users) that you want the group to have.
2. Click the >> icon button to put the members into the Selected column (thereby adding into the group).
3. Repeat the above to assign members to each group.
4. Click Save when you are done.

Remove Users from a Group

1. In the Selected column, select the members (users) to be removed from the group.
2. Click the << icon button to put the members into the Available column (thereby removing from the group).
3. Repeat the above to remove members from each group.
4. Click Save when you are done.

Device Assignment

This function assigns access rights to users or groups and can be achieved from Device configuration page. Administrators can assign users to a particular user's privileges of an added KVM over IP Switch and access ports.

Using Device Configuration Page

Follow the steps below to go to the User's configuration page:

1. Click "Users" under "User Management" in the left-hand side menu to bring out the configuration page.
2. Click the pen icon under the "Modify" column.
3. In the configuration page, select the Device tab as shown:

Each of the elements on this page is described below.

Devices

◆ The list displays the currently available device(s).
- When there is a change in the user accounts and groups for a device, please click the “Refresh” icon to refresh the user list of that device.

Device Users Config

• After selecting a device, the Available column (left column) lists the available users (of the device).
• The Selected column (right column) shows the selected user (of the device).
• Click the >> or << icon buttons to shift between Available and Selected.
• The user/group of the console station will gain the permission of the selected user (of the device).
• Each KVM over IP console station user can only be assigned to one user account privilege of the KVM over IP switch device.

Device Group Config

• After selecting a device, the Available column (left column) lists the available groups (of the device).
• The Selected column (right column) shows the selected groups (of the device).
• Click the >> or << icon buttons to shift between Available and Selected.
• The user/group of the console station will gain the permission of the selected groups (of the device).

User Device Management Login Information

• Checking this will block all selections in the Device Users Configuration and Device Groups Configuration sections, and grant the access rights of the user used to add this device.
• Please refer to Adding Device on page 27 with regards to the access rights.

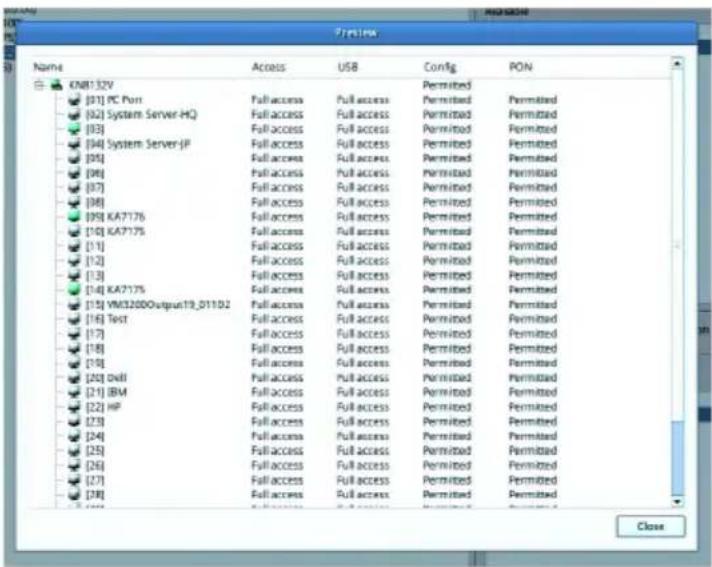

Preview

- Clicking this button will show the access rights of the above selections as exemplified below:

Device Management

This page shows device information and allows you to configure network, ANMS and security settings.

Note: Whenever a new setting is saved, the system will reboot.

Device Information

Click "Device" under "Device Management" in the left-hand side menu to bring out the information page.

Device Name	KAB278
MAC Address	00-10-74-A0-05-4E
Firmware Version	V1.0.062.20180329
FPGA	Build20180306.144042
IP Address	10.3.41.76
Subnet Mask	255.255.255.0
Gateway	10.3.41.254
Preferred DNS Server	10.0.1.7
Alternate DNS Server	10.0.1.6
IPv6 Address	fe80::210:74ff.fea0:S4e
IPv6 Subnet Prefix Length	64

The Device Information page displays the name of the selected device, its firmware version, the FPGA (Field-Programmable-Gate-Array) and information about its network configuration.

Double-click the Device Name (KA8278 in our example) to change the device name.

Network

The Network page is used to specify the network environment.

Click "Network" under "Device Management" in the left-hand side menu to bring out the information page.

Each of the elements on this page is described below.

IP Installer

The IP Installer is an external Windows-based utility for assigning IP addresses to the KVM over IP switch.

Click one of the radio buttons to select Enable, View Only, or Disabled for the IP Installer utility. See IP Installer, page 268, for IP Installer details.

Note:

1. If you select View Only, you will be able to see the KVM over IP switch in the IP Installer's Device List, but you will not be able to change the IP address.

2. For security, we strongly recommend that you set this to View Only or Disable after each use.

IPv4 Settings

IP Address:

IPv4 is the traditional method of specifying IP addresses. The KVM over IP Console Station can either have its IP address assigned dynamically (DHCP), or it can be given a fixed IP address.

• For dynamic IP address assignment, select Obtain IP address automatically (default).
• To specify a fixed IP address, select Set IP address manually and fill in the fields with values appropriate for your network.

Note:

1. If you choose Obtain IP address automatically, when the console station starts up it waits to get its IP address from the DHCP server. If it has not obtained the address after one minute, it automatically reverts to its factory default IP address (192.168.0.60.)
2. If the switch is on a network that uses DHCP to assign network addresses, and you need to ascertain its IP address, see Supported KVM Switches on page 94 for information.

DNS Server

• For automatic DNS Server address assignment, select Obtain DNS Server address automatically.
• To specify the DNS Server address manually, select Set DNS server address manually, and fill in the addresses for the Preferred and Alternate DNS servers with values appropriate for your network.

Note: Specifying the Alternate DNS Server address is optional.

IPv6 Settings

At present, the KVM over IP console station supports three IPv6 address protocols: Link Local IPv6 Address, IPv6 Stateless Autoconfiguration, and Stateful Autoconfiguration (DHCPv6).

IP Address:

IPv6 is the new (128-bit) format for specifying IP addresses. The KVM over IP console station can either have its IPv6 address assigned dynamically (DHCP), or it can be given a fixed IP address.

• For dynamic IP address assignment, select Obtain IP address automatically (default).
• To specify a fixed IP address, select Set IP address manually and fill in the fields with values appropriate for your network.

DNS Server

• For automatic DNS Server address assignment, select Obtain DNS Server address automatically.
• To specify the DNS Server address manually, select Set DNS server address manually, and fill in the addresses for the Preferred and Alternate DNS servers with values appropriate for your network.

Note: Specifying the Alternate DNS Server address is optional.

Finishing Up

After making any network changes, be sure to click "Save" at the bottom of the configuration page.

ANMS

The ANMS (Advanced Network Management Settings) page is used to set up login authentication and authorization management from external sources.

Click "ANMS" under "Device Management" in the left-hand side menu to bring out the information page.

RADIUS Settings

To allow authentication and authorization for the KVM over IP Console Station through a RADIUS server, do the following:

1. Check Enable.
2. Select Preferred or Alternate RADIUS server.
3. Fill in the IP addresses and service port numbers for the Preferred and Alternate RADIUS servers. You can use the IPv4 address, the IPv6 address or the domain name in the IP fields.

4. Select the Authentication Type: PAP or CHAP.

5. In the Timeout field, set the time in seconds that the KVM over IP console station waits for a RADIUS server reply before it times out.

6. In the Retries field, set the number of allowed RADIUS retries.
7. In the Shared Secret field, key in the character string that you want to use for authentication between the KVM over IP console station and the RADIUS Server. A minimum of 6 characters is required.
8. On the RADIUS server, Users can be authenticated with any of the following methods:

- Set the entry for the user as su/xxxx

Where xxxx represents the Username given to the user when the account was created on the KVM over IP console station.

• Use the same Username on both the RADIUS server and the KVM over IP console station.
• Use the same Username name on both the RADIUS server and the KVM over IP console station.

In each case, the user's access rights are the ones assigned that were assigned when the User of Group was created on the KVM over IP console station (see Adding Device on page 27).

AD / LDAP Settings

To allow authentication and authorization for the KVM over IP console station via AD / LDAP, refer to the information in the table, below:

Item Action
Enable Check the	checkbox to enable AD / LDAP authentication and authorization.
Type Click the drop	down menu to select between AD / LDAP.
Server IP	Select Preferred or Alternate LDAP Server and fill in the IP address and port number for the LDAP or LDAPS server.You can use the IPv4 address, the IPv6 address or the domain name in theLDAP Server field.For LDAP, the default port number is 389.
Timeout	This is the time in seconds that the KVM over IP console station waits for an AD or LDAP server reply before it times out.
Admin DN	Consult the AD / LDAP administrator to ascertain the appropriate entry for this field. For example, the entry might look like this: ou=kn8132,dc=aten,dc=com
Admin Name Key in the administrator username.
Password Key in the administrator password.
Search DN	Set the distinguished name of the search base. This is the domain name where the search starts for user names.

LDAP attribute is required for complete setup. LDAP attribute can be retrieved from the GET command using the Terminal interface. Please refer to Terminal on page 59 for more details.

On the AD / LDAP server, users can be authenticated with any of the following methods:

With MS Active Directory schema.
- Without schema – Only the Usernames used on the KVM over IP console station are matched to the names on the LDAP server. User privileges are the same as the ones configured on the switch.

- Without schema – Only Groups in AD are matched. User privileges are the ones configured for the groups he belongs to on the switch.

- Without schema – Usernames and Groups in AD are matched. User privileges are the ones configured for the User and the Groups he belongs to on the switch.

Note: For more information on configuring LDAP, you can download the full LDAP instructional manual from our website.

Finishing Up

After making any ANMS changes, be sure to click "Save" at the bottom of the configuration page.

Security

The Security page is divided into 3 main panels, as described in the sections that follow.

Click "Security" under "Device Management" in the left-hand side menu to bring out the information page.

Save

Login Failures

For increased security, the Login Failures section allows administrators to set policies governing what happens when a user fails to log in successfully. To set the Login Failures policy, check the Enable checkbox (the default is for Login Failures to be enabled). The meanings of the entries are explained in the table below:

Entry Explanation
Allowed	Sets the number of consecutive failed login attempts that are permitted from a remote computer. The default is 5 times.
Timeout	Sets the amount of time a remote computer must wait before attempting to login again after it has exceeded the number of allowed failures. The default is 3 minutes.

Note: If Login Failures is not enabled, users can attempt to log in an unlimited number of times with no restrictions. For security purposes, we recommend that you enable this function and enable the lockout policies.

Account Policy

In the Account Policy section, system administrators can set policies governing usernames and passwords.

The meanings of the Account Policy entries are explained in the table below:

Entry Explanation
Minimum Username Length	Sets the minimum number of characters required for a username from 1 to 32. The default is 6.
Minimum Password Length	Sets the minimum number of characters required for a password from 0 to 32. A setting of 0 means that no password is required. Users can login with only a username. The default is 6.
Password must Contain at least	Checking any of these items requires users to include at least one uppercase letter, one lowercase letter, or one number in their password.Note: This policy only affects user accounts created after this policy has been enabled and password changes to existing user accounts.
Enforce Password History	Check this to prevent users from logging in with the same account at the same time.

Working Mode

An explanation of the Working Mode items is given in the table below:

Item Explanation
Enable ICMP	Check/unchecked to allow/disallow the KVM over IP console station to be pinged. The default is Enabled.
Allow Push Request from Remote	Check/unchecked to allow/disallow another KVM over IP console station to push configuration or FW to your console station.
Allow Pull Request from Remote	Check/unchecked to allow/disallow another KVM over IP console station to pull configuration from your console station.
Console Keyboard Language	Click the drop down menu to select the console's local keyboard language.

Finishing Up

After making any Security changes, be sure to click "Save" at the bottom of the configuration page.

Maintenance

The Maintenance function is used to upgrade firmware; backup and restore configuration and account information; Push/pull configurations; send terminal commands, ping network devices; and restore default values.

Upgrade Main Firmware

As new versions of the firmware become available, they can be downloaded from our website. Check the website regularly to find the latest information and packages.

Click "Upgrade Main Firmware" under "Maintenance" in the left-hand side menu to bring out the information page.

To upgrade the main firmware:

1. Getting the newest firmware by downloading the firmware from Aten's website to a computer.
2. Unzip the .zip file for the .csf file and transfer it to a USB flash drive. Note: Please use FAT file system formatted USB flash drive(s).
3. Remove the USB flash drive from the computer and insert it to a USB port of the console station.
4. On the console station firmware page, click "Choose File" and a file management window will pop-up:

1. Navigate to the directory that the new firmware file is in, click to select the file and click "Open".

The file will be displayed in the Filename field of the configuration page as shown below:

1. Click Upgrade Main Firmware to start the upgrade procedure.

2. If you enabled Check Main Firmware Version the current firmware level is compared with that of the upgrade file. If the current version is equal to or higher than the upgrade version, a popup message appears, to inform you of the situation and stops the upgrade procedure.

3. If you didn't enable Check Main Firmware Version, the upgrade file is installed without checking what its level is.
   ◆ Upgrade progress information is shown in a Progress bar.

4. Once the upgrade completes successfully, the console station will restart.

5. Log in again and check if the firmware version is the newest one.

Note: To recover from a "failed upgrade" situation, see Firmware Upgrade Recovery on page 53.

Firmware Upgrade Recovery

Should the console station's main firmware upgrade procedure fail, and the console station becomes unusable, follow the firmware upgrade recovery procedure below to recover the console station to its original firmware version:

1. Power off the console station by unplugging the power adapter.
2. Press and hold the Reset Switch in using a sharp object.
3. While holding the Reset Switch in, power up the console station by replugging the power adapter.

This reverts the console station to use the original factory installed firmware. Try upgrading the main firmware again when the console station is operational (see Upgrade Main Firmware on page 51).

Backup / Restore

Backup/Restore gives you the ability to back up the console station's configuration and user profile information.

Click "Backup/Restore" under "Maintenance" in the left-hand side menu to bring out the information page.

Backup

To backup the device's settings:

Note: A USB flash drive is required to be connected to the console station to store the backup file.

1. (Optional) In the Password field, key in a password for the file.

Note:

1. Setting a password is optional. If you do not set one, the file can be restored without specifying a password.

2. If you do set a password, make a note of it, since you will need it to be able to restore the file.

3. Click "Backup". A file management window will pop-up as shown below:

1. In the File name field, enter a backup file name and click "Save". The system will display a success message to indicate successful backup.

Restore

To restore a previously-saved settings:

Note: A USB flash drive with the previously backed-up file is required to be connected to the console station for backup file retrieval.

1. Click the "Choose File" button for the file management window:

1. Where applicable, go to the directory with the backup file (.cfg), click to select the file (highlighted as shown above) and click "Open".

2. If you set a password when you created the file, key it in the Password field.

3. Select as many of the options that are presented as you wish to restore.

4. Click "Restore".

The system will display a success message to indicate the restoration was successful.

A "Your system will automatically restart in one minute" message will follow the success message above before the system restarts.

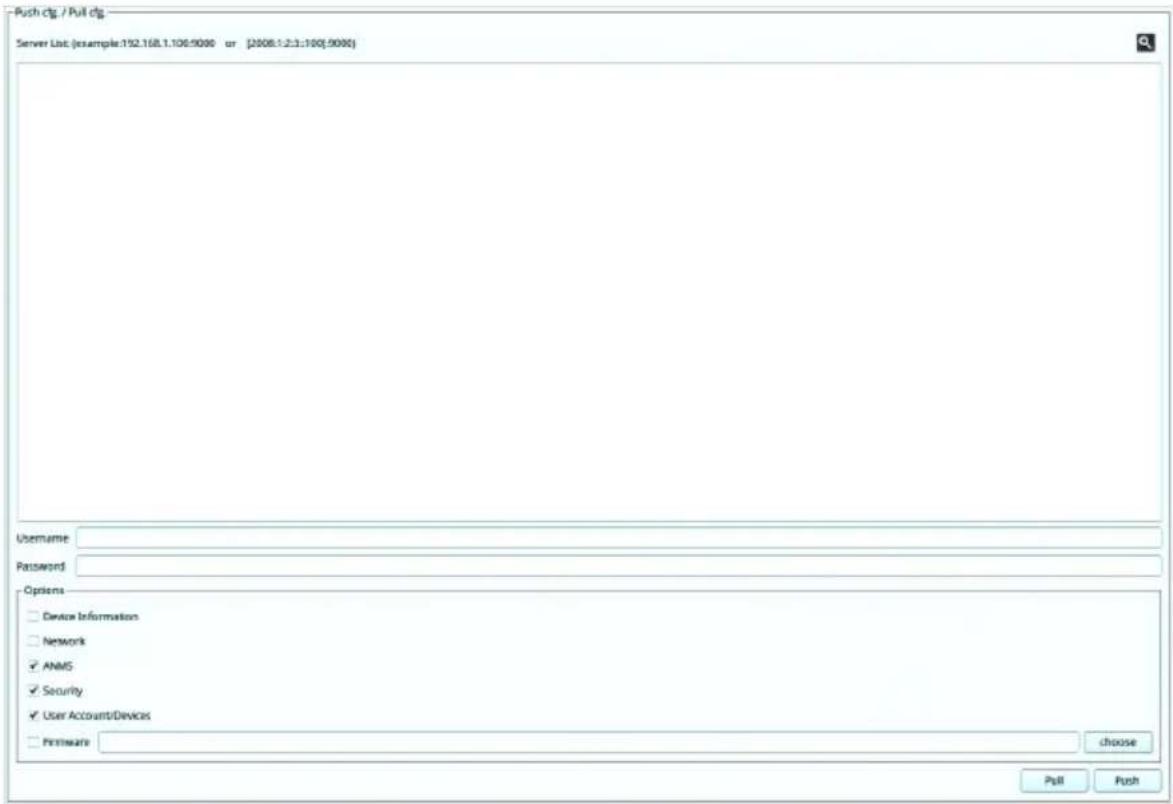

Push / Pull Configuration

Push / Pull Configuration gives you the ability to deploy or retrieve your settings to or from other console stations.

Click "Push cfg. / Pull cfg." under "Maintenance" in the left-hand side menu to bring out the information page.

Pull Configuration

To pull (retrieve) a configuration to your console station:

1. Enter the device's IP address or IPv6 Address you wish to retrieve the configuration from.

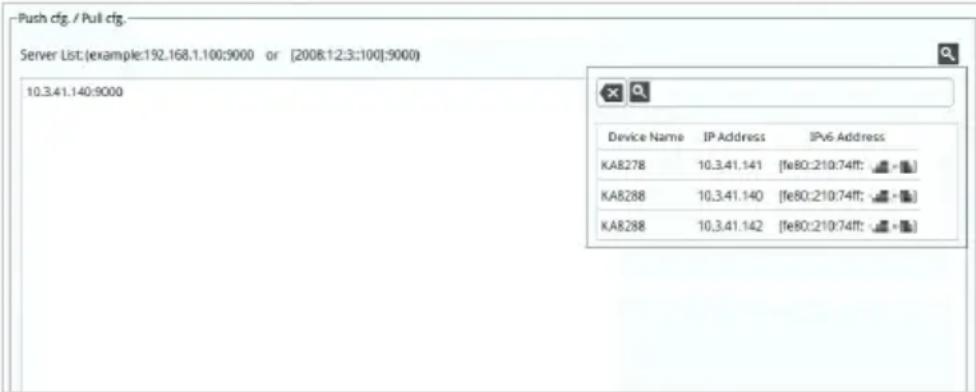

Alternatively, you can mouse over the magnifying glass to find a list of the devices on the same LAN and click the device's IP or IPv6 address:

1. Enter the administrative username and password of the selected device.

2. Select the information you would like to retrieve to your console station by checking the checkbox(es).

Note: Firmware files cannot be retrieved. If you check the Firmware checkbox, the Pull button will not be available.

1. Click Pull to retrieve the information.

The console station will restart after successfully retrieving the information.

Push Configuration

To push (deploy) a configuration from your console station:

Note: You can deploy the configuration / FW to multiple devices using one procedure (shown below) instead of one procedure for every device.

1. Enter the device's IP address(es) or IPv6 Address(es) you wish to deploy the configuration to.

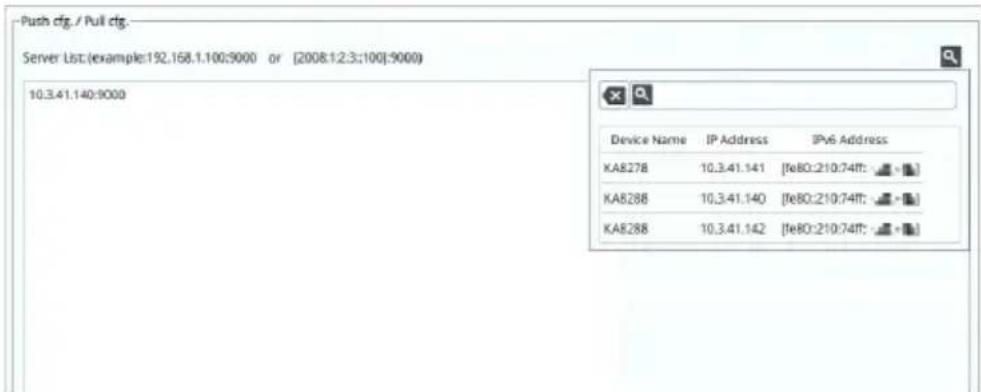

Alternatively, you can mouse over the magnifying glass to find a list of the devices on the same LAN and click the device's IP or IPv6 address:

1. Enter the administrative username and password of the selected device(s).

2. Select the information you would like to deploy from your console station by checking the checkbox(es).

Note: If you checked the Firmware checkbox, please remember to click the Choose button to select a firmware from a USB flash drive.

1. Click Push to deploy the information.

The console station(s) will restart after successfully receiving the deployment information.

Terminal

Terminal provides a command line to execute options using a terminal interface. Type a command in the window and hit [Enter] to execute it.

Click "Terminal" under "Maintenance" in the left-hand side menu to bring out the terminal page.

Note: Expand the submenu by clicking the + symbol if "Terminal" is not shown.

Completely black image with no visible content or text.

Available commands include:

• GET => Gets current configuration.
• HELP => Provides Help information for commands.
  ♦ CLEAR => Clears the screen.
  ◆ PING => Displays ping host information.
  SETLDAPMEMBER => Sets new value for ldap member.
  SETLDAPMEMBEROF => Sets new value for ldap memberof.
  ♦ SETPROMPT => Sets prompt string.
• TRACERT => Displays trace route information.
  ◆ DEVICEHISTORY => Clear/Enable/Disable device list history
  ♦ SELFDIAGNOSTIC => Self Diagnostic

System Operation

The System Operation page lets you restore certain configuration changes that were made to the KVM over IP console station back to their original factory default values.

Reset Default Values

Clicking this button undoes all Customization page changes that have been made to the KVM over IP console station and returns the parameters to the original factory default settings.

The system will ask for confirmation:

Click Yes to go ahead. The system will restart after the reset.

Click No to cancel operation.

Reset on exit:

If you checked the checkbox, the system will ask if you would like to reset the KVM over IP console station (and implement all the new settings) upon exiting the System Configuration page.

Click Yes to go ahead with the reset (the system will also reboot).

Click No if you do not want the system to be reset.

If you change the console station's IP Address (see Network on page 41), the checkbox is automatically checked and the console station will reset when you exit the page.

If you clear the check mark before exiting the page, the changed IP settings will be ignored and the original IP address settings will remain in effect.

Note: Even though the changed IP settings are ignored, they still remain in the network settings fields. Which means that the next time you open this page the Reset on exit checkbox will automatically be enabled, and when the console station resets, the new IP settings that you thought you discarded will become the ones used by the console station. To avoid this problem, you should go back to the network settings page and be sure that the IP settings that appear in the fields are the ones you want to use.

Quick User Configuration

The user icon allows quick access to password change, configure preferences, logout, restart the system, shut down the system, or display quick information about the console station.

Click the User icon for its menu:

Option Description
Change Password	Click this option to change the password of the current user.
User Preferences	Select the preferred language from the scroll menu. Language change will be shown immediately.Logout Timeout is the idle time period (no actions) where the system automatically logs you out. Set a logout timeout time in minutes. Enter 0 if you do not want the system to log you out from idling.
Logout Click this option to log out of the system.
Restart Click this option to restart the system.
Shutdown Click this option to safely shut down the system.This is recommended way to shut down the system. Pull the power adapter after the system display a safe-to-shutdown message.
About Click this option to display the KVM over IP console station's device name, firmware version, IP address, and IPv6 address

Chapter 6

Toolbar Interface

Overview

The KVM over IP console station's interface provides a toolbar to help you with the remote control operations on the captured port. The toolbar is usually hidden.

To bring up the toolbar, locate a down arrow symbol as shown:

Blue gradient background with a white cursor pointer and a red rectangular border (no text or symbols)

Mouse over the down arrow symbol to bring up the toolbar.

The meanings of the toolbar icons are explained in the table below:

Icon Purpose
	Video iconThis icon brings up the video settings. Please see Video Settings on page 65 for more details.
	Macros iconThis icon provides access to three functions found in the Macros dialog box: Hotkeys, User Macros, and System macros. Please see Macros on page 67 for more details.Mouse Sync Mode iconThis provides automatic locked-in synching of the remote and local mouse pointers – eliminating the need to constantly resync the two movements.Click the icon to toggle between Auto Mouse Sync Mode (mouse icon with an A) and Manual Mouse Sync Mode (mouse icon with an M).Please see Mouse Sync Mode on page 79 for more details.
	Connect iconClick for a list of available ports. Click to select the port you wish to connect to.
	Configuration iconClick for further configurations.Please see Further Configuration on page 74.

Exit Remote Location

There are two ways to exit from the remote control operations on the captured port.

1. Click Back

On the toolbar interface, click the "Configuration icon" for more operation options. Click Back to exit remote location.

2. Use Macros

By default, pressing the "Exit Remote Location" hot keys (F2, F3, F4) will also exit remote location.

Note: Use the updated hot keys should there be a change to this function's hot key.

Video Settings

Click the Video icon on the toolbar to bring up the Video Settings dialog box. The options in the basic dialog box allow you to adjust the Screen Position, set Auto Sync, slide-to-adjust Performance bar setting, Enhanced Text Mode, slide-to-adjust Video Quality bar, and Set to Grayscale.

The meanings of the video adjustment options are given in the table below:

Options Description / Operation
Screen Position	Adjust the horizontal and vertical position of the remote server window by clicking the Arrow buttons.
Video Auto-Sync	Click Video Auto Sync to have the vertical and horizontal offset values of the remote screen detected and automatically synchronized with the local screen.Note:If the local and console station mouse pointers are out of sync, in most cases, performing this function will bring them back into sync.This function works best with a bright screen.If you are not satisfied with the results, use the Screen Position arrows (on the right) to position the remote display manually.
Preset / Customization	Using the Preset and Custom buttons allow you to set and save custom video settings, and revert back to default video settings.
Performance Use	the slide bar to select the type of Internet connection that the console station uses. Dragging the performance bar will also automatically adjust the Video Quality settings to optimize the quality of the video display.Since network conditions vary, if none of the preset choices seem to work well, you can use the Video Quality slide bar to adjust the settings to suit your conditions.
Enhanced Text Mode	Check to enhance color and video quality, especially for texts.
Video Quality Drag	the slider bar to adjust the overall Video Quality. The larger the value, the clearer the picture and the more video data goes through the network. Depending on the network bandwidth, a high value may adversely effect response time.
Set to Grayscale Check to set video display to grayscale.

Macros

The Macros icon provides access to three functions found in the Macros dialog box: Hotkeys, User Macros, and System Macros. Each of these functions is described in the following sections.

Hotkeys

Various actions related to manipulating the remote server can be accomplished with hotkeys. The Hotkey Setup utility (accessed by clicking this icon), lets you configure which hotkeys perform the actions.

Each action in the Actions column corresponds to the hot keys in the HotKey column on the same row. Check the checkbox in the Enable column on the same row to enable its hotkey.

To change the hotkey for an action:

1. If you are not in the "Hotkeys" tab, click to select to go into the Hotkeys page.

2. Highlight the Action and click Set Hotkey for the window dialog below:

1. Press your selected Function keys (one at a time). The key names will appear in the Hotkeys field as you press them.

2. You can use the same function keys for more than one action, as long as the key sequence is not the same.

3. To cancel setting a hotkey value, click Cancel; to clear an action's Hotkeys field, click Clear.

4. When you have finished keying in your sequence, click Save.

To reset all the hotkeys to their default values, click Reset.

An explanation of the Hotkey actions is given in the table below:

Action Explanation
Exit Remote Location	Breaks the connection to the KVM over IP console station and returns you to console station operation. This is equivalent to clicking the Back option under the Configuration icon of the toolbar. The default keys are F2, F3, F4.
Adjust Video	Brings up the Video Settings dialog box. This is equivalent to clicking the Video Settings icon on the console station toolbar. The default keys are F5, F6, F7.
Adjust Mouse	This synchronizes the local and remote mouse movements. The default keys are F8,F7,F6.
Video Auto-Sync	This combination performs an auto-sync operation. It is equivalent to clicking the Video Auto Sync button in the Video Settings dialog box. The default keys are F6,F7,F8.
Show / Hide Local Cursor	Toggles off and on: hides local cursor and locks the mouse pointer and keyboard use within the Windows/Java Client AP window, plus hides the control panel. This is equivalent to selecting the Single pointer type from the Mouse Pointer option under the Configuration icon of the toolbar. The default keys are F4,F5.

User Macros

User Macros are created to perform specific actions on the remote server. To create a macro, do the following:

1. If you are not in the "Macros" tab, click to select to go into the Macros page.

1. Select User Macros and click the + symbol.

1. In the dialog box, you can choose to replace the "New Macro" text with a name of your choice for the macro.
2. Click Set Macro followed by Record.

The dialog box disappears as a small panel appears at the top left of the screen:

1. Press the keys for the macro.

2. To pause macro recording, click Pause. To resume, click Pause again.

3. Clicking Cancel cancels all keystrokes.

Note:

1. Case is not considered – typing A or a has the same effect.

2. Only the default keyboard characters may be used. Alternate characters cannot be used. For example, if the keyboard is Traditional Chinese and default character is A the alternate Chinese character obtained via keyboard switching is not recorded.

3. When finished, click Stop. You will return to the Macros dialog box with your macro key presses displayed in the Macro column:

1. If you want to change any of the keystrokes, select the macro, click Set Macro followed by Edit. This brings up a dialog box. You can change the content of your keystrokes, change their order, etc.

1. Click Save to save the changes, or click Cancel to cancel the changes. Both option will return you to the Macros dialog box.
2. Repeat the procedure for any other macros you wish to create.

After creating your macros, you can run them in any of three ways:

1. By using the hotkey (if one was assigned).
2. By playing it in this dialog box.

If you run the macro from this dialog box, you have the option of specifying how the macro runs. Click the down arrow symbol to select your option.

• No Wait: The macro runs the key presses one after another with no time delay between them.
• Time Ctrl (time control): The macro waits for the amount of time between key presses that you took when you created it.
  If you click the Play symbol without selecting an option, the macro runs with the default choice (No Wait or Time Ctrl), which is shown in the Playback Mode column.

You can change the default choice by clicking on the current choice (No Wait in the screenshot above), and selecting the alternate choice.

Import / Export Macros

The import / export function allows you to import or export macros from or to a USB flash drive.

- Click the import symbol to search through the USB flash drive to import the macros.

- Click the export symbol + and enter a name to save the macros to the USB flash drive.

Delete Macros

To delete a macro, click to select the macro and click the trash can symbol to delete a macro.

Search Macros

The search function (on the top right-hand side of the dialog box) lets you filter the list of macros that appear in the list. Click the drop-down arrow (next to the magnifying glass icon) to choose whether you want to search by name or by key; enter a string in the search field for the search; then click the Search symbol (magnifying glass symbol). All instances that match your search string appear in the list.

System Macros

System Macros are used to create exit macros for when you close a session. For example, as an added measure of security, you could create a macro that sends the Winkey-L combination which would cause the remote server's login page to come up the next time the device was accessed.

Ways to create, delete or search for macros are the same as User Macros, please refer to User Macros on page 69. System macros cannot be imported or exported.

For more information on system macros for different KVM over IP switches, please refer to their user manuals.

Further Configuration

More configuration options are available when clicking the configuration icon:

Options Description
Switch Display When you have a dual-display model (KA8278 or KA8288) and have both displays connected, this option will appear to allow you to switch between the two displays.
Video Auto-Sync Click to perform a video and mouse autosync operation. It is the same as clicking the Auto Sync button in the Video Options dialog box (see Video Settings on page 65).
Virtual Media	Click to bring up the Virtual Media dialog box. See Virtual Media on page 75 for specific details.Note: This icon displays in gray when the function is disabled or not available.
Message Board	Click to bring up the Message Board (see Message Board on page 77).
Speaker Click to toggle sound from the remote server to be heard on the client computer's speakers on or off. The option is grayed out when the speaker is toggled Off.
Mouse Pointer Mouse over the option and click to select the mouse pointer type.Note: In the main GUI page, only Dual and Crosshairs are available. In a port page, three pointers are available.
Mouse Sync Mode	Mouse over the option and click to select the mouse sync mode.Please see Mouse Sync Mode on page 79.
Open GUI Click to	open the GUI of the connected KVM over IP switch. Please refer to the user manual of the connected KVM over IP switch for more details.
Back Click to return	to the page on the KVM over IP Console Station that brought you here.
About Click to get	information about this connection.The information include Device Name, IP Address, Current Port, Video Mode and Channel / User Numbers.

Virtual Media

The Virtual Media feature allows a USB removable disk on a user's system to appear and act as if it were installed on the remote server. To mount a virtual media device:

1. Click the Virtual Media icon to bring up the Virtual Media dialog box:

1. Click the + symbol and select the media source.

1. If your device only supports full speed USB, check the Disable High Speed USB Operation Mode checkbox.

2. To add additional media sources, click the + symbol, and select the source as many times as you require. Up to two virtual media choices can be mounted. The top three in the list are the ones that are selected. Virtual Media and Smart Card readers can be mounted at the same time. To rearrange the selection order, highlight the device you want to move, then click the Up or Down Arrow button to promote or demote it in the list.

3. Read refers to the redirected device being able to send data to the remote server; Write refers to the redirected device being able to have data from the remote server written to it. For the redirected device to be writable as well as readable, click to put a check in the Enable Write checkbox:

Note: If a redirected device cannot be written to, it appears in gray.

1. To remove an entry from the list, select it and click the trash can icon.

2. After you have made your media source selections, click Mount. The dialog box closes. The virtual media devices that you have selected are redirected to the remote server, where they show up as drives on the remote server's file system.

Once mounted, you can treat the virtual media as if they really existed on the remote server – drag and drop files to/from them;

open files on the remote server for editing and save them to the redirected media, etc.

1. To end the redirection, bring up the Control Panel and click on the Virtual Media icon. All mounted devices are automatically unmounted.

Message Board

The KVM over IP console station supports multiple user logins, which may cause access conflicts. To alleviate the problem, a message board has been provided, which allows users to communicate with each other.

Buttons

The buttons in the dialogue box toggles actions and are described in the table below:

Button Action
	Enable/Disable Chat. When disabled, messages posted to the board are not displayed. The button is shadowed when Chat is disabled. The icon displays next to the user's name in the User List panel when the user has disabled Chat.
Button Action
	Occupy/Release Keyboard/Video/Mouse. When you Occupy the KVM, other users cannot see the video, and cannot input keyboard or mouse data. The button is shadowed when the KVM is occupied. The icon displays next to the user's name in the User List panel when the user has occupied the KVM.
	Occupy/Release Keyboard/Mouse. When you Occupy the KM, other users can see the video, but cannot input keyboard or mouse data. The button is shadowed when the KM is occupied. The icon displays next to the user's name in the User List panel when the user has occupied the KM.
	Show/Hide User List. When you Hide the User List, the User List panel closes. The button is shadowed when the User List is open.

Message Display Panel

Messages that users post to the board - as well as system messages - display in this panel. If you disable Chat, however, messages that get posted to the board will not appear.

Compose Panel

Key in the messages that you want to post to the board in this panel. Click Send to post the message to the board.

User List Panel

The names of all the logged in users are listed in this panel.

• Your name appears in blue; other users' names appear in black.
• By default, messages are posted to all users. To post a message to one individual user, select the user's name before sending your message.
  If a user's name is selected, and you want to post a message to all users, select All Users before sending your message.
  If a user has disabled Chat, the disable chat icon will be displayed on the left of user's name.
  If a user has occupied the KVM or the KM, the corresponding icon will be displayed on the left of the user's name.

Mouse Sync Mode

Synchronization of the local and remote mouse pointers is accomplished either automatically or manually.

Automatic Mouse Synchronization

This provides automatic locked-in synching of the remote and local mouse pointers – eliminating the need to constantly resync the two movements.

Manual Mouse Synchronization

If the local mouse pointer goes out of sync with the remote system's mouse pointer there are a number of methods to bring them back into sync:

1. Perform an Auto Sync with the Video Adjustment function (see Video Settings, page 79, for details).
2. Invoke the Adjust Mouse function with the Adjust Mouse hotkeys (see Adjust Mouse on page 68 for details).
3. Set the mouse speed and acceleration for each problematic server attached to the switch. See the user manual of the corresponding KVM over IP switch for instructions.

Mac and Linux Considerations

• For Mac OS versions 10.4.11 and higher, there is a second Sync setting to choose from. If the default Mouse Sync result is not satisfactory, try the Mac 2 setting. To select Mac 2, click the Further Configuration icon, mouse over Mouse Sync Mode → Automatic for Mac 2:
• Linux does not support Sync Mode, but there is a setting on the Mouse Sync Mode menu for Redhat AS3.0 systems. If you are using a USB Adapter Cable, with an AS3.0 system and the default mouse synchronization is not satisfactory, you can try the Redhat AS3.0 setting. In either case, you must perform the manual mouse synchronization procedures described above.

Safety Instructions

General

• This product is for indoor use only.
• Read all of these instructions. Save them for future reference.
• Follow all warnings and instructions marked on the device.
• Do not place the device on any unstable surface (cart, stand, table, etc.). If the device falls, serious damage will result.
• Do not use the device near water.
• Do not place the device near, or over, radiators or heat registers.
• The device cabinet is provided with slots and openings to allow for adequate ventilation. To ensure reliable operation, and to protect against overheating, these openings must never be blocked or covered.
• The device should never be placed on a soft surface (bed, sofa, rug, etc.) as this will block its ventilation openings. Likewise, the device should not be placed in a built-in enclosure unless adequate ventilation has been provided.
• Never spill liquid of any kind on the device.
• Avoid circuit overloads. Before connecting equipment to a circuit, know the power supply's limit and never exceed it. Always review the electrical specifications of a circuit to ensure that you are not creating a dangerous condition or that one doesn't already exist. Circuit overloads can cause a fire and destroy equipment.
• Unplug the device from the wall outlet before cleaning. Do not use liquid or aerosol cleaners. Use a damp cloth for cleaning.
• The device should be operated from the type of power source indicated on the marking label. If you are not sure of the type of power available, consult your dealer or local power company.
• To prevent damage to your installation it is important that all devices are properly grounded.

• The device is designed for IT power distribution systems with 230V phase-to-phase voltage.

• The device is equipped with a 3-wire grounding type plug. This is a safety feature. If you are unable to insert the plug into the outlet, contact your electrician to replace your obsolete outlet. Do not attempt to defeat the purpose of the grounding-type plug. Always follow your local/national wiring codes.

• Do not allow anything to rest on the power cord or cables. Route the power cord and cables so that they cannot be stepped on or tripped over.
  If an extension cord is used with this device make sure that the total of the ampere ratings of all products used on this cord does not exceed the extension cord ampere rating. Make sure that the total of all products plugged into the wall outlet does not exceed 15 amperes.
• To help protect your system from sudden, transient increases and decreases in electrical power, use a surge suppressor, line conditioner, or un-interruptible power supply (UPS).
• Position system cables and power cables carefully; Be sure that nothing rests on any cables.

• When connecting or disconnecting power to hot-pluggable power supplies, observe the following guidelines:

• Install the power supply before connecting the power cable to the power supply.

• Unplug the power cable before removing the power supply.

• If the system has multiple sources of power, disconnect power from the system by unplugging all power cables from the power supplies.

• Never push objects of any kind into or through cabinet slots. They may touch dangerous voltage points or short out parts resulting in a risk of fire or electrical shock.

• Do not attempt to service the device yourself. Refer all servicing to qualified service personnel.

• If the following conditions occur, unplug the device from the wall outlet and bring it to qualified service personnel for repair.

• The power cord or plug has become damaged or frayed.
  ◆ Liquid has been spilled into the device.

• The device has been exposed to rain or water.

• The device has been dropped, or the cabinet has been damaged.

• The device exhibits a distinct change in performance, indicating a need for service.

• The device does not operate normally when the operating instructions are followed.

- Only adjust those controls that are covered in the operating instructions. Improper adjustment of other controls may result in damage that will require extensive work by a qualified technician to repair.

Additional protection to secure and fix the equipment is needed if the equipment is installed by stacking; by locking it to the rack, screwing it to the frame, or other similar methods.

- Keep the Cat 5e/6 cable as far away as possible from potential sources of EMI, such as electrical cables, transformers, and light fixtures. Do not tie the cables to electrical conduits or lay the cables on electrical fixtures.

Rack Mounting

• Before working on the rack, make sure that the stabilizers are secured to the rack, extended to the floor, and that the full weight of the rack rests on the floor. Install front and side stabilizers on a single rack or front stabilizers for joined multiple racks before working on the rack.
• Always load the rack from the bottom up, and load the heaviest item in the rack first.
• Make sure that the rack is level and stable before extending a device from the rack.
• Use caution when pressing the device rail release latches and sliding a device into or out of a rack; the slide rails can pinch your fingers.
• After a device is inserted into the rack, carefully extend the rail into a locking position, and then slide the device into the rack.
• Do not overload the AC supply branch circuit that provides power to the rack. The total rack load should not exceed 80 percent of the branch circuit rating.

• Make sure that all equipment used on the rack – including power strips and other electrical connectors – is properly grounded.
  ◆ Ensure that proper airflow is provided to devices in the rack.

• Ensure that the operating ambient temperature of the rack environment does not exceed the maximum ambient temperature specified for the equipment by the manufacturer

• Do not step on or stand on any device when servicing other devices in a rack.

• For online technical support – including troubleshooting, documentation, and software updates: http://eservice.aten.com
• For telephone support, see Telephone Support on page iii.

North America

Email Support [e-mail]
Online Technical Support	Troubleshooting Documentation Software Updates	http://eservice.aten.com
Telephone Support 1-888-999-ATEN		ext 49881-949-428-1111

When you contact us, please have the following information ready beforehand:

• Product model number, serial number, and date of purchase.
• Your computer configuration, including operating system, revision level, expansion cards, and software.
• Any error messages displayed at the time the error occurred.
• The sequence of operations that led up to the error.
  ◆ Any other information you feel may be of help.

Specifications

Function KA8270 KA8278 KA8280 KA8288
Connectors
Video	1 x HDB-15 Female	1 x HDB-15 Female1 x HDMI Female	1 x HDMI Female 2	x HDMI Female
RS-232 1 x DB-9 Male
Power 1 x DC	Jack
Audio 2 x Audio	Jack Female
LAN Ports 1 x	RJ-45 Female
Keyboard 1 x	USB Type-A Female
Mouse 1 x USB	Type-A Female
USB Port 2 x	USB Type-A Female
Cascade Port	1 x RJ-45 Female
LEDs
Power 1 (Blue)
Switches
Power 1 x Push button
Reset 1 x Semi-recessed Push button
Video 1920 x	1200 @ 60Hz
Power Consumption	DC 5V 4.66W	DC 5V 6.53W	DC 5V 4.66W	DC 5V 6.53W
Environmental
Operating Temperature	0° - 40°C
Storage Temperature	-20° - 60°C
Humidity	0-80% RH, Non-condensing
Physical Properties
Housing	Metal
Weight	0.75 kg	0.8 kg	0.75 kg	0.8 kg
Dimensions (L x W x H)	17.42 x 15.54 x 2.88 cm	17.42 x 15.54 x 2.88 cm	17.42 x 15.54 x 2.88 cm	17.42 x 15.54 x 2.88 cm

Troubleshooting

General Operation

Problem Resolution
I have been given an account but I am unable to log in.	1. Make sure that you have correctly specified your Username and Password.2. Make sure that the administrator has given you the necessary permission to access the console station.
Sudden loss of network connection.	Close your connection to the KVM over IP console station. Wait approximately 30 seconds, and log in again.
The display on the client computer is distorted and performing an Autosync doesn't resolve the problem.	Switch ports to a port with a different resolution, then switch back.If the above didn't resolve the problem, change the resolution and refresh rate for the system running on the port. Afterward, you can either run at the new resolution, or switch back to the original resolution.

Mouse Problems

Problem Resolution
Mouse and/or Keyboard not responding.	Unplug the cable(s) from the console port(s), then plug it/ them back in.
Mouse movement extremely slow	There is too much data being transferred for your connection to keep up with. Lower the video quality (Video Settings on page 65) so that less video data is transmitted.
There are two mouse pointers after the remote server is accessed.	You can select another pointer type. See Mouse Pointer on page 74.
Why is there a Dual Pointer mode?	When you are not in Mouse Sync Mode, you need the two pointers so that you know the remote server pointer is actually at the location you think it is at. Otherwise, you might perform a mouse operation and, because of net lag, the remote server pointer may not be at the location that your client computer pointer is at.
Mouse pointer confusion If you find the display of two mouse pointers (local and remote) to be confusing or annoying, you can use the Toggle Mouse Display function to shrink the non-functioning pointer. See Mouse Pointer on page 74.

Virtual Media

Problem Resolution
Virtual Media doesn’t work.	The remote server’s mainboard does not support USB. If there is a newer firmware and BIOS version for the remote server’s mainboard – one that supports USB – get it from the manufacturer and upgrade the server’s mainboard firmware and BIOS.

Panel Array Mode

Problem Resolution
Low resolution video – the screens don’t display clearly.	This sometimes occurs due to the screens being scaled to fit in the panels. Decrease the number of panels that are displayed.

Supported KVM Switches

The fully supported KVM over IP switches that the console station is able to remotely access, monitor and control are KN1132V, KN2116VA, KN4116VA, KN2132VA, KN4132VA, KN4164V, KN8132V, KN8164V, KN2124VA, KN4124VA, KN2140VA, and KN4140VA.

Note: The aforementioned KVM over IP switches require firmware version v1.6.151 or above to support the KVM over IP Console Station.

Limited Warranty

ATEN warrants its hardware in the country of purchase against flaws in materials and workmanship for a Warranty Period of two [2] years (warranty period may vary in certain regions/countries) commencing on the date of original purchase. This warranty period includes the LCD panel of ATEN LCD KVM switches. Select products are warranted for an additional year (see A+ Warranty for further details). Cables and accessories are not covered by the Standard Warranty.

What is covered by the Limited Hardware Warranty

ATEN will provide a repair service, without charge, during the Warranty Period. If a product is detective, ATEN will, at its discretion, have the option to (1) repair said product with new or repaired components, or (2) replace the entire product with an identical product or with a similar product which fulfills the same function as the defective product. Replaced products assume the warranty of the original product for the remaining period or a period of 90 days, whichever is longer. When the products or components are replaced, the replacing articles shall become customer property and the replaced articles shall become the property of ATEN.

To learn more about our warranty policies, please visit our website: http://www.aten.com/global/en/legal/policies/warranty-policy/
