| Product Type | Turntable with built-in speakers and USB encoding |
| Dimensions (W x D x H) | 400 x 360 x 125 mm (15.75 x 14.17 x 4.92 in) |
| Weight | 2.8 kg (6.17 lbs) |
| Power Supply | AC 100-240V 50/60Hz via external adapter (output 12V DC 1A) |
| Speeds | 33 1/3, 45, 78 RPM |
| Drive Type | Belt drive |
| Cartridge | Stereo ceramic cartridge with replaceable stylus |
| Output Options | Built-in stereo speakers, RCA line out, headphone jack (3.5mm) |
| USB Port | USB-B for converting vinyl to MP3 via included software |
| Built-in Speakers | Yes, 2 x 3W full-range drivers |
| Headphone Jack | Yes, 3.5mm with independent volume control |
| Auto Stop | Yes, stops at end of record |
| Dust Cover | Included, hinged |
| Material | MDF cabinet with wood grain finish |
| Color Options | Black, Walnut |
| Features | Bluetooth input, RCA output, USB encoding, headphone jack, 3 speeds |
| Care Instructions | Keep away from moisture; clean with dry cloth; replace needle after 400 hours of use |
| Safety | Use only supplied adapter; do not disassemble; keep out of reach of children |
| Spare Parts | Replacement stylus (model JENSEN-JTA410S), belt (model JENSEN-JTA410B) available online |
| Reparability | User-replaceable stylus and belt; other repairs by qualified technician |
Frequently Asked Questions - JTA-410 JENSEN
How do I switch between 33, 45, and 78 RPM?
The speed selector is located on the top panel. Move the switch to the desired speed: 33 for LP, 45 for single, and 78 for vintage records. Ensure the turntable is on and the platter is rotating.
Can I connect external speakers to the Jensen JTA-410?
Yes, use the RCA line out jacks on the back. Connect to an amplifier or powered speakers. The built-in speakers will mute automatically when you plug in the RCA cables.

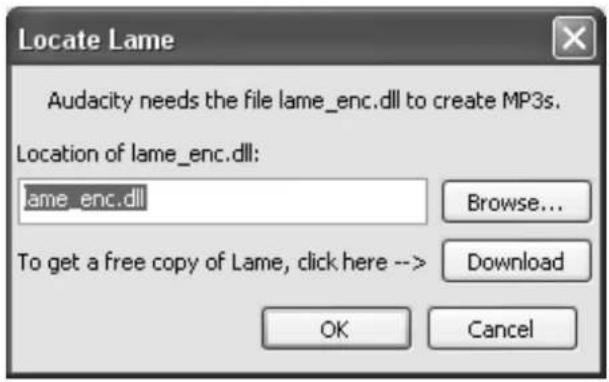

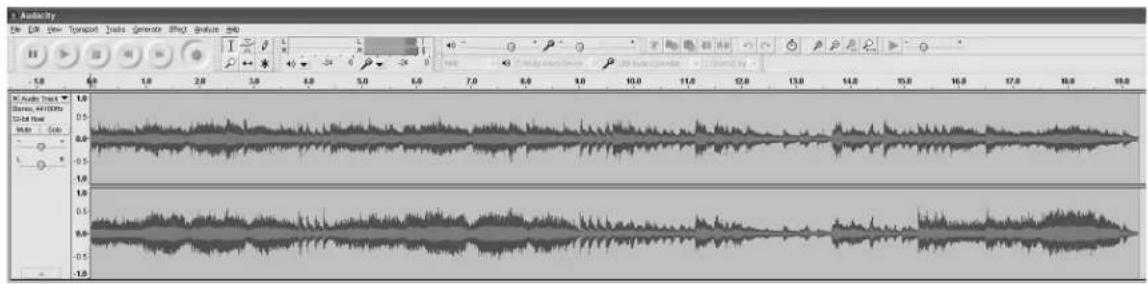

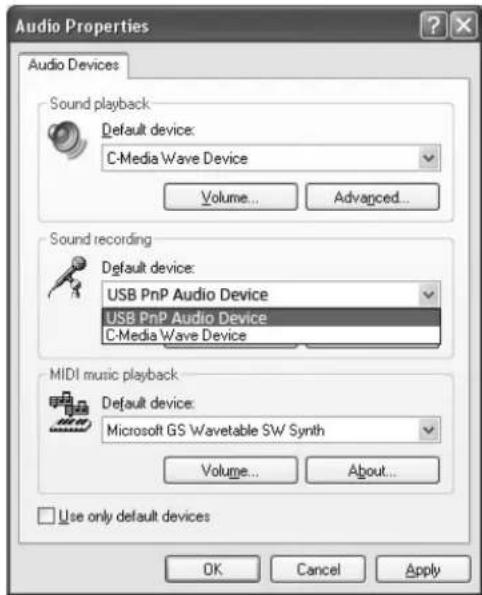

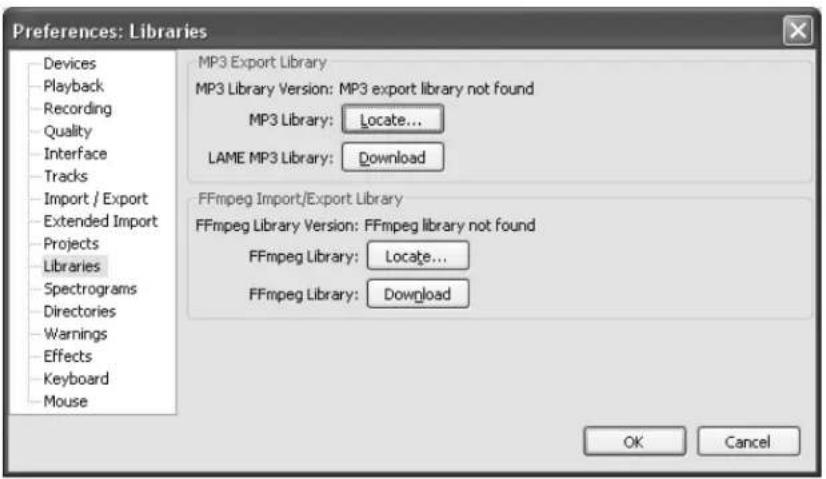

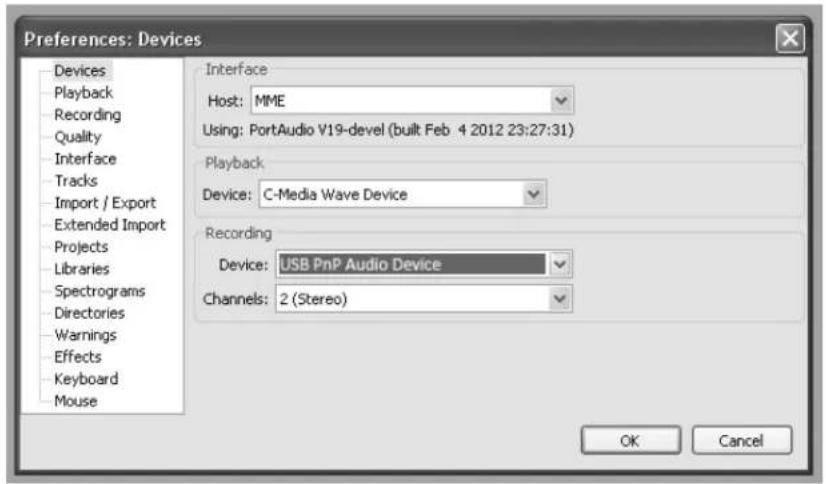

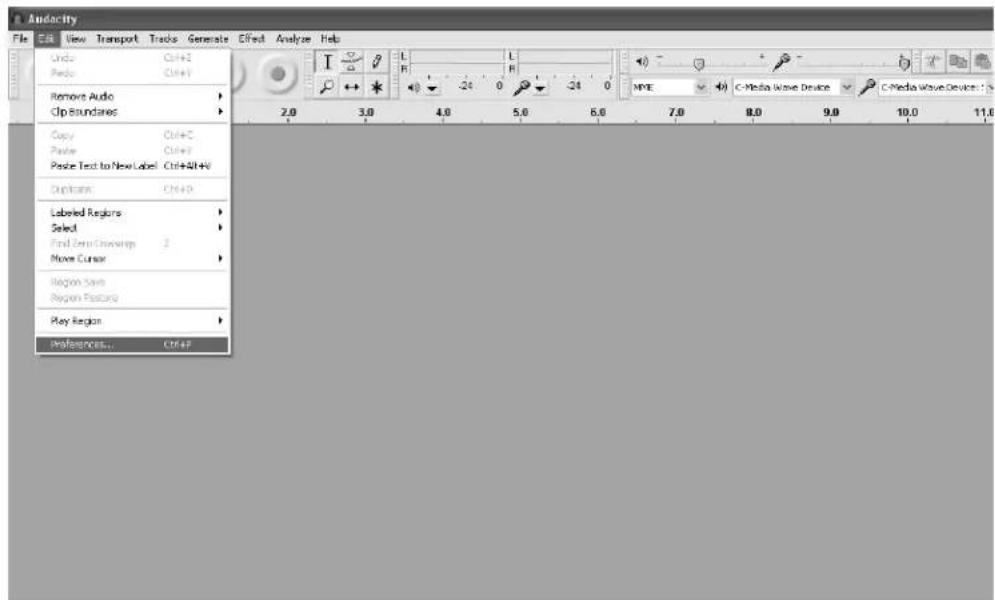

How do I convert vinyl to MP3?

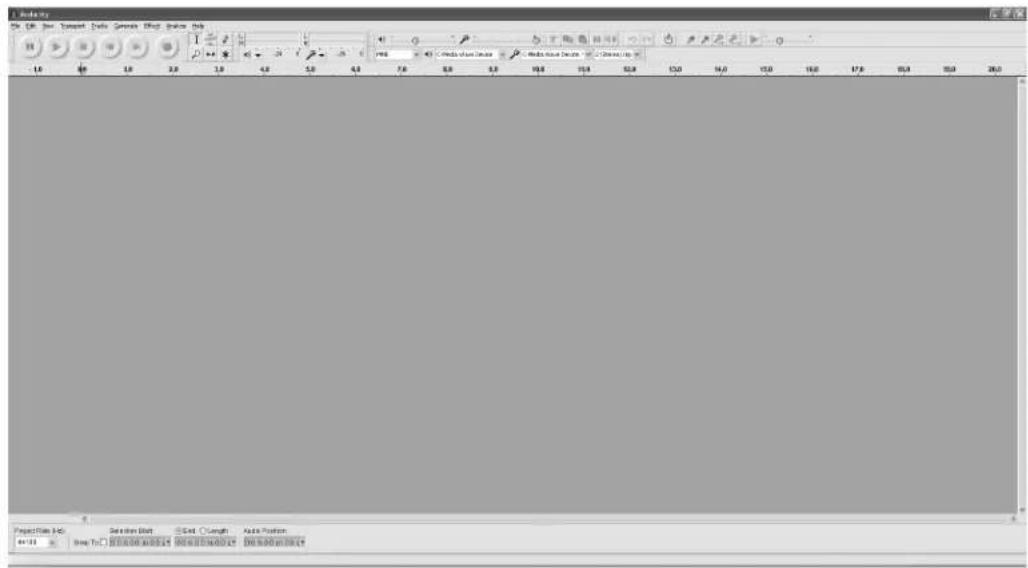

Connect the turntable to a computer via the USB-B port. Install the included Audacity software (or any recording software). Select the turntable as input and record your vinyl. Then export as MP3.
The turntable turns but no sound comes out. What should I check?
Ensure the stylus needle is properly attached and the tonearm is set to the correct tracking force. Verify that the volume is turned up. If using built-in speakers, check that no headphones or RCA cables are plugged in, as they mute the speakers.
How do I replace the stylus (needle)?
Remove the stylus guard. Grasp the stylus assembly (white plastic) and gently pull forward and down. To install the new stylus, align it and push up until it clicks. The replacement stylus model is JENSEN-JTA410S.
Does the Jensen JTA-410 have a headphone jack?
Yes, it has a 3.5mm headphone jack on the front panel. When headphones are connected, the built-in speakers are muted. Use the volume knob to adjust headphone level.
How do I clean the vinyl record and stylus?
Clean records with a carbon fiber brush before playback. For the stylus, gently brush from back to front with a stylus brush or use a special cleaning fluid. Never touch the needle with fingers.
Can I connect the turntable to a Bluetooth speaker?
The JTA-410 does not have Bluetooth output; it only has Bluetooth input for streaming music from your phone to the turntable's speakers. To use external Bluetooth speakers, you need a Bluetooth transmitter connected to the RCA output.
The turntable skips or sounds wobbly. What could be wrong?
First, ensure the turntable is on a level, stable surface. Check the belt for wear or misalignment. Also, verify the tracking force is correct (usually 2-3 grams). If the issue persists, the belt may need replacement (model JENSEN-JTA410B).
What should I do if the automatic stop doesn't work?
The auto stop mechanism may be triggered by a mechanical lever under the tonearm. Ensure the record has a run-out groove. If it still doesn't stop, try adjusting the auto stop sensitivity screw (if present) or contact support.
