Product type	Microwave oven combination built-in
Brand	Whirlpool
Model	GSC309PVS
Overall dimensions - 27"	Height: 107.6 cm, Width: 67.9 cm, Depth: 58.4 cm max.
Overall dimensions - 30"	Height: 107.6 cm, Width: 75.6 cm, Depth: 58.4 cm max.
Built-in dimensions - 27"	Width: 64.8 cm, Height: 104.8 cm, Depth: 59.1 cm min.
Built-in dimensions - 30"	Width: 72.4 cm, Height: 104.8 cm, Depth: 59.1 cm min.
Supported surface weight	Up to 108 kg (microwave and built-in oven)
Electrical supply	240 V / 208 V, 30 A or 40 A depending on power
Maximum power	9.6 kW at 240 V (7.2 kW at 208 V)
Main functions	Microwave cooking, grilling, conventional oven
Number of ovens	Double (microwave + conventional oven)
Installation type	Built-in cabinet
Material	Stainless steel, glass
Safety	Door locking, automatic stop when opened, grounding
Maintenance	Clean with damp cloth and mild detergent
Supplied parts	Mounting screws, side trims, bottom vent (depending on models)
Repairability	Spare parts available via Whirlpool authorized service
Certifications	UL, CSA
Manual available	French, English and other languages (PDF)

Frequently Asked Questions - GSC309PVS WHIRLPOOL

What are the built-in dimensions for the 27-inch model?

For the 27-inch model, the built-in width is 64.8 cm, the height is 104.8 cm, and the minimum depth is 59.1 cm.

What is the maximum weight supported by the installation surface?

The support surface must be able to support a total weight of 238 lb (108 kg) including the microwave oven and the built-in oven.

What type of electrical supply is required?

The appliance requires a power supply of 240 V / 208 V with a dedicated circuit of 30 A or 40 A depending on the power. Use a time-delay circuit breaker.

Can I install this oven in a wooden cabinet?

Yes, provided that the cabinet materials can withstand temperatures up to 194 °F (90 °C). Consult the cabinet manufacturer to verify compatibility.

How to remove the oven door for installation?

Open the door, rotate the hinges forward to the unlocked position, then grasp the edges with both hands, partially close, and lift to remove the door.

What to do if the display shows 'PF' after installation?

'PF' is normal after power-up. If the display does not light up, check the fuses and circuit breaker. Refer to the 'Assistance or Service' section of the guide.

How to check proper operation of the microwave oven?

Place 1 cup (250 mL) of water in a suitable container, set the microwave to 2 minutes and press Start. Verify that the light turns on and that cooking stops when the door is opened.

Is the oven delivered with the necessary accessories?

Yes, the oven is delivered with mounting screws, side trims, and possibly a bottom vent. The racks are already installed inside.

Where to find the rating plate?

The rating plate is located at the bottom of the right slide. It indicates the voltage, frequency, and power of the appliance.

Can I use an aluminum power cable?

Yes, but you must use a UL-listed special connector to connect aluminum to copper. Follow the connector manufacturer's recommendations.

USER MANUAL GSC309PVS WHIRLPOOL

INSTALLATION INSTRUCTIONS

27" (68.6 CM) AND 30" (76.2 CM) ELECTRIC BUILT-IN MICROWAVE/OVEN COMBINATION

INSTRUCTIONS D'INSTALLATION DE L'ENSEMBLE FOUR À MICRO-ONDES ET FOUR CONVENTIONNELÉLECTRIQUES ENCASTRÉS DE 27" (68,6 CM) ET30" (76,2 CM)

Table of Contents/Table des matieres

BUILT-IN MICROWAVE/OVEN COMBINATION SAFETY. 1

INSTALLATION REQUIREMENTS 2

Tools and Parts 2
Built-In Microwave/Oven Combination Location Requirements .........2
Electrical Requirements 3

INSTALLATION INSTRUCTIONS 4

Prepare Built-In Microwave/Oven Combination 4
Remove Oven Door 4
Remove Oven Trim 4
Make Electrical Connection 4
Install Oven 5
Complete Installation 6

SECURITE DE L'ENSEMBLE FOUR A

MICRO-ONDES ET FOUR CONVENTIONNEL ENCASTRÉS. 7

EXIGENCES D'INSTALLATION 7

Your safety and the safety of others are very important.

We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages.

This is the safety alert symbol.

This symbol alerts you to potential hazards that can kill or hurt you and others.

All safety messages will follow the safety alert symbol and either the word "DANGER" or "WARNING."

These words mean:

DANGER

WARNING

You can be killed or seriously injured if you don't immediately follow instructions.

You can be killed or seriously injured if you don't follow instructions.

All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed.

IMPORTANT:

Save for local electrical inspector's use.

IMPORTANT :

Gather the required tools and parts before starting installation. Read and follow the instructions provided with any tools listed here.

Tools needed

Phillips screwdriver
Measuring tape
Hand or electric drill (for wall cabinet installations)
1" (25 mm) drill bit (for wall cabinet installations)
Level

Parts needed

UL listed or CSA approved conduit connector
UL listed wire connectors

Parts supplied

8-14 x 1" screws - single oven (2), double oven (4)
Bottom vent (supplied on some models)
Two # 8 - 18 × 3% screws - bottom vent (supplied on some models)
Side trim

Check local codes. Check existing electrical supply. See "Electrical Requirements."

It is recommended that all electrical connections be made by a licensed, qualified electrical installer.

Built-In Microwave/Oven Combination Location Requirements

IMPORTANT: Observe all governing codes and ordinances.

Cabinet opening dimensions that are shown must be used. Given dimensions provide minimum clearance with oven.
- Recessed installation area must provide complete enclosure around the recessed portion of the oven.
Grounded electrical supply is required. See "Electrical Requirements" section.
- Electrical supply junction box should be located 3'' (7.6 cm) maximum below the support surface when the oven is installed in a wall cabinet. A 1'' (2.5 cm) minimum diameter hole should have been drilled in the right rear or left rear corner of the support surface to pass the appliance cable through to the junction box.
- Oven support surface must be solid, level and flush with bottom of cabinet cutout. Floor must be able to support a total weight (microwave and built-in oven) of 238 lbs (108 kg).

IMPORTANT: To avoid damage to your cabinets, check with your builder or cabinet supplier to make sure that the materials used will not discolor, delaminate or sustain other damage. This oven has been designed in accordance with the requirements of UL and CSA International and complies with the maximum allowable wood cabinet temperatures of 194^ (90^)

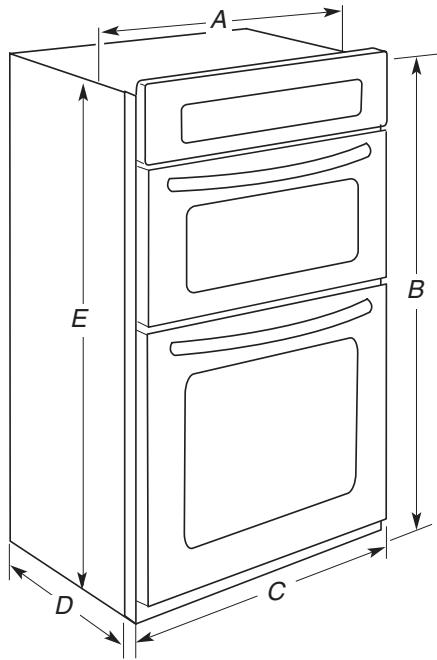

Product Dimensions

27'' (68.6 cm) and 30'' (76.2 cm) Ovens

27" (68.6 cm) models

A. 25 516 " (64.3 cm) recessed width
B. 42% (107.6 cm) overall height
C. 26% (67.9 cm) overall width
D. 23^ (58.4 cm) max. recessed depth
E. 41^ (104.1 cm) recessed height

30'' (76.2 cm) models

A. 28% (71.9 cm) recessed width
B. 42% (107.6 cm) overall height
C. 29.34'' (75.6 cm) overall width
D. 23'' (58.4 cm) max. recessed depth
E. 41'' (104.1 cm) recessed height

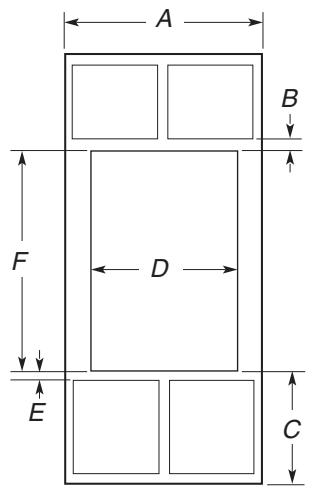

27'' (68.6 cm) and 30'' (76.2 cm) Ovens

27'' (68.6 cm) models

A. 27'' (68.6 cm) min. cabinet width
B. 1'' (2.5 cm) top of cutout to bottom of upper cabinet door
C. 19 14 (48.9 cm) bottom of cutout to floor
D. 25 12'' (64.8 cm) cutout width
E. 112'' (3.8 cm) min. bottom of cutout to top of cabinet door
F. 41 14 (104.8 cm) cutout height

30'' (76.2 cm) models

A. 30^n (76.2 cm) min. cabinet width
B. 1'' (2.5 cm) top of cutout to bottom of upper cabinet door
C. 19 14 (48.9 cm) bottom of cutout to floor
D. 28 12'' (72.4 cm) cutout width
E. 112'' (3.8 cm) min. bottom of cutout to top of cabinet door
F. 41 14 (104.8 cm) cutout height

Cabinet Side View

A. 2314 (59.1 cm) min. cutout depth
B. 23'' (58.4 cm) recessed oven depth
C. Oven front
D. Recessed oven
E. Cabinet

Electrical Requirements

If codes permit and a separate ground wire is used, it is recommended that a qualified electrical installer determine that the ground path and wire gauge are in accordance with local codes.

Check with a qualified electrical installer if you are not sure the oven is properly grounded.

This oven must be connected to a grounded metal, permanent wiring system.

Be sure that the electrical connection and wire size are adequate and in conformance with the National Electrical Code, ANSI/NFPA 70-latest edition or CSA Standards C22.1-94, Canadian Electrical Code, Part 1 and C22.2 No. O-M91-latest edition, and all local codes and ordinances.

A copy of the above code standards can be obtained from:

National Fire Protection Association

One Batterymarch Park

Quincy, MA 02269

CSA International

8501 East Pleasant Valley Road

Cleveland, OH 44131-5575

Electrical Connection

To properly install your oven, you must determine the type of electrical connection you will be using and follow the instructions provided for it here.

• Oven must be connected to the proper electrical voltage and frequency as specified on the model/serial number rating plate. The model/serial number rating plate is located at the bottom of the right-hand mounting rail. See the following illustration.

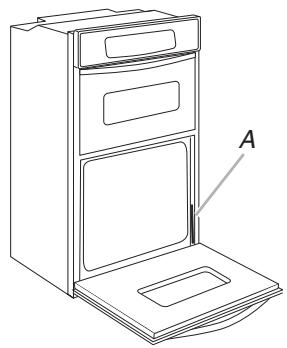

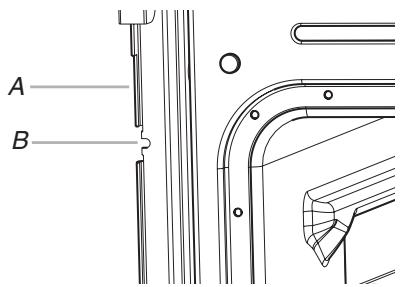

A. Model/serial number plate

• Models rated from 7.3 to 9.6kW at 240 volts (5.5 to 7.2kW at 208 volts) require a separate 40-amp circuit. Models rated at 7.2kW and below at 240 volts (5.4 kW and below at 208 volts) require a separate 30-amp circuit.
  A circuit breaker is recommended.
• Connect directly to the circuit breaker box (or fused disconnect) through flexible, armored or nonmetallic sheathed, copper cable (with grounding wire). See "Make Electrical Connection" section.
• Flexible conduit from the oven should be connected directly to the junction box.
• Do not cut the conduit. The length of conduit provided is for serviceability of the oven.
  A UL listed or CSA approved conduit connector must be provided.

If the house has aluminum wiring follow the procedure below:

1. Connect a section of solid copper wire to the pigtail leads.

2. Connect the aluminum wiring to the added section of copper wire using special connectors and/or tools designed and UL listed for joining copper to aluminum.

Follow the electrical connector manufacturer's recommended procedure. Aluminum/copper connection must conform with local codes and industry accepted wiring practices.

INSTALLATION INSTRUCTIONS

Prepare Built-In Microwave/Oven Combination

1. Decide on the final location for the oven. Locate existing wiring to avoid drilling into or severing wiring during installation.

WARNING

Excessive Weight Hazard

Use two or more people to move and install oven.

Failure to do so can result in back or other injury.

1. To avoid floor damage, set the oven onto cardboard prior to installation. Do not use handle or any portion of the front frame for lifting.
2. Remove the shipping materials and tape from the oven.
3. Remove the hardware package from inside the bag containing literature.
4. Remove and set aside racks and other parts from inside the oven.
5. Move oven and cardboard close to the oven's final location.

Remove Oven Door

IMPORTANT: Use both hands to remove oven door(s).

1. Open the oven door.

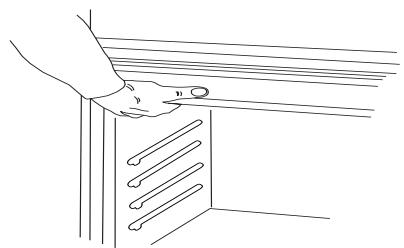

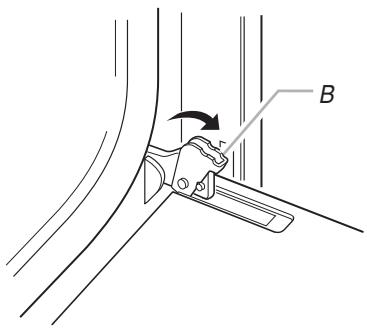

2. Locate the oven door latches in both corners of the oven door, and rotate the latches forward to the unlocked position.

A. Oven door latch in locked position

B. Oven door latch in unlocked position

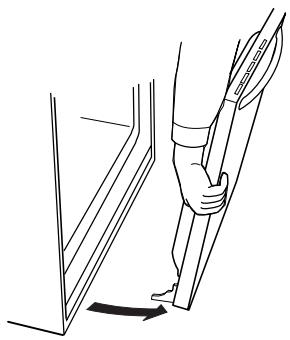

1. Grasp the edges of the oven door with both hands and close the oven door until it will no longer close. Lift and pull oven door toward you and remove. Set the oven door(s) aside on a covered work surface.

Remove Oven Trim

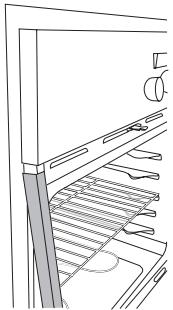

1. Side trims are located on the right side of the oven. Cut the cable tie and remove side trims.
2. Remove the cable tie from the side of the oven.

NOTE: Screws for attaching side trims (after oven is installed in cabinet) are in a screw bag inside the package containing literature.

Make Electrical Connection

WARNING

Electrical Shock Hazard

Disconnect power before servicing.

Use 8 gauge solid copper wire.

Electrically ground oven.

Failure to follow these instructions can result in death, fire, or electrical shock.

This oven is manufactured with a neutral (white) power supply wire and a cabinet-connected green (or bare) ground wire twisted together.

1. Disconnect power.
2. Feed the flexible conduit from the oven through the opening in the cabinet.

3. Remove junction box cover, if it is present.

4. Install a UL listed or CSA approved conduit connector to the junction box.

A. UL listed or CSA approved conduit connector

1. Route the flexible conduit from the oven to the junction box through a UL listed or CSA approved conduit connector.
2. Tighten screws on conduit connector.
3. See "Electrical Connection Options Chart" to complete installation for your type of electrical connection.

Electrical Connection Options Chart

If your home has:	Go to section:
4-wire	4-wire Cable from Home Power Supply
3-wire	3-wire Cable from Home Power Supply

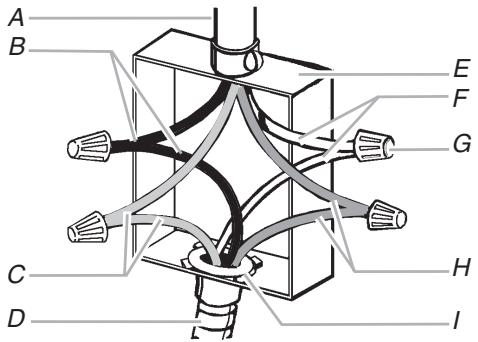

4-Wire Cable from Home Power Supply

IMPORTANT: Use the 4-wire cable from home power supply in the U.S. where local codes do not allow grounding through neutral, New Branch circuit installations (1996 NEC), mobile homes and recreational vehicles, new construction and in Canada.

A. Cable from home power supply
B. Black wires
C. Red wires
D. 4-wire flexible conduit from oven
E. Junction box

F. White wires
G. UL listed wire connectors
H. Green (or bare) ground wires
I. UL listed or CSA approved conduit connector

1. Connect the 2 black wires (B) together using a UL listed wire connector.
2. Connect the 2 red wires (C) together using a UL listed wire connector.
3. Untwist white wire from green (or bare) ground wire coming from the oven.

4. Connect the 2 white wires (F) together using a UL listed wire connector.

5. Connect the green (or bare) ground wire (H) from the oven cable to the green (or bare) ground wire (in the junction box) using a UL listed wire connector.

6. Install junction box cover.

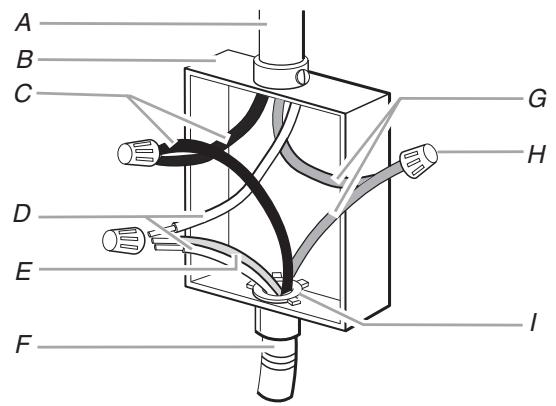

3-Wire Cable from Home Power Supply - U.S. Only

IMPORTANT: Use the 3-wire cable from home power supply where local codes permit a 3-wire connection.

A. Cable from home power supply
B. Junction box
C. Black wires
D. White wires
E. Green (or bare) ground wire (from oven)

F. 4-wire flexible conduit from oven
G. Red wires
H. UL listed wire connectors
I. UL listed or CSA approved conduit connector

1. Connect the 2 black wires (C) together using a UL listed wire connector.
2. Connect the 2 white wires (D) and the green (or bare) ground wire (of the oven cable) using a UL listed wire connector.
3. Connect the 2 red wires (G) together using a UL listed wire connector.
4. Install junction box cover.

Install Oven

WARNING

Excessive Weight Hazard

Use two or more people to move and install oven.

Failure to do so can result in back or other injury.

1. Using 2 or more people, lift oven partially into cabinet cutout. Use the oven opening as an area to grip.

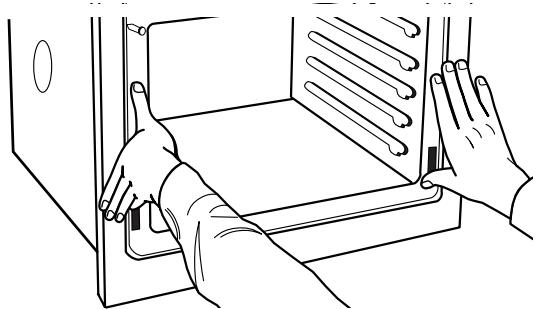

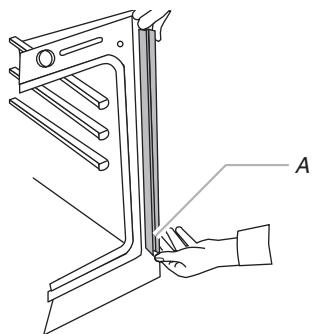

NOTE: Push against seal area of oven front frame when pushing oven into cabinet. Do not push against outside edges.

1. Push against seal area of front frame to push oven completely into cabinet and center oven into cabinet cutout.

1. On models with shipping feet, use a Phillips screwdriver to remove screws attaching the shipping feet.
2. Push oven completely into cabinet and center oven into cabinet cutout.
3. Securely fasten oven to cabinet using the # 8-14 x 1" screws (2 for single oven, 4 for double oven) provided. Insert the screws through holes in mounting rails. Do not overtighten screws.

A. Mounting rail
B. Insert screw.

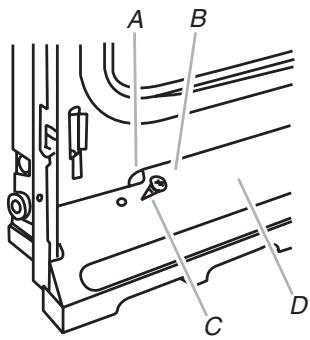

1. On some models, the oven vent is taped to the side of the oven. See the following instructions to install.

Insert the vent tabs (B) into slots (A) in the oven frame.
- With one # 8 - 18 × 3% screw (C) for each side of the vent, fasten vent securely to the oven.

A. Oven frame slot
B. Vent tab
C. # 8-18 x 3 / 8 " screw
D.Oven vent

1. Slide top end of each trim upward onto oven side rails.

1. Push each trim into place at bottom of trim.

A. Push trim into place and replace screw.

1. Use the 8 - 18 × 3% screws, located in the screw bag assembly, to attach each trim piece to oven.
2. Replace oven racks.
3. Replace oven door by inserting ends of hinges into hinge slots in the oven frame.
4. Push hinges in as far as they will go and open the oven door. You should feel the oven door drop into place.
5. Rotate both hinge latches back to the locked position.
6. Check that door is free to open and close. If it is not, repeat the removal and installation procedures. See "Prepare Built-In Microwave/Oven Combination" section.
7. Repeat for lower oven door.
8. Reconnect power.
9. Display panel will light briefly, and "PF" should appear in the display.
10. If display panel does not light, please reference the "Assistance or Service" section of the Use and Care Guide or contact the dealer from whom you purchased your oven.

Complete Installation

1. Check that all parts are now installed. If there is an extra part, go back through the steps to see which step was skipped.
2. Check that you have all of your tools.
3. Dispose of/recycle all packaging materials.
4. For oven use and cleaning, read the Use and Care Guide.

Check Operation of Lower Oven

1. Turn power on. "PF" should appear in the display.
2. Press BROIL. "BROIL" will appear in the display.
3. Press START. Make sure the oven door is closed and the "ON" light is showing in the display area.

If oven(s) does not operate, check the following:

Household fuse is intact and tight; or circuit breaker has not tripped.
Electrical supply is connected.
See "Troubleshooting" section in the Use and Care Guide.

1. When oven has been on for 5 minutes, feel for heat.

If you do not feel heat or an "F" appears in the display, turn off the oven and contact a qualified technician.

1. Press LOWER OFF/CANCEL.

To set the clock and other oven functions, refer to the Use and Care Guide.

Check Operation of Microwave Oven

1. Fill a microwave-safe container with 1 cup (250 mL) of water and place container inside microwave oven. Close door firmly.
2. Set microwave oven cook time to "2:00" minutes.
3. Press START. The interior microwave oven light should be on, and the remaining cooking time should be displayed.

When display reads "1:00" minute, open microwave oven door. The microwave should stop cooking. Close door firmly. The interior microwave oven light should turn off.

1. Press START. Microwave oven should begin cooking, and the microwave oven interior light should be on. Let microwave oven complete cooking time. A tone will sound 4 times at the end of the cooking time, and the microwave oven will shut off.

2. Open microwave oven door and slowly remove container. Water in container should be hot.

If you need Assistance or Service:

Please reference the "Assistance or Service" section of the Use and Care Guide or contact the dealer from whom you purchased your built-in and microwave ovens.

SECURITE DE L'ENSEMBLE FOUR À MICRO-ONDES ET FOUR CONVENTIONNEL ENCASTRÉS

National Fire Protection Association

One Batterymarch Park

Quincy, MA 02269

CSA International

8501 East Pleasant Valley Road

Cleveland, OH 44131-5575
