USER MANUAL DP-3002 Metra

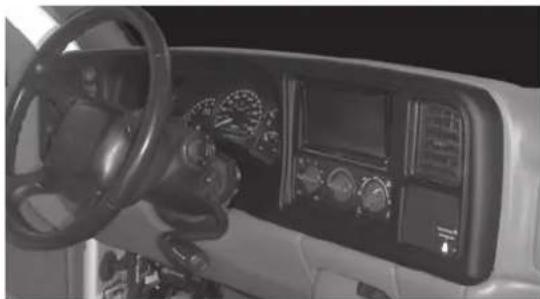

Interior view of a car dashboard and steering wheel (no visible text or symbols)

GM Full-size trucks and SUV's 1999-2002

(Models with message center in the factory instrument cluster)

Visit NetraOnline.com for more detailed information about the product and up-to-date vehicle specific applications

KIT FEATURES

• ISO DDIN radio provision
- Two OEM matched textures

• Available in multiple colors:
• DP-3002GY - Gray
- DP-3002PWT - Pewter
• DP-3002SHL - Shale
- DP-3002TB - Textured Black

KIT COMPONENTS

• A) Radio trim panel • B) Radio brackets • C) Panel clips (11)

AB

The image is too blurry to recognize any text content.

•

Repeating pattern of 3D mechanical parts in a grid layout (no text or symbols)

APPLICATIONS

CHEVROLET

Avalanche 2002-2002

Silverado 1500 1999-2002

Silverado 2500 1999-2002

Silverado 3500 2001-2002

Silverado 3500

(commercial) 2002-2002

Suburban 2000-2002

Tahoe 2000-2002

GMC

Sierra 1500 1999-2002

Sierra 2500 2000-2002

Sierra 3500 2001-2002

Yukon/Yukon XL

(less Denali 01-02) 2000-2002

TABLE OF CONTENTS

Dash Disassembly 2

Kit Assembly 3

WIRING & ANTENNA CONNECTIONS (sold separately)

Wiring harness: 70-1858 (models without a factory amp)

70-1859 (models with a factory amp)

Antenna Adapter: 40-GM10

TOOLS REQUIRED

- Panel removal tool • Phillips screwdriver

Attention! Let the vehicle sit with the key out of the ignition for a few minutes before removing the factory radio. When testing the aftermarket equipment, ensure that all factory equipment is connected before cycling the key to ignition.

Metra. The World's Best Kits.

MetraOnline.com © COPYRIGHT 2020 METRA ELECTRONICS CORPORATION REV. 9/2/20 INSTDP-3002

DASH DISASSEMBLY

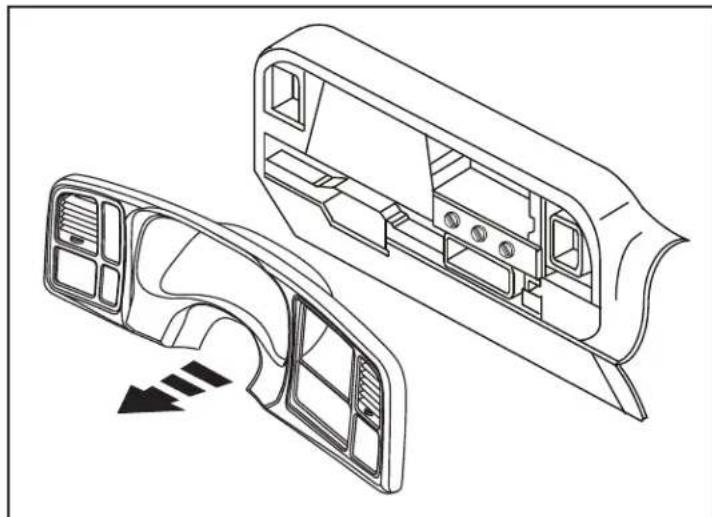

1. Unsnap and remove the factory dash panel. (Figure A)
2. Depress the tabs securing the factory radio and remove.
3. Cut and remove the radio rear support shelf from the dash cavity.

Continue to Kit Assembly

Technical line drawing of a car dashboard frame with internal compartments and ventilation slots (no text or symbols)

(Figure A)

KIT ASSEMBLY

1. Install the (11) included panel clips to the radio trim panel. The factory panel clips may be used if desired.

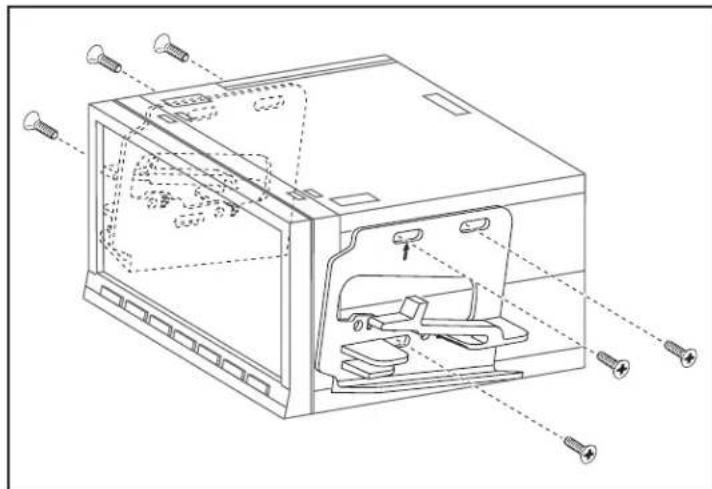

2. Attach the radio brackets to the radio and secure using the screws supplied with the radio and slide into dash opening. (Figure A)

3. Snap the radio trim panel over the radio until it clicks in.

4. Locate the factory wiring harness in the dash. Metra recommends using the proper mating adapter from Metra or AXXESS. Test the radio for proper operation.

5. Reassemble the dash in reverse order of disassembly.

(Figure A)

Having difficulties? We're here to help.

our Tech Support line at:

386-257-1187

mail at:

[e-mail]

Tech Support Hours (Eastern Standard Time)

Monday - Friday: 9:00 AM - 7:00 PM

Saturday: 10:00 AM - 7:00 PM

Sunday: 10:00 AM - 4:00 PM

KNOWLEDGE IS POWER

Enhance your installation and fabrication skills b enselling in the most recognized and respected

mobile electronics school in our industry.

Log onto www.installerinstitute.com or call

600-354-8782 for more information and take steps toward a better tomorrow.

Metra recommends MECP certified technicians
