EV250NXTQ - Freezer WHIRLPOOL - Free user manual and instructions
Find the device manual for free EV250NXTQ WHIRLPOOL in PDF.
📄
Document temporarily unavailable
The manual is currently being transferred to our new server. It will be accessible again in a few hours. Thank you for your patience.
Pick your language and provide your email: we'll send you a specifically translated version.
| Product Type | Upright Freezer |
| Brand | Whirlpool |
| Model | EV250NXTQ |
| Approximate Dimensions | Height: 170 cm, Width: 76 cm, Depth: 76 cm |
| Approximate Weight | 90 kg |
| Electrical Supply | 115 V, 60 Hz, AC, 15-20 A, dedicated circuit |
| Energy Consumption | Not specified, energy class not provided |
| Temperature Range | Adjustable from -17.8 °C (0 °F) to colder, with fast freeze |
| Freezing Capacity | Up to 3 lb (1.36 kg) per cubic foot (28.32 L) of unfrozen food |
| Ice Maker | Built-in, produces 7 to 9 batches per 24 h (on certain models) |
| Defrost Type | Automatic (frost-free) or manual depending on model |
| Interior Lighting | Appliance bulb (replaceable) |
| Special Features | Fast freeze, temperature alarm, key eject lock, indicator light |
| Included Accessories | Storage basket, door bins, storage barrier (depending on model) |
| Installation | Clearance: 7.5 cm at top and sides, 2.5 cm at rear; solid floor |
| Water Connection | Possible for ice maker (1/4 in plastic tubing, pressure 30-120 psi) |
| Maintenance | Interior cleaning with mild detergent; exterior according to finish (stainless steel or painted) |

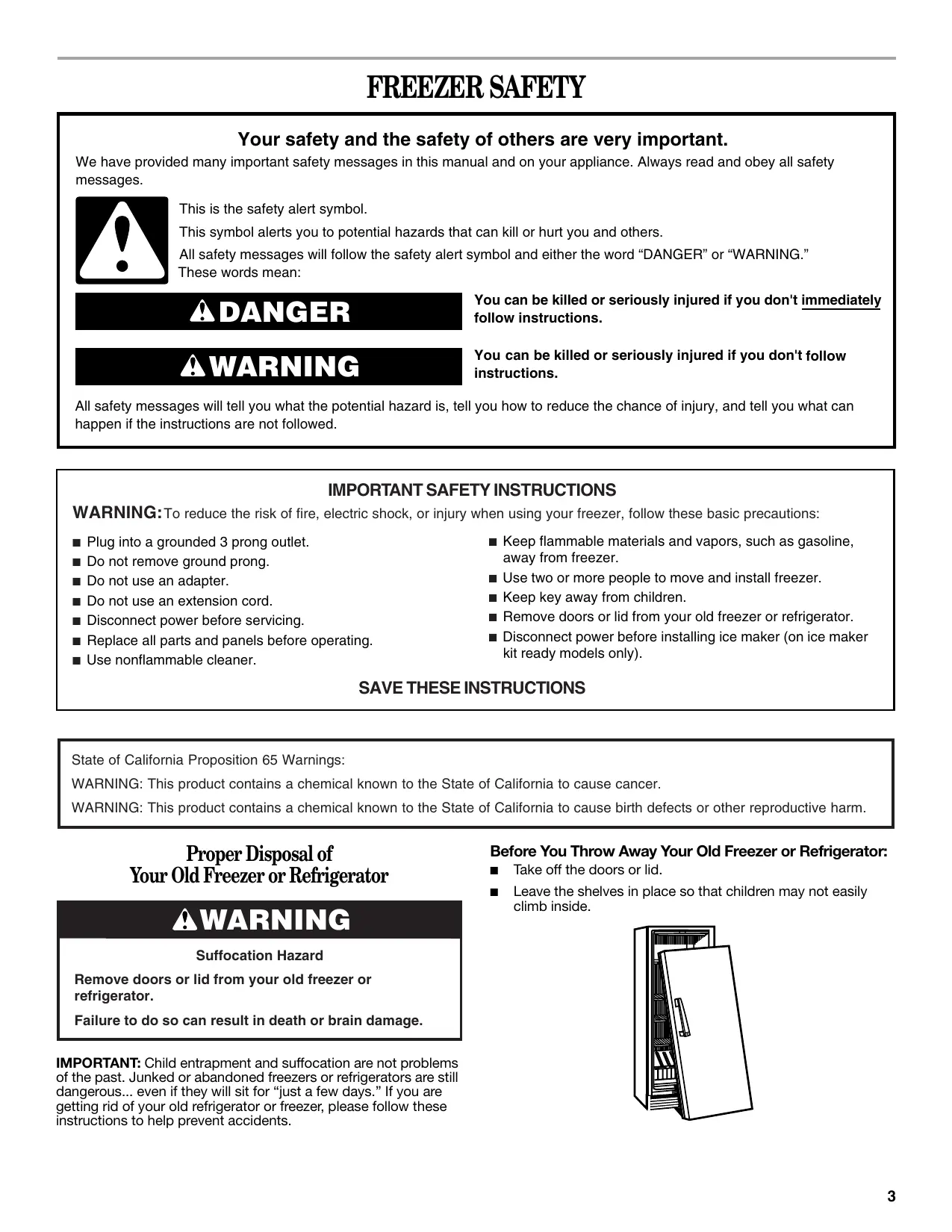

| Safety | 3-prong grounded outlet, do not use adapter or extension cord |
| Warranty | 1 year parts and labor (USA/Canada) |
| Customer Service | 1-800-807-6777 (Canada); www.whirlpool.com/canada |
Frequently Asked Questions - EV250NXTQ WHIRLPOOL
How to adjust the freezer temperature?
Turn the temperature control to 4 for approximately -17.8 °C (0 °F). For colder, increase the setting; for less cold, decrease it. Use the fast freeze position (igloo) before adding large quantities of unfrozen food.
What if the ice maker is not producing ice?
Check that the metal lever is in the down (on) position and the water supply valve is open. Wait 24 hours after installation. If the freezer is cold enough, production should start within 72 hours. Ensure the water filter is not clogged.
How to clean the freezer?
Unplug the appliance. Remove food and wash the interior with a solution of mild detergent and warm water (or 2 tablespoons of baking soda per 1 liter of water). Do not use abrasive or flammable cleaners. Rinse and dry. Clean the exterior according to the finish.
How to manually defrost the freezer?
Unplug the appliance. Remove food and place pans of hot water inside to speed up melting. Use a plastic scraper to remove frost. Do not use sharp objects. Wipe up water and clean the interior. Replug after putting food back.
Why won't the door close completely?
Check that food is not blocking the door. Ensure shelves and baskets are properly positioned. If the gaskets are dirty, clean them with mild detergent. Adjust the leveling feet if the freezer is not level.
What to do in case of a power outage?
Keep the door closed. If the outage lasts less than 24 hours, food stays cold. If longer, move food to a cooler or consume quickly. After power is restored, wait 30 minutes before reconnecting the freezer.
How to reverse the door opening direction?
Unplug the appliance. Remove the base grille and hinges. Follow the manual instructions to disassemble and reverse the door. Reinstall the hinges on the other side. You may need to move the handle and plug buttons.
Where to find the serial number?
The serial number and model number are on the rating plate, usually inside the freezer or at the rear. Note them for any service requests.
How to replace the light bulb?
Unplug the appliance. Remove the light shield (if present) by pulling back and down. Replace with an appliance bulb of the same wattage. Replace the shield and plug back in.
The motor runs continuously, is this normal?
Yes, especially if the ambient temperature is high, the door is opened frequently, or after adding large quantities of food. The motor may run 40% to 80% of the time. If the issue persists, check that the condenser coils are clean and ventilation is adequate.
