USER MANUAL EL88TRRWS WHIRLPOOL

Accessoires............................................................................................. 23 GARANTIE.................................................................................................. 24 REFRIGERATOR SAFETY Your safety and the safety of others are very important. We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages. This is the safety alert symbol. This symbol alerts you to potential hazards that can kill or hurt you and others. All safety messages will follow the safety alert symbol and either the word “DANGER” or “WARNING.” These words mean: DANGER WARNING You can be killed or seriously injured if you don't immediately follow instructions. You can be killed or seriously injured if you don't follow instructions. All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed.

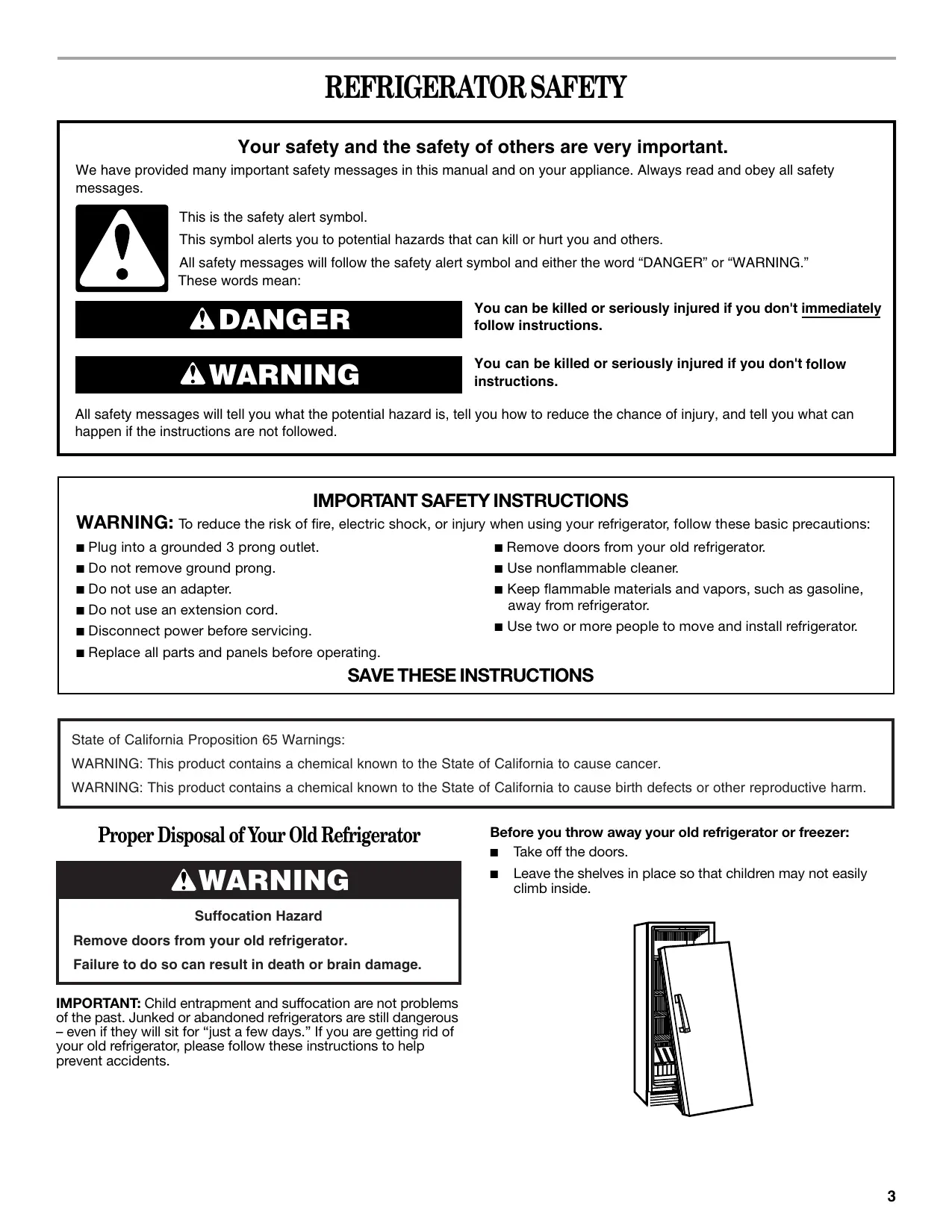

IMPORTANT SAFETY INSTRUCTIONS

WARNING: To reduce the risk of fire, electric shock, or injury when using your refrigerator, follow these basic precautions: Plug into a grounded 3 prong outlet. ■ Do not remove ground prong. ■ Do not use an adapter. ■ Do not use an extension cord. ■ Disconnect power before servicing. ■ Replace all parts and panels before operating.

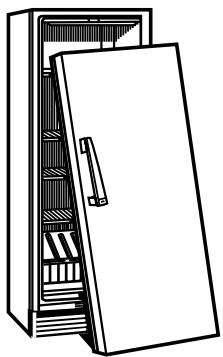

Remove doors from your old refrigerator. ■ Use nonflammable cleaner. ■ Keep flammable materials and vapors, such as gasoline, away from refrigerator. ■ Use two or more people to move and install refrigerator.

SAVE THESE INSTRUCTIONS

State of California Proposition 65 Warnings:

WARNING: This product contains a chemical known to the State of California to cause cancer.

WARNING: This product contains a chemical known to the State of California to cause birth defects or other reproductive harm. Proper Disposal of Your Old Refrigerator WARNING Before you throw away your old refrigerator or freezer: ■ Take off the doors.

Leave the shelves in place so that children may not easily climb inside. Suffocation Hazard Remove doors from your old refrigerator. Failure to do so can result in death or brain damage. IMPORTANT: Child entrapment and suffocation are not problems of the past. Junked or abandoned refrigerators are still dangerous – even if they will sit for “just a few days.” If you are getting rid of your old refrigerator, please follow these instructions to help prevent accidents.

INSTALLATION INSTRUCTIONS Unpacking Your Refrigerator WARNING Location Requirements WARNING Excessive Weight Hazard Use two or more people to move and install refrigerator. Failure to do so can result in back or other injury. Explosion Hazard Removing packaging materials

Remove tape and glue residue from surfaces before turning on the refrigerator. Rub a small amount of liquid dish soap over the adhesive with your fingers. Wipe with warm water and dry.

Do not use sharp instruments, rubbing alcohol, flammable fluids, or abrasive cleaners to remove tape or glue. These products can damage the surface of your refrigerator. For more information, see the “Refrigerator Safety” section.

To remove the transparent film that is on the nameplate, use your fingernail and peel off the film, stating from one side and peeling to the other.

If your refrigerator has a stainless steel or Satina™ Stainless Look finish, remove the film. When Moving Your Refrigerator: Your refrigerator is heavy. When moving the refrigerator for cleaning or service, be sure to cover the floor with cardboard or hardboard to avoid floor damage. Always pull the refrigerator straight out when moving it. Do not wiggle or “walk” the refrigerator when trying to move it, as floor damage could occur. Cleaning before use After you remove all of the package materials, clean the inside of your refrigerator before using it. See the cleaning instructions in the “Refrigerator Care” section. Important information to know about glass shelves and covers: Do not clean glass shelves or covers with warm water when they are cold. Shelves and covers may break if exposed to sudden temperature changes or impact, such as bumping. Tempered glass is designed to shatter into many small, pebble-size pieces. This is normal. Glass shelves and covers are heavy. Use both hands when removing them to avoid dropping.

Keep flammable materials and vapors, such as gasoline, away from refrigerator. Failure to do so can result in death, explosion, or fire. IMPORTANT: Do not install the refrigerator near an oven, radiator, or other heat source, nor in a location where the temperature will fall below 40°F (5°C). Allow for a 1" (2.54 cm) space behind the refrigerator. If the refrigerator is to be against a wall, leave extra space on the hinge side so the door can open wider. NOTE: This refrigerator may be installed side by side with another refrigerator or freezer. Electrical Requirements WARNING Electrical Shock Hazard Plug into a grounded 3 prong outlet. Do not remove ground prong. Do not use an adapter. Do not use an extension cord. Failure to follow these instructions can result in death, fire, or electrical shock. Before you move your refrigerator into its final location, it is important to make sure you have the proper electrical connection. Recommended grounding method A 115 Volt, 60 Hz., AC only 15- or 20-amp fused, grounded electrical supply is required. It is recommended that a separate circuit serving only your refrigerator be provided. Use an outlet that cannot be turned off by a switch. Do not use an extension cord. NOTE: Before performing any type of installation, cleaning, or removing a light bulb, turn the Temperature Control to the OFF position as shown and then disconnect the refrigerator from the electrical source. Refrigerator Door IMPORTANT: ■ Depending on the width of the opening, you may need to remove the handle or door to move the refrigerator into the house.

All graphics referenced in the following instructions are included later in this section after “Final Steps.” The graphic may be reversed if door swing is reversed.

Before you begin, turn the control OFF, and remove food and adjustable door or utility bins from door. TOOLS NEEDED: ¹⁄₂" hex head socket wrench and ³⁄₈" hex head socket wrench Remove and Replace the Handle To remove the handle:

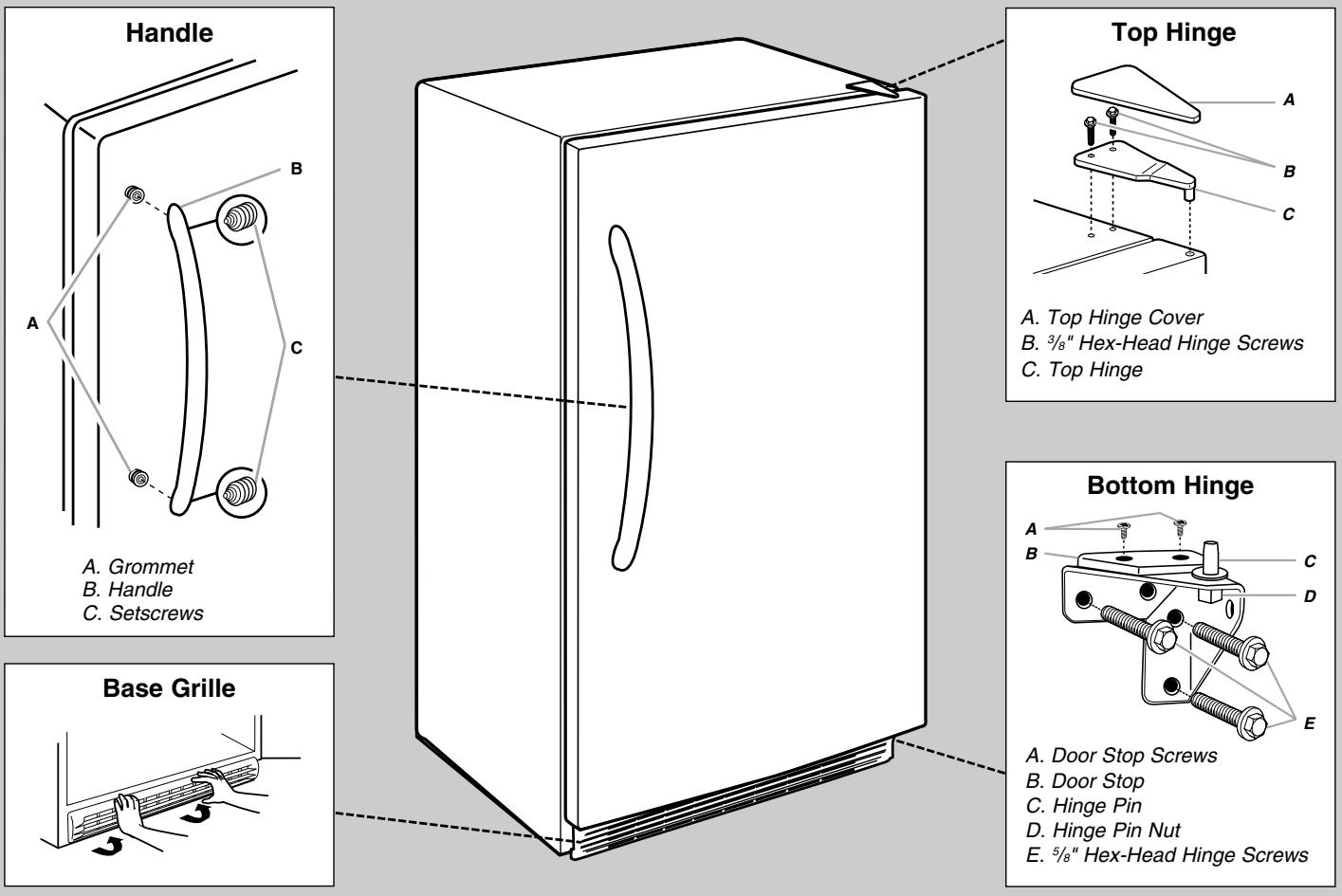

1. Loosen the setscrews located on the side of handle at each

end. See Handle graphic.

2. Remove the handle from the grommets.

To replace the handle:

1. Place the handle onto the grommets making sure the

grommets are fitted into the handle holes.

2. Tighten the upper and lower setscrews with the hex key

provided. See Handle graphic. Do not overtighten the setscrews. Remove Door and Hinges ⁵⁄₁₆" Hex Head Hinge Screw

1. Unplug refrigerator or disconnect power.

2. Open refrigerator door and remove base grille from the bottom

front of the refrigerator. See Base Grille graphic.

3. Close the refrigerator door and keep it closed until you are

ready to lift it free from the cabinet. NOTE: Provide additional support for the door while the hinges are being moved. Do not depend on the door magnets to hold the door in place while you are working. When you are finished, reconnect the refrigerator to the electrical source and reset the Temperature Control to the desired setting. See “Using the Control.”

4. Remove the parts for the top hinge as shown in Top Hinge

5. Lift the refrigerator door free from the lower hinge and cabinet

6. Remove the hex head hinge screws and bottom hinge

assembly. See Bottom Hinge graphic.

1. Replace the parts for the bottom hinge as shown and tighten

screws. See Bottom Hinge graphic. Replace the refrigerator door. NOTE: Provide additional support for the door while the hinges are being moved. Do not depend on the door magnets to hold the door in place while you are working. WARNING

2. Assemble the parts of the top hinge as shown in the Top

Hinge graphic. Do not tighten the screws completely.

3. Adjust the door so that the bottom aligns evenly with the

cabinet. Tighten all screws. Electrical Shock Hazard Plug into a grounded 3 prong outlet. Do not remove ground prong. Do not use an adapter. Do not use an extension cord. Failure to follow these instructions can result in death, fire, or electrical shock.

1. Plug into a grounded 3 prong outlet.

2. Reset the control. See “Using the Control.”

3. Return all removable door parts to door and food to

Adjust the Door Your refrigerator has two front adjustable legs, one on each side. The back of the refrigerator rests on two fixed supports.

1. Adjust the front legs enough to lift the cabinet up off of the

floor. NOTE: If your model is equipped with rollers, the front legs should be lowered enough to lift the rollers off the floor so the refrigerator does not roll forward when the door is opened. REFRIGERATOR USE Ensuring Proper Air Circulation In order to ensure proper temperature, you need to permit proper airflow in the refrigerator. As shown in the illustration, cool air enters through the refrigerator wall and moves down. The air then recirculates through the vent near the bottom.

2. Place a leveling tool on top of the refrigerator first side to side,

then front to back. Turn the leg counterclockwise to raise a corner. Turn the leg clockwise to lower a corner.

3. Repeat Step 2 until refrigerator is level.

4. After refrigerator is fully loaded with food, recheck with level

as in Step 2. Normal Sounds Your new refrigerator may make sounds that your old one didn’t make. Because the sounds are new to you, you might be concerned about them. Most of the new sounds are normal. Hard surfaces, like the floor, walls, and cabinets, can make the sounds seem louder. The following describes the kinds of sounds and what may be making them. ■ Your refrigerator is designed to run more efficiently to keep your food items at the desired temperatures and to minimize energy usage. The high efficiency compressor and fans may cause your refrigerator to run longer than your old one. You may also hear a pulsating or high-pitched sound from the compressor or fans adjusting to optimize performance.

You may hear the evaporator fan motor circulating air through the refrigerator compartment. The fan speed may increase as you open the doors or add warm food.

Rattling noises may come from the flow of refrigerant, the water line, or items stored on top of the refrigerator.

Water dripping on the defrost heater during a defrost cycle may cause a sizzling sound.

As each cycle ends, you may hear a gurgling sound due to the refrigerant flowing in your refrigerator.

Contraction and expansion of the inside walls may cause a popping noise.

You may hear air being forced over the condenser by the condenser fan.

You may hear water running into the drain pan during the defrost cycle. Do not block any of these vents with food packages. If the vents are blocked, airflow will be restricted, and temperature and moisture problems may occur. IMPORTANT: To avoid odor transfer and drying out of food, wrap or cover foods tightly. Using the Control Setting the Control For your convenience, your refrigerator control is preset at the factory. When you first install your refrigerator, make sure that the control is still preset to the mid-setting as shown. NOTE: To turn your refrigerator OFF, turn the refrigerator control to the setting shown. Your refrigerator will not cool when the refrigerator control is set to the OFF position.

2. Lift the cover frame and remove it.

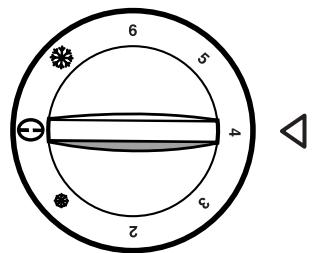

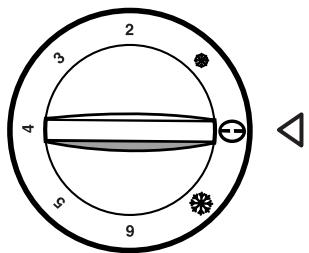

Adjusting the Control Give the refrigerator time to cool down completely before adding food. It is best to wait 24 hours before putting food into the refrigerator. The control is set correctly when milk or juice is as cold as you like. Move the dial one setting at a time and wait 24 hours between adjustments. IMPORTANT: If you add food before the refrigerator has cooled completely, your food may spoil. Turning the Temperature Control to a colder (higher) than recommended setting will not cool the compartment any faster. NOTE: During high humidity, moisture may form on the outside of the refrigerator. To avoid rust, dry the refrigerator’s exterior and reset the Temperature Control to a colder (higher) setting. REFRIGERATOR FEATURES Important information to know about glass shelves and covers: Do not clean glass shelves or covers with warm water when they are cold. Shelves and covers may break if exposed to sudden temperature changes or impact, such as bumping. Tempered glass is designed to shatter into many small, pebble-size pieces. This is normal. Glass shelves and covers are heavy. Use both hands when removing them to avoid dropping. To replace crisper cover:

1. Fit the back of the cover frame into the supports on the side

walls of the refrigerator. Lower the front of the cover frame into place.

2. Slide the rear of the glass insert into the cover frame and lower

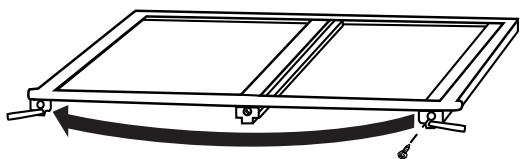

the front into place. Adjustable Meat Drawer (on some models) The meat drawer can be placed on either the right or left side of the refrigerator. To move the meat drawer:

1. Remove the meat drawer and cover. See “Refrigerator

Shelves” section. NOTE: The meat drawer cover has one fixed support that runs down the center of the shelf. The outside support is the adjustable one.

2. Using a Phillips screwdriver, remove the adjustable support

and move it to the other side of the meat drawer cover. Refrigerator Shelves Store similar foods together and adjust the shelves to fit different heights. This reduces the time the refrigerator door is open and saves energy.

3. Place the meat drawer cover in the desired location and slide

the meat drawer back into position. To remove and replace a shelf:

1. Remove the shelf by pulling it forward slightly to align the shelf

stops with the openings in the refrigerator compartment liner. Lift straight up, and pull the shelf out the rest of the way.

2. Replace the shelf by lowering the shelf stops through the

openings in the refrigerator compartment liner. Slide the shelf in the rest of the way. Crispers and Meat Drawer Drawers To remove and replace a drawer:

1. Slide drawer straight out to the stop. Lift the front of the

drawer and slide it out the rest of the way.

2. Replace a drawer by sliding it back in fully past the stop.

Crisper Cover To remove the crisper(s) cover:

1. Remove crisper(s). Hold the glass insert firmly with one hand

and press up in the center of the glass insert until it rises above the plastic frame. Slowly slide the glass insert forward to remove.

Meat Storage Guide Store most meat in original wrapping as long as it is airtight and moisture-proof. Rewrap if necessary. See the following chart for storage times. When storing meat longer than the times given, freeze the meat. Fresh fish or shellfish......................... use same day as purchased Chicken, ground beef, variety meats (liver) ...................... 1-2 days Cold cuts, steaks/roasts .................................................. 3-5 days Cured meats................................................................... 7-10 days Leftovers - Cover leftovers with plastic wrap, aluminum foil, or place in containers with tight fitting lids. Crisper Humidity Control (on some models) You can adjust the amount of humidity in the moisture-sealed crisper using the settings between HIGH and LOW. LOW (open) lets moist air out of the crisper for best storage of fruits and vegetables with skins. ■ Fruit: Wash, let dry and store in refrigerator in plastic bag in crisper. Do not wash or hull berries until they are ready to use. Sort and keep berries in original container in crisper.

Vegetables with skins: Place in plastic bag or plastic container and store in crisper. HIGH (closed) keeps moist air in the crisper for best storage of fresh, leafy vegetables. ■ Leafy vegetables: Wash in cold water, drain and trim or tear off bruised and discolored areas. Place in plastic bag or plastic container and store in crisper. Door Bin To remove and replace the bin:

1. Remove the bin by tipping the front of the bin forward and

2. Replace the bin by sliding it in above the desired support

tilting it back into place. Stainless steel finish: Wash with a clean sponge or soft cloth and a mild detergent in warm water. Do not use abrasive or harsh cleaners. Dry thoroughly with a soft cloth.

To keep your stainless steel refrigerator looking like new and to remove minor scuffs or marks, it is suggested that you use the manufacturer’s approved Stainless Steel Cleaner and Polish. IMPORTANT: This cleaner is for stainless steel parts only! Do not allow the Stainless Steel Cleaner and Polish to come into contact with any plastic parts such as the trim pieces, dispenser covers or door gaskets. If unintentional contact does occur, clean plastic part with a sponge and mild detergent in warm water. Dry thoroughly with a soft cloth.

6. Clean the condenser coils regularly. Coils may need to be

cleaned as often as every other month. This may help save energy. ■ Open the refrigerator door and remove the base grille by pulling down and out from the top. REFRIGERATOR CARE Cleaning WARNING Explosion Hazard Use nonflammable cleaner. Failure to do so can result in death, explosion, or fire.

Remove the defrost pan and clean it using a clean sponge or soft cloth and a mild detergent in warm water. Hand wash, rinse, and dry it thoroughly.

Use a vacuum with an extended attachment to clean the condenser coils when they are dusty or dirty.

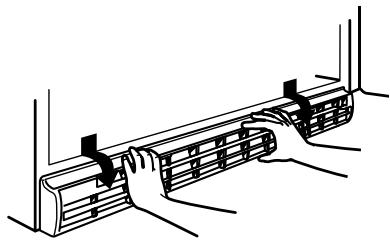

Replace the base grille by putting the clips in the openings in the refrigerator panel. Push in until the base grille snaps into place.

7. Plug in refrigerator or reconnect power.

Clean the refrigerator about once a month to keep odors from building up. Wipe up spills immediately. To clean your refrigerator:

1. Unplug refrigerator or disconnect power.

2. Remove all removable parts from inside, such as shelves,

3. Hand wash, rinse, and dry removable parts and interior

surfaces thoroughly. Use a clean sponge or soft cloth and a mild detergent in warm water. ■ Do not use abrasive or harsh cleaners such as window sprays, scouring cleansers, flammable fluids, cleaning waxes, concentrated detergents, bleaches or cleansers containing petroleum products on plastic parts, interior and door liners or gaskets. Do not use paper towels, scouring pads, or other harsh cleaning tools. These can scratch or damage materials.

To help remove odors, you can wash interior walls with a mixture of warm water and baking soda (2 tbs to 1 qt [26 g to 0.95 L] of water).

4. Replace the removable parts.

5. Use the appropriate cleaning method for your exterior finish.

Painted metal: Wash exteriors with a clean sponge or soft cloth and a mild detergent in warm water. Do not use abrasive or harsh cleaners, or cleaners designed for stainless steel. Dry thoroughly with a soft cloth. Changing the Light Bulb NOTE: Not all appliance bulbs will fit your refrigerator. Be sure to replace the bulb with one of the same size, shape, and wattage.

1. Unplug refrigerator or disconnect power.

2. Remove the light shield. From the front of the light shield,

push backward and down.

3. Replace the light bulb with an appliance bulb of the same

4. Replace the light shield.

5. Plug in refrigerator or reconnect power.

Power Interruptions If the power will be out for 24 hours or less, keep the door closed to help food stay cold. If the power will be out for more than 24 hours, consume or can perishable food at once. REMEMBER: If the condition of the food is poor, dispose of it.

Vacation and Moving Care Vacations Moving If you choose to leave the refrigerator on while you’re away, use up any perishables and freeze other items. If you choose to turn the refrigerator off before you leave, follow these steps.

1. Remove all food from the refrigerator.

2. Turn the control to the off position. See “Using the Control.”

3. Clean refrigerator, wipe it, and dry well.

4. Tape rubber or wood blocks to the tops of both doors to prop

them open far enough for air to get in. This stops odor and mold from building up. When you are moving your refrigerator to a new home, follow these steps to prepare it for the move.

1. Remove all food from the refrigerator.

2. Turn the Control to the off position. See “Using the Control.”

3. Unplug refrigerator.

4. Empty water from the defrost pan.

5. Clean, wipe, and dry thoroughly.

6. Take out all removable parts, wrap them well, and tape them

together so they don’t shift and rattle during the move.

7. Screw in the leveling legs so they don't scrape the floor. See

8. Tape the doors shut and the power cord to the refrigerator

cabinet. When you get to your new home, put everything back and refer to “Installation Instructions” for preparation instructions. TROUBLESHOOTING Try the solutions suggested here first in order to avoid the cost of an unnecessary service call. Your refrigerator will not operate The lights do not work WARNING WARNING Electrical Shock Hazard Electrical Shock Hazard Plug into a grounded 3 prong outlet. Plug into a grounded 3 prong outlet. Do not remove ground prong. Do not remove ground prong. Do not use an adapter. Do not use an adapter. Do not use an extension cord. Do not use an extension cord. Failure to follow these instructions can result in death, fire, or electrical shock. Failure to follow these instructions can result in death, fire, or electrical shock.

Is the power supply cord unplugged? Plug into a grounded 3 prong outlet.

Is the power supply cord unplugged? Plug into a grounded 3 prong outlet.

Has a household fuse blown or circuit breaker tripped? Replace the fuse or reset the circuit.

Is a light bulb loose in the socket or burned out? See “Changing the Light Bulb.”

Is the Refrigerator Control turned to the OFF position? See “Using the Control.”

Is the refrigerator defrosting? Recheck to see whether the refrigerator is operating in 30 minutes. Your refrigerator will regularly run an automatic defrost cycle. There is water in the defrost drain pan

Is the refrigerator defrosting? The water will evaporate. It is normal for water to drip into the defrost pan.

Is it more humid than normal? Expect that the water in the defrost pan will take longer to evaporate. This is normal when it is hot or humid. The motor seems to run too much

Is the room temperature hotter than normal? Expect the motor to run longer under warm conditions. At normal room temperatures, expect your motor to run about 40% to 80% of the time. Under warmer conditions, expect it to run even more of the time.

Has a large amount of food just been added to the refrigerator? Adding a large amount of food warms the refrigerator. It is normal for the motor to run longer in order to cool the refrigerator back down. See “Refrigerator Features.”

Is the door opened often? Expect the motor to run longer when this occurs. In order to conserve energy, try to get everything you need out of the refrigerator at once, keep food organized so it is easy to find, and close the door as soon as the food is removed.

Is the control set correctly for the surrounding conditions? See to “Using the Control.”

Is the door closed completely? Push the door firmly shut. If it will not shut all the way, see “The door is difficult to open or will not close completely” later in this section.

Are the condenser coils dirty? This blocks air transfer and makes the motor work harder. Clean the condenser coils. See “Refrigerator Care.” There is interior moisture buildup

Are the air vents blocked in the refrigerator? Remove any objects from in front of the air vents. See “Ensuring Proper Air Circulation” for the location of air vents.

Is the door opened often? To avoid humidity buildup, try to get everything you need out of the refrigerator at once, keep food organized so it is easy to find, and close the door as soon as the food is removed. (When the door is opened, humidity from the room air enters the refrigerator. The more often the door is opened, the faster humidity builds up, especially when the room itself is very humid.)

Is the room humid? It is normal for moisture to build up inside the refrigerator when the room air is humid.

Is the food packaged correctly? Check that all food is securely wrapped. If necessary, repackage food according to the guidelines in “Refrigerator Features.” Wipe off damp food containers before placing in the refrigerator.

Is the control set correctly for the surrounding conditions? See “Using the Control.”

Was a self-defrost cycle completed? It is normal for droplets to form on the back wall after the refrigerator selfdefrosts. The door is difficult to open or will not close completely NOTE: Due to its high-efficiency motor, your new refrigerator will run longer than your old one. WARNING The refrigerator seems to make too much noise

The sounds may be normal for your refrigerator. See “Normal Sounds.” Temperature is too warm

Are the air vents blocked? Remove any objects from in front of the air vents. See “Ensuring Proper Air Circulation” for the location of air vents. Is the door opened often? Be aware that the refrigerator will warm when this occurs. To keep the refrigerator cool, try to get everything you need out of the refrigerator at once, keep food organized so it is easy to find, and close the door as soon as the food is removed. Has a large amount of food just been added to the refrigerator? Adding a large amount of food warms the refrigerator. It can take several hours for the refrigerator to return to the normal temperature. Explosion Hazard Use nonflammable cleaner. Failure to do so can result in death, explosion, or fire.

Are the gaskets dirty or sticky? Clean gaskets according to the directions in “Refrigerator Care.”

Are food packages blocking the door open? Rearrange containers so that they fit more tightly and take up less space.

Are the crisper cover, pans, shelves, bins, or baskets out of position? Put the crisper cover and all pans, shelves, bins, and baskets back into their correct positions. See “Refrigerator Features” for more information.

Does the refrigerator wobble or seem unstable? Level the refrigerator. See “Adjust the Door.” Is the control set correctly for the surrounding conditions? See “Using the Control.”

Before calling for assistance or service, please check “Troubleshooting.” It may save you the cost of a service call. If you still need help, follow the instructions below. When calling, please know the purchase date and the complete model and serial number of your appliance. This information will help us to better respond to your request. If You Need Replacement Parts If you need to order replacement parts, we recommend that you only use factory specified replacement parts. Factory specified replacement parts will fit right and work right because they are made with the same precision used to build every new WHIRLPOOL appliance. To locate factory specified replacement parts in your area, call us or your nearest designated service center. In the U.S.A. For assistance, installation or service call Whirlpool® Appliances toll free: 1-800-253-1301. Our consultants provide assistance with: ■ Features and specifications on our full line of appliances.

Accessory and repair parts sales.

Specialized customer assistance (Spanish speaking, hearing impaired, limited vision, etc.).

Referrals to local dealers, repair parts distributors, and service companies. Whirlpool designated service technicians are trained to fulfill the product warranty and provide afterwarranty service, anywhere in the United States. To locate the Whirlpool designated service company in your area, you can also look in your telephone directory Yellow Pages. For Further Assistance If you need further assistance, you can write to Whirlpool with any questions or concerns at: Whirlpool Brand Home Appliances Customer eXperience Center 553 Benson Road Benton Harbor, MI 49022-2692 Please include a daytime phone number in your correspondence.

In Canada For assistance, installation or service call toll free: 1-800-807-6777. Our consultants provide assistance with: ■ Features and specifications on our full line of appliances.

Accessory and repair parts sales.

Referrals to local dealers, repair parts distributors, and service companies. Whirlpool designated service technicians are trained to fulfill the product warranty and provide afterwarranty service, anywhere in Canada. For Further Assistance If you need further assistance, you can write to Whirlpool with any questions or concerns at: Whirlpool Brand Home Appliances Customer eXperience Center 200 – 6750 Century Ave. Mississauga, ON L5N 0B7 Please include a daytime phone number in your correspondence. Accessories To order accessories, call 1-800-253-1301 or contact your authorized Whirlpool dealer. In Canada, call 1-800-807-6777.

WHIRLPOOL CORPORATION MAJOR APPLIANCE WARRANTY

LIMITED WARRANTY For one year from the date of purchase, when this major appliance is operated and maintained according to instructions attached to or furnished with the product, Whirlpool Corporation or Whirlpool Canada LP (hereafter “Whirlpool”) will pay for Factory Specified Parts and repair labor to correct defects in materials or workmanship that existed when this major appliance was purchased. Service must be provided by a Whirlpool designated service company. YOUR SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT REPAIR AS PROVIDED HEREIN. This limited warranty is valid only in the United States or Canada and applies only when the major appliance is used in the country in which it was purchased. Proof of original purchase date is required to obtain service under this limited warranty.

ITEMS EXCLUDED FROM WARRANTY

This limited warranty does not cover: 1. Replacement parts or repair labor if this major appliance is used for other than normal, single-family household use or when it is used in a manner that is inconsistent to published user or operator instructions and/or installation instructions. 2. Service calls to correct the installation of your major appliance, to instruct you on how to use your major appliance, to replace or repair house fuses, or to correct house wiring or plumbing. 3. Service calls to repair or replace appliance light bulbs, air filters or water filters. Consumable parts are excluded from warranty coverage. 4. Damage resulting from accident, alteration, misuse, abuse, fire, flood, acts of God, improper installation, installation not in accordance with electrical or plumbing codes, or use of products not approved by Whirlpool. 5. Cosmetic damage, including scratches, dents, chips or other damage to the finish of your major appliance, unless such damage results from defects in materials or workmanship and is reported to Whirlpool within 30 days from the date of purchase.

6. Any food or medicine loss due to refrigerator or freezer product failures.

7. Pickup and delivery. This major appliance is intended to be repaired in your home.

8. Repairs to parts or systems resulting from unauthorized modifications made to the appliance.

9. Expenses for travel and transportation for product service if your major appliance is located in a remote area where service by an authorized Whirlpool servicer is not available. 10. The removal and reinstallation of your major appliance if it is installed in an inaccessible location or is not installed in accordance with Whirlpool's published installation instructions. 11. Replacement parts or repair labor on major appliances with original model/serial numbers that have been removed, altered or cannot be easily determined.

12. Discoloration, rust, or oxidation of stainless steel surfaces.

DISCLAIMER OF IMPLIED WARRANTIES

IMPLIED WARRANTIES, INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY OR IMPLIED WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED TO ONE YEAR OR THE SHORTEST PERIOD ALLOWED BY LAW. Some states and provinces do not allow limitations on the duration of implied warranties of merchantability or fitness, so this limitation may not apply to you. This warranty gives you specific legal rights, and you also may have other rights that vary from state to state or province to province. LIMITATION OF REMEDIES; EXCLUSION OF INCIDENTAL AND CONSEQUENTIAL DAMAGES YOUR SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT REPAIR AS PROVIDED HEREIN. WHIRLPOOL SHALL NOT BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES. Some states and provinces do not allow the exclusion or limitation of incidental or consequential damages, so these limitations and exclusions may not apply to you. This warranty gives you specific legal rights, and you also may have other rights that vary from state to state or province to province. If outside the 50 United States and Canada, contact your authorized Whirlpool dealer to determine if another warranty applies. If you think you need repair service, first see the “Troubleshooting” section of the Use & Care Guide. If you are unable to resolve the problem after checking “Troubleshooting,” additional help can be found by checking the “Assistance or Service” section or by calling Whirlpool. In the U.S.A., call 1-800-253-1301. In Canada, call 1-800-807-6777. 5/08 Keep this book and your sales slip together for future reference. You must provide proof of purchase or installation date for in-warranty service. Write down the following information about your major appliance to better help you obtain assistance or service if you ever need it. You will need to know your complete model number and serial number. You can find this information on the model and serial number label located on the product. Dealer name____________________________________________________ Address ________________________________________________________ Phone number __________________________________________________ Model number __________________________________________________ Serial number __________________________________________________ Purchase date __________________________________________________
