Product Type	Automatic Pool Cleaner
Model	QB800
Brand	AstralPool
Suitable Pool Type	In-ground, above-ground pools
Cleaning Coverage	Floor and walls
Max Pool Size	Up to 12 m x 6 m
Power Supply	230 V / 50 Hz
Power Consumption	180 W
Hose Length	12 m
Weight	8.5 kg
Dimensions (L x W x H)	45 x 40 x 30 cm
Filtration System	Fine mesh filter bag (150 μm)
Movement	Random drive with scrubbing brushes
Control	Automatic, no remote required
Cable Length	18 m
Material	ABS plastic, corrosion-resistant
Maintenance	Clean filter bag after each use, check brushes quarterly
Safety Features	Low voltage transformer, automatic shut-off if out of water
Spare Parts Available	Filter bags, brushes, wheels, hose
Warranty	2 years

Frequently Asked Questions - QB800 ASTRALPOOL

How do I install the AstralPool QB800?

First, connect the hose to the unit and the pool's skimmer or dedicated suction line. Ensure the power supply is off during installation. Submerge the cleaner in the pool, plug it in, and let it start automatically. See the manual for detailed steps.

Why is my QB800 not moving?

Check if the power cord is properly connected and the circuit breaker is on. Inspect the hose for kinks or blockages. Also verify that the filter bag is not full. If still not moving, contact support.

How often should I clean the filter bag?

Clean the filter bag after each cleaning cycle or when you notice reduced suction. Rinse it with water and let it dry completely before reuse to prevent mold.

Can the QB800 climb walls?

Yes, the QB800 is designed to clean both the floor and walls of your pool, thanks to its powerful suction and rotating brushes.

What is the maximum pool depth for this cleaner?

The QB800 can operate in pools up to 3 meters deep, provided the hose length is adequate.

Does the QB800 require a separate power supply?

Yes, it comes with a low-voltage transformer that plugs into a standard 230 V outlet. Never use an extension cord.

How do I store the vacuum cleaner?

Store the QB800 in a dry, shaded place. Remove and clean the filter bag, coil the hose and cable loosely, and keep away from direct sunlight.

What spare parts are available for the QB800?

Replacement parts include filter bags, brush sets, wheels, hoses, and cable assemblies. Use only genuine AstralPool parts for best performance.

Why is the cleaner leaving debris behind?

Check if the filter bag is full or torn. Also ensure the brushes are not worn out. Adjust the flow rate via the pool's suction control if possible.

Is the QB800 suitable for above-ground pools?

Yes, it works in above-ground pools as well, as long as the pool shape and size are within the recommended limits. Ensure proper hose connection.

USER MANUAL QB800 ASTRALPOOL

Illustration of a tracked robotic vehicle with visible tracks and sensor array (no text or symbols)

QB800 ROBOTIC POOL CLEANER

TYPE EN15--

WARNING

FOR YOUR SAFETY - For anything other than the routine cleaning and maintenance described in this manual, this product must be serviced by a pool technician who is licensed and qualified in pool equipment by the jurisdiction in which the product will be installed where such state or local requirements exist. In the event no such state or local requirement exists, the maintainer must be a professional with sufficient experience in pool equipment installation and maintenance so that all of the instructions in this manual can be followed exactly. Improper installation and/or operation will void the warranty.

TABLE OF CONTENTS

Section 1. Important Safety Instructions.....4

Section 2. Cleaner Specifications .... 5

Section 3. Assembly......6

3.1 Contents....6
3.2 Assemble the Transport Caddy....6
3.3 Attach the Control Unit to the Caddy....7
3.4 Connect to a Power Source 8

Section 4. General Cleaner Operation......9

4.1 Install and Submerge the Cleaner....9
4.2 Cleaner Control Unit 10
4.3 Start / Stop Cleaning....11
4.4 Elevate System 11

Section 5. Storage & Maintenance......11

5.1 Cord Tangling 11
5.2 Clean the Filter Canister....12
5.3 Store the Cleaner When Not in Use 13
5.4 Replacing Wear Parts 14

Section 6. Troubleshooting....16

6.1 Control Unit Status Indicator Lights 16
6.2 General Troubleshooting.... 17

Section 7. Conformity ...... 18

Section 1. Important Safety Instructions

READ AND FOLLOW ALL INSTRUCTIONS

Congratulations on purchasing the AstralPool Robotic Cleaner. Please read through the entire manual before installing your new robotic pool cleaner. Your cleaner must be installed and operated as specified.

WARNING

Failure to comply with the following warnings can increase risk of fire or electrocution which can result in property damage and serious injury, including loss of life.

PREVENT ELECTRICAL SHOCK

To reduce risk of electrical shock:

• The cleaner is to be installed in accordance with the relevant requirements of the Australian wiring rules AS/NZS 3000. Also refer to the installation instructions relating to the swimming pool equipment for which the cleaner will be an integral part. The cleaner is to be supplied through a Residual Current Device (RCD) with a rated residual operating current of 30mA.
• Do not enter pool while the robotic cleaner is in water.
• Do not bury cord. Locate cord so as to prevent it from being damaged by lawn mowers, hedge trimmers and other equipment.
• To reduce the risk of electrical shock, do not use the robotic cleaner or control unit if the cord is worn or damaged. Contact AstraPool Consumer Care 1300 186 875 immediately for proper servicing and replacement of the damaged cord.
• Double insulation—For continued protection against possible electric shock, use only identical replacement parts when servicing. Do not attempt repair of the robotic cleaner, control unit, power cord, or floating cable.
• Use only the power supply provided with the product.
  • NEVER OPEN CONTROL UNIT.
• DO NOT USE AN EXTENSION CORD TO CONNECT THE UNIT TO ELECTRIC SUPPLY; PROVIDE A PROPERLY LOCATED APPROVED ELECTRICAL OUTLET. THE CONTROL UNIT SHOULD BE PLACED NEAR THE APPROVED RECEPTACLE BOX.

PREVENT CHILD INJURY AND DROWNING

• To reduce the risk of injury, do not permit children or persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge to operate this product.
• Do not let anyone, especially small children, sit, step, lean, or climb on any equipment installed as part of your pool's operational system.

CAUTION

Failure to comply with the following warnings could cause damage to pool equipment or personal injury.

• The robotic cleaner must be installed and operated as specified.
• This product is intended for use with permanently-installed pools. Do not use with storable pools. A permanently-installed pool is constructed in or on the ground or in a building such that it cannot be readily disassembled for storage. A storable pool is constructed so that it is capable of being readily disassembled for storage and reassembled to its original integrity.
• Clean the filter canister in the cleaner after each use.
• Do not use the product in your pool if the water temperature is above 35^ C (95°F) or below 13^ C (55°F).

USE OF THE ROBOTIC CLEANER IN A VINYL LINER POOL

Certain vinyl liner patterns are particularly susceptible to rapid surface wear of pattern removal caused by objects coming into contact with the vinyl surface, including pool brushes, pool toys, floats, fountains, chlorine dispensers, and automatic pool cleaners. Some vinyl liner patterns can be seriously scratched or abraded simply by rubbing the surface with a pool brush. Ink from the pattern can also rub off during the installation process or when it comes into contact with objects in the pool. AstralPool Group Australia Pty Ltd is not responsible for, and the Limited Warranty does not cover, pattern removal, abrasion or markings on vinyl liners.

SAVE THESE INSTRUCTIONS

Section 2. Cleaner Specifications

The general specifications for the cleaner are as follows:

Control box [25KB]supply voltage
Supply voltage	30 V DC
Installed load	150 W max
Cable length	15M
Cleaner size (WxDxH)	43 x 48 x 27 cm
Weight of Cleaner	9.5 kg
Packed weight	19 kg
Filtration	All-purpose filter canister
Cycle lengths	Variable programming.

The cleaner is a double-insulated product. A double-insulated electrical appliance is one which has been designed in such a way that it does not require a safety connection to ground. The basic requirement for double-insulation is that no single failure can result in dangerous voltage becoming exposed so that it might cause an electric shock and that this is achieved without relying on an earthed (grounded) metal casing. This is achieved by having two (2) layers of insulating material surrounding live parts or by using reinforced insulation. Therefore, devices having double-insulated construction, such as this cleaner, do not utilize a grounded (three-prong) cord/plug.

Section 3. Assembly

3.1 Contents

The packaging should contain the following items:

• Cleaner and floating cable with swivel
• Control unit
  • Manual, Quick Start Guide, and Warranty Card
• Transport and storage caddy components (depending on model):

a. handle frame
b. support blocks (x 2)
c. wheels (x 2)
d. wheel locking clips (x 2)
e. wheel axle / hubcap (x 2)
f. base unit
g. cleaner hook
h. caddy handle

Figure 1. Transport Caddy Assembly Components

When unpacking the cleaner and its components:

• Check to make sure each component is in the box.
• Check cleaner and components for damage during transport.
• If there are any missing parts or damage, contact Technical Support at 1300 186 875

3.2 Assemble the Transport Caddy

1. Unscrew the handnut from the base.

Technical line drawing of a mechanical component with a rotating knob and directional arrow (no text or symbols)

Figure 2. Remove Handnut from Base Unit

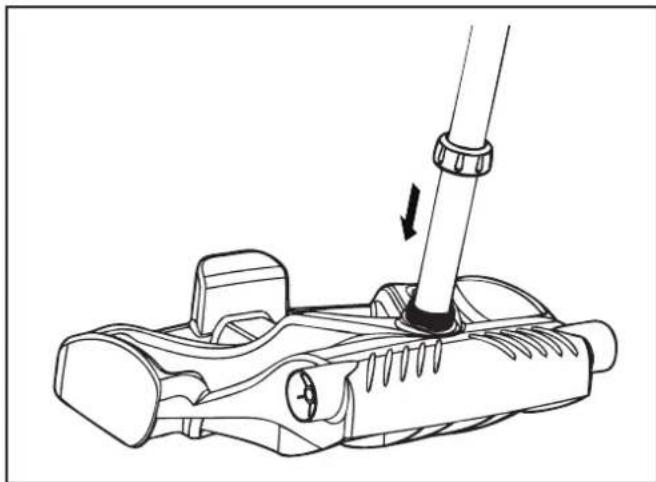

1. Insert the metal handle frame tubing into the base with notch end at the top, then rotate so the bends are away from you.
2. Push base down so the metal handle frame is seated in the recess on the underside of the base.

Diagram of a mechanical device with rotating arms and a handle, showing motion direction (no text or symbols)

Figure 3. Connect Metal Frame to Base Unit

1. Slide the handnut over the tube and twist to tighten onto base unit.

Technical line drawing of a mechanical device with a lever and adjustment arrow (no text or symbols)

Figure 4. Twist Handnut to Secure Frame

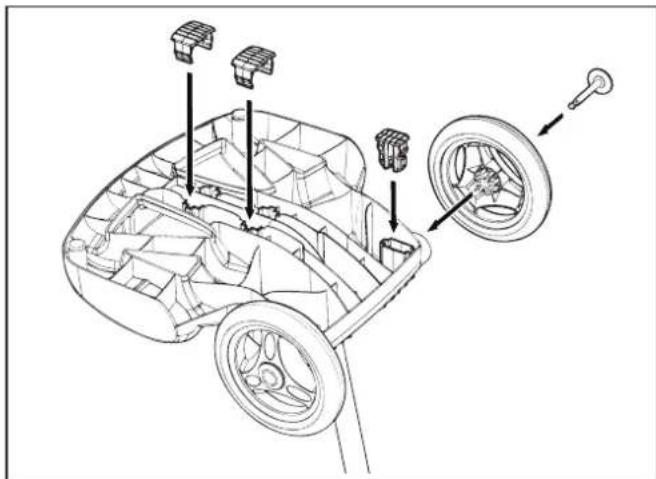

1. Snap two (2) support blocks into place.
2. Slide axle and hubcap piece through center of wheel and attach to base unit. Snap locking clip into place to secure wheel. Repeat to attach both wheels.

Technical line drawing of a car interior showing components like wheels, seats, and a wheel (no text or labels)

Figure 5. Snap in Support Blocks and Attach Wheels

1. Slide the control unit base / caddy handle attachment down over the metal tubing until it snaps into place.

Line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

Figure 6. Attach Caddy Handle

1. Align cleaner hook pins with the top holes in the handle tube and snap into place.

Figure 7. Snap Cleaner Hook into Place

3.3 Attach the Control Unit to the Caddy

1. Align the bottom of the control unit with the notch at bottom of the control unit hook on the caddy.

Technical line drawing of a mechanical clamp or bracket assembly with a close-up view of the component (no text or symbols)

Figure 8. Align Control Unit with Caddy Hook

1. Press control unit onto the caddy hook until it snaps and locks into position.

Line drawing of a mechanical clamp or bracket component with an arrow indicating rotation (no text or symbols)

Figure 9. Attach the Control Unit onto Caddy

3.4 Connect to a Power Source

WARNING

Failure to comply with the following warnings can increase risk of fire or electrocution which can result in property damage and serious injury, including loss of life.

PREVENT ELECTRICAL SHOCK

• Keep the control unit at least 3.5 m from the edge of the pool.
• The cleaner is to be installed in accordance with the relevant requirements of the Australian wiring rules AS/NZS 3000. Also refer to the installation instructions relating to the swimming pool equipment for which the cleaner will be an integral part. The cleaner is to be supplied through a Residual Current Device (RCD) with a rated residual operating current of 30mA.
• Do not use an extension cord to connect the control unit.
• Do not allow anyone to swim while the cleaner is in the pool.

• The control unit is water-resistant, not water-proof. In order to prevent electrocution, never submerge the control unit or leave exposed to inclement weather.

• Unscrew the protective cap for the floating cable from the side of the control unit by turning counterclockwise.

• Grip the notched end of the floating power cable, insert into the control unit, and turn clockwise to tighten.

Figure 10. Remove Protective Cap and Connect Power Cable

Section 4. General Cleaner Operation

CAUTION

To prevent damage to the cleaner, be sure to adhere to the following guidelines:

• Remove the cleaner from the pool after each cleaning cycle is completed.
• Store on the caddy out of direct sunlight or inclement weather.
• Never remove the cleaner from the pool by the floating cable. Always use the Elevate System to remove cleaner from the pool.

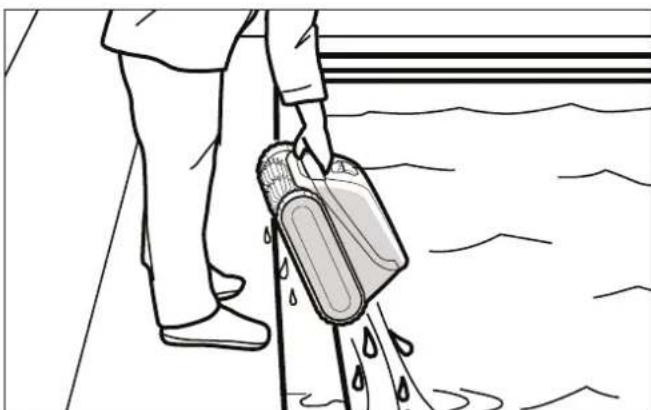

  • Take additional care when lifting the cleaner out of the pool. It becomes heavier when filled with water.
  • Always remove the cleaner from pool when super chlorinating or adding acid.
• Do not handle cleaner while it is in operation.

IMPORTANT

• Always make sure the cleaner head is fully submerged before you begin operation.
- Clean the filter canister after each cleaning cycle.

• Do not leave your cleaner in the pool on a permanent basis.
• At the end of each cleaning cycle, remove the cleaner from the pool.
• Start at the cleaner head and untangle any coils in the cable before storing the cleaner.

The robotic cleaner includes a safety feature that automatically stops the cleaner if it is powered on but not submerged in water. For pools equipped with a beach area, this safety feature is programmed to drive the cleaner in reverse and back into the pool when the impeller is out of the water.

AstralPool recommends not exceeding 3 cleaning cycles per week.

4.1 Install and Submerge the Cleaner

1. With the control box plugged into a power outlet, spread the floating cable across the pool deck until you reach the middle of the pool length.

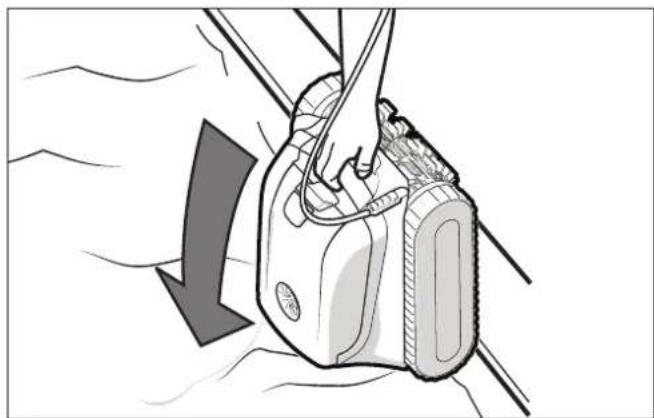

2. At the center point, submerge the cleaner in the pool and hold in the vertical position to release any air trapped inside.

Illustration of a hand operating a wind turbine blade with a downward arrow indicating motion (no text or symbols)

Figure 11. Submerge Cleaner Vertically

1. Ensure the unit sinks to the bottom of the pool and does not float.

Illustration of a fish being caught with a net, showing fish and bubbles (no text or symbols)

Figure 12. Sink Cleaner to the Bottom of the Pool

1. Place only enough floating cable in the water to reach the farthest end of your pool from the central point. Spread out the floating cable ensuring there are no kinks or coils in the cable.

Figure 13. Pool Entry Point for Optimal Patterning

4.2 Cleaner Control Unit

The control unit can be used to initiate all basic cleaning features.

Button Functions

Start/Stop cleaning

Select cleaning mode:

Floor Only

(1h 15 min)

CleansFloor only

Floor/Walls/Waterline

(2h 30 min)

Cleans the floor, walls and waterline of the pool

Elevate System. Remove cleaner from the pool

4.3 Start / Stop Cleaning

The factory default cleaning mode is Floor/Walls/Waterline.

Use MODE to change cleaning surface setting. Toggle between modes:

Floor Only

(1h 15 min) Floor only

Floor/Walls/Waterline

(2h 30 min)

Floor, walls, waterline

With the cleaner submerged in the water,

press to begin operation.

Press again to interrupt and cancel an in-progress cleaning cycle.

4.4 Elevate System

The Elevate System is designed to assist in retrieving the robot from the pool. The Elevate System can be activated at any time during or after a cleaning cycle and the current cycle will be canceled..

1. Press to begin the automated procedure to bring the cleaner to the wall.

NOTE: To stop the procedure at any time, press and release the button again.

1. Next, press and HOLD to rotate the cleaner.
2. Once the cleaner is facing the wall of your choice for retrieval, release the button.
3. Cleaner will drive forward and up the wall it is facing. It will wait at the water line to be retrieved.
4. When in reach, remove the cleaner from the pool using the handle. The cleaner will quickly expel water to allow for lighter, easier removal.

NOTE: Never remove the cleaner from the pool by the floating cable.

Section 5. Storage & Maintenance

WARNING

To avoid electric shock and other hazards which could result in permanent injury or death, disconnect (unplug) the cleaner from the power source before performing any cleaning and maintenance.

5.1 Cord Tangling

Tangling can occur more frequently when the cleaner is not attended to after each cleaning cycle. The tangle-reducing swivel, in addition to proper installation, general maintenance and the following troubleshooting steps can help to avoid cable challenges.

IMPORTANT

Cleaner power cable may become tangled if correct procedure is not followed after each cleaning cycle.

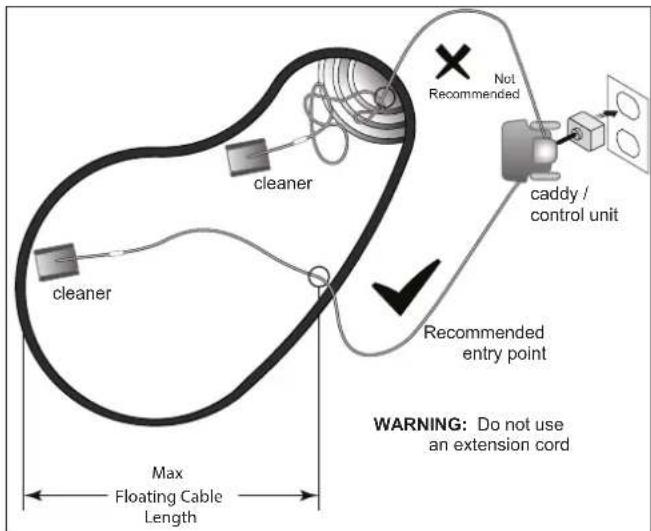

NOTE: For reduced tangling, the floating cable should enter the water near the middle of the pool length. Only place enough cable in the water to reach the farthest point in the pool.
    note right of C: Not Recommended
    note right of D: Recommended entry point
    note right of C: MAX Floating Cable Length
    note right of D: WARNING: Do not use an extension cord

Figure 14. Pool Entry Point for Reduced Tangling

If tangling occurs, follow these steps:

1. Remove the cleaner from the pool using the Elevate System. When the cleaner is within arm's reach, use the handle to remove from the water. Never remove the from the pool by the floating cable or swivel.

2. Hold the cleaner vertically to drain.

Line drawing of a person standing on a path holding a water bag, with no text or symbols present.

Figure 15. Keep Cleaner Vertical to Drain Water

1. Unplug power to the cleaner at the control box.

Illustration of a hand inserting a small device into a device with arrows indicating the process (no text or symbols present)

Figure 16. Unplug

1. Remove the cleaner from the pool and untangle all

kinks and coils in the power cable. Start at the cleaner head. Lay the cable in the sun to loosen any tangling memory.

Line drawing of a person using a vacuum cleaner connected to a cable (no text or symbols present)

Figure 17. Untangle the Power Cable

5.2 Clean the Filter Canister

The filter canister should be cleaned at the end of each cycle.

1. Remove the cleaner from the water using the Elevate System and let the remaining water drain.

2. Set the unit on a flat surface.

3. Lift the cover lock into a vertical position.

Illustration of a hand operating a tracked robotic lawn tool with a circular head (no text or symbols)

Figure 18. Lift the Cleaner Cover

1. Remove the filter canister assembly from the cleaner body.

Illustration of a robotic lawn mower with a hand placing a tray into the bin, showing mechanical components and an upward arrow (no text or symbols)

Figure 19. Remove the Filter Canister

1. Separate the two fi Iter canisters.

Illustration of a robotic lawn mower with two separate storage bins, showing mechanical components and directional arrows (no text or symbols)

Figure 20. Separate Filter Canisters

1. Empty all debris from the filter canisters, then rinse canisters, the filter support and the cleaner using a hose.

Illustration of a hand using a tool to connect two electronic devices on a table (no text or symbols visible)

Figure 21. Wash the Filter Canisters

thoroughly with soapy water and a soft bristle brush.

5.3 Store the Cleaner When Not in Use

The cleaner must be cleaned regularly using slightly soapy clean water. Do not use solvents such as trichlorethylene or its equivalent. Rinse the cleaner generously using clean water. Do not let your cleaner dry in direct sunlight near the pool. The cleaner should be stored on its caddy so that it dries quickly.

1. Disconnect cleaner from the power source.
2. Starting at the cleaner head, remove all coils and tangles from the cable. Lay the cable in the sun to loosen any tangling memory.
3. Place the rear wheels on the caddy and position the cleaner vertically on the caddy base.
4. Disconnect the cable from the control box. Replace the protective cap on the control box.
5. Loosely coil the power cable starting at the cleaner and moving toward the connection point at control box. Store the cable by wrapping it around the hook located on the front of the caddy.

Line drawing of a person using a vacuum cleaner connected to a cable (no text or symbols)

Figure 22. Untangle the Floating cable

5.4 Replacing Wear Parts

5.4.1 Replacing Brushes

The cleaner is fitted with PVC brushes with a "wear" indicator.

Figure 23. Worn Brush Indicator

To maintain cleaner performance at its best you need to replace the brushes as soon as one of the wear indicators is reached (even if the blade wear is not even). It is recommended that you replace the brushes when the rubber is worn down to the top of the wear indicator (or every two years, whichever comes first).

To replace a worn brush:

1. Lift the cleaner to a vertical position so that the handle is up.

Illustration of a device with a hand inserting a cable into it, showing airflow direction (no text or symbols)

Figure 24. Cleaner in Upright Position

1. Separate the edges of the brush and undo the tabs. Remove the worn brushes.

Illustration of hands assembling or adjusting a mechanical component (no text or symbols visible)

Figure 25. Undo the Tabs of the Brush

1. To install the new brush, position the new brush on the roller with the cleaning blades facing away from the roller.

Figure 26. Install the New Brush

1. Thread each tab into the slot provided and gently feed it through until the heel comes out at the other side of the slot.

Illustration of hands assembling a mechanical component with a numbered arrow (no text or symbols present)

Figure 27. Pull Tabs Through Each Slot

1. Use a pair of scissors to cut the tabs 3/4 inch from the heel so that they are no higher than the cleaning blade.

2. Repeat the procedure to install the second brush.

Line drawing of hands using a tool to cut or adjust a mechanical component (no text or symbols present)

Figure 28. Cut Tabs

Section 6. Troubleshooting

6.1 Control Unit Status Indicator Lights

• If the status indicator on the Control Unit flashes, follow the recommended troubleshooting tips below.
  • After resolving the error, press any key to delete the error code.

Flashing LED Suggested Solution
1 fl ash / 1 second pause	· Disconnect and reconnect the cleaner.· Check that the cable is properly connected to the control box.· Check that nothing is interfering with the cable connection area.· If this does not resolve the problem, contact your local retailer for a diagnostic review or call customer service.
2 fl ash / 1 second pause	· Check that debris or the cable is not preventing the brushes or the tracks from rotating freely.· Check that nothing is interfering with the cable connection area.· Rotate the track by a quarter of a turn in the same direction until it rotates smoothly.· If this does not resolve the problem, contact your local retailer for a diagnostic review or call customer service.
3 fl ash / 1 second pause	· Turn the cleaner off.· Clean the fi lter thoroughly.· Put it back in the water, shaking to release the air bubbles.· Restart the cycle.· If this does not resolve the problem, contact your local retailer for a diagnostic review or call customer service.
	· Check that no debris or hair is blocking the impeller.· Clean the fi lter thoroughly.· If this does not resolve the problem, contact your local retailer for a diagnostic review or call customer service.

6.2 General Troubleshooting

The following list provides some helpful hints for troubleshooting common challenges when using the cleaner.

Message Possible Cause Solution
Lights on control unit flash after pressing Start/Stop	Floating cable not connected. Unplug and then reconnect the floating cable to the control unit.
	Cleaner not fully submerged. Remove cleaner from pool and re-submerge. (see: Install and Submerge the Cleaner).
	Poor connection or need to restart cycle.	Unplug the control unit and reconnect to an approved power outlet. Press "Start" to begin a new cycle.
	Propeller or wheels may be jammed and not turning correctly.	Contact your local retailer to request a diagnostic review. If the problem is not resolved, contact AstralPool Consumer Care 1300 186 875.
The flashing lights appear on the control unit during the cleaning cycle.	Cleaner not fully submerged. Remove cleaner from pool and re-submerge. (see: Install and Submerge the Cleaner).
The cleaner does not stay on the pool surface or is floating excessively.	There is air trapped inside the cleaner housing.	Remove cleaner from pool and re-submerge. (see: Install and Submerge the Cleaner).
	The filter canister is full or dirty.	Dispose of debris and thoroughly clean the filter canister with mild soap and a soft brush. Then, re-submerge the cleaner (see: Clean the Filter Canister).
The cleaner is not climbing walls.	The filter canister is full or dirty. Dispose of debris and thoroughly clean the filter canister with mild soap and a soft brush. Then, re-submerge the cleaner (see: Clean the Filter Canister).
	Tyre treads worn down. See: Replacing Wear Parts.
	Confirm appropriate pool chemistry.	Speak with your pool service professional.Do not leave cleaner in the pool during any chemical treatments.
The cleaner is not moving Not connected to electricity. The outlet the control unit is connected to, is not supplying electrical power. Check that the outlet to which the control unit is connected is receiving electricity.
The floating cable has excessive tangling	Too much cable in the water. Place only the required amount of cable into the water to allow it to reach the farthest end of your pool with remaining cable on the pool deck. (See: Install and Submerge the Cleaner).
	Removal needed. Untangle the twisted cord and lay in sun to reduce memory.(See: Cord Tangling).
The cleaner is not cleaning the pool effectively.	Filter canister is full or dirty. Dispose of debris and thoroughly clean the filter canister with mild soap and a soft brush. Then, re-submerge the cleaner (see: Clean the Filter Canister).
	Brushes are worn. Check the wear indicator(s). Contact your local dealer for spare parts.
	Cable is excessively tangled. Untangle the twisted cord and lay in sun to reduce memory.(See: Cord Tangling).

Section 7. Conformity

EU

IEC 60335-2-41

87002641965

Intertek

3145455L100001-01A

Australian Cert. No. SAA100894EA

SAA100540

The manufacturer reserves the right to modify these specifications without notice. Although the cleaning robots have been tested in a large variety of swimming pools, AstralPool cannot be held responsible in the case of a non-perfect adaptation of the robot to a particular swimming pool.

For full warranty terms and conditions and to register your warranty, visit www.astralpool.com.au/warranty and complete your details. Or scan the QR code to go directly to the registration page

Record your equipment details here for quick reference:

Model No.: ____

Serial No.: ____
