030-002 - Planer Meec Tools - Free user manual and instructions

Product Type	Electric Hand Planer
Brand	Meec Tools
Model	030-002
Power Input	630 W
Planing Width	82 mm
Planing Depth	0 - 2 mm (adjustable)
No-Load Speed	16,000 rpm
Rebate Depth	0 - 8 mm
Dust Extraction	Yes, with dust bag (included)
Weight	2.7 kg
Dimensions (L x W x H)	285 x 165 x 180 mm
Voltage	230 V ~
Frequency	50 Hz
Safety Features	Double insulation, safety lock-off switch, anti-kickback
Maintenance	Regularly clean dust port; replace blades when dull; check carbon brushes
Spare Parts Availability	Replacement blades, carbon brushes, belt (if equipped) available from Meec Tools service
Certifications	CE, RoHS

Frequently Asked Questions - 030-002 Meec Tools

What is the maximum planing width of the Meec Tools 030-002 planer?

The maximum planing width is 82 mm, suitable for most standard lumber.

How do I adjust the planing depth?

Turn the depth adjustment knob located on the front of the planer. The scale indicates depth from 0 to 2 mm.

Can I use this planer for rebating (rabbeting)?

Yes, the planer has a adjustable rebate depth up to 8 mm. Use the depth stop for precise rebates.

How do I change the blades?

Disconnect power. Use the included wrench to loosen the blade retaining screws. Replace with HSS or TCT blades of correct size. Tighten securely.

Does the planer come with a dust bag?

Yes, a dust bag is included. For better extraction, connect to a vacuum via the adaptor (not included).

What safety features does the 030-002 have?

It features double insulation for protection without grounding, a lock-off switch to prevent accidental start, and an anti-kickback mechanism.

What maintenance is required?

Regularly empty the dust bag, keep air vents clean, and lubricate moving parts occasionally. Replace carbon brushes when worn.

Where can I find replacement parts?

Contact Meec Tools customer service or visit their website for blades, brushes, and other spare parts.

What voltage and frequency does the planer require?

It operates on 230 V ~ and 50 Hz.

Is the planer suitable for hardwood?

Yes, with sharp blades and moderate feed rate, it can handle hardwood. For thick pieces, make multiple passes at shallow depth.

USER MANUAL 030-002 Meec Tools

Operating instructions for Electric Planer

030-002

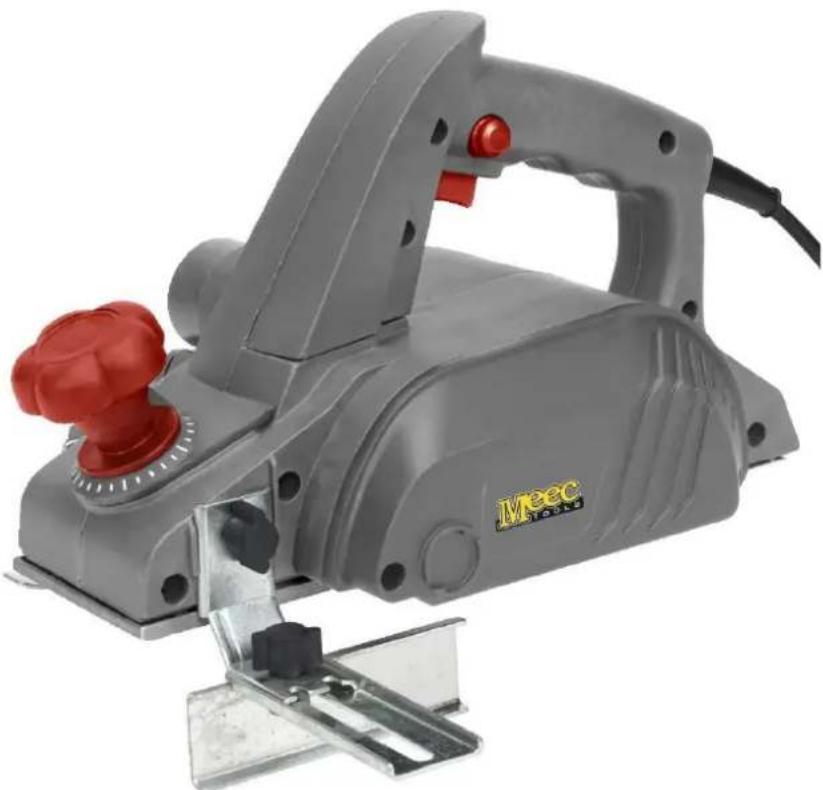

Gray Meec power tool with red handle and metal base (no visible text or symbols)

Värna om miljön!

Care for the environment!

Must not be discarded with household waste! This product contains electrical or electronic components that should be recycled. Leave the product for recycling at the designated station e.g. the local authority's recycling station.

SE - Bruksanvisning i original

EN - Operating instructions (Translation of the original instructions)

Jula reserves the right to make changes. In the event of problems, please contact our service department. www.jula.com

Tillverkare/ Produsent / Produenci/ Manufacturer

Jula AB, Box 363, 532 24 SKARA

Importör/ Importör/ Importer/ Importer

SIKKERHETSFORSKRIFTER

Les bruksanvisningen grundig før bruk!

PRZEPISY BEZPIECZEŃSTWA

SAFETY INSTRUCTIONS

Read the Operating Instructions carefully before use!

• Read these Operating Instructions carefully before use.
• Never leave the machine unattended when children are present.
• Check that the mains voltage corresponds with the rated voltage for the tool.
• Never use the tool if it shows signs of damage.
• Do not tie knots in the power cord.
  Always check that the power cord is in perfect condition. Risk of potentially fatal electric shock.
• Never use the machine if it has been dropped on the floor or is damaged or if the power cord and/or plug are damaged.
• The machine is intended for temporary use only.
  • Always wear gloves and eye protection.
• Never expose the machine to rain or moisture. Store in a dry place.
• Never leave the machine unattended.
• Keep children away from the machine.
• Do not use in the vicinity of flammable or explosive substances or gases.
• Only use original accessories and spare parts from the manufacturer.
  Do not wear loose-fitting clothing or jewellery. Wear non-slip shoes and use a hair net if you have long hair. Make sure you have a firm footing when working.
• Never use the machine in a wet environment or in areas with a high humidity level (bathrooms, saunas, etc.). Do not immerse any part of the machine in water. Risk of electric shock.
• The power cord must only be replaced by the supplier.
  • Repair work must be carried out by the supplier.
• Secure the workpiece before working on it.
• Never work on pieces that are too small to be secured.
• Wear a breathing mask and ear protection when using the planer.

TECHNICAL DATA

Rated voltage	230 V ~ 50 Hz
Output power	600 Watt
Speed	16000 rpm
Safety class	II
Planing depth	0-2 mm
Planing width	82 mm
Cord length	1.8 m
Weight	2.5 kg
Sound pressure level, LpA	88.7 dB(A)
Sound power level, LwA	99.7 dBA
Max vibration level (Main handle)	2,692m/s ^2 , K= 1,5m/s ^2
Max vibration level (Support handle)	4,565m/s ^2 , K= 1,5m/s ^2

Wear hearing protection!

The declared vibration value, which has been measured by a standardised test method, can be used to compare different tools with each other and for a preliminary assessment of exposure.

WARNING!

The actual vibration level when using power tools may differ from the specified maximum value, depending on how the tool is used. It is therefore necessary to determine which safety precautions are required to protect the user, based on an estimate of exposure in actual operating conditions (taking into account all stages of the work cycle, e.g. the time when the tool is switched off and when it is idling, in addition to the start-up time).

DESCRIPTION

This electric planer is intended for hobby work and not for professional use.

The planer must only be used on large workpieces that can easily be secured. It is not intended for use as a stationary tool.

USE

WARNING!

Do not let any part of the body come into contact with the rotating blade. Danger of fatal or serious personal injury.

BEFORE USE

Check that the voltage on the planer rating plate corresponds with the mains voltage.

Check that the workpiece is securely clamped so that it cannot move during the planing.

STARTING AND STOPPING

To start the machine: press both start buttons on the handle. Release the buttons to stop the machine.

ADJUSTING THE PLANING DEPTH

Adjust the planing depth using the knob at the front. This has a graduated scale that can be set from 0 to 2 mm. Never change this setting when planing.

PLANING

Start by connecting an extractor device to the planer. This can be a dust extractor or other similar piece of equipment. See JULA's catalogue.

WARNING!

Wear ear protection and a breathing mask when planing.

1. Start the machine.
2. Run the machine at full speed and place the front part on the workpiece.

3. Move the planer slowly forwards, pressing slightly on the tail piece so that it goes smoothly over the workpiece.

4. Always plane from straight above. Never plane from the side or from underneath.

5. When you have finished planing, wait until the rotation has completely stopped before putting the planer down. Otherwise there is a risk of damaging the cutting edge or the underlying surface.

CARE

WARNING!

Always disconnect from the mains supply before carrying out any maintenance on the machine. Risk of electric shock or fatal injury.

CLEANING

Never use water or strong solvents when cleaning.

Clean with a damp cloth and wipe dry.

REPLACING THE PLANING TOOL

Dismantling:

1. Use the supplied tool and unscrew the screws 6.
2. Remove the planing tools 2 and 3, and the retainer 4.

Assembly:

1. Place the new planing tool 3 between the blade retainer 4 and blade holder 2.
2. Check that all the fitted parts are centred on the planer and do not protrude on any side.
3. Tighten the screws 6.

WARNING!

Do not overtighten or the parts will come loose again.

See the figure below.
