Product Type	Stick Vacuum Cleaner
Model	HSVC-V29.6SBK
Brand	Heinner
Dimensions (L x W x H)	1100 x 250 x 200 mm
Weight	2.5 kg
Power Supply	22.2V Li-ion rechargeable battery
Motor Power	400 W
Dust Container Capacity	0.6 L
Filtration System	Cyclonic + HEPA filter
Suction Modes	Standard, Turbo
Noise Level	< 75 dB
Run Time	Up to 30 minutes (Standard mode)
Charging Time	4-5 hours
Accessories Included	Crevice tool, brush tool, wall mount
Maintenance	Empty dust cup after each use, wash HEPA filter monthly
Safety Features	Overheat protection, automatic shut-off when battery low
Spare Parts Availability	Filters, battery, charging adapter available
Warranty	2 years

Frequently Asked Questions - HSVC-V29.6SBK Heinner

How do I clean the HEPA filter?

Remove the dust cup, take out the HEPA filter, tap it gently or wash with cold water. Let it dry completely for 24 hours before reinstalling. Do not use detergent.

What should I do if the vacuum stops working suddenly?

Check if the battery is depleted. If not, the device may have overheated. Turn off and let it cool for 30 minutes. If problem persists, contact support.

Can I use the vacuum on hardwood floors?

Yes, the vacuum has a soft brush roll suitable for hardwood floors. Ensure the floor mode is set to 'Hard Floor' to prevent scratches.

How long does the battery last?

In standard mode, up to 30 minutes. In turbo mode, approximately 15 minutes. Battery life decreases over time.

Is the vacuum bagless?

Yes, it is bagless with a 0.6L dust cup. Empty the cup after each use for optimal suction.

How do I charge the device?

Connect the charging adapter to the battery pack or the charging port on the vacuum. A full charge takes 4-5 hours. The indicator light will turn green when fully charged.

Can I use the vacuum for car cleaning?

Yes, it comes with a crevice tool and brush tool suitable for car interiors. The cordless design makes it convenient for mobile use.

What does the 'turbo' mode do?

Turbo mode increases suction power for deep cleaning carpets and upholstery but reduces runtime. Use it sparingly.

How do I replace the battery?

The battery is removable. Press the release button on the battery pack and slide it out. Replace with an approved Heinner battery (model HSVC-BAT).

Is there a warranty, and how do I claim it?

Yes, 2-year warranty. Keep the purchase receipt. For claims, contact Heinner customer service or your retailer. The warranty covers manufacturing defects but not normal wear or misuse.

USER MANUAL HSVC-V29.6SBK Heinner

Model: HSVC-V29.6IWH /

HSVC-V29.6SBK

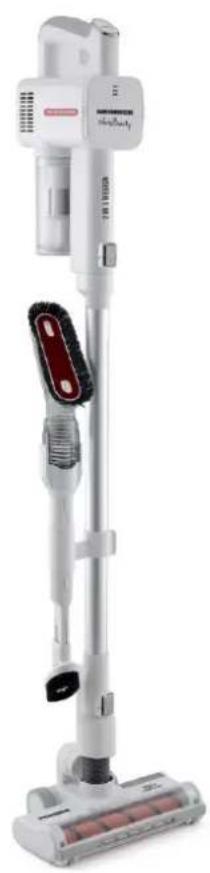

White vacuum cleaner with attached red button and black handle, mounted on a white base (no visible text or symbols)

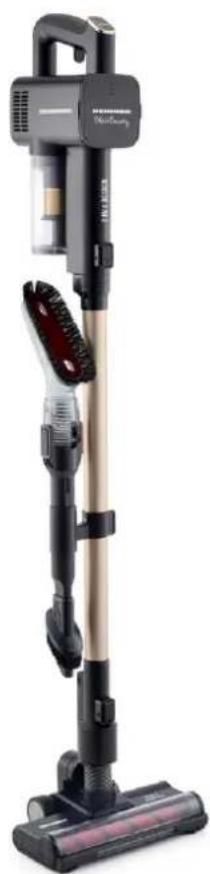

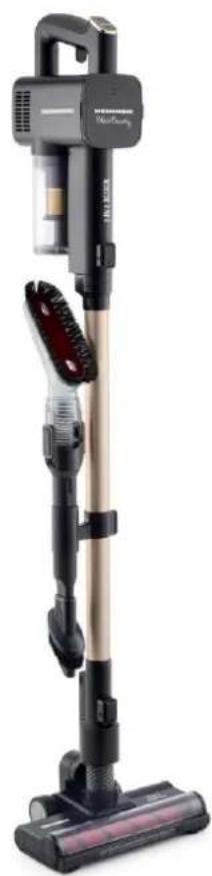

Exterior view of a black and gold vacuum cleaner (no visible text or symbols)

• Aspirator vertical
• Putere: 350W
  • Putere de aspirare: 23kPa

Technical line drawing of a mechanical device with an arrow indicating direction (no text or symbols)

Technical line drawing of a mechanical device with an arrow indicating direction (no text or symbols)

Line drawing of a vacuum cleaner with handle and clasp (no text or symbols)

Technical line drawing of a mechanical device with exploded and assembled views (no text or symbols)

Technical line drawing of a mechanical device with gears and housing (no text or symbols)

Model: HSVC-V29.6IWH /

HSVC-V29.6SBK

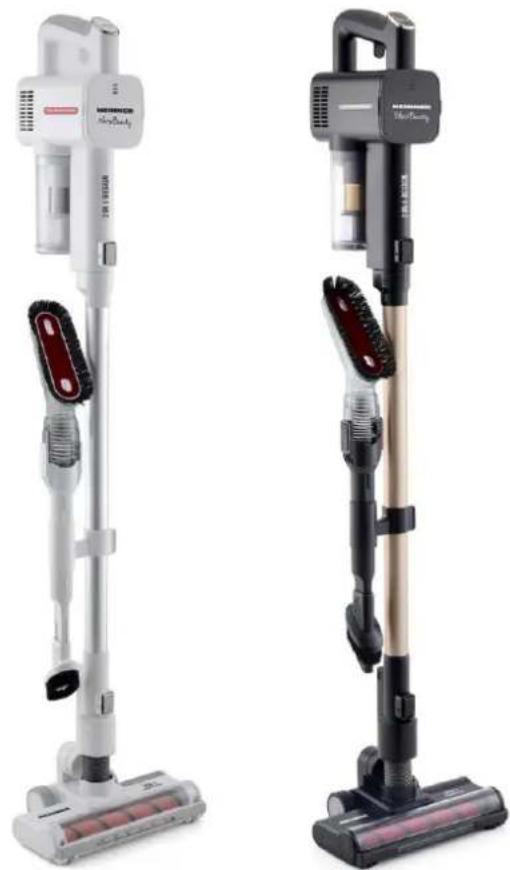

Two variants of a white and black electric vacuum cleaner, one with red filter bands and the other with beige handle (no visible text or symbols)

• Vertical vacuum cleaner
- Power: 350W
• Suction power: 23kPa

Thank you for choosing this product!

I. INTRODUCTION

Before using the appliance, please read carefully this instruction manual and keep it for future reference.

This instruction manual is designed to provide you with all required instructions related to the installation, use and maintenance of the appliance.

In order to operate the unit correctly and safety, please read this instruction manual carefully before installation and usage.

II. PACKAGE CONTENT

Vacuum cleaner
▶ Crevice
Bending brush
▶ Charging adaptor
User manual
Warranty card

III. SAFETY WARNING

1. Read this instruction booklet carefully.
2. This appliance is for domestic use only. Use as described in this instruction booklet.

3. Before using this appliance, check that the mains power voltage corresponds to the voltage shown on the rating plate.

4. Do not use the appliance to vacuum all the latter things:

5. water and other liquids

6. lighted stub, hot ashes and other combustible things
7. sharp matter

8. wood pieces, gesso, cement, calcimine and other tiny granules

9. Keep the vacuum cleaner away from stoves and heat-emitting appliance. Heat can deform and discolor the plastic parts of unit.

10. Always remove the plug from the power socket when the appliance is not in charging.

11. Never use spirits or other solvents to clean the appliance.

12. Never leave the appliance unattended when it is switched on. Keep the appliance out of the reach of children or the infirm.

13. Do not switch the appliance on if it appears to be faulty in any way.

14. This appliance can be used by children aged from 8 years and above the persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

15. Operate the appliance from a power source of the same voltage frequency and rating as indicated on the product identification plate.

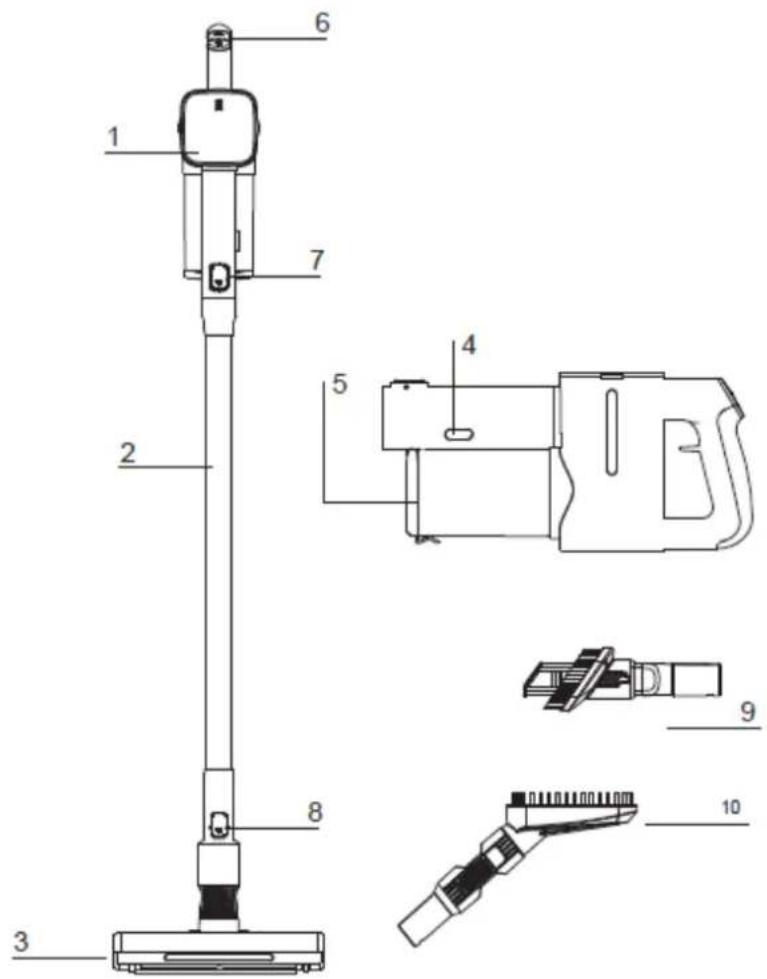

IV. DESCRIPTION OF THE VACUUM CLEANER

1. Vacuum cleaner main unit

2. Aluminum tube

3. Electrical floor brush

4. Dust bin release knob

5. Removable dust bin

6. ON/OFF button

7. Aluminum tube release knob

8. Scrubbing brush release knob

9. Brush

10. Bending brush

V. ASSEMBLY

Note:

Before assembly, please ensure that you have received all parts listed in the parts list Note: Always remove the plug from the power socked before fitting or removing accessory.

Assembling the cordless vacuum cleaner

1. Assembling the aluminum tube

Technical line drawing of a mechanical device with an arrow indicating direction (no text or symbols)

Fit the tube onto the main body's air inlet until it clicks into the position. If need to remove the tube, hold the main body, press the release knob and remove the tube.

1. Assembling the electrical floor brush

Technical line drawing of a mechanical tool with an arrow indicating direction (no text or symbols)

Fit the electrical floor brush on the tube until it click into the position. If need to remove the electrical floor brush, hold the aluminum tube, press the floor brush release knob and remove the brush from the tube.

1. Assembling the bending brush

Fit the accessory on the main body's air inlet and/or on the tube until it clicks into the position. The bending brush is good for cleaning stairs, in corners and awkward crevices.

VI. USING THE APPLIANCE

Power and Power cord

Untied the cord, insert the plug into the power supply.

Press the ON/OFF button to start the motor.

After using, unpplug and tie the cord together.

Line drawing of a vacuum cleaner with handle and lever (no text or symbols)

Using the electrical floor brush

For cleaning the dust on hard floor and carpet

Using the bending brush

For cleaning stairs, in corners and awkward crevices.

VII. MAINTENANCE

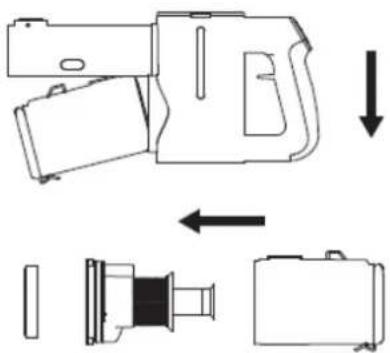

Filter replacement and cleaning

1. Turn off the cordless vacuum cleaner.
2. Press the dust bin release knob, remove the dust bin
3. Come up with the filter, empty the dirt inside
4. Cleaning the filter in water, wait for it to dry completely.
5. Put the filter back into the dust bin carefully.
6. Put the dust bin back into the main body.

Technical line drawing of a mechanical device with exploded view and assembly process (no text or symbols)

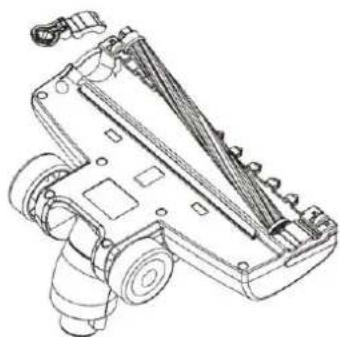

Rotating brush cleaning

1. Turn the brush bottom screw to unlock position (pictured).
2. Open the brush bottom fixed device.
3. Show brush, clean the rotating brush on the twisting thing.
4. Put the rotating brush back.
5. Turn the brush bottom screw to lock position.

Technical line drawing of a mechanical device with gears and housing (no text or symbols)

WARNING: The plug must be removed from the power socket before any maintenance or replacement.

NOTE: to maximize the performance of the vacuum cleaner, you should clean your filters regularly.

VIII. TROUBLE SHOOTING

Problem	Possible reason	Active
Motor does not start	- Power cord not firmly plugged into outlet- Outlet damaged- Cleaner not switch	- Plug unit firmly- Check the outlet- Switch on the appliance
Suction power is weaker	- Unit clogged- Dust filter needs cleaning- Dust container not in position- Filter blocked	- Remove the blockage- Clean the dust filter- Close the dust container- Clean the filter
The dust bin container cannot be closed	Dust filter is not in the position	Fix the dust filter and try again

Warning:

If the supply cord is damaged, it must be replaced by a qualified person in order to avoid a hazard.

Environment

BATTERIES - Discarded batteries are environmentally friendly and disposed of it in accordance with applicable regulations.

• Discharge the battery by running the appliance to stop the engine at idle.
• Remove the battery from the appliance.
• Dispose of the battery to a collection of chemical waste from.

IX. TECHNICAL DETAILS

Power	350W
Suction power	23 kPa
Battery Li	29.6V
Voltage	100-240V~50/60Hz
Noise level	ECO <70dB, MAX <80dB
Dust bin capacity	0.35 L

Environment friendly disposal

You can help protect the environment!

Please remember to respect the local regulations: hand in the non-working electrical equipment's to an appropriate waste disposal center.

HEINNER is a registered trademark of Network One Distribution SRL. Other brands and product names are trademarks or registered trademarks of their respective holders.

No part of the specifications may be reproduced in any form or by any means or used to make any derivative such as translation, transformation, or adaptation without permission from NETWORK ONE DISTRIBUTION.

Copyright © 2013 Network One Distribution. All rights reserved.

www.heinner.com, http://www.nod.ro

http://www.heinner.com, http://www.nod.ro

CE

This product is in conformity with norms and standards of European Community.

Importer: Network One Distribution

Marcel Iancu Street, 3-5, Bucharest, Romania

Tel: [phone], www.heinner.ro, www.heinner.com
