| Typ | Kondensator |
| Richtcharakteristik | Kugel (omnidirektional) |
| Frequenzgang | 20–20.000 Hz (±0 dB, siehe Diagramm) |
| Empfindlichkeit | -37 dBV/Pa (14 mV/Pa) |
| Ausgangsimpedanz | 200 Ohm |
| Maximaler Schalldruckpegel | 132 dB SPL |
| Signal-Rausch-Verhältnis | > 70 dB |
| Stromversorgung | Phantomspeisung 9–52 V |
| Anschluss | XLR 3-polig, versilbert |
| Abmessungen (Ø x L) | 21 mm x 193 mm |
| Gewicht | 150 g (5,3 oz) |
| Gehäuse | Robustes Metallgehäuse |
| Mitgeliefertes Zubehör | Hartschalenetui |
Häufig gestellte Fragen - PVR 2 PEAVEY
Benutzerfragen zu PVR 2 PEAVEY
0 Frage zu diesem Gerät. Beantworten Sie die, die Sie kennen, oder stellen Sie Ihre eigene.
Eine neue Frage zu diesem Gerät stellen
Laden Sie die Anleitung für Ihr Mikrofon kostenlos im PDF-Format! Finden Sie Ihr Handbuch PVR 2 - PEAVEY und nehmen Sie Ihr elektronisches Gerät wieder in die Hand. Auf dieser Seite sind alle Dokumente veröffentlicht, die für die Verwendung Ihres Geräts notwendig sind. PVR 2 von der Marke PEAVEY.
BEDIENUNGSANLEITUNG PVR 2 PEAVEY
MEASUREMENT MICROPHONE
Thank you for choosing the Peavey PVR 2. The PVR 2 is an omni-directional microphone for free-field measurement. With a highly reliable circuit and a 1/4" pre-polarized condenser capsule, it boasts high stability, low distortion and low noise in performance. Its excellent flat frequency response makes it an ideal candidate for sonic analysis systems and for special recording as well.
• Rugged metal construction
• Reference-style flat frequency response
- Ideal for room analysis and special recording applications
- Includes hardshell carrying case
SPECIFICATIONS:
Type: Condenser
Pickup Pattern: Omni-directional (0 type)
Frequency Response: 20\~20000 Hz
Sensitivity: -37 dBv/pa (14 mv/pa)
Output Impedance: 200 Ohm
Max SPL: 132 dB
Signal-to-Noise Ration: Over 70 dB
Power Supply: 9\~52 V Phantom
Connector: XLR 3 pins silver plated
Dimensions: 21 (max.) x 193 mm
Net Weight: 150 g (5.3 oz.)


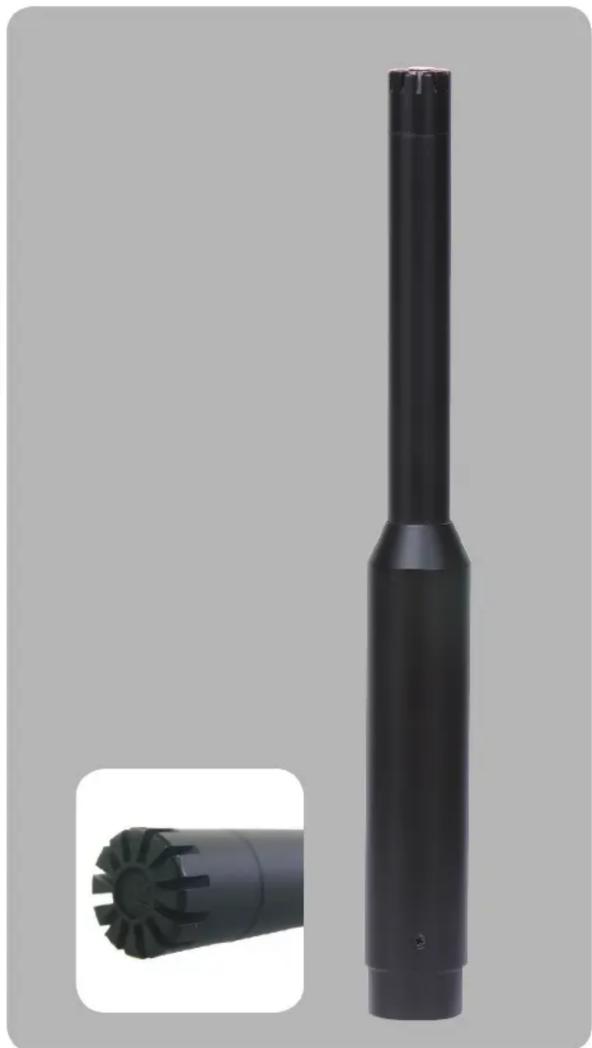

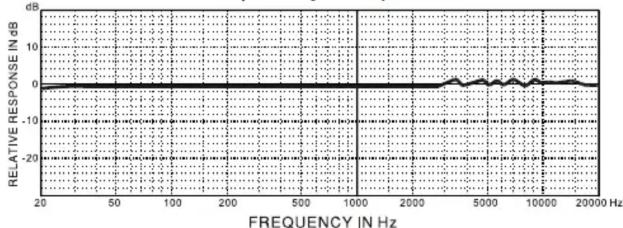

Black cylindrical device with radial fins and a separate close-up view of its tip (no text or symbols visible)Frequency Response
line
| FREQUENCY IN Hz | RELATIVE RESPONSE IN dB | |---|---| | 20 | 0 | | 50 | 0 | | 100 | 0 | | 200 | 0 | | 500 | 0 | | 1000 | 0 | | 2000 | 0 | | 5000 | 0 | | 10000 | 0 | | 20000 | 0 |Polar Pattern
radar
| Angle | Value | |---|---| | 0° | 15 | | 45° | 15 | | 90° | 15 | | 135° | 15 | | 180° | 15 | | 225° | 15 | | 270° | 15 | | 315° | 15 | | 360° | 15 | | 405° | 15 | | 450° | 15 | | 495° | 15 | | 540° | 15 | | 585° | 15 | | 630° | 15 | | 675° | 15 | | 720° | 15 | | 765° | 15 | | 810° | 15 | | 855° | 15 | | 900° | 15 | | 945° | 15 | | 990° | 15 | | 1035° | 15 | | 1080° | 15 | | 1125° | 15 | | 1170° | 15 | | 1215° | 15 | | 1260° | 15 | | 1305° | 15 | | 1350° | 15 | | 1395° | 15 | | 1440° | 15 | | 1485° | 15 | | 1530° | 15 | | 1575° | 15 | | 1620° | 15 | | 1665° | 15 | | 1710° | 15 | | 1755° | 15 | | 1800° | 15 | | 1845° | 15 | | 1890° | 15 | | 1935° | 15 | | 1980° | 15 | | 2025° | 15 | | 2070° | 15 | | 2115° | 15 | | 2160° | 15 | | 2205° | 15 | | 2250° | 15 | | 2295° | 15 | | 2340° | 15 | | 2385° | 15 | | 2430° | 15 | | 2475° | 15 | | 2520° | 15 | | 2565° | 15 | | 2610° | 15 | | 2655° | 15 | | 2700° | 15 | | 2745° | 15 | | 2790° | 15 | | 2835° | 15 | | 2880° | 15 | | 2925° | 15 | | 2970° | 15 | | 3015° | 15 | | 3060° | 15 | | 3105° | 15 | | 3150° | 15 | | 3195° | 15 | | 3240° | 15 | | 3285° | 15 | | 3330° | 15 | | 3375° | 15 | | 3420° | 15 | | 3465° | 15 | | 3510° | 15 | | 3555° | 15 | | 3600° | 15 | | 3645° | 15 | | 3690° | 15 | | 3735° | 15 | | 3780° | 15 | | 3825° | 15 | | 3870° | 15 | | 3915° | 15 | | 3960° | 15 | | Note: The 'dB' label indicates the value for the last data point on the chart. The 'Value' is repeated at the end of each row, so the 'Value' is repeated twice. The 'Time' label is not present in the chart.1000 Hz 8000 Hz 2000 Hz 16000 Hz 4000 Hz
