BEDIENUNGSANLEITUNG BTS 2.2 PEAVEY

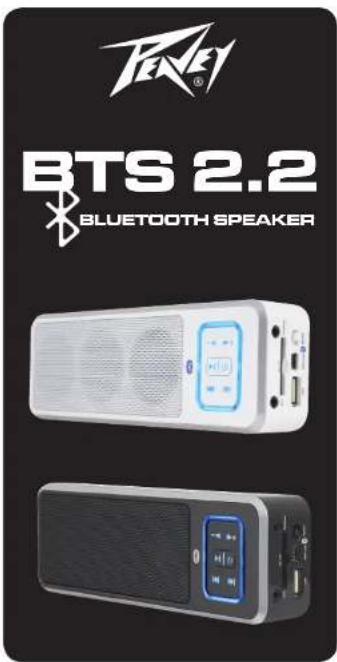

BTS 2.2

BLUETOOTH SPEAKER

PACKAGE CONTENTS: BTS 2.2 Speaker, USB charging cable, and 3.5 mm audio connector cable.

FUNCTION

1. Volume Control

2. ▶Play/Pause

3. Press 3 sec to Power ON ▼blue LED light shown), Press 2 sec to Power OFF

4. backward & Backward

5. 3.5 mm AUX-in

6. 3.5 mm headphones

7. SD/TF

8. USB INPUT

9. MINI USB 5V

10. Bluetooth ON/OFF

Note: Bluetooth switch must be in the off position for use with SD Card or USB Inputs.

Flashing blue light indicates discoverable mode and unit is able to be seen by other bluetooth devices.

TO CHARGE: Connect MINI USB/USB cable to computer or USB AC adapter. Red light illuminates while charging.

OPERATION

WIRELESS MODE:

Put mode switch (10) to Bluetooth "ON" mode.

Enable your Bluetooth device and select Device ID "TL78666".

If Bluetooth device is asking for a password, use "0000".

Speaker will "beep" when connected to Bluetooth device.

WIRED MODE:

Put mode switch (10) to Bluetooth "OFF" mode.

Connect audio source's output to the 3.5 mm audio jack, SD Card or USB input.

Unit will detect source and play in order of the files on the Card/Drive.

SPECIFICATIONS

Bluetooth Version: V2.1 + EDR (backward compatible)

Frequency Band: 2400–2483.5 MHz

Working Range: 10 Meters (33 Feet)

Charging Input

Voltage: 5V DC

Bluetooth Profiles: A2DP, HSP, HFP, AVRCP

Internal Battery: 3.7 Volt Rechargeable Lithium

Input: 3.5 mm Aux-In Jack

Output 3.5 mm Headphone Jack

Rated Power: 2W x 2 Drivers

Size: 7.165" x 2.283" x 1.3"

Weight: 10.47 oz.

Audio Playback

Format MP3/WMA

Storage Capacity: USB and SD/TF Card <32GB

Speaker: Magnetically Shielded D40mm (4 ohms) / 2

Battery Charge Time: 3.5 Hours

Play Time: 6.5 Hours

Battery

Voltage/Capacity: 850 mAh

Device ID: PY-11BT

PEAVEY ELECTRONICS CORPORATION LIMITED WARRANTY

Elerden Dale: 06012012

What This Warranty Covers

Your Provoey Warranty mixes defects in material and ownership in Porsery products purchased and serviced in the U.S.A. and Canada.

What This Warranty Does Not Cover

The Warranty does not cover: (1) damage caused by accident, misuse, abuse, improper installation or operation, rental product modification or neglect; (2) damage occurring during shipment; (3) damage caused by repair or service performed by pressure not a shortened by Pseway. (4) products on which the serial number has been altered, defaced or removed; (5) products not purchased from an Author and Pseway Dealer.

Who This Warranty Protects

This Warranty protects only the original purchaser of the product

How Long This Warranty Lasts

The warranty begins on the date of purchase by this original retail purchaser. The curation of the Warranty is 90 days.

What Peavey Will Do

We will rework or rechess (at Speedway's division) products owned by Warranty at no charge for labor or materials. If the product or component must be shipped to Speedway for Warranty service, the consumer must pay rated shipping charges. If the repairs are covered by Warranty, Speedway will pay the room shipping charges.

How To Get Warranty Service

(1) Take the defective item and your sales receipt or other proof of date of purchase to your Authorized Survey Dealer or Authorized Survey Service Center.

OR

(2) Ship the defective item, prepaid, to Peavoy Electronics Corporation, International Service Center, 412 Highway 11 & 80 East, Vanchen. MS 30361. Include a debate description of the problem, together with a copy of your sales receipt or other proof of date of purchase as evidence of Warranty coverage. Also provide a complete return disclosure.

Limitation of Implied Warranties

ANY IMPLIED WARRANTIES, INCLUDING WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED IN DURATION TO THE LENGTH OF THIS WARRANTY.

Some states do not allow limitations on how ring an implied Womenly loss, so the above limitation may not apply to you.

Exclusions of Damages

PEAVY'S LIABILITY FOR ANY DEFECTIVE PRODUCT IS LIMITED TO THE REPAIR OR REPLACEMENT OF THE PRODUCT, AT PEAVY'S OPTION. IF WE ELECT TO REPLACE THE PRODUCT, THE REPLACEMENT WAY BE A RECONDITINED UNIT, PEAVY SHALL NOT BE LIABLE FOR DAMAGES BASED ON INCONVENIENCE, LOSS OF USE, LOST PROFITS, LOST SAVINGS, DAMAGE TO ANY OTHER EQUIPMENT. THESE ITEMS ARE THE PRICE OF THIS ORDER. ANY OTHER DAMAGES WHETHER INCIDENTAL, CONSEQUENTIAL, OR OTHERWISE, EVEN IF PEAVY HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.

Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation may not apply to you.

This Warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

If you have any questions about this Vwernity or services received or if you need assistance in locating an Authorized Service Center, please contact the Peavoy International Service Center at [phone].

Features and specifications are subject to change without action.

BTS 2.2 *BLUETOOTH SPEAKER

FCC ID - ADXM-11BT

FCC Compliance Statement

This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, that may cause undesired operation.

Warning: Changes or modifications to the equipment not approved by Peavoy Electronics Corp. can void the user's authority to use the equipment.

Note. *This equipment has been tasted and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment penetrances, uses and can radiate radio frequency energy and, if not installed and used in accordance with the Instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or other devices, it can be determined by turning the equipment oil and on the laser is encouraged to try and correct the interference by one or more of the following measures.

- Reorient or relocate the receiving antennas.

- Increase the separation between the equipment and receiver

- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

- Consult the dealer or an experienced radio/TV technician for help.

Pavay Electronics Corporation • 5022 Hurley Pavay Drive • Meridian, MS • 36305 [phone] • FAX [phone] • www.pavay.com • 80305782 • 92012

IMPORTANT SAFETY INSTRUCTIONS

WARNING: When using electrical products, basic cautions should always be followed, relative to the inference.

1. Read those instructions.
2. Keep these instructions
3. Head of service
4. Follow all instructions
5. Do not use the maximum rear water
6. Clean only with a dry cloth
7. Do not install near any heat sources such as radiators, heat registers, sloves or other apparatus (including amplifiers) that produce heat.
8. Refer all servicing to qualified service personnel Servicing is required when the apparatus has been damaged in any way such as power-supply card or plug or damaged, liquid has been spilled or objects have taken into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
9. This electrical apparatus should not be exposed to cropping or splashing and care should be taken not to place objects containing liquids, such as vases, upon the apparatus.
10. Exposure to extremely high noise levels may cause a permanent hearing loss. Individuals very consciously in susceptibility to noise-induced hearing loss, but merely everyone will lose some hearing if exposed to sufficiently intense noise for a sufficient time. The U.S. Government's Occupational Safety and Health Administration IOSHA has specified the following permissible noise level exposures:

Duration Per Day In Hours Sound Level dBA, Slow Response

8.90

6.92

4.05

6.07

2.100

5.4.0 100

(1)

67-610

6.1.2.2

115

According to OSHA, any exposure in excess of the above permission limits could result in some hearing loss. Eartrugs or protectors to the car canals or over the cars must be worn when operating the amplification system in order to prevent a permanent hearing loss. If exposure is in excess of the limits as set forth above. To ensure against potentially dangerous exposure to high sound pressure levels, it is recommended that all persons exposed to equipment capable of producing high sound pressure levels such as this amplification system be protected by hearing protectors while the unit is operation.

SAVE THESE INSTRUCTIONS!

INTERNAL RECHARGEABLE LITHIUM-ION BATTERY

This device uses an internal rechargeable lithium-ion battery that should last the lifetime of the device. If you suspend your battery may be dead, try charging if several times. If the battery does not recharge, please contact us for repair information.

WARNING/DISPOSAL OF UNIT

Please do NOT attempt to change the battery yourself. If the battery has died and you do not want us to replace your battery, you should follow the disposal instruction below:

- Never dispose of used batteries/electronics with ordinary solid wastes, since they contain toxic substances.

• Always dispose of used batteries/electronics in accordance with the prevailing community regulations that apply to the disposal of batteries/electronics. If there are no local regulations concerning battery electronics disposal, please dispose of the device in a waste bin for electronic devices.

- Many electronics retailers now recycle batteries and other electronic components at no charge. Check to see which ones in your area do so

CAUTION

The battery used in this device may present a risk of fire, explosion or chemical burn if mistreated

• Never use or charge the battery if it appears to be leaking, discolored, deformed, or in any way abnormal.
• Never disassemble the unit or attempt to remove battery as that could cause leakage of alkaline solution or other electrolytic substance.
• Always confirm that the temperature is 5°C - 35°C (41° - 95°Fahrenheit). Before you charge the battery. Leakage or deterioration of the battery may occur if the warning is not needed.
• Never expose the battery to any liquid.
• Never expose the battery to excessive heat such as direct sunlight or fire. Never use the battery pack in an unventilated vehicle where excessive internal temperatures may be encountered.
• Always keep the battery out of the reach of infants and small children.
