Produkttyp	Monitor
Modell	MD241PDE
Marke	MSI
Bildschirmgröße	23,8 Zoll (60,5 cm)
Panel-Typ	IPS
Auflösung	1920 x 1080 bei 75 Hz
Seitenverhältnis	16:9
Helligkeit	250 cd/m² (typisch)
Kontrastverhältnis	1000:1
Bildwiederholfrequenz	75 Hz
Reaktionszeit	5 ms
Betrachtungswinkel	178° horizontal / 178° vertikal
Eingänge	1x HDMI, 1x USB Typ-C (DP Alt Mode, bis zu 5V/3A)
Neigungsverstellung	-5° bis 20°
Höhenverstellung	0 bis 110 mm
Pivot	-90° bis 90°
VESA-Halterung	75 x 75 mm
Abmessungen (B x H x T)	541,9 x 380,9 x 200,8 mm
Gewicht (netto)	4,7 kg
Gewicht (brutto)	6,5 kg
Stromversorgung	Netzadapter (100-240 V AC)
Betriebstemperatur	0°C bis 40°C
Lagertemperatur	-20°C bis 60°C
Zertifizierungen	TÜV Rheinland Low Blue Light, TÜV Rheinland Flicker Free
Reinigung	Mit weichem, trockenem Tuch; keine Flüssigkeiten einfüllen
Sicherheit	Geerdete Steckdose verwenden; Netzstecker bei Nichtgebrauch ziehen

Häufig gestellte Fragen - MD241PDE MSI

Wie stelle ich den Monitor auf?

Wie schließe ich den Monitor an den PC an?

Was bedeuten die OSD-Tasten?

Wie stelle ich Helligkeit und Kontrast ein?

Wie aktiviere ich den Blaulichtfilter?

Was tun, wenn kein Bild angezeigt wird?

Kann ich den Monitor an der Wand montieren?

Wie reinige ich den Bildschirm richtig?

Welche Auflösungen werden unterstützt?

Was ist die DCR-Funktion?

BEDIENUNGSANLEITUNG MD241PDE MSI

IIISI™

Contents

Getting Started 3

Package Contents 3

Installing the Monitor Stand ____ ____ ____ ____ ____ ____ ____ ____ 4

Adjusting the Monitor 5

Monitor Overview 6

Connecting the Monitor to PC ____ 8

OSD Setup 9

OSD Keys 9

OSD Menus. 10

Specifications 13

Preset Display Modes 15

Troubleshooting 17

Safety Instructions....18

TÜV Rheinland Certification....20

Regulatory Notices 21

Getting Started

This chapter provides you with the information on hardware setup procedures. While connecting devices, be careful in holding the devices and use a grounded wrist strap to avoid static electricity.

Package Contents

Monitor	Modern MD24 1PModern MD27 1PModern MD27 1QP
Documentation	Quick Start Guide
	Warranty Card
	Registration Card
Accessories	Stand
	Stand Base with Screw(s)
	Power Cord
	Power Adapter
Cables	HDMI Cable (Optional)

Important

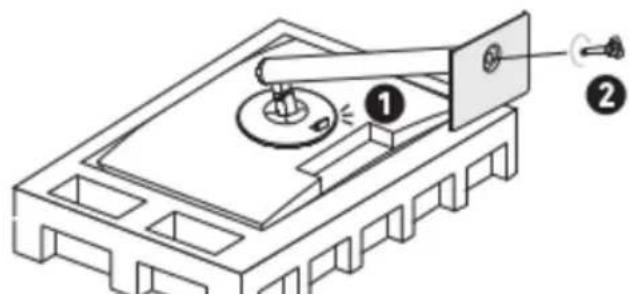

Installing the Monitor Stand

1. Leave the monitor in its protective foam packaging. Align the stand to the monitor groove. Push the stand towards the monitor groove until it locks in place.
2. Connect the base to the stand and tighten the base screw to secure the base.
3. Make sure the stand assembly is properly installed before setting the monitor upright.

Important

• Place the monitor on a soft, protected surface to avoid scratching the display panel.
• Do not use any sharp objects on the panel.
• The groove for installing the stand bracket can also be used for wall mount. Please contact your dealer for proper wall mount kit.

Adjusting the Monitor

This monitor is designed to maximize your viewing comfort with its adjustment capabilities.

Important

• Avoid touching the display panel when adjusting the monitor.
• Please slightly tilt the monitor backwards before pivoting it.

Monitor Overview

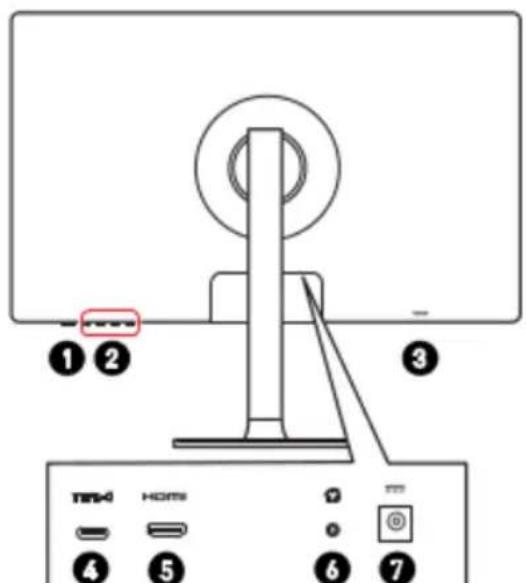

Modern MD241P / Modern MD271P

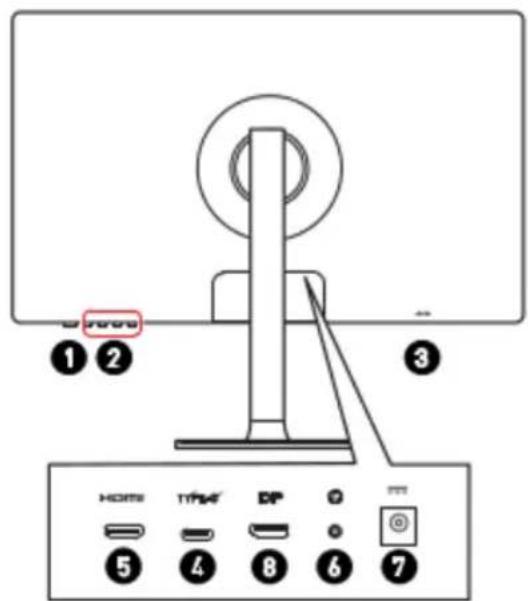

Modern MD271QP

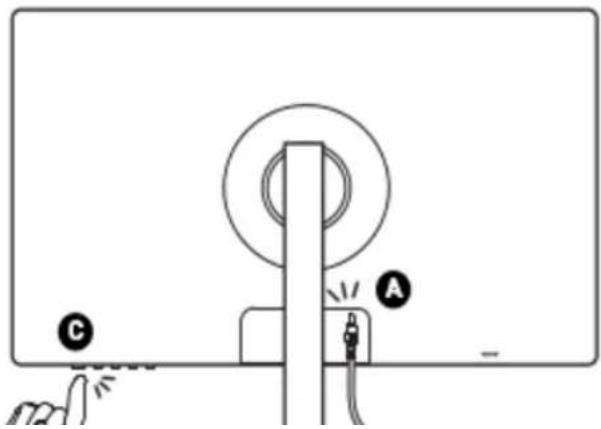

Connecting the Monitor to PC

1. Turn off your computer.
2. Connect the video cable from the monitor to your computer.
3. Connect the power cord to the monitor power jack. (Figure A)
4. Plug the power cord into the electrical outlet. (Figure B)

5. Turn on the monitor. (Figure C)

6. Power on the computer and the monitor will auto detect the signal source.

OSD Setup

This chapter provides you with essential information on OSD Setup.

Important

All information is subject to change without prior notice.

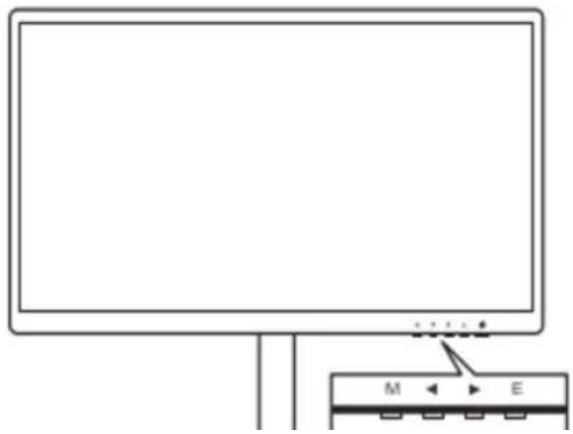

OSD Keys

The monitor comes with a set of OSD Keys that help to control the On-Screen Display (OSD) menu.

Simple line drawing of a monitor with an icon showing 'M' and 'E' on the front panel (no text or symbols on the screen)

OSD Menus

Press the M key to launch the On-Screen Display (OSD) main menu and use the OSD keys to tune the desired function to suit your personal preferences.

1st Level Menu	2nd/3rd Level Menu	Description
Brightness	0-100	• Adjusting display brightness. This function is available in Standard mode.
Contrast	0-100	• Adjusting display contrast. This function is available in Standard mode.
DCR	ON	• DCR enhances image quality by increasing the contrast of images. • When DCR is enabled, Contrast, and Brightness cannot be adjusted and will be grayed out. • When DCR is enabled, Color Temp. will be set to Warm.
	OFF
	Return

1st Level Menu 2nd/3rd Level Menu Description
Color Temp. Cool	Setting Cool Color Temperature to default
	Warm Setting Warm Color Temperature to default
	User R (0-100) Adjusting the Red Gain
	Return
	Exit
	Return
	Exit
Aspect Auto Selecting the Image Aspect Ratio
Input HDMI Selecting the video input source
Type-C
Return
Exit
Adjust Gamma Gamma 1 Adjusting color tone brightness gray 1
Exit
Exit

1st Level Menu	2nd/3rd Level Menu		Description
Other	Language (More languages coming soon)	English	Selecting the OSD language
		Deutsch
		Français
		Italiano
		Español
		Русский
		Return
		Exit
	Power Off	ON	Turning off the monitor after saving power for 1 minute
		OFF	Deactivating the timed switch-off function
		Return
		Exit
	Reset	YES	Resetting and restoring settings to original OSD defaults
		NO
		Return
		Exit
	OD	OFF	Deactivating the response time on drive function

Specifications

Model	ModernMD241P	ModernMD 271 P	ModernMD2710P
Size	23.8 inch	27 inch
Panel Type	IPS
Resolution	1920 x 1080 @75Hz		25.60 x 1440 @75Hz
Aspect Ratio	16:9
Brightness (nits)	250 nits (TYP)
Contrast Ratio	1000:1
Refresh Rate	75 Hz
Response Time	5 ms
Input Interface	• HDMI Port x1• USB Type-C (DP Alt Mode) x 1 (Up to 5V/3A power delivery)		• HDMI Port x1• DP x1• USB Type-C (DP Alt Mode) x 1 (Up to 5V/3A power delivery)
View Angles	178°(H), 178°(N)

Model		ModernMD241P	ModernMD271P	ModernMD271QP
Adjustment (Pivot)		-90° ~ 90°
Adjustment (Height)		0 ~ 110 mm
Kemington Lock		Yes
VESA Mounting		Plate Type: 75 x 75 mmScrew Type: M4 x 10 m mThread Diameter: 4 mmThread Pitch: 0.7 mmThread Length: 10 mm
Dimension (W x H x D)		541.9 x 380.9 x 200.8mm	613.5 x 401.5 x 200.8mm
Weight		4.7Kg (Net),6.5Kg (Gross)	5.8Kg (Net),8.4Kg (Gross)
Environment	Operating	Temperature: 0°C to 40°CHumidity: 10% to 85%, non-condensingAltitude: 0 ~ 5000m
	Storage	Temperature: -20°C to 60°CHumidity: 10% to 90%, non-condensing

Preset Display Modes

Modern MD241P / Modern MD271P

Standard	Resolution		HDMI	Type-C
VGA	640x480	@60Hz	V	V
		@72Hz	V	V
		@75Hz	V	V
Dos-Mode	720x400	@70Hz	V	V
	720x480	@60Hz	V	V
	720x576	@50Hz	V	V
SVGA	800x600	@60Hz	V	V
		@72Hz	V	V
		@75Hz	V	V
XGA	1024x768	@60Hz	V	V
		@75Hz	V	V
SXGA	1280x720	@50Hz	V	V
		@60Hz	V	V
	1280x1024	@60Hz	V	V

Modern MD271QP

Standard	Resolution		HDMI	DP	Type-C
VGA	640x480	@60Hz	V	V	V
		@75Hz	V	V	V
Dos-Mode	720x400	@70Hz	V	V	V
	720x480	@60Hz	V	V	V
	720x576	@50Hz	V	V	V
SVGA	800x600	@60Hz	V	V	V
		@75Hz	V	V	V
XGA	1024x768	@60Hz	V	V	V
		@75Hz	V	V	V
SXGA	1280x720	@50Hz	V	V	V
		@60Hz	V	V	V
	1280x1024	@60Hz	V	V	V
		@75Hz	V	V	V
WXGA+	1440x900	@60Hz	V	V	V
WSXGA+	1680x1050	@60Hz	V	V	V

Troubleshooting

The power LED is off.

• Press the monitor power button again.
• Check if the monitor power cable is properly connected.

No image.

• Check if the computer graphics card is properly installed.
• Check if the computer and monitor are connected to electrical outlets and are turned on.
• Check if the monitor signal cable is properly connected.
• The computer may be in Standby mode. Press any key to activate the monitor.

The screen image is not properly sized or centered.

- Refer to Preset Display Modes to set the computer to a setting suitable for the monitor to display.

No Plug & Play.

• Check if the monitor power cable is properly connected.
• Check if the monitor signal cable is properly connected.
• Check if the computer and graphics card are Plug & Play compatible.

The icons, font or screen are fuzzy, blurry or have color problems.

- Avoid using any video extension cables.

Safety Instructions

• Read the safety instructions carefully and thoroughly.
• All cautions and warnings on the device or User Guide should be noted.
  • Refer servicing to qualified personnel only.

Power

• Make sure that the power voltage is within its safety range and has been adjusted properly to the value of 100-240V before connecting the device to the power outlet.
• If the power cord comes with a 3-pin plug, do not disable the protective earth pin from the plug. The device must be connected to an earthed mains socket-outlet.
• Please confirm the power distribution system in the installation site shall provide the circuit breaker rated 120/240V, 20A (maximum).
  • Always disconnect the power cord or switch the wall socket off if the device would be left unused for a certain time to achieve zero energy consumption.
• Place the power cord in a way that people are unlikely to step on it. Do not place anything on the power cord.
• If this device comes with an adapter, use only the MSI provided AC adapter approved for use with this device.

Battery

Please take special precautions if this device comes with a battery.

- Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer.

California, USA:

The button cell battery may contain perchlorate material and requires special handling when recycled or disposed of in California. For further information please visit: https://dtsc.ca.gov/perchlorate/

Environment

• To reduce the possibility of heat-related injuries or of overheating the device, do not place the device on a soft, unsteady surface or obstruct its air ventilators.
- Use this device only on a hard, flat and steady surface.
- To prevent the device from tipping over, secure the device to a desk, wall or fixed object with an anti-tip fastener that helps to properly support the device and keep it safe in place.
- To prevent fire or shock hazard, keep this device away from humidity and high temperature.
- Do not leave the device in an unconditioned environment with a storage temperature above 60°C or below -20°C, which may damage the device.
• The maximum operating temperature is around 40°C.
- When cleaning the device, be sure to remove the power plug. Use a piece of soft cloth rather than industrial chemical to clean the device. Never pour any liquid into the opening; that could damage the device or cause electric shock.
• Always keep strong magnetic or electrical objects away from the device.
- If any of the following situations arises, get the device checked by service personnel:
• The power cord or plug is damaged.
• Liquid has penetrated into the device

TÜV Rheinland Certification

TÜV Rheinland Low Blue Light Certification

Blue light has been shown to cause eye fatigue and discomfort. MSI now offers monitors with TÜV Rheinland Low Blue Light certification to ensure users' eye comfort and well-being. Please follow the instructions below to reduce the symptoms from extended exposure to the screen and blue light.

• Place the screen 20 - 28 inches (50 - 70 cm) away from your eyes and a little below eye level.
• Consciously blinking the eyes every now and then will help to reduce eye strain after extended screen time.
  • Take breaks for 20 minutes every 2 hours.
• Look away from the screen and gaze at a distant object for at least 20 seconds during breaks.
• Make stretches to relieve body fatigue or pain during breaks.
• Use the Reader/Anti-Blue mode or turn on the optional Low Blue Light function.

TÜV Rheinland Flicker Free Certification

- TÜV Rheinland has tested this product to ascertain whether the display produces visible and invisible flicker for the human eye and therefore strains the eyes of users.

Regulatory Notices

CE Conformity

This device complies with the requirements set out in the Council Directive on the Approximation of the Laws of the Member States relating to Electromagnetic Compatibility (2014/30/EU), Low-voltage Directive (2014/35/EU), ErP Directive (2009/125/EC) and RoHS directive (2011/65/EU). This product has been tested and found to comply with the harmonized standards for Information Technology Equipment published under Directives of Official Journal of the European Union.

FCC-B Radio Frequency Interference Statement

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the measures listed below:

• Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.

WEEE Statement

Under the European Union ("EU") Directive on Waste Electrical and Electronic Equipment, Directive 2012/19/EU, products of "electrical and electronic equipment" cannot be discarded as municipal waste anymore and manufacturers of covered electronic equipment will be obligated to take back such products at the end of their useful life.

Chemical Substances Information

In compliance with chemical substances regulations, such as the EU REACH Regulation (Regulation EC No. 1907/2006 of the European Parliament and the Council), MSI provides the information of chemical substances in products at:

https://storage-asset.msi.com/html/pop-up/csr/evmtprtl_pcm.html

RoHS Statement

Japan JIS C 0950 Material Declaration

A Japanese regulatory requirement, defined by specification JIS C 0950, mandates that manufacturers provide material declarations for certain categories of electronic products offered for sale after July 1, 2006.

https://storage-asset.msi.com/html/popup/csr/ce.mm_jp.html

India RoHS

This product complies with the "India E-waste (Management and Handling) Rule 2011" and prohibits use of lead, mercury, hexavalent chromium, polybrominated biphenyls or polybrominated diphenyl ethers in concentrations exceeding 0.1weight% and 0.01

Green Product Features

• Reduced energy consumption during use and stand-by
• Limited use of substances harmful to the environment and health
  • Easily dismantled and recycled
• Reduced use of natural resources by encouraging recycling
  • Extended product lifetime through easy upgrades
• Reduced solid waste production through take-back policy

Environmental Policy

- The product has been designed to enable proper reuse of parts and recycling and should not be thrown away at its end of life.

- Users should contact the local authorized point of collection for recycling and disposing of their end-of-life products.

- Visit the MSI website and locate a nearby distributor for further recycling information.

- Users may also reach us at [e-mail] for information regarding proper disposal, take-back, recycling, and disassembly of MSI products.

Warning!

Overuse of screens is likely to affect eyesight.

Recommendations:

1. Take a 10-minute break for every 30 minutes of screen time.
2. Children under 2 years of age should have no screen time. For children aged 2 years and over, screen time should be limited to less than one hour per day.

Copyright and Trademarks Notice

Copyright © Micro-Star Int'l Co., Ltd. All rights reserved. The MSI logo used is a registered trademark of Micro-Star Int'l Co., Ltd. All other marks and names mentioned may be trademarks of their respective owners. No warranty as to accuracy or completeness is expressed or implied. MSI reserves the right to make changes to this document without prior notice.

Technical Support

If a problem arises with your product and no solution can be obtained from the user's manual, please contact your place of purchase or local distributor. Alternatively, please visit https://www.msi.com/support/ for further guidance.
