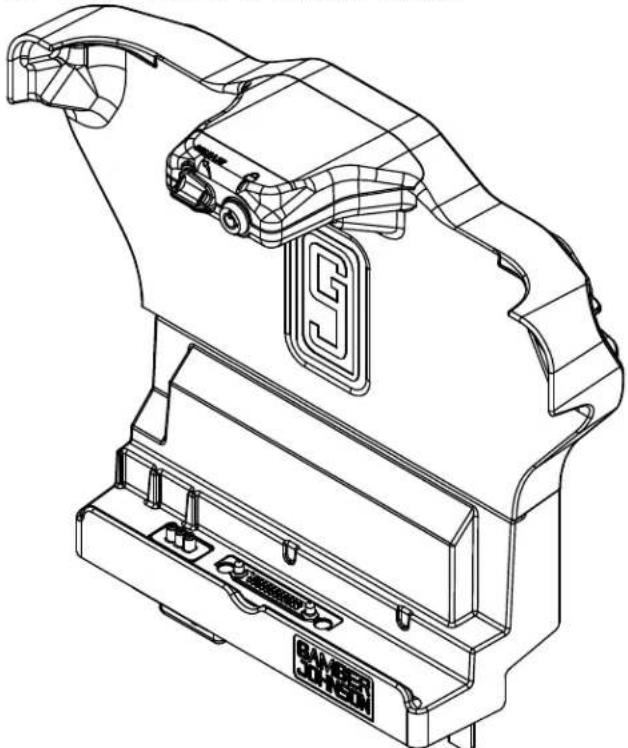

INSTALLATION INSTRUCTIONS
7160-0987-XX
F110 DOCKING STATION
Revision Form Product
Rev.B
INST-820
Printing Spec:PS-001
This instruction sheet is for the F110 docking station only. For instructions on features, set-up, and operation of the F110 computer, please refer to the manual provided by Getac with the computer.
This docking station is designed to be used with a variety of Gamber-Johnson mounting systems. Installation instructions for other Gamber-Johnson products are provided with each individual product.
This instruction sheet is for the following products:
Item No. 7160-0987-00 No RF
Item No. 7160-0987-03 Tri-RF
Item No. 7160-0987-10 No RF WITH HANDLE
Item No. 7160-0987-13 Tri-RF WITH HANDLE
Item No. 7160-0987-20 No RF WITH ACCELEROMETER
Item No. 7160-0987-23 Tri-RF WITH ACCELEROMETER
Item No. 7160-0987-30 No RF WITH ACCELEROMETER POWERED RS232
Item No. 7160-0987-33 Tri-RF WITH ACCELEROMETER POWERED RS232
Item No. 7160-0987-40 No RF WITH POWERED RS232
Item No. 7160-0987-43 Tri-RF WITH POWERED RS232
Gamber-Johnson is not liable under any theory of contract or tort law for any loss, damage, personal injury, special, incidental or consequential damages for personal injury or other damage of any nature arising directly or indirectly as a result of the improper installation or use of its products in vehicle or any other application. In order to safely install and use Gamber-Johnson products full consideration of vehicle occupants, vehicle systems (i.e., the location of fuel lines, brakes lines, electrical, drive train or other systems), air-bags and other safety equipment is required. Gamber-Johnson specifically disclaims any responsibility for the improper use or installation of its products not consistent with the original vehicle manufactures specifications and recommendations, Gamber-Johnson product instruction sheets, or workmanship standards as endorsed through the Gamber-Johnson Certified Installer Program.
© Copyright 2017 Gamber-Johnson, LLC
If you need assistance or have questions, call Gamber-Johnson at 1-800-456-6868
PRE-INSTALLATION RECOMMENDATOINS
Conduct a "Bench Test"
Gamber-Johnson strongly advises a "bench test" be conducted to verify all electronic and software issues are resolved prior to installation:
Make sure the computer is operational by itself.1.
Insert computer into the docking station and verify that the computer is 2.
operating in the dock.
Interconnect entire assembly and verify start-up of all components, 3.
including other equipment (printers, modems, scanners, etc.)
Gamber-Johnson recommends positioning of all mounts and equipment in the vehicle prior to the actual install to verify that mounting locations are safe and practical.
IMPORTANT SAFETY INFORMATION FOR INSTALLERS
Safety is dependent on the proper installation and servicing of this docking station. It is important to read and follow all instructions before installing this product.
To properly install a Gamber-Johnson docking station you must have a good understanding of automotive electrical procedures and systems, along with proficiency in the installation and service of aftermarket vehicle equipment.
There are no adjustments required at any time of the electrical components within the docking station. Opening the docking station will void the product warranty.
During Installation:
DO NOT connect this docking station to the vehicle battery until:
All other electrical connections are made1.
Mounting of all components is complete2.
Verification that no shorts exist in the entire system3.
DO NOT install equipment or route wiring or cords in the deployment path of any air bag.
When drilling into the vehicle, DO make sure that both sides of the surface are clear of anything that could be damaged.
CAUTION: If wiring is shorted to the frame, high current conductors can cause hazardous sparks resulting in electrical fires or flying molten metal.
After installation:
Test the docking station to ensure that it is working properly.
File these instructions in a safe place and refer to them when performing maintenance or re-installing.
WARNING: Failure to follow all safety precautions and instructions may result in property damage, serious injury, or death.

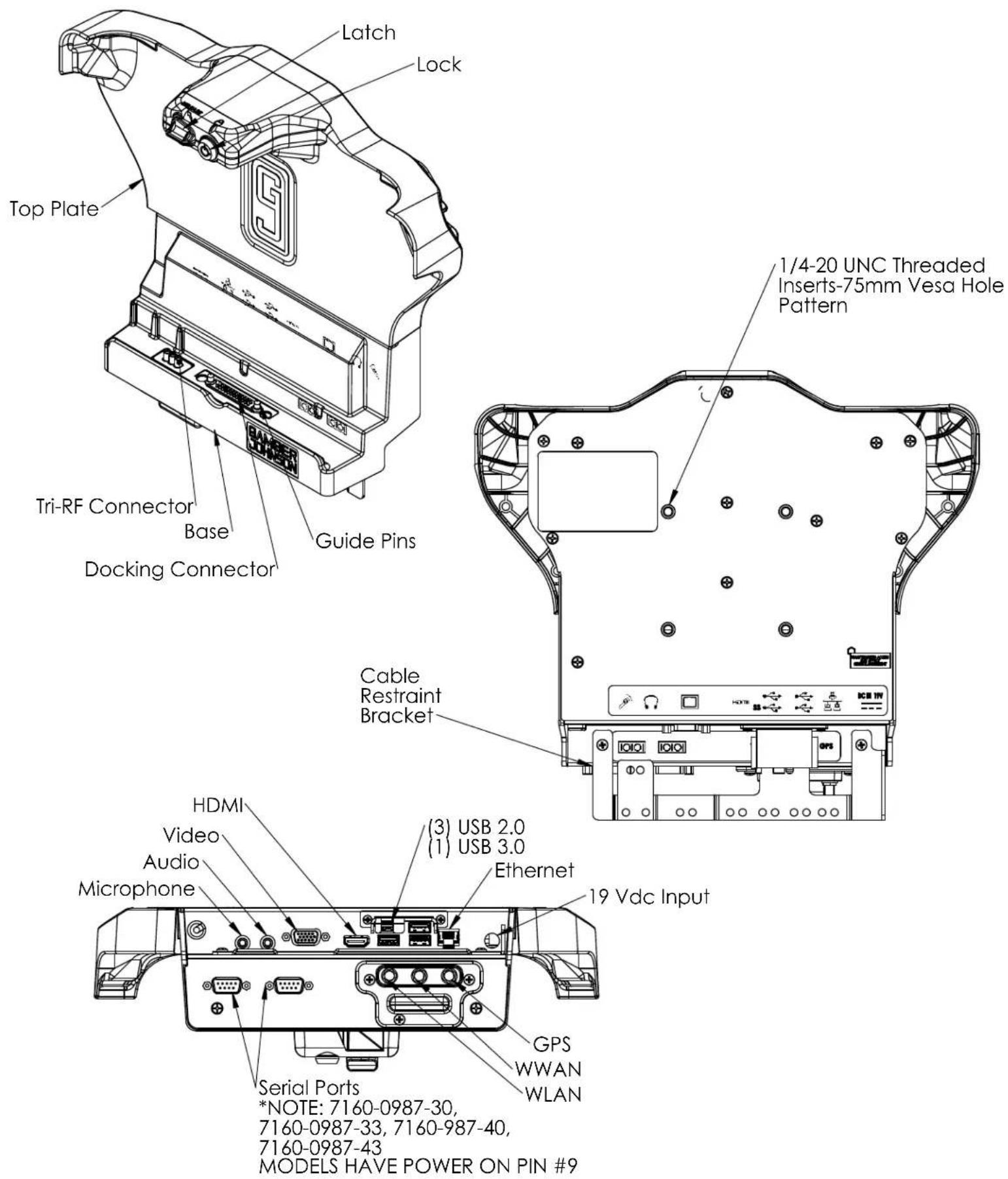

F110 DOCKING STATION FEATURE IDENTIFICATION


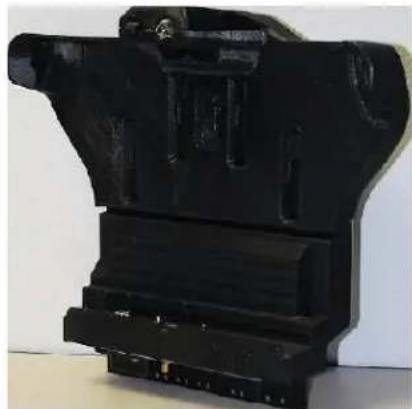

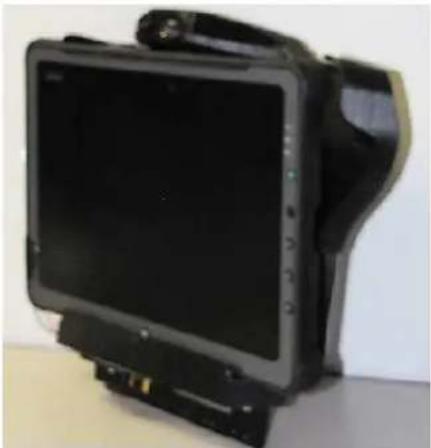

Insert the bottom of the tablet into 1. the docking station.
Rotate the top of the tablet under 2. the top latch until the tablet is resting inside the maing housing. The latch will spring down in front of the tablet to hold it in place. (See figures 1, 2, & 3)
(Optional) The key lock can now 3. be used for security purposes.
Figure 1
Double click the Getac Utilities 1. icon on the desktop(OSDC). Click the Docking button to undock the computer. (FOR 7160-0987-20 through 7160-0987-43)
Unlock the dock if locked.2.

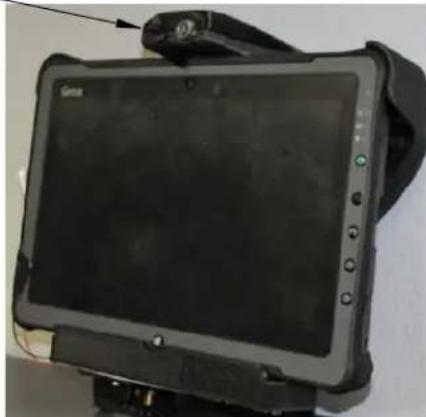

Push upward on the thumb knob 3. and pull outward on the top of the tablet until it clears the top latch lift the tablet out of the dock. (See Figure 4)
Thumb Knob
Figure 4
Regulatory Model #: 7160-0987
GJ Model #'s: 7160-0987-00, 7160-0987-03, 7160-0987-10, & 7160-0987-13,
Descriptions: Dock-Getac-F110
Certifications:
EN 55022:2010 CISPR 22:2008 Class A•
EN 50498:2010•
EN 50581:2012•
ECE-R10: 2012 Addendum 9, Revision 4•
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions. (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
10R-05 10121
FC
CE
Gamber-Johnson LLC, 3001 Borham Ave., Stevens Point, WI, 54481, USA, 715-344-3482
