BEDIENUNGSANLEITUNG 7160-0581 Gamber-Johnson

INSTALLATION INSTRUCTIONS

7160-0581

Rev. C

Form Product Re

INST-675

Samsung Galaxy Tab Active Docking Station

Printing Spec: PS-004

This instruction sheet is for the Samsung Galaxy Tab Active docking station only. For instructions on features, set-up, and operation of the Galaxy Tab Active tablet, please refer to the manual provided by Samsung with the tablet.

This docking station is designed to be used with a variety of Gamber-Johnson mounting systems. Installation instructions for other Gamber-Johnson products are provided with each individual product.

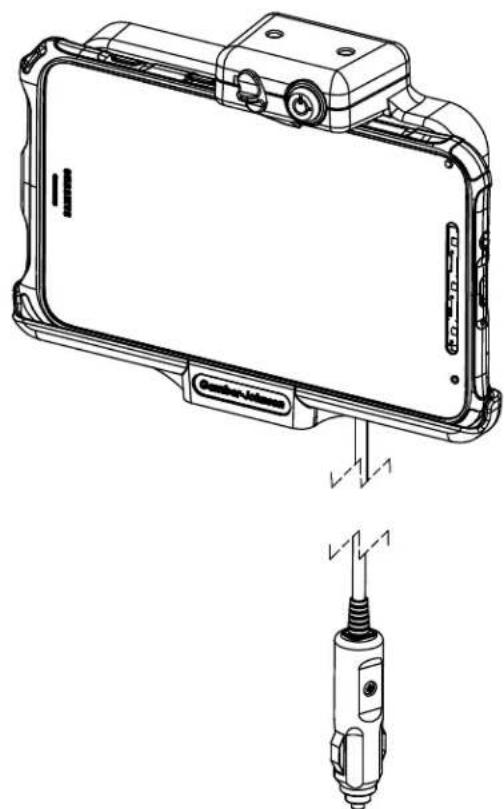

Technical line drawing of a device with a screwdriver inserted into a tray (no text or symbols)

Product Mounting Disclaimer

Gamber-Johnson is not liable under any theory of contract or tort law for any loss, damage, personal injury, special, incidental or consequential damages for personal injury or other damage of any nature arising directly or indirectly as a result of the improper installation or use of its products in vehicle or any other application. In order to safely install and use Gamber-Johnson products full consideration of vehicle occupants, vehicle systems (i.e., the location of fuel lines, brakes lines, electrical, drive train or other systems), air-bags and other safety equipment is required. Gamber-Johnson specifically disclaims any responsibility for the improper use or installation of its products not consistent with the original vehicle manufactures specifications and recommendations, Gamber-Johnson product instruction sheets, or workmanship standards as endorsed through the Gamber-Johnson Certified Installer Program.

© Copyright 2016 Gamber-Johnson, LLC

If you need assistance or have questions, call Gamber-Johnson at 1-800-456-6868

PRE-INSTALLATION RECOMMENDATOINS

Conduct a "Bench Test"

Gamber-Johnson strongly advises a "bench test" be conducted to verify all electronic and software issues are resolved prior to installation:

Make sure the computer is operational by itself.1. Insert computer into the docking station and verify that the computer is 2. operating in the dock and battery is charging.

Gamber-Johnson recommends positioning of all mounts and equipment in the vehicle prior to the actual install to verify that mounting locations are safe and practical.

IMPORTANT SAFETY INFORMATION FOR INSTALLERS

Safety is dependent on the proper installation and servicing of this docking station. It is important to read and follow all instructions before installing this product.

To properly install a Gamber-Johnson docking station you must have a good understanding of automotive electrical procedures and systems, along with proficiency in the installation and service of aftermarket vehicle equipment.

There are no adjustments required at any time of the electrical components within the docking station. Opening the docking station will void the product warranty.

During Installation:

DO NOT connect this docking station to the vehicle battery until: All other electrical connections are made1. Mounting of all components is complete2. Verification that no shorts exist in the entire system3.

DO NOT install equipment or route wiring or cords in the deployment path of any air bag.

When drilling into the vehicle, DO make sure that both sides of the surface are clear of anything that could be damaged.

CAUTION: If wiring is shorted to the frame, high current conductors can cause hazardous sparks resulting in electrical fires or flying molten metal.

After installation:

Test the docking station to ensure that it is working properly.

File these instructions in a safe place and refer to them when performing maintenance or re-installing.

WARNING: Failure to follow all safety precautions and instructions may result in property damage, serious injury, or death.

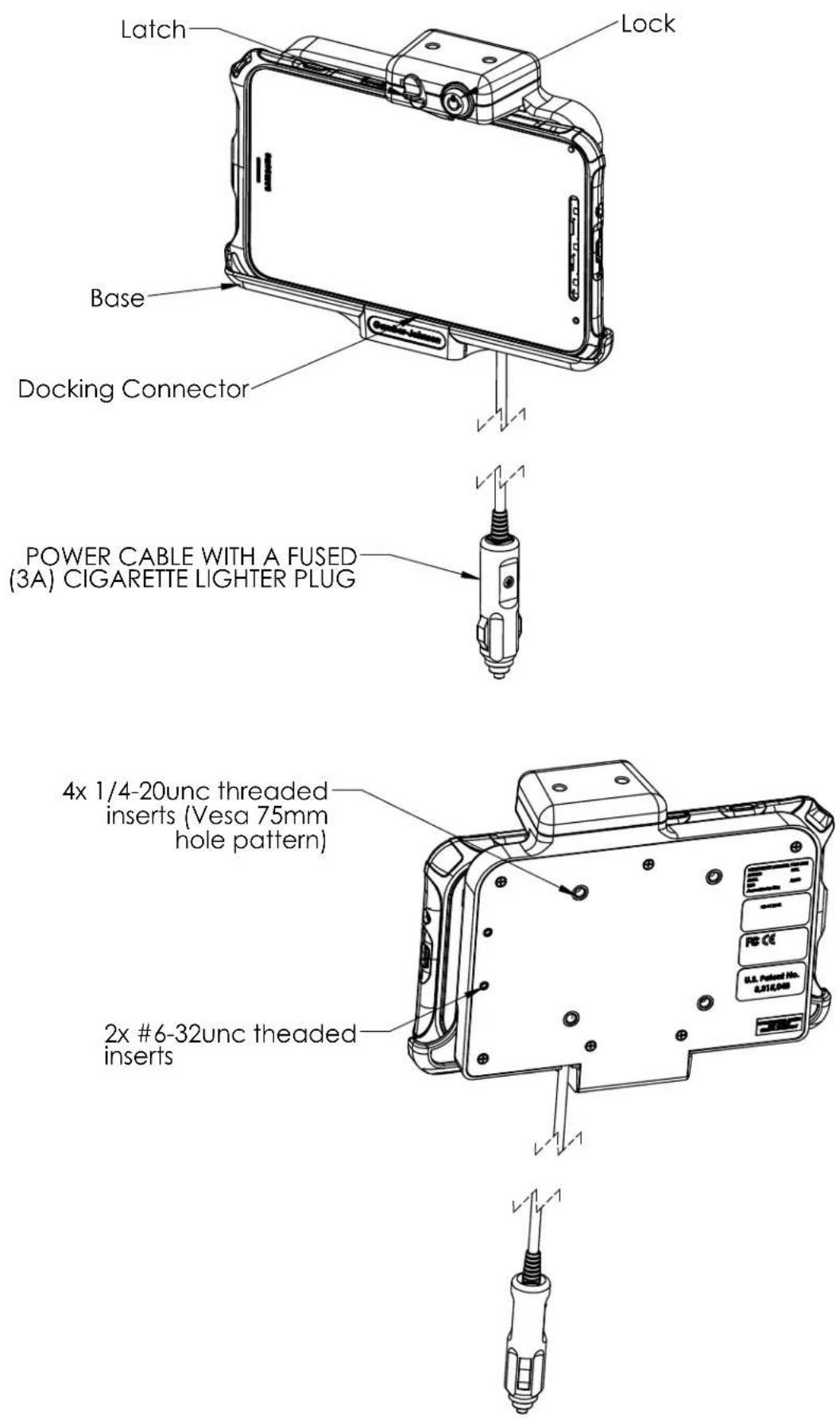

SAMSUNG GALAXY TAB ACTIVE DOCKING STATION FEATURE IDENTIFICATION

Latch Lock Base Docking Connector POWER CABLE WITH A FUSED (3A) CIGARETTE LIGHTER PLUG 4x 1/4-20unc threaded inserts (Vesa 75mm hole pattern) 2x #6-32unc threaded inserts

DOCKING AND UNDOCKING THE TABLET

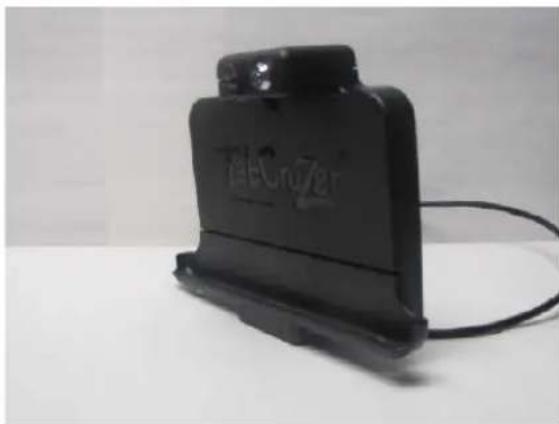

Figure 1

Black electronic device with attached cable and printed label 'RBCr20' (no other text or symbols visible)

1. Insert the bottom of the tablet into the docking station.

Then rotate the top of the tablet under the top latch until the tablet is resting inside the main housing. The latch will spring down in front of the tablet to hold it in place. (See figures 1, 2, & 3)

1. (Optional) The key lock can now be used for security purposes.

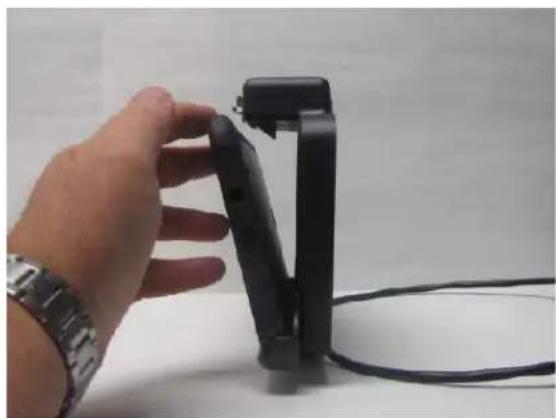

Figure 2

Hand holding a black mechanical device with attached cable, no visible text or symbols

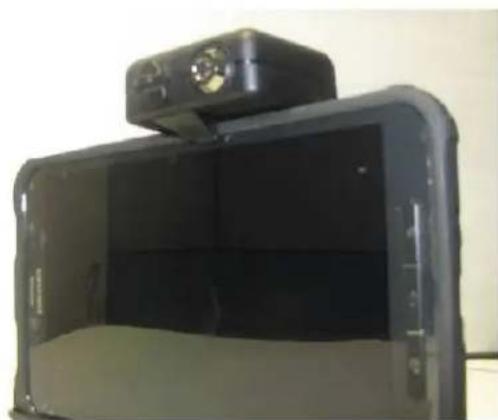

Figure 3

Black rectangular device with a camera module mounted on top, showing a dark screen and control buttons (no visible text or symbols)

TO UNDOCK THE COMPUTER

1. Unlock if locked.

2. Push upward on the thumb knob and pull outward on the top of the tablet until it clears the top latch. Lift the tablet out of the dock. (See figure 4)

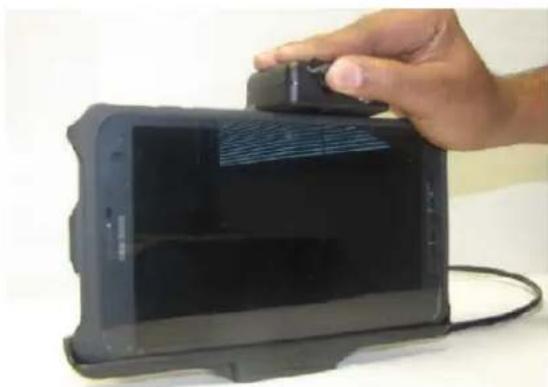

Figure 4

Hand holding a handheld device next to a black digital tablet with a grid screen (no visible text or symbols)

Regulatory Certification Information

Regulatory Model #: 7160-0581

GJ Model #'s: 7160-0581

Descriptions: Dock-Samsung-Galaxy Tab Active

Certifications:

EN 55022:2010 CISPR 22:2008 Class B•

EN 50498:2010•

EN 50581:2012•

IEC 60950-1:/A1:2009•

EN 60950-1/A12:2011•

CAN/CSA C22.2 No. 60950-1/A1:2011•

UL 60950-1/R:2011-12•

E-Mark•

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions. (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

10R-04 XXXX

Gamber-Johnson LLC, 3001 Borham Ave., Stevens Point, WI, 54481, USA, 715-344-3482
