RUGGED LITE KEYBOARD

A cost-effective solution for applications that do not require fully rugged devices.

Gamber-Johnson's low-profile Rugged Lite Keyboard is thin, light-weight, has an ergonomic feel and is a cost-effective solution and the perfect complement for an application that does not require fully rugged devices. Combine this keyboard with Gamber-Johnson's quick-release keyboard cradle for a mobile office application.

WEIGHT HEIGHT WIDTH DEPTH
1 lbs / 0.45 kg	0.68 in / 1.72 cm	10.31 in / 26.18 cm	7.12 in / 18.08 cm

Specifications:

• Power: 5Vdc @ <500mA from data cord
- Designed and tested to MIL-STD 810G shock and vibration specifications
• Temperature range:

• OPERATING: -20^ to 60^

- STORAGE: -40°C to 85°C

• Designed to IP54 ingress specifications
  • One million actuations per key

Compliance

• FCC
• CE
- RoHS, REACH

Features

• Integrated center Touchpad with right and left mouse buttons
• 76-key keyboard with 12 function keys for custom operation
• Low-profile ergonomic design for ease of use in a mobile environment
• Emergency Key - a configurable key that can be used to send for emergency help or assistance
• Silicone rubber keys with white lettering and a rugged ABS polycarbonate case
• Input cable: USB Type A male connector (coiled cable)
  • Supports Windows (XP or Above), Android, Linux, and Mac OS / iOS platforms
• USB- A port to attach a mouse, another peripheral, or flash drive (USB 2.0 500mA)
• Rubber feet to prevent slippage
• Keyboard is compatible with Gamber-Johnson custom keyboard tray
  • Available in US English, UK, German, French, and Spanish. Contact Gamber-Johnson for other language options.
  • 1 Year Warranty

Accessories

• Gamber-Johnson Quick-Release Keyboard Cradle (7160-1470-00)

Product Selection

ITEM NO.	DESCRIPTION
7160-1449-00	Rugged Lite Keyboard - US English
7160-1449-01	Rugged Lite Keyboard - UK English
7160-1449-02	Rugged Lite Keyboard - German
7160-1449-03	Rugged Lite Keyboard - French
7160-1449-04	Rugged Lite Keyboard - Spanish
7160-1470-00	Quick Release Keyboard Cradle
7170-0698-00	Samsung Galaxy Tab Active Pro Docking Station with Hand Strap, Rugged Lite Keyboard with Quick Release Keyboard Tray
7170-0817-00	Rugged Lite Keyboard with Quick Release Keyboard Cradle

RUGGED LITE KEYBOARD

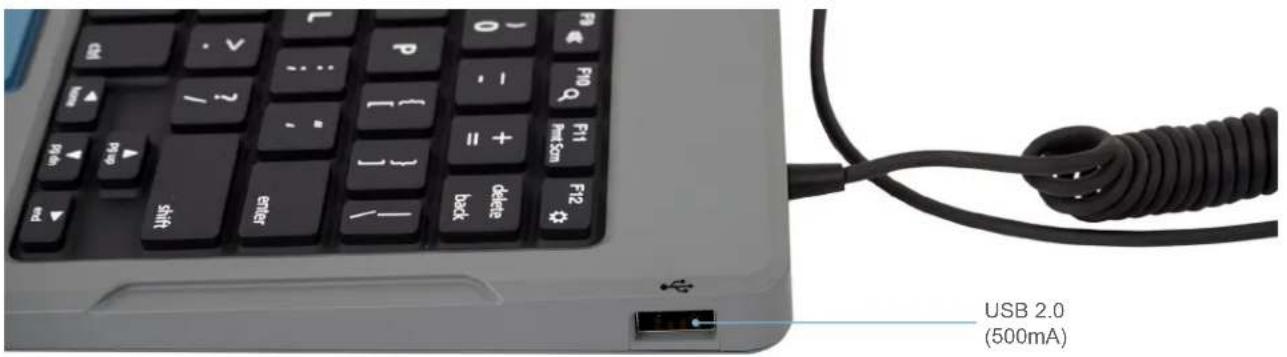

USB 2.0 (500mA)

Electronic device setup including a gray plastic enclosure, a black rectangular device with a blue indicator light, and a laptop keyboard (no visible text or symbols)

7170-0698-00
Samsung Galaxy Tab Active Pro Docking Station with Hand Strap, Rugged Lite Keyboard with Quick Release Keyboard Tray

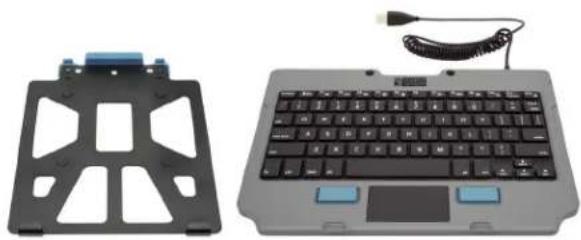

Two electronic devices: a black plastic device with a blue connector and a gray laptop keyboard with a cord (no visible text or symbols)

7170-0817-00
Rugged Lite Keyboard with Quick Release Keyboard Cradle

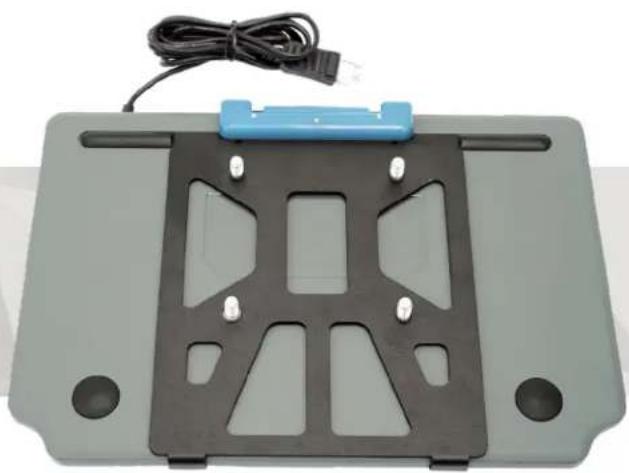

Black plastic electronic device with multiple slots and a blue top bracket (no text or symbols visible)

7160-1470-00
Quick Release Keyboard Cradle

Black rectangular electronic device with cutouts and a blue cable attached (no text or symbols visible)
