R-WB640VT0GMG - Kühlschrank HITACHI - Kostenlose Bedienungsanleitung

Produkttyp	Kühlschrank mit 4 Türen, French Door
Marke	Hitachi
Modell	R-WB640VT0GMG
Gesamtkapazität	638 Liter (Gefrierfach 243 L, Kühlfach 395 L)
Abmessungen (H x B x T)	1840 x 900 x 720 mm
Energieverbrauch	542 kWh pro Jahr
Kühlsystem	No Frost, Inverter-Kompressor
Vakuumfach	Ja, mit Vakuumpumpe (ca. 0,8 atm)
Selectable Zone	Ja, mit Modi: Kühlen (3°C), Chill/Fleisch (1°C), Soft Freeze (-3°C), Gefrieren (-18 bis -20°C)
Automatischer Eisbereiter	Ja
Touchscreen-Bedienung	Ja
LED-Beleuchtung	Ja
VIP-Isolierung	Ja (Vakuum-Isolationspaneele)
Farbe	Schwarzglas oder Mauve-Glas (je nach Ausführung)
Garantie	5 Jahre Teile und Arbeit, zusätzlich 5 Jahre Teile auf Inverter-Kompressor
Weitere Funktionen	Dual Fan Cooling, Powerful Deodorization, Quick Cooling, Quick Freezing, Schimmelschutz-Türdichtung
Lieferumfang	Kühlschrank, Bedienungsanleitung

Häufig gestellte Fragen - R-WB640VT0GMG HITACHI

Wie groß ist das Fassungsvermögen des Kühlschranks?

Welche Energieeffizienzklasse hat das Gerät?

Wie funktioniert das Vakuumfach?

Was ist die Selectable Zone und welche Temperaturen sind einstellbar?

Hat der Kühlschrank einen Eisbereiter?

Wie reinige ich das Gerät am besten?

Welche Garantie gilt für den Inverter-Kompressor?

Kann ich die Türanschlagseite wechseln?

Welche Abmessungen hat das Gerät und passt es in meine Küche?

Wie hoch ist der Geräuschpegel?

BEDIENUNGSANLEITUNG R-WB640VT0GMG HITACHI

R-WB640VT0

638lt4 DoorFrench Door INVERTER Refrigerator

LARGE FRENCH DOOR SERIES

Features

• 638lt Capacity
  • 4 Door French Door
  • INVERTER refrigerator
• Only 542kWh per year power consumption
  • Vacuum Compartment (+1°C/ -1°C)
• Warranty: 5 Year Parts & Labour Warranty (Additional 5 Years Parts Warranty on the Inverter Compressor)
• VIP Insulation
• LED Lighting

• Tempered Glass Shelves

• Selectable Zone (Refrigerator, Chill/Meat, Soft freeze and Freezer)

• Auto Ice Maker
• Touch Screen Controls
• Dual Sensing Control (with Eco Thermo-Sensor)
• Quick Cooling
• Quick Freezing
• Powerful Deoderization
• Mould proof Door Gasket
• No Frost | CFC & HFC-Free
• Tempered Glass Door
• Finish:
  Black Glass, Mauve Glass

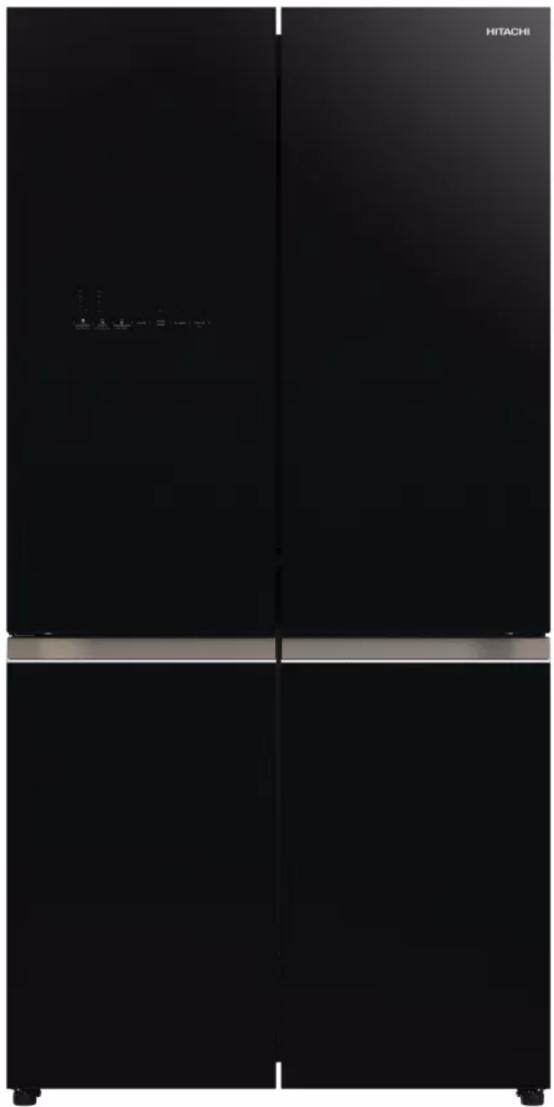

Black double door refrigerator with 'HITACHI' branding on top (no other text or symbols visible)

R-WB640VT0GBK Glass Black

INVERTER × Dual Fan Cooling

Powerful Deodorization

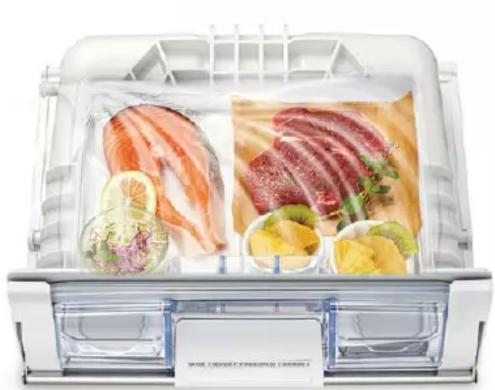

Vacuum Compartment

Hitachi innovation at its finest and most consistent: the sealed pressure-resistant vacuum realises and maintains the vacuumed environment. A vacuum pump extracts air and reduces oxygen to achieve approx. 0.8 atm.

Top-down view of a food preparation tray with raw fish, sliced meat, and fruit slices (no text or symbols visible)

Moisture Retention Level

94.9% Vacuum Compartment
32.8% Refrigerator Compartment

96.8% Vacuum Compartment
73.1% Refrigerator Compartment
Vacuum means the space where the pressure is lower than the atmospheric pressure. The pressure in the Vacuum Compartment is about 0.8 atm, which is lower than the atmospheric pressure.

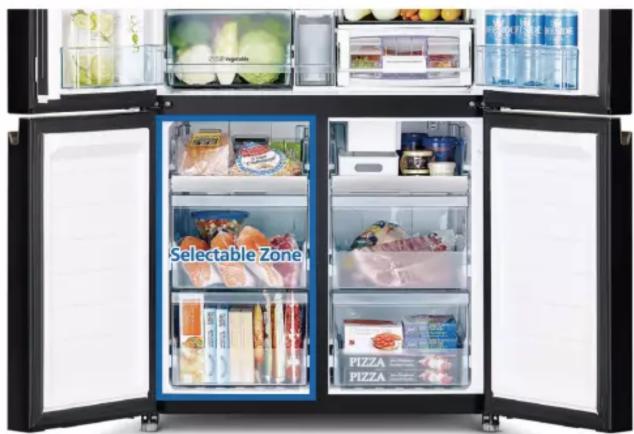

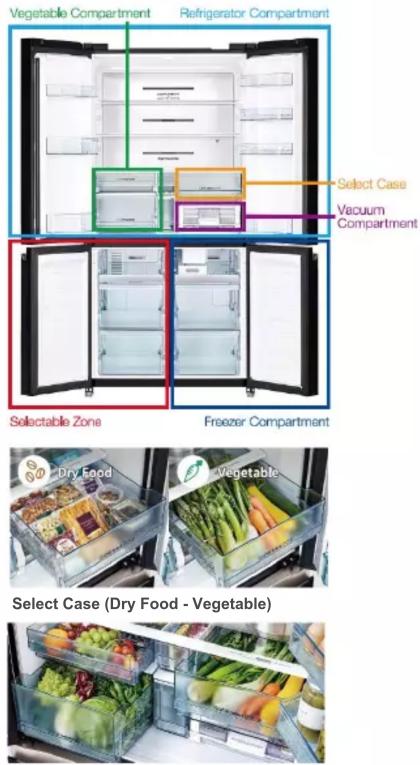

Selectable Zone

The Selectable Zone feature allows you to customise mode settings based on your storage and lifestyle needs: Refrigerator(3°C), Chill/Meat (1°C), Soft Freeze (-3°C), Freezer (-18 to -20°C).

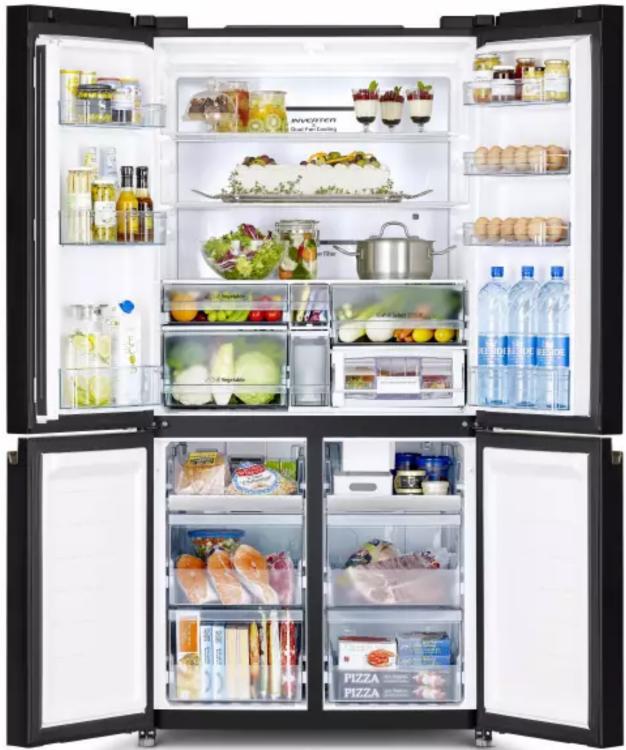

Interior view of a modern refrigerator with open doors and shelves filled with various food items (no visible text or symbols)

Exterior view of a modern four-door refrigerator with black panels and white trim (no visible text or symbols)

R-WB640VT0GMG Glass Mauve Grey

Interior view of a modern refrigerator with open doors showing food compartments and shelves (no visible text or symbols)

Fresh Vegetables Organised Storage

Other Features

Collage of food items including onions, garlic, fish, and a glass with fruit (no visible text or labels)

Rqy gthwn"Deoderisation
Triple Power Filter removes odour components and removes bacteri a 99%

Illustration of a hand pouring liquid into a storage unit with inset images showing plastic waste (no text or symbols)

Automatic Ice Maker
Ice cubes can be made automatically simply by filling the tank with water. When you want to make ice quickly switch the Quick Freezing mode ON which can make the ice approx. 24% faster.

Quick"Cooling
When you want to cool quickly and powerfully, switch the Quick Cooling mode ON. Cooling is approx. 29% faster.

Big yet Easy to Use
The often used refrigerator compartment is positioned for easy access. Even with a lot of food stored, you can easily find what you are after.

Designed for Convenience
Flat glass panel controls let you change the settings with a simple touch. And a wipe is all it takes to clean the tempered glass surface.

Interior view of a modern refrigerator with white shelves and black door handle (no visible text or symbols)

Premium Design
Designed with luxury in mind.. Aluminum is used for the interior for a touch of elegance and energy efficient LED lighting illuminates the interior. Sleek refined flat glass doors with recessed handles, seamlessly blends into your kitchens interior
Gxgp"kh"vj g"co dkgpv"vgo r gtcvwtg" tgcej gu"cu"j ki j "cu"82""E." tghtki gtcvqt"ku"uvkm"vj qtqwi j n{"eqqngf 0"}

Rqy gthwn"Eqqnkpi

Nqpi "Eqqn"Mggr gt
Vj g"vgo r gtcvwtg"kp"vj g"htggl gt"eqo r ctvo gpv"ku"o ckpvckpgf "vq"mggr "hqqf "htguj "kp"vj g"gxgpv"qh"c"r qy gt"ewv."hqt"wr "vq"37"j qwtu0""
VIP is a thin panel with a very fine glasss fibre vacuum inside, giving an extremely high heat
insulation performance to achieve exceptional energy savings. The thinness of the VIP panel allows for greater storage capacity (when compared to thicker conventional insulation).

VIP-Vacuum Insulation Panel

Interior view of a refrigerator with a green recycling arrow and blue directional arrows indicating flow (no text or symbols)

INVERTER × Dual Fan Cooling

Provides optimum cooling - both the freezer and refrigerator compartments. Improved Dual Fan Cooling with dedicated fans for each compartment ensures energy saving and powerful cooling. This is supported by the Eco Thermo-Sensors that detects any temperature change separately to enable the temperature change to be maintained each" of the compartments at all times.

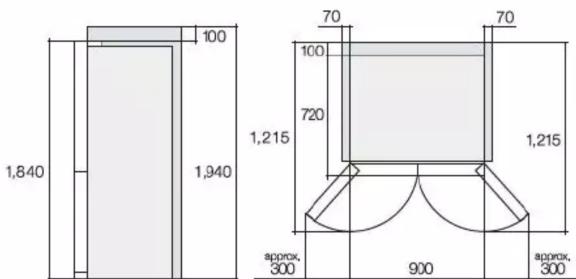

Space required for ventilation.
638L Capacity:
Freezer 243L | Refrigerator: 395L
Dimensions: 1840(h) x 900(w) x 720(d) mm
