BEDIENUNGSANLEITUNG ES3 AUDISON

bit

ACCESSORIES

For bit One HD, bit One, bit Nove, bit Ten D, bit Ten

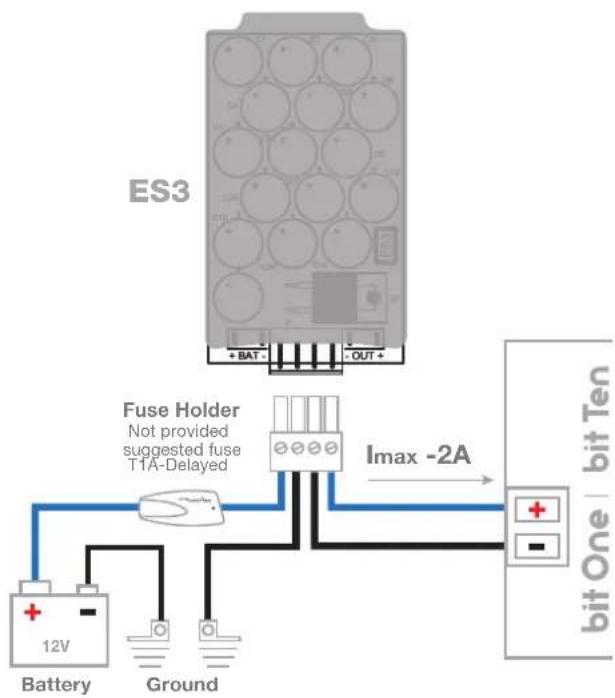

ES3 BAT - OUT + Fuse Holder Not provided suggested fuse T1A-Delayed Imax -2A 12V Battery Ground bit One | bit Ten

ES3

BIT ENERGY STORAGE START & STOP

It prevents the processor from shutting down when turning on vehicles featuring the start & stop system

When starting the engine, the vehicle battery voltage might decrease below 8 Volts value. If a signal processor (bit One, bit Ten) is installed in your system, especially with vehicles featuring the start & stop system, low supply voltage values might make the processor shut down. In order to avoid waiting for the processor to complete its turn-on cycle again, you can install the ES3 by connecting it in series to the processor power supply cables.

Coiled black cable with connectors and a white connector housing (no visible text or symbols)

ECK DRC

DRC CABLE EXTENSION KIT

It is a kit composed of a cable and an adapter allowing a 2 m / 78.74 in. additional extension of the cable supplied with the DRC. This extension is required for installations on especially long vehicles such as SUV's. Total length of the supplied cable with the extension is equal to 6,5 m / 225.90 in.

PACKAGE: Polybag - Qty. 1

bit

ACCESSORIES

For bit One HD, bit One, bit Nove, bit Ten D

Optical digital audio signal cable, designed for car audio applications, allowing the transfer of the optical signal along its 10 m / 393.70 in. length without signal loss. An especially thicker sheath protects the optical fibre to prevent the cable from damages if it is pressed against sharp edges. The metal connector protects the optical fibre along its full length, ensuring a stable transmission of the signal also in the event of strong vibrations.

Black cable with two connectors, no visible text or symbols

OP 1.5

TOSLINK OPTICAL CABLE 1,5 M / 59.05 IN.

Optical cable ending with Toslink connectors for S/PDIF digital audio signals. Cable length 1,5 m/59,05"

PACKAGE: Polybag Qty. 1

Black cable with two connectors, no visible text or symbols

OP 4.5

TOSLINK OPTICAL CABLE 4,5 M / 177.16 IN.

Optical cable ending with Toslink connectors for S/PDIF digital audio signals. Cable length 4,5 m/177,16"

PACKAGE: Polybag Qty. 1

STR

M TO F RIGHT ANGLE TOSLINK ADAPTER

Male-Female Toslink adapter with rotating head. 90° angle shape to save space.

PACKAGE: Polybag Qty. 1

STA

F/F SOCKET TOSLINK ADAPTER

Optical adapter to extend optical cables featuring TOSLINK connectors.

PACKAGE: Polybag - Qty. 1

For bit Ten, bit Ten D, bit Nove

Coiled electrical wires with black connectors, no visible text or symbols

PIC 6

PRE IN CONNECTOR 6

RCA connector for effortless and fast connections between the head unit PRE OUTs (1,2 min.) and the bit Nove PRE inputs.

PACKAGE: Carton Box - Qty. 1

Coiled electronic components with various colored wires and connectors (no visible text or symbols)

CBT 1

RCA BIT TEN ADAPTER CABLE

RCA connector for effortless and fast connections between the head unit PRE OUTs (2 V min.) and bit Ten, bit Ten D Hi-Level inputs.

PACKAGE: Carton Box - Qty. 1
