| Produkttyp | Server-USV (Unterbrechungsfreie Stromversorgung) |
| Modell | APC Back-UPS BX950U-AZ (APBX950UI) |
| Abmessungen (H x B x T) | 21,5 cm x 13 cm x 33,6 cm |
| Gewicht | 8 kg |
| Eingangsspannung | 230 V~ (nominal) |
| Eingangsfrequenz | 50/60 Hz ± 3 Hz (automatische Erkennung) |
| Ausgangskapazität | 950 VA / 480 W |
| Ausgangsspannung bei Batteriebetrieb | 230 V~ (stufenweise angenäherte Sinuswelle) |
| Übertragungszeit | 8 ms (typisch) |
| Batterietyp | Blei-Säure, wartungsfrei, 9 Ah, 12 V (1 Stück) |
| Typische Ladezeit | 8 Stunden |
| Batterielebensdauer | 2–5 Jahre (abhängig von Umgebungsbedingungen) |
| Überspannungsschutz | 273 Joule (Dauerschutz) |
| Automatische Spannungsregelung (AVR) | Ja (Boost/Trim) |
| Abschaltung bei Leerlauf | Ja (bei <15 W für >15 Minuten) |
| Software | PowerChute Personal Edition (kostenloser Download) |
| Anzeigen | Grüne LED (Netzbetrieb), Rote LED (Batterie/Überlast), Blinkcodes |
| Alarme | Akustische Signale bei Batteriebetrieb, niedrigem Batteriestand, Überlast |
| Betriebstemperatur | 0–40 °C (Innenbereich) |
| Garantie | 2 Jahre (Austauschgerät) |
| Hersteller | APC by Schneider Electric |
Häufig gestellte Fragen - APBX950UI APC
Benutzerfragen zu APBX950UI APC
0 Frage zu diesem Gerät. Beantworten Sie die, die Sie kennen, oder stellen Sie Ihre eigene.
Eine neue Frage zu diesem Gerät stellen
Laden Sie die Anleitung für Ihr Server kostenlos im PDF-Format! Finden Sie Ihr Handbuch APBX950UI - APC und nehmen Sie Ihr elektronisches Gerät wieder in die Hand. Auf dieser Seite sind alle Dokumente veröffentlicht, die für die Verwendung Ihres Geräts notwendig sind. APBX950UI von der Marke APC.
BEDIENUNGSANLEITUNG APBX950UI APC
by Schneider Electric
1 Safety and General Information
Inspect the package contents upon receipt. Notify the carrier and dealer if there is any damage.
Read the following reminders before installing the UPS.
• This UPS is intended for indoor use only.
- Connect the UPS power cable directly to a wall outlet. Do not use surge protectors or extension cords.
- When grounding cannot be verified, disconnect the equipment from the AC power outlet before
installing or connecting to other equipment. Reconnect the power cord after all connections are made.
• Servicing of batteries should be performed by Schneider Electric IT (SEIT) Customer Support only.
- When replacing battery the UPS must be OFF, and its AC inlet unplugged.
- Do not dispose of batteries in a fire. The batteries may explode.
- Do not open or mutilate batteries. They contain an electrolyte that is toxic and harmful to the skin and eyes.
- To avoid harmful injury due to energy hazard, remove wrist watches and jewelry such as rings when replacing the batteries. Use tools with insulated handles.
- Replace batteries with the same number and type of batteries as originally installed in the equipment.

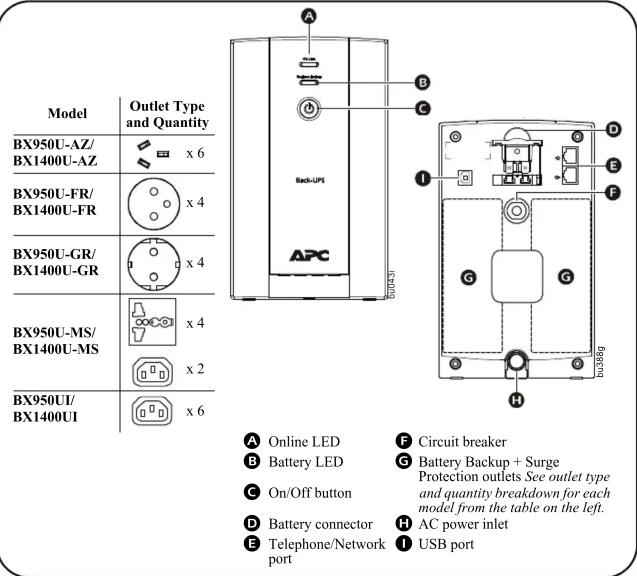

3 Features
5 Operational Features
Install PowerChute™ Software
To install PowerChute Personal Edition (PCPE) software, connect a USB cable to the data port on the UPS and the other end to a computer with access to the web.
On the computer, go to www.apc.com/tools/download. Select "Software Upgrades - PowerChute Personal Edition" in the "Filter by Software/Firmware" drop down menu. Select the appropriate operating system. Follow directions to download the software.
Automatic Voltage Regulation
Automatic Voltage Regulation boosts/trims the AC voltage when it drops/exceeds safe levels. This allows the equipment plugged into the unit to operate during low/high voltage conditions, conserving the battery power in the event of a power cut.
The Back-UPS will switch to battery power if the input voltage level becomes too low/high for the Automatic Voltage Regulation to compensate, or if the AC power is distorted.
If the Back-UPS switches to battery power too frequently or too infrequently, adjust the transfer voltage and sensitivity settings:
- Ensure the Back-UPS is off. Plug it into AC power.
- Press and hold the ON/OFF button until the LED repeatedly flashes. The unit is now in Program Mode.
- Release the button. The LED will indicate the current setting by flashing once, twice, or three times per second, and emitting audible beeps.
- If the button is not pressed within five seconds, the Back-UPS will exit the Program Mode.
No-load Shutdown
If the UPS is operating on battery power and detects that the connected equipment is using less than 15 W of energy for more than 15 minutes, it will shut down to conserve energy.
When the UPS is reconnected to AC power, the UPS will automatically switch on.
| LED Flashes | Audible Indicator | Voltage Sensitivity Setting | Input Voltage Range | No-load Shutdown | Description |
| Green None Low 150-280 Disabled Use this setting with equipment that is less sensitive to fluctuations in voltage or waveform distortions. | |||||
| Green 4 beeps per second | Low 150-280 Enabled Use this setting with equipment that is less sensitive to fluctuations in voltage or waveform distortions. | ||||
| Red None Medium 155-280 Disabled Use this setting for normal operation conditions. | |||||
| Red 4 beeps per second | Medium (factory default) | 155-280 Enabled Use this setting for normal operation conditions. | |||
| Green and Red | None High | 160-280 Disabled Use this setting when connected equipment is sensitive to voltage fluctuations or waveform distortions. | |||
| Green and Red | 4 beeps per second | High | 160-280 Enabled Use this setting when connected equipment is sensitive to voltage fluctuations or waveform distortions. |
2 Connect the Battery
1 Connect the battery by pulling the battery connector handle down, and then pushing it into the unit.
2 Connect the Back-UPS BX950U-AZ/BX1400U-AZ power cable directly to a wall outlet. Do not use surge protectors or extension cords.
3 Press the ON/OFF button to turn on the unit. The green "Power On" indicator confirms that the Back-UPS is on and ready to provide protection.
The Back-UPS should charge for at least 10 hours to ensure sufficient runtime. The unit is being charged whenever it is connected to AC power, whether the unit is turned ON or OFF.
4 Status Indicators
| Status | LED Indicator | Audible Alarm | Audible Alarm Terminates |
| Power OnThe Back-UPS is supplying AC power to connected equipment. | The On Line LED illuminates green. | None | N/A |
| On BatteryThe Back-UPS is supplying battery power to battery backup outlets. | The On Line LED illuminates green. The LED is not illuminated during the beeps. | Back-UPS beeps 4 times every 30 seconds. | The beeping stops when AC power is restored or the Back-UPS is turned off. |
| Low Battery warningThe Back-UPS is supplying battery power to the battery backup outlets and the battery is near a total discharge state. | The On Line LED flashes green. | The Back-UPS emits rapid beeping. (once every second) | The beeping stops when AC power is restored or the Back-UPS is turned off. |
| Replace BatteryThe battery is disconnected. The battery needs to be charged or replaced. | • The Battery LED flashes red.• Battery and On Line LEDs flash alternately. | Constant tone | The Back-UPS is turned off. |
| Overload ShutdownWhile operating on battery power an overload condition has occurred in one or more of the battery backup outlets. | None | Constant tone | The Back-UPS is turned off. |
| Sleep ModeWhile operating on battery power the battery is completely discharged. The Back-UPS will awaken once AC power is restored. | None | The Back-UPS beeps once every four seconds. | • AC power is restored• AC power is not restored within 32 seconds• The Back-UPS is turned off |
| Overload AlarmThe equipment connected to the Back-UPS is drawing more power than the voltage rating allows. | The Battery LED illuminates red. | Constant tone | Alarm stops when nonessential equipment is disconnected from the Battery Backup outlets. |
6 Specifications
| Specification | BX950U-AZ | BX1400U-AZ | |
| Input | Voltage | 230 Vac, nominal | |
| Frequency | 50/60 Hz ± 3Hz auto-sensing | ||
| Brownout Transfer | 155 Vac, typical | ||
| Over-voltage Transfer | 280 Vac, typical | ||
| Output | UPS Capacity (total) | 950 VA / 480 W | 1400 VA / 700 W |
| Voltage On Battery | 230 Vac rms (step-approximated sinewave) | ||
| Frequency on Battery | 50/60 Hz ± 1Hz | ||
| Transfer Time | 8 ms typical | ||
| Protection and Filtering | AC Surge Protection | Full time, 273 Joules | |
| AC Input | Resettable circuit breaker | ||
| Battery | Type (maintenance free, lead acid) | 9 Ah, 12 V x 1 | 7.2 Ah, 24 V (12 Vx2) |
| Average Life | The battery typically lasts for two to five years.Environmental factors impact battery life. Elevated temperatures, high humidity, poor quality mains power, and frequent, short duration discharges will shorten battery life.The battery in the Back-UPS BX950U-AZ/BX1400U-AZ is not user-replaceable. Contact SEIT Technical Support for a list of authorized service centers near you. | ||
| Typical Recharge Time | 8 Hours | ||
| Physical | Net Weight | 8 kg | 12 kg |
| Dimensions (H x W x D) | 21.5 cm x 13 cm x 33.6 cm | ||
Troubleshooting and Service
- If the problem persists, contact Schneider Electric IT (SEIT) Customer Support through the Schneider Electric web site, www.apc.com.
a. Note the model number and serial number and the date of purchase. The model and serial numbers are located on the rear panel of the unit and are available through the LCD display on select models.
b. Call SEIT Customer Support and a technician will attempt to solve the problem over the phone. If this is not possible, the technician will issue a Returned Material Authorization Number (RMA#).
c. If the unit is under warranty, the repairs are free.
d. Service procedures and returns may vary internationally. Refer to the Schneider Electric web site for country specific instructions.
- Prepare to troubleshoot the problem over the phone. If this is not successful, and the unit is still under warranty, the Technical Support Representative will provide all necessary information to return the unit for replacement
Warranty
Register your product on-line. http://warranty.apc.com
The standard warranty is two (2) years from the date of purchase. SEIT standard procedure is to replace the original unit with a factory reconditioned unit. Customers who must have the original unit back due to the assignment of asset tags and set depreciation schedules must declare such a need at first contact with an SEIT Technical Support representative. SEIT will ship the replacement unit once the defective unit has been received by the repair department, or cross-ship upon the receipt of a valid credit card number. The customer pays for shipping the unit to SEIT. SEIT pays ground freight transportation costs to ship the replacement unit to the customer.
APC by Schneider Electric IT Customer Support Worldwide
For country specific customer support, go to the APC by Schneider Electric web site, www.apc.com.
EN 990-5387 08/2014
© 2014 APC by Schneider Electric. APC, the APC logo, Back-UPS, and PowerChute are owned by Schneider Electric Industries S.A.S. or their affiliated companies. All other trademarks are property of their respective owners.
