BEDIENUNGSANLEITUNG LWN432SP115TW01 Speed Queen

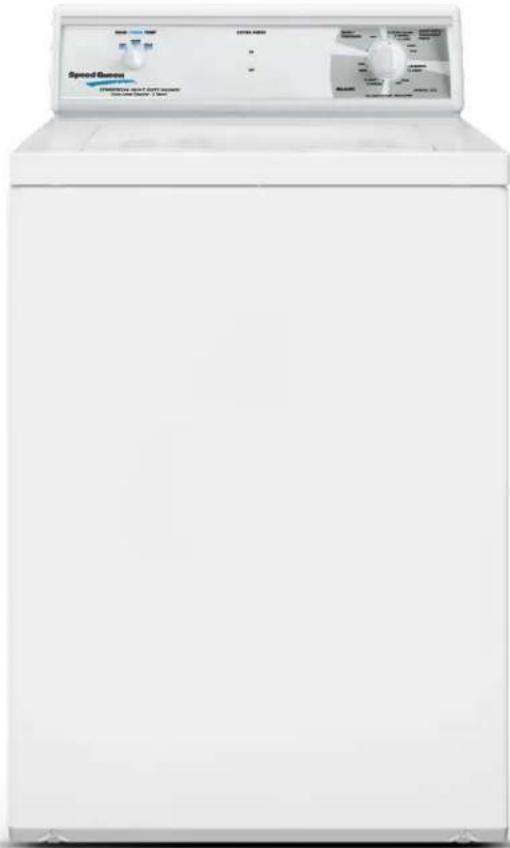

MANUAL HOMESTYLE
COMMERCIAL TOP LOAD WASHER
Built for Reliable Performance
Speed Queen® two-speed top load washers are durably constructed using premium materials for long-lasting, reliable performance and superior wash results. If you want your laundry done right, you want a Speed Queen. Our machines are manufactured using metal instead of plastic. They're built with rugged, commercial-grade construction. Our world-class test lab rigorously pushes our products far beyond the conditions they're likely to ever face. We work hard at every point of our manufacturing process to ensure that our machines reflect that belief.
• Durable stainless steel wash tub
• Extract speed of 710 RPM spins clothes out drier
- Automatic Balancing Suspension provides the industry's best out-of-balance handling, completing wash cycles without interruption
- Curved four-vane polypropylene agitator provides 210° agitation stroke which delivers superior washability
- Low water consumption
A LIGHT
SHORT SIND VERY DRY DELETA 2000 2000 A LIGHTNORMAL
SHORT SIND VERY DRY NORMAL EDD FULL RING TO SHORT, PUSH TO STOPManual homestyle control provides easy to start activation indicated by "In Use" light.
SPECIFICATIONS
COMMERCIAL TOP LOAD WASHER
| MODEL - see below for all models and activation available | |
| CONTROL OPTION Manual | Homestyle |
| COLOR White | |
| CAPACITY - lb (kg) 16 (7.3) | |
| CYLINDER VOLUME - cu. ft. (liters) 3.19 (90.3) | |
| SPIN SPEED G-FORCE (RPM) 150 (710) | |
| MOTOR SIZE - HP (kw) 0.5 (0.37) | |
| WATER CONSUMPTION PER CYCLE - g (liter) 27.9 (106) | |
| IWF (WATER FACTOR) - liters/liter/cycle (gal/ft ^3 ) 8.8 (1.18) | |
| MEF, (Modified Energy Factor) ft ^3 /kWh/cycle (Liters/kWh/cycle) | 1.35 (38.2) |
| AVAILABLE WATER TEMPERATURES | Hot, Warm, Cold |
| AVAILABLE CYCLES | Soak/Prewash, Heavy Duty/ Permanent Press, Normal Eco, Delicate |
| ELECTRICAL REQUIREMENTS (v/Hz/Ph-Amp) 120/60/1 - 15 Amp | |
| WATER PRESSURE - p.s.i. (bar) 20-120 (1.4/8.3) | |
| DRAIN Pump | |
| CYLINDER FINISH Stainless Steel | |
| NET WEIGHT - lb (kg) | 186 (84.4) |
| SHIPPING WEIGHT - lb (kg) | 196 (88.9) |
| SHIPPING DIMENSIONS APPROX. - in (mm) | Width 28 (711)Depth 30 (762)Height 45 (1143) |
| AGENCY APPROVALS | cULus |
MODELS
LWN432SP115TW01


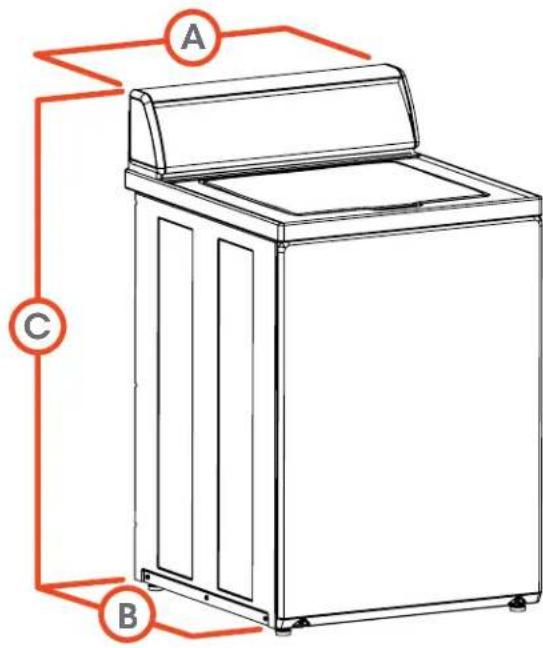

A C B| A. | OVERALL WIDTH - in (mm) | 25.625 (651) |
| B. | OVERALL DEPTH - in (mm) | 28 (711) |
| C. | OVERALL HEIGHT - in (mm) | 43 (1092) |
For the most accurate information, the installation guide should be used for all design and construction purposes. Due to continuous product improvements, design and specifications subject to change without notice. The quality management system of Alliance Laundry Systems' Ripon facility has been registered to ISO 9001:2008.

Speed Queen.
by Alliance Laundry Systems
