BEDIENUNGSANLEITUNG FG0380 Speed Queen

DRYER

OPERATING

INSTRUCTIONS

MODEL

FG0380

Read complete instructions before using dryer. Refer often to the special information in the Speed Queen Handbook to Better Automatic Drying. Before using dryer for the first time, wash out the inside of the dryer drum with a sudsy cloth, then dry. The dryer must be properly installed according to the installation instructions.

TO DRY CLOTHES

AIR FLUFF NORMAL DELICATE

TEMPERATURE

SET AT NORMAL TEMP

FOR DURABLE PRESS

K317G

DURABLE PRESS KNITS OFF 10 20 30 40 50 60 70 80 90 100 110

1 LOAD DRYER: Open door and place properly sorted laundry from washer into dryer. See Helps and Hints, page 8.

2 CLOSE DOOR: Dryer will not operate with door open.

3 SELECT DRYING TEMPERATURE: The TEMPERATURE SELECTOR controls the heat. The fiber in the fabric determines the heat selection.

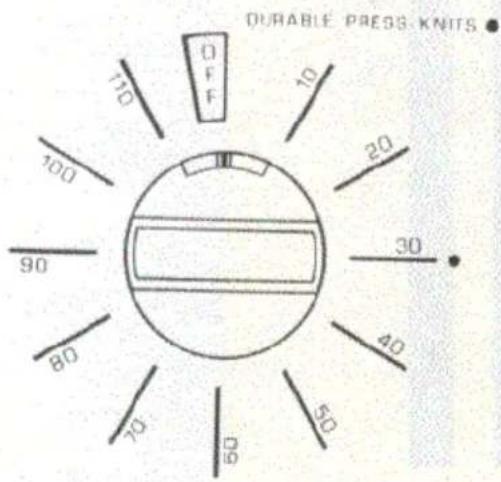

4 SELECT DRYING TIME: The numbers on the timer dial (0 to 110) represent the minutes of drying time. The DURABLE PRESS--KNITS cycle starts at "30" as a reminder that these fabrics will dry in a shorter time than regular fabrics. See SUGGESTED DRYER SETTINGS, page 6. The timer setting may be changed at any time during the drying period.

The last 5 minutes of the cycle is an automatic cool-down (no heat) period to condition the clothes and to lessen wrinkling

for durable press loads. Dryer will not heat if set for 5 minutes or less.

5 START DRYER: With door closed and timer set, press the safety PUSH-TO-START button. Dryer will operate until the end of the cycle (when timer knob indicator reaches the OFF position).

TO STOP DRYER AT ANY TIME: Open dryer door or turn timer knob to OFF position.

PUSH TO START

TO RESTART DRYER: Close door, reset timer if necessary and press PUSH-TO-START button. Speed Queen dryers are designed so they will not operate if the door is open. The START button, which is out of the reach of small children, MUST be pressed to start the dryer if it has been stopped for any reason. This provides a safety feature.

CARE OF YOUR DRYER

Clean the In-A-Door lint screen before drying each load. A layer of lint on the screen will cut down the air flow through the dryer and lengthen the drying time.

Ordinarily the dryer drum or cylinder will need no care. However, if the drum has been stained from a residue of spray fabric softener, rub off with a mild scouring powder, and wipe door area and lint screen with a damp cloth.

The dryer top is porcelain enamel and needs no special care. Wipe the cabinet when needed. If using a rust remover product on a fabric, do not spill it on the dryer as it will harm the finish. An appliance wax such as Jubilee may be used if desired. Use only a damp or sudsy cloth for cleaning the control panel.

ABOUT YOUR SPEED QUEEN DRYER

LINT SCREEN

In-A-Door Lint Screen is located in the door for maximum efficiency and convenience. REMOVE AND CLEAN THE LINT SCREEN BEFORE DRYING EACH LOAD. This is important because a layer of lint on the screen will block the flow of air through the dryer, which will reduce drying efficiency.

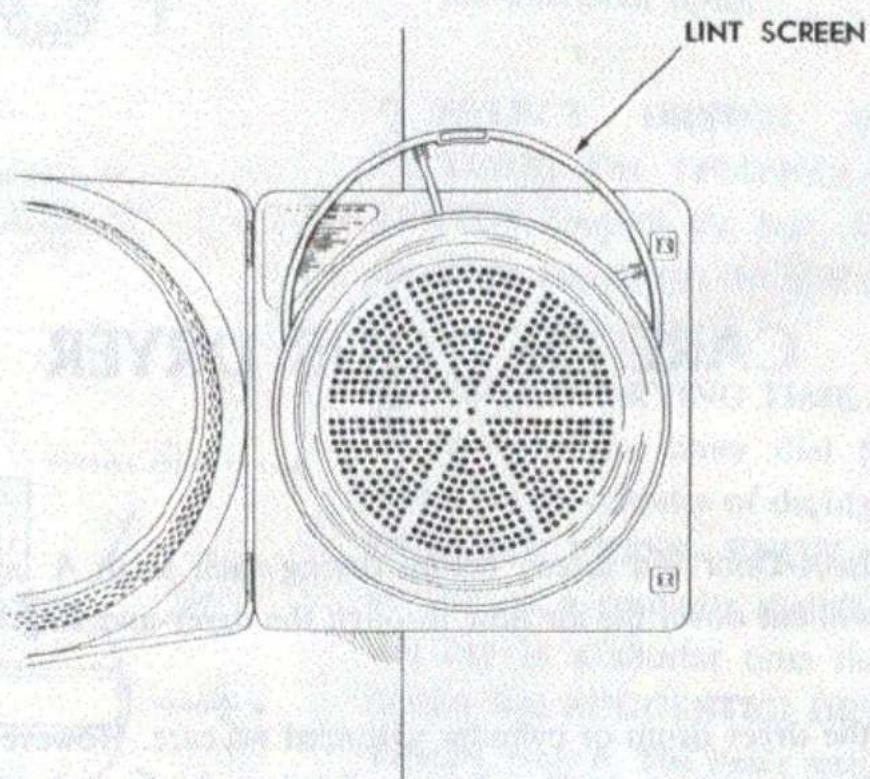

LINT SCREEN

To remove lint screen: Open dryer door, pull screen up and out of screen holder. Remove accumulated lint with your hand, then replace screen by sliding back into holder.

EXHAUST SYSTEM

We recommend that moisture laden dryer air be exhausted to the outside atmosphere to assure maximum dryer efficiency. The duct pipe should be cleaned periodically to remove any obstructions. Check occasionally to make sure the flapper on the outside weather hood moves freely, is not pushed in and that nothing has been shoved against it. Check too that the flapper is not standing open. If it is open, leaves or even snow could plug it. Any restriction of the air from the dryer will decrease drying efficiency.

If the room where the dryer is installed is adequately ventilated, it may be operated without an outside exhaust, but outside exhausting is the preferred method. The necessary suggestions and directions for exhausting are given in the Installation Instructions which are included with the dryer. See your Speed Queen dealer for full particulars.

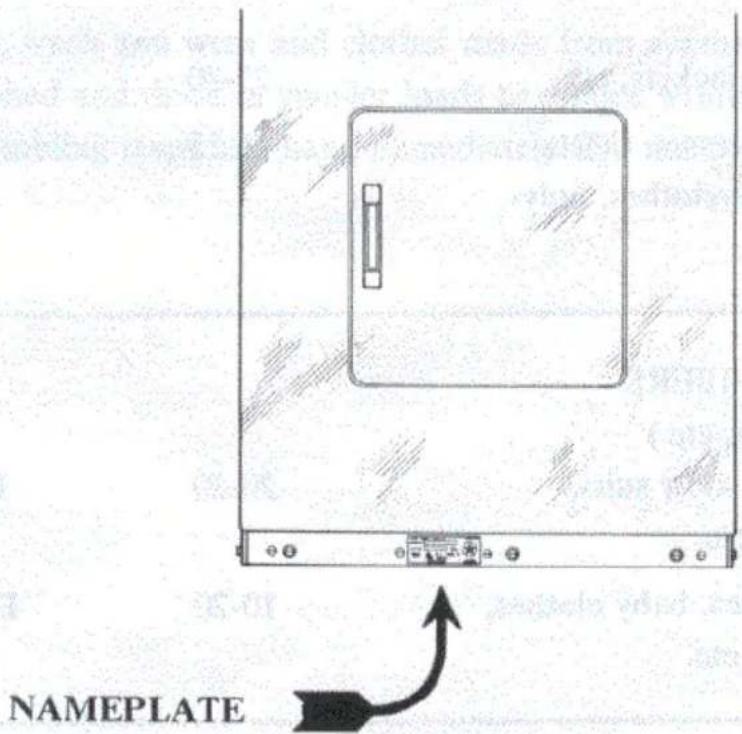

NAMEPLATE

IF CALLING OR WRITING ABOUT YOUR DRYER, YOU MUST GIVE THE MODEL AND SERIAL NUMBERS. THE MODEL AND SERIAL NUMBERS WILL BE FOUND ON THE NAMEPLATE AS SHOWN AT BOTTOM OF FRONT PANEL.
