BEDIENUNGSANLEITUNG FA4110 Speed Queen

AUTOMATIC WASHER

OPERATING

INSTRUCTIONS

MODELS

FA4110 & FA4111

OPERATING NOTES

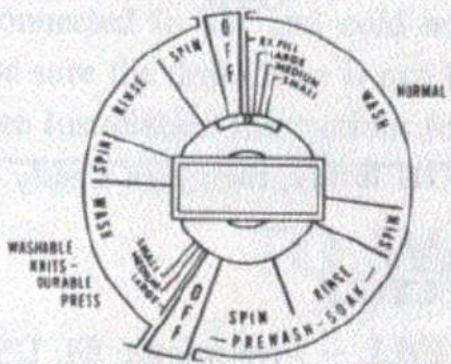

TIMER....Although the washer cycles are automatic, the timer is flexible and it may be reset to lengthen, shorten or repeat a portion of a cycle. The timer knob cannot be advanced or the setting changed when the washer is operating. The timer knob is free-wheeling for the protection of the timer mechanism.

OFF R. FULL LAMBE MEDIUM SMALL WASH NORMAL SPIN SPIN RINGLE 50K SPIN SPIN WASHABLE KNITS - DURABLE PRESS LARGE SPIN SPIN - PREWASH

TO SET OR RESET THE TIMER PUSH TIMER KNOB IN TO STOP WASHER.

HOLD TIMER KNOB IN FIRMLY WHILE TURNING IT TO THE RIGHT TO THE SETTING DESIRED.

PULL TIMER KNOB OUT TO START WASHER.

TO ADD MORE WATER AFTER THE FILL HAS STOPPED: Hold timer knob IN and turn it all the way around to the right to SMALL on the cycle you are using. Pull OUT to start.

TO STOP FILL: Hold timer knob IN and turn it to the right past the SMALL setting. Pull OUT to start.

TO SHORTEN WASH TIME: After fill has stopped, hold timer knob IN and turn slowly to the right. Pull OUT to start.

FOR YOUR SAFETY, A BRAKE WILL STOP THE TUB WITHIN SECONDS IF THE LOADING DOOR IS OPENED DURING SPINNING OR IF THE WASHER IS TURNED OFF. DO NOT PUT YOUR HANDS INTO THE TUB UNTIL ALL MOTION HAS STOPPED.

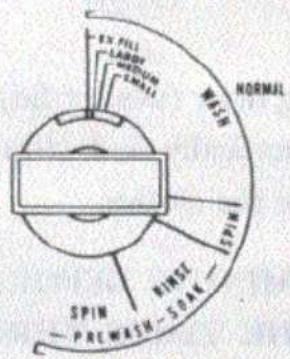

AUTOMATIC CYCLES.....NORMAL CYCLE — 14 minutes (or less)

E. FILL LARDY MEDIUM 2.5MPa WASH NORMAL SPIN NIRSE PREWASH - SOAM SPIN

wash agitation. A regular cycle for regular loads of sturdy fabrics. During the last minute of wash and rinse agitation, fresh water enters the tub.

At LARGE setting and in the deep rinse, this overflow rinse removes loose lint, suds and lighter than water soil from the water by floating it over the top of the tub. The wash overflow is the same temperature as

the wash water and the rinse overflow is the same temperature as the rinse water.

Heavier than water soil settles to the bottom of the tub and is forced out through the "sediment ejector" during spinning. The water in the tub spins over the top of the tub into the outer tub and is then pumped into the drain.

SPIN —PREWASER—STONE Mines

PREWASH-SOAK — This cycle starts at the rinse fill of the NORMAL cycle. The water will be the same temperature as the rinse water. Wash clothes as usual after the prewash-soak. For a longer soak, stop washer. See Handbook for more information on soaking.

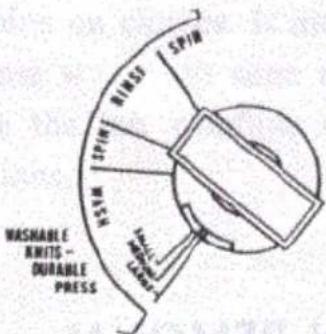

WASHABLE KNITS—DURABLE PRESS CYCLE—7 minutes (or less)

wash agitation with shorter rinse and spin times and choice of special cool-down for fabrics which would wrinkle if spun when hot. Wash water temperature will be as selected. The wash overflow (cool-down) and spray rinse will be the same temperature as the rinse water selected. ALWAYS CHOOSE COLD RINSE FOR DURABLE PRESS, for knits and all fabrics made from or containing man-made fibers. These fabrics must be cooled before the wash spin to prevent deep wrinkles. See cycle chart, page 8, washing chart, page 9 and Speed Queen Washer Handbook.

Choose WARM rinse when cool-down conditions are not desired, as in washing woolens, for example.

SPIN RIBERT SPIN NAM WASMABLE UNITS - DURABLE PRESS


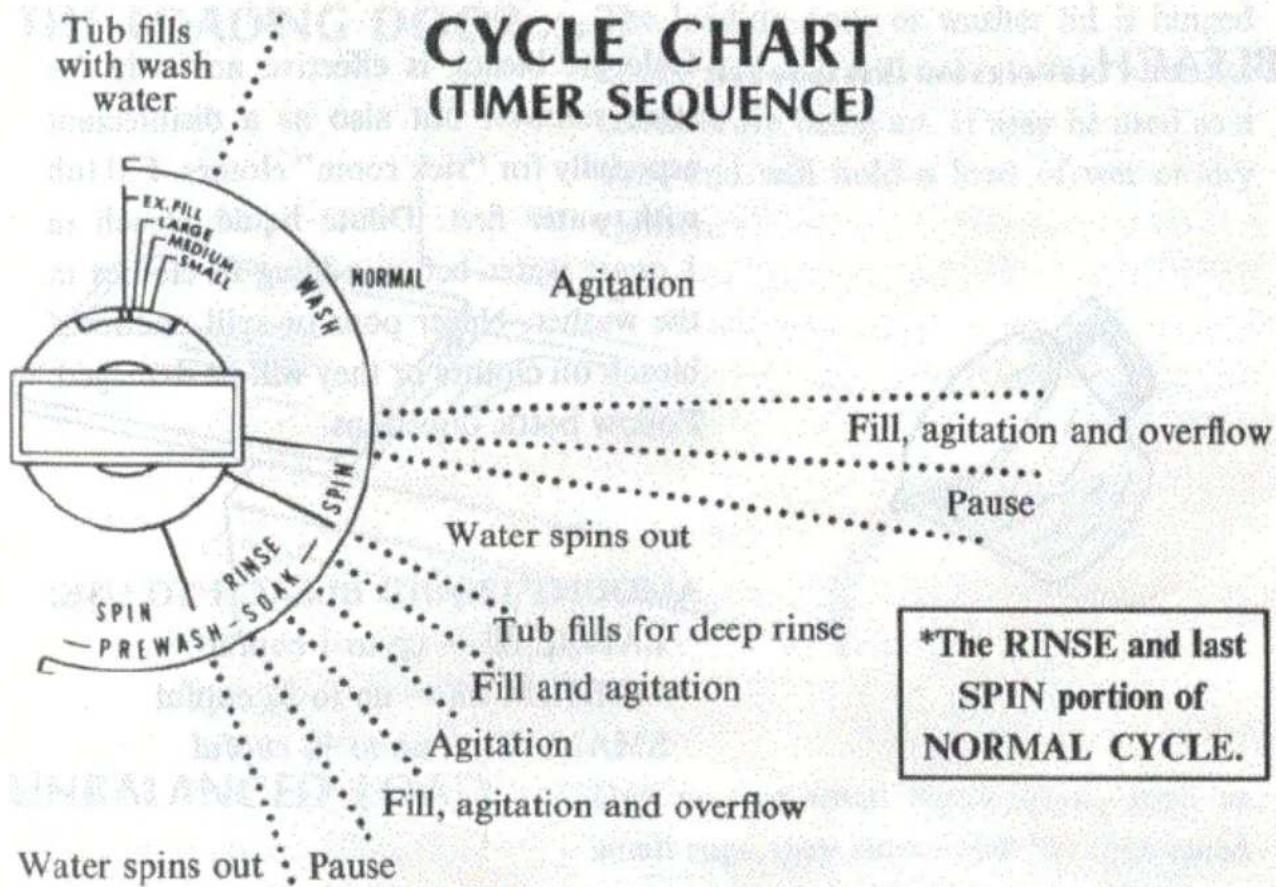

NORMAL CYCLE — 40 Minutes maximum *PREWASH-SOAK CYCLE — 17 Minutes maximum

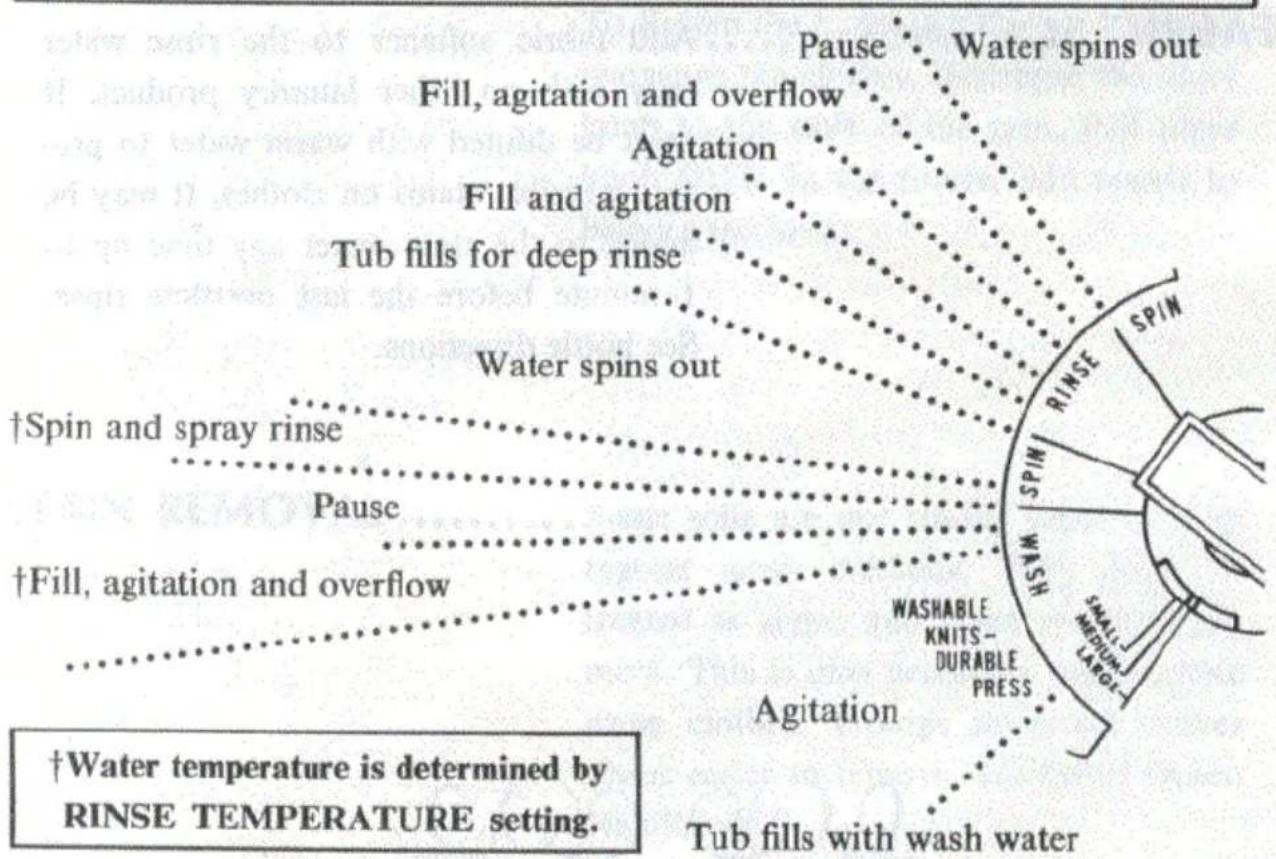

WASHABLE KNITS — DURABLE PRESS CYCLE — 26 Minutes Maximum

