BEDIENUNGSANLEITUNG SoundBooster TYPHOON
Bluetooth 4.0 Speaker
Part No.: TM001

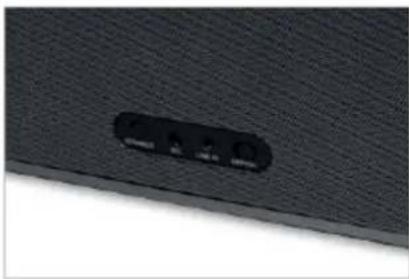

Features:
» Stream wirelessly your music from your notebook, PC, iPhone/smartphone or ipad/tablet via Bluetooth®
» Bluetooth® 4.0 technology for easy connection and a wireless range of up to 10 meters
» Supports Bluetooth ^® hands-free
» Delivers high quality stereo sound with powerful 20 W power output
» With extra Line-In for iPod or MP3 player (cable included)
» Supports NFC function for easy connection, no need pairing
» Supports APTX
» 2th generation CVC for echo and noise reduction, ensures increased speech clarity
Specifications:
| Interface Bluetooth | ® 4.0, Class 2 |
| Bluetooth Profile HSP 1.2, HFP 1.5, A2DP 1.2 | |
| RF Range Up to 10 m | |
| RF Frequency Response 2.402 – 2.480 GHz, 2.4 GHz ISM band | |
| Speaker Output 2x 10 W, 80 dB at 0.5 m | |
| Frequency Response 20 – 20 Hz | |
| SNR (Signla-To-Noise Ratio) 95 dB | |
| THD (Total Harmonic Distortion) | 0.1 % |
| Microphone | Built-in anti-noise microphone |
| Microphone Frequency Response | 100 Hz – 10 KHz |

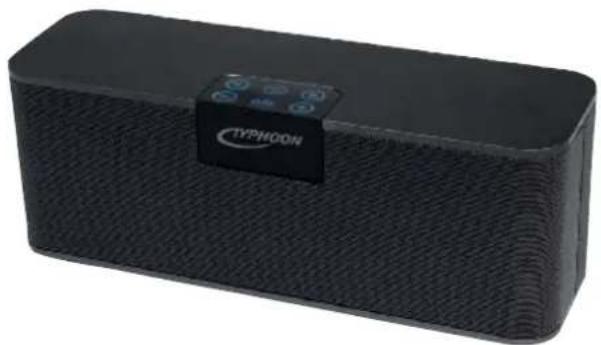

Bluetooth 4.0 Speaker
Part No.: TM001
| NFC Function Yes | |
| Music Play Time 6 hours | |
| Talk Time Up to 9 hours | |
| Standby Time Up to 36 hours | |
| Button Design | MFB, pairing button, volume +/- ,Play/pause button, line in |
| LED Indicator Blue, red | |
| Charger Adapter Output | DC 3.5, 12V or 8 of 1.5v rechargeable Vd battery |
| Charging Port Micro USB | |
| Audio Connection Port Line-in 3.5 mm | |
| Color Dark grey | |
| Operating Temperature -10 – 50°C | |
| Storage Temperature | -20 – 80°C |
| Dimension (L x W x H) | 256 x 80 x 93 mm |
Package Contents:
» 1x SoundBooster - Bluetooth® 4.0 Speaker
» 1x AC Adapter
» 1x Audio Cable
» 1x User Manual
Package Informations:
» Packing Dimension: 209 x 106 x 101 mm
» Packing Weight: 1.82 kg
» Carton Dimension: 310 x 245 x 355 mm
» Carton Q'ty: 4 pcs
» Carton Weight: 7.8 kg
