BEDIENUNGSANLEITUNG Optix G27C MSI

Contents

Getting Started 3

Package Contents 3

Installing the Monitor Stand (Optix G24C6 / Optix G27C6) ____ ____ ____ 4

Installing the Monitor Stand [Optix G24C6P / Optix G27C6P] 5

Adjusting the Monitor ____ 6

Monitor Overview 7

Connecting the Monitor to PC ____ 10

OSD Setup 11

Navi Key 11

Hot Key 11

OSD Menus 12

Gaming 12

Professional....14

Image 15

Input Source 16

Navi Key 16

Setting 17

Specifications 18

Getting Started

This chapter provides you with the information on hardware setup procedures. While connecting devices, be careful in holding the devices and use a grounded wrist strap to avoid static electricity.

Package Contents

Monitor	Optix G24C6 / Optix G24C6P / Optix G27C6 / Optix G27C6P
Documentation	Quick Start Guide
	Warranty Card
	Registration Card
Accessories	Stand with Screw(s)
	Stand Base with Screw(s)
	Power Cord
	Power Adapter
Cables	HDMI Cable (Optional)
	DisplayPort Cable (Optional)

Important

- Contact your place of purchase or local distributor if any of the items is damaged or

Installing the Monitor Stand (Optix G24C6 / Optix G27C6)

1. Leave the monitor in its protective foam packaging. Align the stand bracket to the monitor groove.

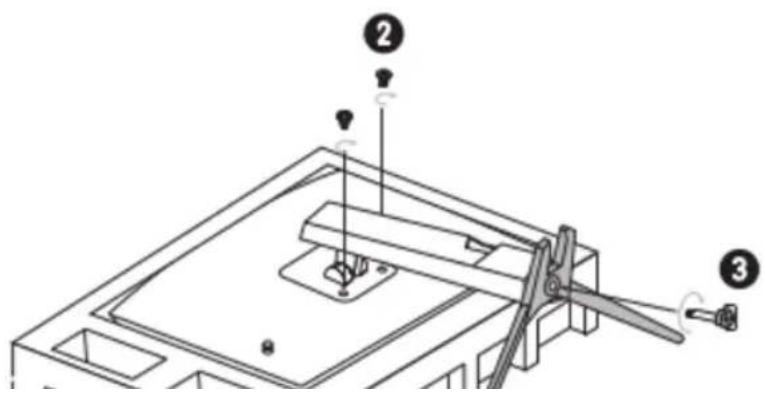

2. Tighten the stand bracket with screws.
3. Connect the base to the stand and tighten the base screw to secure the base.
4. Align the latches to place the stand cover.
5. Make sure the stand assembly is properly installed before setting the monitor upright.

Installing the Monitor Stand (Optix G24C6P / Optix G27C6P)

1. Leave the monitor in its protective foam packaging. Align the stand bracket to the monitor groove.

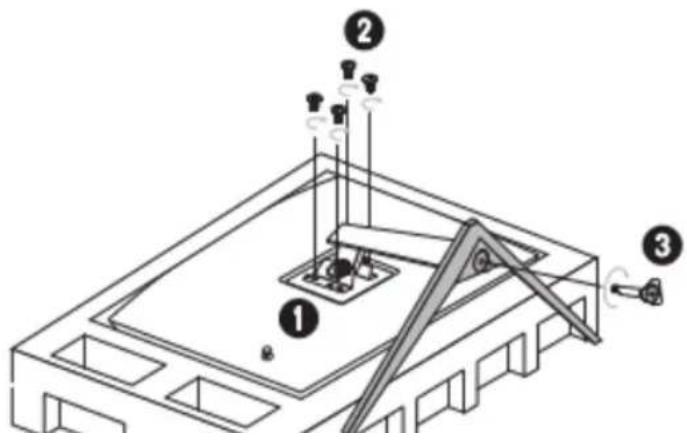

2. Tighten the stand bracket with screws.
3. Connect the base to the stand and tighten the base screw to secure the base.
4. Make sure the stand assembly is properly installed before setting the monitor upright.

Adjusting the Monitor

This monitor is designed to maximize your viewing comfort with its adjustment capabilities.

Important

- Avoid touching the display panel when adjusting the monitor.

Optix G24C6 / Optix G27C6

Monitor Overview

Optix G24C6 / Optix G27C6

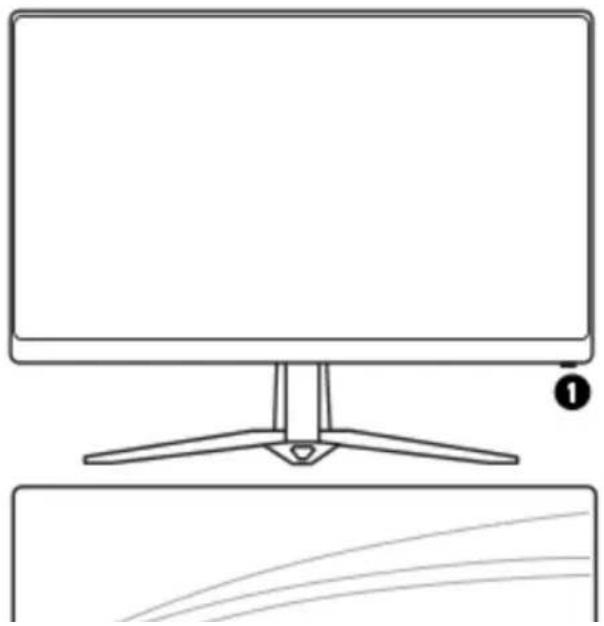

Line drawing of a monitor with a tripod stand and a separate flat panel below (no text or symbols)

Optix G24C6P / Optix G27C6P

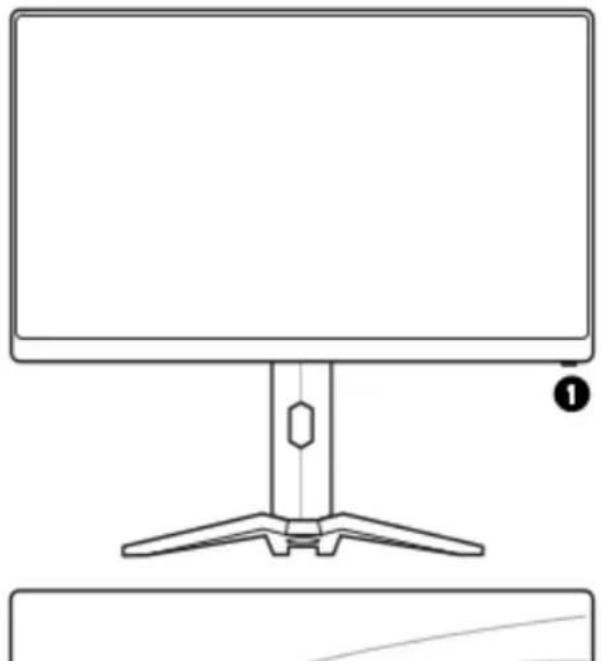

Line drawing of a computer monitor with a stand and base, no text or symbols present

1	Power Button
2	Navi Key
3	Kensington Lock
4	Power Jack
5	HDMI Port HDMI
6	DisplayPort
7	Headphone Jack

Connecting the Monitor to PC

1. Turn off your computer.
2. Connect the video cable from the monitor to your computer.
3. Assemble the monitor power adapter & power cord. (Figure A)

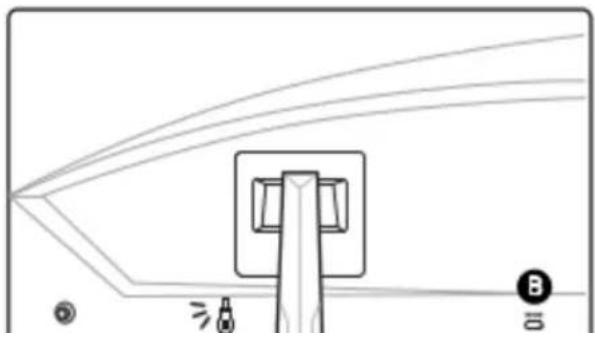

4. Connect the power adapter to the monitor power jack. (Figure B)
5. Plug the power cord into the electrical outlet. (Figure C)
6. Turn on the monitor. (Figure D)
7. Power on the computer and the monitor will auto detect the signal source.

Pure diagram of a mechanical or electrical component with no text, numbers, or symbols

OSD Setup

This chapter provides you with essential information on OSD Setup.

Important

All information is subject to change without prior notice.

Navi Key

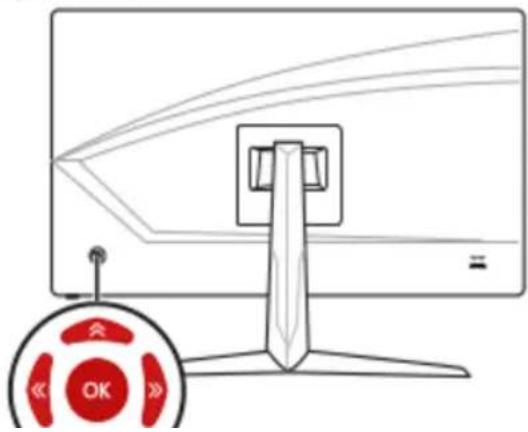

The monitor comes with a Navi Key, a multi-directional control that helps navigate the On-Screen Display (OSD) menu.

Line drawing of a monitor with a screen and a red control knob labeled 'OK' (no text or symbols on the screen)

OSD Menus

Gaming

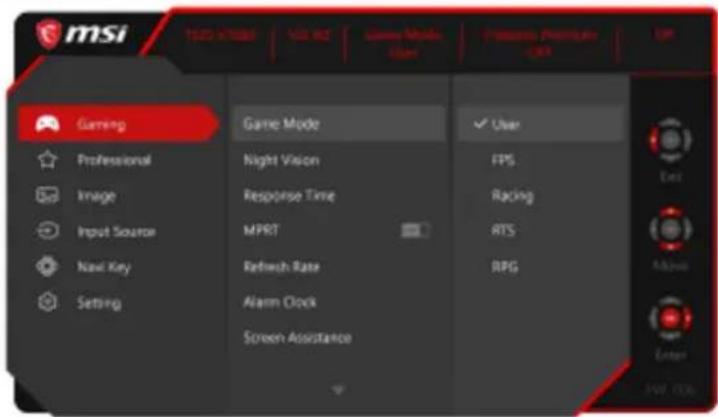

1st Level Menu	2nd/3rd Level Menu	Description
Game Mode	User	All items can be adjusted by users.Use Up or Down Button to select and preview mode effects.Press the OK Button to confirm and
	FPS
	Racing
MPRT	OFF		When MPRT is enabled, Brightness cannot be enabled and will be grayed out.MPRT and HDCR cannot be enabled simultaneously.
	ON
Refresh Rate	Location	Left Top	Users can adjust Refresh Rate in any mode.Default Refresh Rate Location is Left Top. Location is adjustable in OSD Menu. Press the OK Button to confirm and apply your Refresh Rate Location.This monitor follows and works at the Operating System's preset Screen Refresh Rate.
		Right Top
		Left Bottom
		Right Bottom
	OFF
	ON
Alarm Clock	Location	Left Top	Users can adjust Alarm Clock in any mode.After setting the time, press the OK Button to activate the timer.Default Alarm Clock Location is Left Top. Users can select their own location.
		Right Top
		Left Bottom
		Right Bottom

1st Level Menu	2nd/3rd Level Menu	Description
FreeSync Premium	OFF	• FreeSync Premium prevents screen tearing.• DisplayPort or HDMI default is OFF and can be adjusted ON/OFF in any mode, any resolution, any input source and any screen refresh rate.• Anti Motion Blur will be disabled if FreeSync Premium is enabled.
	ON

Professional

1st Level Menu	2nd Level Menu	Description
Pro Mode	User	Default mode is User.All items can be adjusted by users.Use Up or Down Button to select and preview mode effects.Press the OK Button to confirm and apply your mode type.
	Reader
	Cinema
	Designer
Eye Saver	OFF	Eye Saver protects your eyes against blue light. When enabled, Eye Saver adjusts the screen color temperature to a more yellow allow.
	ON
Image Enhancement	OFF	• Image Enhancement enhances image edges to improve their acutance. • Users can adjust Image Enhancement in any mode.
	Weak
	Medium
	Strong
	Strongest


1st Level Menu	2nd/3rd Level Menu	Description
Brightness	0-100	Users can adjust Brightness in User, RTS, RPG and Reader mode.Brightness will be grayed out when Anti Motion Blur or HDCR are enabled.
Contrast	0-100	Users can adjust Contrast in any mode.
Sharpness	0-5	Users can adjust Sharpness in any mode.

Input Source

1st Level Menu	2nd Level Menu	Description
HDMI1		Users can adjust Input Source in any mode.
HDMI2
DP
Auto Scan	ON	Users can use the Navi Key to select Input Source at below status:While "Auto Scan" is set to "OFF" with the monitor at power saving mode;While "No Signal" message box is shown on the monitor.Default is ON.
	OFF

Navi Key

1st Level Menu	2nd Level Menu	Description
Up / Down / Left / Right	OFF	• Up Button default is Game Mode.• Down Button default is Screen Assistance.
	Brightness
	Game Mode	• Left Button default is Alarm Clock.• Right Button default is Input Source.

Setting

1st Level Menu	2nd Level Menu	Description
Language	繁體中文	• Language factory default is English.• Users have to press the OK Button to confirm and apply the Language setting.• Language is an independent setting. Users' own language setting will override the factory default. When users set Reset to Yes, Language will not be changed.
	English
	Français
	Deutsch
	Italiano
	Español
	한국어
	日本語
	Русский
	Português
	简体中文
	Itinu
	Bahasa Indonesia
	İşkıft
	Türkçe
	(More languages coming soon)
Transparency	0-5	• Users can adjust Transparency in any

Specifications

Model	Optix G24C6 (3BA0)	Optix G24C6P (3BA0)	Optix G27C6 (3CA9)	Optix G27C6P (3CA9)
Size	24 inch		27 inch
Curvature	1500R
Panel Type	VA
Resolution	1920 x 1080 @144Hz		1920 x 1080 @165Hz
Aspect Ratio	16:9
Brightness (nits)	250 (typ.)
Contrast Ratio	3000:1
Refresh Rate	144Hz		165Hz
Response Time	1ms (MPRT)
Input Interface	• HDMI x 2• DP x 1
I/O	• Headphone Jack x 1
View Angles	178°(H), 178°(V)
	0% /	0% /	0% / 11%	0% / 11%

Model		OptixG24C6(3BA0)	OptixG24C6P(3BA0)	OptixG27C6(3CA9)	OptixG27C6P(3CA9)
VESA Mounting		Plate Type: 100 x 100 mmScrew Type: M4 x 10 mmThread Diameter: 4 mmThread Pitch: 0.7 mmThread Length: 10 mm
Dimension (W x H x D)		536.7 x416.33 x219.6 mm	536.7 x538.3 x231.2 mm	611.5 x445.9 x219.6 mm	611.5 x567.1 x266.52 mm
Weight		3.4 kg/5 kg	4.5kg/6.8kg	4.53 kg/6.7 kg	5.7kg/8.2kg
Environment	Operating	Temperature: 0°C to 40°CHumidity: 20% to 90%, non-condensingAltitude: 0 ~ 5000m
	Storage	Temperature: -20°C to 60°CHumidity: 10% to 90%, non-condensing

Preset Display Modes

Standard	Resolution	Optix G24C6 (3BA0)Optix G24C6P (3BA0)	Optix G27C6 (3CA9)Optix G27C6P (3CA9)
		HDMI / DP	HDMI / DP
VGA	64.0x480 @60Hz	V	V
	64.0x480 @67Hz	V	V
	64.0x480 @72Hz	V	V
	64.0x480 @75Hz	V	V
Dos-Mode	72.0x480@60Hz	V	V
	72.0x576@50Hz	V	V
SVGA	80.0x600 @56Hz	V	V
	80.0x600 @60Hz	V	V
	80.0x600 @72Hz	V	V
	80.0x600 @75Hz	V	V
XGA	10.24x768 @60Hz	V	V
	10.24x768 @70Hz	V	V
	10.24x768 @75Hz	V	V

Troubleshooting

The power LED is off.

• Press the monitor power button again.
• Check if the monitor power cable is properly connected.

No image.

• Check if the computer graphics card is properly installed.
• Check if the computer and monitor are connected to electrical outlets and are turned on.
• Check if the monitor signal cable is properly connected.
• The computer may be in Standby mode. Press any key to activate the monitor.

The screen image is not properly sized or centered.

- Refer to Preset Display Modes to set the computer to a setting suitable for the monitor to display.

No Plug & Play.

• Check if the monitor power cable is properly connected.
• Check if the monitor signal cable is properly connected.
• Check if the computer and graphics card are Plug & Play compatible.

The icons, font or screen are fuzzy, blurry or have color problems.

- Avoid using any video extension cables.

Safety Instructions

• Read the safety instructions carefully and thoroughly.
• All cautions and warnings on the device or user's manual should be noted.
  • Refer servicing to qualified personnel only.
• Keep the User's Guide that comes with the package for future reference.
• To prevent fire or shock hazard, keep this device away from humidity and high temperature.
• Lay this device on a reliable flat surface before setting it up.
• Make sure that the power voltage is within its safety range and has been adjusted properly to the value of 100-240V before connecting the device to the power outlet. Do not disable the protective earth pin from the plug. The device must be connected to an earthed mains socket-outlet.
• Always disconnect the power cord or switch the wall socket off if the device would be left unused for a certain time to achieve zero energy consumption.
• The ventilator on the device is used for air convection and to prevent the device from overheating. Do not cover the ventilator.
• Do not leave the device in an unconditioned environment with a storage temperature above 60°C or below -20°C, which may damage the device.
  NOTE: The maximum operating temperature is around 40°C.
• When cleaning the device, be sure to remove the power plug. Use a piece of soft cloth rather than industrial chemical to clean the device. Never pour any liquid into the opening; that could damage the device or cause electric shock.
• Place the power cord in a way that people are unlikely to step on it. Do not place something on the power cord

Regulatory Notices

CE Conformity

This device complies with the requirements set out in the Council Directive on the Approximation of the Laws of the Member States relating to Electromagnetic Compatibility (2014/30/EU), Low-voltage Directive (2014/35/EU), ErP Directive (2009/125/EC) and RoHS directive (2011/65/EU). This product has been tested and found to comply with the harmonized standards for Information Technology Equipment published under Directives of Official Journal of the European Union.

FCC-B Radio Frequency Interference Statement

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the measures listed below:

• Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the

WEEE Statement

Under the European Union ("EU") Directive on Waste Electrical and Electronic Equipment, Directive 2012/19/EU, products of "electrical and electronic equipment" cannot be discarded as municipal waste anymore and manufacturers of covered electronic equipment will be obligated to take back such products at the end of their useful life.

Chemical Substances Information

In compliance with chemical substances regulations, such as the EU REACH Regulation (Regulation EC No. 1907/2006 of the European Parliament and the Council), MSI provides the information of chemical substances in products at:

https://storage-asset.msi.com/html/popup/csr/evmtprtt_pcm.html

RoHS Statement

Japan JIS C 0950 Material Declaration

A Japanese regulatory requirement, defined by specification JIS C 0950, mandates that manufacturers provide material declarations for certain categories of electronic products offered for sale after July 1, 2006.

https://storage-asset.msi.com/html/pop-up/csr/ce.mm_jp.html

India RoHS

This product complies with the "India E-waste [Management and Handling] Rule 2011" and prohibits use of lead, mercury, hexavalent chromium, polybrominated biphenyls or polybrominated diphenyl ethers in concentrations exceeding 0.1 weight % and 0.01 weight % for cadmium, except for the exemptions set in Schedule 2 of the Rule.

Green Product Features

• Reduced energy consumption during use and stand-by
• Limited use of substances harmful to the environment and health
• Easily dismantled and recycled
• Reduced use of natural resources by encouraging recycling
• Extended product lifetime through easy upgrades
• Reduced solid waste production through take-back policy

Environmental Policy

• The product has been designed to enable proper reuse of parts and recycling and should not be thrown away at its end of life.
• Users should contact the local authorized point of collection for recycling and disposing of their end-of-life products.
• Visit the MSI website and locate a nearby distributor for further recycling information.
• Users may also reach us at [e-mail] for information regarding proper disposal, take-back, recycling, and disassembly of MSI products.

Warning!

Overuse of screens is likely to affect eyesight.

Recommendations:

1. Take a 10-minute break for every 30 minutes of screen time.
