BEDIENUNGSANLEITUNG Elite T608 Horizon Fitness

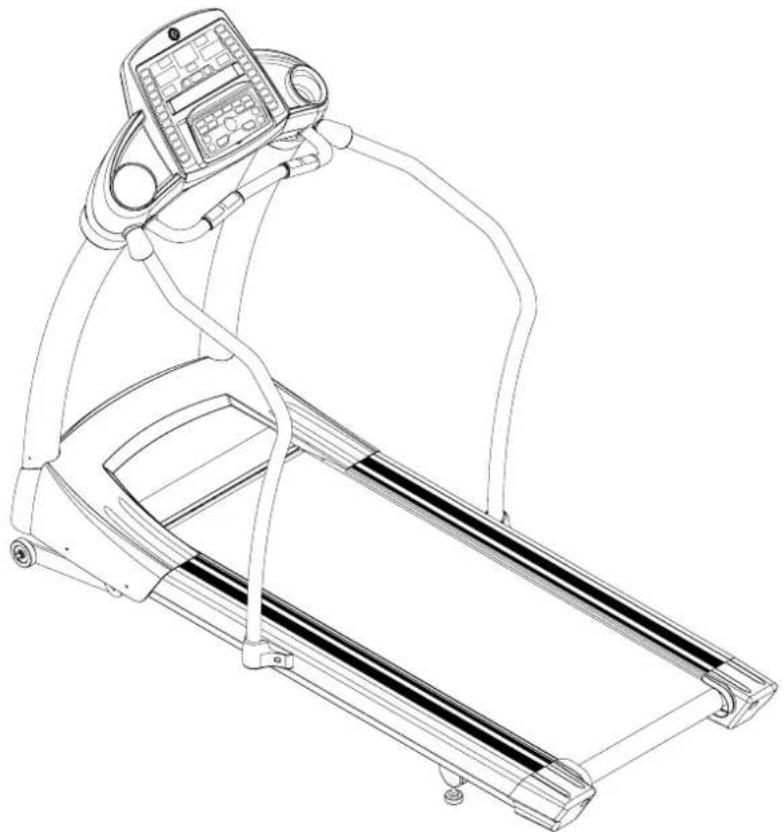

Line drawing of a treadmill with control panel and side-mounted legs (no text or symbols)

ELITE SERIES

FOR MODELS :

T608

HORIZON FITNESS

TREADMILL USER'S GUIDE

INTRODUCTION

CONGRATULATIONS and THANK YOU for your purchase of this Elite Series treadmill!

Whether your goal is to win races or simply enjoy a fuller, healthier lifestyle, an Elite Series treadmill can help you attain it – adding club-quality performance to your at-home workouts, with the ergonomics and innovative features you need to get stronger and healthier, faster. Because we're committed to designing fitness equipment from the inside out, we use only the highest quality components. It's a commitment we back with one of the strongest frame-to-motor warranty packages in the industry. You want exercise equipment that offers the most comfort, the best reliability and the highest quality in its class.

TABLE OF CONTENTS

Important Precautions	4
Assembly	6
Before You Begin	12
Treadmill Operation	15
Conditioning Guidelines	26
Troubleshooting & Maintenance	33
Limited Warranty	36

CONTACT INFORMATION Back Panel

TO REDUCE THE RISK OF INJURY TO PERSONS:

Stand on the siderails before starting the treadmill. Read Instruction Manual before using. Remove safety key when not in use and store out of reach of children.

When using an electrical appliance, basic precautions should always be followed, including the following. Read all instructions before using this appliance:

TO REDUCE THE RISK OF ELECTRIC SHOCK:

Always unplug this appliance (or treadmill) from the electrical outlet immediately after using and before cleaning.

TO REDUCE THE RISK OF BURNS, FIRE, ELECTRICAL SHOCK OR INJURY TO PERSONS:

TO PERSONS:

- An appliance should never be left unattended when plugged in. Unplug from outlet when not in use, and before putting on or - Never use the treadmill before securing the safety tether clip to your clothing.

- If you experience any kind of pain, including but not limited to chest pains, nausea, dizziness, or shortness of breath, stop exercising immediately and consult your physician before continuing. - Close supervision is necessary when this appliance (or treadmill) is used by, on, or near children, invalids, or disabled persons. - Use this appliance (or treadmill) only for its intended use

as described in this manual. Do not use attachments not recommended by the manufacturer. - Do not wear clothes that might catch on any part of the treadmill.

- Never operate this appliance (or treadmill) if it has a damaged cord or plug, if it is not working properly, if it has been dropped - Always wear athletic shoes while using this equipment.

- Do not jump on the treadmill.

- Unplug treadmill before moving or cleaning it. To clean, wipe surfaces down with soap and slightly damp cloth only; never use solvents. (See MAINTENANCE)

- At no time should more than one person be on treadmill while in operation.

- The treadmill should not be used by persons weighing more than 400 pounds. Failure to comply will void the warranty.

- The treadmill is intended for in-home use only. Do not use this treadmill in any commercial, rental, school or institutional setting. Failure to comply will void the warranty.

- Do not use treadmill in any location that is not temperature controlled, such as but not limited to garages, porches, pool rooms, bathrooms, car ports or outdoors. Failure to comply may void the warranty.

SAVE THESE INSTRUCTIONS

At NO time should pets or children under the age of 12 be closer to the treadmill than 10 feet. At NO time should children under the age of 12 use the treadmill. Children over the age of 12 should not use the treadmill without adult supervision.

IMPORTANT SAFETY INSTRUCTIONS

FOR HOUSEHOLD USE ONLY

SAVE THESE INSTRUCTIONS

Read all instructions before using this treadmill. When using an electrical product, basic precautions should always be followed, including the following: Read all instructions before using this treadmill. It is the responsibility of the owner to ensure that all users of this treadmill are adequately informed of all warnings and precautions. If you have any questions after reading this manual, contact Sears at the number listed on the back cover of this manual.

Connect this exercise product to a properly grounded outlet only. See grounding instructions.

GROUNDING INSTRUCTIONS

This product must be grounded. If a treadmill should malfunction or breakdown, grounding provides a path of least resistance for electrical current to reduce the risk of electrical shock. This product is equipped with a cord having an equipment-grounding conductor and a grounding plug. The plug must be plugged into an appropriate outlet that is properly installed and grounded in accordance with local codes and ordinances.

Improper connection of the equipment-grounding conductor can result in a risk of electric shock. Check with a qualified electrician or serviceman if you are in doubt as to whether the product is properly grounded. Do not modify the plug provided with the product. If it will not fit the outlet, have a proper outlet installed by a qualified electrician.

This product is rated more than 10 amperes and is for use on a circuit having a nominal rating of 220 - 240 volts and is factory-equipped with a specific electric cord and plug to permit connection to a proper electric circuit. Make sure that the product is connected to an outlet having the same configuration as the plug. No adapter should be used with this product. If the product must be reconnected for use on a different type of electric circuit, the reconnection should be made by qualified service personnel.

OPERATION

To reduce the risk of damaging important components on your treadmill, it is strongly recommended that your treadmill is plugged into a dedicated 16 amp circuit, without the use of an additional extension cord and/or power. Failure to comply may void the warranty.

IMPORTANT:

It is essential that your treadmill is used only indoors, in a climate controlled room. If your treadmill has been exposed to colder temperatures or high moisture climates, it is strongly recommended that the treadmill is warmed up to room temperature before first time use. Failure to do so may cause premature electronic failure.

DISPLAY GRIP PULSE HANDRAILS WATER BOTTLE HOLDER HAND RAIL SLEEVE HAND RAIL ON/OFF SWITCH CIRCUIT BREAKER POWER CORD TRANSPORT WHEEL HAND RAIL BASE COVER CONSOLE SAFETY KEY PLACEMENT CONSOLE MAST MOTOR COVER RUNNING BELT / RUNNING DECK SIDE RAIL ROLLER END CAP REAR ROLLER ADJUSTMENT BOLTS

TOOLS INCLUDED

□ 5 mm Allen Wrench
6 mm T-wrench
□ 8 mm T-wrench □ Screwdriver

PARTS INCLUDED

□ 2 Console Masts
2 Cup Holders
□ 2 Hand Rail Sleeves

□ 1 Safety Key

1 Console Assembly

1 Power Cord

4 Hardware Bags

2 Hand Rails

2 Hand Rail Base Covers

ASSEMBLY

IMPORTANT: READ THESE SAFETY INSTRUCTIONS BEFORE USE!

During the assembly process of the treadmill there are several areas that special attention must be paid. It is very important to follow the assembly instructions correctly and to make sure all parts are firmly tightened. If the assembly instructions are not followed correctly, the treadmill could have frame parts that are not tightened and will seem loose and may cause irritating noises. There should be no side-to-side play in the console masts or any forward and back play in the console assembly or handlebars. If there is any play in these areas, the treadmill has not been properly assembled. To prevent damage to the treadmill, the assembly instructions must be reviewed and corrective actions should be taken.

UNPACKING

Place the treadmill carton on a level flat surface. It is recommended that you place a protective covering on your floor. Take CAUTION when handling and transporting this unit. Never open box when it is on its side. Unpack the unit where it will be used. FAILURE TO FOLLOW THESE INSTRUCTIONS COULD RESULT IN INJURY!

PRE-ASSEMBLY

NOTE: During each assembly step, ensure that ALL nuts and bolts are in place and partially threaded in before completely tightening any ONE bolt. NOTE: A light application of grease may aid in the installation of hardware. Any grease, such as lithium bike grease is recommended.

ASSEMBLY STEP 1

PINK HARDWARE BAG CONTENTS :

bottom of the CONSOLE MAST.

C Attach LEFT CONSOLE MAST using 3 BOLTS (A), 3 SPRING WASHERS (B) and 3 ARC WASHERS (C).

D Repeat on other side.

* NOTE: Be careful not to pinch any wires while assembling the masts.

CONSOLE MAST SPRING WASHER (B) BOLT (A) WASHER (C) CONSOLE WIRES BASE FRAME

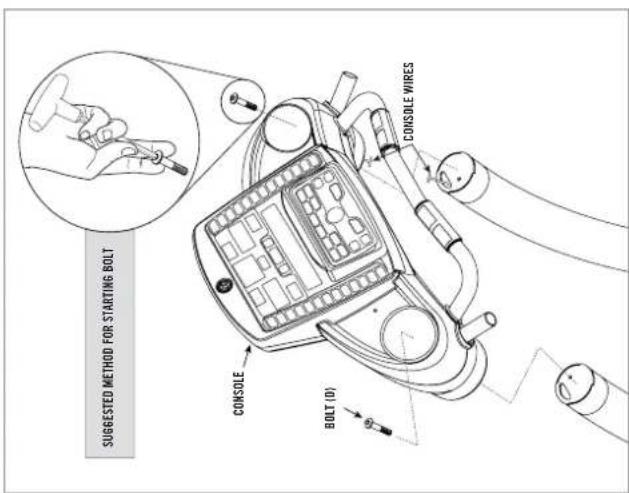

ASSEMBLY STEP 2

BLUE HARDWARE BAG CONTENTS :

SUGGESTED METHOD FOR STARTING BOLT CONSOLE BOLT (D) CONSOLE WIRES

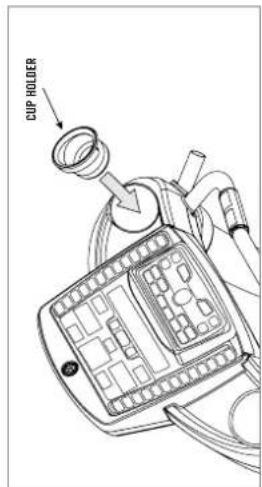

CUP HOLDER

ASSEMBLY STEP 3

WHITE HARDWARE BAG CONTENTS :

A Open WHITE HARDWARE BAG.

B Slide HAND RAIL SLEEVE over

the top of the hand rail.

C Attach top of HAND RAIL to

the console extension using 2

SCREWS (G).

D Attach bottom of HAND RAIL to

the base frame using 1 BOLT

(H), 1 SPRING WASHER (I) and

1 WASHER (J).

E Slide HAND RAIL SLEEVE firmly

against console.

F Repeat on other side.

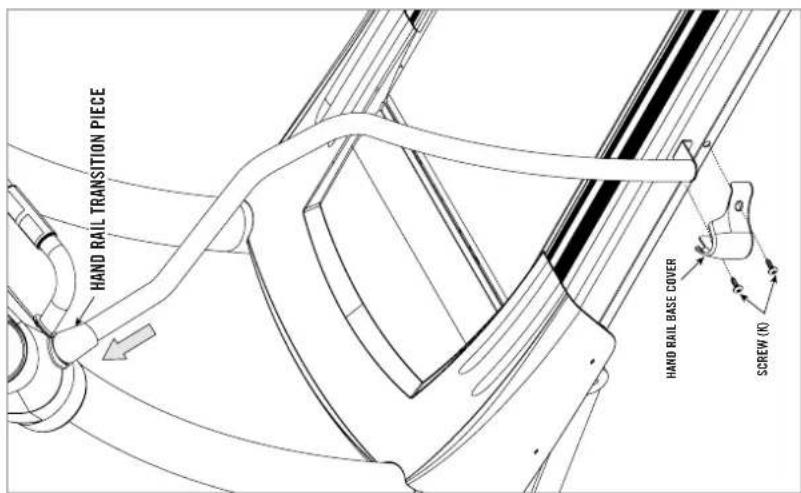

A Open ORANGE HARDWARE BAG.

B Attach HAND RAIL BASE COVER to the base frame using 2 SCREWS (K).

C Slide HAND RAIL TRANSITION

PIECE and HANDLEBAR into CONSOLE.

C Repeat on other side.

D Be sure all bolts and screws are tightened and secured on the treadmill.

ORANGE HARDWARE BAG CONTENTS:

HAND RAIL TRANSITION PIECE HAND RAIL BASE COVER SCREW (K)

BEFORE YOU BEGIN

PROPER USAGE

Your treadmill is capable of reaching high speeds. Always start off using a slower speed and adjust the speed in small increments to reach a higher speed level. Never leave the treadmill unattended while it is running. When not in use, remove the safety key, turn the on/off switch to off and unplug the power cord. Make sure to follow the MAINTENANCE schedule in this manual. Keep your body and head facing forward. Do not attempt to turn around or look backwards while the treadmill is running. Stop your workout immediately if you feel pain, faint, dizzy or are short of breath.

HERE ARE JUST A FEW OF THE HEALTH BENEFITS OF EXERCISE:

- Weight Loss

• A Healthier Heart

- Improved Muscle Tone

- Increased Daily Energy Levels

Do not operate the treadmill if the power cord or plug is damaged. If the treadmill appears to not be working properly, do not use the treadmill.

MOVING

Your treadmill has a pair of transport wheels built

into the frame. To move, firmly grasp the rear of the

frame and carefully lift.

Line drawing of a person standing beside a treadmill (no text or symbols)

Our Treadmills are heavy, use care and additional help if necessary when moving. Failure to follow these instructions could result in injury.

1 foot 3 feet 3 feet 6 feet

LOCATION OF THE TREADMILL

Place the treadmill on a level surface. There should be 6 feet of clearance behind the treadmill, 3 feet on each side and one foot in front for folding and the power cord. Do not place the treadmill in any area that will block any vent or air openings. The treadmill should not be located in a garage, covered patio, near water or outdoors.

DO NOT STAND ON THE BELT

While you are preparing to use the treadmill, do not stand on the belt. Place your feet on the side rails before starting the treadmill. Start walking on the belt only after the belt has begun to move. Never start the treadmill at a fast running speed and attempt to jump on!

SAFETY KEY

Your treadmill will not start unless the safety key is placed in position. Attach the clip end securely to your clothing. This safety key is designed to cut the power to the treadmill if you should fall. Check the operation of the safety key every 2 weeks.

NEVER USE THE TREADMILL WITHOUT SECURING THE SAFETY KEY CLIP TO YOUR CLOTHING. PULL ON THE SAFETY KEY CLIP FIRST TO MAKE SURE IT WILL NOT COME OFF YOUR CLOTHING.

TROUBLESHOOTING & MAINTENANCE

LIMITED WARRANTY

Note: There is a thin protective sheet of clear plastic on the overlay of the console and should be removed.

A) eTRAK™ BUTTON: Used to scroll through eTRAK™ display modes.

B) LED DISPLAY WINDOWS: Displays Heart Rate, Calories, Time, Distance, Incline, Speed, Pace, Clock and Date.

C) LARGE LED WINDOW: Displays program profiles.

D) ALPHA-NUMERIC WINDOW: Indicates exercise feedback and help text.

E) START: Press to begin exercising, starts your program, or resume exercising after pause.

F) STOP: Press to pause/end your workout. Hold for 3 seconds to reset the treadmill.

G) USER KEYS: Press to select user.

H) QUICK PROGRAM KEYS: Press to select program. Press ENTER to confirm selection.

I) PROGRAMMING BUTTON: Used to select Program, Level and Time, and other options. Press to change display feedback during workout.

J) INCLINE ARROW KEYS: Used to adjust incline in small increments (0.5% increments).

K) SPEED ARROW KEYS: Used to adjust speed in small increments (0.1 mph increments).

L) QUICK ADJUST INCLINE KEYS: Used to reach desired incline quickly. Press before INCLINE CONFIRMATION KEY.

M) INCLINE CONFIRMATION KEY: Press to confirm quick adjust incline selection, necessary only when INCREASING

Income.

N) QUICK ADJUST SPEED KEYS: Used to reach desired speed quickly. Press before SPEED CONFIRMATION KEY.

0) SPEED CONFIRMATION KEY: Press to confirm quick adjust speed selection, necessary only when INCREASING

speed.

Line drawing of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

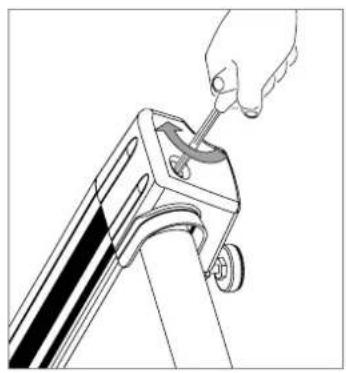

CENTERING THE RUNNING BELT

The running belt has been properly adjusted at the factory before it was shipped. At times the belt can move off-center during shipment. Before operating to treadmill, make sure the belt is centered and remain centered to maintain smooth operation.

CAUTION: Do not run belt faster than 1 mph while centering. Keep fingers, hair and clothing away from

belt at all times.

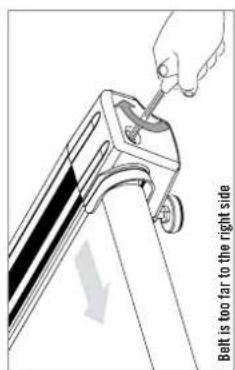

If the running belt is too far to the right side:

With the treadmill running at 1 mph, turn the right

adjustment bolt clockwise 1/4 TURN at a time (using the supplied Allen wrench). Check the belt alignment

Allow belt to run a full cycle to gauge if more adjustment is needed. Rearbeit if necessary, until the bell remains

centered during use.

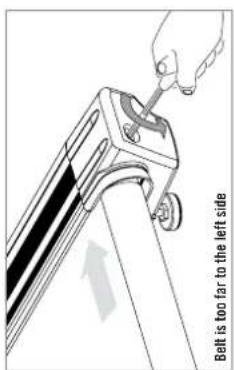

If the running belt is too far to the left side:

With the treadmill running at 1 mph, turn the right

adjustment bolt counter-clockwise 1/4 TURN at a time (using the supplied Allen wrench). Check the belt alignment. Allow belt to run a full cycle to gauge if more

adjustment is needed. Repeat if belt remains centered during use.

TENSIONING THE RUNNING BELT

The running belt has been properly adjusted at the factory before it was shipped. At times the belt can move off-center during shipment.

CAUTION: Running belt should NOT be moving during tensioning. Over-tightening the running belt can cause excessive wear on the treadmill as well as its components. Never over-tighten the belt.

If you can feel a slipping sensation when running on the treadmill, the running belt must be tightened. In most cases, the belt has stretched from use, causing the belt to slip. This is a normal and common adjustment. To eliminate this slipping, TURN THE TREADMILL OFF

and tension BOTH THE REAR ROLLER BOLTS using the supplied Allen wrench, turning them 1/4 TURN to the right as shown. Turn the treadmill on and check for slipping. Repeat if necessary, but NEVER TURN the roller bolts more than 1/4 turn at a time. Belt is properly tensioned when the slipping sensation is gone.

Belt is too far to the right side

Belt is too far to the left side

GETTING STARTED / SELECTING A PROGRAM

1) Check to make sure nothing is on or will hinder the movement of the treadmill.
2) Plug in the power cord and turn the treadmill ON.
3) Stand on the side rails of the treadmill.
4) Attach the safety key clip to part of your clothing.
5) Insert the safety key into the safety keyhole in the console.
6) You have two options to start your workout:

QUICK START UP

Simply press the START key to begin working out. OR...

SELECT A PROGRAM

Select a PROGRAM using the QUICK PROGRAM KEYS keys. Once a PROGRAM has been chosen, press ENTER.

SELECT A LEVEL

Select a PROGRAM LEVEL using the ARROW keys on the PROGRAMMING button. Once a PROGRAM LEVEL has been chosen, press ENTER.

SELECT A TIME

Select a Time using the ARROW key on the PROGRAMMING button or use the default time. Once a TIME has been chosen, press START.

FINISHING YOUR WORKOUT

When your workout is complete, you will hear a series of beeps. Your workout information will be displayed for 30 seconds and then reset.

CLEAR CURRENT SELECTION

To clear the current program selection or screen, hold the STOP button for 3 seconds.

BACKSIDE OF CHEST TRANSMITTER

POLAR

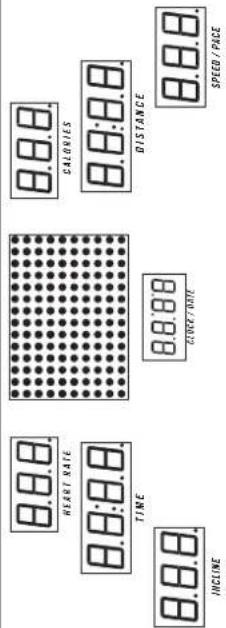

MONITOR DISPLAYS

HEART RATE • Shown as BPM. Indicates your heart rate while walking or running. CALORIES • Total Calories burned during your workout.

TIME • Shown as Minutes:Seconds and Hours:Minutes. View the time remaining or the time elapsed in your workout.

DISTANCE • Shown as Miles. Indicates distance traveled during your workout.

INCLINE • Shown as Percent. Indicates the incline of your walking or running surface. SPEED • Shown as MPH. Indicates how fast your walking or running surface is moving.

PACE • Shown as Minutes.Tenths of a Minute. Indicates the time to run a mile at the current speed.

CLOCK • The clock displays the time of day.

DATE • Date format is month and date.

PROGRAM PROFILES • Represents the profile of the program being used (speed during speed based programs and incline during incline based programs).

HEART RATE

PULSE GRIPS

Place the palm of your hands directly on the grip pulse handlebars. Both hands must grip the bars for your heart rate to register. It takes 5 consecutive heart beats (15–20 seconds) for your heart rate to register. When gripping the pulse handlebars, do not grip tightly. Holding the grips tightly may elevate your blood pressure. Keep a loose, cupping hold. You may experience an erratic readout if consistently holding the grip pulse handlebars. Make sure to clean the pulse sensors to ensure proper contact can be maintained.

WIRELESS CHEST TRANSMITTER

Prior to wearing the wireless chest transmitter on your chest, moisten the two rubber electrodes with water. Center

the chest strap just below the breast or pectoral muscles,

directly over your sternum, with the logo facing out. NOTE:

The chest strap must be tight and properly placed to receive an accurate and consistent readout. If the chest strap is too

loose, or positioned improperly, you may receive an erratic

or inconsistent heart rate readout. WARNING! The heart

rate function is not a medical device. Various factors may affect the accuracy of your head rate reading. The head rate

affect the accuracy of your heart rate reading is intended only as an exercise aid.

PROGRAM INFORMATION

PROGRAM: MANUAL

Allows 'On The Fly' manual SPEED and INCLINE changes. Time-based goal.

PROGRAM: INTERVALS

Walk or run a series of alternating SPEED levels. Time-based goal with 12 difficulty levels to choose from.

INTERVALS PROGRAM SEGMENTS

(peak segments last 30 seconds, valley segments last 90 seconds)

	Warm-Up		1	2	3	4	Cool Down
Level 1	1.0	1.5	2.0	4.0	2.0	4.0	1.5	1.0
Level 2	1.0	1.5	2.0	4.5	2.0	4.5	1.5	1.0
Level 3	1.3	1.9	2.5	5.0	2.5	5.0	1.9	1.2
Level 4	1.3	1.9	2.5	5.5	2.5	5.5	1.9	1.3
Level 5	1.5	2.3	3.0	6.0	3.0	6.0	2.3	1.5
Level 6	1.5	2.3	3.0	6.5	3.0	6.5	2.3	1.5
Level 7	1.8	2.6	3.5	7.0	3.5	7.0	2.6	1.8
Level 8	1.8	2.6	3.5	7.5	3.5	7.5	2.6	1.8
Level 9	2.0	3.0	4.0	8.0	4.0	8.0	3.0	2.0
Level 10	2.0	3.0	4.0	8.5	4.0	8.5	3.0	2.0
Level 11	2.3	3.5	4.5	9.0	4.5	9.0	3.0	2.0
Level 12	2.3	3.5	4.5	9.5	4.5	9.5	3.0	2.0

(WARM-UP and COOL-DOWN last 5.00 minutes each and are included in program times)

PROGRAM: MOUNTAIN CLIMB

Simulates climbing and descending a mountain by automatically varying INCLINE. 12 difficulty levels to choose from.

Level	WARM-UP		1	2	3	4	5	6	7	8	9	10	COOL-DOWN
	Incline
1	0.0	0.0	1.0	1.5	2.0	2.5	3.0	3.0	2.5	2.0	1.5	1.0	0.0	0.0
2	0.0	0.0	1.5	2.0	2.5	3.0	3.5	3.5	3.0	2.5	2.0	1.5	0.0	0.0
3	0.0	1.0	2.0	2.5	3.0	3.5	4.0	4.0	3.5	3.0	2.5	2.0	1.0	0.0
4	0.0	1.5	2.5	3.0	3.5	4.0	4.5	4.5	4.0	3.5	3.0	2.5	1.5	0.0
5	0.0	1.5	3.0	3.5	4.0	4.5	5.0	5.0	4.5	4.0	3.5	3.0	1.5	0.0
6	0.0	1.5	3.5	4.0	4.5	5.0	5.5	5.5	5.0	4.5	4.0	3.5	1.5	0.0
7	0.0	1.5	4.0	4.5	5.0	5.5	6.0	6.0	5.5	5.0	4.5	4.0	1.5	0.0
8	0.0	2.0	4.5	5.0	5.5	6.0	6.5	6.5	6.0	5.5	5.0	4.5	2.0	0.0
9	0.0	2.0	5.0	5.5	6.0	6.5	7.0	7.0	6.5	6.0	5.5	5.0	2.0	0.0
10	0.0	2.0	5.5	6.0	6.5	7.0	7.5	7.5	7.0	6.5	6.0	5.5	2.0	0.0
11	1.0	2.0	6.0	6.5	7.0	7.5	8.0	9.0	7.5	7.0	6.5	6.0	2.0	1.0
12	1.0	2.0	6.5	7.0	7.5	8.0	8.5	9.5	8.0	7.5	7.0	6.5	2.0	1.0

(WARM-OF and COOL-DOWN last 5:00 minutes each and are included in program times)

PROGRAM: WEIGHT LOSS

Challenges with various combi difficulty levels to choose from.

WEIGHT LOSS PROGRAM SEGMENTS (all segments last 30 seconds)

		WARM-UP 1		2	3	4	5	6	7	8		COOL-DOWN
Level 1	Elevation	0.0	0.5	1.5	1.5	1.0	0.5	0.5	0.5	1.0	1.5	0.5	0.0
	Speed	1.0	1.5	2.0	2.5	3.0	3.5	4.0	3.5	3.0	2.5	2.3	1.5
Level 2	Elevation	0.0	0.5	1.5	1.5	1.0	0.5	1.0	0.5	1.0	1.5	0.5	0.0
	Speed	1.3	1.9	2.5	3.0	3.5	4.0	4.5	4.0	3.5	3.0	2.6	1.8
Level 3	Elevation	0.5	1.0	2.0	2.0	1.5	1.0	1.0	1.0	1.5	2.0	1.0	0.5
	Speed	1.5	2.3	3.0	3.5	4.0	4.5	5.0	4.5	4.0	3.5	3.0	2.0
Level 4	Elevation	0.5	1.0	2.0	2.0	1.5	1.0	1.0	1.0	1.5	2.0	1.0	0.5
	Speed	1.8	2.6	3.5	4.0	4.5	5.0	5.5	5.0	4.5	4.0	3.4	2.3
Level 5	Elevation	1.0	1.5	2.5	2.5	2.0	1.5	1.5	1.5	2.0	2.5	1.5	1.0
	Speed	2.0	3.0	4.0	4.5	5.0	5.5	6.0	5.5	5.0	4.5	3.8	2.5
Level 6	Elevation	1.0	1.5	2.5	2.5	2.0	1.5	1.5	1.5	2.0	2.5	1.5	1.0
	Speed	2.3	3.4	4.5	5.0	5.5	6.0	6.5	6.0	5.5	5.0	4.1	2.8
Level 7	Elevation	1.5	2.0	3.0	3.0	2.5	2.0	2.0	2.0	2.5	3.0	2.0	1.5
	Speed	2.5	3.8	5.0	5.5	6.0	6.5	7.5	6.5	6.0	5.5	4.5	3.0
Level 8	Elevation	1.5	2.0	3.0	3.0	2.5	2.0	2.0	2.0	2.5	3.0	2.0	1.5
	Speed	2.8	4.1	5.5	6.0	6.5	7.0	7.5	7.0	6.5	6.0	4.9	3.3
Level 9	Elevation	2.0	2.5	3.5	3.5	3.0	2.5	2.5	2.5	3.0	3.5	2.5	2.0
	Speed	3.0	4.5	6.0	6.5	7.0	7.5	8.0	7.5	7.0	6.5	5.3	3.5
Level 10	Elevation	2.0	2.5	3.5	3.5	3.0	2.5	2.5	2.5	3.0	3.5	2.5	2.0
	Speed	3.3	4.9	6.5	7.0	7.5	8.0	8.5	8.0	7.5	7.0	5.6	3.8
Level 11	Elevation	2.5	3.0	4.0	4.0	4.0	3.5	3.5	3.5	4.0	4.5	3.0	2.5
	Speed	4.0	5.0	7.0	7.5	8.0	8.5	8.0	7.5	7.0	6.5	5.0	4.0
Level 12	Elevation	3.0	3.5	4.0	4.0	5.0	4.5	4.5	4.5	5.0	5.5	3.5	3.0
	Speed	5.0	6.0	7.5	8.0	8.0	8.5	9.0	8.5	8.0	7.0	5.0	5.0

(WARM-UP and COOL-DOWN last 5:00 minutes each and are included in program times)

PROGRAM: PEAK INTERVALS
Challenges with various combinations of hills and valleys (INCLINE & SPEED levels). Time-based goal with 12 difficulty levels to choose from.
PEAK INTERVALS PROGRAM SEGMENTS (Peak segments last 30 seconds, valley segments last 90 seconds)

		WARM-DOWN		1	2	3	4	5	6	7	8	COOL-DOWN
Level 1	Elevation	1.0	1.5	1.0	2.0	1.0	2.0	1.0	2.5	1.0	2.5	1.5	1.0
	Speed	1.0	1.5	2.0	4.0	2.0	4.0	2.0	4.5	2.0	4.5	1.5	1.0
Level 2	Elevation	1.0	1.5	1.0	2.5	1.0	2.5	1.5	3.0	1.5	3.0	1.5	1.0
	Speed	1.0	1.5	2.0	4.5	2.0	4.5	2.5	5.0	2.5	5.0	1.5	1.0
Level 3	Elevation	1.0	1.5	1.5	3.0	1.5	3.0	1.5	3.5	1.5	3.0	1.5	1.0
	Speed	1.3	1.9	2.5	5.0	2.5	5.0	2.5	5.5	2.5	5.5	1.9	1.3
Level 4	Elevation	1.0	1.5	1.5	3.5	1.5	3.0	2.0	4.0	2.0	4.0	1.5	1.0
	Speed	1.3	1.9	2.5	5.5	2.5	5.5	3.0	6.0	3.0	6.0	1.9	1.3
Level 5	Elevation	1.5	2.0	2.0	4.0	2.0	4.0	2.0	4.5	2.0	4.5	2.0	1.5
	Speed	1.5	2.3	3.0	6.0	3.0	6.0	3.0	6.5	3.0	6.5	2.3	1.5
Level 6	Elevation	1.5	2.0	2.0	4.5	2.0	4.5	2.0	5.0	2.0	5.0	2.0	1.5
	Speed	1.5	2.3	3.0	6.5	3.0	6.5	3.5	7.0	3.5	7.0	2.3	1.5
Level 7	Elevation	1.5	2.5	2.0	5.0	2.0	5.0	2.0	5.5	2.0	5.5	2.5	1.5
	Speed	1.8	2.6	3.5	7.0	3.5	7.0	3.5	7.5	3.5	7.5	2.6	1.8
Level 8	Elevation	1.5	2.5	2.0	5.5	2.0	5.5	2.0	6.0	2.0	6.0	2.5	1.5
	Speed	1.8	2.6	3.5	7.5	3.5	7.5	4.0	8.0	4.0	8.0	2.6	1.8
Level 9	Elevation	2.0	3.0	2.5	6.0	2.5	6.0	2.5	6.5	2.5	6.5	3.0	2.0
	Speed	2.0	3.0	4.0	8.0	4.0	8.0	4.0	8.5	4.0	8.5	3.0	2.0
Level 10	Elevation	2.0	3.0	2.5	6.5	2.5	6.5	2.5	7.0	2.5	7.0	3.0	2.0
	Speed	2.0	3.0	4.0	8.5	4.0	8.5	4.5	9.0	4.5	9.0	3.0	2.0
Level 11	Elevation	2.0	3.5	2.5	7.0	2.5	7.0	2.5	7.5	2.5	7.5	3.5	2.0
	Speed	2.3	3.5	4.5	9.0	4.5	9.0	4.5	9.5	4.5	9.5	3.5	2.3
Level 12	Elevation	2.0	3.5	3.0	7.5	3.0	7.5	3.0	8.0	3.0	8.0	3.5	2.0
	Speed	2.3	3.5	4.5	9.5	4.5	9.5	5.5	10.0	5.5	10.0	3.5	2.3

(WARM-UP and COOL-DOWN last 5:00 minutes each and are included in program times)
Trains you to run at a steady 5 minute warm up and cool down "race pace." Enter in the distance plus the time limit and the program calculates a steady pace or simply press the start button for a pre-set speed.

PROGRAM: PACER

PROGRAM: THR ZONE 1

- To RESET your program information and delete it from memory, press and hold the ENTER key for 5 seconds (after you have selected the THR ZONE 1 or 2 program).

1. Choose a TARGET HEART RATE using the ARROW KEYS on the programming button and press ENTER. Note: Use the chart provided in this guide, to determine your target heart rate.
2. Choose a time using the ARROW key on the PROGRAMMING button or use the default time.
3. Press START to begin your program. At this time, your program has been successfully saved into memory, and can be used for future workouts.

- To RESET your program information and delete it from memory, press and hold the ENTER key for 5 seconds (after you have selected the THR ZONE 1 or 2 program).

PROGRAM: CUSTOM 1 & 2

Lets you create and reuse a perfect workout for you with specific speed, incline and time combination. The ultimate in personal programming. Time-based goal.

1. Once the CUSTOM 1 or 2 program has been chosen, press ENTER

2. Choose the desired TIME using the ARROW KEYS on the programming button and press ENTER.

3. Choose the desired SPEED for each segment, using the ARROW KEYS on the programming button and press ENTER. Note: You will need to press ENTER after each segment.

4. Choose the desired INCLINE for each segment, using the ARROW KEYS on the programming button and press ENTER. Note: You will need to press ENTER after each segment.

5. Press START to begin your program. At this time, your program has been successfully saved into memory, and can be used for future workouts.

- To RESET your program information and delete it from memory, press and hold the ENTER key for 5 seconds (after you have selected the CUSTOM 1 or 2 program).

- While using your saved program, you are able to adjust the speed or incline, but any changes will not be saved.

In this program, the large LED dot matrix window displays your heart rate during exercise. The middle row represents your target heart rate (THR) and the other rows equal +/-2 heart beats. If you are working out beneath your THR, the LEDs BELOW the middle row will illuminate. If you are over, the LEDs ABOVE the middle row will illuminate. Your current heart rate is represented by the flashing column and the window will refresh every 5 seconds.

NOTE: If no heart rate is detected, the large LED window will display the incline profile.

After the warm-up period, the INCLINE level will increase gradually to get you to the entered TARGET HEART RATE ZONE. Once you are at the TARGET HEART RATE ZONE (plus or minus 5 beats per minute) the INCLINE level will remain until you rise above or drop below your TARGET HEART RATE ZONE at which time the incline would adjust accordingly. If there is no heart rate detected, the incline will not change. If your heart rate is 25 beats over your target zone the program will shut down. There is a cool down at the end of the program. At this time, the program will gradually decrease the incline level to give you a smooth cool down.

PROGRAM: THR ZONE 2

Automatically adjusts speed to maintain your Target Heart Rate. Perfect for simulating the intensity of your favorite sport or everyday activity. Time-based goal.

1. Once the THR ZONE program has been chosen, press ENTER.

2. Choose a TARGET HEART RATE using the ARROW KEYS on the programming button and press ENTER. Note: Use the chart provided in this guide, to determine your target heart rate.

3. Choose a time using the ARROW key on the PROGRAMMING button or use the default time.

4. Press START to begin your program. At this time, your program has been successfully saved into memory, and can be used for future workouts.

PROGRAM INFORMATION

USING eTRAK™ PERFORMANCE TRACKER

INTRODUCTION

Research shows that those who journal their fitness routines or workouts, on average, achieve greater success than those who do not. Because your new treadmill is equipped with Horizon's exclusive eTRAK™ Performance Tracker, you've taken an important step towards achieving your fitness goals. Congratulations! eTRAK™ is an innovative new software integrated into your treadmill console, that will allow you to track your fitness progress over time without the need for paper journals or logs. eTRAK™ allows you to easily compare your current workout to your last, average or lifetime workout totals. With quick access to feedback like time of workout or calories burned during previous workouts, you'll be able to quickly and easily see the progress you've made. Read further to learn about how eTRAK™ can help motivate you to enhance your performance.

DATE & CLOCK SETUP

1) Enter Setup Mode: Press and hold MANUAL and INTERVALS program buttons for 3 seconds. 2) Once in setup mode, use the PROGRAMING ARROW KEYS to scroll through settings. 3) Use the ENTER button to confirm settings. 4) Settings include: MONTH, DAY, YEAR, HOUR, MINUTE, and AM/PM.

5) Review Settings: You can review your settings at any time while in Setup Mode. Use the ENTER button to scroll through settings.
6) Exit Setup Mode: To confirm the Date and Time, press and hold ENTER for 5 seconds.
7) To Reset: Simply reenter Setup Mode and adjust Date and Time to the correct setting.

eTRAK™ OPERATION

5) MONTHLY TOTAL: View your accumulated data from the 1st day of the month to the present day.

SETUP: To activate eTRAK™ a user MUST be chosen before the program begins. To select a user, simply press the User 1 or User 2 button. To deselect a user, press User button again. All accumulated data specifically relates to the user that is chosen. Note: If no user is selected, no data will be tracked.

RESET: Reset all recorded information for User 1 or User 2 by selecting the user and then holding down the user button for 10 seconds. Note: This step is permanent and will delete ALL previously accumulated data for the chosen user.

ACCUMULATED DATA: Once eTRAK™ is activated, you can scroll through your accumulated data in multiple formats by pressing the eTRAK™ button. A workout is saved when: the program ends, the console is paused and not resumed within five minutes, or the stop button is held to reset the console.
1) CURRENT WORKOUT: The console automatically defaults to Current Workout, displaying your progress

in real time.

2) AVERAGE WORKOUT: This option allows you to see your average accumulated data for the last 100 workouts. The following information will be shown in each display window:

INCLINE - Average incline level.

TIME - Average workout time.

CALORIES - Average calories burned.

TARGET HEART RATE ZONE CHART

What is Target Heart Rate Zone?

Target Heart Rate Zone tells you the number of times per minute

your heart needs to beat to achieve a desired workout effect.

It is represented as a percentage of the maximum number of times

your heart can beat per minute. Target Zone will vary for each

individual, depending on age,

current level of conditioning, and personal fitness goals. The

American Heart Association

recommends working-out at a

Target Heart Rate Zone of between

60% and 75% of your maximum heart rate. A beginner will want to

workout in the 60% range while a more experienced exerciser will

want to workout in the 70-75%

range. See chart for reference.

EXAMPLE:

For a 42-year-old user: Find age along the bottom of the chart (round to 40), follow age column up to the target zone bar. Results: 60% of maximum Heart Rate = 108 Beats Per Minute, 75% of maximum Heart Rate = 135 Beat Per Minute.

ALWAYS CONSULT YOUR PHYSICIAN BEFORE BEGINNING AN EXERCISE PROGRAM.

CONDITIONING GUIDELINES

ALWAYS CONSULT YOUR PHYSICIAN BEFORE BEGINNING AN EXERCISE PROGRAM.

HOW OFTEN? (Frequency of Workouts)

The American Heart Association recommends that you exercise at least 3 to 4 days per week to maintain cardiovascular fitness. If you have other goals such as weight or fat loss, you will achieve your goal faster with more frequent exercise. Whether it's 3 days or 6 days, remember that your ultimate goal should be to make exercise a lifetime habit. Many people are successful staying with a fitness program if they set aside a specific time of day to exercise. It doesn't matter whether it's in the morning before breakfast, during lunch hour or while watching the evening news. What's more important is that it's a time that allows you to keep a schedule, and a time when you won't be interrupted. To be successful with your fitness program, you have to make it a priority in your life. So decide on a time, pull out your day planner and pencil in your exercise times for the next month!

HOW LONG? (Duration of Workouts)

For aerobic exercise benefits, it's recommended that you exercise from between 24 and 60 minutes per session. But start slowly and gradually increase your exercise times. If you've been sedentary during the past year, it may be a good idea to keep your exercise times to as little as five minutes initially. Your body will need time to adjust to the new activity. If your goal is weight loss, a longer exercise session at lower intensities has been found to be most effective. A workout time of 48 minutes or more is recommended for best weight loss results.

HOW HARD? (Intensity of Workouts)

How hard you workout is also determined by your goals. If you use your treadmill to prepare for a 5K run, you will probably work out at a higher intensity than if your goal is general fitness. Regardless of your long term goals, always begin an exercise program at low intensity. Aerobic exercise does not have to be painful to be beneficial! There are two ways to measure your exercise intensity. The first is by monitoring your heart rate (using the grip pulse handlebars or a wireless chest transmitter - may be sold separately), and the second is by evaluating your perceived exertion level (this is simpler than it sounds!).

PERCEIVED EXERTION LEVEL

A simple way to gauge your exercise intensity is to evaluate your perceived exertion level. While exercising, if you are too winded to maintain a conversation without gasping, you are working out too hard. A good rule of thumb is to work to the point of exhilaration, not exhaustion. If you cannot catch your breath, it's time to slow down. Always be aware of these warning signs of overexertion.

THE IMPORTANCE OF WARM UP & COOL DOWN

WARM UP

The first 2 to 5 minutes of a workout should be devoted to warming up. The warm-up will limber your muscles and prepare them for more strenuous exercise. Make sure that you warm-up on your product at a slow pace. The warm up should gradually bring your heart rate into your Target Heart Rate Zone.

COOL DOWN

Never stop exercising suddenly! A cool-down period of 3-5 minutes allows your heart to readjust to the decreased demand. Make sure that your cool down period consists of a very slow pace to allow your heart rate to lower. After the cool-down, repeat the stretching exercises listed above to loosen and relax your muscles.

ACHIEVING YOUR FITNESS GOALS

An important step in developing a long term fitness program is to determine your goals. Is your primary goal for exercising to lose weight? Improve muscle? Reduce stress? Prepare for the spring racing schedule? Knowing what your goals are will help you develop a more successful exercise program. Below are some common exercise goals:

• Weight Loss - lower intensity, longer duration workouts

- Improve Body Shape and Tone - interval workouts, alternate between hi and low intensities

- Increased Energy Level - more frequent daily workouts

- Improved Sports Performance - high intensity workouts

- Improved Cardiovascular Endurance - moderate intensity, longer duration workouts

If possible try to define your personal goals in precise, measurable terms, and then put your goals in writing. The more specific you can be, the easier it will be to track your progress. If your goals are long term, divide them up into monthly and weekly segments. Longer term goals can lose some of the immediate motivation benefits. Short term goals are easier to achieve. Your console provides you with several readouts that can be used to record your progress. You can track Distance, Calories or Time.

STRETCHING

STRETCH FIRST

Before ?using ?your ?product, ?it ?is ?best ?to ?take ?a ?few ?minutes ?doing ?a ?few ?gentle ?stretching ?exercises. Stretching prior to exercise will improve flexibility and reduce chances of exercise related injury. Ease into each of these stretches with a slow gentle motion. Do not stretch to the point of pain. Make sure not to bounce while doing these stretches.

1. STANDING CALF MUSCLE STRETCH

Stand near a wall with the toes of tour left foot about 18" from the wall, and the right foot about 12" behind the other foot. Lean forward, pushing against the wall with your palms. Keep your heels flat and hold this position for a count of 15 seconds. Make sure that you do not bounce while stretching. Repeat on the other side.

Line drawing of a person standing in a corner, touching the wall (no text or symbols)

2. STANDING QUADRICEPS STRETCH

Using a wall to provide balance, grasp your left ankle

with your left hand and hold your foot against the back of ?your thigh ?for ?15 seconds. ?Repeat ?with ?your ?right ankle and hand.

3. SITTING HAMSTRING & LOWER BACK MUSCLE STRETCH

Sit on the floor with your legs together and straight out in front of you. Do not lock your knees. Extend your fingers towards your toes and hold for a count of 15 seconds. Make sure that you do not bounce while stretching. Sit upright again. Repeat one time.

Line drawing of a person in a martial arts stance, standing against a vertical wall (no text or symbols)

WEEKLY LOG SHEETS

WEEK # WEEKLY GOAL
DAY	DATE	DISTANCE	CALORIES	TIME	COMMENTS
SUNDAY
MONDAY
TUESDAY
WEDNESDAY
THURSDAY
FRIDAY
SATURDAY
WEEKLY TOTALS :

WEEK # WEEKLY GOAL
DAY	DATE	DISTANCE	CALORIES	TIME	COMMENTS
SUNDAY
MONDAY
TUESDAY
WEDNESDAY
THURSDAY
FRIDAY
SATURDAY
WEEKLY TOTALS :

WEEK # WEEKLY GOAL
DAY	DATE	DISTANCE	CALORIES	TIME	COMMENTS
SUNDAY
MONDAY
TUESDAY
WEDNESDAY
THURSDAY
FRIDAY
SATURDAY
WEEKLY TOTALS :

WEEKLY LOG SHEETS

WEEK # WEEKLY GOAL
DAY	DATE	DISTANCE	CALORIES	TIME	COMMENTS
SUNDAY
MONDAY
TUESDAY
WEDNESDAY
THURSDAY
FRIDAY
SATURDAY
WEEKLY TOTALS :

WEEK # WEEKLY GOAL
DAY	DATE	DISTANCE	CALORIES	TIME	COMMENTS
SUNDAY
MONDAY
TUESDAY
WEDNESDAY
THURSDAY
FRIDAY
SATURDAY
WEEKLY TOTALS :

WEEK # WEEKLY GOAL
DAY	DATE	DISTANCE	CALORIES	TIME	COMMENTS
SUNDAY
MONDAY
TUESDAY
WEDNESDAY
THURSDAY
FRIDAY
SATURDAY
WEEKLY TOTALS :

TROUBLESHOOTING

COMMON PRODUCT QUESTIONS

ARE THE SOUNDS MY TREADMILL MAKES NORMAL?

All treadmills make a certain type of thumping noise due to the belt riding over the rollers, especially new treadmills. This noise will diminish over time, although may not totally go away. Over time, the belt will stretch, causing the belt to ride smoother over the rollers.

WHY IS THE TREADMILL I PURCHASED LOUDER THAN THE ONE AT THE STORE?

All fitness products seem quieter in a large store showroom because there is generally more background noise than in your home. Also, there will be less reverberation on a carpeted concrete floor than on a wood overlay floor. Sometimes a heavy rubber mat will help reduce reverberation through the floor. If a fitness product is placed close to a wall, there will be more reflected noise.

WHEN SHOULD I BE WORRIED ABOUT A NOISE?

As long as the sounds your treadmill makes are no louder than a normal conversational tone of voice, it is considered normal noise.

TROUBLESHOOTING - TREADMILL

Your treadmill is designed to be reliable and easy to use. However, if you experience a problem, please reference the troubleshooting guide listed below.

PROBLEM: The console does not light up and/or the belt does not move.

SOLUTION: Verify the following:

DOES THE RED LIGHT ON THE ON/OFF SWITCH LIGHT UP?

IF YES:

- Double check that all connections are secure, especially the console cable. Unplug and reconnect the console cable to verify. - Make sure the console cable is not pinched or damaged in any way. - Turn the power off, unplug the power cable and wait 60 seconds. Remove motor cover. Wait until all red LED lights have gone off on the motor control board before proceeding. Next, verify that none of the wires connected to the lower board are loose or disconnected.

IF NO:

- Verify that the outlet the machine is plugged into is functional. Double check that the breaker has not tripped, it is on a dedicated 20-amp circuit, it is not on a GFCI equipped outlet, and it is not plugged into a power strip/surge protector or extension cord.

- The power cord is not pinched or damaged and is properly plugged into the outlet AND the machine. - The power switch is turned to the ON position.

[Non-Text]

MONTH?MONTHLY GOAL
WEEK #?DISTANCE	CALORIES	TIME
MONTHLY TOTALS:

MONTHLY LOG SHEETS

MONTH?MONTHLY GOAL
WEEK #?DISTANCE	CALORIES	TIME
MONTHLY TOTALS:

MONTH?MONTHLY GOAL
WEEK #?DISTANCE	CALORIES	TIME
MONTHLY TOTALS :

MAINTENANCE

Cleanliness of your treadmill and its operation environment will keep maintenance problems and service calls to a minimum. For this reason, we recommend that the following preventive maintenance schedule be followed.

AFTER EACH USE (DAILY)

Clean and inspect, following these steps:

- Turn off the treadmill with the on/off switch, then unplug the power cord at the wall outlet. - Wipe down the running belt, deck, motor cover, and console casing with a damp cloth. Never use solvents, as they can cause damage to the treadmill.

- Inspect the power cord. If the power cord is damaged, contact Horizon Fitness.

- Make sure the power cord is not underneath the treadmill or in any other area where it can become pinched or cut. - Check the tension and alignment of the running belt. Make sure that the treadmill belt will not damage any other components on the treadmill by being misaligned.

EVERY WEEK

Clean underneath the treadmill, following these steps:

- Turn off the treadmill with the on/off switch, then unplug the power cord at the wall outlet.

- Move the treadmill to a remote location. - Wipe or vacuum any dust particles or other objects that may have accumulated underneath the treadmill. - Return the treadmill to its previous position.

EVERY MONTH - IMPORTANT!

- Turn off the treadmill with the on/off switch, then unplug the power cord at the wall outlet. - Inspect all assembly bolts of the machine for proper tightness.

- Turn off the treadmill and wait 60 seconds. - Wait until ALL LED lights turn off.

- Remove screws holding motor cover to the frame. Remove the lower mast bolts in order to slide the motor cover upwards. While sliding the motor cover up the masts, be careful not to scratch the paint. Prop up the motor cover to continue.

- Clean the motor and lower board area to eliminate any lint or dust particles that may have accumulated. Failure to do so may result in premature failure of key electrical components. - Vacuum and wipe down the belt with a damp cloth. Vacuum any black/white particles that may accumulate around the unit. These particles may accumulate from normal treadmill use.

EVERY 6 MONTHS OR 150 MILES

LUBRICATION

It is necessary to lubricate your treadmill running deck every six months or 150 miles to maintain optimal performance of your treadmill. Once the

treadmill reaches 150 miles, the console will prompt you to lubricate the treadmill. Only use lubricant provided by Horizon Fitness!

• TURN OFF THE TREADMILL with the on/off switch, then unplug the

power cord at the wall outlet. - Loosen both the rear roller bolts. (For best results, place two removable

marks on both sides of the frame and note roller position). Once

the belt is loosened, take the bottle of lubricant and apply it to the entire top surface of the running deck. Tighten both rear roller bolts

(matching up the marks for proper position) to original position. After you have applied lubricant, plus in the power cord, insert the safety.

you have applied lubricant, plug in the power cord, insert the safety key, start the treadmill and walk on the belt for two minutes to spread

the lubricant. - Lubricate the air shocks with Teflon based spray.

- Once lubrication is complete, reset the console by pressing and holding 'STOP' and Speed '+' buttons for 5 seconds.

Please contact Horizon Fitness with questions about applying lubricant to your treadmill.

PROBLEM: The treadmill circuit breaker trips during a workout. SOLUTION: Verify the following:

-?Make sure the treadmill is plugged into a dedicated 20-amp circuit.

- ?Verify that you do not have the machine on an extension cord or surge protector. - Confirm that the machine is not plugged into a GFCI-equipped outlet or on a

PROBLEM: The running belt does not stay centered during a workout.

SOLUTION: Verify the following:

- ?Make sure the treadmill is on a level surface.

- Verify that the belt is properly tightened and centered (Refer to the Adjustment section for detailed directions).

WARNING

DO NOT stand on running belt while calibrating – stand on the guide

rails. Treadmill will fluctuate between low and high speeds for several

minutes until calibration is complete.

PROBLEM: Operating speed appears inaccurate. SOLUTION: Auto-calibrate the treadmill:

?Power on the treadmill and have the safety key in position on the console. Press and hold the elevation “+” and speed “-” buttons approximately 5 seconds to enter the Engineering Mode. The cons

will beep and "ENGO" appears in the display.

- Press the Speed "+" or "-" button until "ENG2" appears in the display. - Press, "ENTER" to select. Press, "START" to begin. The treadmill

running belt will begin to move automatically and the auto-calibration sequence will properly set and store the speed values.

Upon successful calibration, the treadmill will beep several times. The console will automatically exit Engineering Mode and return to the start-up screen.

TROUBLESHOOTING - HEART RATE

Check your exercise environment for sources of interference such as fluorescent lights, computers, underground fencing, home security systems or appliances containing large motors. These items may cause erratic heart rate readouts.

You may experience an erratic readout under the following conditions:

- Gripping the heart rate handlebars too tight. Try to maintain moderate pressure while holding onto the heart rate handlebars. - Constant movement and vibration due to constantly holding the heart rate handlebars while exercising. If you are receiving erratic heart rate readouts, try to only hold the grips long enough to monitor your heart rate.

- When you are breathing heavily during a workout.

- When your hands are constricted by wearing a ring

- When your hands are dry or cold. Try to moisten your palms by rubbing them together to warm.

- Anyone with heavy arrhythmia.

- Anyone with arteriosclerosis or peripheral circulation disorder. - Anyone whose skin on the measuring palm is especially thick.

If the above troubleshooting section does not remedy the problem, discontinue use and turn the power off. PLEASE CALL CUSTOMER TECH SUPPORT AT THE NUMBER ON THE BACK PANEL

The following information may be asked of you when you call. Please have these items readily available:

- Model Name

- Serial Number

- Date of Purchase (receipt or credit card statement)

In order for Customer Tech Support to service your treadmill they n

occurring. Some troubleshooting questions that

- How long has this problem been occurring? - Pass this problem ways with every use? With every use?

• If you are hearing a noise, does it come from the front or

chirping etc.)?

- Has the machine been lubricated and maintained per the maintenance schedule?

Answering these and other questions will give the technicians the ability to send proper replacement parts and the service necessary to get you and your Horizon Fitness treadmill running again!

LIMITED HOME-USE WARRANTY

SERVICE/RETURNS

• In-home service is available within 150 miles of the nearest

authorized repair center (Mileage beyond 150 miles from an

authorized service center is the responsibility of the consumer).

- All returns must be pre-authorized by Horizon Fitness.

- Horizon Fitness' obligation under this warranty is limited to replacing or repairing, at Horizon Fitness' option, the same or

replacing of repairing, at Horizon Fitness Option, the same be comparable model at one of its authorized service centers

• A Horizon Fitness authorized service center must receive all

A Horizon Fitness authorized service center must receive an equipment for which a warranty claim is made. This equipment must

be received with all freight and other transportation charges prepaid.

accompanied by sufficient proof of purchase.

- Replacement units, parts and electronic components reconditioned

to AS-new Condition by Horizon Fitness of its Vendors may sometimes be supplied on warranty replacement and anticipate fulfillment of

be supplied as warranty replacement and consolidate entitlement of warranty terms.

- This warranty gives you specific legal rights, and your rights may

vary from state to state.

EXCLUSIONS AND LIMITATIONS

2、本次发行前公司未分配利润的安排

Who IS covered:

• The original owner and is not transferable.

What IS covered.

• Repair or replacement of a defective motor, electronic component, or defective part and is the sole remedy of the warranty.

(1) 2017年 ，公司与关联方发生的关联交易事项符合《中华人民共和国公司法》、《中华人民共和国证券法》、《上市公司重大资产重组管理办法》等有关法律、法规和规范性文件的规定。

What IS NOT covered:

• Normal wear and tear, improper assembly

installation of parts or accessories not originally intended or compatible with the equipment as sold.

- Comparable with the equipment as sold.

- damage of failure due to accident, abuse, confusion, distribution of paint or plastic neglect, theft, vandalism, fire, flood, wind, lightning

point of practice, neglect, there, vanadium, sand, hood, wind, lighting, freezing, or other natural disasters of any kind, power reduction

fluctuation or failure from whatever cause, unusual atmospheric

conditions, collision, introduction of foreign objects into the covered

unit, or modifications that are unauthorized or not recommended by

Horizon Fitness.

- Incidental or consequential damages. Horizon Fitness is not

responsible or liable for indirect, special or consequential damages,

economic loss, loss of property, or profits, loss of enjoyment or use, as other consequential damages of whatever nature in connection

of other consequential damages of whatsoever nature in connection with the purchase, use, repair or maintenance of the environment

- Equipment used for commercial purposes or any use other than a

single family or Household, unless endorsed by Horizon Fitness for

coverage.

• Equipment owned or operated outside the US and Canada.

- Delivery, assembly, installation, setup for original or replacement

units or labor or other costs associated with removal or replacement

of the covered unit.

- Any attempt to repair this equipment creates a risk of injury. Horizon Fitness is not responsible or liable for any damage, loss or liability.

Fitness is not responsible or liable for any damage, loss or inability arising from any personal injury incurred during the course of, or as

a result of any repair or attempted repair of your fitness equipment

by other than an authorized service technician. All repairs attempted

by you on your fitness equipment are undertaken AT YOUR OWN RISK

and Horizon Fitness shall have no liability for any injury to the person

or property arising from such repairs.

(1) 2017年1月1日至2018年1月1日，公司与关联方累计发生的交易金额为人民币4,569.30万元。

[Non-Text]

[Non-Text]

[Non-Text]

HORIZON FITNESS

Completely dark image with no visible content, text, or symbols.
