BRUGSANVISNING Ab Board Reebok
AB BOARD
Assembly Manual
7 M10x20mm Bolt x8
9 M10 Washer x8
10 M8 Washer x2
Spanner x1

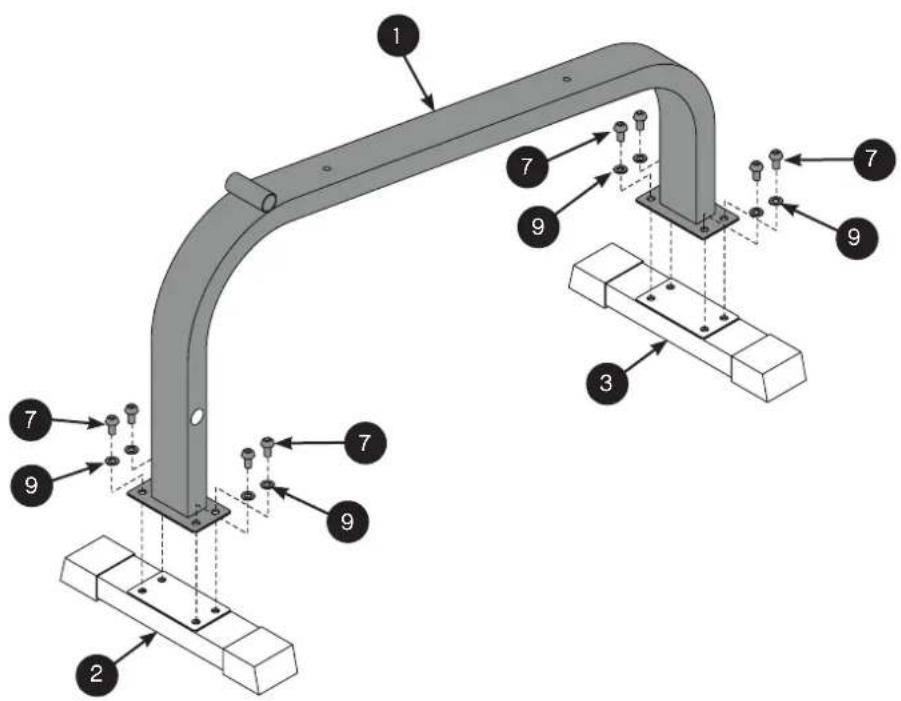

1
5 M10x20mm Bolt x8
9 M10 Washer x8
13 Allen Wrench x1
Spanner x1


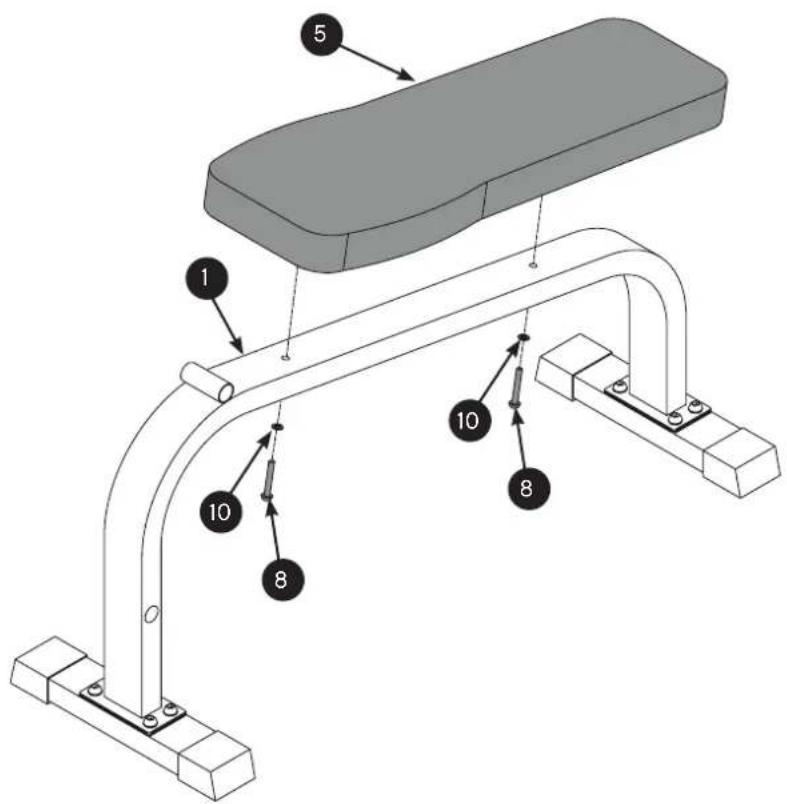

Technical diagram of a mechanical assembly with numbered components for identification2
M8x55mm Bolt x2
M8 Washer x2
Allen Wrench x1
Spanner x1


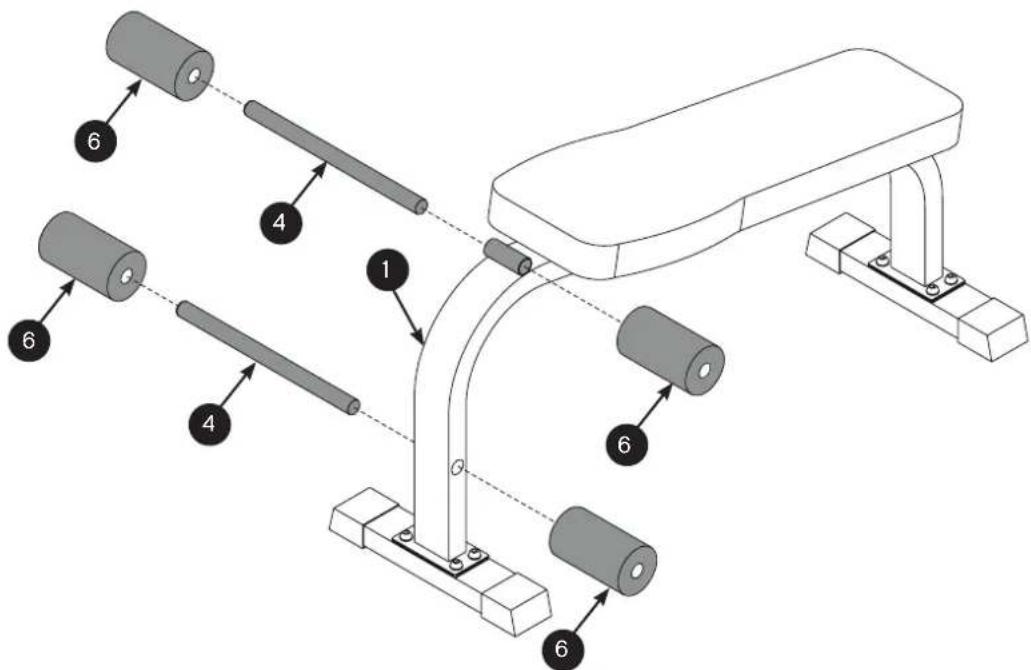

Technical diagram of a bench apparatus with numbered components for identification3
Allen Wrench x1
Spanner x1


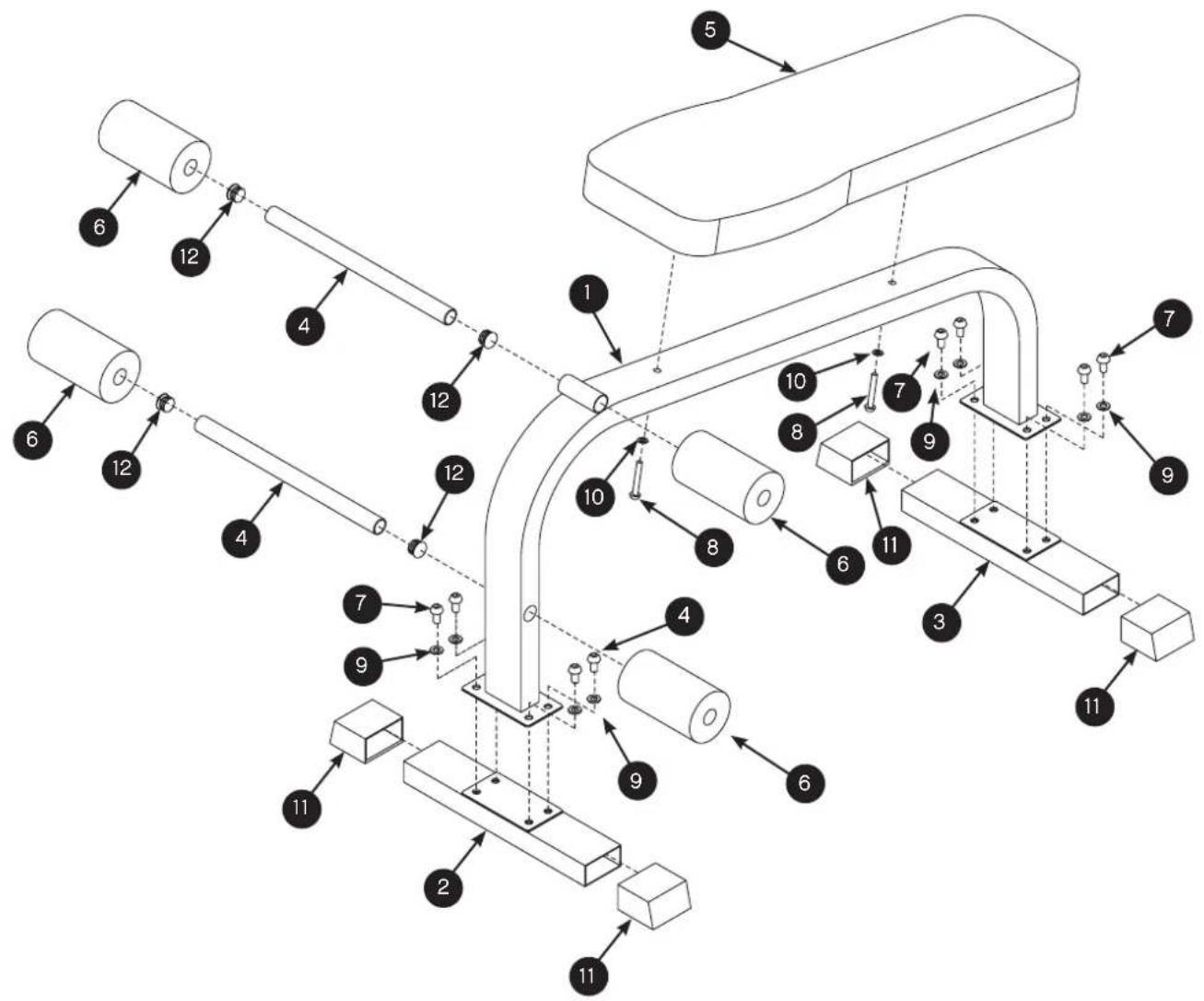

Technical diagram of a gym bench with numbered components and supporting beamsEXPLODED VIEW
Part No. Code Description QTY
| 1 | PFMRE602-01 Frame 1 | ||
| 2 | PFMRE602-02 Front Horizontal Beam 1 | ||
| 3 | PFMRE602-03 Rear Horizontal Beam 1 | ||
| 4 | PFMRE602-04 Foam Roller Tube | 2 | |
| 5 | PFMRE602-05 Backrest | 1 | |
| 6 | PFMRE602-06 Foam Roll | 4 | |
| 7 | PFM404-18 | M10 x 20mm Bolt | 8 |
| 8 | PFMS80-17 | M8 x 55mm Bolt | 2 |
| 9 | PRK1-06 | M10 Washer | 8 |
| 10 | PFM2006-27 | M8 Washer | 2 |
| 11 | PFMRE602-07 | 38 x 75 mm Oblique Rubber Cap | 4 |
| 12 | PRK1-03 | 25 mm Round Inner Cap | 4 |
| 13 | PFMALLEN10 | Allen Wrench | 1 |
USER INFORMATION
This product is suitable for user's weight of 100kg.
This product is suitable for a max load of 150kg.
Product Registration and Support Enregistrement et support du produit Productregistratie en ondersteuning Registro de productos y soporte Registro de produto e suporte Регистрация и поддержка продукта 製品の登録とサポート
مغدلاو جتنملا ليچست
产品注册和技术支持
제품 등록 및 지원
www.reebokfitness.info/product-support
AB BOARD
For product information or service please contact:
UK: RFE Europa Ltd. 8 Clarendon Drive, Wymbush, Milton Keynes, MK8 8ED.
Customer Service: Tel: +44 (0)800 440 2459 Email: techsupport@rfeinternational.com
Europe: serviceeuropa@rfeinternational.com
Spain: serviciotecnico@rfeinternational.com
APAC (excluding Australia): RFE Asia Pacific, 2608-1609, 1 Hung To Road, Kwun Tong, Kowloon, Hong Kong.
Customer Service: Tel: +852 34685027 Email: techsupportapac@rfeinternational.com
Australia: techsupportaustralia@rfeinternational.com
USA: RFE Sporting Goods Inc., 1300 Smith Road, STE 104, Austin, Texas, 78721, USA.
Customer Service: Tel: +1 (800) 215 6216 Email: techsupportusa@rfeinternational.com
