SK 6212 - Mikrofon SENNHEISER - Gratis brugsanvisning og manual
Find enhedens vejledning gratis SK 6212 SENNHEISER i PDF-format.
Brugerspørgsmål om SK 6212 SENNHEISER
0 spørgsmål om dette apparat. Besvar dem du kender, eller stil dit eget.
Stil et nyt spørgsmål om dette apparat
Download vejledningen til din Mikrofon i PDF-format gratis! Find din vejledning SK 6212 - SENNHEISER og tag din elektroniske enhed tilbage i hånden. På denne side er alle dokumenter nødvendige for brugen af din enhed offentliggjort. SK 6212 af mærket SENNHEISER.
BRUGSANVISNING SK 6212 SENNHEISER
Update the firmware of the EM 6000 to v2.2 (or higher) in order for the SK 6212 to work properly. The latest firmware is available here: www.sennheiser.com/digital-6000

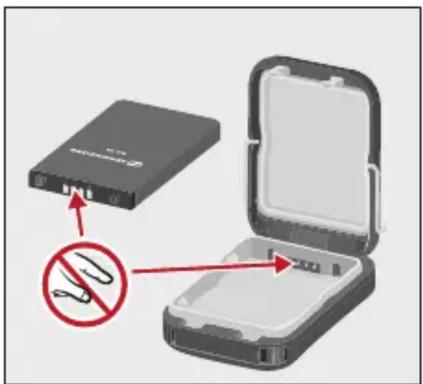

Battery
BA 62*
* to be ordered separately
Charge before usage!


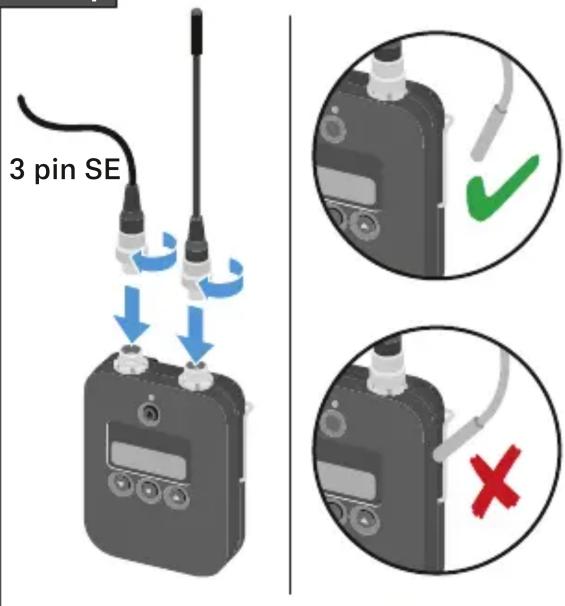

Setup
On/Off
short
ON + RF MUTE
long
RF MUTE OFF
short
OFF
long
Sennheiser electronic GmbH & Co. KG

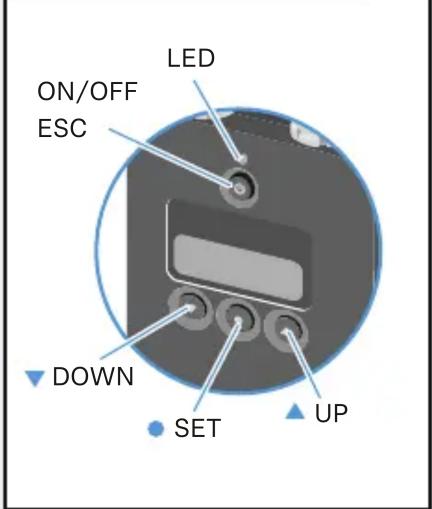

Operating elements

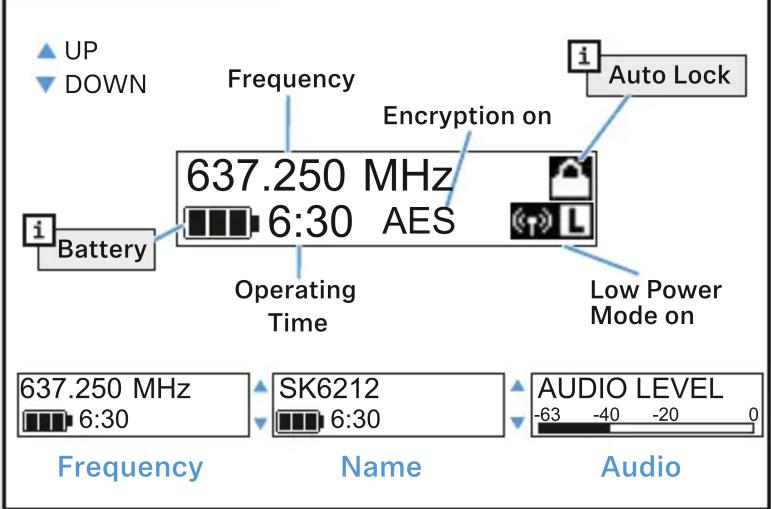

Home screens

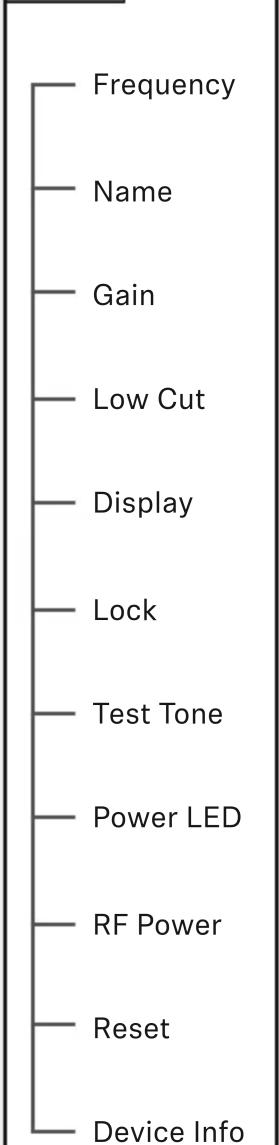

Menu


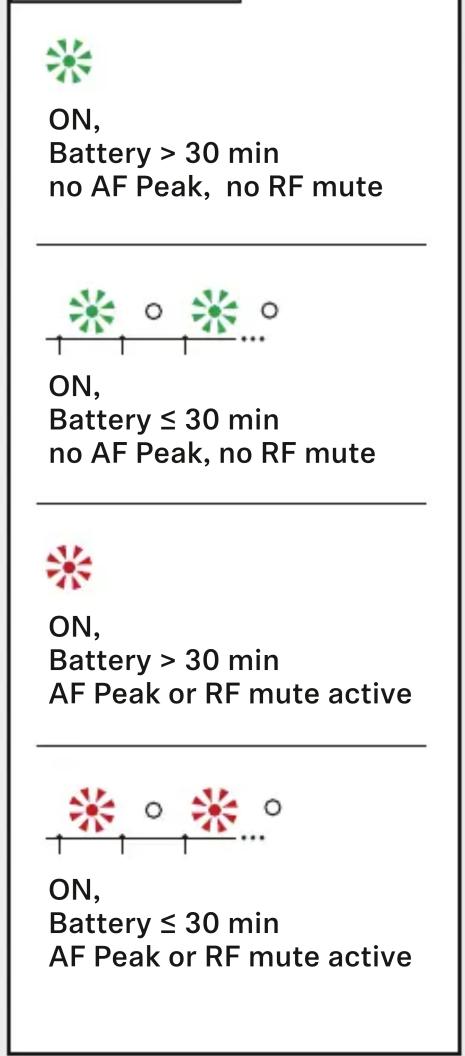

LED Status

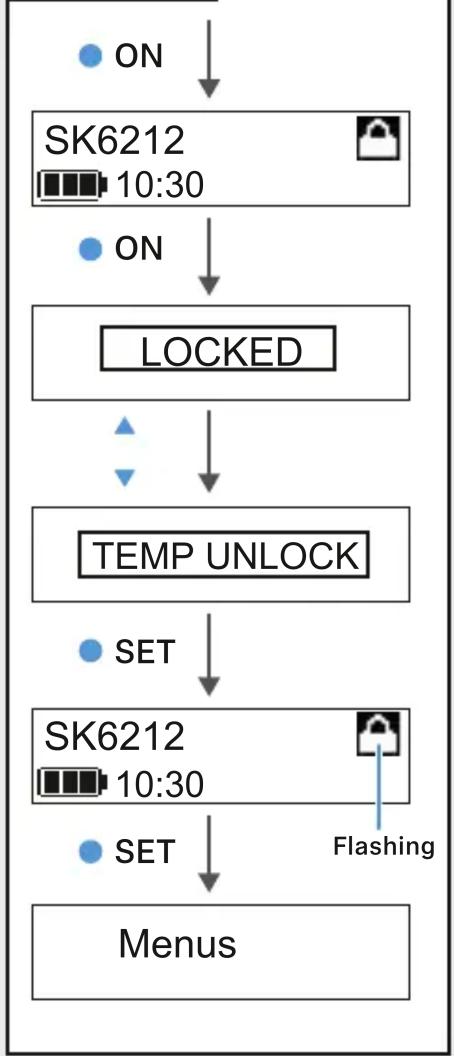

Auto Lock
Digital 6000 System Instruction Manual
