ew 500 G4-CI1 - Mikrofon SENNHEISER - Gratis brugsanvisning og manual

BRUGSANVISNING ew 500 G4-CI1 SENNHEISER

ew 300-500 G4

EM 300-500 G4

SKM 300 G4-S

SKM 500 G4

SK 300 G4-RC

SK 500 G4

Quick Guide

Kurzanleitung

Guide rapide

Guida rapida

Guía de inicio rápida

Cuia rápida

Rokpento handleiding

Bekhopte handleiding Krótké instrukcia shak

Krotka instrukcja obsługi Snabhguide

Shabbyguide

Kort vejledning

Pikaohje

Γρήγορος οδηγός

Kısa Kılavuz

Краткая инструкция

快速指南

快捷使用

快速使用指南

タイックカイド

瓢 가이드

SENNHEISER

www.sennheiser.com/download

Sennheiser electronic GmbH & Co. KG

Am Labor 1, 30900 Wedemark, Germany

www.sennheiser.com

Printed in Germany, Publ. 01/24, 575861/A03

EM 300-500

Exterior view of a black electronic device labeled 'SENHEISER' with control buttons and display screen (no readable text beyond branding)

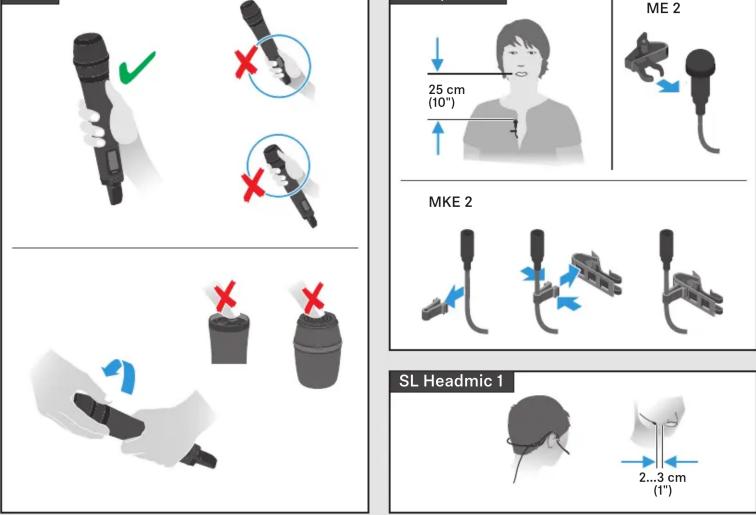

SKM 300 | SKM 500

3D rendered image of a SKM 300 device with a close-up inset showing the handle (no text or symbols on the device itself)

SKM 500

3D rendered image of a black cylindrical device with multiple ports and a handle (no text or symbols visible)

SK 300

SK 500

Exterior view of a black SENNHEUSER wireless audio device with antenna and control panel (no visible text or symbols on body)

Battery

Low Battery

	100%	>8h
	70%	4-6h
	30%	2-3h

Setup
1

4

2

3

On

Off

long
EM/SK/SKM
50
-

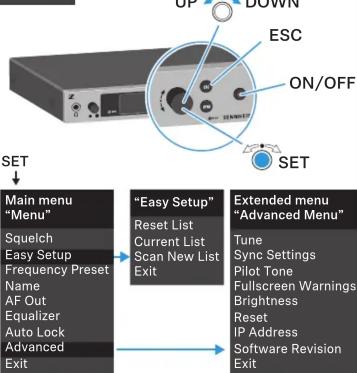

Menu

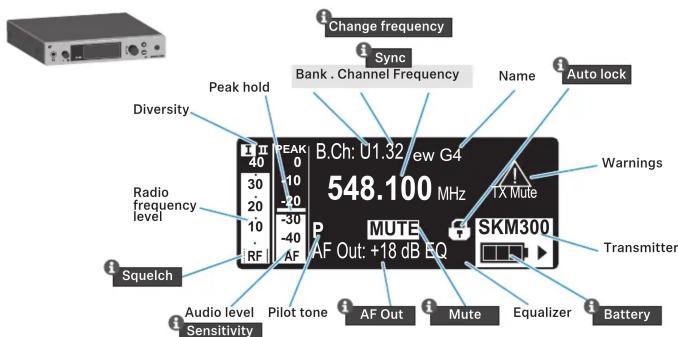

Standard display

A
A
A

B
B
B
B
B

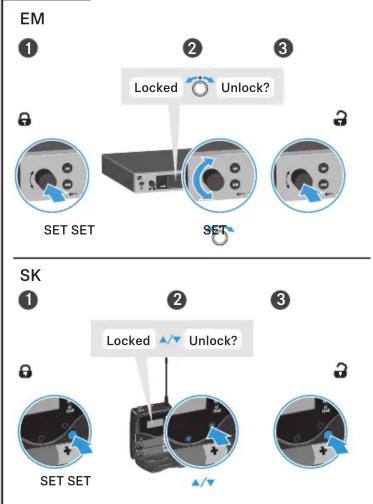

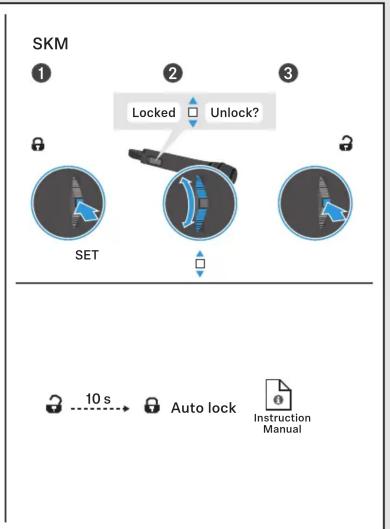

Auto lock


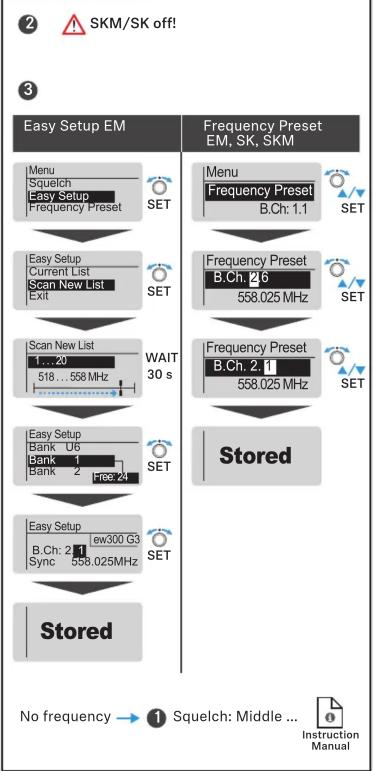

New frequency

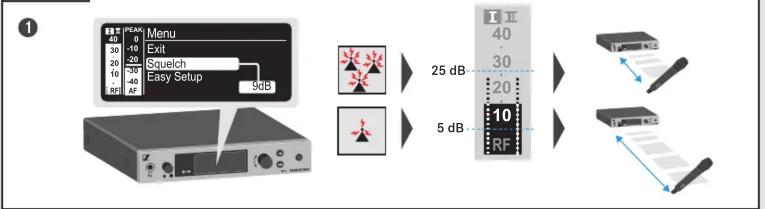

Squelch

Change frequency


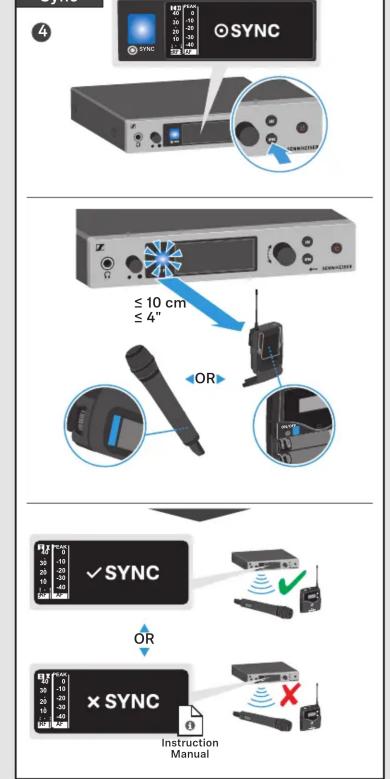

Sync

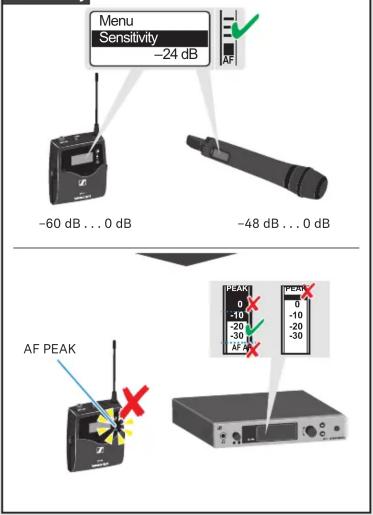

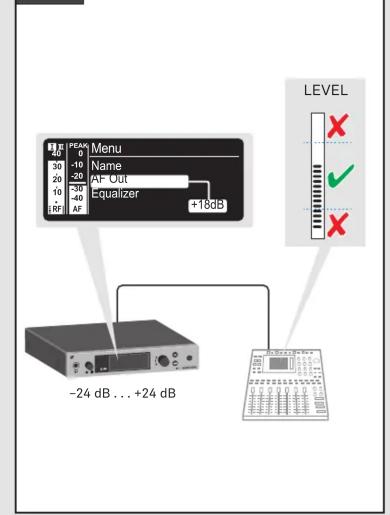

Sensitivity

AF out

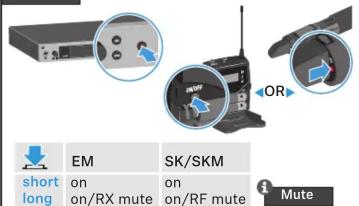

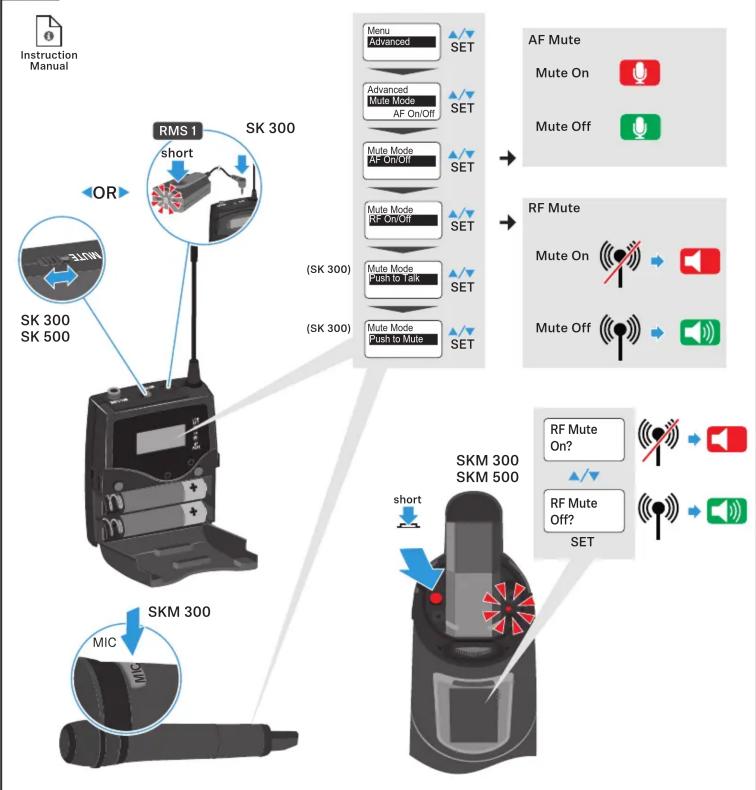

Mute


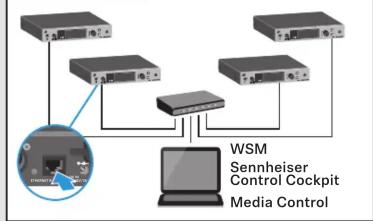

Network Control


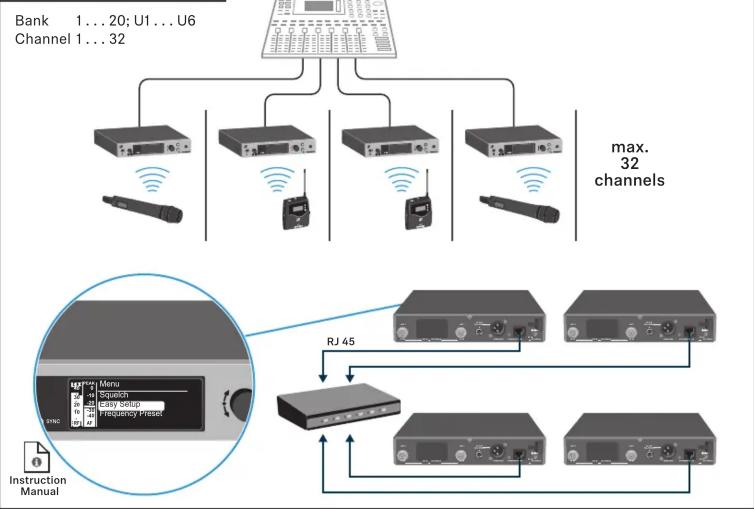

Multichannel - Easy Setup

SKM
