BRUGSANVISNING X-HM15BT PIONEER

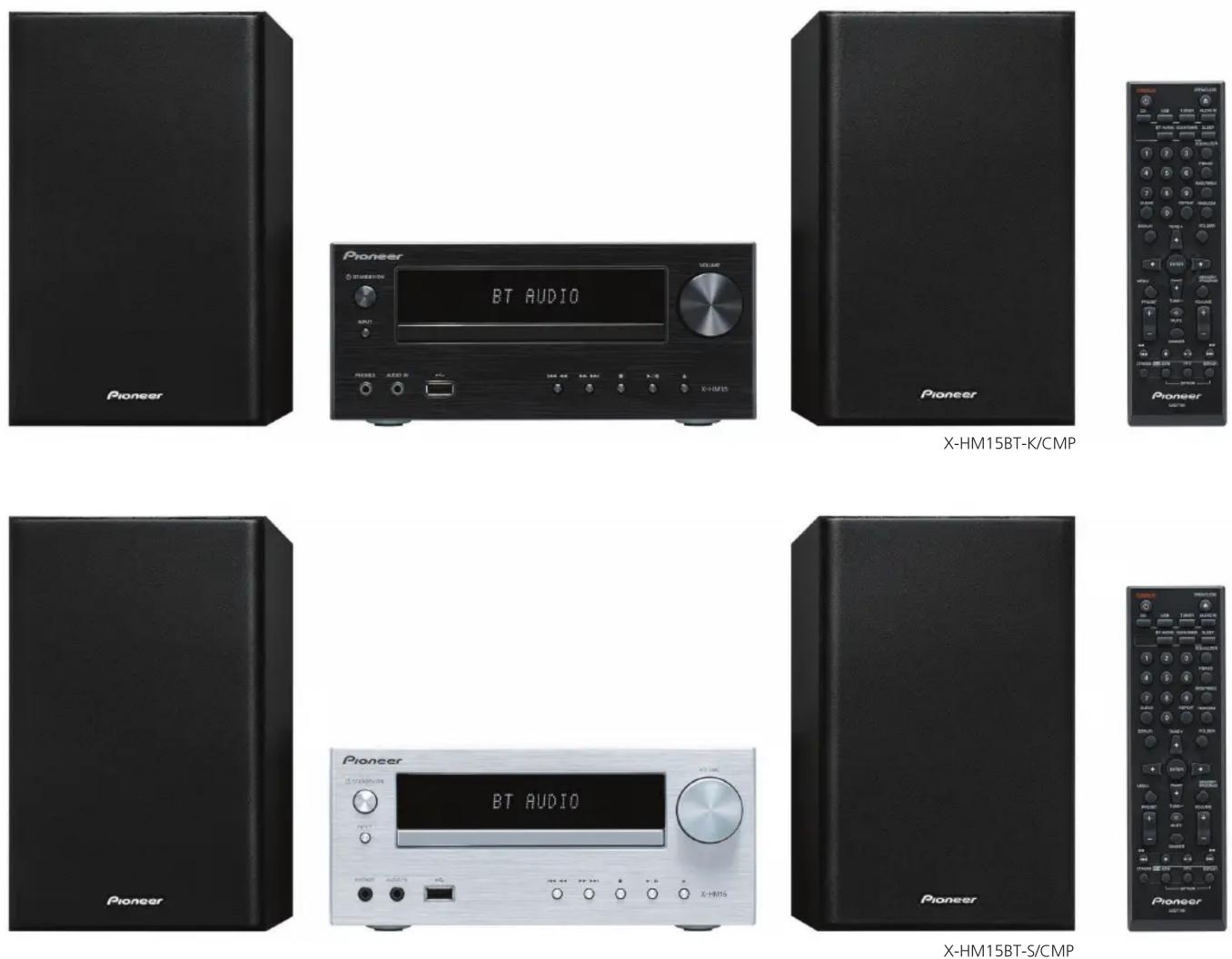

X-HM15BT-K/-S

CD Receiver System Featuring Bluetooth® Wireless Technology, FM/AM Tuner and USB

PIONEER X-HM15BT - X-HM15BT-K/-S - 1

FUNCTIONS

CD/FM/AM/USB/BT Audio/Audio In/Line

AMPLIFICATION

Class D Amplifier (Digital Amplifier)

Power Output: 15 W + 15 W (1 kHz, 10 % THD, 8 ohms)

SPEAKERS

10 cm Cone Woofer, Piezo Tweeter >

AUDIO FEATURES

FM Tuner (30 Presets)

AM Tuner (15 Presets)

RDS Tuner >

Built-in > Bluetooth Wireless Technology (ver. 3.0, profile: A2DP)

Sound Control (Bass/Treble)

Sound Preset Equaliser (Flat/Active/Dialogue/Night)

Bass Enhancer (P.BASS)

PLAYBACK MEDIA/PC FILES

CD-Audio, CD-R/-RW (MP3/WMA)

USB Device (MP3/WMA)

CONVENIENCE

Auto Power Off

Clock

Sleep Timer

X-HM15BT-K/-S

CD Receiver System Featuring Bluetooth® Wireless Technology, FM/AM Tuner and USB

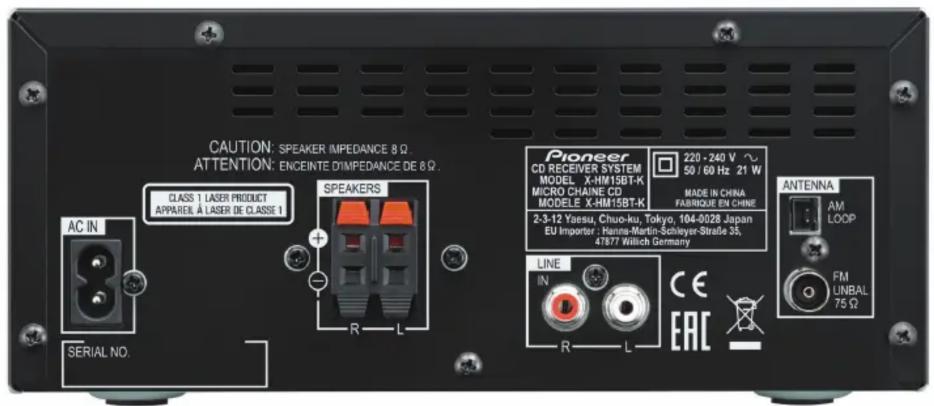

CAUTION: SPEAKER IMPEDANCE 8 Ω ATTENTION: ENCEINTE DIMPEDANCE DE 8 Ω . CLASS 1 LASER PRODUCT APPAREIL À LASER DE CLASSE 1 SPEAKERS Pioneer CD RECEIVER SYSTEM MODEL X-HM15BT-K MICRO CHAINE CD MODELE X-HM15BT-K 220 - 240 V ~ 50 / 60 Hz 21 W MADE IN CHINA FABRIQUE EN CHINE 2-3-12 Yeesu, Chuo-ku, Tokyo, 104-0028 Japan EU Importer: Hanne-Martin-Schieyer-Straße 35, 47877 Willich Germany ANTENNA AM LOOP FM UNBAL 75 Ω AC IN R-L SERIAL NO. LINE IN R-L CE ERC

X-HM15BT-K/CMP

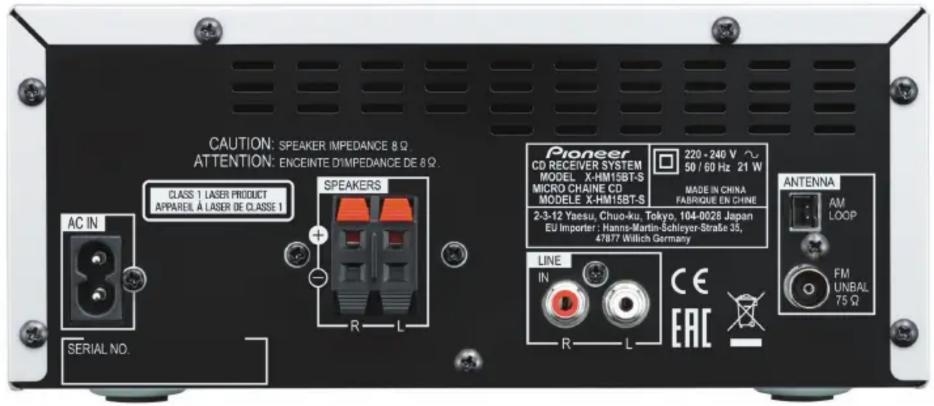

CAUTION: SPEAKER IMPEDANCE 8 Ω ATTENTION: ENCEINTE D'IMPEDANCE DE 8 Ω. CLASS 1 LASER PRODUCT APPAREL À LASER DE CLASSE 1 SPEAKERS AC IN R L SERIAL NO. Pioneer CD RECEIVER SYSTEM MODEL X-HM15BT-S MICRO CHAINE CD MODELE X-HM15BT-S 2-3-12 Yaesu, Chuo-ku, Tokyo, 104-0026 Japan EU Importer : Hanns-Martin-Schireyer-Straße 35, 47877 Willich Germany 220 - 240 V ~ 50 / 60 Hz 21 W MADE IN CHINA FABRIQUE EN CHINE LINE IN R L CE ERC ANTENNA AM LOOP FM UNBAL 75 Ω

X-HM15BT-S/CMP

TERMINALS

USB (Front) >

Audio Input (Front) >

Phones Output (Front) >

Speaker Terminal >

Line Input (RCA, Pair)

FM/AM Tuner Antenna >

SPECIFICATIONS

Power Requirements: AC 220-240 V, 50/60 Hz

Power Consumption: 21 W/0.5 W or less (Standby)

Dimensions (W x H x D)/Weight: >

Main Unit: 215 x 95 x 315 mm/2.0 kg

Speaker (Each): 130 x 211.5 x 240 mm/2.0 kg

INTEGRATED TECHNOLOGIES

PIONEER X-HM15BT - INTEGRATED TECHNOLOGIES - 1

Bluetooth®

PIONEER X-HM15BT - INTEGRATED TECHNOLOGIES - 2

RDS

PIONEER X-HM15BT - INTEGRATED TECHNOLOGIES - 3

PIONEER X-HM15BT - INTEGRATED TECHNOLOGIES - 4

PIONEER X-HM15BT - INTEGRATED TECHNOLOGIES - 5
