BRUGSANVISNING X-HM15 PIONEER

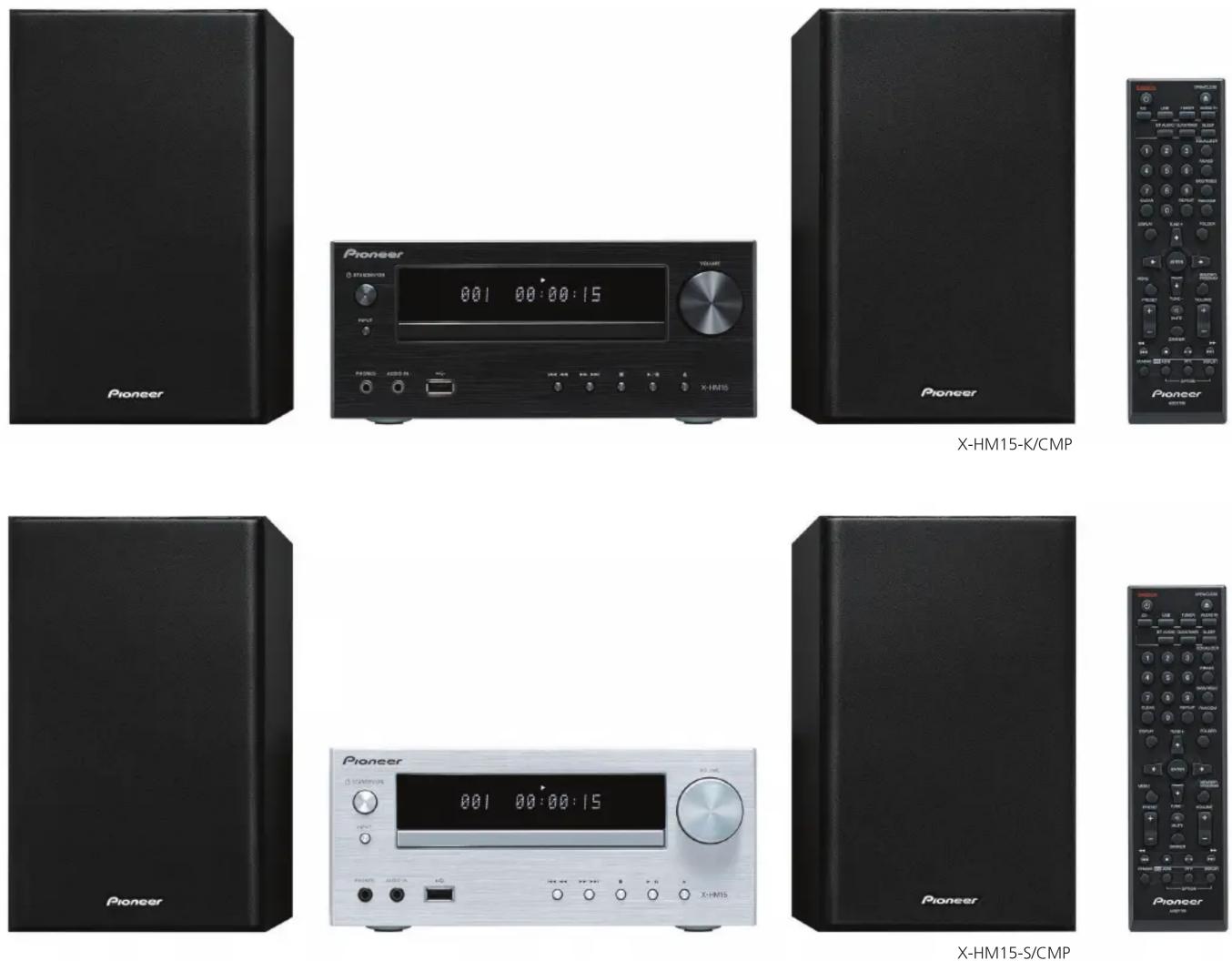

PIONEER X-HM15 - 1

FUNCTIONS

CD/FM/AM/ > USB/Audio In/Line

AMPLIFICATION

Class D Amplifier (Digital Amplifier)

Power Output: 15 W + 15 W (1 kHz, 10 % THD, 8 ohms)

SPEAKERS

10 cm Cone Woofer, Piezo Tweeter >

AUDIO FEATURES

FM Tuner (30 Presets)

AM Tuner (15 Presets)

RDS Tuner >

Sound Control (Bass/Treble)

Sound Preset Equaliser (Flat/Active/Dialogue/Night)

Bass Enhancer (P.BASS)

PLAYBACK MEDIA/PC FILES

CD-Audio, CD-R/-RW (MP3/WMA)

USB Device (MP3/WMA)

CONVENIENCE

Auto Power Off

Clock

Sleep Timer

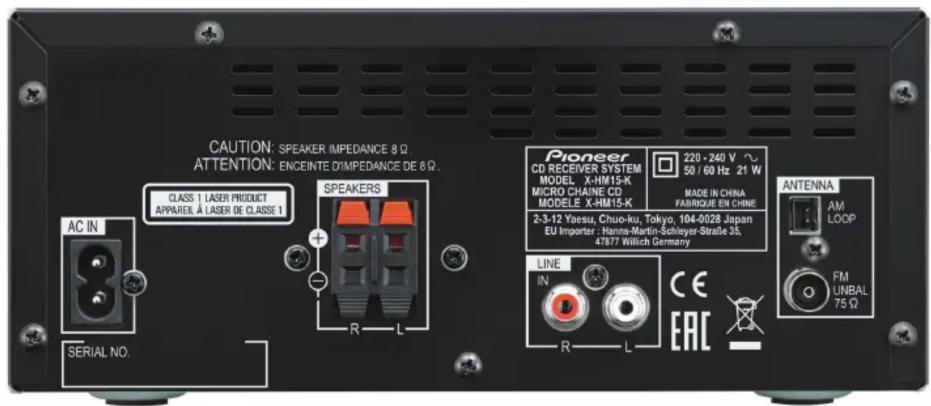

CAUTION: SPEAKER IMPEDANCE 8 Ω ATTENTION: ENGEINTE DIMPEDANCE DE 8 Ω . CLASS 1 LASER PRODUCT APPAREIL À LASER DE CLASSE 1 SPEAKERS AC IN SERIAL NO. Pioneer CD RECEIVER SYSTEM MODEL X-HM15-K MICRO CHAINE CD MODELE X-HM15-K 220 - 240 V ~ 50 / 60 Hz 21 W MADE IN CHINA FABRIQUE EN CHINE 2-3-12 Yaesu, Chuo-ku, Tokyo, 104-0028 Japan EU Importer: Hanna-Martin-Schleyer-Straße 35, 47877 Willich Germany LINE IN R-L CE EAC ANTENNA AM LOOP FM UNBAL 75 Ω

X-HM15-K/CMP

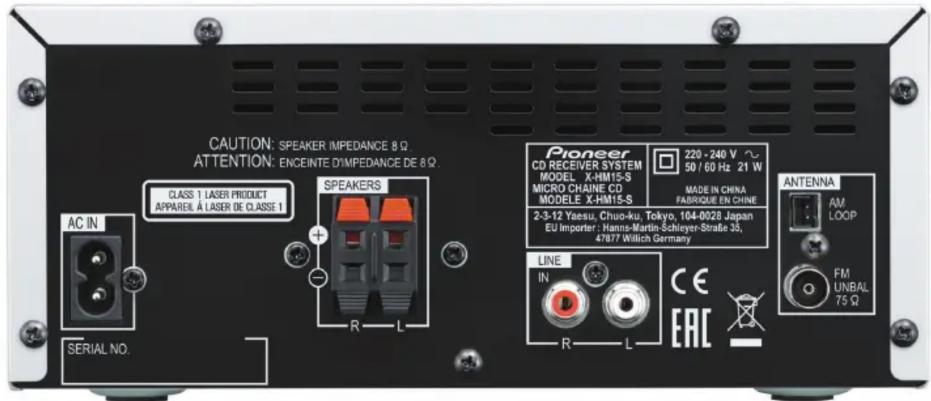

CAUTION: SPEAKER IMPEDANCE 8 Ω ATTENTION: ENCEINTE DIMPEDANCE DE 8 Ω CLASS 1 LASER PRODUCT APPAREIL À LASER DE CLASSE 1 SPEAKERS AC IN R L SERIAL NO. Pioneer CD RECEIVER SYSTEM MODEL X-HM15-S MICRO CHAINE CD MODELE X-HM15-S 220 - 240 V ~ 50 / 60 Hz 21 W MADE IN CHINA FABIOQUE EN CHINE 2-3-12 Yaesu, Chuo-ku, Tokyo, 104-0028 Japan EU Importer: Hannis-Martin-Schleyor-Straße 35, 47877 Willich Germany LINE IN R L CE ERC ANTENNA AM LOOP FM UNBAL 75 Ω

X-HM15-S/CMP

TERMINALS

USB (Front) >

Audio Input (Front) >

Phones Output (Front) >

Speaker Terminal >

Line Input (RCA, Pair)

FM/AM Tuner Antenna >

SPECIFICATIONS

Power Requirements: AC 220-240 V, 50/60 Hz >

Power Consumption: 21 W/0.5 W or less (Standby)

Dimensions (W x H x D)/Weight:

Main Unit: 215 x 95 x 315 mm/2.0 kg

Speaker (Each): 130 x 211.5 x 240 mm/2.0 kg

INTEGRATED TECHNOLOGIES

PIONEER X-HM15 - INTEGRATED TECHNOLOGIES - 1

RDS

PIONEER X-HM15 - INTEGRATED TECHNOLOGIES - 2

PIONEER X-HM15 - INTEGRATED TECHNOLOGIES - 3

PIONEER X-HM15 - INTEGRATED TECHNOLOGIES - 4

PIONEER and the Pioneer logo are registered trademarks of Pioneer Corporation, and are used under license.
