BRUGSANVISNING Windsor Chrono 1078 Gant
GANT
TIME
WINDSOR CHRONO
USER INSTRUCTIONS
SPECIFICATIONS
GANT ID NO: 1078
MOVEMENT NO: FS00
BATTERY: SR626SW

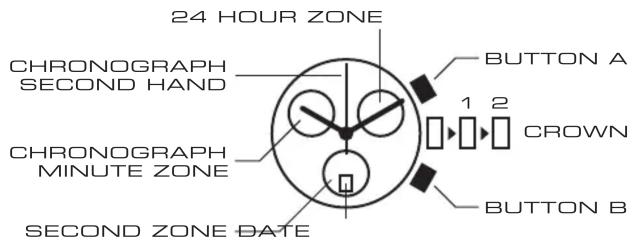

DISPLAYS AND BUTTONS
SETTING THE TIME
- Pull the crown out to position 2.
- Turn the crown to set hour and minute hands.
- When the crown is pushed back to the normal position, small second hand begins to run.
SETTING THE DATE
- Pull the crown out to position 1.
- Turn the crown clockwise to set the date.*
USING THE CHRONOGRAPH
This chronograph is able to measure and display time in 1/1 second units up to a maximum of 59 minutes and 59 seconds. The chronograph second hand keeps going continuously for 59 minutes 59 seconds after starting the measurement.
MEASURING TIME WITH THE CHRONOGRAPH
- The chronograph can be started and stopped each time button A is pressed.
- Pressing button B resets the chronograph and the chronograph second hand and chronograph minute hand return to zero position.
CHRONOGRAPH RESET
(INCL. AFTER REPLACING BATTERY)
This procedure should be performed when the chronograph second hand does not return to zero position after the chronograph has been reset, and including after the battery has been replaced.
- Pull the crown out to position2.
- Press button A to set the chronograph second hand to the zero position. The chronograph hand can be advanced rapidly by continuously pressing button A.
- Once the hand have been zeroed, return the crown to the normal position.
