BRUGSANVISNING MK191 VELLEMAN

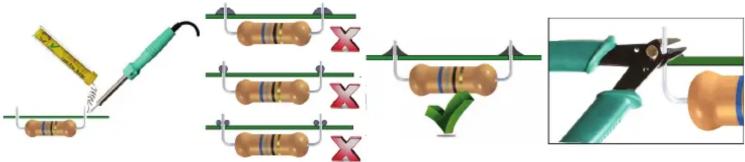

Soldering - Solderen - Soudage - Löten - Soldadura - Lödning - Juottami nen - Saldatura - Solda
PMK191
