BRUGSANVISNING INF-SPTZ INFOCUS

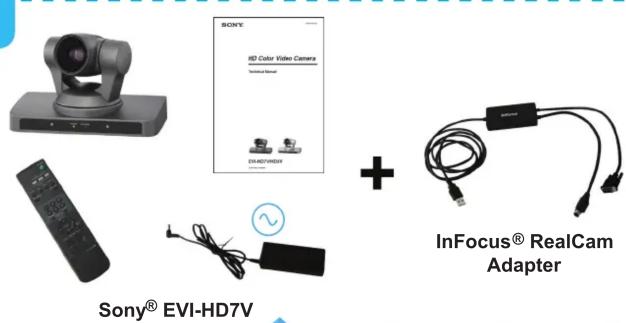

INFOCUS REALCAM ASSEMBLY GUIDE

1

?

www.infocus.com/support

2

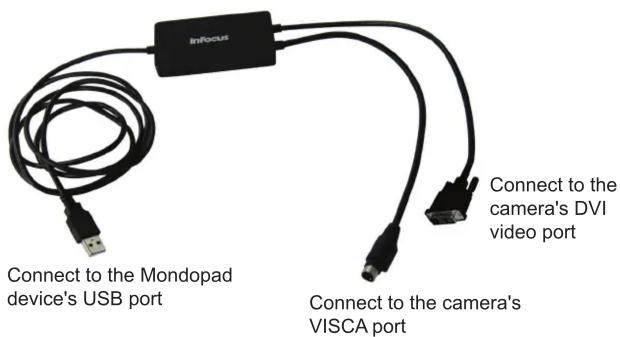

Connect the RealCam Adapter to the camera and Mondopad device

3
Connect the power cord to the camera

Exterior view of a modern automated camera or radar system with connected cables and a dial (no visible text or symbols)

www.infocus.com/support

IMPORTANT INFORMATION:

• The camera is pre-configured for the recommended resolution of 1920x1080@29.97fps. To confirm this setting, verify that the blue System Select switch on the back of the camera is set to "1." Additional details can be found in the Sony user manual.
• The Sony EVI-HD7V camera does not contain an embedded microphone. An external microphone like the ClearOne® Chat® series or the Jabra SPEAK™ series must be used.
  • The Sony EVI-HD7V camera is warranted through Sony.
• To install the RealCam camera kit (p/n INF-SPTZ) on the top of your Mondopad device, you will need the INF-PTZMNT. The INF-VIDSHELF can also be used (compatible with the INF-FLRSTAND and the INF-MOBCART only).
• To use the camera kit (p/n INF-SPTZ) on a shelf below the Mondopad device, you will need the INF-ACCYSHELF (compatible with both the INF-FLRSTAND and INF-MOBCART) or the INF-ACCYSHELFPRO-x (compatible with the INF-MOBCARTPRO-x).

REALCAM ADAPTER LIMITED WARRANTY

Subject to the Limitations, Exclusions and Disclaimers hereof, InFocus Corporation ("InFocus") warrants that the RealCam Adapter (hereinafter collectively or individually referred to as "Product" as appropriate) will conform to InFocus' specifications and be free from defects in material or workmanship for the respective Limited Warranty period provided below. If the Product, while subject to this Limited Warranty, is defective in material or workmanship during the warranty period, then InFocus, at its option, will REPAIR or REPLACE the Product. InFocus' sole obligation is to supply (or pay for) all labor necessary to repair the Product found to be defective within the Limited Warranty period and to repair or replace defective parts with new parts or, at the option of InFocus, serviceable used parts that are equivalent or superior to new parts performance, but shall not exceed the return of the amount of the purchase price paid by the purchaser.

Limited Warranty Period is as follows:

• RealCam Adapter Limited Warranty Period: Ninety (90) days from date of purchase.

WARRANTY LIMITATION AND EXCLUSION

THIS WARRANTY SETS FORTH INFOCUS' MAXIMUM LIABILITY FOR ITS PRODUCT. THIS WARRANTY EXTENDS ONLY TO PRODUCTS PURCHASED FROM INFOCUS OR AN INFOCUS AUTHORIZED RESELLER.

InFocus shall have no further obligation under the foregoing Limited Warranty if the Product has been damaged due to abuse, misuse, exposure to smoke, accident, service other than by InFocus or its authorized agents, or failure caused other than from ordinary use or failure to properly use the Product in the application for which said Product was intended. This warranty does not cover maintenance/repair/replacement of parts due to normal wear and tear.

DISCLAIMER OF UNSTATED WARRANTIES

THE WARRANTY PRINTED ABOVE IS THE ONLY WARRANTY APPLICABLE TO THIS PRODUCT. ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR PARTICULAR PURPOSE ARE DISCLAIMED. THERE ARE NO WARRANTIES THAT EXTEND BEYOND THE DESCRIPTION ON THE FACE HEREOF AND THE FOREGOING WARRANTY SHALL NOT BE EXTENDED, ALTERED OR VARIED EXCEPT BY WRITTEN INSTRUMENT SIGNED BY INFOCUS. SOME JURISDICTIONS DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY MAY LAST, SO SUCH LIMITATIONS MAY NOT APPLY TO YOU.

LIMITED WARRANTY PERIOD

The Limited Warranty periods hereof commence on the date of proof of purchase by the end-user customer. SOME JURISDICTIONS MAY GRANT YOU CONSUMER RIGHTS WITH MINIMUM WARRANTY DURATION THAT DIFFER FROM THE DURATIONS PROVIDED HEREIN, AND INFOCUS WILL HONOR ALL SUCH CONSUMER RIGHTS UPON PROOF OF PURCHASE IN THAT JURISDICTION. To Obtain Warranty Service: During the Limited Warranty period, to exercise this Limited Warranty, the purchaser must first contact 1) InFocus (Mailing address: InFocus Corporation, 13190 SW 68th Parkway, Suite 200, Portland, OR 97223-8368 USA; or via the web at www.info focus.com/support), 2) a service facility authorized by InFocus or 3) the place of original purchase.

LIMITATION OF LIABILITY

IT IS UNDERSTOOD AND AGREED THAT INFOCUS' LIABILITY SHALL NOT EXCEED THE RETURN OF THE AMOUNT OF THE PURCHASE PRICE PAID BY PURCHASER. Where applicable national or state law prohibits the exclusion or limitation of liability, InFocus excludes or limits its liability to the maximum extent permitted by national law. Limitation on Bringing Action - No action, regardless of form, arising out of the agreement to purchase the Product may be brought by purchaser more than one year after the cause of action has accrued. Governing Law - Any action, regardless of form, arising out of the agreement to purchase the Product is governed by the laws of the state of Oregon, USA. Mandatory Arbitration - Any action, regardless of form, arising out of the agreement to purchase the Product is subject to mandatory arbitration. THIS WARRANTY DOES NOT AFFECT YOUR LEGAL RIGHTS UNDER APPLICABLE NATIONAL LAWS RELATING TO THE SALE OF CONSUMER PRODUCTS.

TRADEMARK INFORMATION

InFocus, In Focus, and INFOCUS (stylized) are either registered trademarks or trademarks of InFocus Corporation in the United States and other countries. All other trademarks are the property of their respective owners. Any other trademarks, service marks, personal names or product names are assumed to be the property of their respective owners and are used only for reference. There is no implied sponsorship, affiliation, certification, approval or endorsement if we use one of these terms.

Part Number: INF-SPTZ

Regulatory Model: EVI-HD7V

P/N 009-1447-01

InFocus

Bright Ideas Made Brilliant
