BRUGSANVISNING ATQP30S Mac Tools

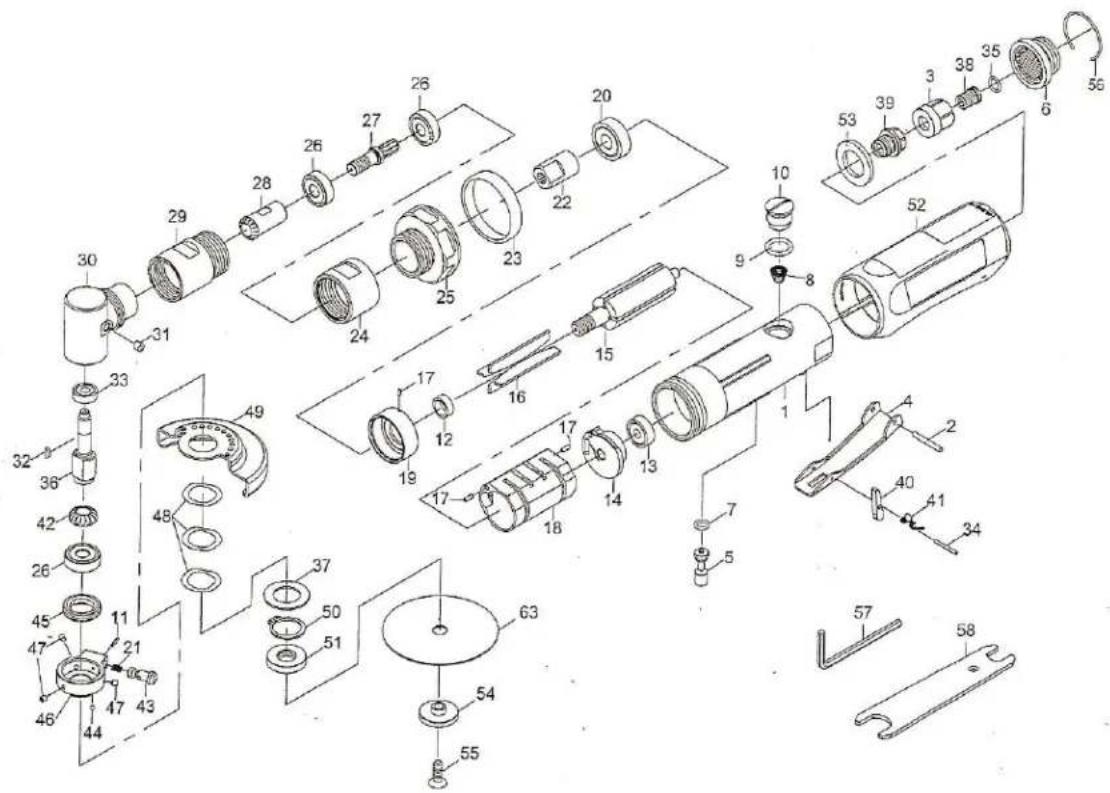

PARTS BREAKDOWN FOR 3" CUT-OFF TOOL - MODEL ATQP30S
| Index No. | Parts No. | Description | Index No. | Parts No. | Description |
| 1 | ATQP30S-01 | Motor Housing | 33 | AGQP50M-13 | Ball Bearing (696zz) |
| 2 | AD3800AH-02 | Spring Pin (3x24) | 34 | AG200-38 | Spring Pin (2x18) |
| 3 | ATQP30S-03 | Air Inlet | 35 | AS20-52 | O-Ring (7.5x1.5) |
| 4 | AGQP100-04 | Throttle Lever | 36 | ATQP30S-36 | Spindle |
| 5 | AGQP100-05 | Valve Shaft | 37 | ATQP30S-37 | Washer |
| 6 | AD3800AH-48 | Exhaust Diffuser | 38 | AGQP100-37 | Screw |
| 7 | AD54013 | O-Ring (4.8x1.9) | 39 | ATQP30S-39 | Fixed Shaft |
| 8 | AGQP100-08 | Valve Spring | 40 | AGQP100-40 | Safety Bar |
| 9 | AGQP100-09 | O-Ring (11.8x2.4) | 41 | AGQP100-41 | Spring |
| 10 | AGQP100-10 | Plug | 42 | ATQP30S-42 | Bevel Gear |
| 11 | ATQP30S-11 | Spring Pin (2x10) | 43 | ATQP30S-43 | Stop Button |
| 12 | ATQP30S-12 | Rotor Bushing | 44 | ATQP30S-44 | Steel Ball (9/64") |
| 13 | AD54006 | Ball Bearing (626zz) | 45 | AGQP50AM-31 | Clamp Nut |
| 14 | ATQP30S-14 | Rear End Plate | 46 | ATQP30S-46 | Cover Seat |
| 15 | ATQP30S-15 | Rotor | 47 | ATQP30S-47 | Set Screw(3) (M4x4) |
| 16 | ATQP30S-16 | Rotor Blade (4) | 48 | ATQP30S-48 | Wave Washer(3) (WW-20) |
| 17 | ATQP30S-17 | Spring Pin(3) (2.5x6) | 49 | ATQP30S-49 | Disc Cover |
| 18 | ATQP30S-18 | Cylinder | 50 | ATQP30S-50 | Retainer Ring (STW-20) |
| 19 | ATQP30S-19 | Front End Plate | 51 | ATQP30S-51 | Flange |
| 20 | ATQP30S-20 | Ball Bearing (6000zz) | 52 | AGQP100-52 | Rubber Grip |
| 21 | ATQP30S-21 | Spring | 53 | ATQP30S-53 | Muffler |
| 22 | ATQP30S-22 | Connector Shaft | 54 | ATQP30S-54 | Flange nut |
| 23 | ATQP30S-23 | Decoration Ring | 55 | ATQP30S-55 | Screw (M6x18L) |
| 24 | ATQP30S-24 | Connector Nut | 56 | ATQP30S-56 | Retainer Ring |
| 25 | ATQP30S-25 | Clamp Nut | 57 | AS20-59 | Hex-Key Wrench (4mm) |
| 26 | AD3800AH-20 | Ball Bearing(3) (608zz) | 58 | AGQP50M-27 | Spanner (11mm,17mm) |
| 27 | ATQP30S-27 | Roller Shaft | 63 | ATQP30S-63 | Disc Wheel 3" |
| 28 | ATQP30S-28 | Bevel Gear | |||
| 29 | ATQP30S-29 | Connector Pipe | |||
| 30 | ATQP30S-30 | Head | |||
| 31 | AWQP120M-26 | Oil Cap | |||
| 32 | AGQP50AM-36 | Key |
