BRUGSANVISNING AT35A Mac Tools
FLEX CUT-OFF TOOL
Model #AT 35 A

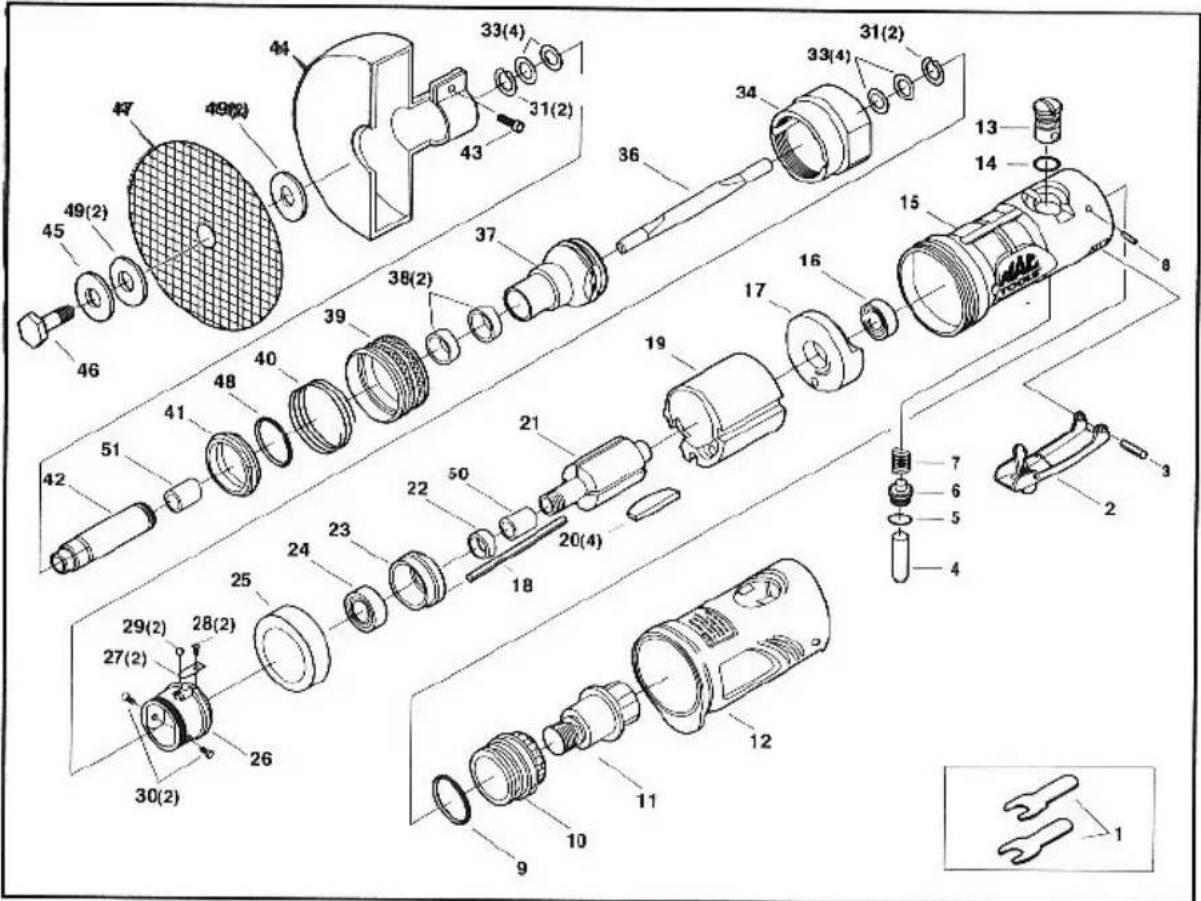

PARTS LIST:
| Fig. | Parts No. | Description | |||
| 1 | AT35-01 | Spanner Wrench Set | 26 | AT35A-26 | Socket Joint |
| 2 | AG50-29 | Safety Lever | 27 | AT35-27 | Dent Spring (2) |
| 3 | AW156TR-46 | Spring Pin | 28 | AT35-28 | Screw (2) |
| 4 | AR133-10 | Valve Shaft | 29 | ASD810-11 | Steel Ball (2) |
| 5 | AR133-09 | O-Ring | 30 | AT35-30 | Set Screw (2) |
| 6 | AR133-08 | Throttle Valve | 31 | AT35-31 | Retaining Ring (2) |
| 7 | AR133-07 | Valve Spring | 33 | AT35A-33 | Shaft Washer B (4) |
| 8 | AD510AH-22 | Spring Pin | 34 | AT35A-34 | Lock Ring |
| 9 | AG70-08 | O-Ring | 36 | AT35-36 | Power Shaft |
| 10 | AG70-10 | Exhaust Sleeve | 37 | AT35-37 | Flex Shaft |
| 11 | AG60-27 | Inlet Bushing | 38 | AT35-38 | Needle Bearing (2) |
| 12 | AG70-12 | Housing Cover | 39 | AT35-39 | Lock Sleeve |
| 13 | AG60-17 | Air Regulator | 40 | AT35-40 | Retainer Spring |
| 14 | AR134-10 | O-Ring | 41 | AT35-41 | Retainer Ring |
| 15 | AT35A-15 | Motor Housing | 42 | AT35A-42 | Drive Shaft |
| 16 | ADG210-11 | Ball Bearing | 43 | AW136-52 | Cap Screw |
| 17 | AT35A-17 | Rear End Plate | 44 | AT35-44 | Wheel Cover |
| 18 | AT35A-18 | Dowel Pin (3) | 45 | APF600-22 | Wheel Washer (M6) |
| 19 | AT35A-19 | Cylinder | 46 | AT35-46 | Hex. Bolt |
| 20 | AG70-20 | Rotor Blade (4) | 47 | Cutting Wheel (See Catalog) | |
| 21 | AT35-21 | Rotor | 48 | AW135-20 | O-Ring |
| 22 | AT35-22 | Bearing Spacer | 49 | AT35-49 | Wheel Washer-3/8" (2) |
| 23 | AT35A-23 | Front End Plate | 50 | AT35-50 | Bushing Long |
| 24 | AW435-20 | Ball Bearing | 51 | AT35A-51 | Bushing Short |
| 25 | AT35A-25 | Motor Lock Ring |
