BRUGSANVISNING AR380RH Mac Tools
3/8" ROTATING HEAD AIR RATCHET WRENCH
Model #AR 380RH

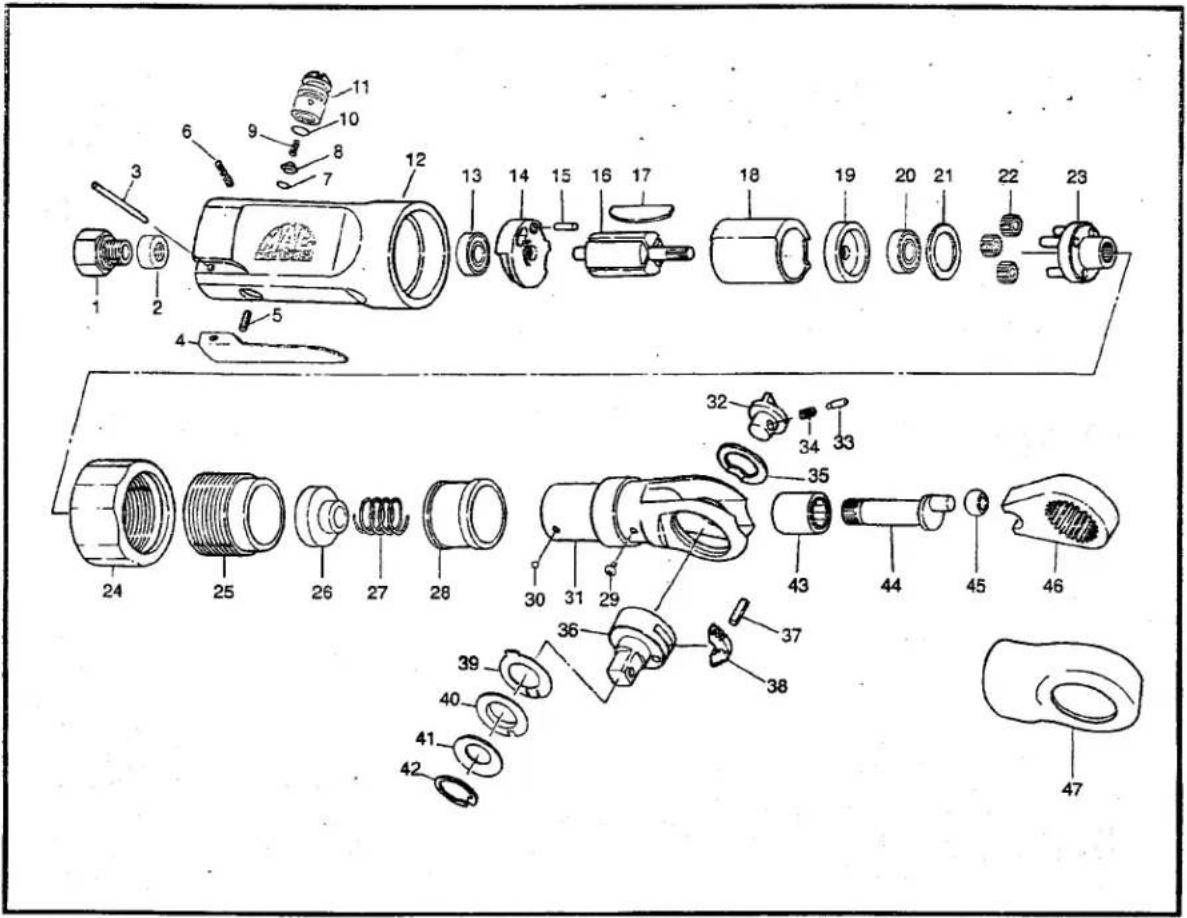

PARTS LIST:
| Fig. | Parts No. | Description | |||
| 1 | AR2765-42 | Air Inlet | 29 | AR250RH-29 | Screw |
| 2 | AR250RH-02 | Felt Ring Muffler | 30 | AW148TR-27 | Steel Ball (2) |
| 3 | AR133-02 | Lever Pin | 31 | AR250RH-31 | Ratchet Housing |
| 4 | AR250RH-04 | Throttle Lever | 32 | AR2775-07 | Reverse Button |
| 5 | AR760-07 | Throttle Plunger | 33 | AR760-34 | Lock Pin |
| 6 | AR760-09 | Spring Pin (2.5×18) | 34 | AR760-33 | Ratchet Spring |
| 7 | AR760-06 | O-Ring (P-4) | 35 | AR2865-44 | Wear Washer |
| 8 | AR133-08 | Throttle Valve | 36 | AR2775-08 | 3/8" Ratchet Anvil |
| 9 | AR133-07 | Throttle Valve Spring | 37 | AR760-36 | Ratchet Pawl Pin |
| 10 | AR760-03 | Regulator O-Ring | 38 | AR760-37 | Ratchet Pawl |
| 11 | AR760-02 | Air Regulator | 39 | AR2865-45 | Washer A |
| 12 | AR250RH-12 | Motor Housing | 40 | AR2865-47 | Washer B |
| 13 | AR760-12 | Ball Bearing (696ZZ) | 41 | AR2865-48 | Spring Washer |
| 14 | AR2760C-11 | Rear End Plate | 42 | AR760-42 | Anvil Retaining Ring |
| 15 | AR2760C-13 | Dowel Pin | 43 | AR760-26 | Needle Bearing |
| 16 | AR760-16 | Rotor | 44 | AR760-28 | Crankshaft |
| 17 | AR760-15 | Rotor Blade (4) | 45 | AR760-29 | Drive Bushing |
| 18 | AR760-17 | Cylinder | 46 | AR760-30 | Ratchet Yoke |
| 19 | AR760-18 | Front End Plate | 47 | AR250RH-48 | Head Cover |
| 20 | AR133-18 | Front Rotor Ball Bearing | |||
| 21 | AR760-20 | Internal Gear Spacer | TUNE-UP KIT AR2775-TK | ||
| 22 | AR760-21 | Planet Gear (3) | Incl: Index No's 7, 10, 17(4), 33, 34, 35, 38, 39, 40, 41, 42, 45 | ||
| 23 | AR760-23 | Planet Cage with Pin | REPAIR KIT AR2775-RK | ||
| 24 | AR2865-29 | Clamp Nut | |||
| 25 | AR2765-22 | Internal Gear | Incl: Index No's 7, 9, 10, 17(4), 32, 33, 34, 35, 36, 37, 38, 39, 40 | ||
| 26 | AR250RH-26 | Ratchet Housing Receiver | 41, 42, 45 | ||
| 27 | AR250RH-27 | Spring | ANVIL KIT AR2775-AK | ||
| 28 | AR250RH-28 | Slide Ring | Incl: Index No's 32, 33, 34, 35, 36, 37, 38, 39, 40, 41, 42 | ||
