BRUGSANVISNING PSR2.5 AMX

Power Supply Models

AMX offers 6 variations of our Class I, CSA/CE approved, and UL listed system power supplies:

PS/N/R POWER SUPPLIES

PSN6.5(FG423-41)With US power cord
PS4.4(FG423-44)Includes US	power cord and barrel plug
PS3.0(FG423-30)Includes US	power cord and barrel plug
PSR2.5(FG423-47)Includes 3	pin retained captive-wire connector and US power cord
PSR5.4(FG423-48)Includes 2	pin retained captive-wire connector and US power cord
PSR7-V(FG423-49)IEC power	cord provided as a separate part, dependent on country requirements.
Note: All models use an input connector sanctioned by the IEC (International Electrotechnical Commission).

PSN6.5 Specifications

FIG. 1 displays the rear panel of the PSN6.5.

Exterior view of a black power supply device with ports and indicator lights (no readable text or symbols)

FIG. 1 PSN6.5 POWER SUPPLY

PSN6.5 SPECIFICATIONS

Dimensions (HWD):	1 1/2" x 5 9/16" x 9 1/4" (3.81 cm x 14.10 cm x 23.50 cm)
Weight: 2.76 lbs. (1.25 kg) (without power cord)
Input: ~100-240 V, 2.6A	MAX (1.3A MAX @ 230), 50/60 Hz
Output Voltage:	13.5 V ≡
Output Current: 6.5 A (continuous power output is 90 W max)
Ripple and Noise: 350 mV peak-to-peak @ 70% load
Protection: Over-voltage, over-current, short-circuit, transient and thermal switching regulated, overload protected
Power Indicator: Green LED indicates presence of DC on the output.
Connectors: Three removable 2-pin 3.5 mm mini-Phoenix connectors
Rear Panel Components:	• Three 12 V ≡ power supply connectors• Standard IEC (male) jack for the power cord
Input Power Cord:	6-foot (1.83 m) IEC cord with a grounded Edison plug for AC input (US only)
Enclosure:	Metal with black malte finish
Temp Range:	32°F - 122°F (0°C - 50°C)
Certification:	• UL: US listed - Class I Power Supply • PSE approved• CSA approved • CCC approved• CE approved
Accessories: • US power cord• 3 removable 2-pin 3.5 mm mini-Phoenix connectors• (Optional) AC-RK Accessory Rack Kit (FG515)

PS4.4 Specifications

FIG. 2 displays the PS4.4.

Black industrial power adapter with USB cable and connector (no visible text or symbols)

FIG. 2 PS4.4 POWER SUPPLY

PS4.4 SPECIFICATIONS

Dimensions:	4 5/8" x 2 1/4" x 1 1/2" (11.7 cm x 5.8 cm x 3.5 cm)
Weight: 1.1 lb. (499 g)
Input: ~100-240 V, 1.5A	MAX (0.6A MAX @ 230), 50/60 Hz
Output Voltage:	13.5 V ——
Output Current: 4.5A MAX
Ripple and Noise: 150 mV peak-to-peak @ full load
Protection: Over-voltage, over-current, short-circuit, transient and thermal. Switching regulated, overload protected.
Power Indicator:	Green LED indicates the presence of V ——on the output.
Connector:	Barrel plug (2.1mm ID, 5.5mm OD, 9.5mm length)
Input Power Cord:	6-foot (1.83 m) IEC cord with a grounded Edison plug for AC input (US only)
Enclosure:	Molded black matte plastic
Temp Range:	32°F - 104°F (0°C - 40°C)
Certification:	UL: US listed - Class I Power Supply CSA approved CE approved PSE approved
Included Accessories:	US power cord

PS3.0 Specifications

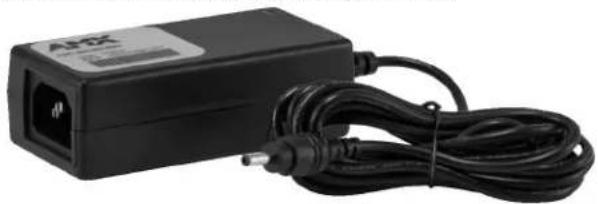

FIG. 3 displays the PS3.0. The PS3.0 is a Class I power supply which is CE approved and UL listed. The PS3.0 uses a barrel-plug connector.

Black electronic device with attached cable and connector (no visible text or symbols)

FIG. 3 PS3.0 POWER SUPPLY

PS3.0 SPECIFICATIONS

Dimensions (HWD): 37,8" x 1 3/4" x 1 1/4" (9.8 cm x 4.5 cm x 3.05 cm)
Weight: 5.6 oz (150 g) (without power cord)
Input: ~100-240 V, 3A MAX, 50/60 Hz
Output Voltage:	12 V
Output Current: 3.0 A
Ripple and Noise: 200 mV (60Hz Ripple + Switching ripple and noise)
Protection: Over-voltage, over-current, short-circuit, transient and thermal switching regulated, overload protected
Power Indicator: Green LED indicates presence of DC on the output.
Connectors: 1.3mm barrel plug, 11mm long
Input Power Cord:	6-foot (1.83 m) IEC power cord terminated with a grounded Edison plug for AC input (US only).
Enclosure:	Molded black matte plastic
Temp Range:	Operating temperature: 32°F - 122°F (0°C - 50°C)Storage temperature: -4°F - 185°F (-20°C - 85°C)
Certification:	UL: US listed - Class I Power SupplyCUL approvedTUV approvedFCC approvedCE approvedPSE approved
Included Accessories:	US power cord

PSR2.5 Specifications

FIG. 4 displays the PSR2.5.

Black rectangular electronic device with power outlet and connected cable, connected to a blue connector (no visible text or symbols)

FIG. 4 PSR2.5 POWER SUPPLY

PSR2.5 SPECIFICATIONS

Dimensions (HWD): 4 3/4" x 2 3/8" x 1 1/4" (12 cm x 6 cm x 3.05 cm)
Weight: 1.1 lb. (499 g)
Input: ~100-240 V, 1.5A	MAX, 47/63 Hz
Output Voltage:	24 V
Output Current: 2.5 A
Ripple and Noise: 300 mV peak-to-peak @ full load
Protection: Over-voltage, over-current, short-circuit, over temperature, overload protected
Power Indicator: Green LED indicates presence of DC on the output.
Connectors: 3-pin retained captive wire connector (3.5mm)
Input Power Cord: 4-foot (1.2 m) IEC power cord terminated with a grounded Edison plug for AC input (US only).
Enclosure: Molded black matte plastic
Temp Range: • Operating temperature: 32°F - 104°F (0°C - 40°C)• Storage temperature: -4°F - 176°F (-20°C - 80°C)
Certifications:	• UL: US listed - Class I Power Supply • PSE approved• CUL approved • CCC approved• TUV-GS approved • BSMI approved• FCC approved • RCM approved• CE approved
Included Accessories:	US power cord

PSR5.4 Specifications

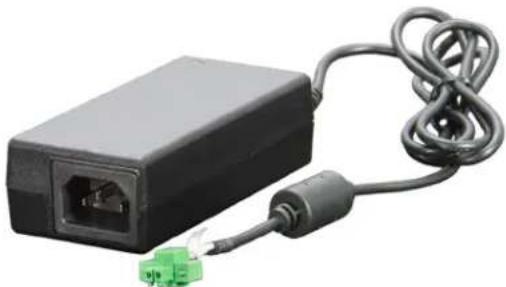

FIG. 5 displays the PSR5.4.

Black rectangular electronic device with ports and a green connector, connected by wires (no visible text or symbols)

FIG. 5 PSR5.4 POWER SUPPLY

PSR5.4 SPECIFICATIONS

Dimensions (HWD): 4 1/2" x 2" x 1 1/4" (11.5 cm x 5.15 cm x 3.05 cm)
Weight: 0.48 lb (221 g)
Input: 100-240 +10% VAC, 47-63 Hz
Input Currency:	• <2A MAX at 100 VAC + full load• <1A MAX at 230 VAC + full load
Output Voltage:	12 V
Output Current: 5.4A MAX
Ripple and Noise: 200 mV peak-to-peak @ full load

PSR5.4 SPECIFICATIONS (CONT.)

Protection: Over-voltage, over-current, short-circuit, transient and thermal. Switching regulated, overload protected
Power Indicator:	Green LED indicates the presence of DC on the output
Connectors: Mini 2-pin captive wire connector (3.5 mm)
Input Power Cord: 50 mm IEC power cord terminated with a grounded Edison plug for AC input
Enclosure: Molded black matte plastic
Environmental:	Operating temperature: 32^ to 104^ ( 0^ to 40^ )Storage temperature: -4^ - 176^ ( -20^ - 80^ )
Certifications:	UL: US listed - Class I Power Supply, CSA approved, CE approvedAS/NZS 60950-1 - Australia, New ZealandBSMI - TaiwanCCC - ChinaCU - RussiaUL Energy VerifiedKC - KoreaTUV GS - Germany
Included Accessories:	US power cord

PSR7-V Specifications

FIG. 6 displays the PSR7-V. This accessory power supply should be used only with Listed AMX products.

FIG. 6 PSR7-V POWER SUPPLY

PSR7-V SPECIFICATIONS

Dimensions (HWD): 15/8" x 5 3/4" x 5 1/8" (4.13 cm x 14.6 cm x 13.02 cm)
Weight: 1.45 lb. (657 g)
Input: ~100-240 V, 1.9A	MAX, 47/63 Hz
Output Voltage:	12 V - +/- .6V
Output Current: 5.5 A
Ripple and Noise: 160mV peak-to-peak @ full load
Protection: Over-voltage, over-current, short-circuit, over temperature, overload protected
Power Indicator:	Green LED indicates the presence of DC on the output
Connectors: Three removable 2-pin 3.5 mm mini-Phoenix connectors
Input Power Cord: Dependent on regional model number. Please see the product catalog for available country-specific products.
Output Power Connectors:	Three 12 V power supply connectorsThe connecting cable must be DP-2 or DP-2P and proper AWG.
Enclosure: Metal with black malle finish
Environmental:	Operating temperature: 32°F to 122°F (0°C to 50°C)Storage temperature: -4°F - 176°F (-20°C - 80°C)Note: If mounting the power supply on a rack, you must keep 1 RU clear between items to ensure a proper temperature environment.
Certifications:	UL/cUL/CBLUMARUL. RCM -Australia, New ZealandUL - MoroccoNOM - MexicoFCC Part 15 Subpart BCCC - China

Note: The power light on the front panel should remain solid when power is provided to the unit. A blinking power light indicates overcurrent. If this occurs, unplug the main power connector from the unit for 30 seconds then reconnect the power to reset the unit. If the main power is connected and the power light is not on, the unit has overheated. If this occurs, unplug the main power connector from the unit for 30 seconds then reconnect the power to the unit.
